How many items can the warming drawer hold?

The warming drawer can accommodate up to 12 plates or up to 64 espresso cups, with a cavity volume of 20 l and a maximum loading capacity of 25 kg.

What temperature range does the warming drawer offer?

The warming drawer has temperature control in 4 levels, with glass surface temperatures of approximately 30°C to 80°C.

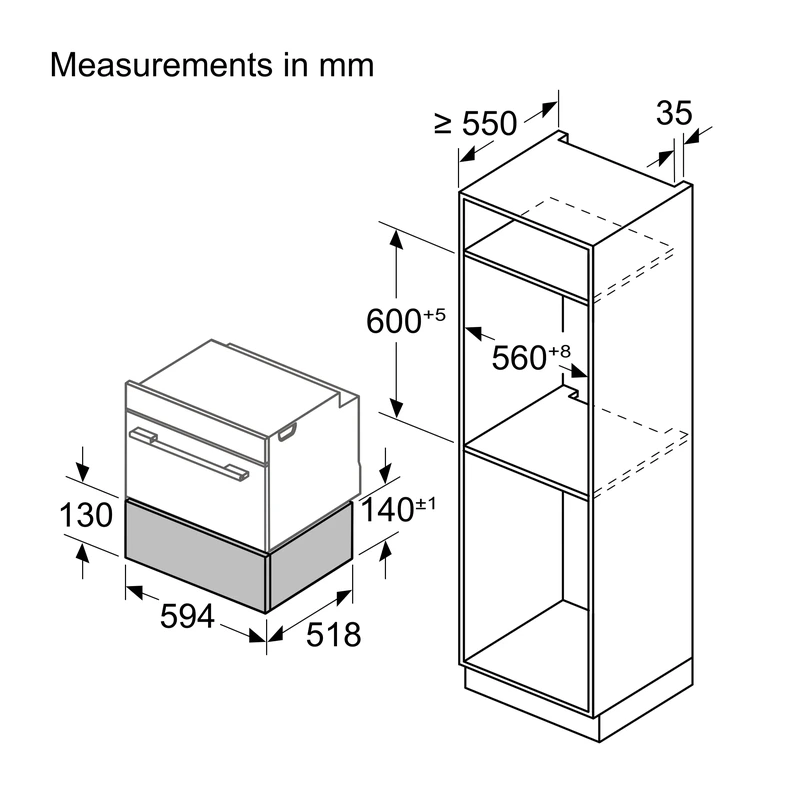

What are the installation dimensions for this model?

The appliance dimensions are 140 mm x 594 mm x 518 mm. The required niche size for installation is 140 x 560 x 550 mm, and niche dimensions of 140 mm x 560 mm – 568 mm x 550 mm are also specified.

What electrical connection does the warming drawer require?

The total connected electric load is 0.82 kW. It operates at a nominal voltage of 220 – 240 V, with a frequency of 50; 60 Hz, requires 10 A fuse protection, and uses a GB plug type.

Is any additional accessory needed for installation under a worktop?

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.

Product Information Sheet

Bosch Series 8 Warming Drawer

SKU: BIC7101B1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch BIC7101B1B Series 8 Warming Drawer

SKU: BIC7101B1B · EAN: 4242005322978

Black

The Series 8 BIC7101B1B is a 60 x 14 cm built-in warming drawer in black, designed for integrated kitchen installations. It features touch control with steel trim, a push-pull opening mechanism and user-friendly electronics for extremely easy operation. With a 20 l cavity volume, up to 25 kg loading capacity and space for up to 12 plates or 64 espresso cups, it offers flexible, controllable warming with four temperature levels from approximately 30°C to 80°C.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	Series 8
Product type	Built-in warming drawer
Model designation	BIC7101B1B
Colour	Black
Installation type	Built-in
Appliance dimensions (H x W x D)	140 mm x 594 mm x 518 mm
Dimensions stated	140 x 594 x 518 mm
Packed product dimensions (H x W x D)	250 x 660 x 700 mm
Niche dimensions (H x W x D)	140 x 560 x 550 mm; 140 mm x 560 mm – 568 mm x 550 mm
Cavity volume	20 l
Maximum loading	Loading up to 25 kg
Maximum number of espresso cups	64
Maximum number of plates	12 plates
Temperature control	4 levels, approx. 30°C – 80°C (glass surface temperature)
Heating plate	Easy to clean toughened glass heating plate

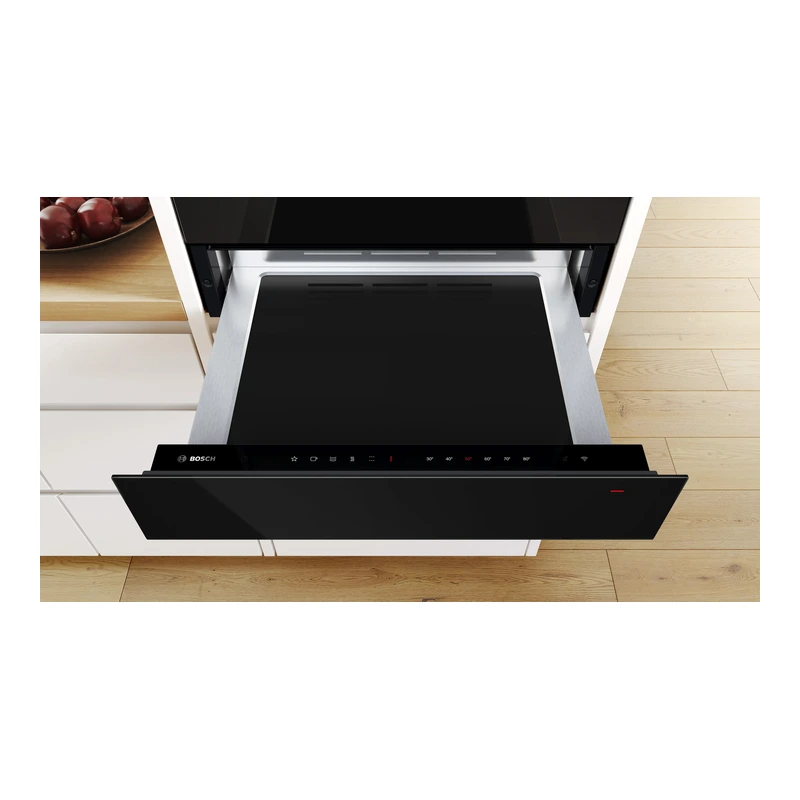

Control type	Touch Control illuminated with steel trim

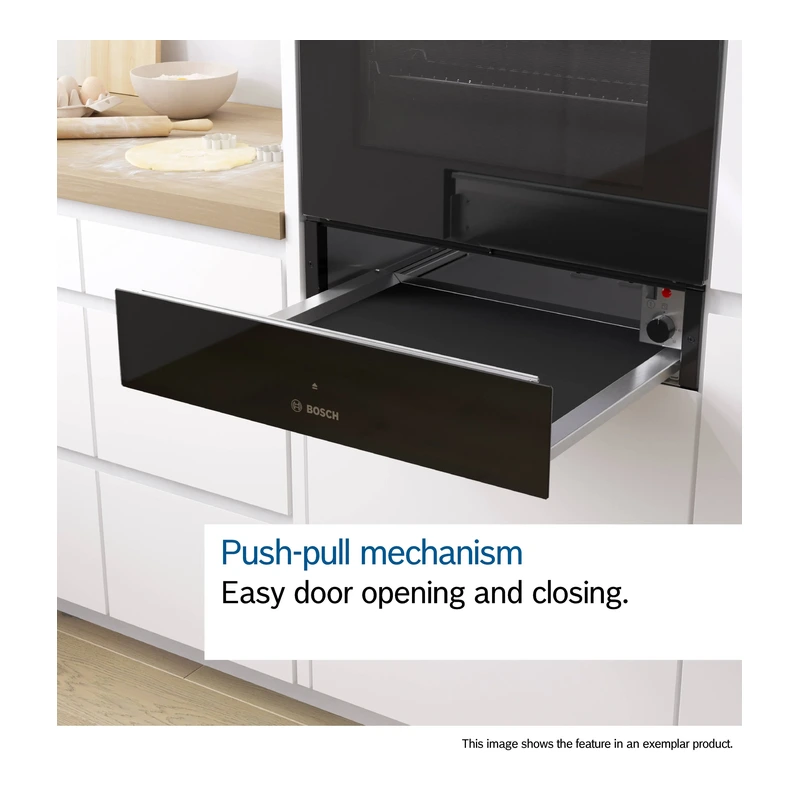

Opening mechanism	Push-pull opening mechanism
Total connected load electric	0.82 kW
Nominal voltage	220 – 240 V
Voltage stated	220-240 V
Frequency	50; 60 Hz
Fuse protection	10 A
Plug type	GB plug
EAN code	4242005322978
