What are the dimensions of the BID7101B1B warming drawer?

The appliance dimensions are 290 mm x 594 mm x 518 mm (H x W x D). The required niche size for installation is 290 x 560 x 550 mm, and the niche dimension is specified as 290 mm x 560 mm – 568 mm x 550 mm.

How many plates and cups can the warming drawer hold?

The warming drawer can accommodate up to 40 plates and up to 192 espresso cups, with a maximum loading capacity of 25 kg.

What temperature range does the drawer offer?

The temperature control has 4 levels, with a glass surface temperature of approximately 30°C to 80°C.

Is any special accessory required for installation under a worktop?

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.

What electrical connection does the warming drawer require?

The total connected load electric is 0.82 kW. The nominal voltage is 220 – 240 V with frequency 50; 60 Hz, fuse protection 10 A and a GB plug.

Is there an optional accessory available?

An optional accessory listed is the HEZ32WA00 wireless food thermometer.

Product Information Sheet

Bosch Warming Drawer

SKU: BID7101B1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch BID7101B1B Warming Drawer

SKU: BID7101B1B · EAN: 4242005323029

Black

The Series 8 built–in warming drawer BID7101B1B in black is designed for seamless integration in a 60 x 29 cm niche. It features user–friendly illuminated touch controls with steel trim and an easy to clean toughened glass heating plate. With a 54 l cavity volume, loading up to 25 kg and space for up to 40 plates or 192 espresso cups, it offers 4 temperature levels from approximately 30°C to 80°C and a convenient push–pull opening mechanism.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	Series 8
Product type	Built–in warming drawer
Model designation	BID7101B1B
Colour	Black
Built–in / Free–standing	Built–in
Cavity volume	54 l
Maximum loading capacity	Loading up to 25 kg
Maximum number of espresso cups	192
Maximum number of plates	40 plates
Temperature control	4 levels, ca. 30°C – 80°C (glass surface temperature)
Control type	Touch Control illuminated with steel trim
Heating plate	Easy to clean toughened glass heating plate

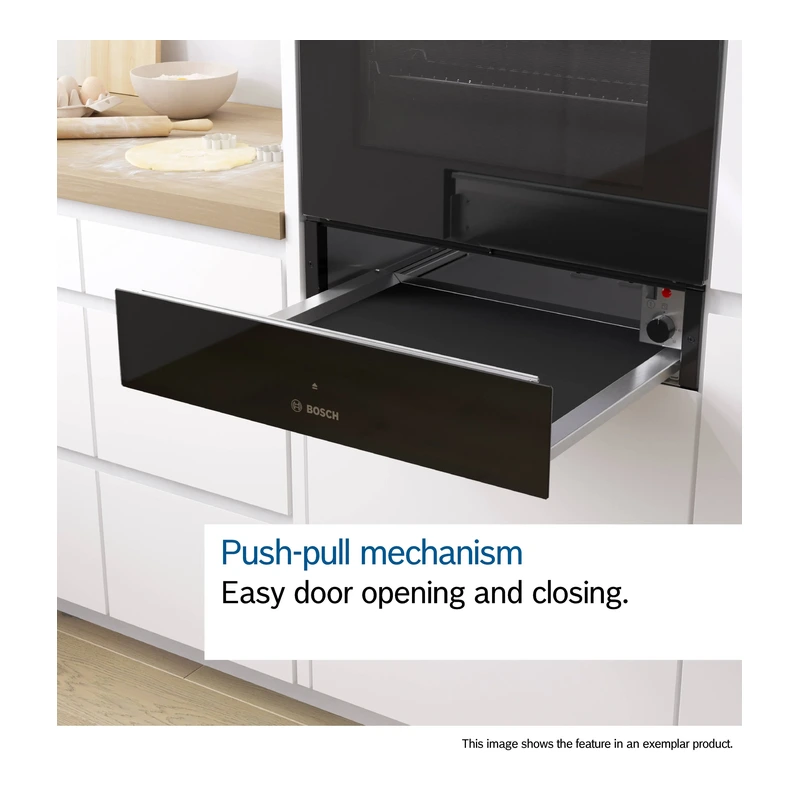

Opening mechanism	Push–pull opening mechanism with clever spring mechanism

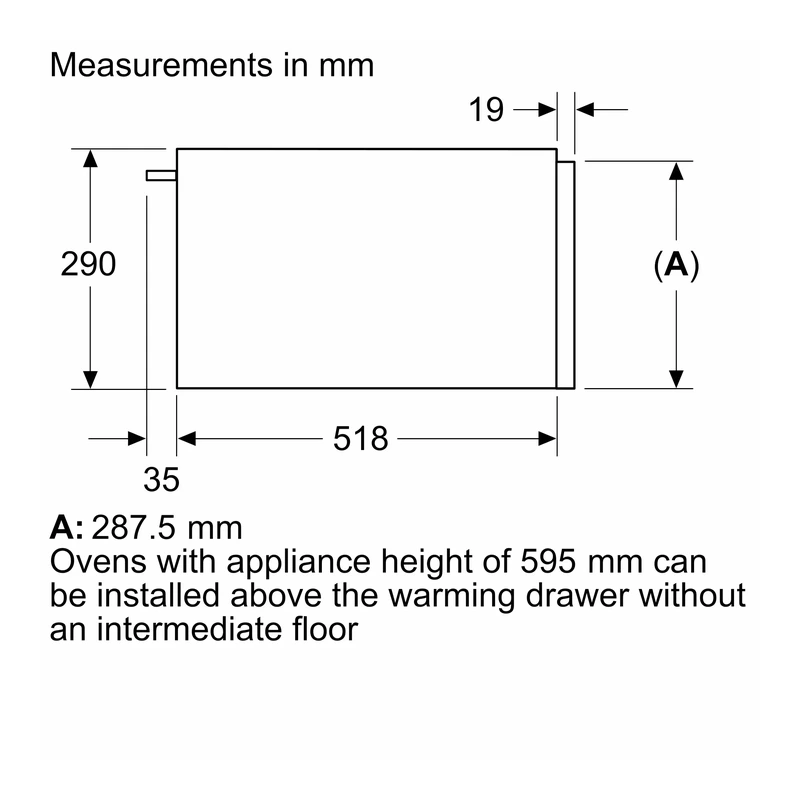

Appliance dimensions (H x W x D)	290 mm x 594 mm x 518 mm
Dimensions	290 x 594 x 518 mm
Dimensions of packed product (H x W x D)	400 x 650 x 700 mm

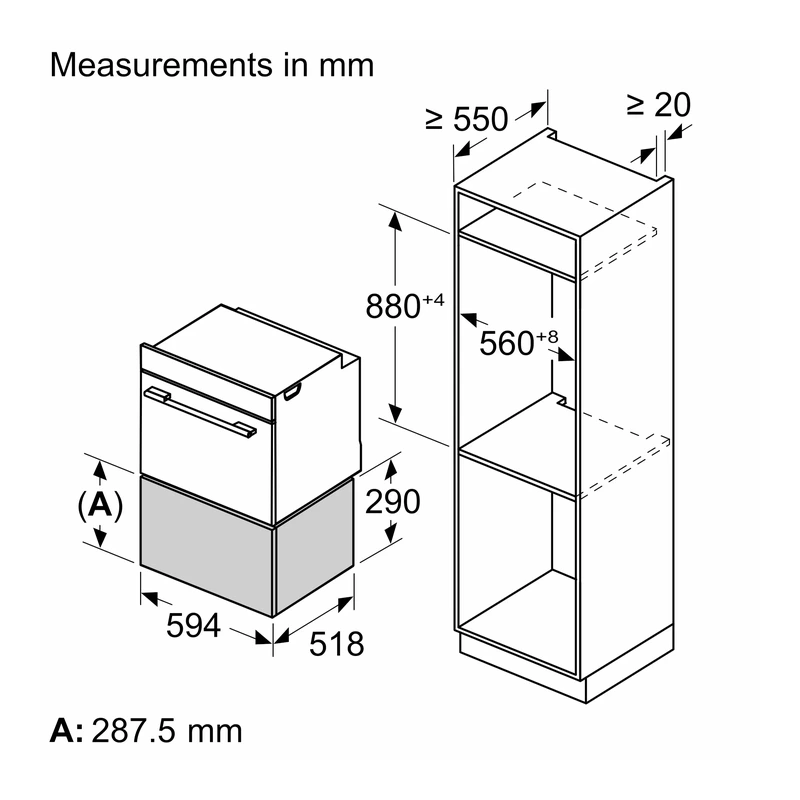

Required niche size for installation (H x W x D)	290 x 560 x 550 mm
Niche dimension (H x W x D)	290 mm x 560 mm – 568 mm x 550 mm
Installation note	In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.
Total connected load electric	0.82 kW
Nominal voltage	220 – 240 V
Voltage	220 – 240 V
Frequency	50; 60 Hz
Fuse protection	10 A
Plug type	GB plug
EAN code	4242005323029
Installation and ventilation	“For details on installation and ventilation requirements – please refer to the installation manual prior to fitting.”
Optional accessories	HEZ32WA00 wireless food thermometer
