What is the capacity of the CMG7761B1B compact oven?

The cavity volume is 45 litres, with 3 shelf positions and level independent telescopic rails.

What microwave power levels are available?

The appliance has a maximum microwave power of 900 W with 5 power settings: 90 W, 180 W, 360 W, 600 W and boost. Intelligent inverter technology regulates maximum output power to 600 W in longer operation.

Does this oven have self–cleaning functions?

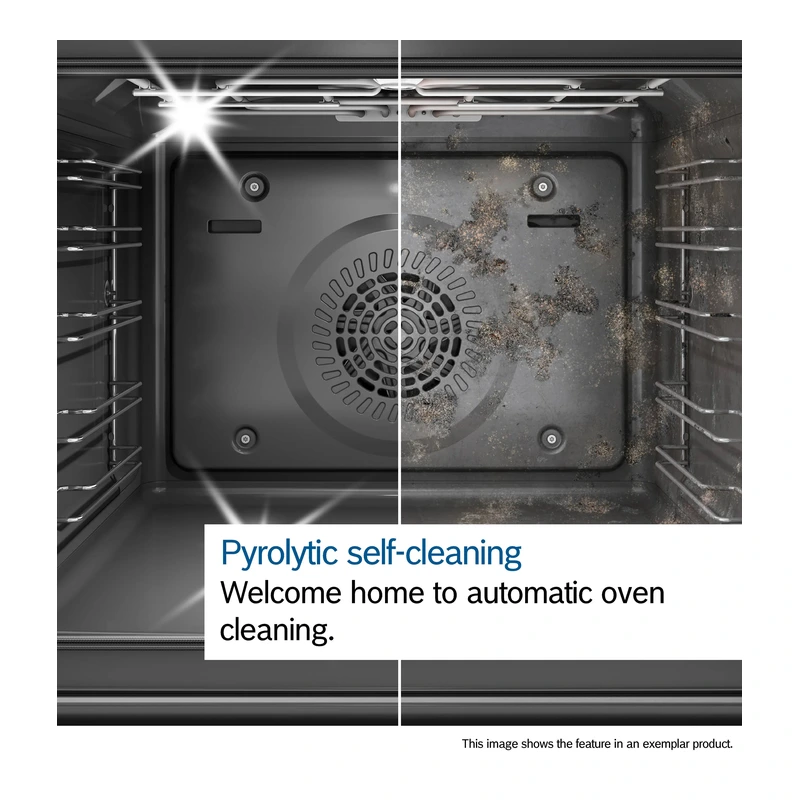

Yes. It includes a pyrolytic self–cleaning function and a hydrolyse programme, with an enamel anthracite cavity surface.

Is the CMG7761B1B compatible with Home Connect?

The appliance is Home Connect ready and can be controlled via the app.

What accessories are supplied and which are optional?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories include various universal pans, pizza pan, Air Fry & Grill tray, baking trays, multipurpose pan, baking and roasting grids, glass pans, cover strips, glass roasting dish, pizza stone and half tray with model references such as HEZ532010, HEZ617000, HEZ629070 and others.

What are the installation niche dimensions?

The niche dimensions are 450 mm – 455 mm in height, 560 mm – 568 mm in width and 550 mm in depth.

Product Information Sheet

Bosch Series 8 Microwave Combi

SKU: CMG7761B1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

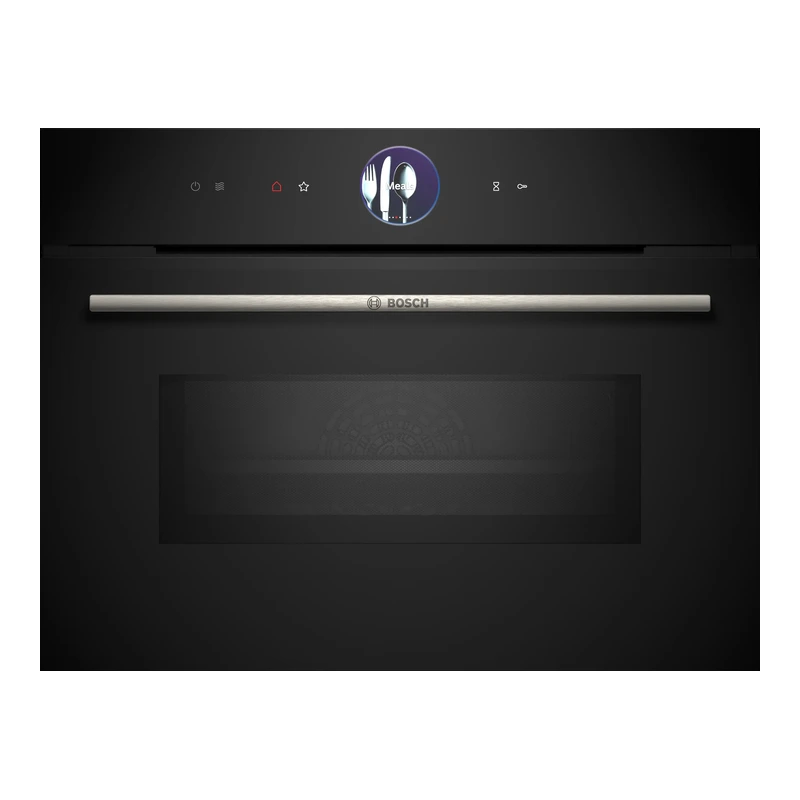

Bosch CMG7761B1B Series 8 Microwave Combi

SKU: CMG7761B1B · EAN: 4242005326044

Black

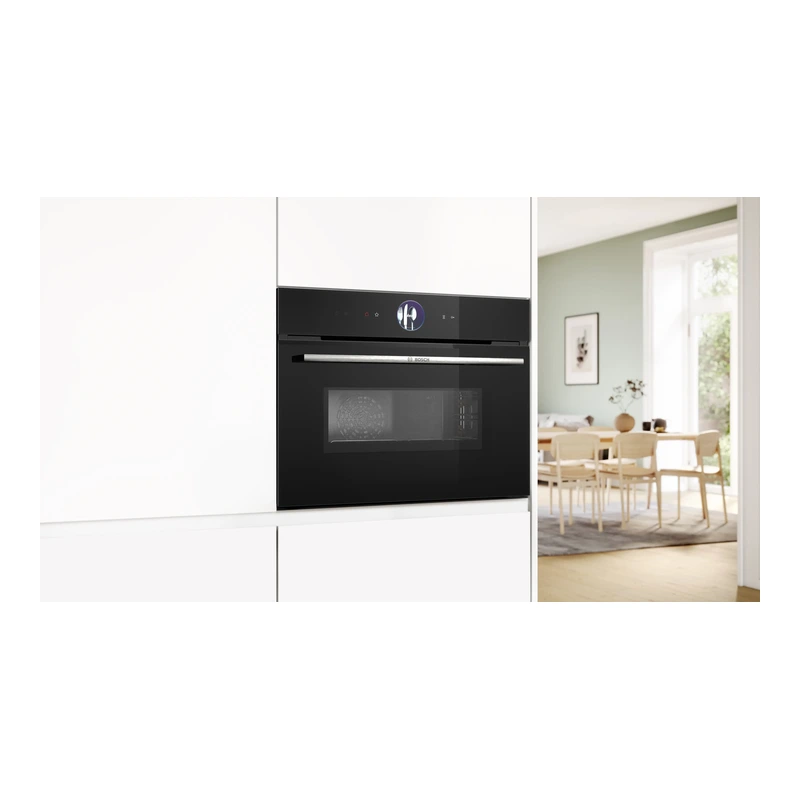

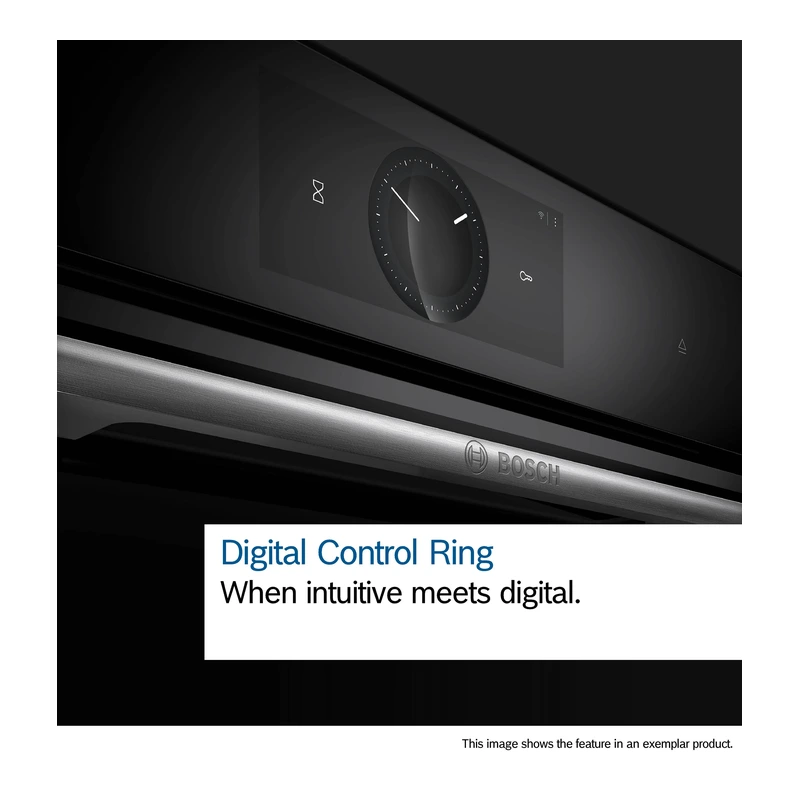

The Series 8 CMG7761B1B is a built–in compact oven with microwave function in black, combining 20 heating methods with a 45 litre cavity. It features a Digital Control Ring with TFT Touch Display Plus for intuitive operation, 4D Hotair and Hotair Gentle for versatile baking and roasting, and a maximum microwave power of 900 W with inverter technology. Pyrolytic self–cleaning, hydrolyse programme and Home Connect readiness support convenient everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Series / Type	Series 8 built–in compact oven with microwave function
Model	CMG7761B1B
Colour	Black
Type of microwave oven	MW–Combi
Control type	Electronic with Digital Control Ring and touch controls with steel trim
Heating methods	Compact oven with microwave with 20 heating methods including: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, Microwave, 4D Hot air, Conventional heat, Full width grill, Half width grill, Hot air grilling
Cavity volume	45 litre capacity

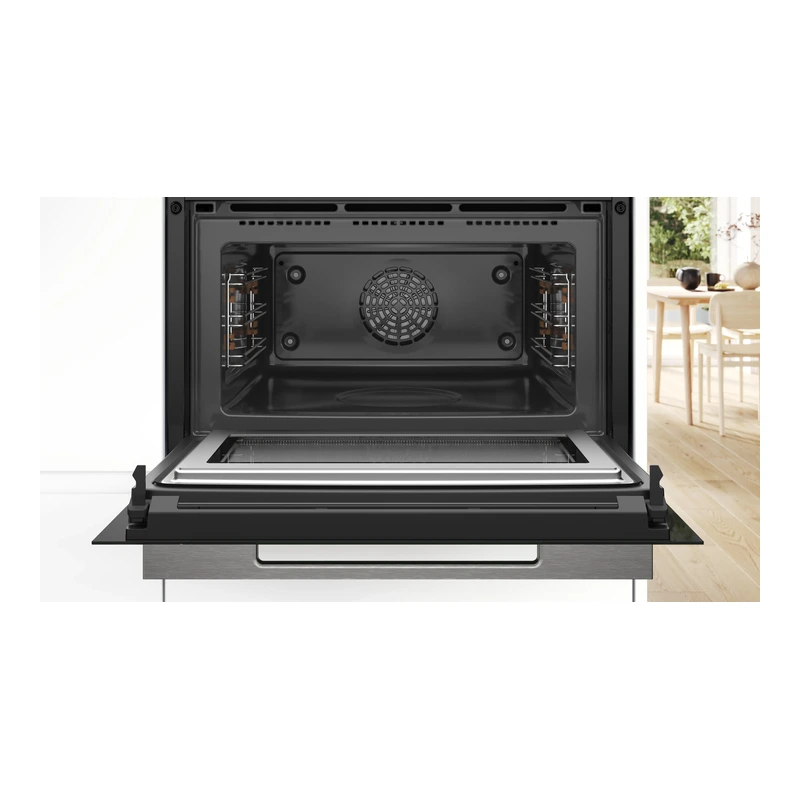

Shelf positions	3 shelf positions with level independent telescopic rails
Temperature range	30 °C – 275 °C
Max. microwave power level	900 W
Microwave power settings	5 settings: 90 W, 180 W, 360 W, 600 W, boost
Inverter technology	Intelligent microwave inverter technology; maximum output power regulated to 600 W when used in longer operation

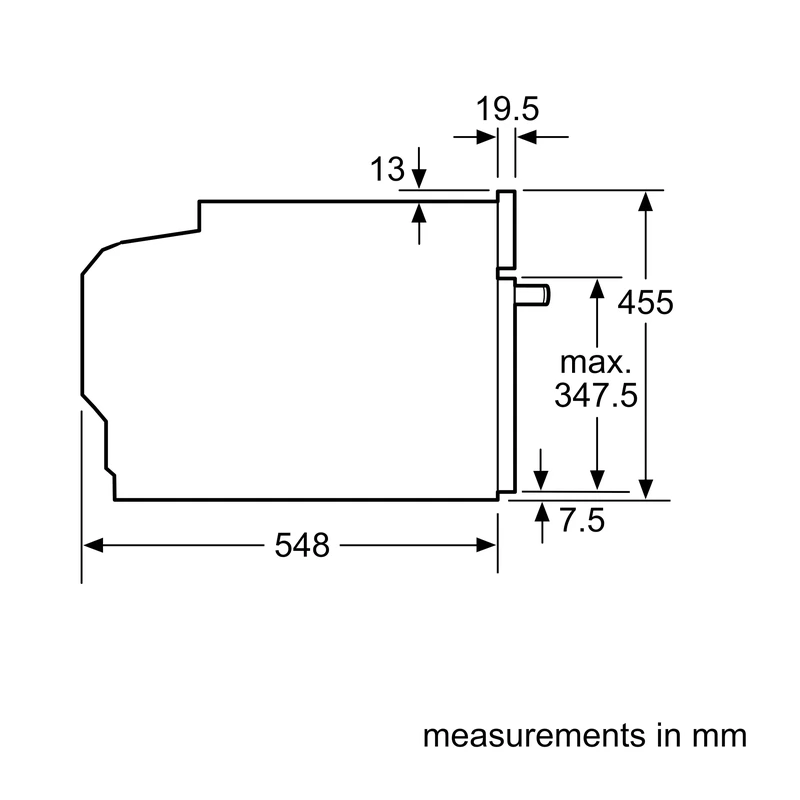

Appliance dimensions (H x W x D)	455 mm x 594 mm x 548 mm
Cavity dimensions (H x W x D)	237 x 480 x 392 mm

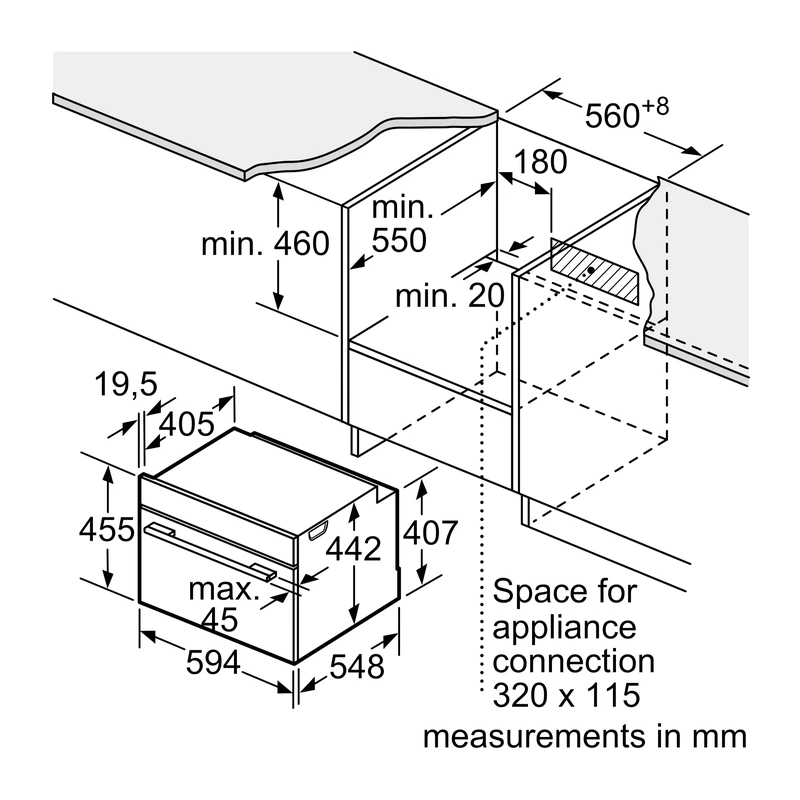

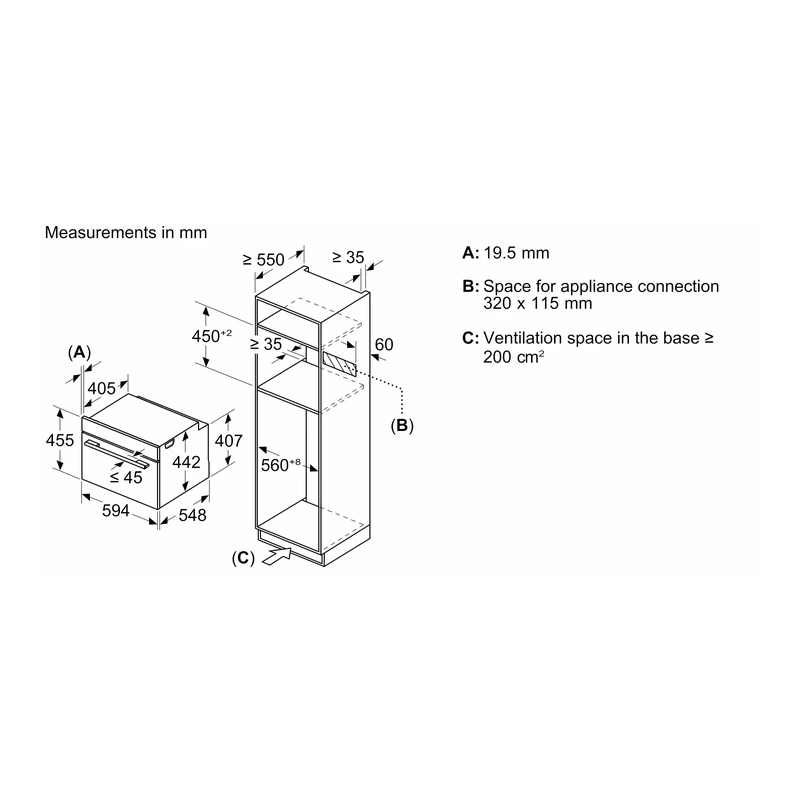

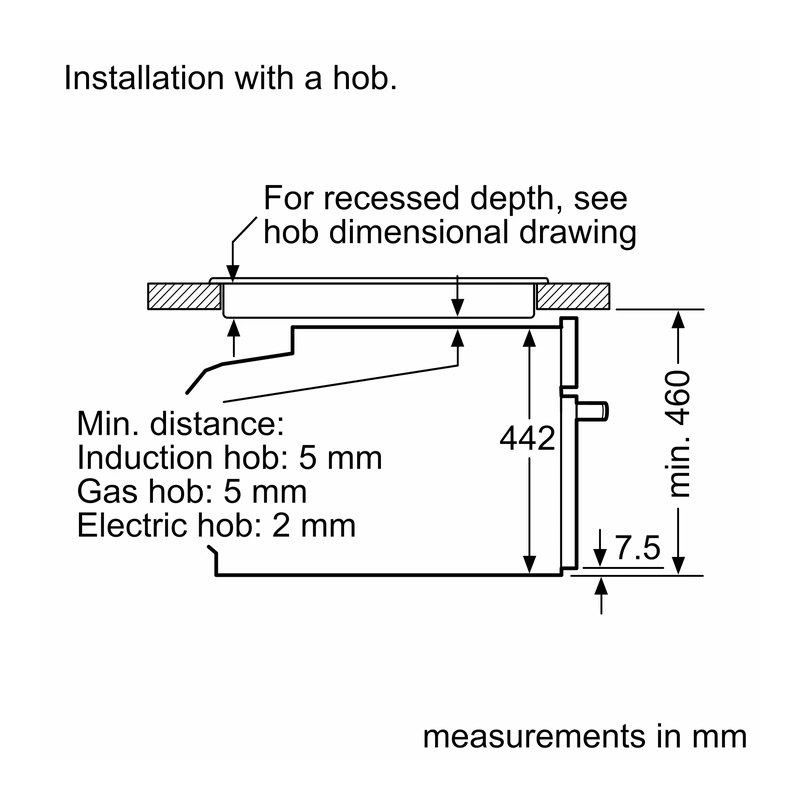

Niche dimensions (H x W x D)	450 mm – 455 mm x 560 mm – 568 mm x 550 mm
Cavity inner surface	Enamel anthracite
Net weight	35.7 kg
Gross weight	38.9 kg
Electrical connection rating	3.6 kW / 3600 W
Nominal voltage	220 – 240 V
Frequency	50; 60 Hz
Fuse protection	16 A
Plug type	No plug (electrical connection by electrician)
Power cord length	150 cm
Maximum window temperature	30° C

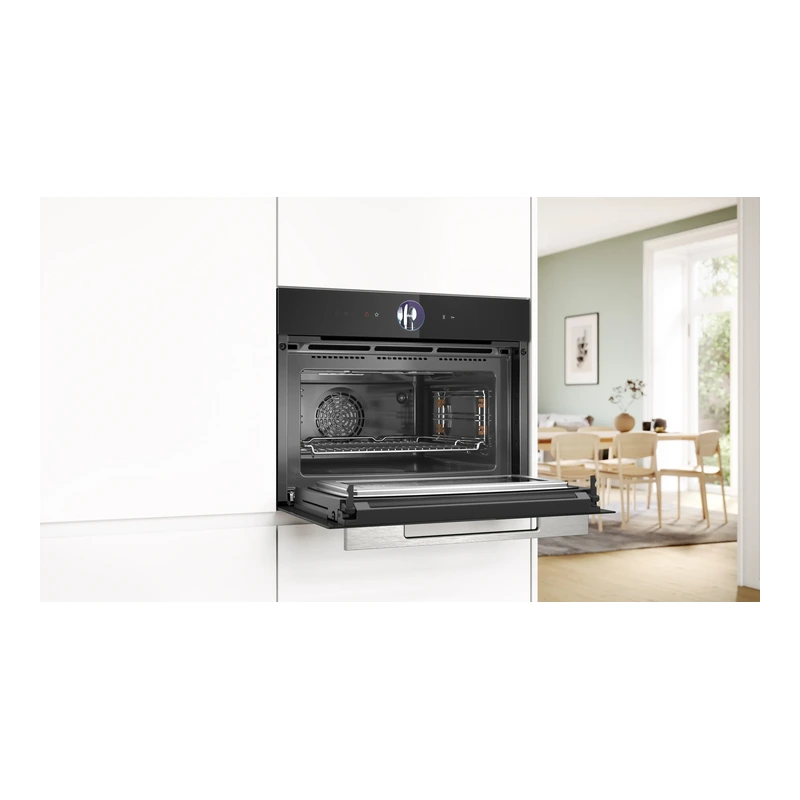

Door	Quadruple glazed door with heat reflective glass CoolTouch door, drop down, SoftClose, SoftOpen
EAN code	4242005326044

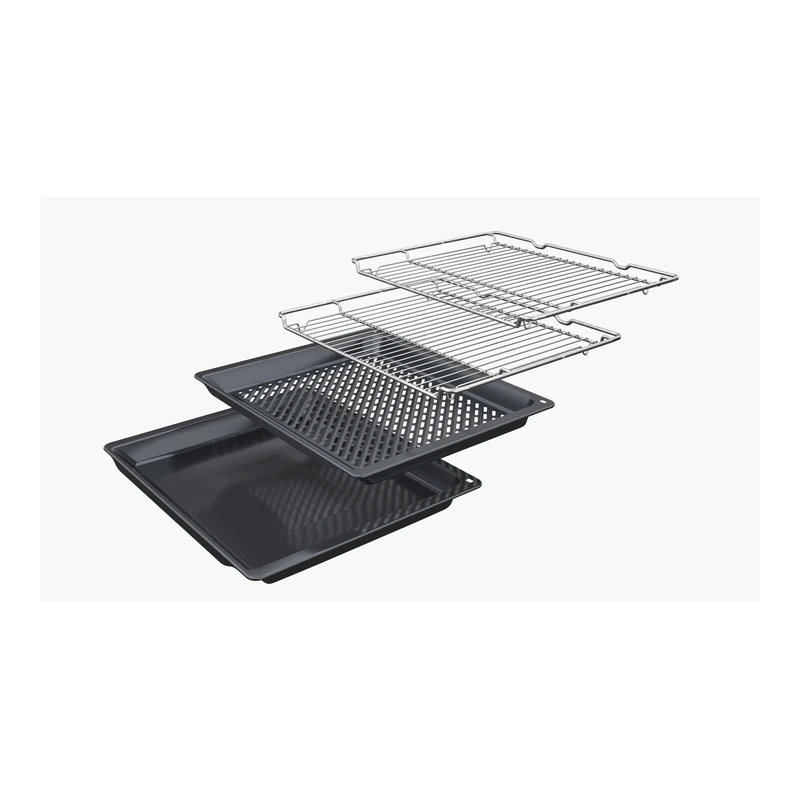

Included accessories	2 x combination grid, 1 x universal pan
Optional accessories	HEZ532010 Universal pan, non–stick ceramic coated; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ660050 Cover Strip; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L; HEZ327000 Pizza stone; HEZ530000 Half tray; HEZ531010 Baking tray, non–stick ceramic coated

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Bosch →

Optional Accessories

— add individually to your enquiry

Optional

HEZ530000

Bosch Serie 6, 4 Slim Pan Set

Optional

HEZ660060

Bosch Serie 8, 6, 4 Cosmetic Decor Strip

Optional

HEZ629070

Bosch Air Fryer & Grill tray

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Bosch dealer, with full manufacturer warranty. Established 1967.
