Is the DFS097A51B suitable for both ducted and recirculating operation?

Yes, the hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed as an accessory.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 430 mm and above a gas hob is 650 mm.

How many speed settings does this cooker hood have?

It has 3 power levels and an intensive setting, controlled electronically via Soft touch buttons.

What type of filters are included and are they washable?

The hood includes 3 removable metal grease filter cassettes made from washable stainless steel, helping to keep the kitchen free from excessive grease.

What is the maximum extraction rate of the hood?

The maximum air extraction in normal use is 397 m³/h, with an intensive extraction rate of up to 729 m³/h according to EN 61591.

What is the energy efficiency rating?

The cooker hood has an Energy Efficiency Class A, within a range from A+++ to D, with an average energy consumption of 38.1 kWh/year*.

Product Information Sheet

Bosch Serie 4 Telescopic Hood

SKU: DFS097A51B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch DFS097A51B Serie 4 Telescopic Hood

SKU: DFS097A51B · EAN: 4242005232109

Metallic Silver

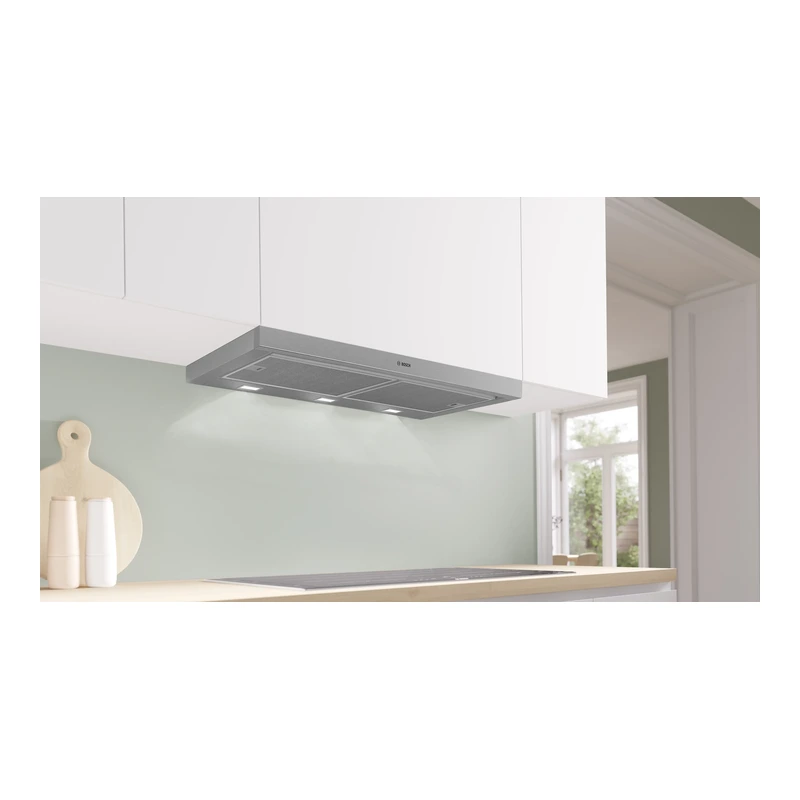

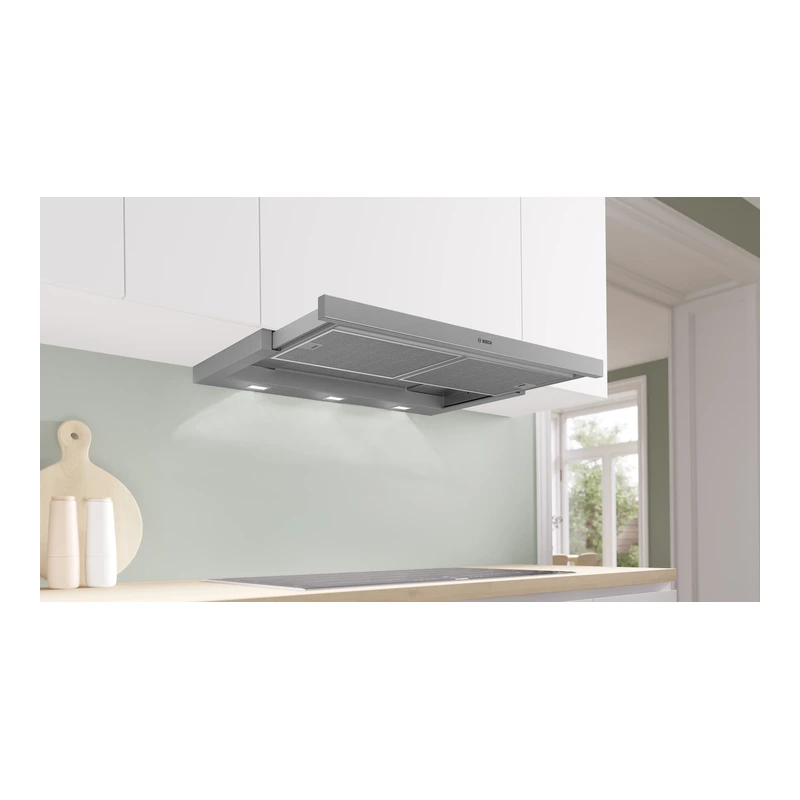

The Series 4 DFS097A51B is a 90 cm telescopic cooker hood in silver metallic lacquer, designed for built-in installation in a 90 cm wide wall unit. It extends during cooking and slides away when not in use, providing powerful extraction with EcoSilence Drive™, 3 power levels plus intensive setting and LED illumination. Suitable for ducted or recirculating operation, it offers high extraction rates and washable stainless steel grease filters for a cleaner kitchen environment.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 4, Telescopic cooker hood, 90 cm, Silver metallic
Model	DFS097A51B
Typology	Pull-out
Installation typology	Built-in; telescopic comfort installation system
Width	90 cm (appliance dimensions 426 x 898 x 290 mm HxWxD)

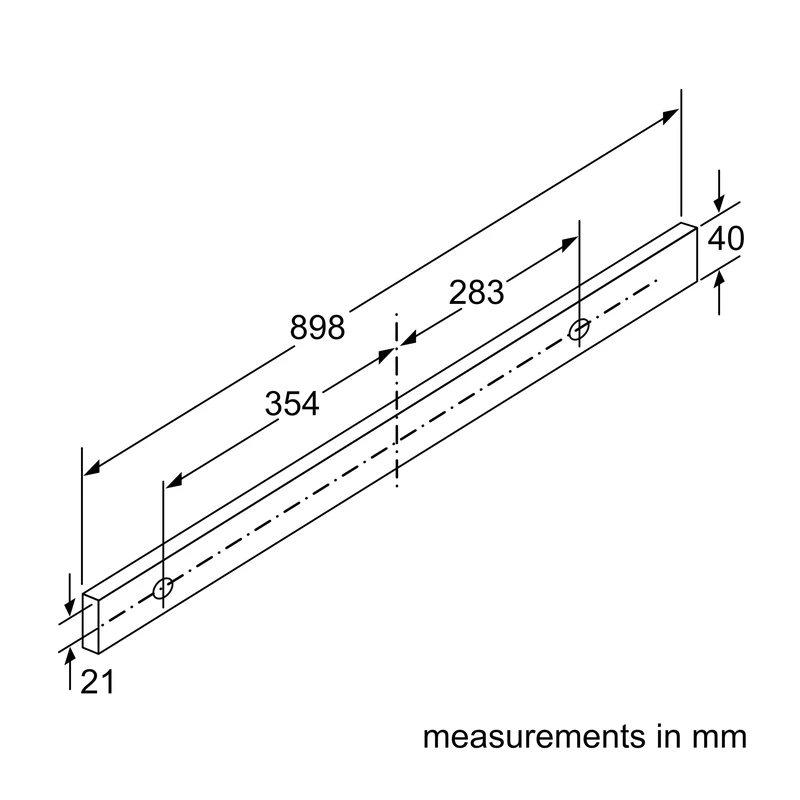

Housing colour / finish	Silver metallic lacquer; handle strip stainless steel with logo; steel filter cover

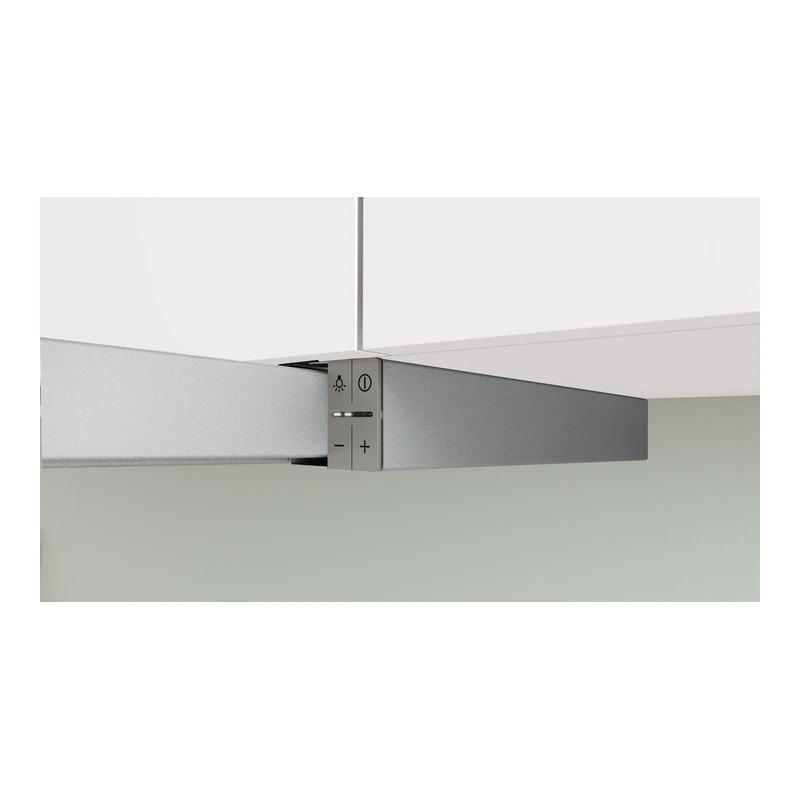

Control type	Electronic control via Soft touch button control
Speed settings	3 power levels & intensive setting
Maximum air extraction (normal use)	397 m³/h (exhaust air, EN 61591)
Boost position air extraction	729 m³/h (exhaust air, EN 61591)
Maximum air recirculation	358 m³/h with Clean Air Plus recirculation kit (max normal use)
Boost position output recirculating	628 m³/h with Clean Air Plus recirculation kit (intensive)
Maximum air flow	397 m³/h
Noise level (exhaust air, normal)	53 dB(A) re 1 pW at max normal use (EN 60704-3; EN 60704-2-13)
Noise level (exhaust air, intensive)	69 dB(A) re 1 pW intensive (EN 60704-3; EN 60704-2-13)
Noise level (recirculation, normal)	60 dB(A) re 1 pW with Clean Air Plus recirculation kit (max normal use)
Noise level (recirculation, intensive)	71 dB(A) re 1 pW with Clean Air Plus recirculation kit (intensive)
Energy Efficiency Class	A (range A+++ to D)
Average energy consumption	38.1 kWh/year*
Blower Efficiency Class	B*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	B*

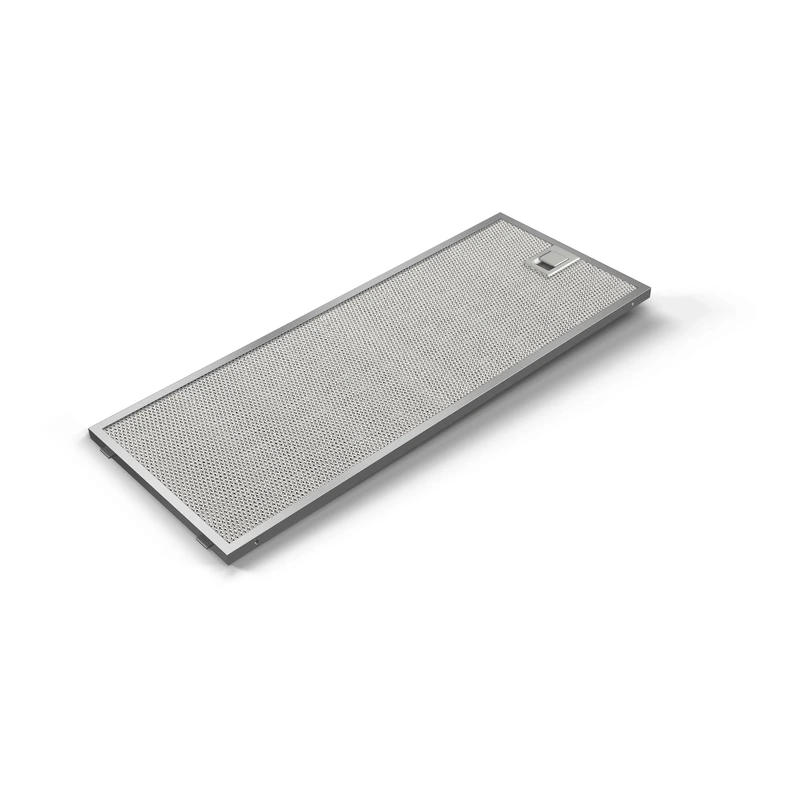

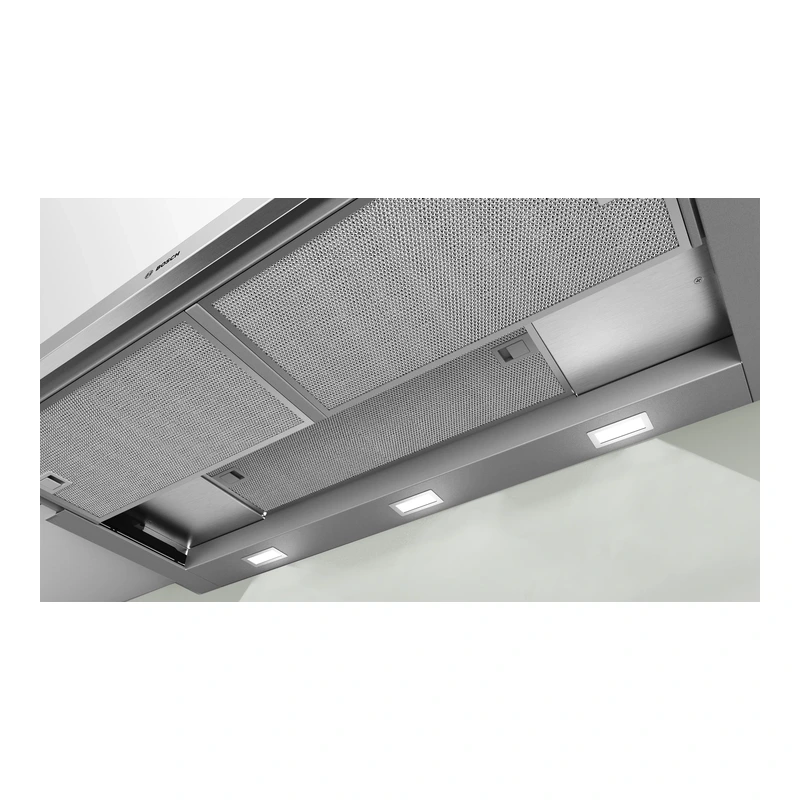

Grease filter material	Washable stainless steel; 3 removable metal grease filter cassettes
Lighting	3 x 1.5 W LED; colour temperature 3500 K; light intensity 355 lux
Number of lights	3

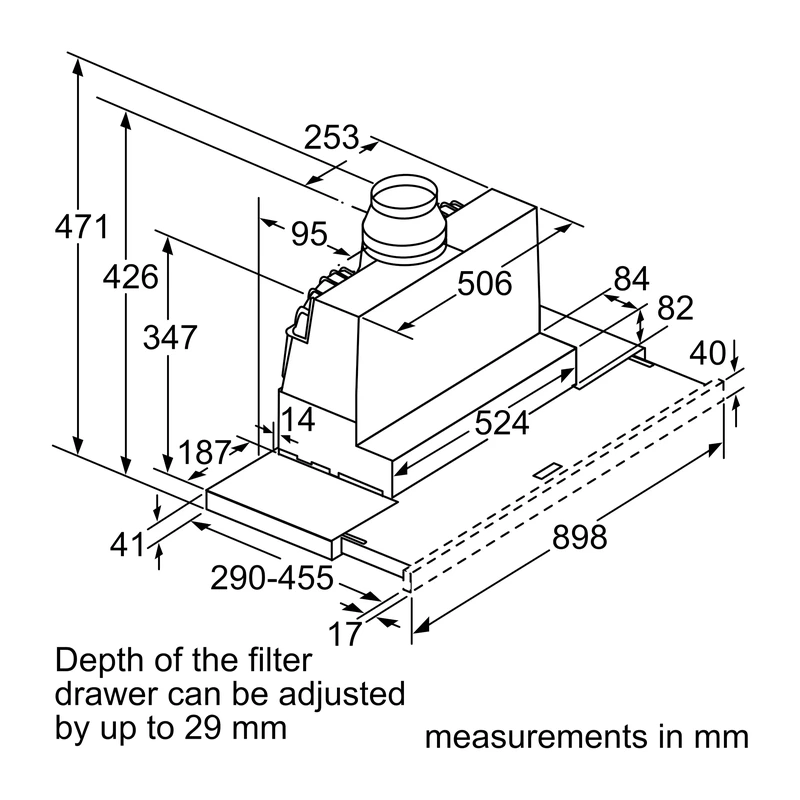

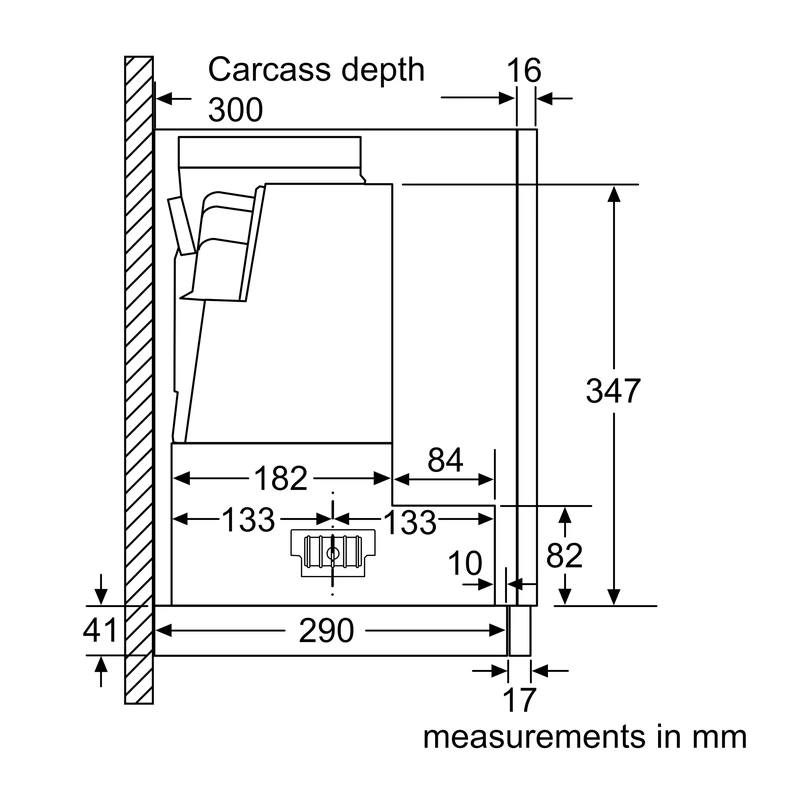

Dimensions (HxWxD)	426 x 898 x 290 mm

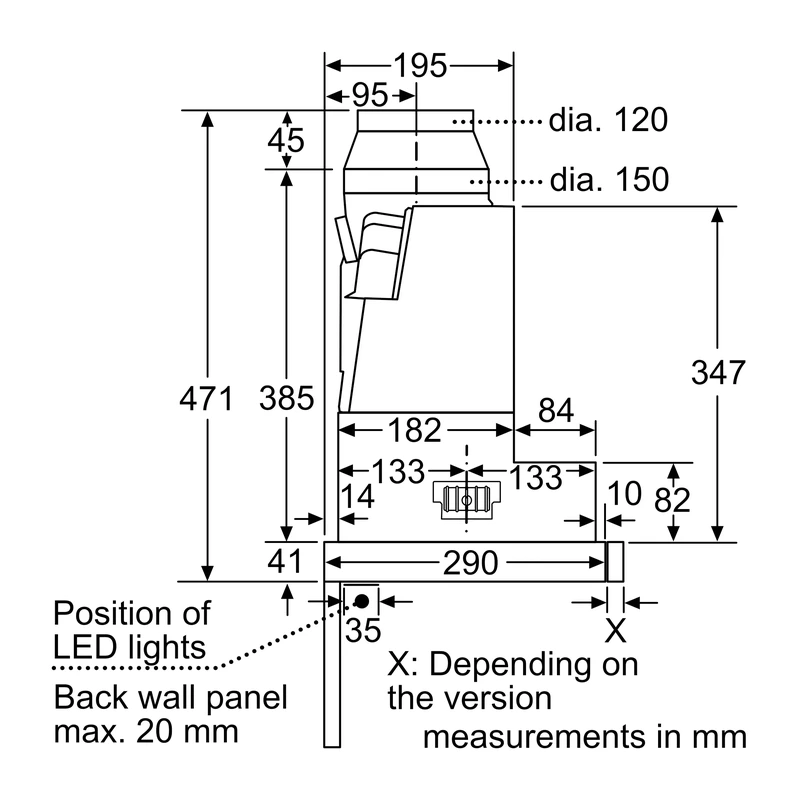

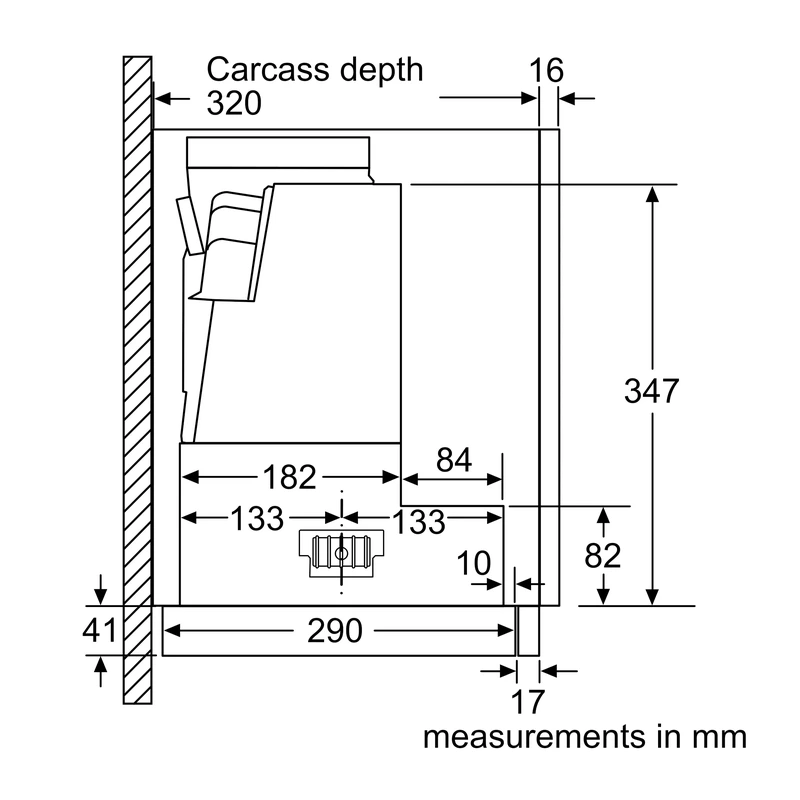

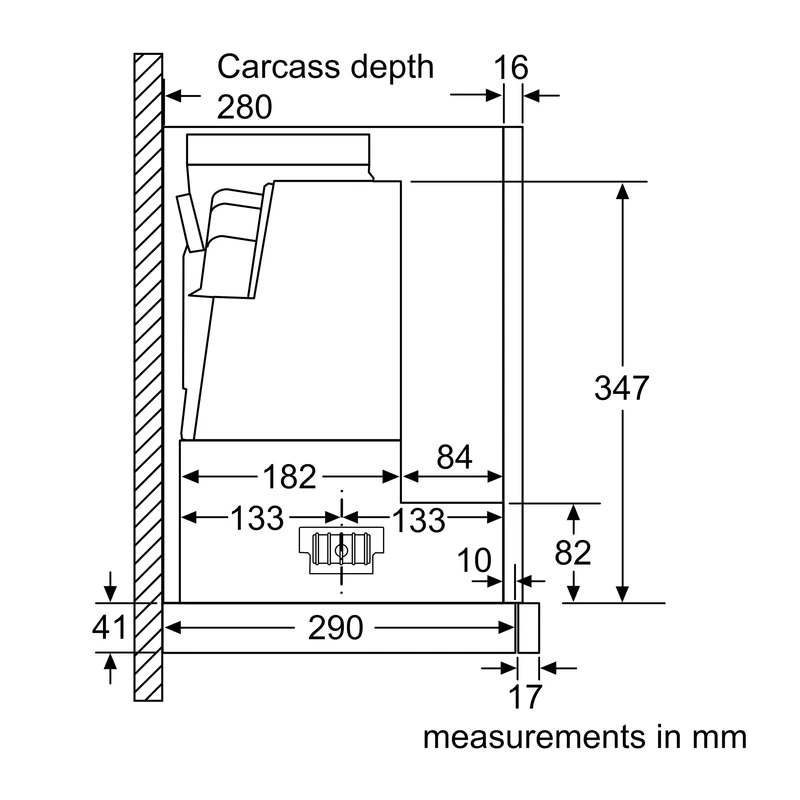

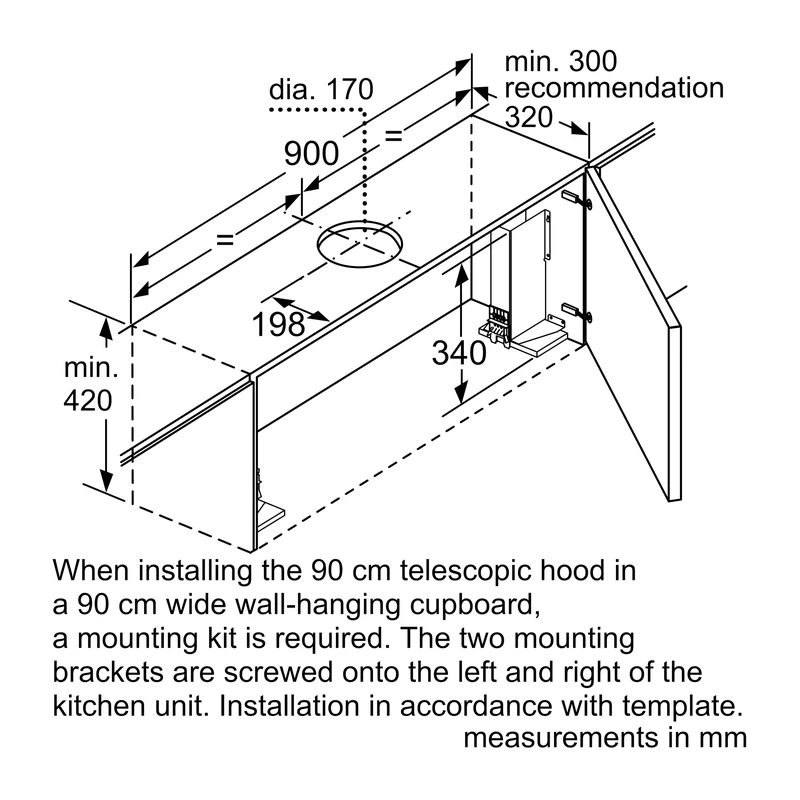

Built-in dimensions (HxWxD)	385 x 524 x 290 mm

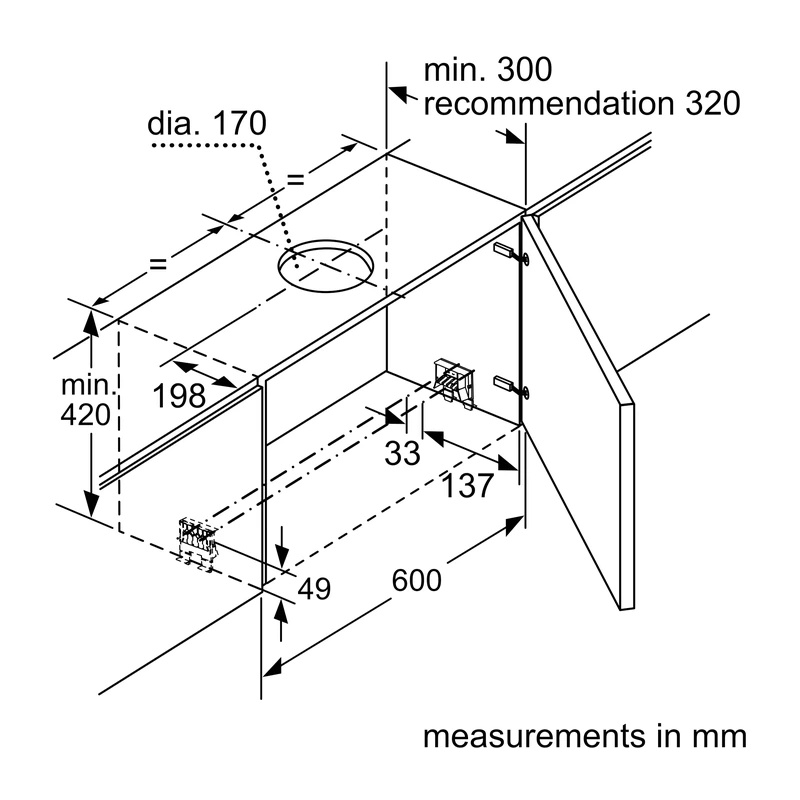

Required niche size (HxWxD)	385 mm x 524.0 mm x 290 mm
Height of the appliance	426 mm
Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Net weight	12.4 kg
Diameter of air outlet	120 / 150 mm (diameter pipe Ø 150 mm; Ø 120 mm enclosed)
Length electrical supply cord	175 cm (1.75 m)
Connection rating	146 W (power rating 146 W)
Fuse protection	10 A
Voltage	220–240 V
Frequency	50; 60 Hz
Plug type	GB plug
EAN code	4242005232109
