What type of installation is the DLN53AA70B suitable for?

The DLN53AA70B is a built-in / built-under canopy cooker hood designed for integrated installation. It is described as a canopy hood with installation typology built-in and is designed to be fully integrated for more flexibility when planning your kitchen.

Can this cooker hood be used in recirculating mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit (accessory) is needed. Optional accessories include recirculating kits DWZ0IN0T0 and DWZ0IN0A0, as well as the DWZ0IN0A0 standard odour filter (replacement).

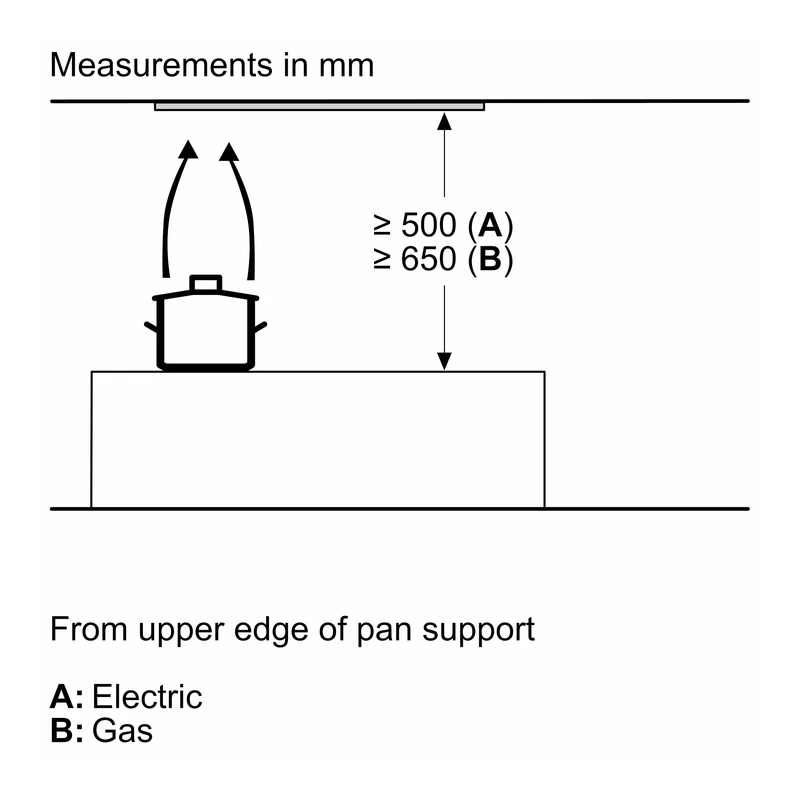

What are the minimum installation heights above the hob?

The specified minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm. Diagrams also indicate electric minimum distances of 500 mm and 550 mm and gas minimum distance of 650 mm, measured from the upper edge of the pan support.

How loud is the DLN53AA70B during normal use?

The noise max. normal level at maximum speed in normal use is 62 dB. According to EN 60704-3 and EN 60704-2-13, the noise level at the maximum normal setting is 62 dB(A) re 1 pW, with 48 dB(A) re 20 µPa sound pressure.

How is the lighting configured on this cooker hood?

The hood uses LED illumination with 2 × 3 W LED lights. The colour temperature is 2700 K and the light intensity is 78 lux, providing bright and clear lighting for the hob area. Lighting Efficiency Class is D*.

Is the grease filter washable?

Yes. The hood includes 1 removable metal grease filter cassette made from washable aluminium. The filter is described as a dishwasher-safe metal grease filter.

Product Information Sheet

Bosch Serie 2 Canopy Hood

SKU: DLN53AA70B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch DLN53AA70B Serie 2 Canopy Hood

SKU: DLN53AA70B · EAN: 4242005095391

Metallic Silver

The DLN53AA70B Series 2 53 cm grey canopy cooker hood is a built-in solution designed to be fully integrated for greater flexibility when planning your kitchen. It offers quiet extraction with powerful performance, with a maximum extraction rate of 302 m³/h and 3 power levels to match your cooking needs. Energy-saving LED illumination provides bright, clear lighting for the hob area, while a dishwasher-safe washable aluminium metal grease filter supports easy maintenance.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	Series 2
Product type	Canopy cooker hood
Model	DLN53AA70B
Colour	Grey
Width	53 cm (canopy hood)
Typology / installation	Built-in / Built-under; Installation typology: Built-in; Installation: integrated; Canopy hood
Energy Efficiency Class	D (at a range of energy efficiency classes from A+++ to D)
Max. air extraction	302 m³/h (extraction rate according to EN 61591: max. 302 m³/h)
Max. air recirculation	300 m³/h
Maximum air flow	302 m³/h
Noise level	62 dB(A) re 1 pW (Noise, max. speed in normal use: 62 dB*; 48 dB(A) re 20 µPa sound pressure at maximum normal setting)
Number of speed settings	3 power levels; Number of speed settings: 3

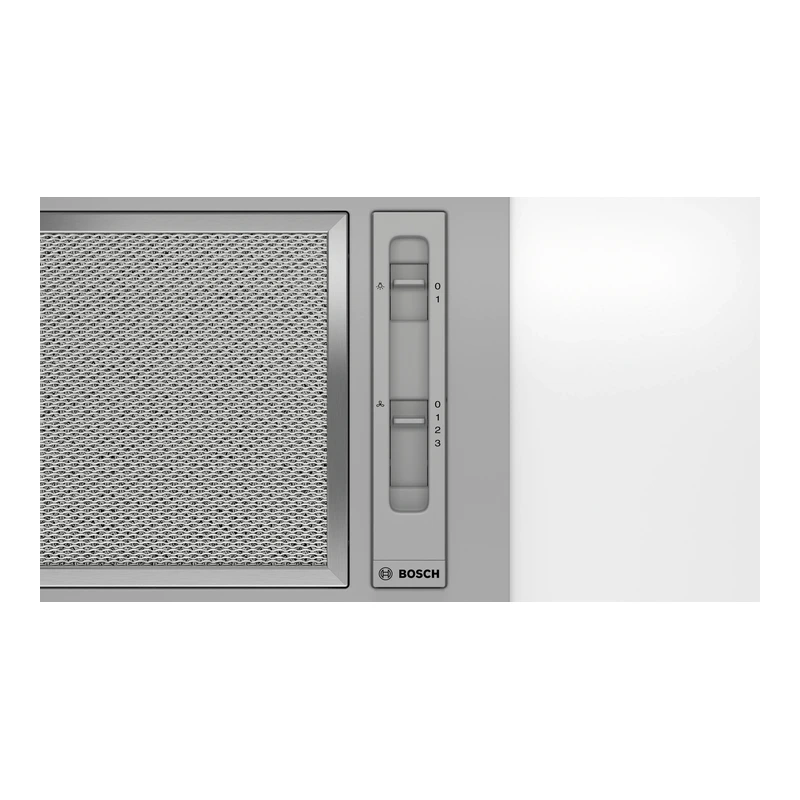

Control type	Mechanical; slider switch control for extractor speeds and light; Type of control: Mechanical; Slider switch control
Motor	Single motor
Lighting	2 × 3 W LED; Colour temperature: 2700 K; LED illumination; Light intensity: 78 lux; Lighting Efficiency Class: D*
Number of lights	2
Grease filter	1 removable metal grease filter cassette; Grease filter material: washable aluminium; Grease Filtering Efficiency Class: D*
Blower Efficiency Class	E*
Average energy consumption	67.7 kWh/year*
Electrical connection rating	Connection rating: 121 W; Power rating: 121 W
Voltage	220–240 V
Frequency	50 Hz
Fuse protection	5 A
Plug type	GB plug
Length of electrical supply cord	150 cm; Electrical cable length 1.5 m

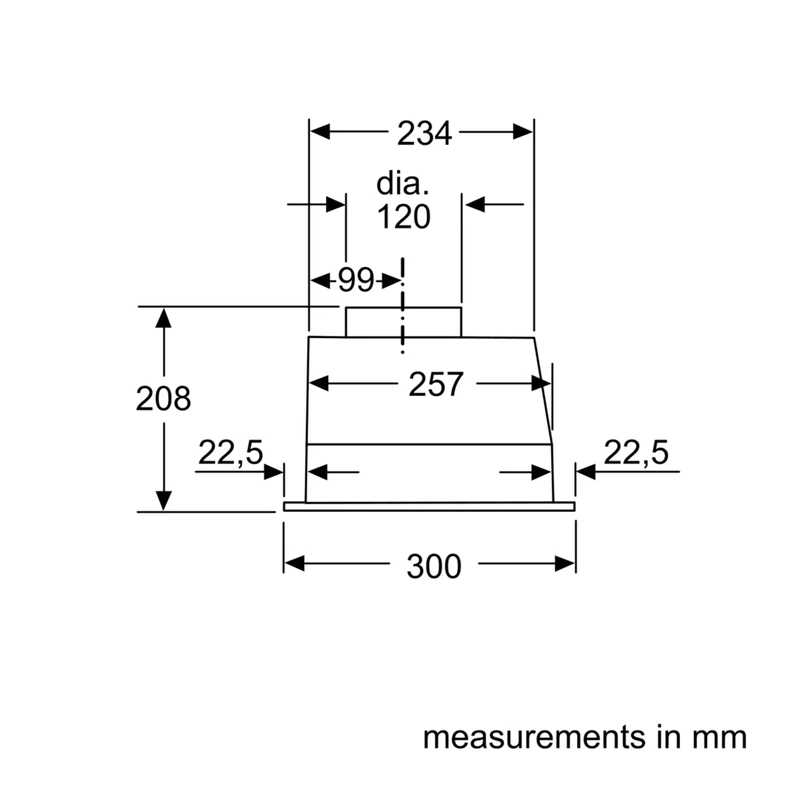

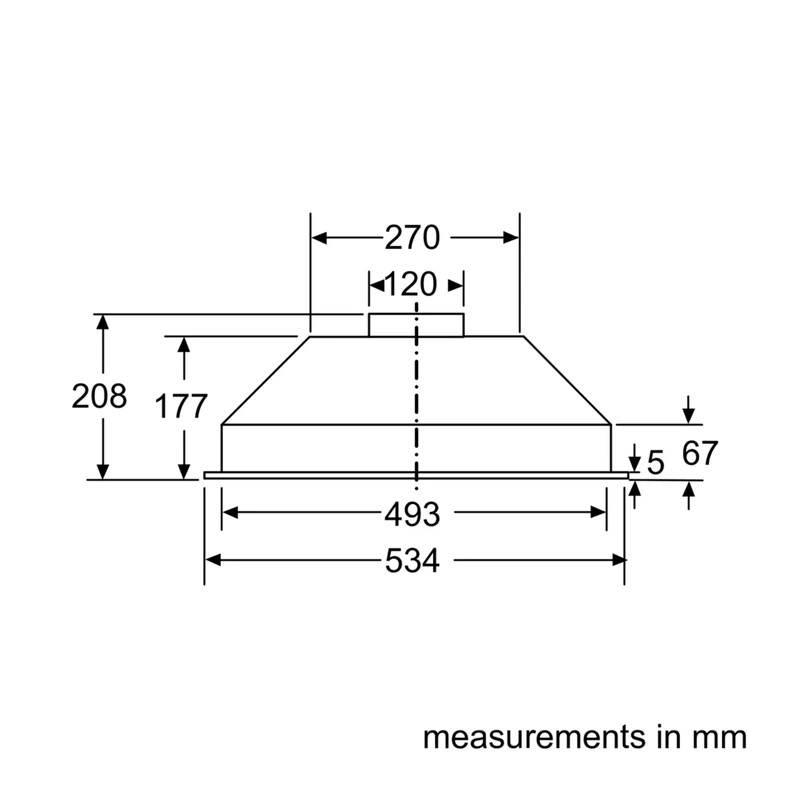

Dimensions – exhaust air (HxWxD)	208–208 × 534 × 300 mm
Dimensions – recirculating (HxWxD)	208–208 × 534 × 300 mm

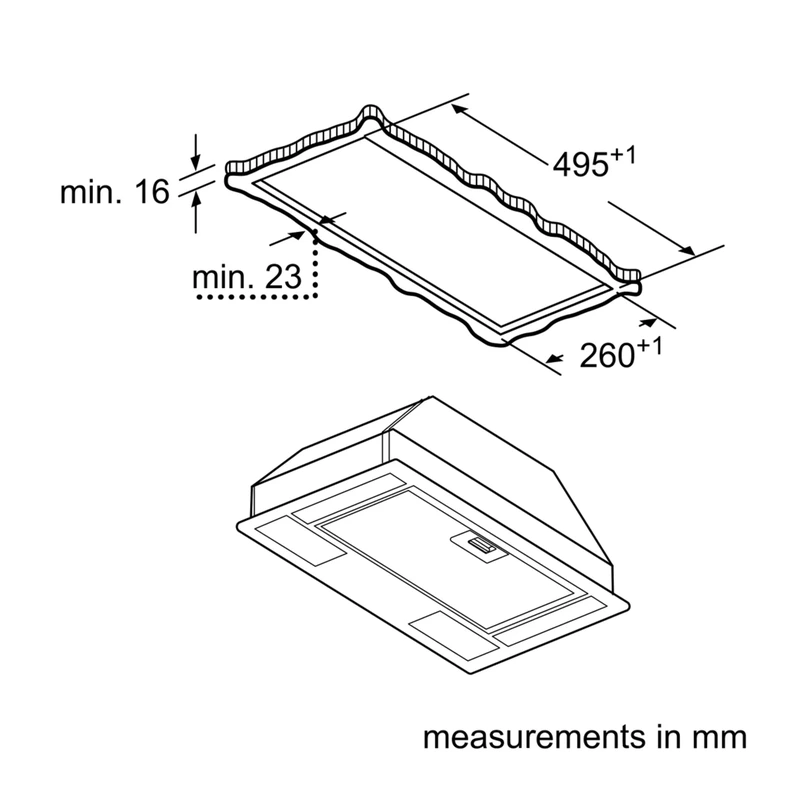

Built-in dimensions (HxWxD)	208 mm × 493.0 mm × 257 mm; Built-in dimensions (HxWxD): 208 × 493 × 257 mm
Height of the appliance	208 mm
Required niche size (HxWxD)	208 mm × 493.0 mm × 257 mm

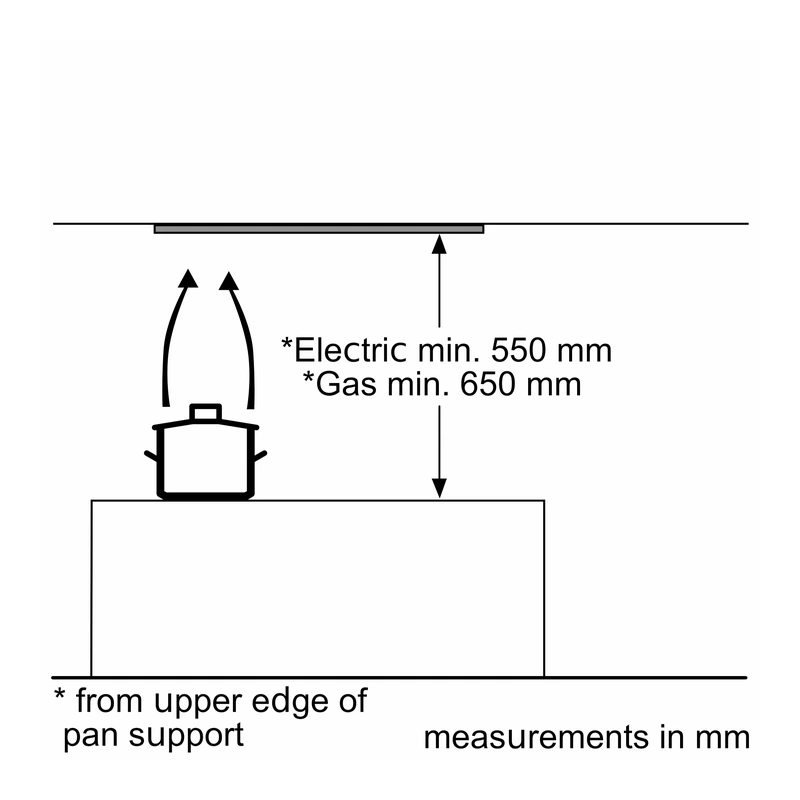

Minimum distance above electric hob	500 mm (Electric min. 500 mm / 550 mm indicated in diagrams)
Minimum distance above gas hob	650 mm (Gas min. 650 mm)
Net weight	5.0 kg
Diameter of air outlet / pipe	120 mm; Diameter pipe Ø 120 mm (Ø 120 mm enclosed)
Operation type	Suitable for ducted or recirculating operation; For recirculated extraction recirculating kit (accessory) needed
Optional accessories	DWZ0IN0A0 standard odour filter (replacement); DWZ0IN0T0 standard recirculation kit; Recirculating kit DWZ0IN0A0
EAN code	4242005095391

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Bosch →

Optional Accessories

— add individually to your enquiry

Optional

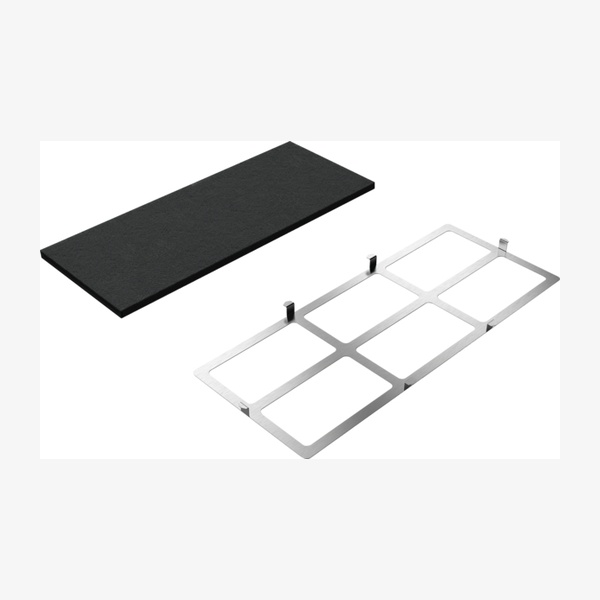

DWZ0IN0T0
