Can this cooker hood be used in both ducted and recirculating modes?

Yes. The canopy hood is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories.

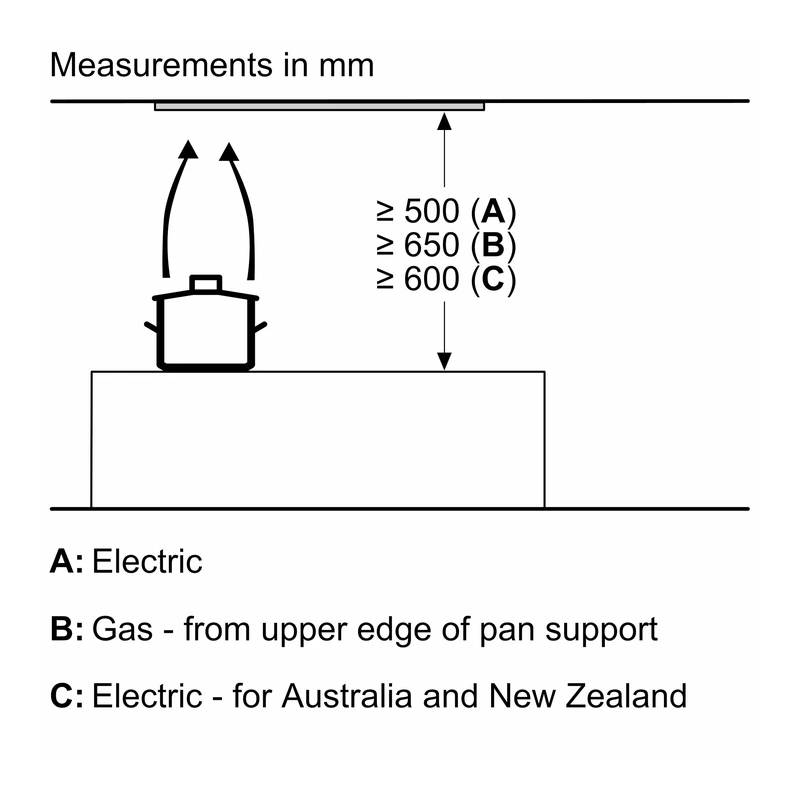

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

How many speed settings does the hood have?

The hood has 3 power levels plus an intensive setting. There is an automatic reset from the intensive to the normal setting after 6 minutes.

Are the grease filters washable?

Yes. The hood includes 1 metal grease filter made from washable aluminium. The removable metal grease filters are dishwasher–safe.

What type of lighting does this cooker hood use?

It uses 2 × 1 W LED lights with a colour temperature of 4000 K and light intensity of 400 lux, providing clear and bright illumination for the hob area.

What is the energy efficiency rating of the hood?

The hood has an Energy Efficiency Class B (on a scale from A+++ to D), with an average energy consumption of 75.2 kWh/year*.

Product Information Sheet

Bosch Series 6 Canopy Hood

SKU: DLN56AC60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

Bosch DLN56AC60B Series 6 Canopy Hood

SKU: DLN56AC60B · EAN: 4242005475605

Black

The Series 6 DLN56AC60B is a 52 cm black canopy cooker hood designed for flush, built–in installation in wall cupboards or cabinets. It offers a high extraction rate for continuously clean air and can be used in ducted or recirculation mode with optional recirculation kits. With LED illumination, soft touch button control, three power levels plus an intensive setting, and dishwasher–safe metal grease filters, it provides discreet and effective ventilation for modern kitchens.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 6 Canopy cooker hood, 52 cm, Black DLN56AC60B
Typology / Installation	Built–in / Built–under canopy hood, installation in cabinet, flush–fitted in wall cupboards
Operation modes	Suitable for ducted or recirculating operation

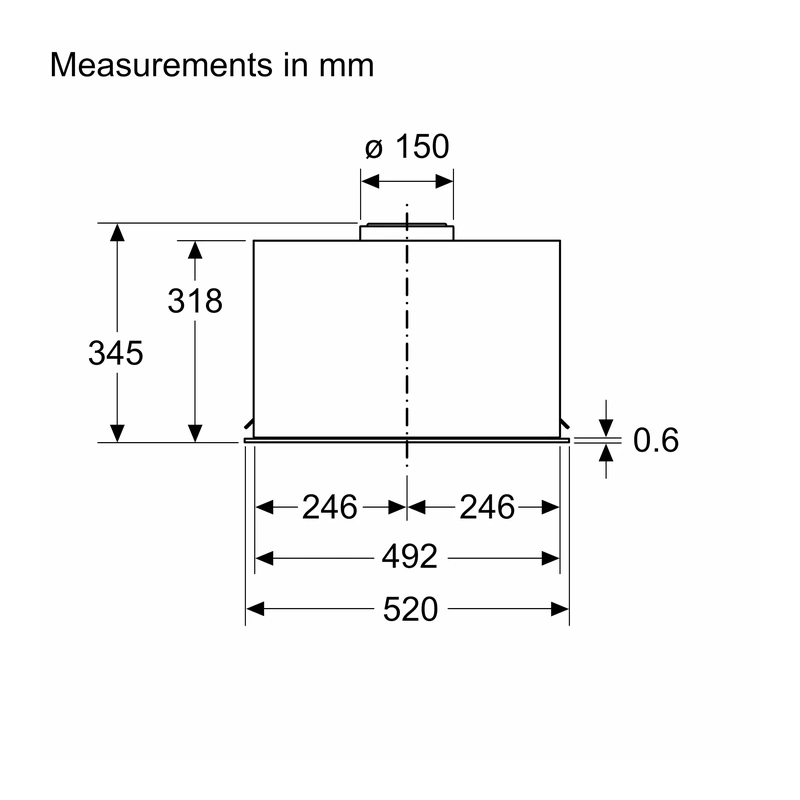

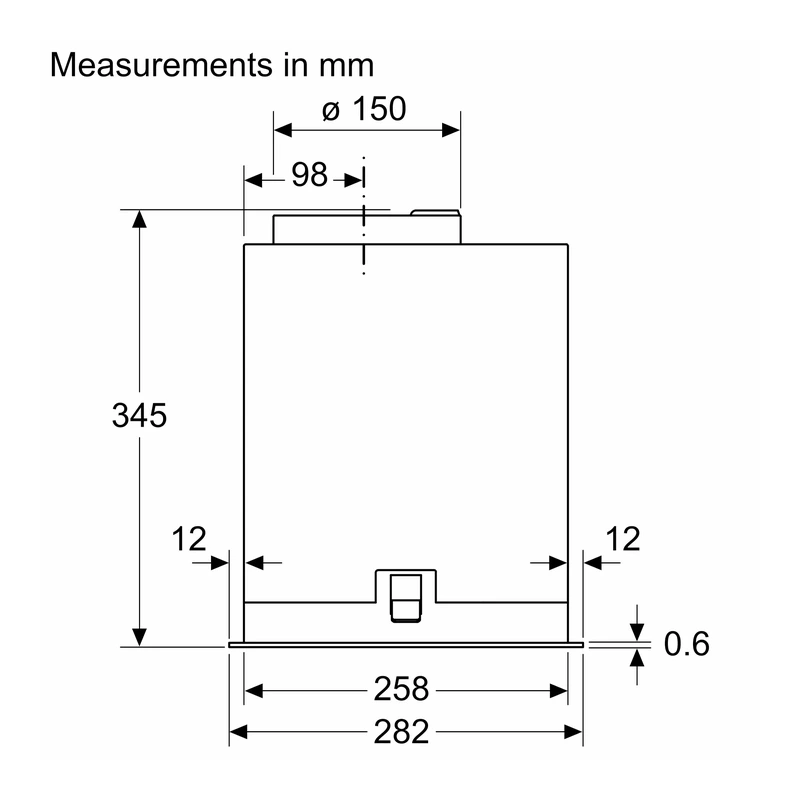

Dimensions (H × W × D)	345 × 520 × 282 mm
Dimensions recirculating (H × W × D)	345–345 × 520 × 282 mm

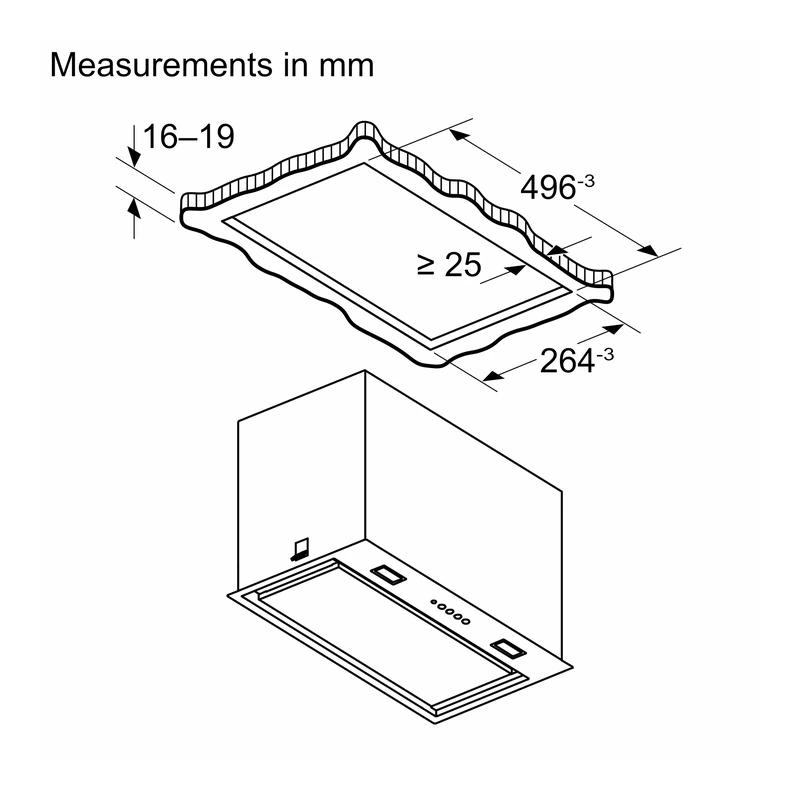

Built–in dimensions (H × W × D)	345 × 496 × 264 mm
Required niche size (H × W × D)	345 mm × 496.0 mm × 264 mm
Height of appliance	345 mm
Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm
Net weight	7.8 kg
Type of control	Electronic soft touch button control with electronic display; real push buttons
Speed settings	3 stages + intensive setting; automatic reset from intensive to normal after 6 min
Max. air extraction (exhaust)	570 m³/h (maximum air flow 570 m³/h)
Boost position air extraction	645 m³/h
Max. air recirculation	560 m³/h
Boost position output recirculating	628 m³/h
Noise level (max)	66 dB(A) re 1pW
Number of lights	2 × 1 W LED
Light colour temperature	4000 K
Light intensity	400 lux
Motor type	Capacitor motor
Grease filter	1 metal grease filter; washable aluminium; removable and dishwasher–safe
Grease Filtering Efficiency Class*	D*
Energy Efficiency Class*	B (range of classes from A+++ to D)
Average energy consumption*	75.2 kWh/year*
Blower Efficiency Class*	C*
Lighting Efficiency Class*	A*
Diameter of air outlet	150 / 120 mm (Diameter pipe Ø 150 mm, Ø 120 mm enclosed)
Back–pressure flap	Yes
Length of electrical supply cord	150 cm (electrical cable length 1.5 m)
Connection rating / Power rating	252 W
Fuse protection	3 A
Voltage	220–240 V (nominal voltage 220–240 V)
Frequency	60; 50 Hz
Plug type	GB plug
EAN code	4242005475605
Sustainability features	Environmentally friendly packaging; regenerative Long Life odour filter with 10 years lifetime (optional)
