Bosch DLN77AC60B Series 6 Canopy Hood

SKU: DLN77AC60B · EAN: 4242005475643

Black

The Series 6 DLN77AC60B is a 70 cm black canopy cooker hood designed for built-in installation under an overhead unit or cabinet, making discreet and effective use of valuable space. Suitable for ducted or recirculating operation, it offers a high extraction rate with three power levels plus an intensive setting, energy–saving LED illumination and soft touch electronic controls. Dishwasher–safe metal grease filters and easy–clean surfaces support convenient maintenance.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	Series 6
Product type	Canopy cooker hood – Built–in/Built–under
Model designation	DLN77AC60B
Colour	Black
Installation typology	Built-in; installation in cabinet; flush-fitted in wall cupboards
Operation type	Suitable for ducted or recirculating operation

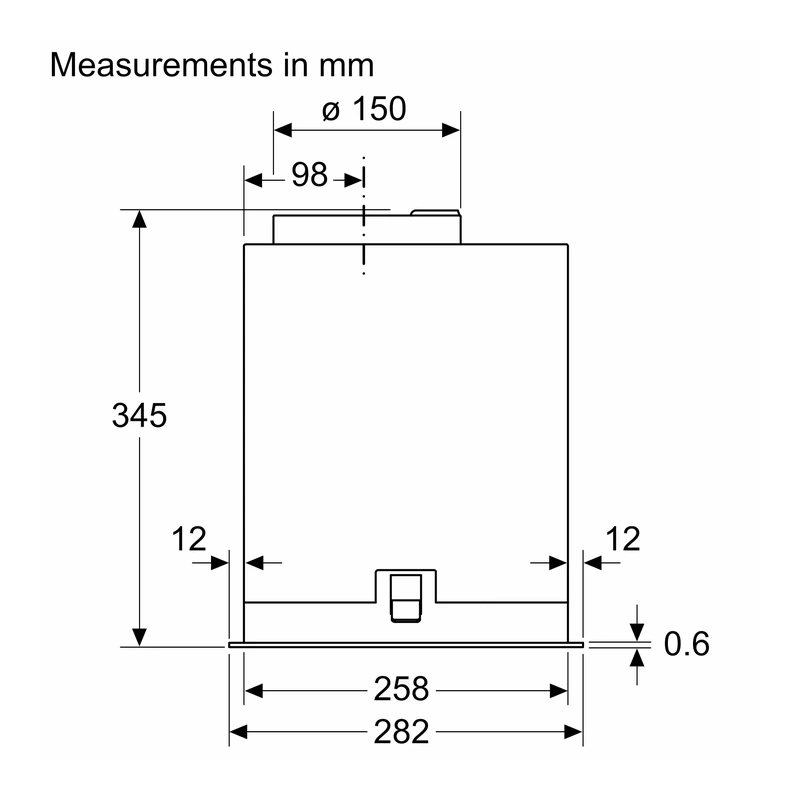

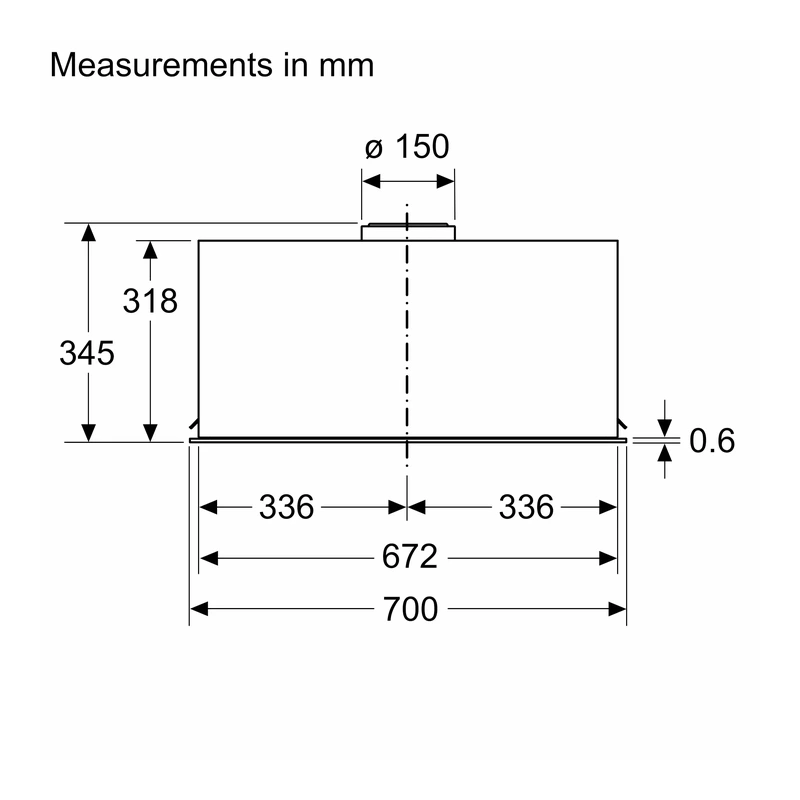

Dimensions (H × W × D)	345 × 700 × 282 mm
Recirculating dimensions (H × W × D)	345–345 × 700 × 282 mm
Built-in dimensions (H × W × D)	345 × 676 × 264 mm

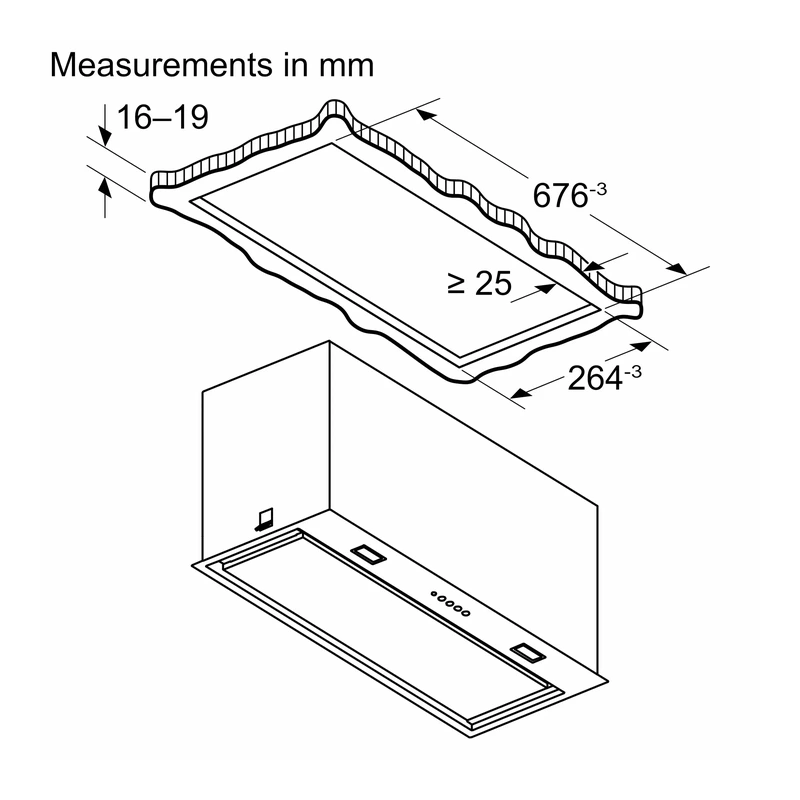

Required niche size (H × W × D)	345 mm × 676.0 mm × 264 mm
Height of appliance	345 mm

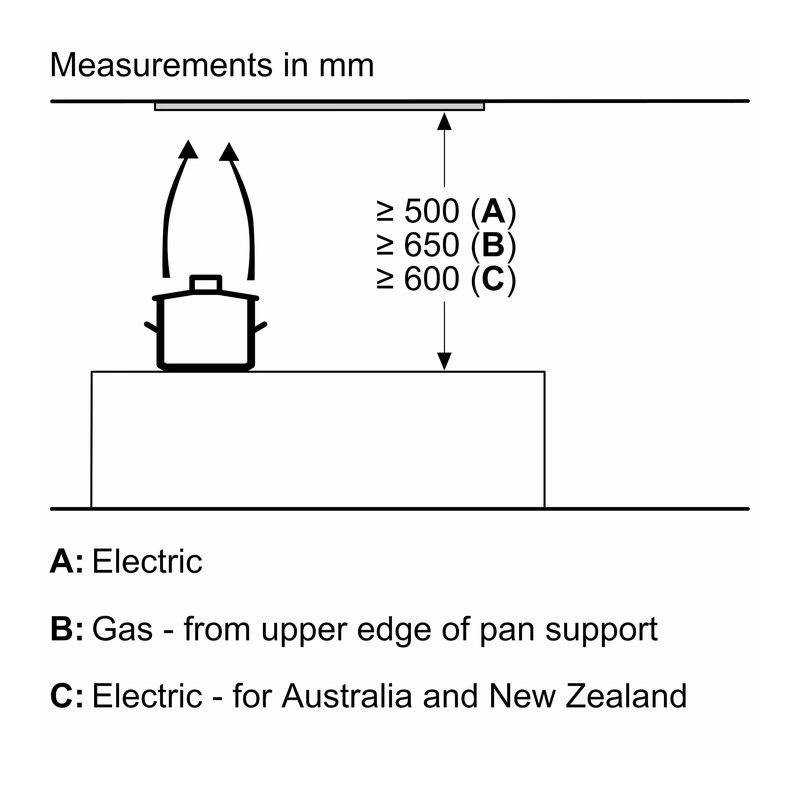

Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm
Net weight	9.1 kg
Type of control	Soft touch button control with electronic display
Speed settings	3 stages + intensive setting; automatic reset from intensive to normal after 6 min
Max. air extraction	595 m³/h
Boost position air extraction	730 m³/h
Max. air recirculation	580 m³/h
Boost position output recirculating	705 m³/h
Maximum air flow	595 m³/h
Noise level	63 dB(A) re 1 pW (maximum, exhaust mode speed 3)
Exhaust performance (EN 61591 / EN/IEC 60704-2-13)	Speed 1: 270 m³/h; 45 dB(A) re 1 pW Speed 2: 400 m³/h; 53 dB(A) re 1 pW Speed 3: 595 m³/h; 63 dB(A) re 1 pW Intensive 1: 730 m³/h; 68 dB(A) re 1 pW
Recirculation performance with standard kit	Speed 1: 250 m³/h; 65 dB(A) re 1 pW Speed 2: 350 m³/h; 71 dB(A) re 1 pW Speed 3: 400 m³/h; 74 dB(A) re 1 pW Intensive Speed 1: 430 m³/h; 75 dB(A) re 1 pW
Recirculation performance with Clean Air Plus kit	Speed 1: 260 m³/h; 53 dB(A) re 1 pW Speed 2: 385 m³/h; 71 dB(A) re 1 pW Speed 3: 580 m³/h; 70 dB(A) re 1 pW Intensive Speed 1: 705 m³/h; 73 dB(A) re 1 pW
Energy Efficiency Class*	A (at a range of energy efficiency classes from A+++ to D)
Average energy consumption*	55.5 kWh/year*
Blower efficiency class*	A*
Lighting efficiency class*	A*
Grease filtering efficiency class*	D*
Number of lights	2 × 1 W LED
Light colour temperature	4000 K
Light intensity	400 lux
Grease filters	2 metal grease filter(s); removable; dishwasher-safe; washable aluminium material
Grease filter material	Washable aluminium
Motor type	Capacitor motor
Diameter of air outlet	150 mm (120 mm enclosed)
Back-pressure flap	Yes
Length of electrical supply cord	150 cm (electrical cable length 1.5 m)
Connection rating	252 W (power rating 252 W)
Fuse protection	3 A
Voltage	220–240 V nominal voltage
Frequency	50; 60 Hz
Plug type	GB plug
EAN code	4242005475643
Optional accessories – standard odour filter	DHZ5316 Standard odour filter (replacement)

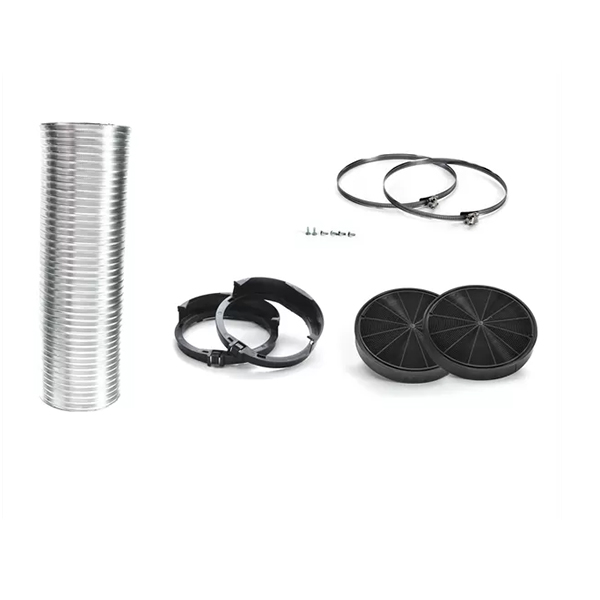

Optional accessories – standard recirculation kit	DHZ5605 Standard recirculation kit
Optional accessories – Long Life odour filter	DWZ0IT0P0 Long Life odour filter (replacement)

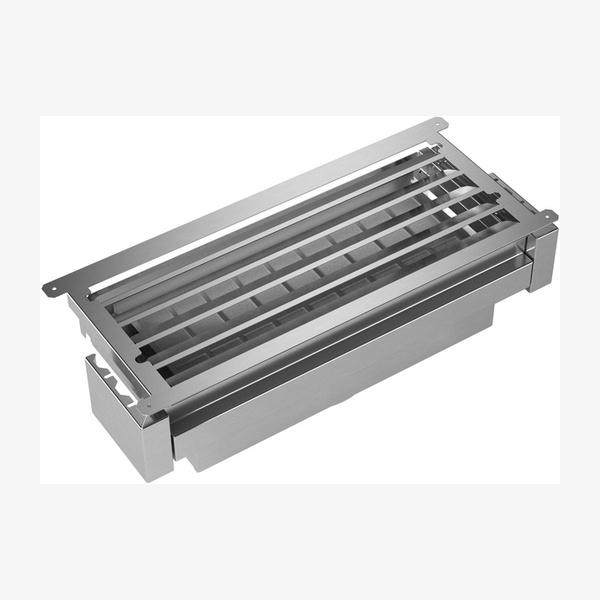

Optional accessories – Long Life recirculation kit external	DWZ1IT1D1 Long Life recirculation kit external

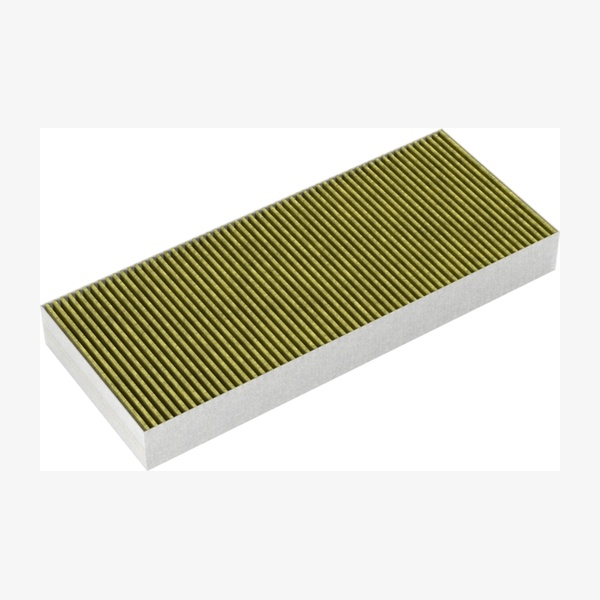

Optional accessories – Clean Air Plus odour filter	DWZ1IX1B6 Clean Air Plus odour filter (replacement)
Optional accessories – Clean Air Plus recirculation kit external	DWZ1IX1C6 Clean Air Plus recirculation kit external
