Is the DLN87AC60B suitable for both ducted and recirculating operation?

Yes. The canopy hood is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits, including standard and Clean Air Plus options, are available as optional accessories.

What is the maximum extraction rate of this cooker hood?

The maximum air extraction in exhaust mode is 600 m³/h, and the boost position air extraction reaches up to 745 m³/h. In recirculation mode with the Clean Air Plus kit, the intensive setting can achieve up to 700 m³/h.

How noisy is the hood during operation?

In exhaust mode, noise levels are 45 dB(A) re 1pW at Speed 1, 51 dB(A) at Speed 2, 61 dB(A) at Speed 3 and 65 dB(A) at Intensive 1, according to EN 61591 and EN/IEC 60704-2-13.

Are the grease filters easy to clean?

Yes. The hood includes two removable metal grease filters made from washable aluminium. These filters are dishwasher–safe, and the smooth surfaces and materials are described as easy to clean.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

What is the energy efficiency rating and annual energy consumption?

The hood has an energy efficiency class of A on a scale from A+++ to D. The average energy consumption is 50.1 kWh per year.

Product Information Sheet

Bosch Series 6 Canopy Hood

SKU: DLN87AC60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch DLN87AC60B Series 6 Canopy Hood

SKU: DLN87AC60B · EAN: 4242005526659

Black

The Series 6 DLN87AC60B is an 86 cm black canopy cooker hood designed to fit neatly under an overhead unit or cabinet, providing discreet extraction while using valuable space effectively. Suitable for both ducted and recirculating operation, it offers a high extraction rate, quiet performance and an intensive setting for intense steam. Energy–saving LED lighting delivers clear, bright illumination for the hob, while dishwasher–safe metal grease filters support easy cleaning.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 6, Canopy cooker hood, 86 cm, Black
Model reference	DLN87AC60B
Typology	Built-in / Built-under canopy hood
Installation	Cabinet; flush-fitted installation in wall cupboards
Operation type	Suitable for ducted or recirculating operation
Colour	Black

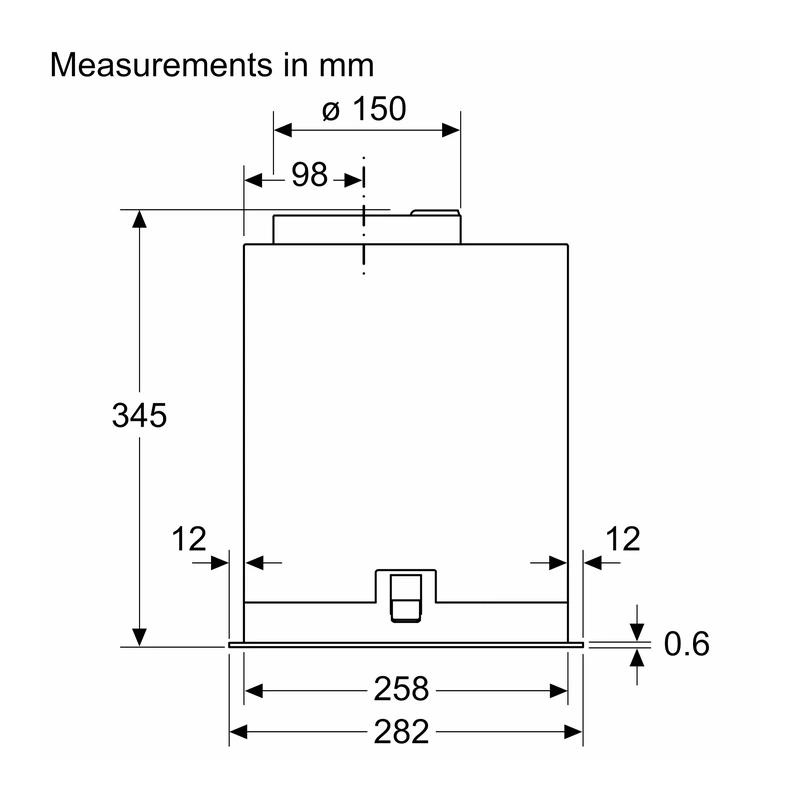

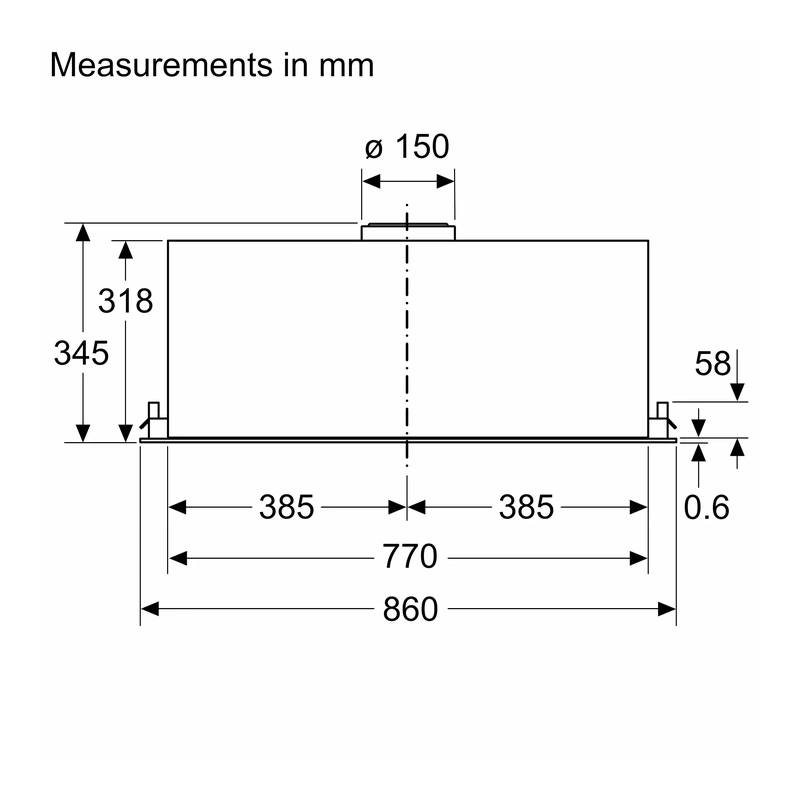

Appliance dimensions (H × W × D)	345 x 860 x 282 mm
Recirculating dimensions (H × W × D)	345–345 x 860 x 282 mm

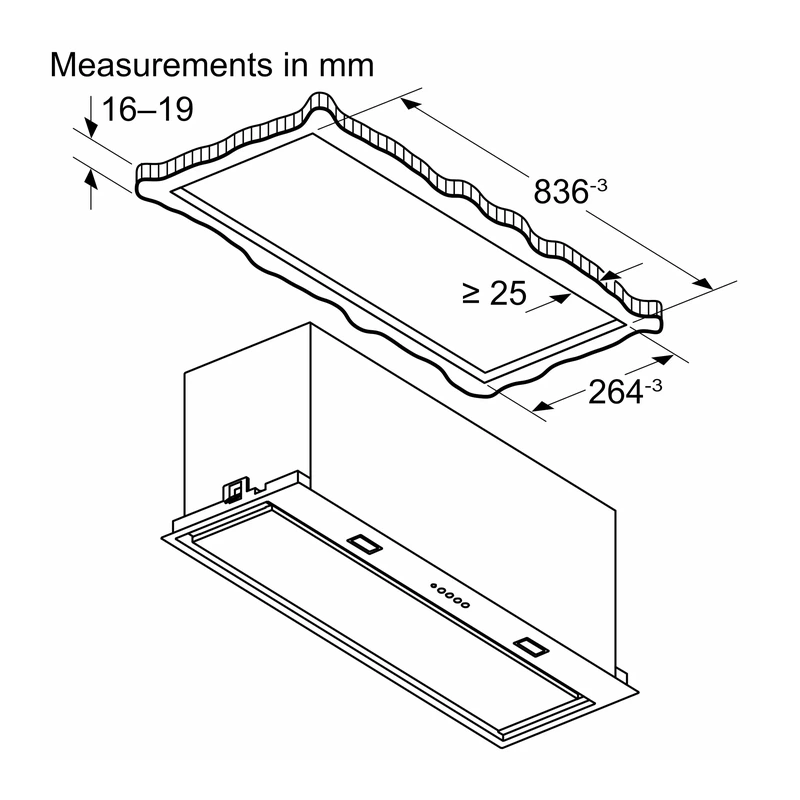

Built-in dimensions (H × W × D)	345 x 676 x 264 mm
Required niche size (H × W × D)	345 mm x 676.0 mm x 264 mm
Height of appliance	345 mm
Width	86 cm

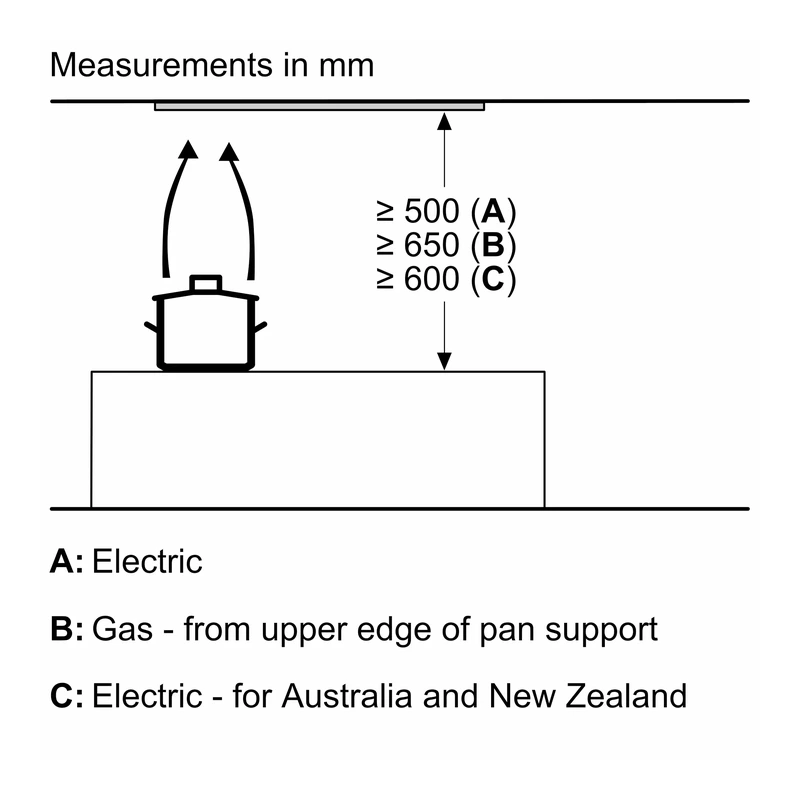

Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm
Net weight	9.8 kg
Type of control	Electronic; soft touch button control with electronic display
Number of speed settings	3 stages + intensive setting
Max. air extraction (exhaust)	600 m³/h
Boost position air extraction (exhaust)	745 m³/h
Max. air recirculation	580 m³/h
Boost position output recirculating	700 m³/h
Maximum air flow	600 m³/h
Noise level (exhaust mode)	Speed 1: 45 dB(A) re 1pW; Speed 2: 51 dB(A) re 1pW; Speed 3: 61 dB(A) re 1pW; Intensive 1: 65 dB(A) re 1pW
Noise level (general)	61 dB(A) re 1pW
Performance recirculation (standard kit)	Speed 1: 200 m³/h; 59 dB(A) re 1pW. Speed 2: 370 m³/h; 71 dB(A) re 1pW. Speed 3: 440 m³/h; 73 dB(A) re 1pW. Intensive: 460 m³/h; 74 dB(A) re 1pW.
Performance recirculation (Clean Air Plus kit)	Speed 1: 270 m³/h; 51 dB(A) re 1pW. Speed 2: 390 m³/h; 71 dB(A) re 1pW. Speed 3: 580 m³/h; 69 dB(A) re 1pW. Intensive: 700 m³/h; 74 dB(A) re 1pW.
Number of lights	2 x 1 W LED
Light colour temperature	4000 K
Light intensity	400 lux
Motor type	Capacitor motor
Grease filters	2 metal grease filters; removable and dishwasher–safe
Grease filter material	Washable aluminium
Diameter of air outlet	150 mm (120 mm enclosed)
Back-pressure flap	Yes
Energy efficiency class	A (range from A+++ to D)
Average energy consumption	50.1 kWh/year*
Blower efficiency class	A*
Lighting efficiency class	A*
Grease filtering efficiency class	D*
Connection rating	252 W
Fuse protection	3 A
Voltage	220–240 V (nominal)
Frequency	50; 60 Hz
Plug type	GB plug
Electrical cable length	1.5 m
EAN code	4242005526659
Sustainability features	Environmentally friendly packaging; available odour filter as regenerative Long Life filter with 10 years lifetime

*As stated in the product data: Blower, lighting and grease filtering efficiency classes marked with an asterisk.

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Bosch →

Optional Accessories

— add individually to your enquiry

Optional

DHZ5605

Bosch Standard Recirculation Kit

Optional

DWZ1IT1D1

Bosch Long Life Regenerative Recirculation Kit

Optional

DWZ1IX1B6

Bosch Replacement CleanAir Plus Anti-Pollen Filter

Optional

DWZ1IX1C6

Bosch CleanAir Plus Anti-Pollen Recirculation Kit
