Bosch DWP74BC50B Serie 2 Chimney Hood

SKU: DWP74BC50B · EAN: 4242005031993

Brushed Steel

The Series 2 DWP74BC50B is a 75 cm stainless steel wall–mounted pyramid cooker hood designed for effective extraction or recirculation. It offers a maximum extraction rate of 365 m³/h, quiet performance and bright LED illumination of the hob area. With mechanical push button control and 3 power levels, it allows you to adjust extraction intensity according to your cooking needs. Dishwasher–safe metal grease filters support easy maintenance.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / code	Series 2, Wall–mounted cooker hood, 75 cm, Stainless steel – DWP74BC50B
Typology	Wall–mounted / Chimney extractor hood
Colour chimney	Stainless steel
Installation typology	Wall–mounted, suitable for ducted or recirculating operation
Energy Efficiency Class	D (range A+++ to D)
Blower Efficiency Class	E*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	D*
Average energy consumption	53.1 kWh/year*
Max. air extraction (exhaust)	365 m³/h (according to EN 61591)
Max. air recirculation	213 m³/h (max. normal use in recirculation mode)
Maximum air flow	365 m³/h
Noise level exhaust air	65 dB(A) re 1 pW at max. normal use (according to EN 60704–3 and EN 60704–2–13)
Noise level recirculation	Max. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
Type of control	Mechanical, push button control
Number of speed settings	3 power levels
Lighting	2 × 1.5 W LED lights, Colour Temperature 3500 K, light intensity 94 lux
Number of lights	2

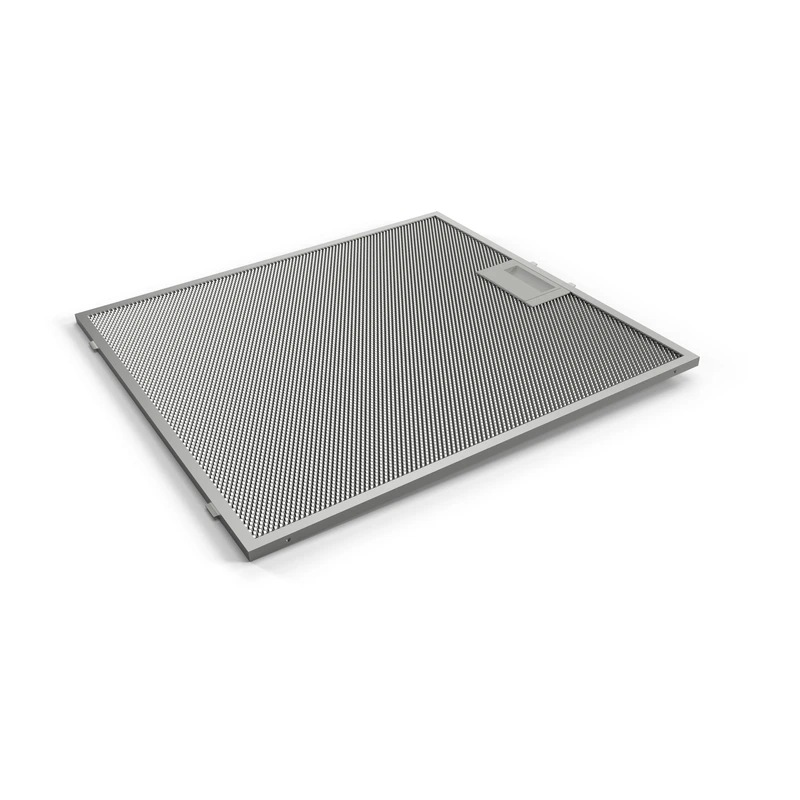

Grease filter material	Washable aluminium, 2 removable metal grease filter cassettes
Diameter of air outlet	Ø 150 mm (Ø 120 mm enclosed)

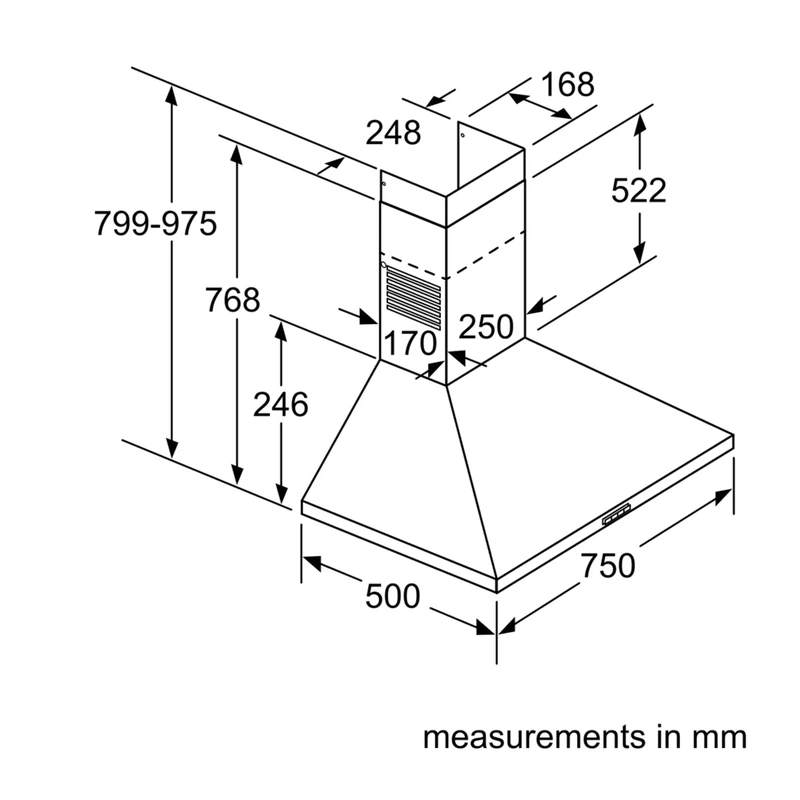

Dimensions (exhaust air, H×W×D)	799–975 × 750 × 500 mm
Dimensions (recirculating, H×W×D)	799–975 × 750 × 500 mm
Height of the chimney	553–730 / 573–730 mm
Height of the appliance	246 mm

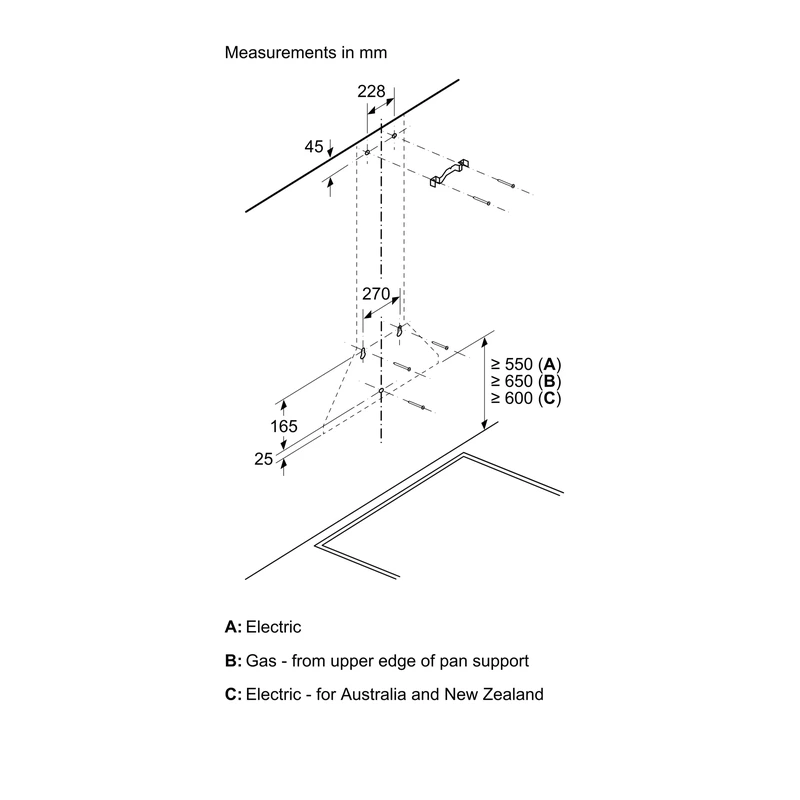

Minimum distance above electric hob	550 mm
Minimum distance above gas hob	650 mm
Net weight	11.1 kg
Connection rating	100 W (power rating 100 W)
Fuse protection	10 A
Voltage	220–240 V
Frequency	50; 60 Hz
Plug type	GB plug
Length of electrical supply cord	130 cm (electrical cable length 1.3 m)
EAN code	4242005031993
