What heating methods does the HBG7764B1B oven offer?

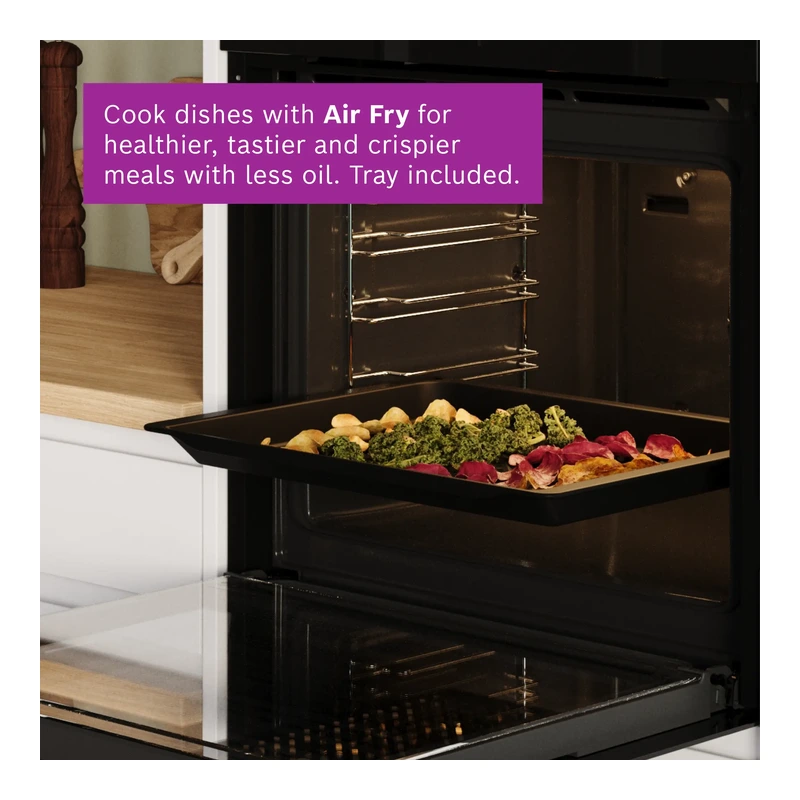

The oven provides 14 heating methods: 4D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, half width grill, pizza function, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Hotair gentle, Conventional heat gentle and Air fry.

What is the capacity of the oven cavity?

The oven has a cavity volume of 71 litres with 5 shelf positions.

Does this oven have a self–cleaning function?

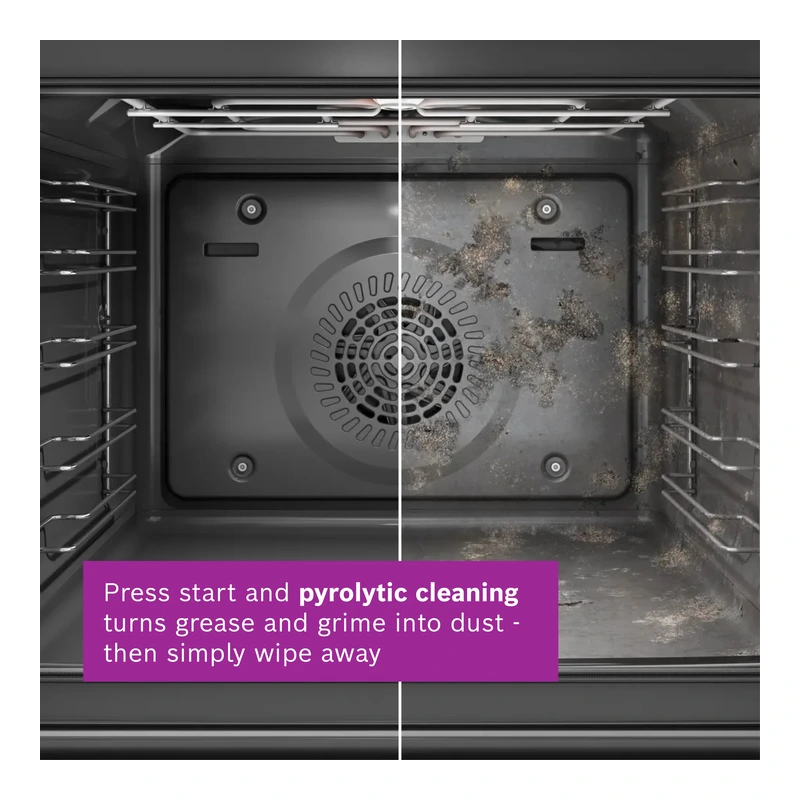

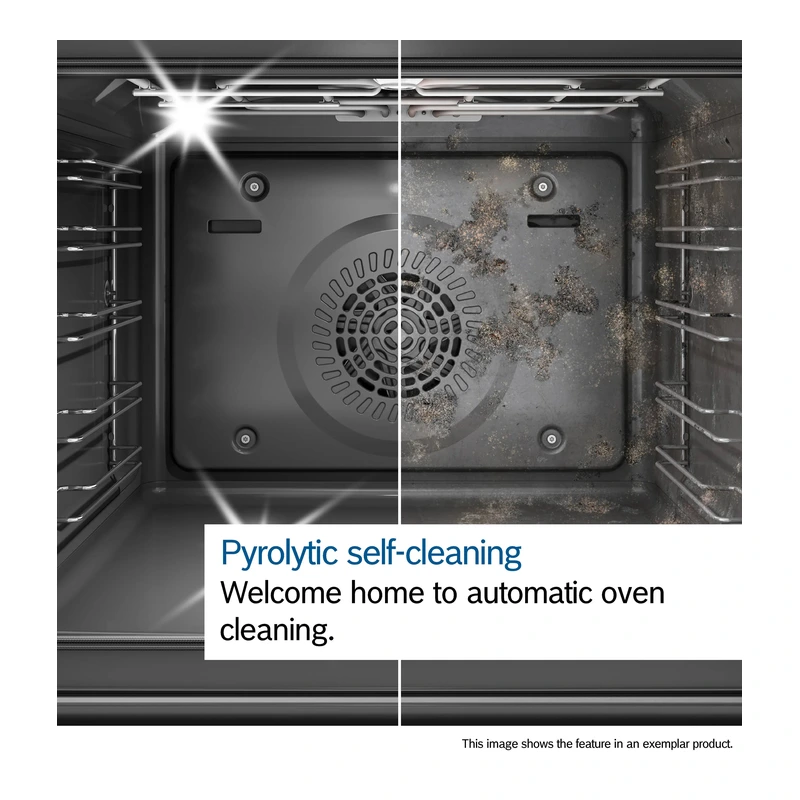

Yes, it features a pyrolytic self–cleaning function and a hydrolyse program. The pyrolytic function enables automatic oven cleaning with wipe–away ash.

Is the oven door designed to stay cool?

The oven has a quadruple glazed door with heat reflective glass, a CoolTouch door and a maximum window temperature of 30 °C. It also has low door temperature during pyrolitic cleaning.

Which accessories are included with the oven?

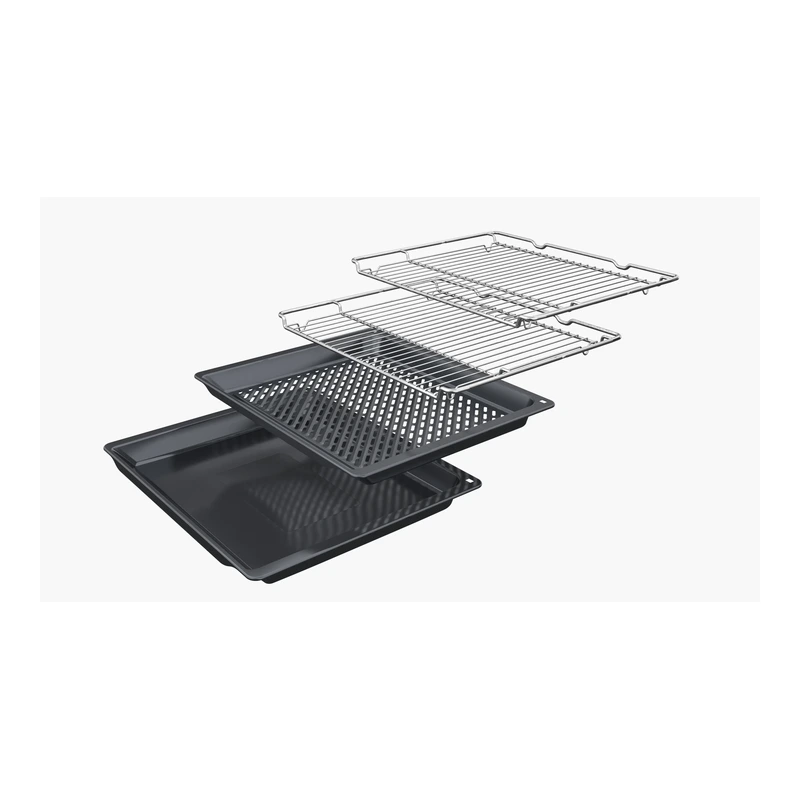

Included accessories are 1 x enamel baking tray, 2 x combination grid and 1 x universal pan.

Is the oven compatible with smart home features?

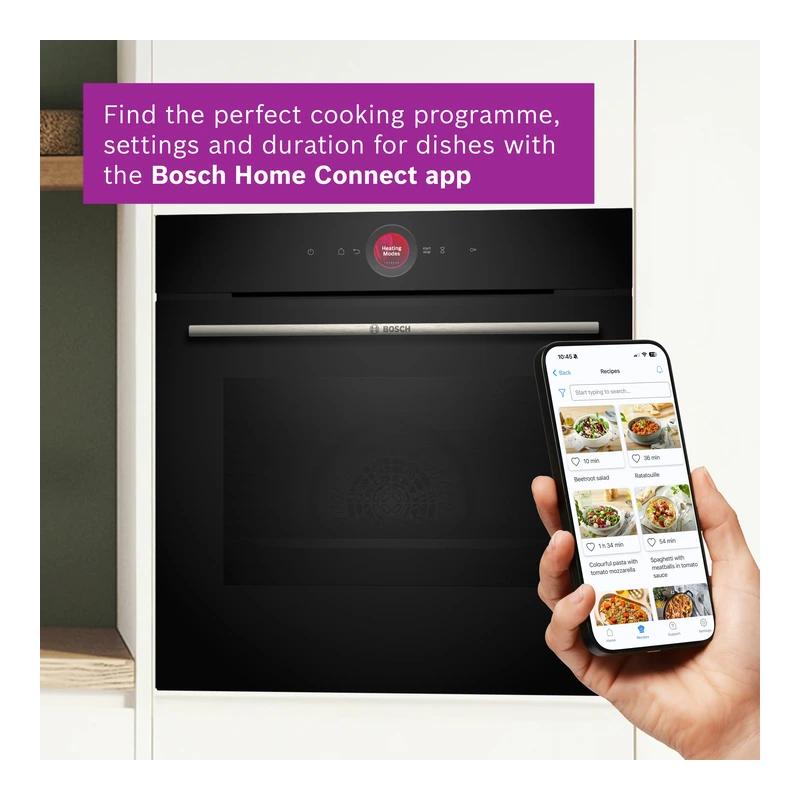

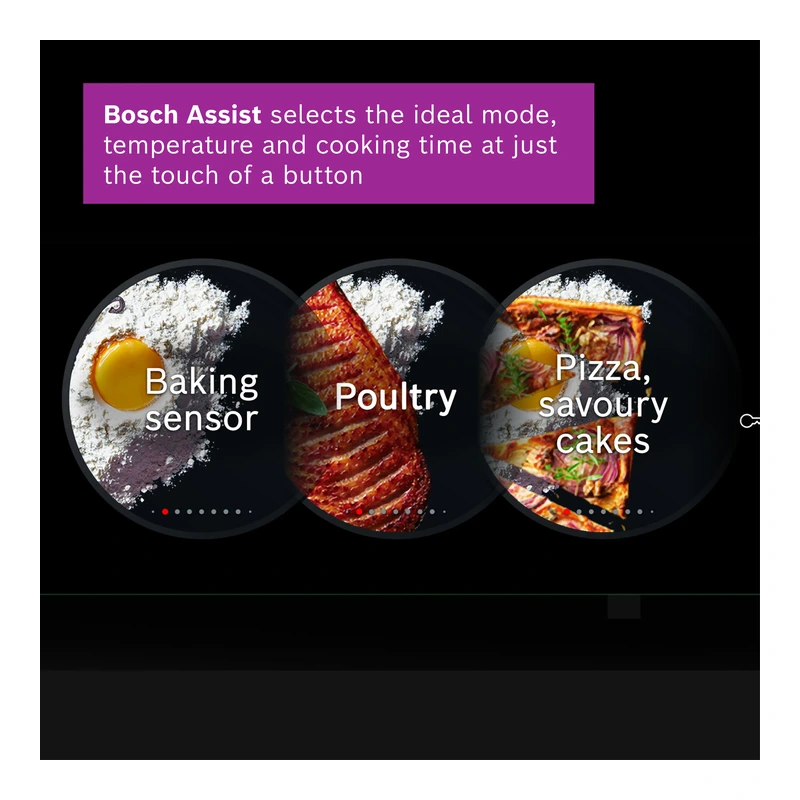

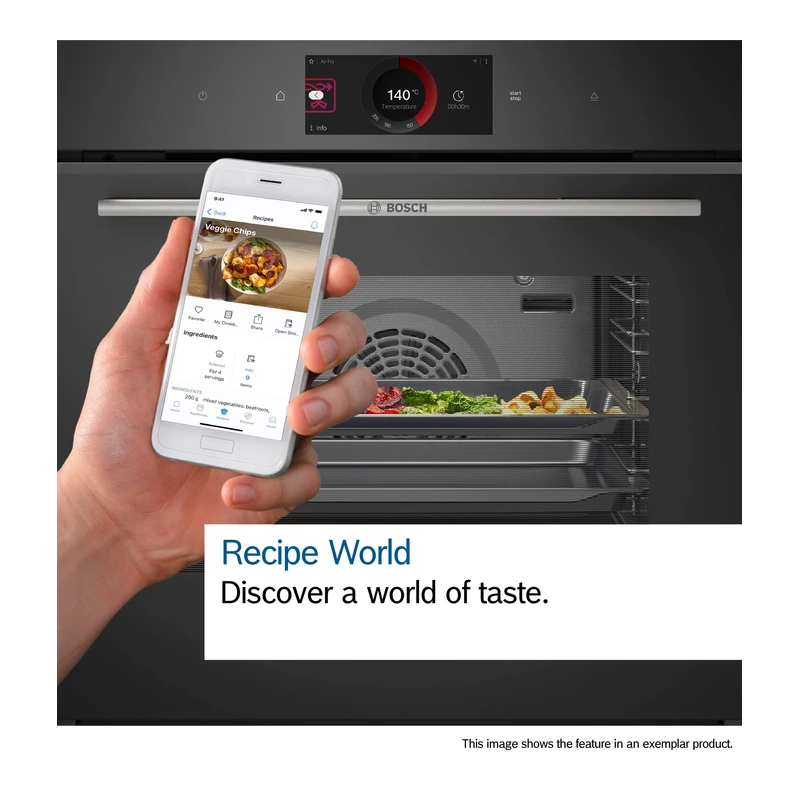

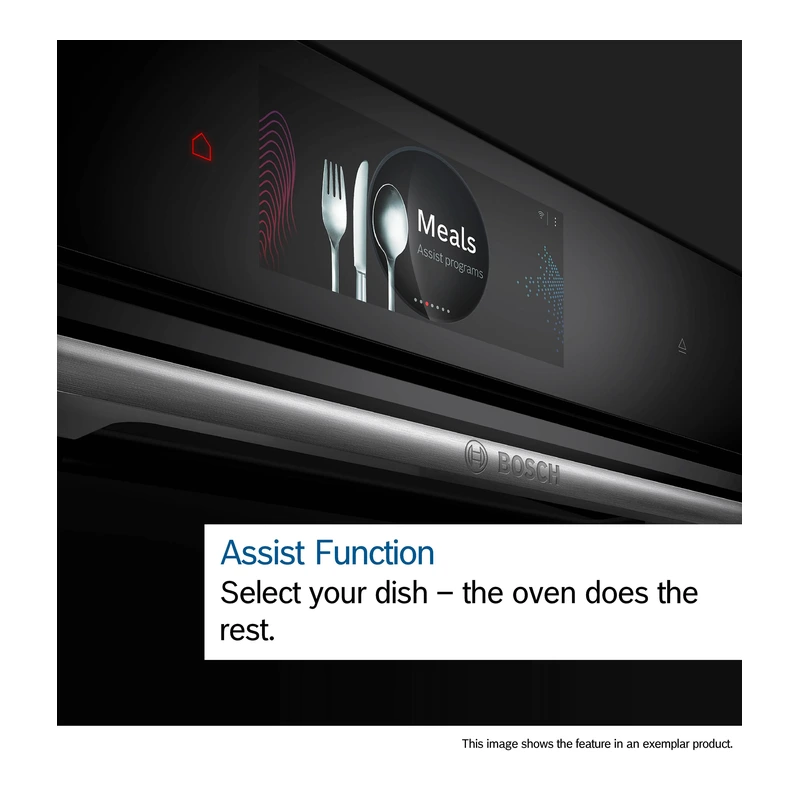

The oven is Home Connect ready and offers Remote Control and Monitoring via the app. It also includes Oven Assistant with Voice Control and BoschAssist.

Product Information Sheet

Bosch Series 8 Single Oven

SKU: HBG7764B1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch HBG7764B1B Series 8 Single Oven

SKU: HBG7764B1B · EAN: 4242005326686

Black

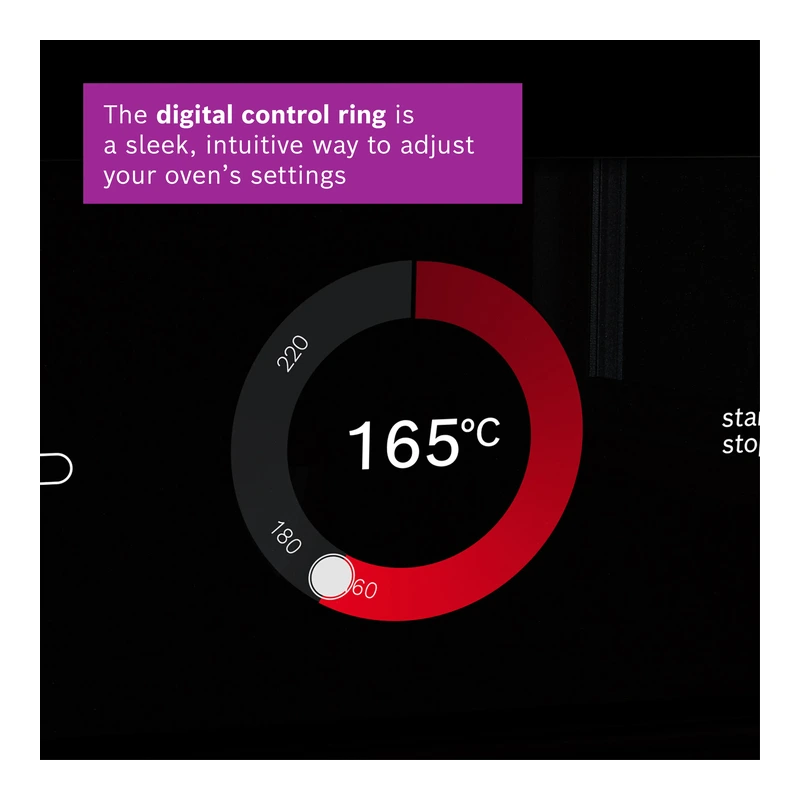

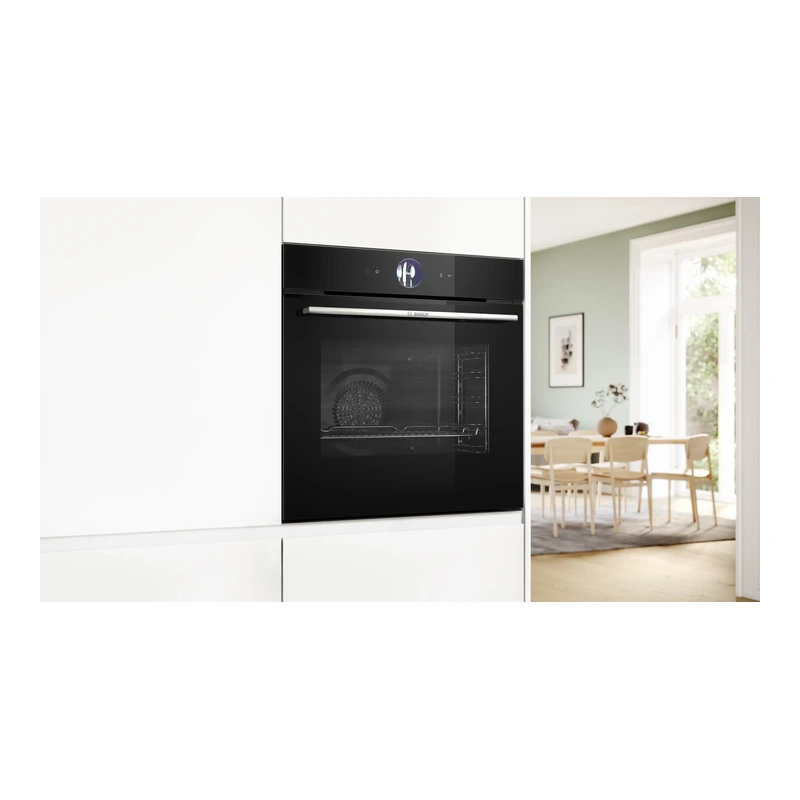

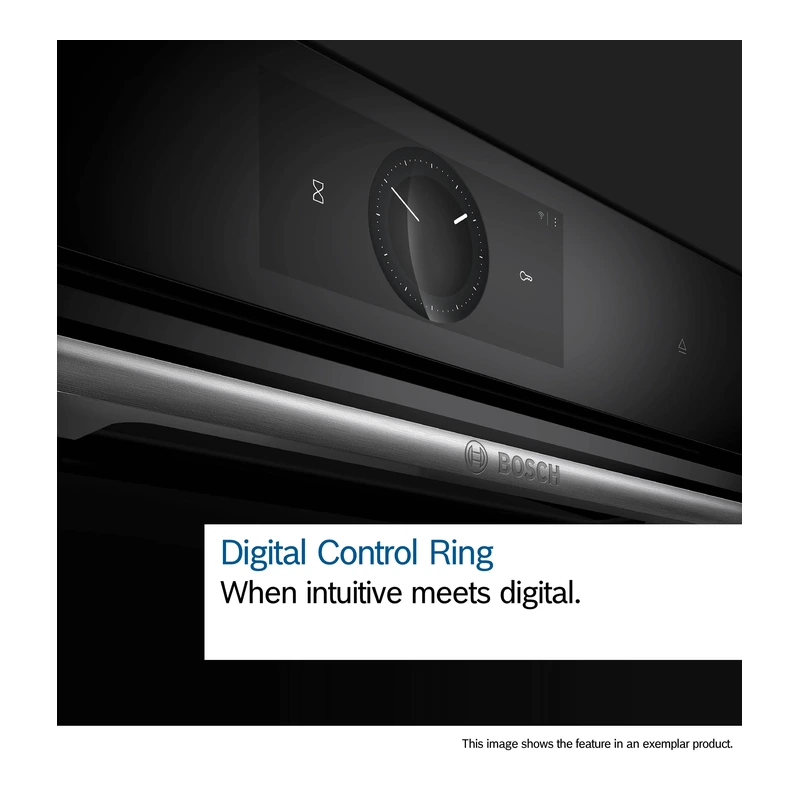

The Series 8 HBG7764B1B is a 60 x 60 cm black built–in oven with a Digital Control Ring and TFT Touch Display Plus for simple, intuitive operation. It offers 14 heating methods including 4D Hotair and Air fry, a 71 litre cavity and a temperature range from 30 °C to 275 °C. Pyrolytic self–cleaning, hydrolyse programme and Home Connect readiness support convenient cooking and cleaning in a modern kitchen.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 8, Built–in oven, 60 x 60 cm, Black, HBG7764B1B
Built–in / Free–standing	Built–in
Integrated cleaning system	Pyrolytic+Hydrolytic; Pyrolytic self–cleaning function; hydrolyse program

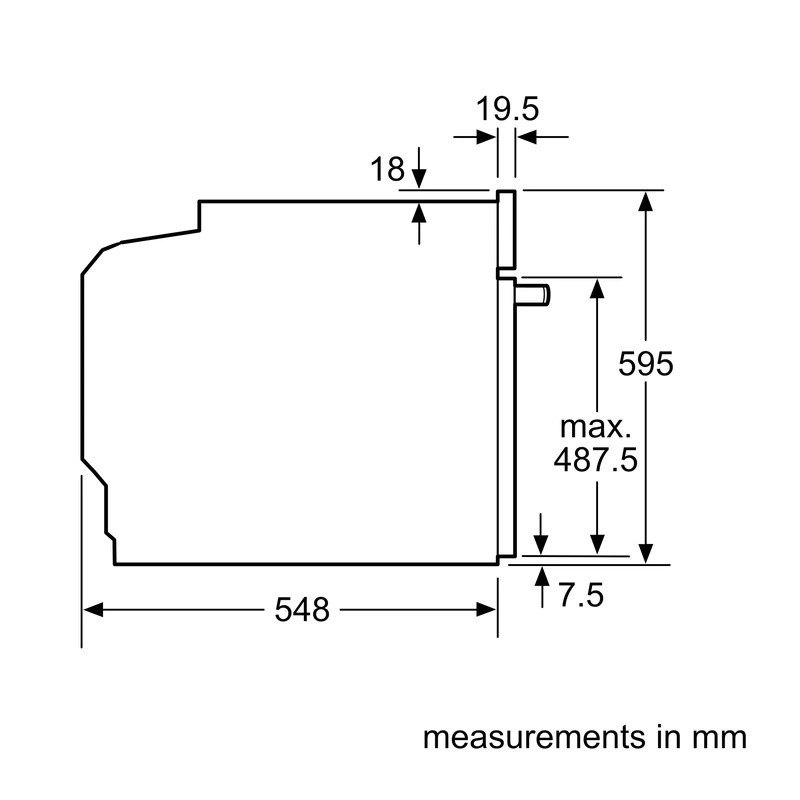

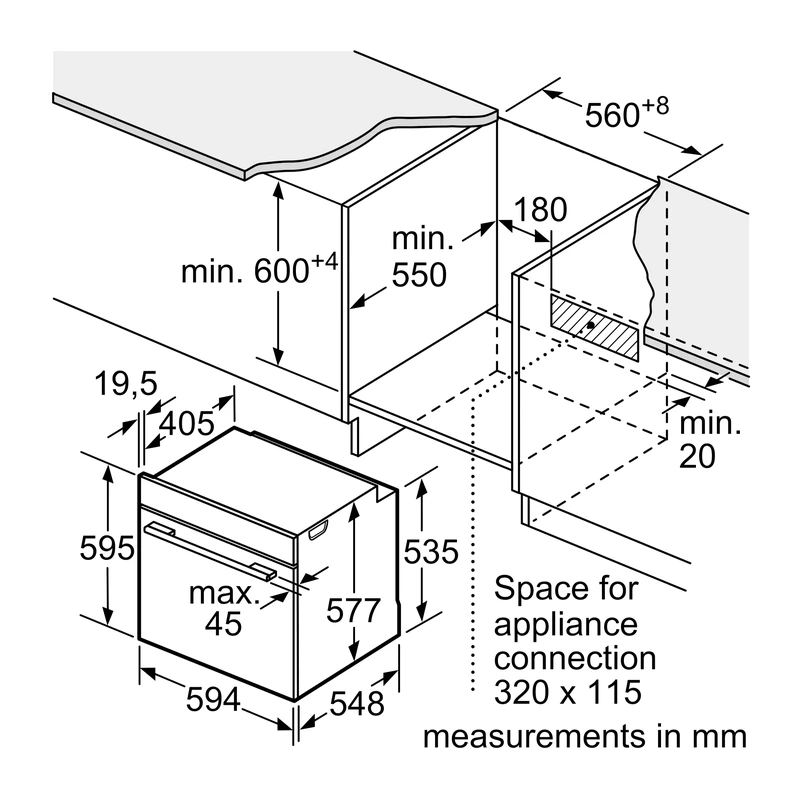

Appliance dimensions (H x W x D)	595 mm x 594 mm x 548 mm

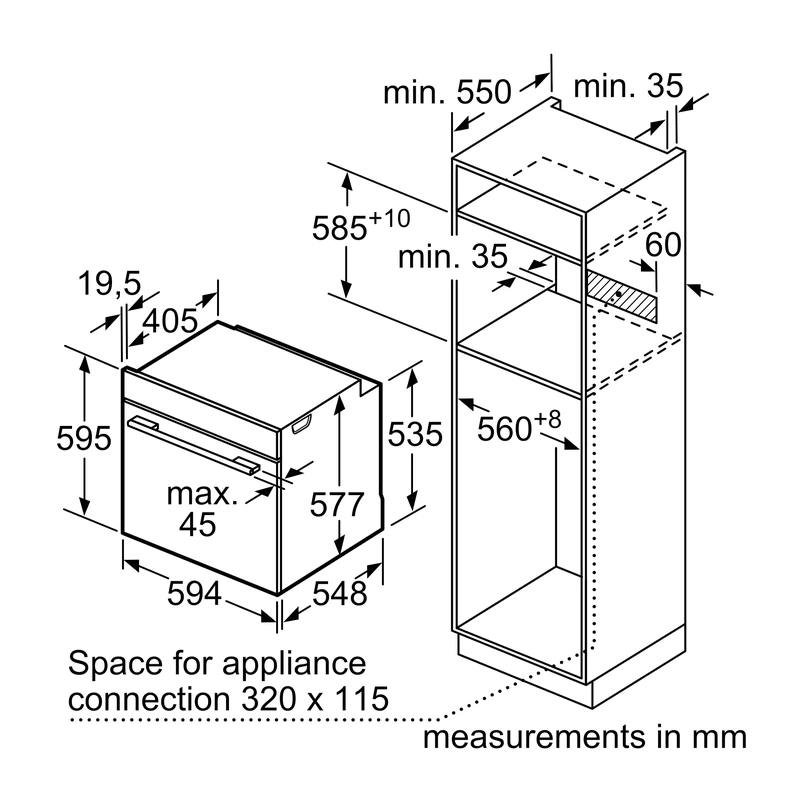

Niche dimensions (H x W x D)	585 mm – 595 mm x 560 mm – 568 mm x 550 mm
Required niche size for installation (H x W x D)	585–595 x 560–568 x 550 mm
Packed product dimensions (H x W x D)	670 x 670 x 680 mm
Control panel material	Glass
Door material	Glass; full glass inner door; quadruple glazed CoolTouch door

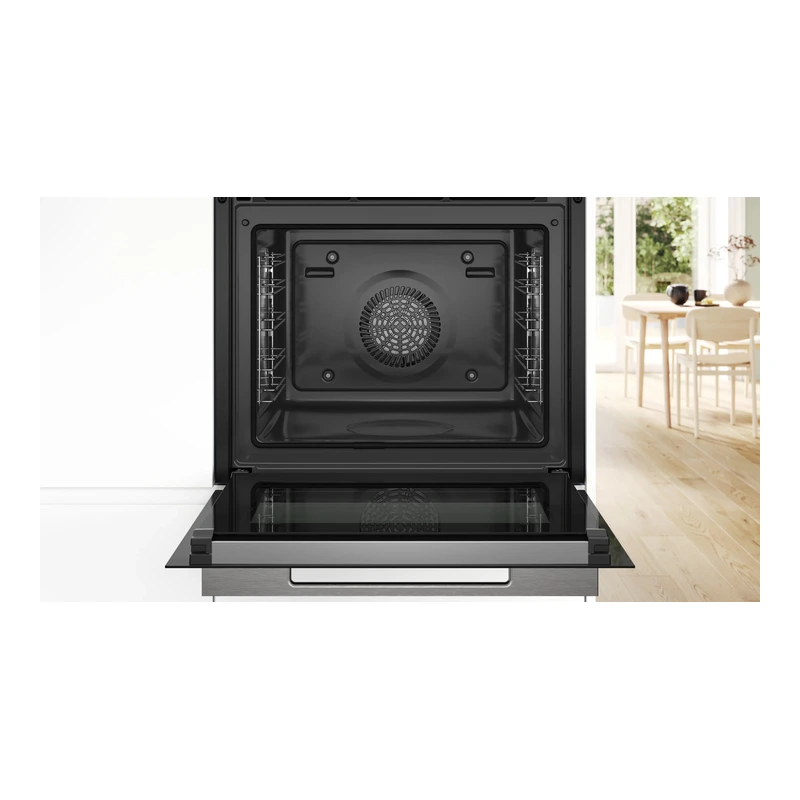

Cavity inner surface	Enamel anthracite
Net weight	37.5 kg
Usable cavity volume	71 l / 71 litre capacity
Number of cavities	1 (Main cavity)
Cooking methods	4D Hotair, Defrost, Air fry, Full width grill, Hotair gentle, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting / pizza function, low temperature cooking, Bottom heat, Hot air grilling, pre–heating, warming, plate warming, keep warm, conventional top and bottom heat, full width variable grill
Temperature range	30 °C – 275 °C
Maximum window temperature	30 °C
Level independent telescopic rails	Available as an additional accessory, pyrolitic proof
Shelf positions	5 shelf positions
Energy efficiency rating	A+ (acc. EU Nr. 65/2014; 2010/30/EC)
Energy consumption (conventional)	0.87 kWh per cycle
Energy consumption (fan–forced convection)	0.69 kWh per cycle
Energy efficiency index	81.2 %
Heat source	Electrical
Connection rating / Total connected load	3600 W / 3.6 KW
Nominal voltage	220 – 240 V
Frequency	50; 60 Hz
Fuse protection	16 A
Plug type	no plug (electrical connection by electrician)
Length electrical supply cord	120 cm / 120 cm Cable length
EAN code	4242005326686
Included accessories	1 x enamel baking tray, 2 x combination grid, 1 x universal pan
Optional accessories	HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ635001 AirFry & Grill Set; HEZ636000 Glass pan; HEZ638070 Full ext rails, level independent, pyro; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ634000 Baking and roasting grid; HEZ915003 Glass roasting dish, 5,4 L

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.
