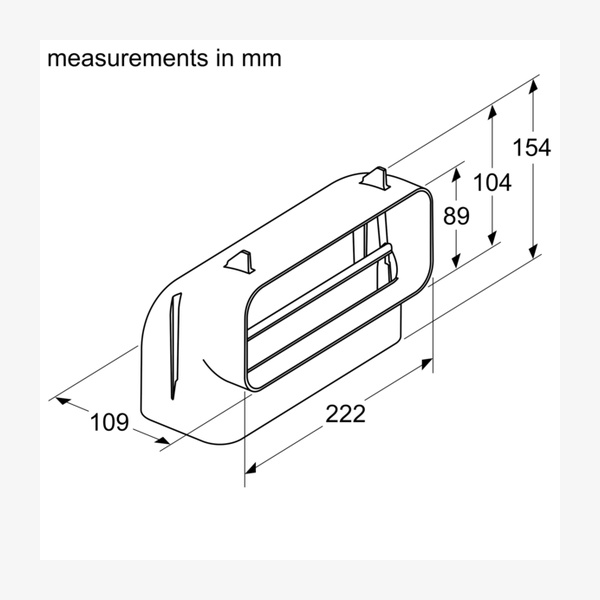

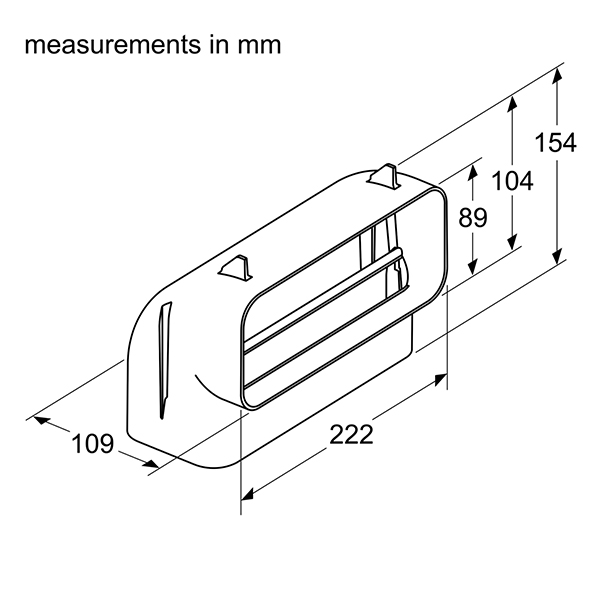

Bosch HEZ9VDSB3 Flat channel 90º vertical bend

SKU: HEZ9VDSB3 · EAN: 4242005253852

The HEZ9VDSB3 is a 90° flat duct medium vertical bend designed as a male bend element with a small radius. It is aerodynamically optimised to minimise pressure losses and maximise flow rate, and is easy to connect via a female connector sleeve element. The component complies with recognised flammability and needle flame tests, making it suitable where these specific standards are required.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Flat duct, 90 °, vertical M
Model reference	HEZ9VDSB3
Type	90° flat duct medium vertical bend (male)
Configuration	Vertical configuration with small radius
Dimensions of packed product (H x W x D)	122 x 175 x 233 mm
Pallet dimensions	175.0 x 80.0 x 120.0
Standard number of units per pallet	240
Net weight	0.2 kg
Gross weight	0.4 kg
EAN code	4242005253852
Aerodynamic design	Optimised for minimised pressure losses and maximised flow rate
Connection method	Easy-to-connect via the female connector sleeve element
Needle Flame Test compliance	IEC 60695-5-11
Flammability class	V2 (UL94)
Building material class	B1 (DIN 4102-1)
