What is the capacity of the oven cavity?

The oven has a cavity volume of 71 litres, described as an extra large capacity oven with 5 shelf positions.

Which heating methods are available?

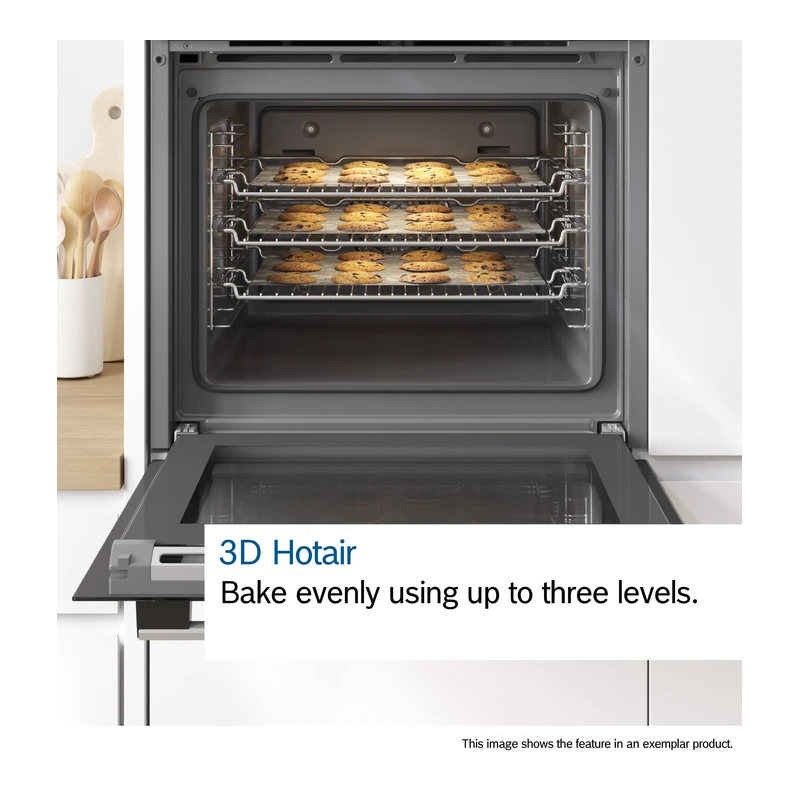

The oven offers 8 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, and hot air and steam combined.

What is the energy efficiency rating?

The appliance has an energy efficiency rating of A+ (acc. EU Nr. 65/2014). Energy consumption per cycle is 0.94 kWh in conventional mode and 0.69 kWh in fan–forced convection mode.

How does EcoClean Direct work?

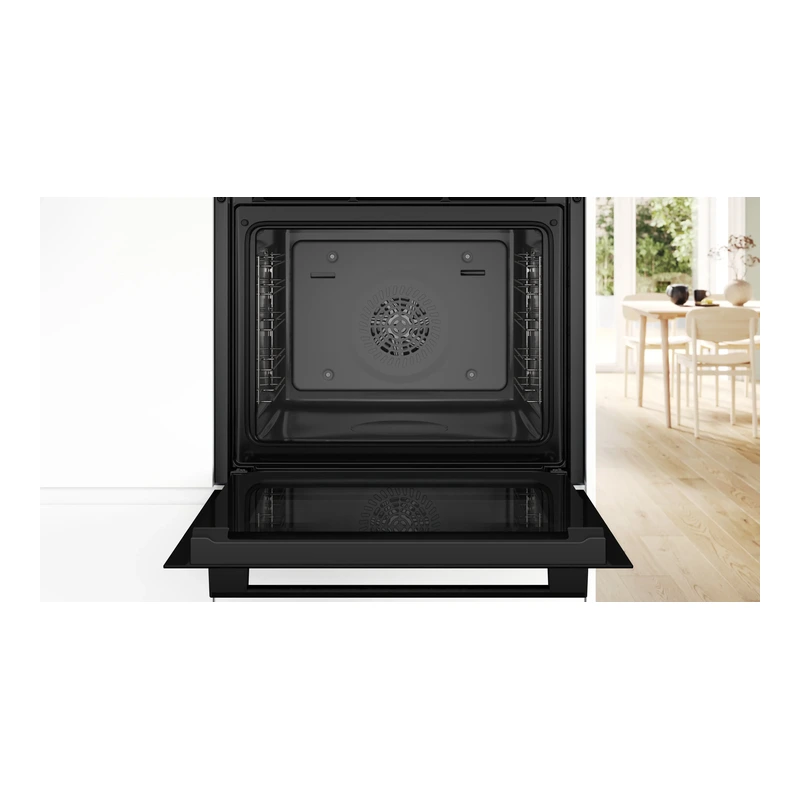

EcoClean Direct is a special coating on the rear wall that automatically absorbs grime, resulting in less cleaning effort. It is specified as an EcoClean Direct programme, Hydrolytic system for the back panel.

What accessories are included with the oven?

The oven is supplied with 2 x combination grid and 1 x universal pan as included accessories.

Is there a child lock or control lock?

A control panel lock is listed as a feature, helping to secure the settings during operation.

Product Information Sheet

Bosch Series 4 Single Oven

SKU: HQA534BB3B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

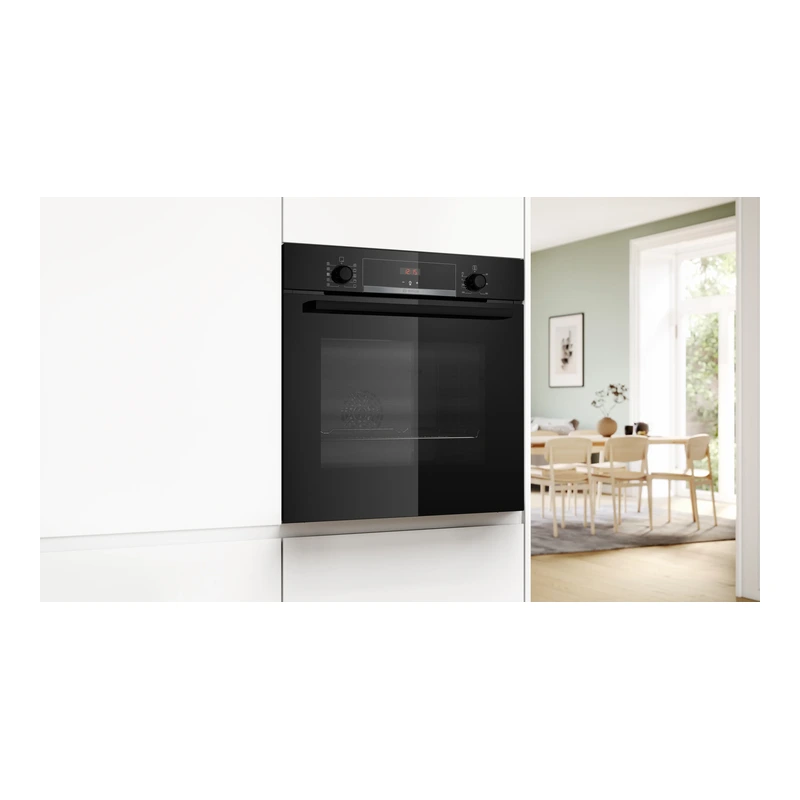

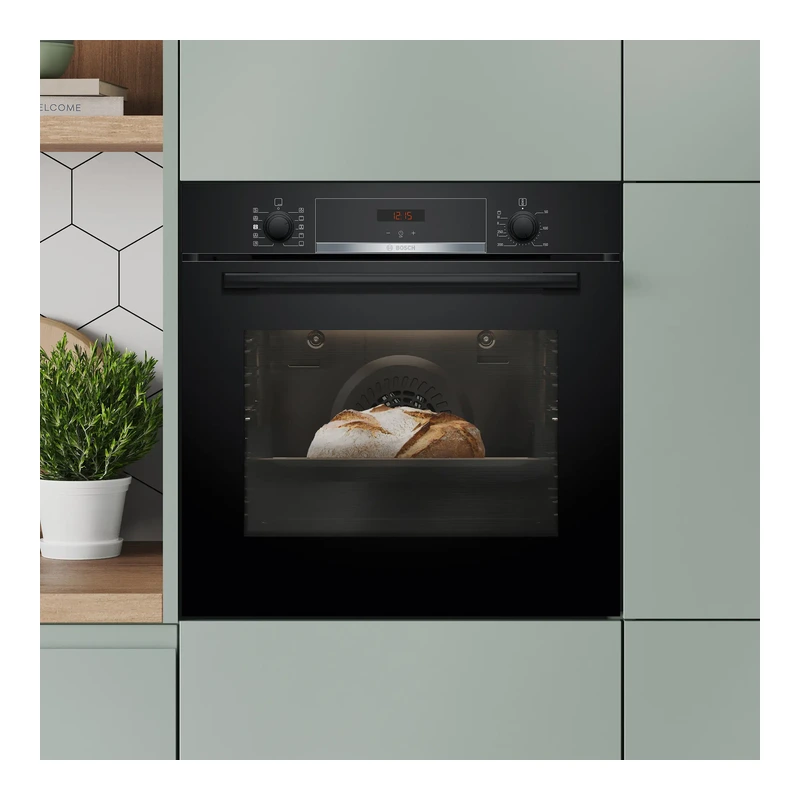

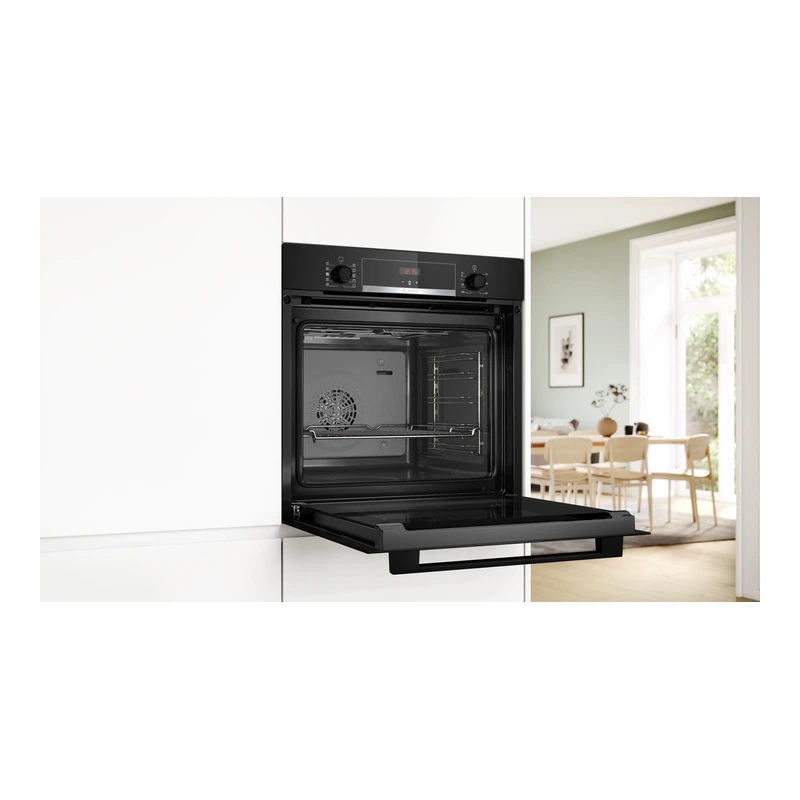

Bosch HQA534BB3B Series 4 Single Oven

SKU: HQA534BB3B · EAN: 4242005465552

Black

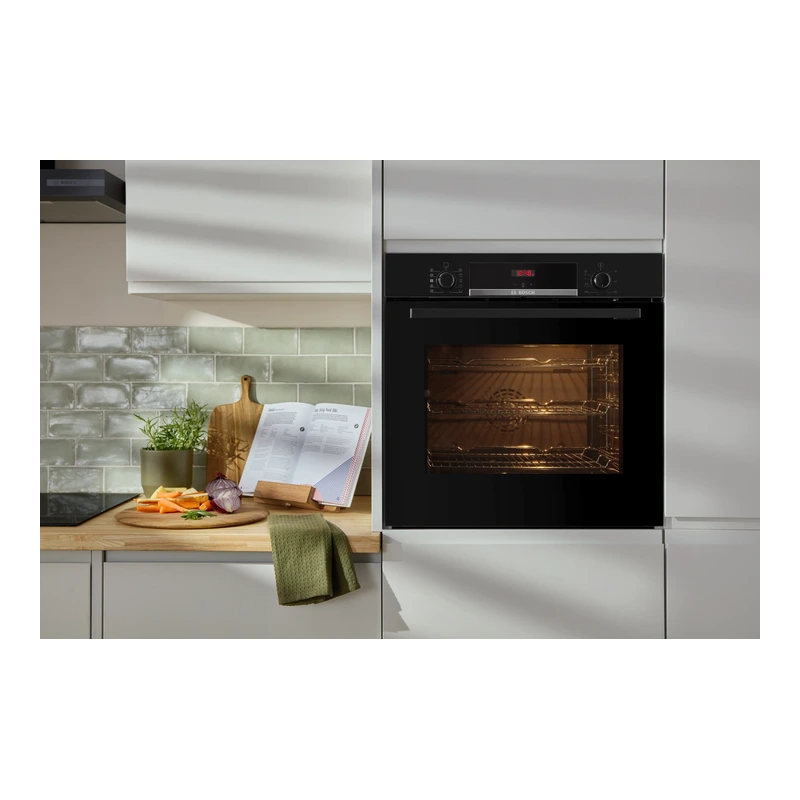

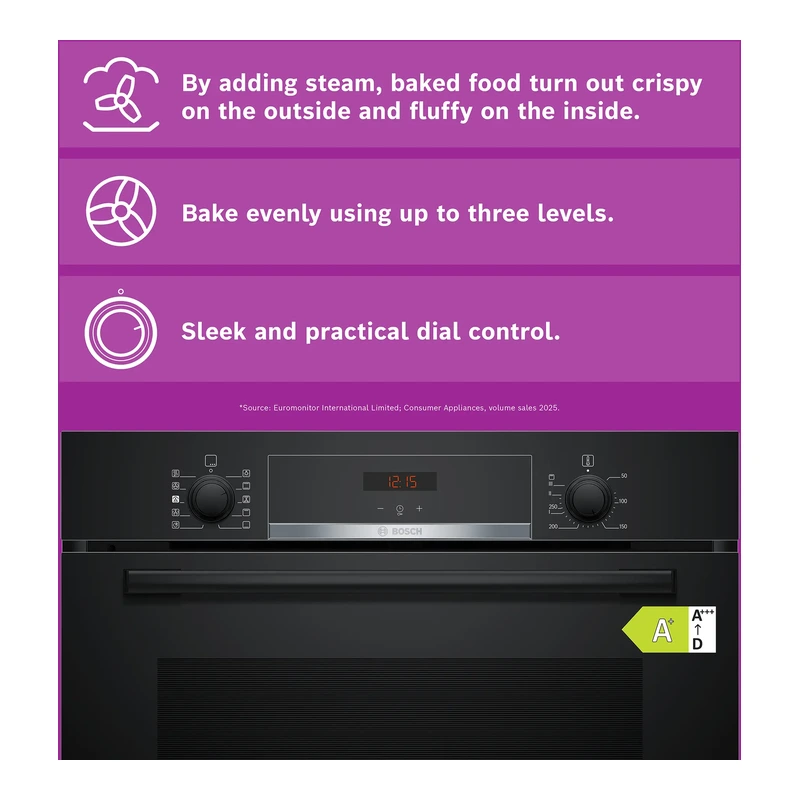

The Series 4 HQA534BB3B is a 60 x 60 cm black built–in oven with added steam function designed for versatile cooking and baking. It offers Hotair Steam for delicious baking results, with even heat and humidity distribution for crispy and juicy food. With 8 heating methods, a 71 litre capacity and A+ energy efficiency, it suits everyday cooking. EcoClean Direct and a full glass inner door help reduce cleaning effort.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	Series 4
Model name	HQA534BB3B
Product type	Built–in oven
Colour	Black
Installation type	Built–in

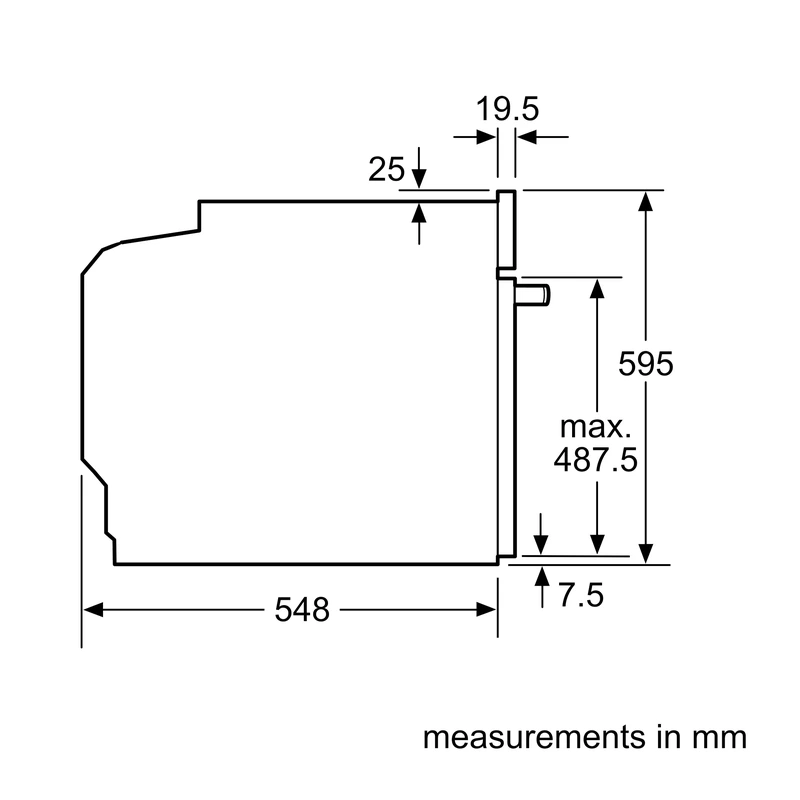

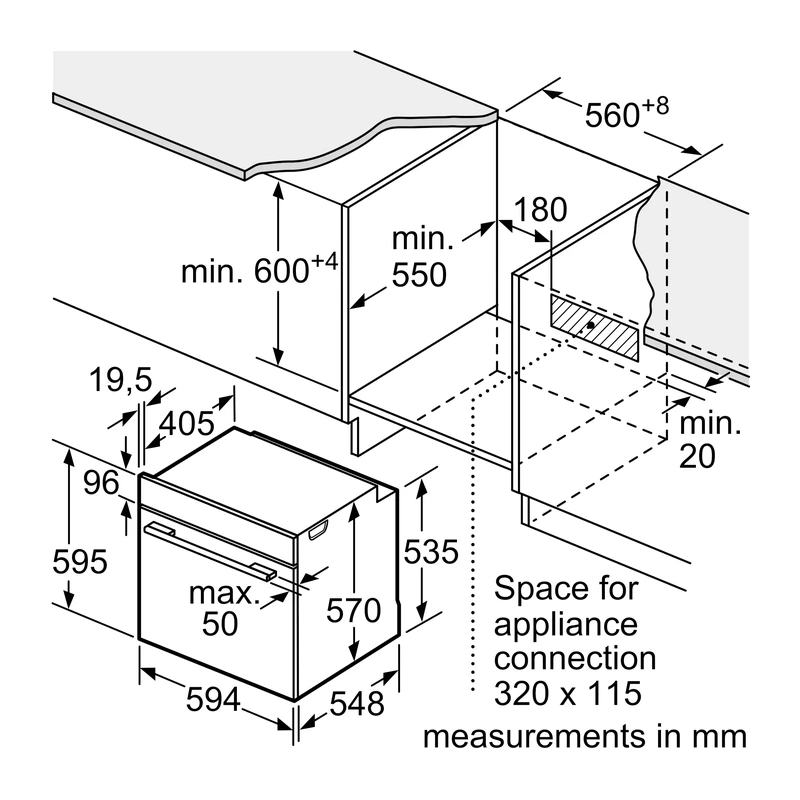

Dimensions (HxWxD)	595 x 594 x 548 mm / 595 mm x 594 mm x 548 mm

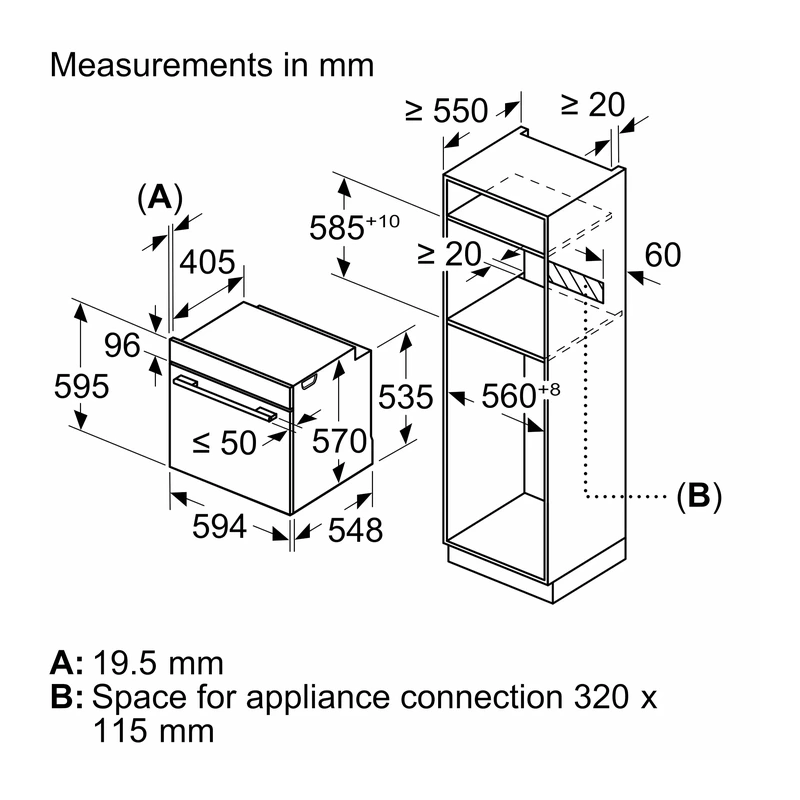

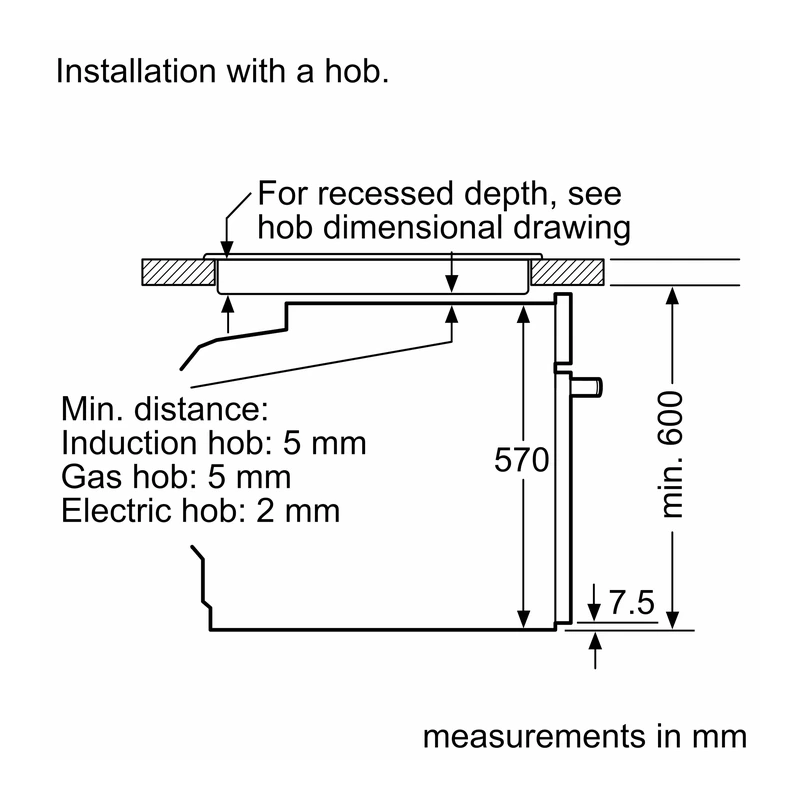

Required niche size (HxWxD)	585–595 x 560–568 x 550 mm
Packed product dimensions (HxWxD)	675 x 660 x 690 mm
Net weight	34.0 kg
Cavity volume	71 litre capacity / 71 l usable volume of cavity
Number of cavities	1 main cavity (2010/30/EC)
Heat source	Electrical
Cooking methods	Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling, hot air and steam combined
Heating methods (count)	Oven with 8 heating methods
Temperature range	50 °C – 275 °C
Energy efficiency rating	A+ (acc. EU Nr. 65/2014)
Energy consumption (conventional)	0.94 kWh / cycle
Energy consumption (fan–forced)	0.69 kWh / cycle
Energy efficiency index	81.2 % (2010/30/EC)
Connection rating	2800 W / 2.8 KW (Total connected load electric)
Voltage	220–240 V / 220 – 240 V nominal voltage
Frequency	50; 60 Hz
Fuse protection	13 A
Plug type	No plug (electrical connection by electrician)
Cable length	120 cm
Control panel material	Glass
Door material	Glass, triple glazed CoolTouch door
Cavity inner surface	Enamel anthracite
Integrated cleaning system	EcoClean Direct programme, Hydrolytic; EcoClean Direct: back panel
Maximum window temperature	40 °C
Shelf positions	5 shelf positions
Level independent telescopic rails	Available as an additional accessory

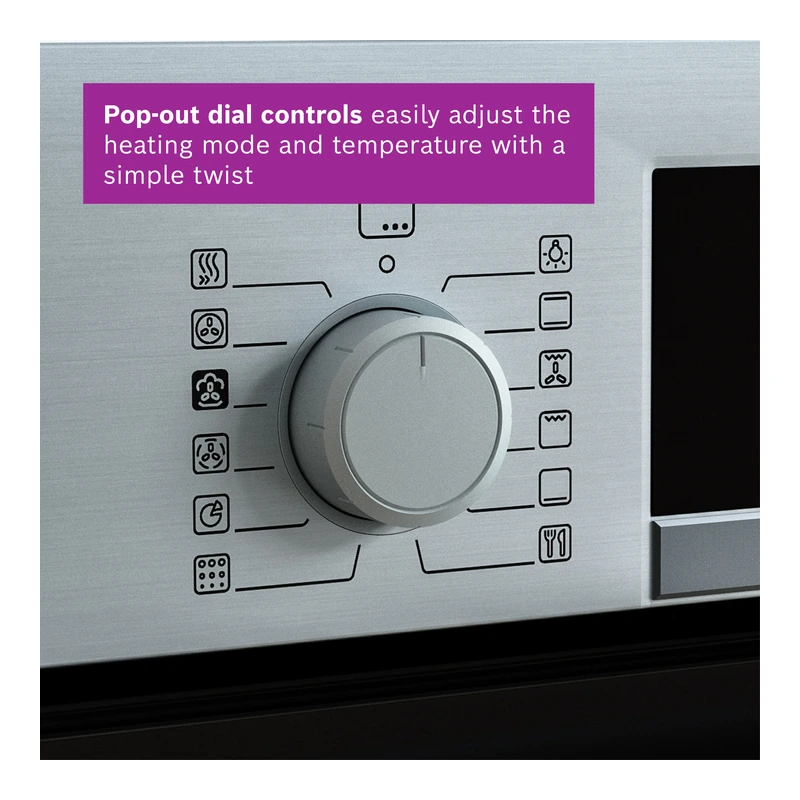

Display and controls	LED–Display Control (Red), rotary dial, retractable control dials, electronic clock timer
Lighting	Interior halogen light

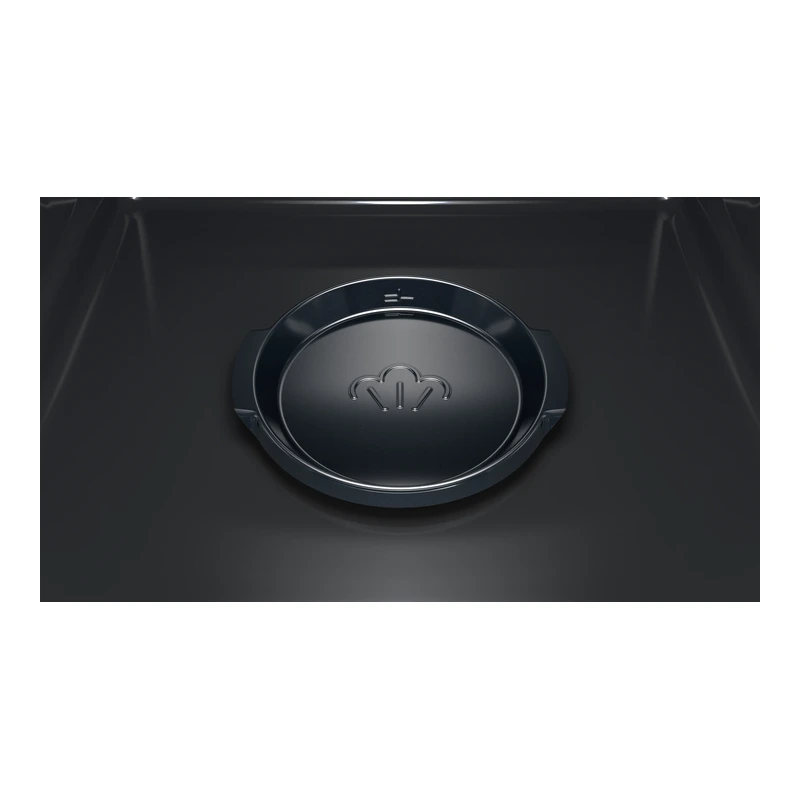

Water bowl volume	250 ml
Cooling system	Integral cooling fan
Handle design	Straight bar handle
EAN code	4242005465552

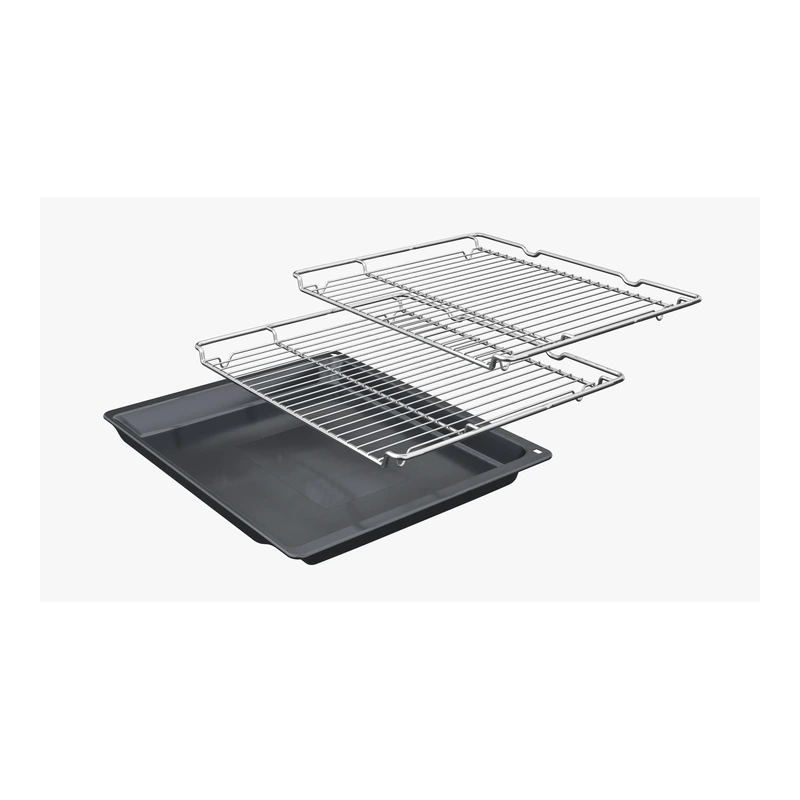

Included accessories	2 x combination grid, 1 x universal pan
Optional accessories	HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L
