What is the capacity of the HRG7764B1B oven?

The oven has a cavity volume of 71 litres, with a usable cavity volume of 71 l. It provides 5 shelf positions within this space.

Which cleaning functions does this oven have?

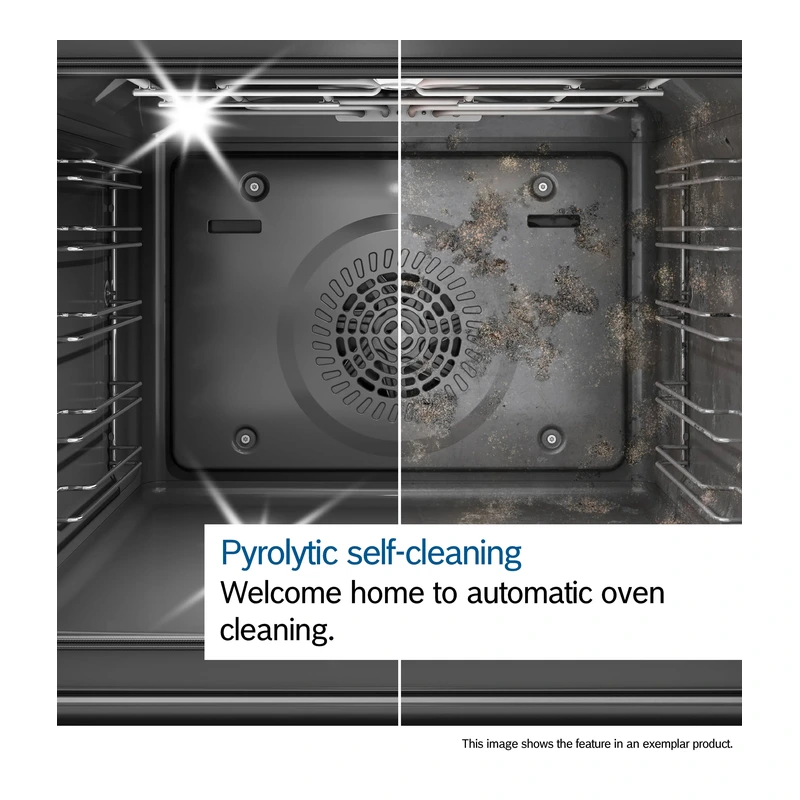

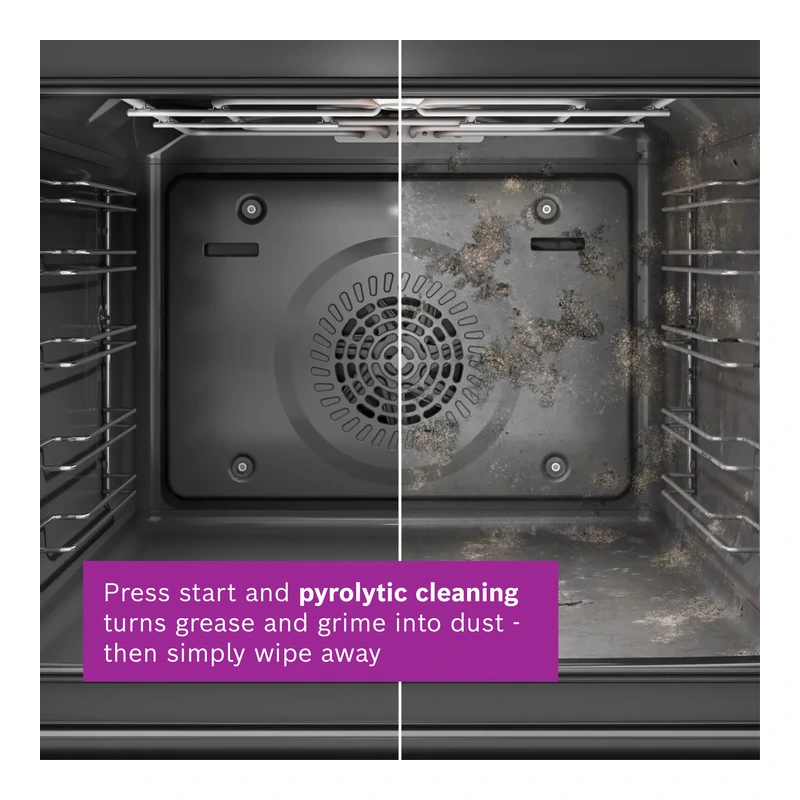

The oven features a pyrolytic self-cleaning function that turns residues into wipe-away ash, as well as a hydrolyse programme. It also has a full glass inner door and enamel anthracite cavity surface.

What steam options are available?

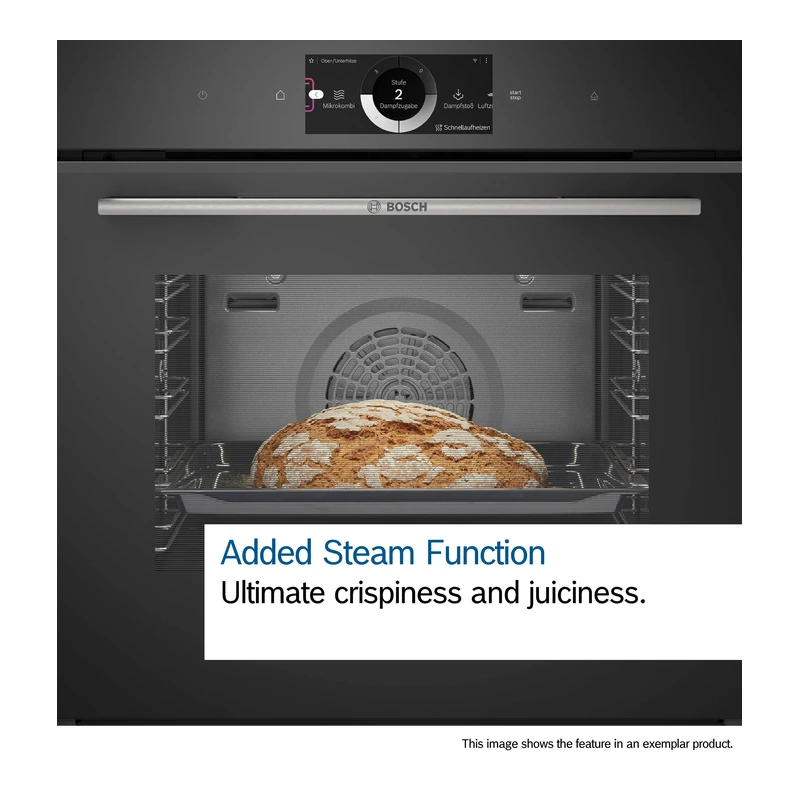

The appliance offers an added steam function, a steam boost that adds 3 minutes of intensive steam at the touch of a button, and selectable steam intensities (high, middle, low). The water tank is located outside the cavity and has an empty indicator.

Is the oven compatible with smart home control?

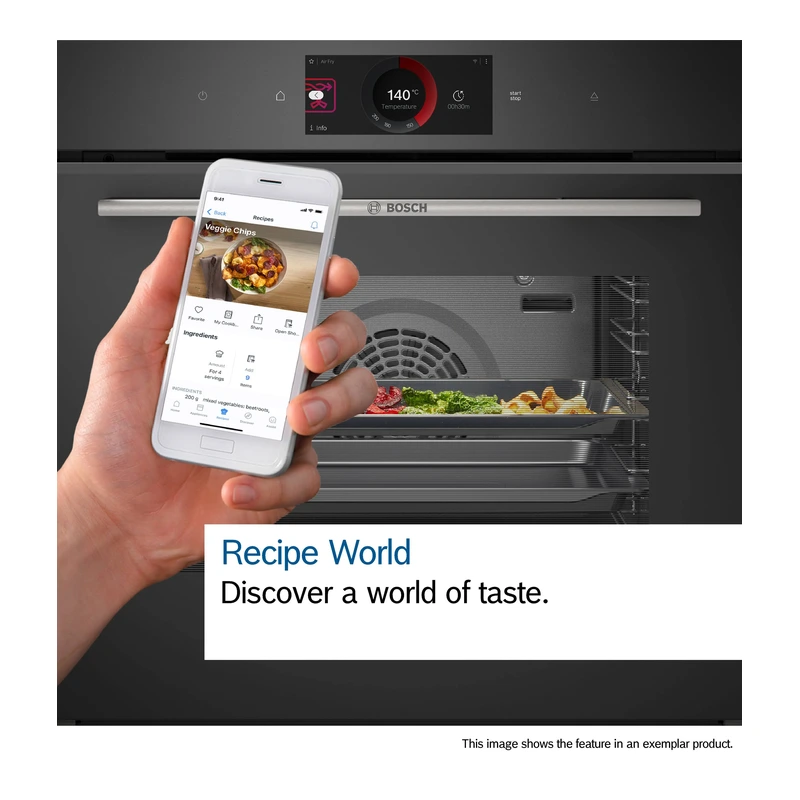

The oven is Home Connect ready and can be controlled via the App. It also includes an Oven Assistant with Voice Control and BoschAssist for guided cooking.

What is the energy efficiency rating and consumption?

The energy efficiency rating is A+. Energy consumption per cycle in conventional mode is 0.87 kWh, while in fan-forced convection mode it is 0.69 kWh. The energy efficiency index is stated as 81.2 %.

What accessories are included and what can be added?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories include items such as a pizza stone, wireless food thermometer, various baking trays and pans, Air Fry & Grill trays, full extension rails and a glass roasting dish.

Product Information Sheet

Bosch Series 8 Single Oven inc Pulse Steam

SKU: HRG7764B1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

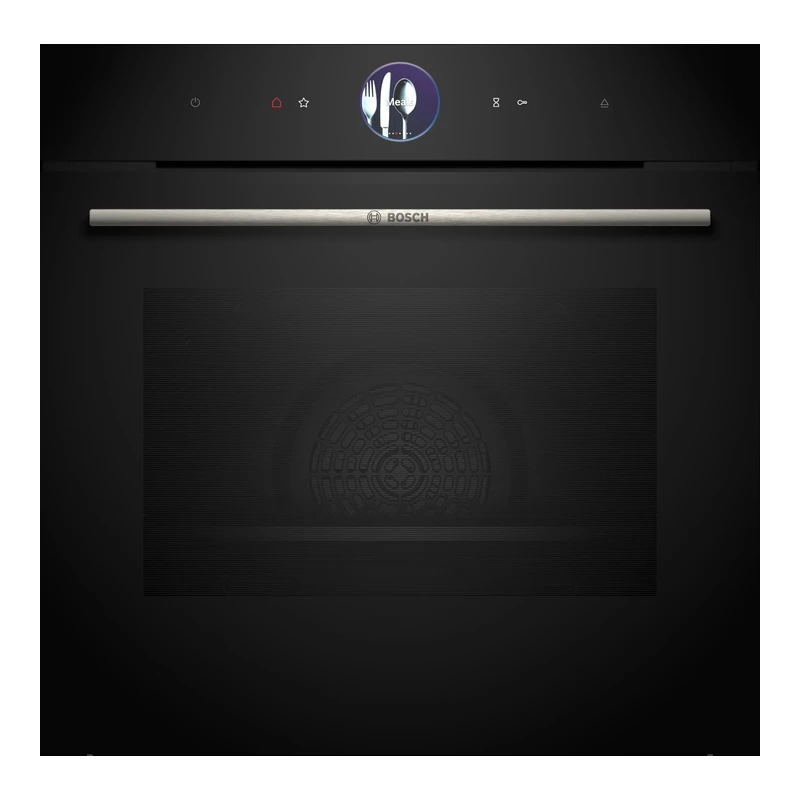

Bosch HRG7764B1B Series 8 Single Oven inc Pulse Steam

SKU: HRG7764B1B · EAN: 4242005327102

Black

The Series 8 HRG7764B1B is a built-in black oven with added steam function and a 71 litre cavity. It features a Digital Control Ring and TFT Touch Display Plus for simple, intuitive control. With 20 heating methods, added steam function, PerfectRoast Plus, PerfectBake Plus and BoschAssist, it supports a wide range of cooking tasks. Pyrolytic and hydrolytic cleaning, a CoolTouch quadruple glazed door and Home Connect readiness further enhance everyday convenience.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 8, Built-in oven with added steam function, 60 x 60 cm, Black, HRG7764B1B
Built-in / Free-standing	Built-in
Integrated cleaning system	Pyrolytic+Hydrolytic; Pyrolytic self-cleaning function; hydrolyse program
Cavity volume	71 litre capacity; usable volume of cavity 71 l

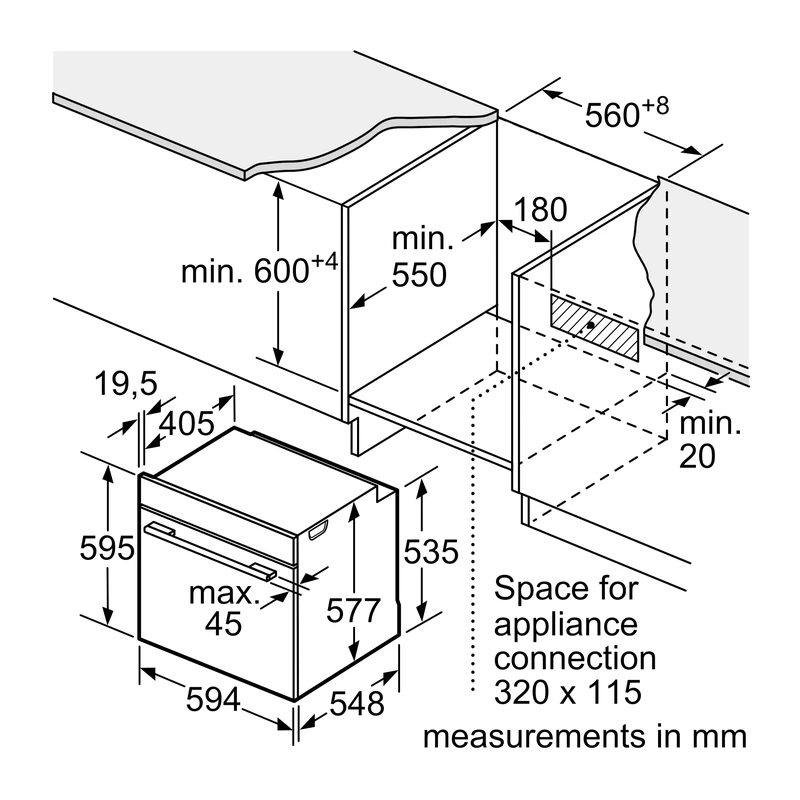

Appliance dimensions (H x W x D)	595 x 594 x 548 mm

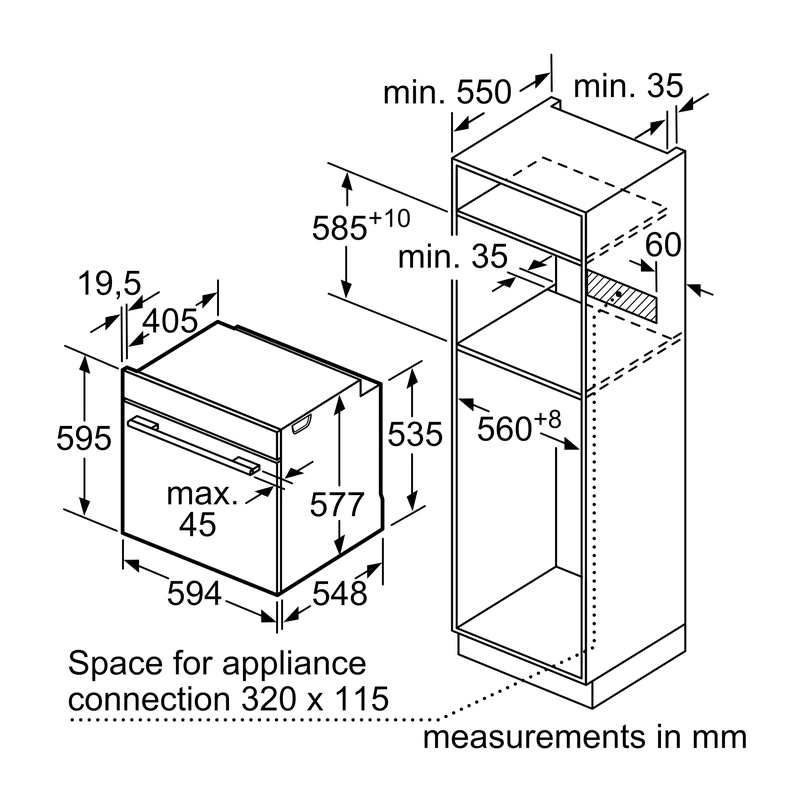

Required niche size (H x W x D)	585–595 x 560–568 x 550 mm; Niche dimension (hxwxd): 585 mm – 595 mm x 560 mm – 568 mm x 550 mm
Packed product dimensions (H x W x D)	675 x 660 x 690 mm
Control panel material	Glass
Door material	Glass; quadruple glazed door with heat reflective glass glazed CoolTouch door; full glass inner door

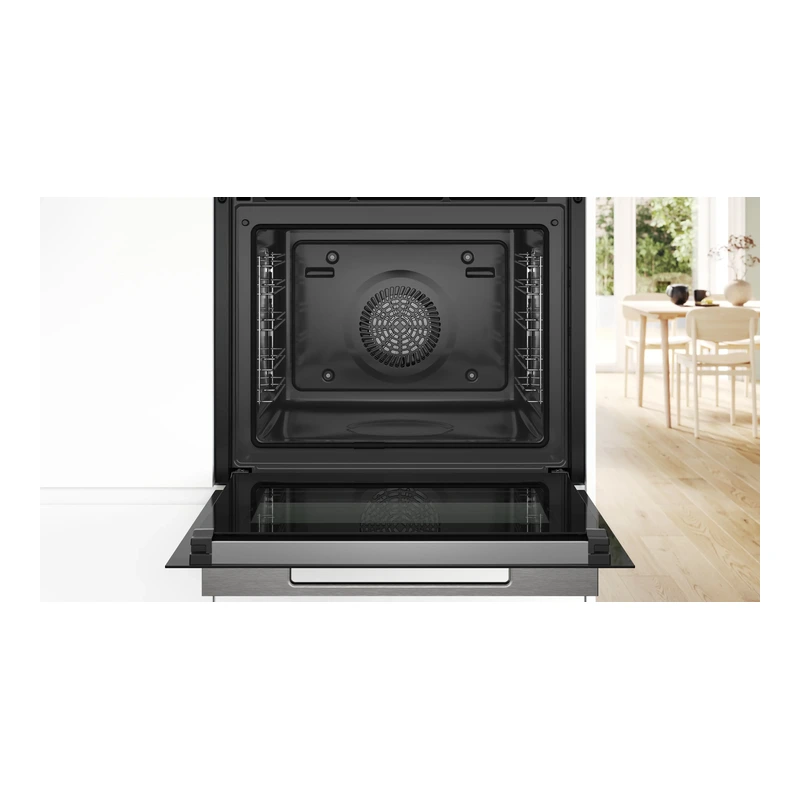

Cavity inner surface	Enamel anthracite
Net weight	40.5 kg
Number of cavities	1; Number of cavities (2010/30/EC): 1; Number of cavities: Main cavity
Heat source	Electrical
Temperature range	30°C – 275°C

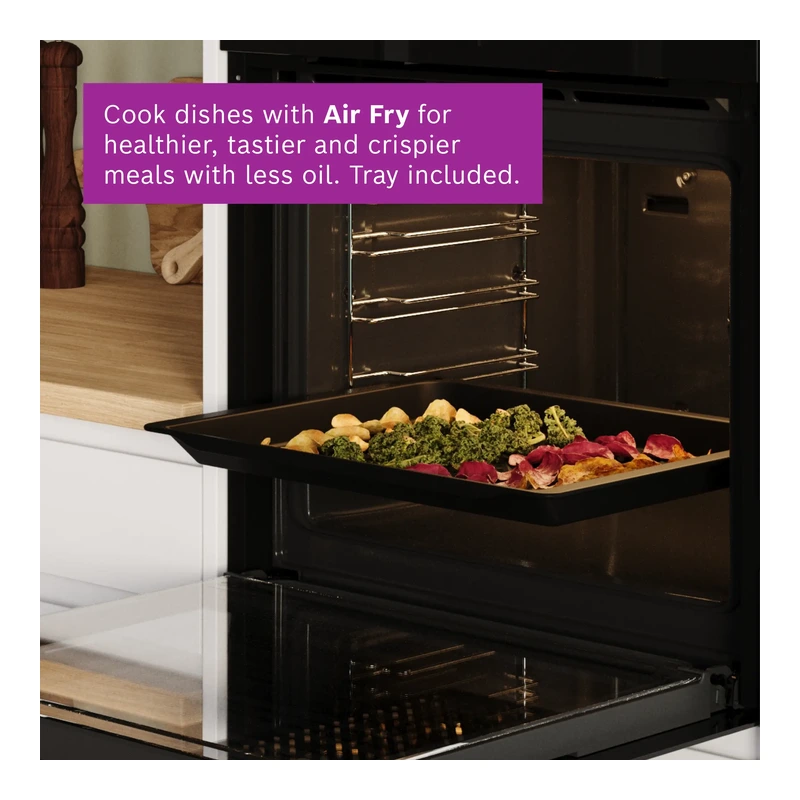

Heating methods / cooking methods	Oven with 20 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, reheating with steam, Dough proving, Hot air grilling, warming, 4D Hot air, Top/bottom heat; additional listing: Regeneration, 4D Hotair, Defrost, Air fry, Full width grill, Hotair gentle, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming.
Level independent telescopic rails	5 shelf positions; level independent telescopic rails available as an additional accessory, pyrolitic proof
Cable length	120 cm; Length electrical supply cord: 120 cm
Connection rating / total connected load	3600 W; Total connected load electric: 3.6 KW
Nominal voltage	220 – 240 V; Voltage: 220-240 V
Frequency	50; 60 Hz
Fuse protection	16 A
Plug type	No plug (electrical connection by electrician)
Energy efficiency rating	A+ (acc. EU Nr. 65/2014); Energy efficiency rating (2010/30/EC): A+
Energy consumption (conventional)	0.87 kWh/cycle; Energy consumption per cycle in conventional mode: 0.87 kWh
Energy consumption (fan-forced convection)	0.69 kWh/cycle; Energy consumption per cycle in fan-forced convection mode: 0.69 kWh; Energy consumption per cycle forced air convection (2010/30/EC): 0.69 kWh/cycle
Energy efficiency index	81.2 % (2010/30/EC)
Maximum window temperature	30°C

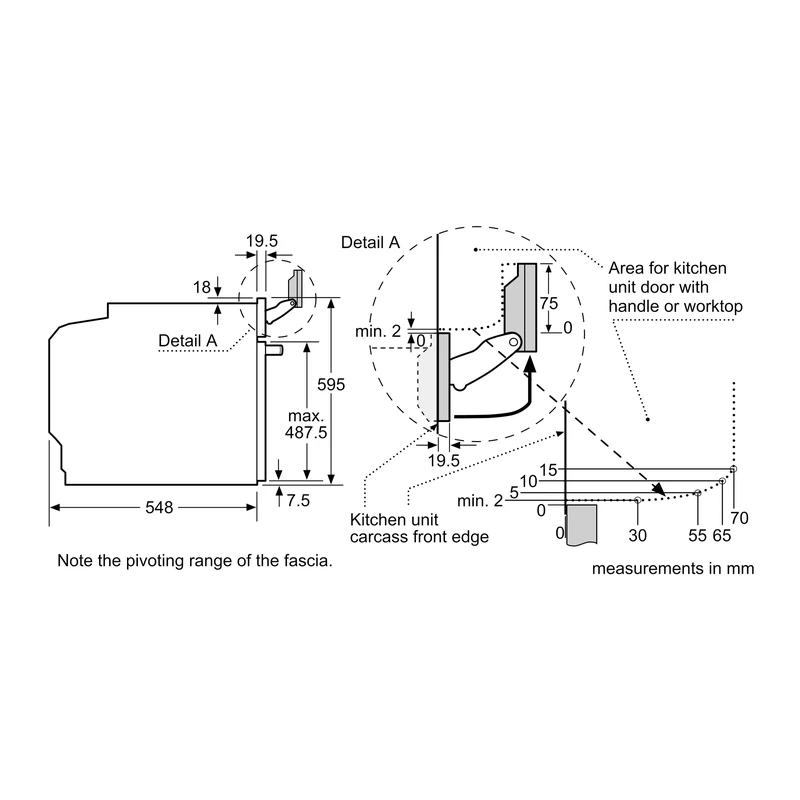

Door features	Drop down door, SoftClose, SoftOpen; low door temperature during pyrolitic cleaning; quadruple glazed door with heat reflective glass glazed CoolTouch door

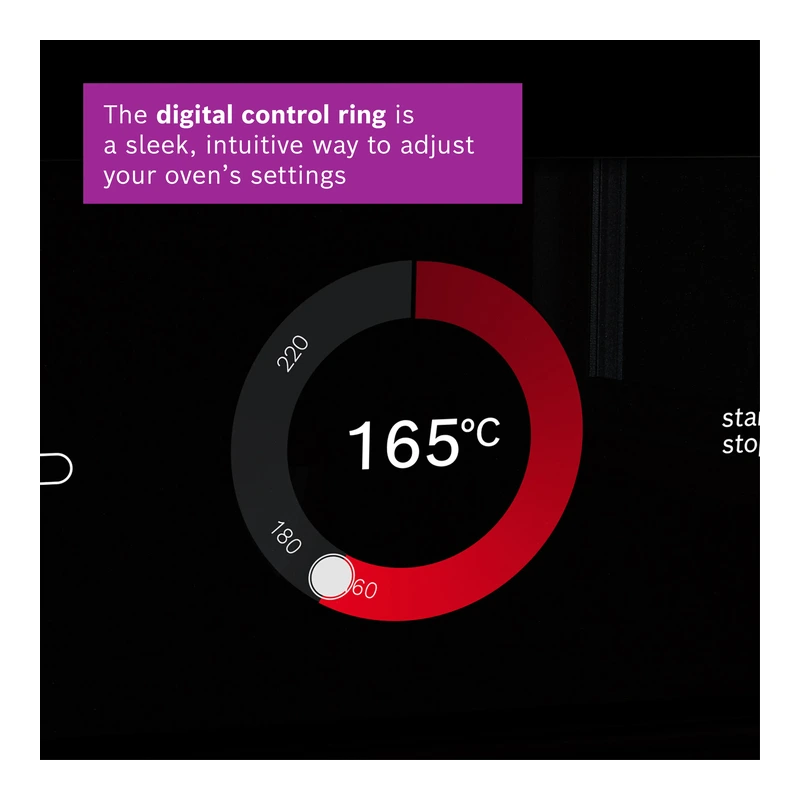

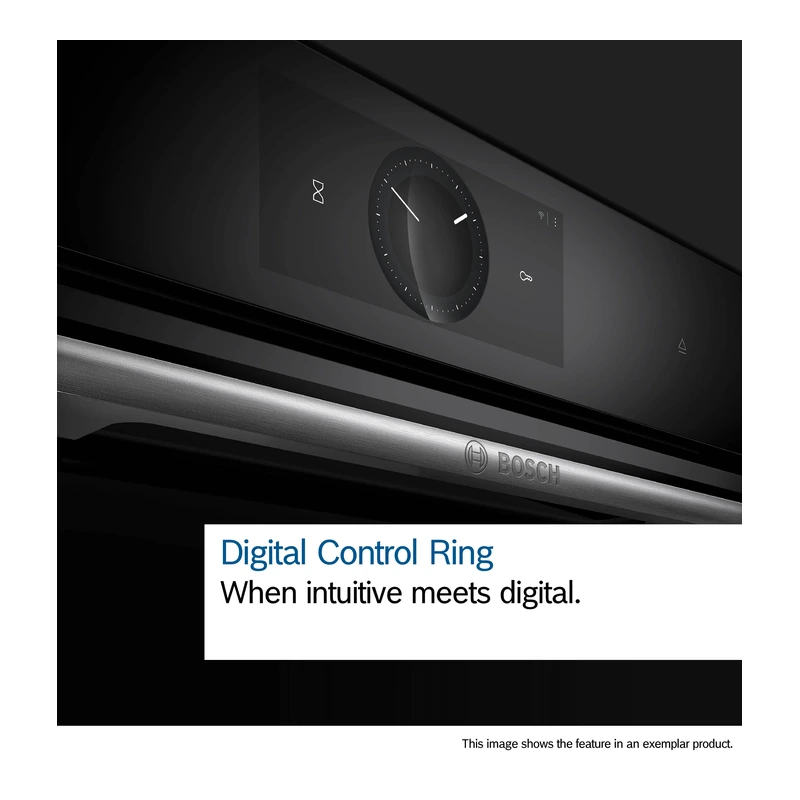

Controls and displays	Digital Control Ring; touch controls with steel trim; TFT Touch Display Plus; electronic clock timer; digital temperature display with proposal; actual temperature display; heating-up indicator; LED light; Light on/off when oven door opened/closed

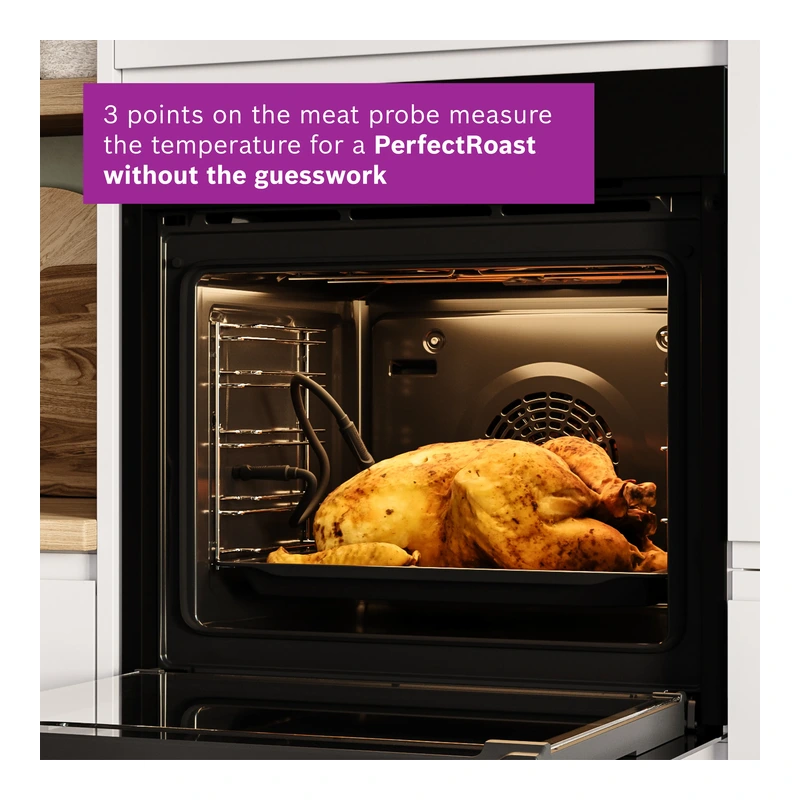

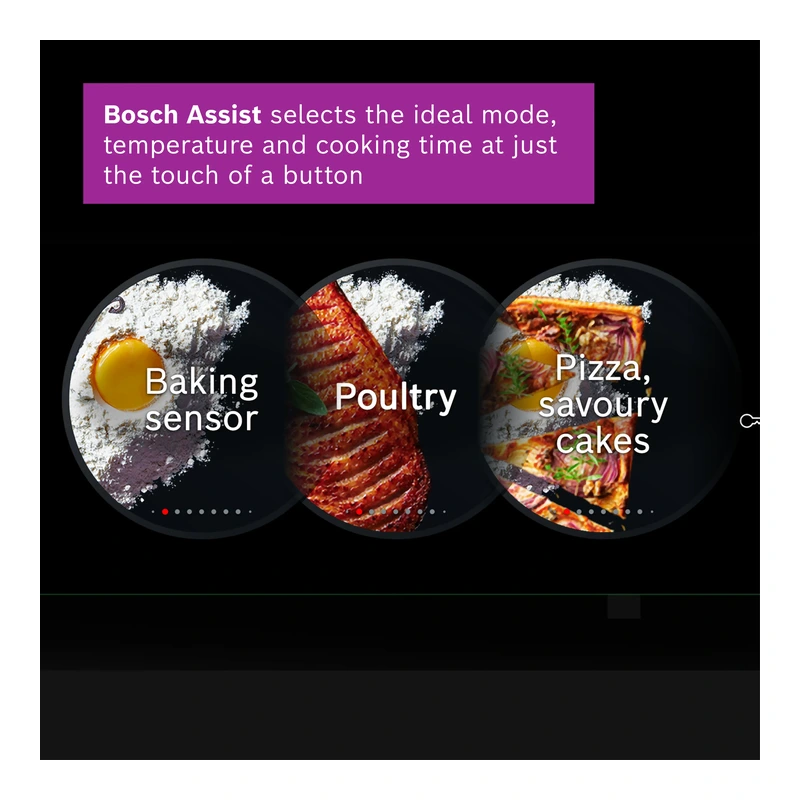

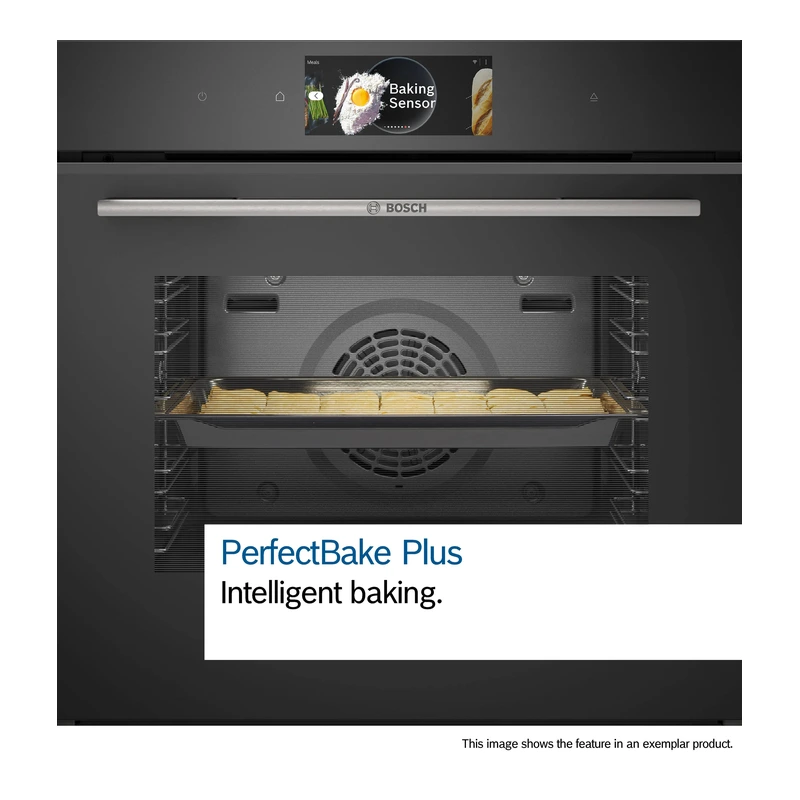

Sensors and assistance	Oven Assistant with Voice Control; Assist function for meals; BoschAssist; PerfectRoast Plus; PerfectBake Plus; temperature probe; Fast pre-heating function; Automatic Switch-off

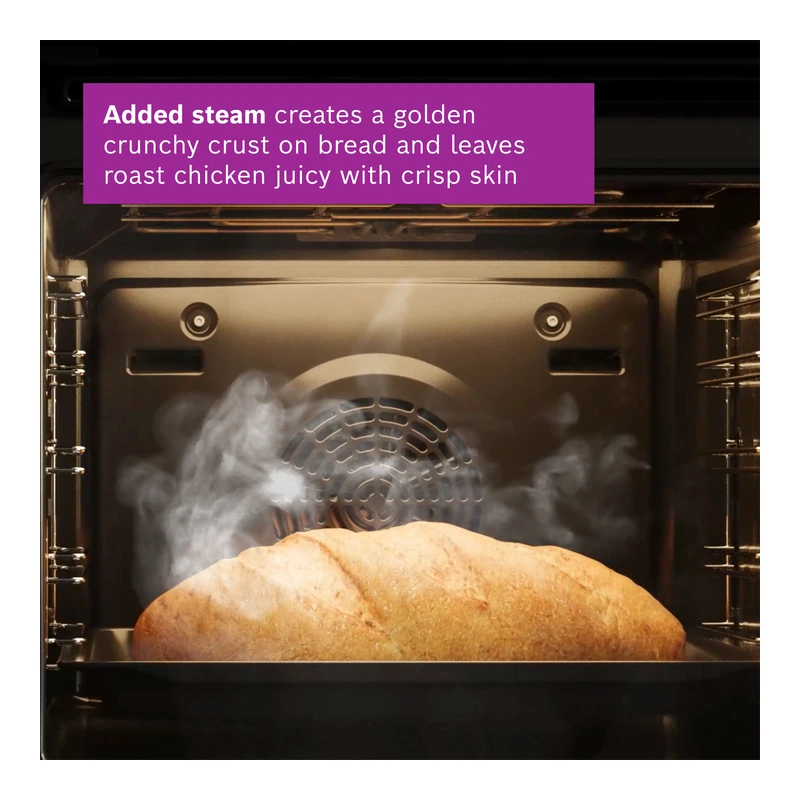

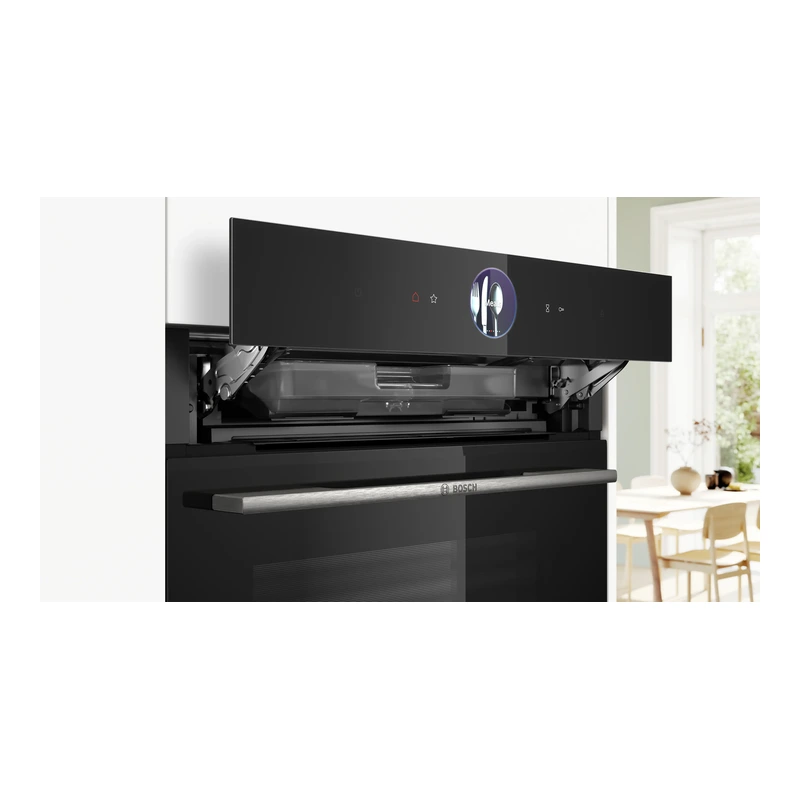

Steam features	Added Steam Function; steam boost – add for 3 min intensive steam with a touch of a button; steam level high, steam level middle, steam level low; water tank empty indicator; location of water tank: outside cavity
Cooling system	Integral cooling fan

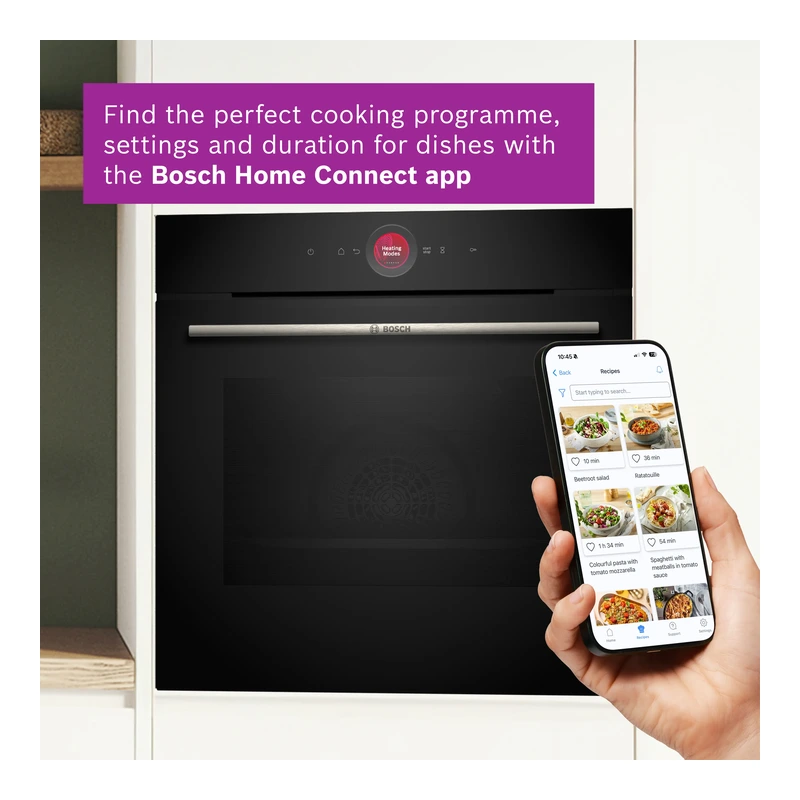

Connectivity	Home Connect ready; control via the App
Safety features	Electronic door lock; control panel lock; automatic safety switch off; residual heat indicator; start button; door contact switch; low door temperature during pyrolitic cleaning

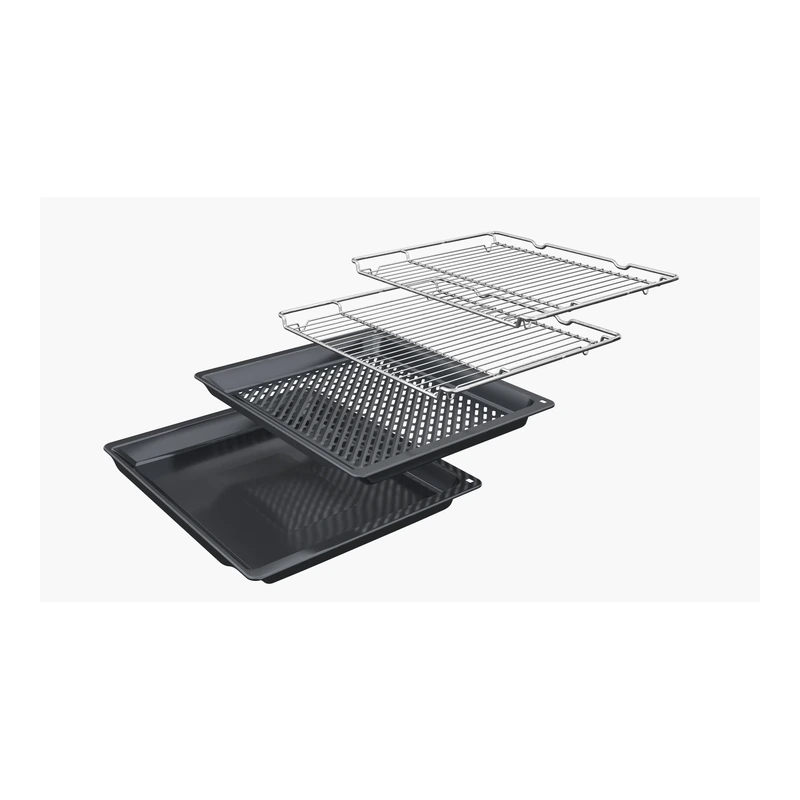

Included accessories	2 x combination grid, 1 x universal pan
Optional accessories	HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ635001 AirFry & Grill Set; HEZ636000 Glass pan; HEZ638070 Full ext rails, level independent, pyro; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L
EAN code	4242005327102

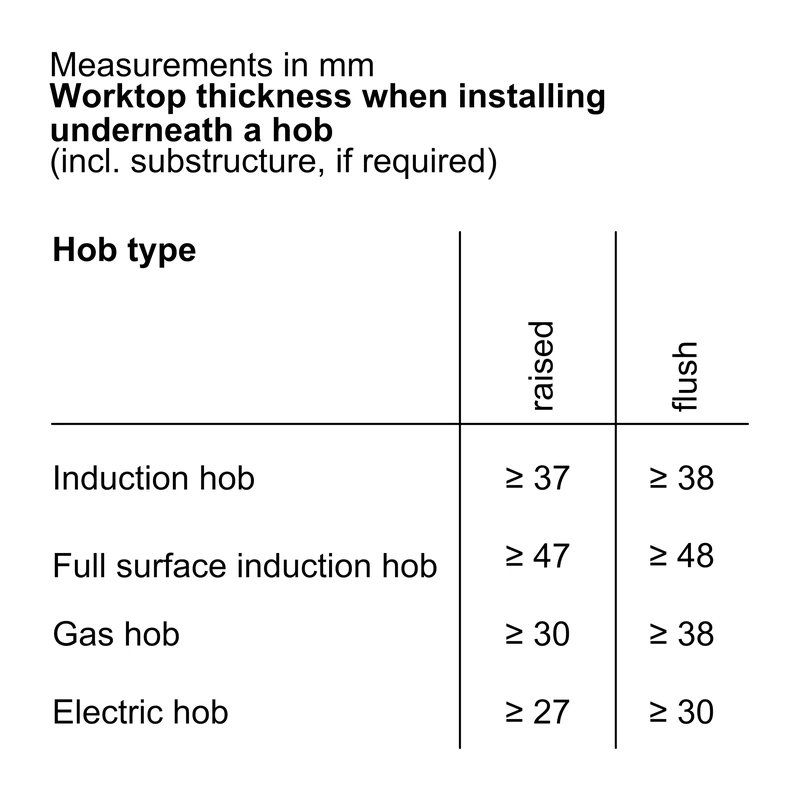

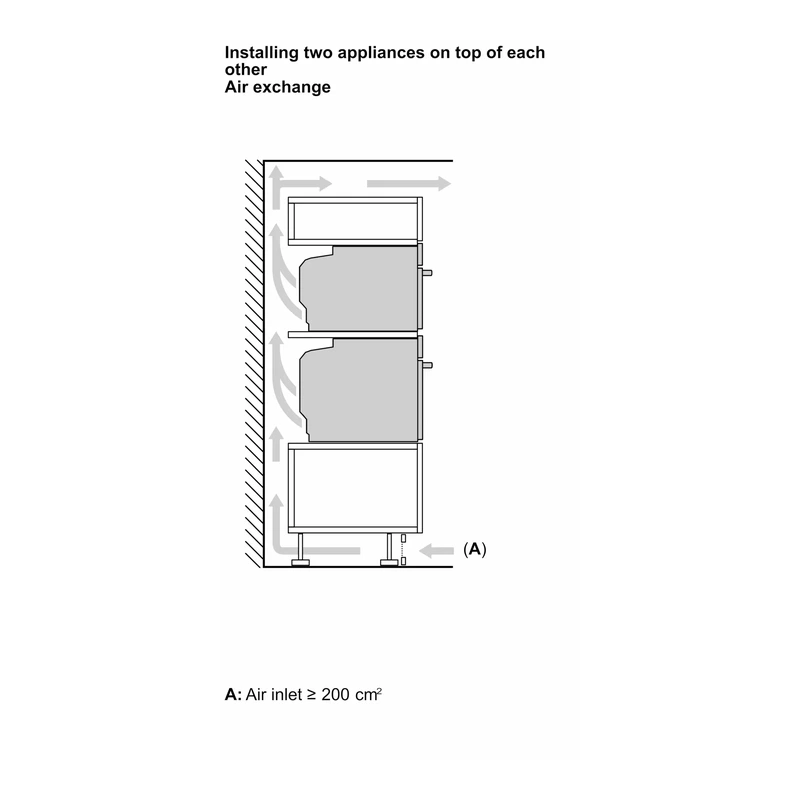

Installation note	“For-details-on-installation-and-ventilation requirements – please refer to the installation manual prior to fitting.”
