Do I ever need to defrost the freezer?

The appliance has a No Frost bottomfreezer and a frost free system in both the fridge and freezer, so there is no need to defrost the freezer.

What is the total capacity of the fridge–freezer?

The total volume is 631 l, with a net fridge volume of 479 l and a net freezer volume of 152 l.

Can this model be placed directly next to a wall or other appliances?

Yes. The Perfect Fit design allows the fridge–freezer to be placed right next to walls or other appliances to save space.

How does VitaFresh help keep food fresh?

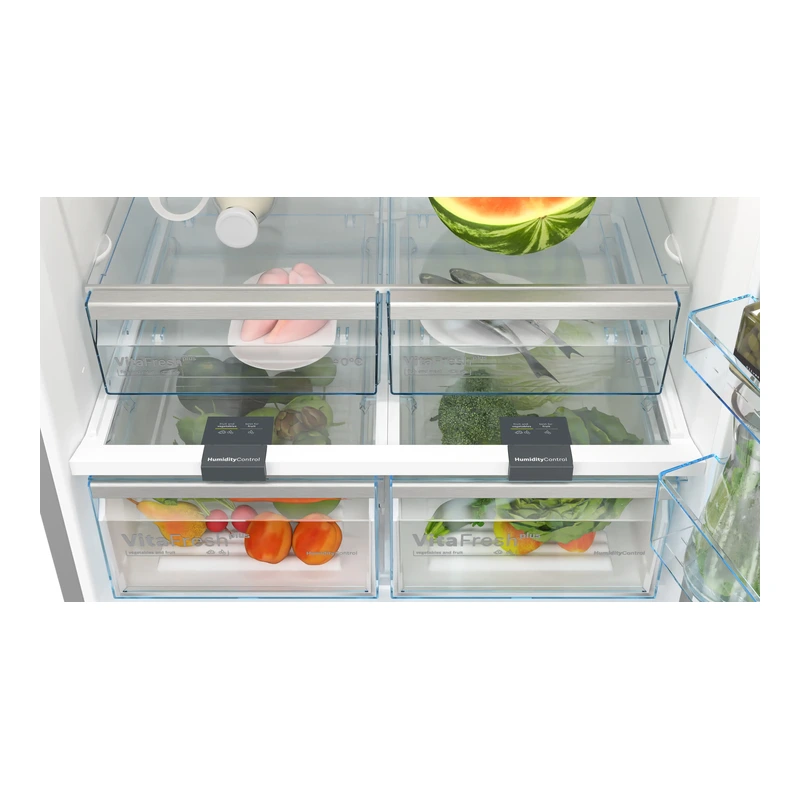

There are 2 VitaFresh 0°C drawers with temperature control so fish and meat stay fresh for longer, and 2 VitaFresh drawers with humidity control so fruits and vegetables stay fresh and vitamin–rich up to 2 times longer.

What is the noise level of this fridge–freezer?

Airborne acoustical noise emissions are 40 dB(A) re 1pW, and the noise emission class is C.

Is the door reversible?

Yes. The door is right hinged as standard and reversible, with Reversible Door Hinge stated as Yes.

Product Information Sheet

Bosch Series 4 Fridge Freezer

SKU: KGN86VIEAG

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 11 June 2026

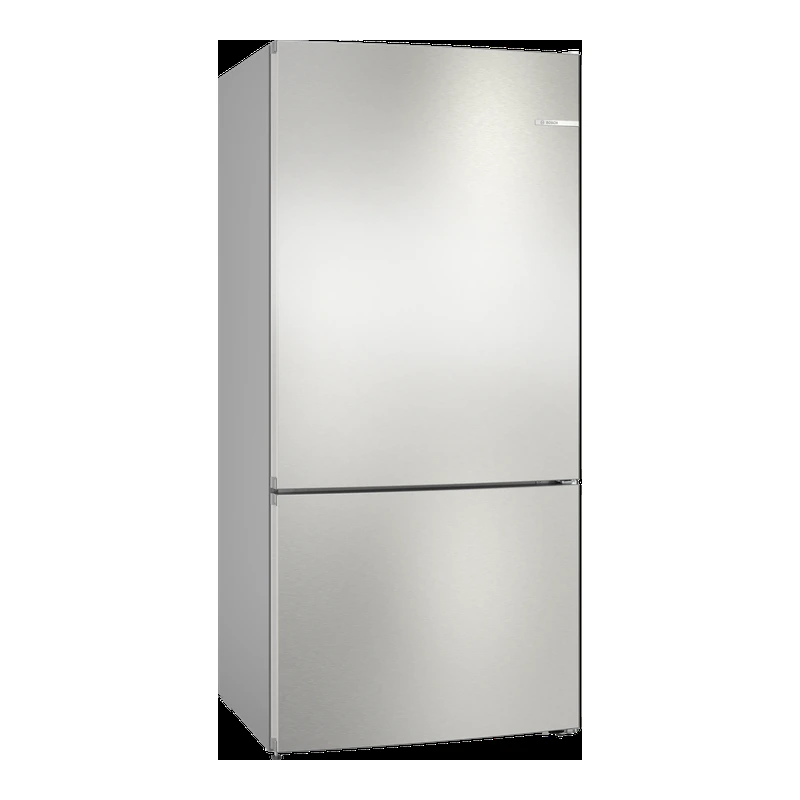

Bosch KGN86VIEAG Series 4 Fridge Freezer

SKU: KGN86VIEAG · EAN: 4242005528721

Stainless Steel look

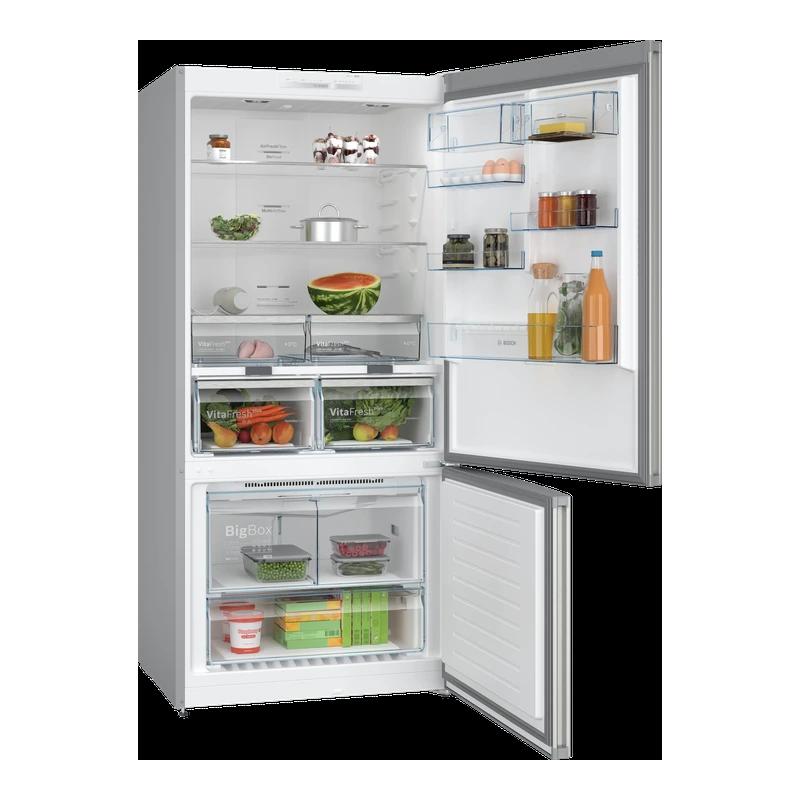

The Bosch Series 4 KGN86VIEAG is a free–standing No Frost fridge–freezer with the freezer at the bottom and an XXL 631 l total capacity. Designed with brushed steel anti–fingerprint doors and a stainless steel look, it features Perfect Fit installation, bright interior LED lighting and convenient Easy Access shelving. VitaFresh drawers with temperature and humidity control help keep meat, fish, fruit and vegetables fresh for longer, while separate cooling circuits provide independent temperature control.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Specification	Value
Product name / model	Series 4, free–standing fridge–freezer with freezer at bottom, KGN86VIEAG
Installation typology	Free–standing
Door panel options	Not possible
Finish	Brushed steel anti–fingerprint; stainless steel look doors and Pearl grey (VZF 07127) side panels
Handle	Integrated vertical handle
Energy Efficiency Class	E (EU19_EEK_D: E)
Annual energy consumption	307 kWh/annum (307 kWh/a)
Total volume	631 l
Net fridge volume	479 l (sum of volume of chill compartments: 479 l)
Net freezer volume	152 l (sum of volume of frozen compartments: 152 l)
Freezing capacity (24 h)	10 kg
Climate class	SN–T
Temperature rise time	17 H (EU19_Temperature rise time_D: 17 H)
Noise level	40 dB(A) re 1pW; noise emission class C (EU19_Noise emission class_D: C)

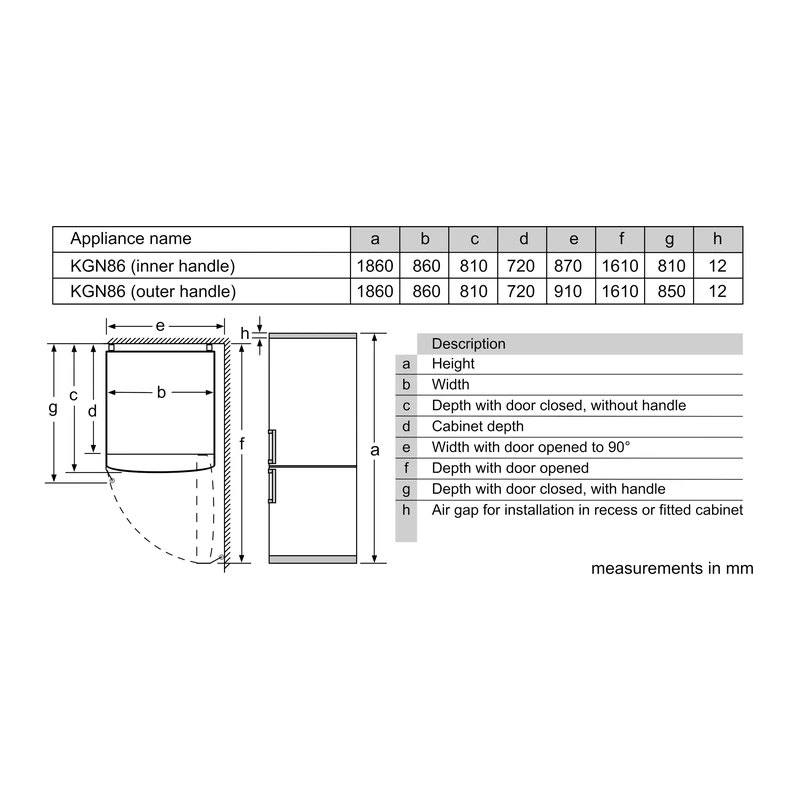

Height	1860 mm (186 cm)
Width	860 mm (86 cm)
Depth	810 mm (81 cm)
Net weight	106.8 kg
Door hinge	Right reversible; Reversible Door Hinge: Yes
Built–in / Free–standing	Freestanding / Free–standing
Voltage	220–240 V
Frequency	60 Hz
Fuse protection	10 A
Length of electrical supply cord	240.0 cm (Length of power cord: 240 cm)
Number of compressors	1
Number of independent cooling systems	2
Interior ventilator	No
Frost free system	Fridge and freezer (No Frost, Fridge freezer)

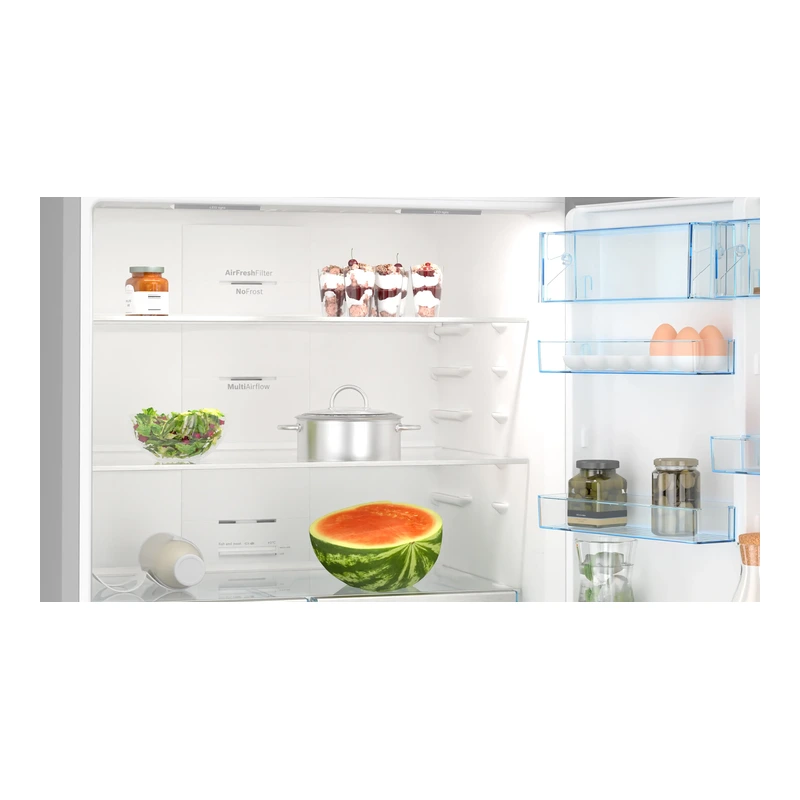

Number of adjustable shelves in fridge	2 (3 safety glass shelves, 2 height adjustable)
Shelves for bottles	Yes – 3 wave bottle holder
Door shelves in fridge	1 large and 3 small

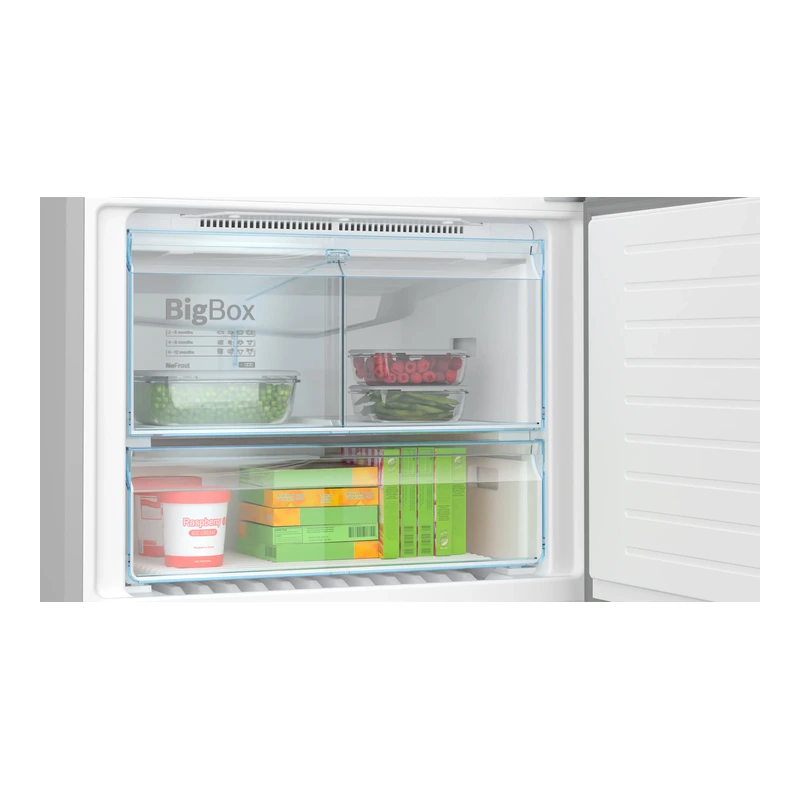

Freezer drawers	2 freezer drawers
Accessories	3 x egg tray, 1 x ice cube tray
EAN code	4242005528721
Additional energy note	Based on standard 24–hour test. Actual consumption depends on usage and position. Using distance holders increases depth by about 3.5 cm and achieves declared energy consumption; appliance is fully functional without them but with slightly higher energy consumption.
