What is the capacity of the main and top ovens?

The main oven has a cavity volume of 71 litres with 5 shelf positions. The top oven has a cavity volume of 34 litres.

Which heating methods does the main oven provide?

The main oven offers 5 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill and Hotair gentle.

Does this double oven have any self–cleaning features?

The integrated cleaning system is noted as “No”, but the main oven includes EcoClean Direct on the back panel to reduce cleaning effort on the rear wall.

What accessories are included with the oven?

The oven is supplied with 3 x combination grid and 1 x universal pan.

What is the temperature range of the ovens?

Both the top oven and main oven have a temperature range from 50 °C to 275 °C.

How is the oven installed and powered?

The MBA533BB3B is a built–in appliance with no plug, designed for fixed electrical connection by an electrician. It operates on 220–240 V, 50 Hz, with a total connected load of 5.9 kW and requires 32 A fuse protection.

Product Information Sheet

Bosch Series 4 Double Oven

SKU: MBA533BB3B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

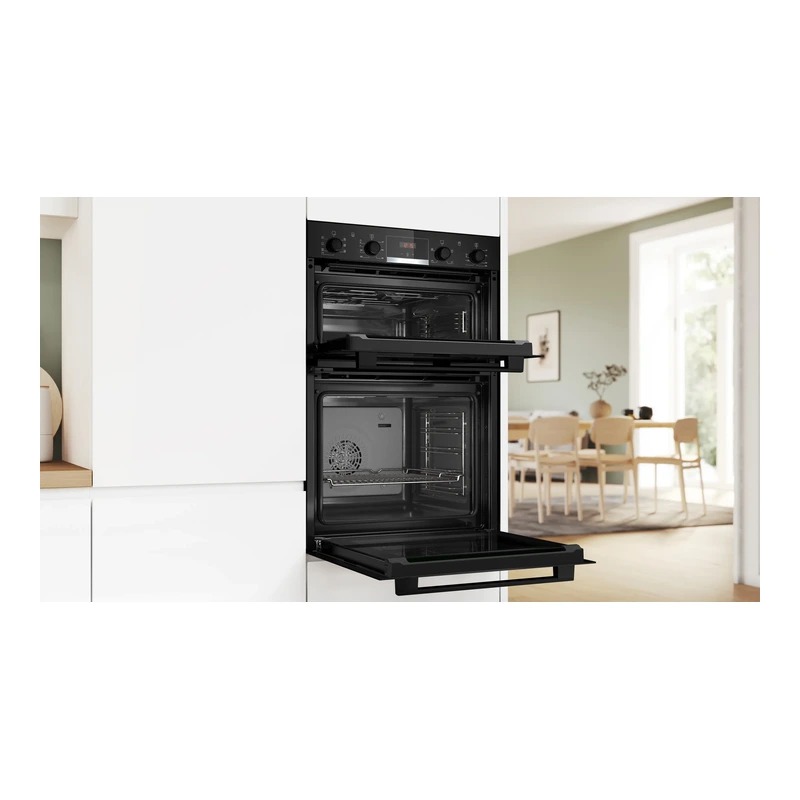

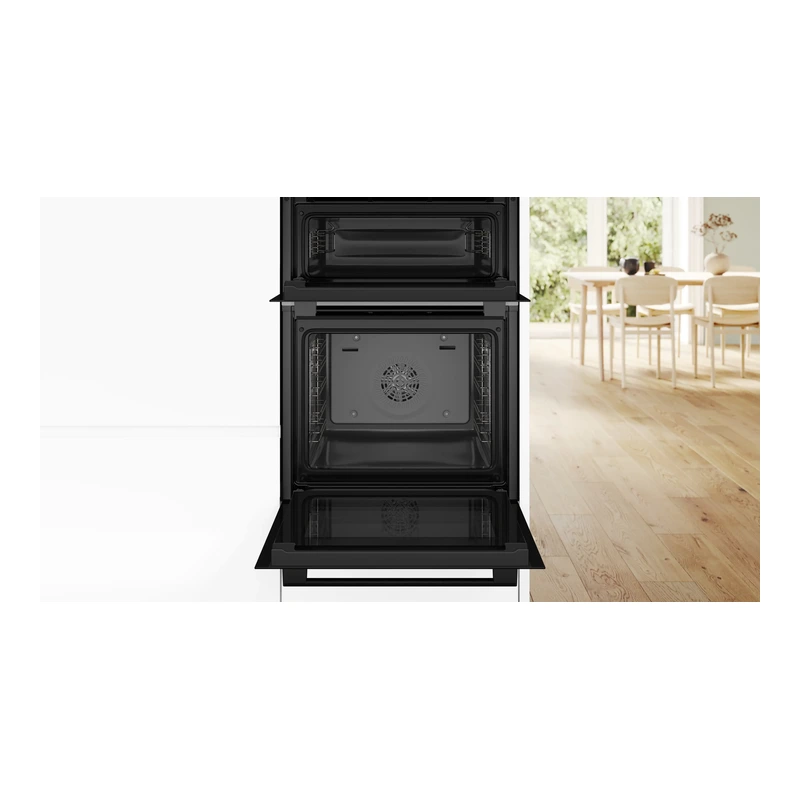

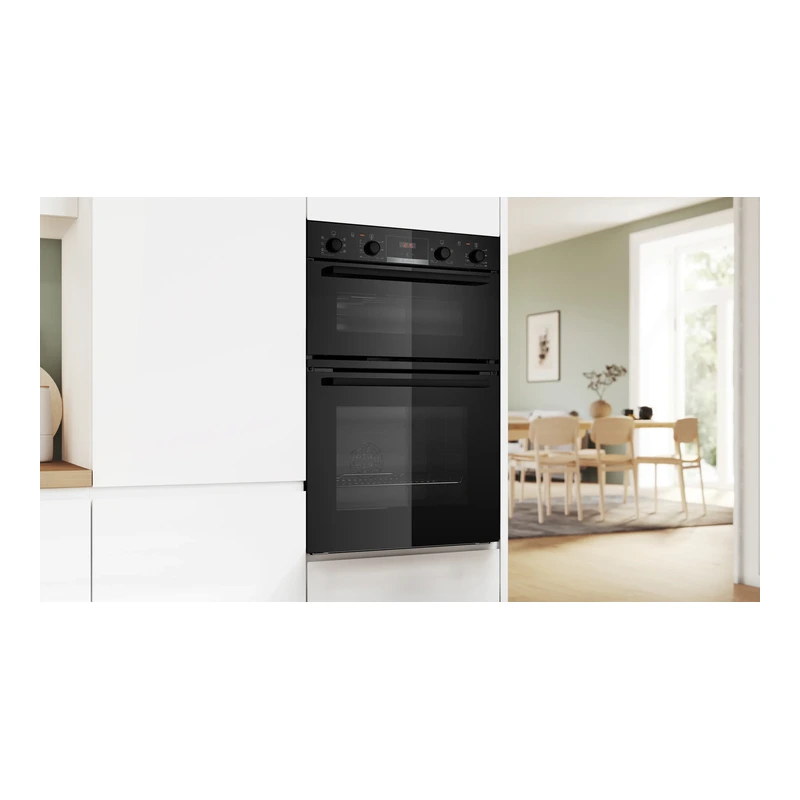

Bosch MBA533BB3B Series 4 Double Oven

SKU: MBA533BB3B · EAN: 4242005465811

Black

The Series 4 MBA533BB3B is a built–in double oven designed for flexible everyday cooking. The main oven offers 3D Hotair, multiple heating methods and a generous 71 litre capacity, while the top oven adds extra grilling and conventional options. With an EcoClean Direct back panel in the main oven, red LED display control, retractable dials and full glass inner doors, it combines convenient cleaning, easy control and a sleek, integrated look.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Built–in double oven
Model	MBA533BB3B, Series 4
Installation	Built–in

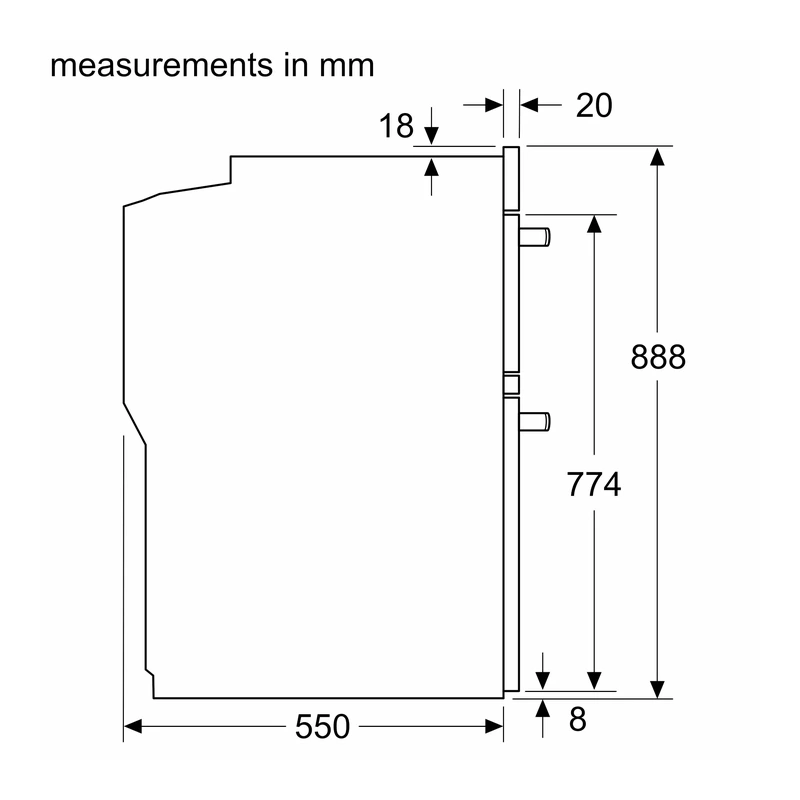

Appliance dimensions (H x W x D)	888 x 594 x 550 mm
Packed dimensions (H x W x D)	960 x 660 x 690 mm

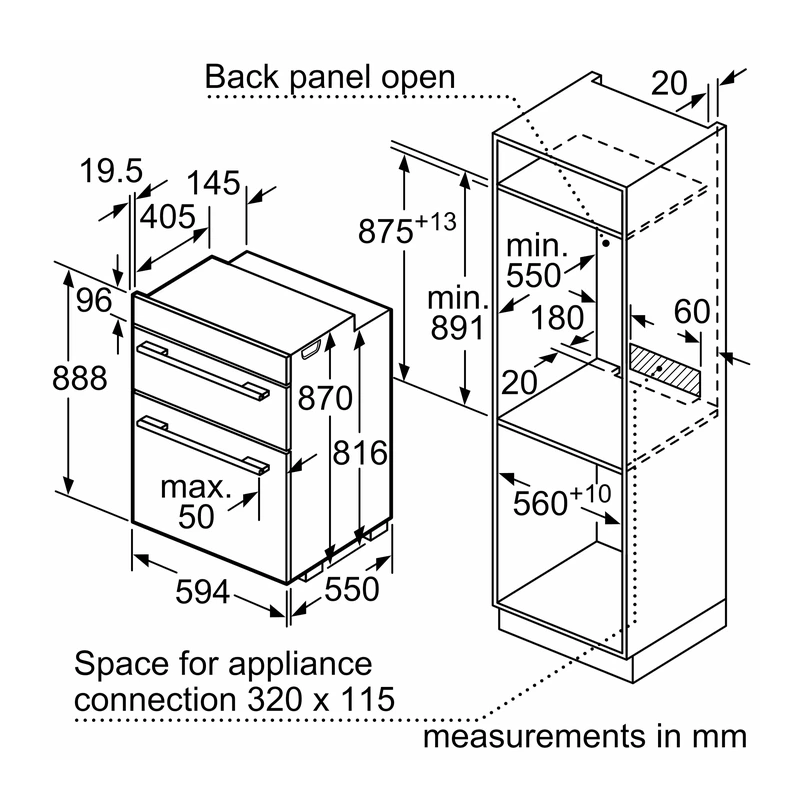

Niche dimensions (H x W x D)	875 mm – 888 mm x 560 mm – 568 mm x 550 mm
Control panel material	Glass
Door material	Glass
Inner surface – top cavity	Enamel grey
Inner surface – main cavity	Enamel anthracite
Net weight	49.4 kg
Usable volume (main cavity)	71 l
Cavity volume – top oven	34 litre capacity
Shelf positions (main oven)	5 shelf positions
Temperature range (both ovens)	50 °C – 275 °C
Main oven heating methods	3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle
Top oven heating methods	Conventional top/bottom heat, large–area grill, small area grill
Additional cooking methods (technical data)	Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling
Integrated cleaning system	No (EcoClean Direct back panel in main oven)
Energy efficiency rating (overall technical data)	A
Energy efficiency class – top oven (EU Nr. 65/2014)	B (range A+++ to D)
Energy efficiency class – main oven (EU Nr. 65/2014)	B (range A+++ to D)
Energy consumption conventional (overall, 2010/30/EC)	1.02 kWh/cycle
Energy consumption forced air (overall, 2010/30/EC)	0.81 kWh/cycle
Energy consumption conventional – top oven	0.83 kWh per cycle
Energy consumption conventional – main oven	0.83 kWh per cycle
Energy consumption fan–forced – main oven	0.81 kWh per cycle
Energy efficiency index (2010/30/EC)	95.3 %
Energy efficiency index cavity 2 (2010/30/EC)	120.3 %
Connection rating / total connected load	5900 W / 5.9 kW
Voltage	220–240 V (nominal 220–240 V)
Frequency	50 Hz
Fuse protection	32 A
Plug type	No plug, fixed connection (electrical connection by electrician)
Number of cavities	Top cavity and main cavity
Heat source	Electrical (both cavities)

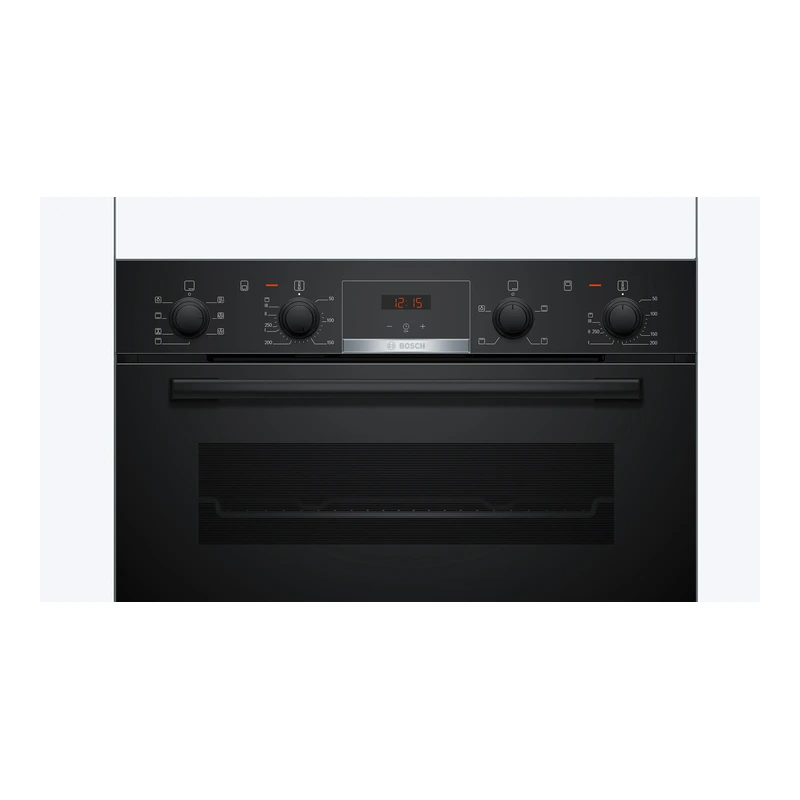

Display	LED–Display Control (Red)
Handle type	Straight bar handle
Door hinges	Top oven: drop down oven door; Main oven: drop down door
EAN code	4242005465811
Integrated cleaning system (label)	No (EcoClean Direct back panel main oven)

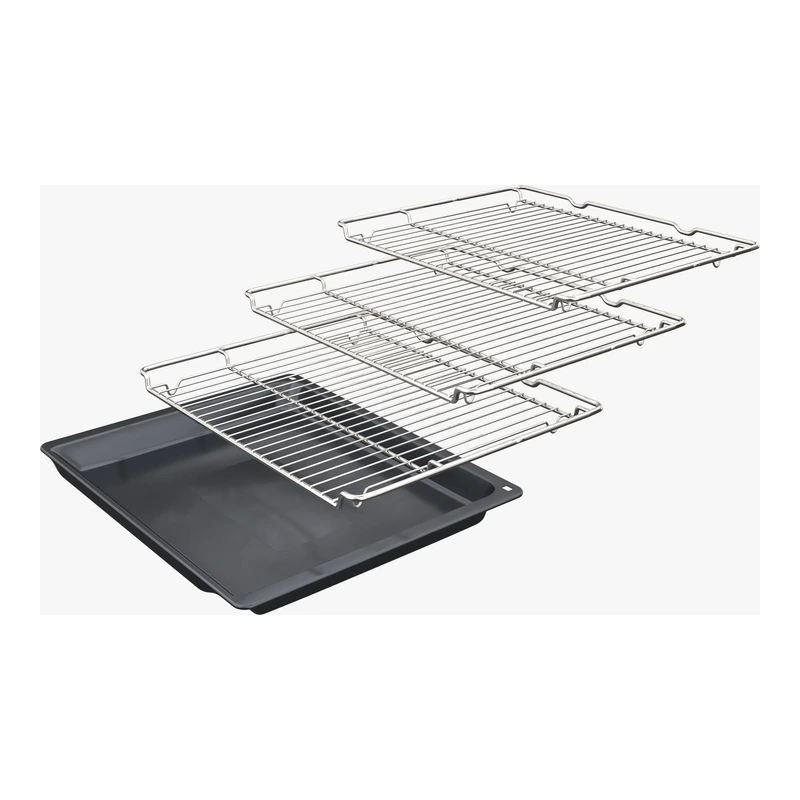

Included accessories	3 x combination grid, 1 x universal pan
