What is the capacity of each oven cavity?

The top oven has a cavity volume of 34 litres with 3 shelf positions. The main oven has a cavity volume of 47 litres and a usable volume of 47 l.

Which heating methods does the main oven offer?

The main oven provides 5 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill and Hotair gentle, all within a 50 °C to 275 °C temperature range.

Does this double oven have a self-cleaning system?

There is no integrated cleaning system. However, the main oven features EcoClean Direct on the back panel, a special coating that reduces cleaning effort on the rear wall.

What accessories are included with the oven?

The oven comes with 2 x combination grid, 1 x universal pan and 2 x universal pan, slim size. The slim-size pans are optimised for smaller amounts of different dishes.

Is this appliance plug-in or hard-wired?

The appliance has no plug and is intended for a fixed electrical connection by an electrician, with a total connected load of 5.3 kW at 220 – 240 V, 50 Hz and 25 A fuse protection.

What are the installation dimensions for fitting under a worktop?

The required niche dimensions are 720 mm – 720 mm in height, 560 mm – 568 mm in width and 550 mm in depth. The appliance dimensions are 717 mm x 594 mm x 550 mm.

Product Information Sheet

Bosch Serie 4 Double Oven

SKU: NBS533BB0B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch NBS533BB0B Serie 4 Double Oven

SKU: NBS533BB0B · EAN: 4242005034611

Built Under Black

The Series 4 NBS533BB0B is a built-under, built-in double compact oven designed for flexible cooking and baking. It offers 3D Hotair for perfect baking and roasting on multiple levels, along with a wide temperature range from 50 °C to 275 °C. With separate top and main cavities, EcoClean Direct on the main oven back panel and slim-size universal pans optimised for smaller amounts, it suits households needing efficient, versatile electric cooking.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 4, Built-under double oven NBS533BB0B
Type	Built-in, built-under double compact oven
Built-in / Free-standing	Built-in
Integrated cleaning system	No (EcoClean Direct back panel on main oven)
Main oven cavity volume	47 litre capacity
Top oven cavity volume	34 litre capacity
Usable volume of cavity (main)	47 l
Number of cavities	Top Cavity and Main Cavity
Heat source	Electrical (both cavities)
Cooking methods (overall)	Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling
Top oven heating methods	Conventional top/bottom heat, Large-area grill, Small area grill
Main oven heating methods	3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle
Temperature range (top oven)	50 °C – 275 °C
Temperature range (main oven)	50 °C – 275 °C
Fast pre-heating	Yes, main oven
Control panel	LED-Display Control (Red), rotary dial, retractable control dials, round with steel trim
Control panel material	Glass
Door material	Glass
Door hinge (top cavity)	Drop down oven door
Door hinge (main cavity)	Drop down door
Inner door	Full glass inner door (both cavities)
Top cavity inner surface	Enamel grey
Shelf positions (top oven)	3 shelf positions
Handle	Straight bar handle
Energy efficiency rating (overall)	A
Energy efficiency rating (EU 65/2014)	B (at a range of energy efficiency classes from A+++ to D)
Energy efficiency class cavity 2 (2010/30/EC)	B
Energy consumption conventional (main)	0.83 kWh / cycle (2010/30/EC), 0.83 kwh per cycle in conventional mode (EU 65/2014)
Energy consumption fan-forced convection (main)	0.71 kWh / cycle
Energy consumption conventional (cavity 2)	0.83 kWh / cycle
Energy efficiency index (main)	94.7 %
Energy efficiency index cavity 2	120.3 %
Connection rating	5300 W (Total connected load electric: 5.3 kW)
Voltage	220 – 240 V
Frequency	50 Hz
Fuse protection	25 A
Plug type	No plug (electrical connection by electrician), fixed connection (electrical connection by electrician)
Appliance dimensions (HxWxD)	717 x 594 x 550 mm
Dimensions	717x594x550 mm

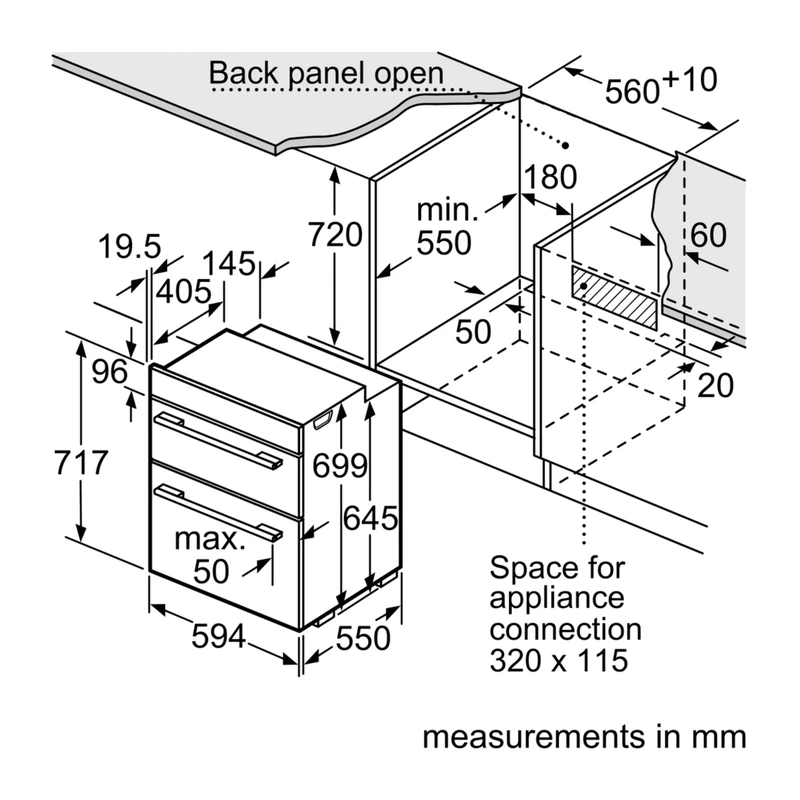

Niche dimensions (HxWxD)	720 mm – 720 mm x 560 mm – 568 mm x 550 mm
Packed product dimensions (HxWxD)	790x660x690 mm
Net weight	47.7 kg
EAN code	4242005034611

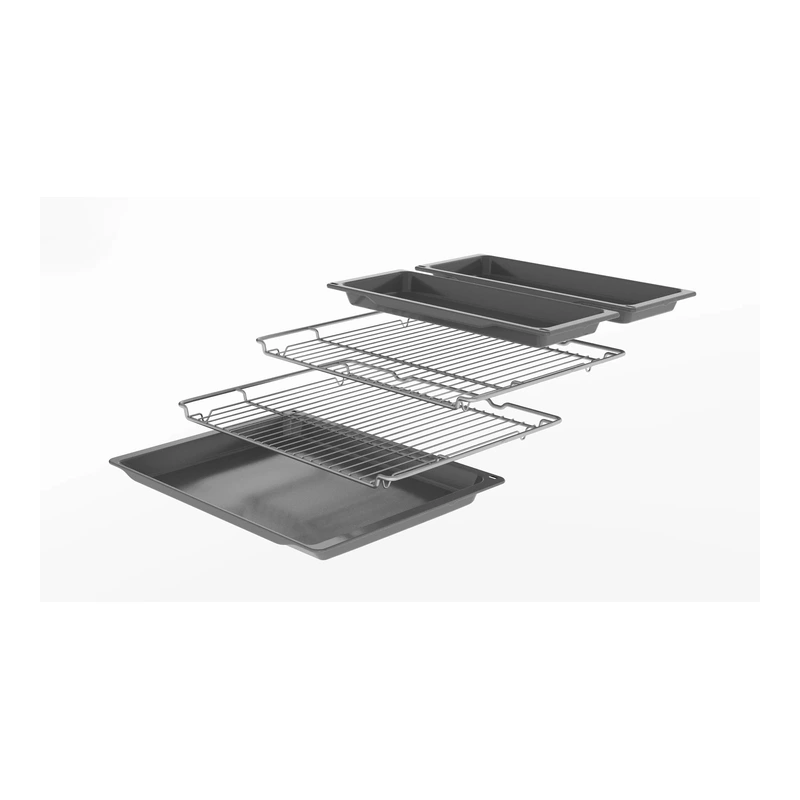

Included accessories	2 x combination grid, 1 x universal pan, 2 x universal pan, slim size
Optional accessories	HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L
