How many cooking zones does the PIE631BB5E have?

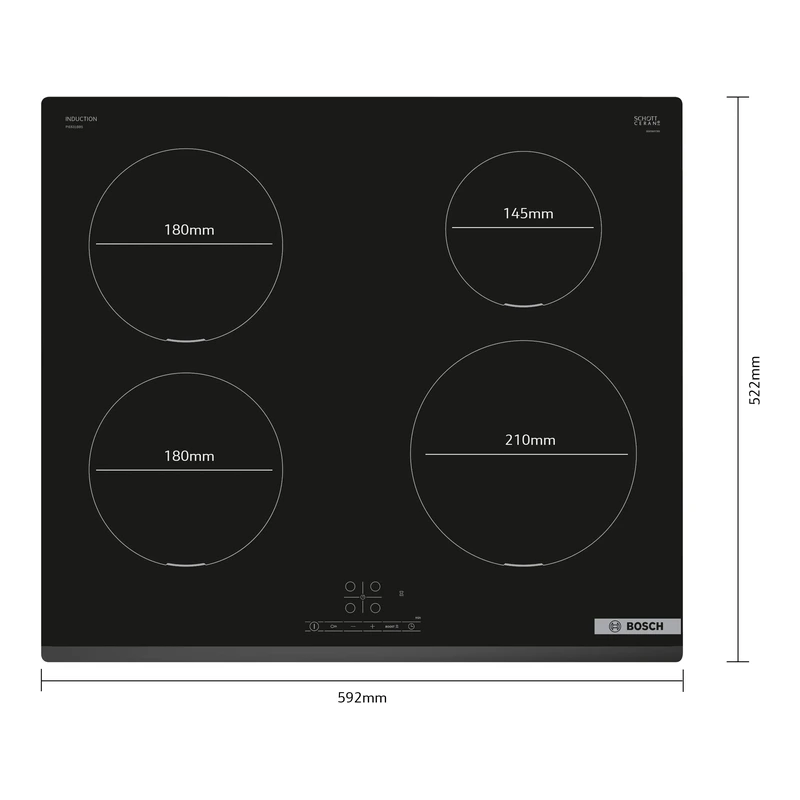

The hob has four induction cooking zones: two 180 mm zones, one 145 mm zone and one 210 mm zone.

What are the installation dimensions for this hob?

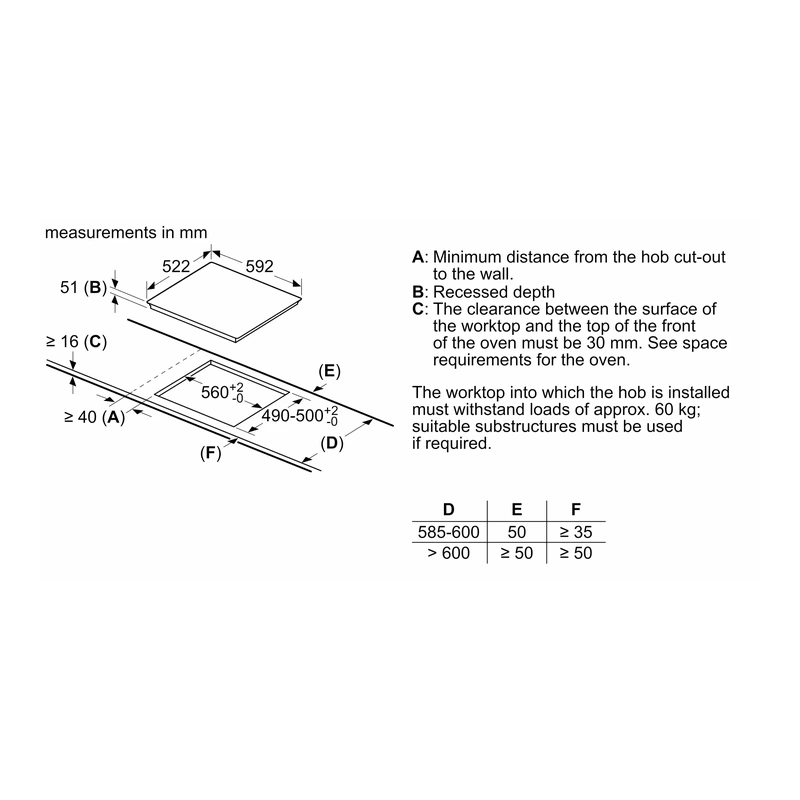

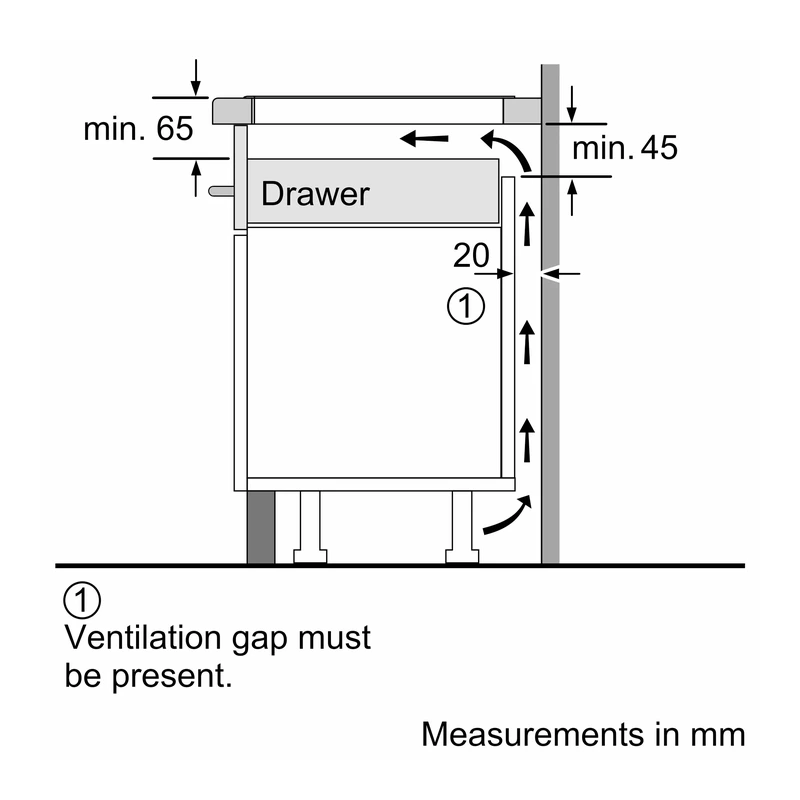

The product dimensions are 51 x 592 x 522 mm. The required niche size for installation is 51 x 560 x (490 - 500) mm, with a minimum worktop thickness of 16 mm.

Does the hob include a safety lock?

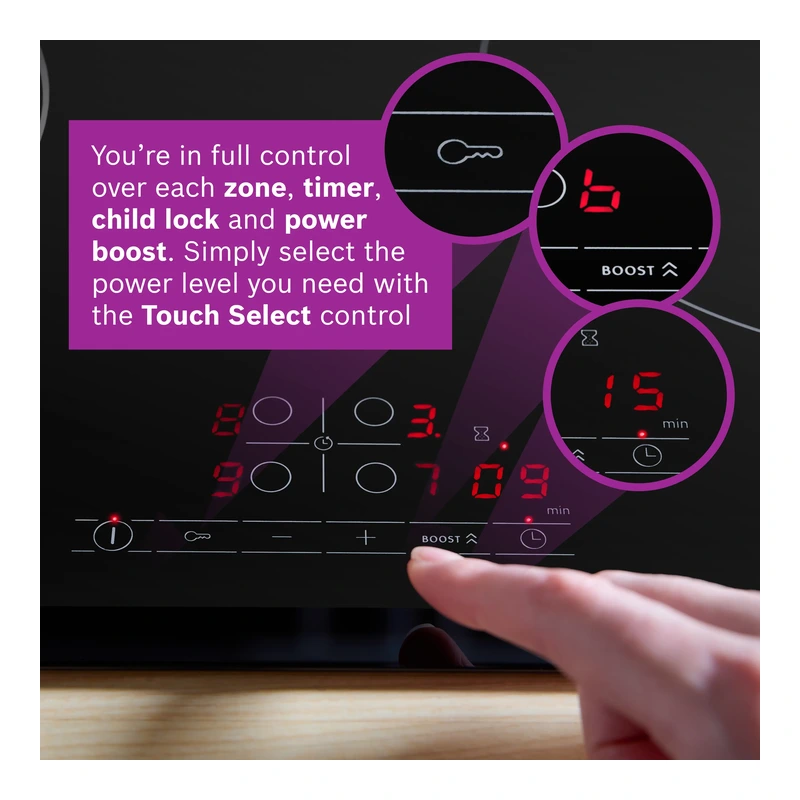

Yes. The hob features a control panel lock to prevent unintended activation, as well as a main on/off switch and automatic safety shut off.

What timer functions are available?

The hob has a switch-off timer that turns off a cooking zone at the end of the time set and a count-down timer where an alarm sounds when the time has elapsed.

Is there a boost function for faster boiling?

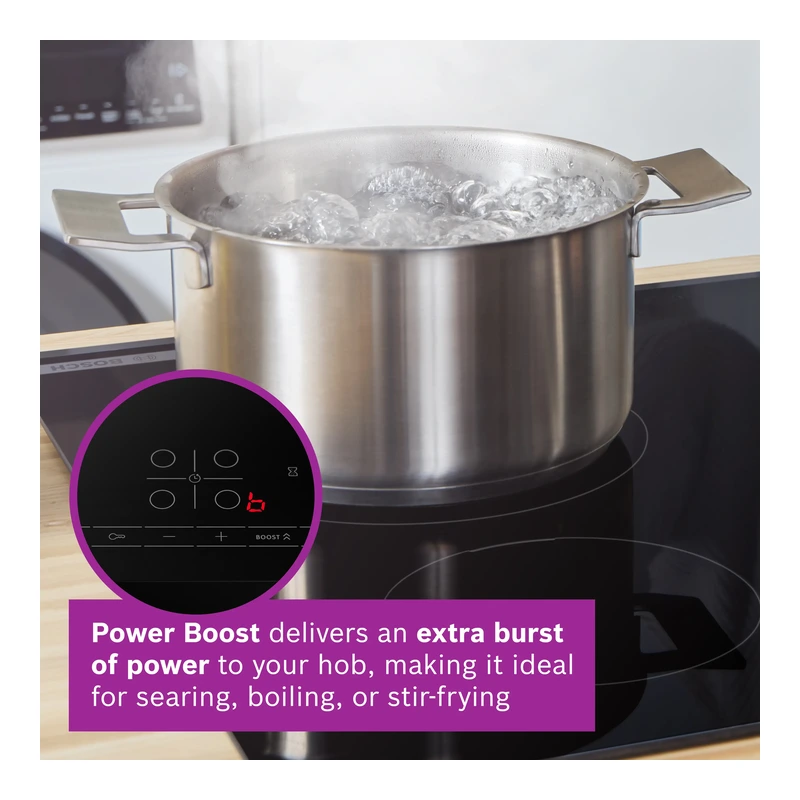

Yes. The PowerBoost function is available for all zones and can boil water faster by providing 50% more energy than at the highest standard level.

What optional accessories are available?

Optional accessories include the HEZ32WA00 wireless food thermometer, HEZ390090 wok set (3 items), HEZ9ES100 espresso maker (4 cups) and HEZ9SE030 set of 2 pots and 1 pan.

Product Information Sheet

Bosch Serie 4 Induction Hob

SKU: PIE631BB5E

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

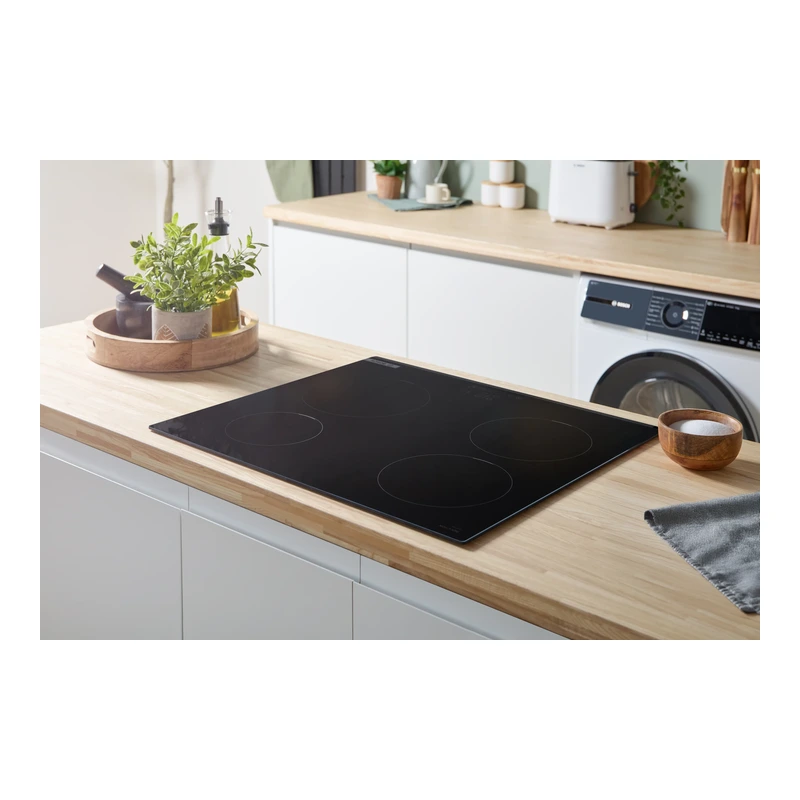

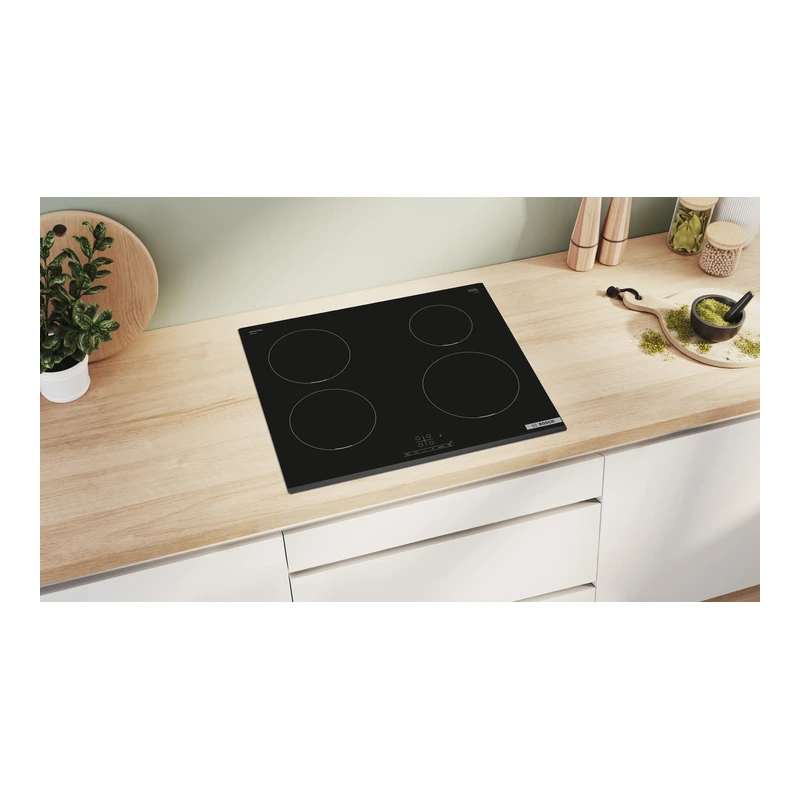

Bosch PIE631BB5E Serie 4 Induction Hob

SKU: PIE631BB5E · EAN: 42420052319848

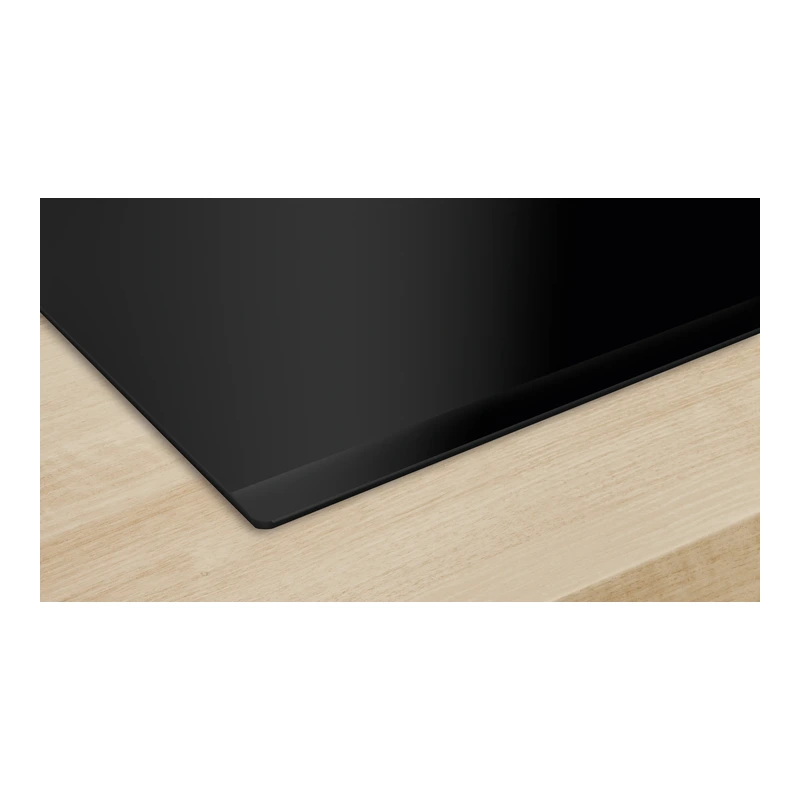

Frameless Front Bevel

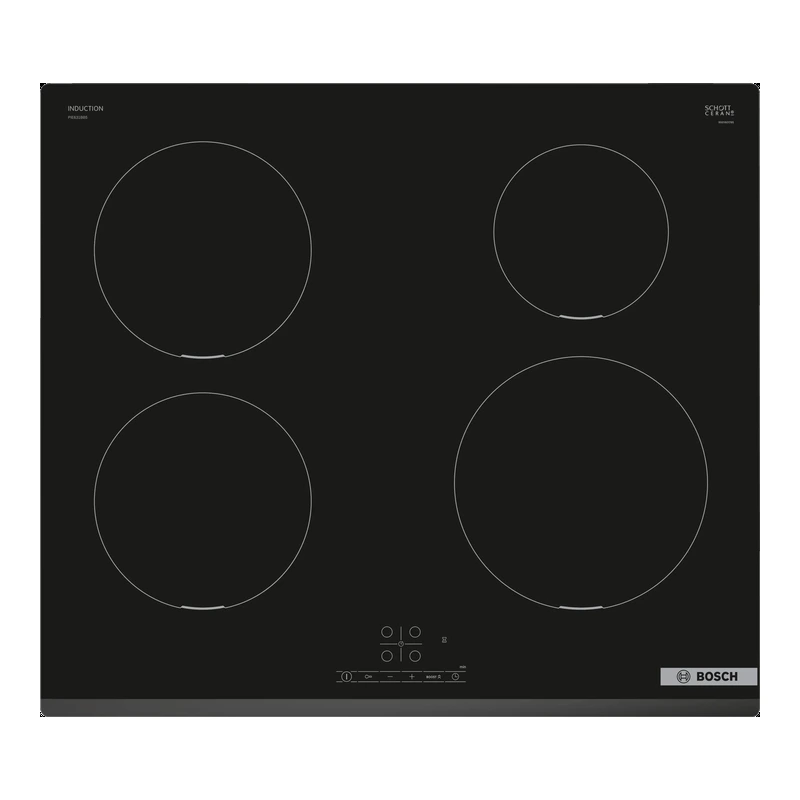

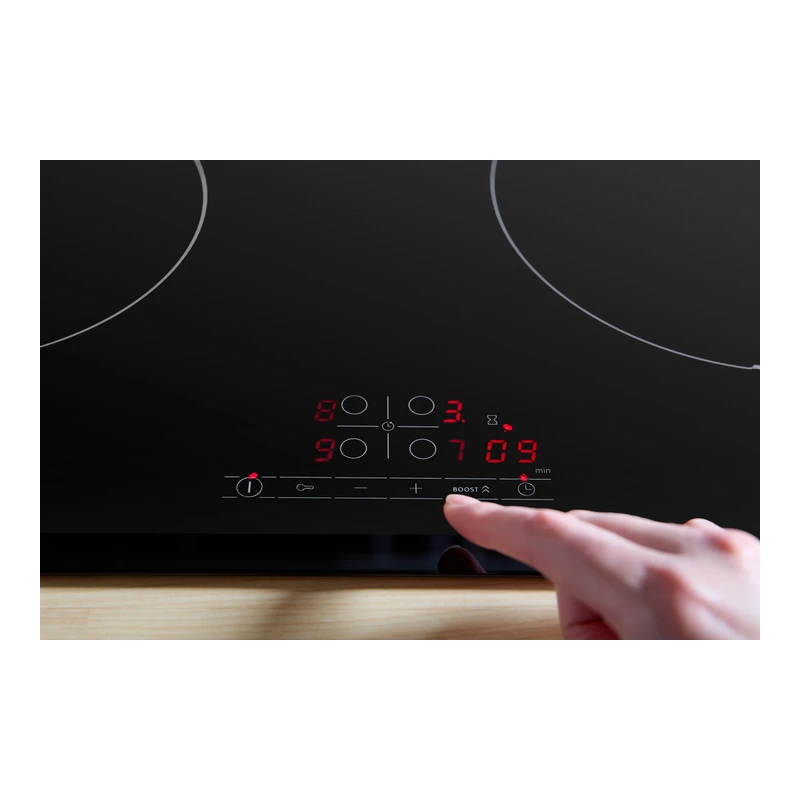

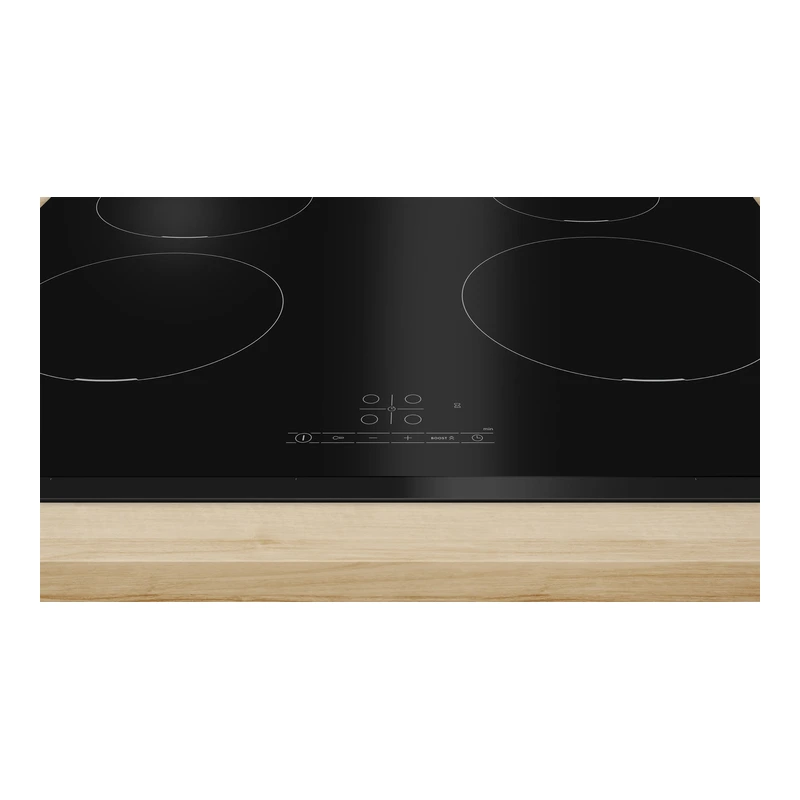

The Series 4 PIE631BB5E is a 60 cm built-in induction hob with four cooking zones and a ceramic glass surface in black. It offers TouchSelect controls, variable 17-stage power settings and PowerBoost on all zones for faster heating. Helpful timer functions, QuickStart, ReStart and Quick Stop features support convenient day-to-day cooking, while residual heat indicators, a control panel lock and automatic safety shut off enhance safety in the kitchen.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 4, Induction hob, 60 cm, surface mount without frame, PIE631BB5E
Appliance type	Cooking zone ceramic
Built-in / Free-standing	Built-in
Heating type	Electric hob (induction)
Number of cooking zones	4
Cooking zone front left	180 mm, 1.8 KW (max. power 3.1 KW)
Cooking zone rear left	180 mm, 1.8 KW (max. power 3.1 KW)
Cooking zone rear right	145 mm, 1.4 KW (max power 2.2 KW)
Cooking zone front right	210 mm, 2.2 KW (max. power 3.7 KW)
Width of the appliance	592 mm
Dimensions (HxWxD)	51 x 592 x 522 mm
Required niche size (HxWxD)	51 x 560-560 x 490-500 mm
Dimensions of packed product (HxWxD)	126 x 753 x 603 mm
Net weight	12.2 kg
Gross weight	13.3 kg
Residual heat indicator	Separate; 2 stage residual heat indicator for each zone
Location of control panel	Front
Basic surface material	Ceramic glass
Colour of surface	Black
Length of electrical supply cord	110 cm (Power cord: 1.1 m, cable included)
Min. worktop thickness	16 mm
Connected load	7.4 KW
Voltage	220-240 V
Frequency	50; 60 Hz
Power management options	Options for 16A, 13A or 10A connection to limit maximum power (depends on fuse protection of electric installation)
EAN code	4242005319848
Energy rating	Not stated in source
