How many cooking zones does the PIX631HC1E hob have?

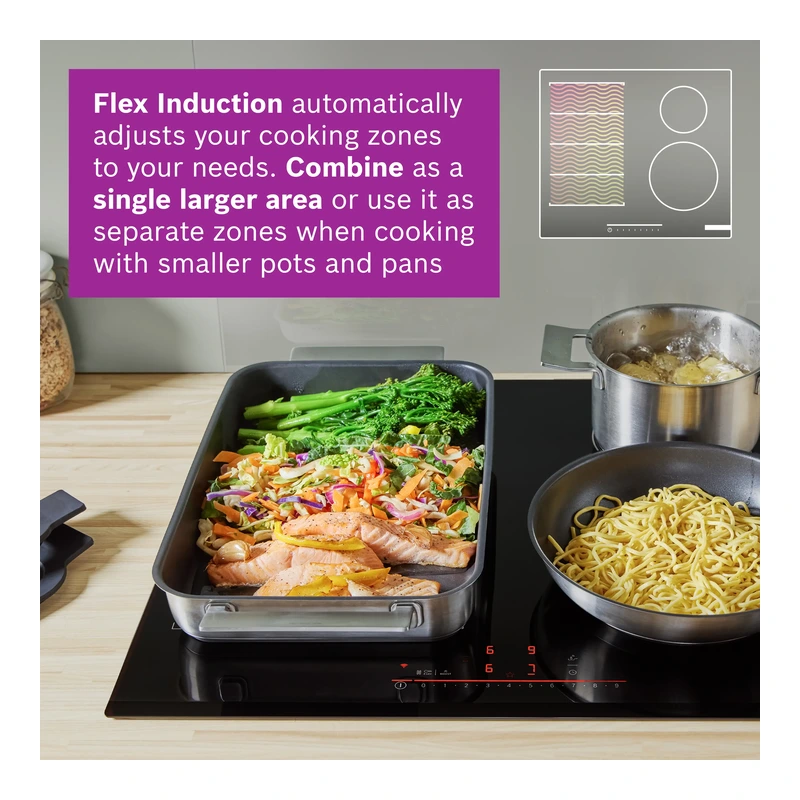

The hob has 4 cooking zones, including a FlexInduction area that can combine two zones into one large continuous zone for bigger cookware.

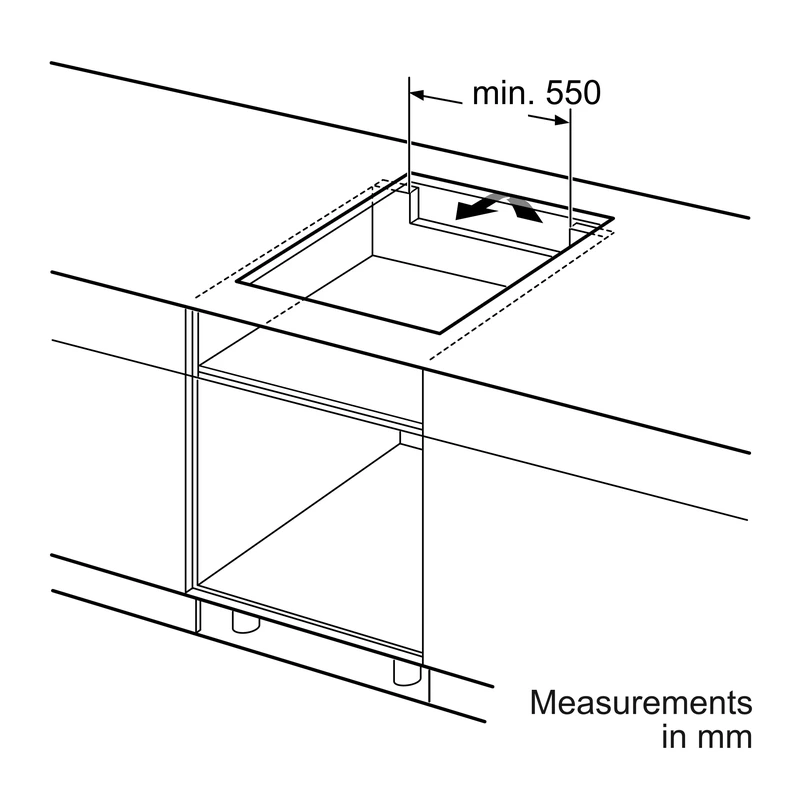

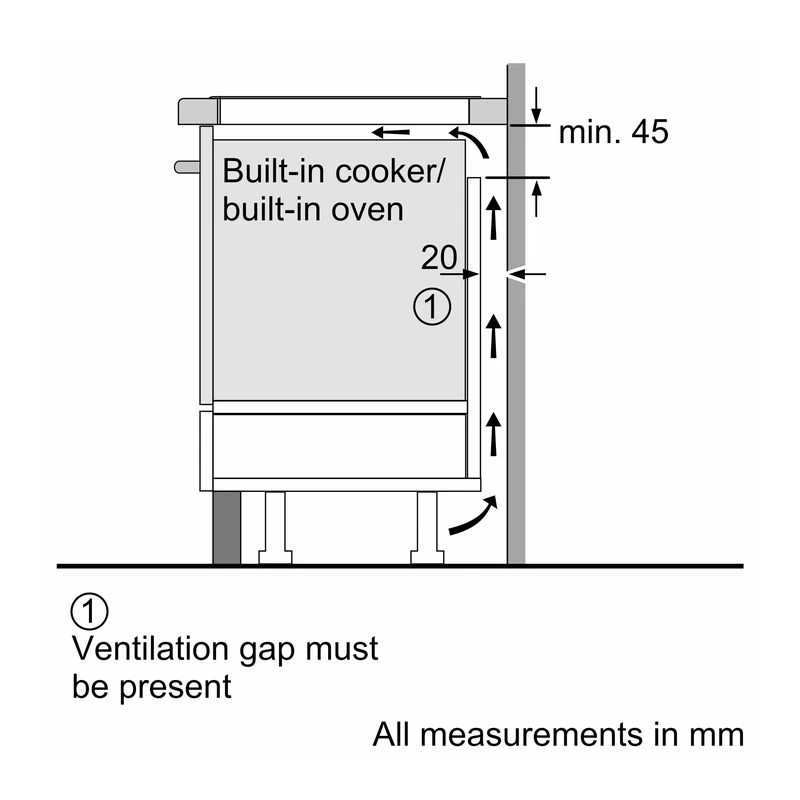

What are the dimensions required to install this hob?

The hob itself measures 51 x 592 x 522 mm (H x W x D). The required niche size for installation is 51 x 560 x 490–500 mm (H x W x D), with a minimum worktop thickness of 16 mm.

Does this induction hob support Home Connect?

Yes. It is Home Connect enabled, so you can check if the hob is switched off when you are not at home and access recipes or additional functions via the Home Connect app. Some functions, such as Favourite Button configuration, Pan Boost selection and software updates, require a connected Home Connect account.

What safety features are included?

Safety features include a 2–stage residual heat indicator for each zone, control panel lock, pause function, main on/off switch and automatic safety shut off, which stops heating after a preset time if the hob is not used.

Can the power load be limited for different electrical installations?

Yes. The hob provides power management options for 16 A, 13 A or 10 A connections to limit the maximum power according to the fuse protection of the electrical installation.

Product Information Sheet

Bosch Series 6 FlexInduction Hob

SKU: PIX631HC1E

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch PIX631HC1E Series 6 FlexInduction Hob

SKU: PIX631HC1E · EAN: 4242005394111

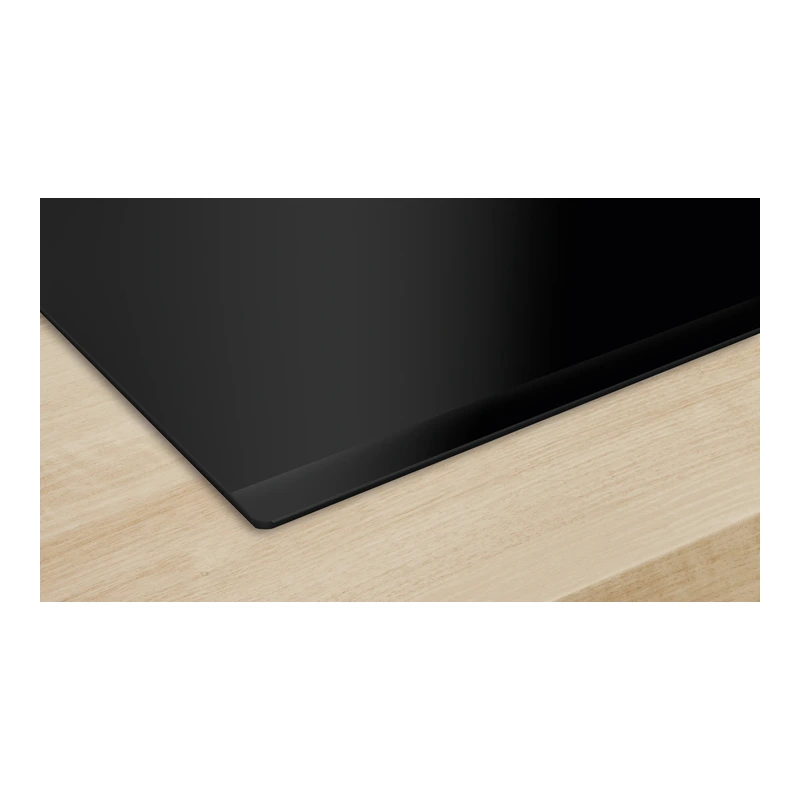

Frameless

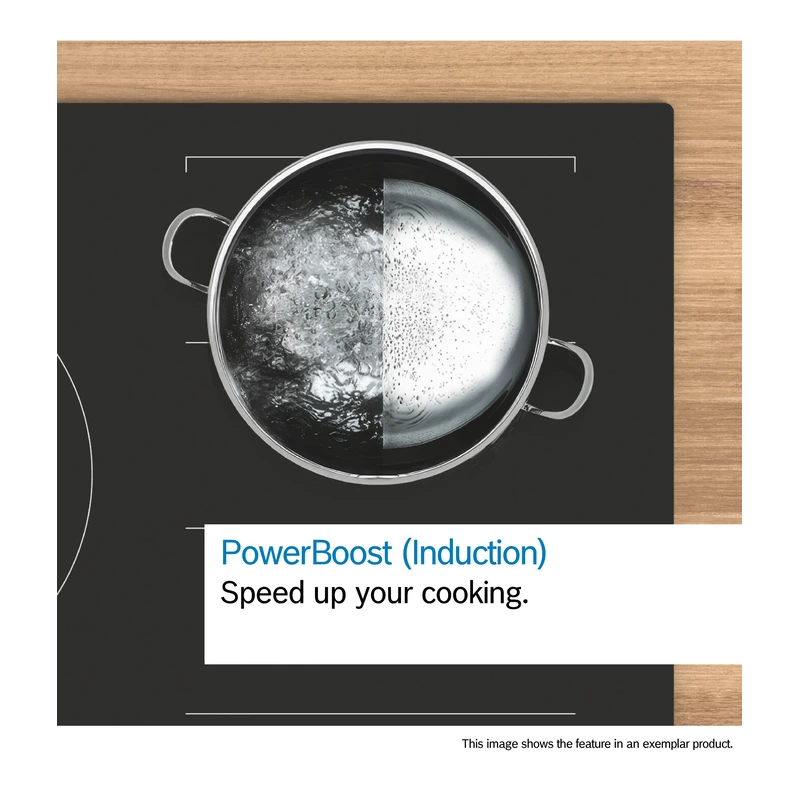

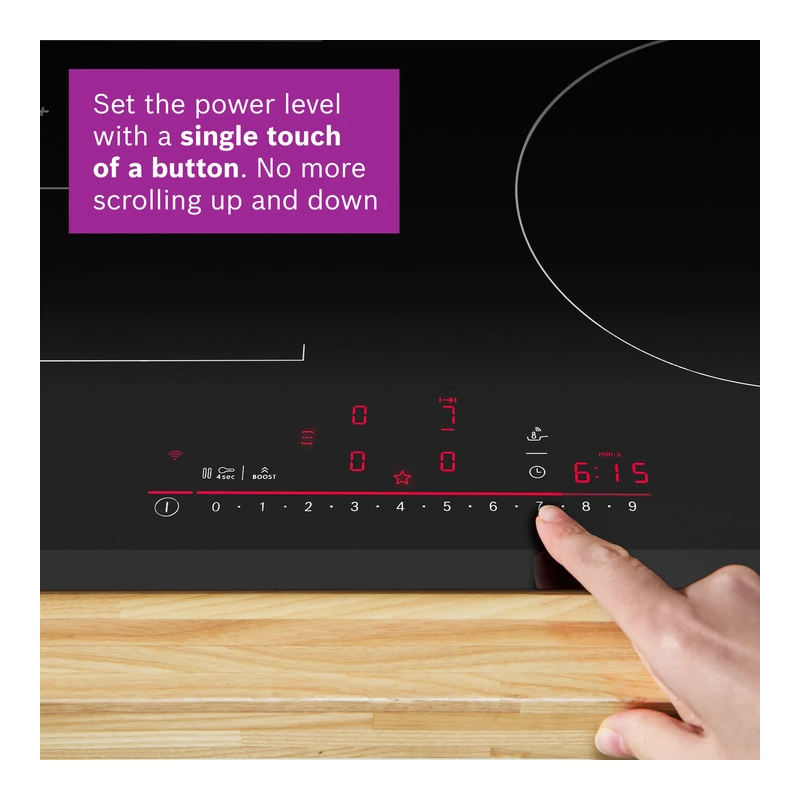

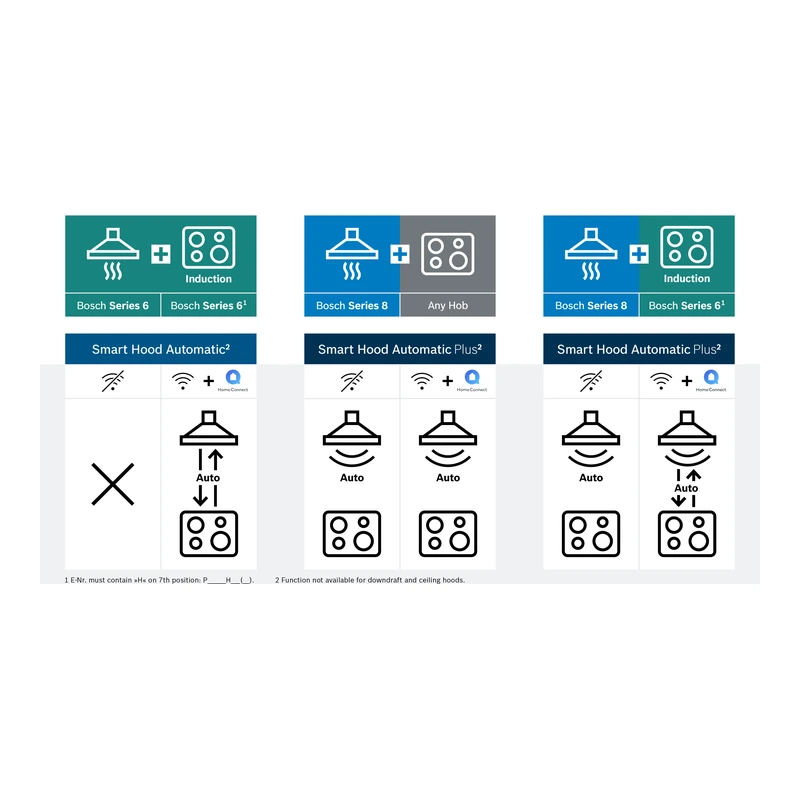

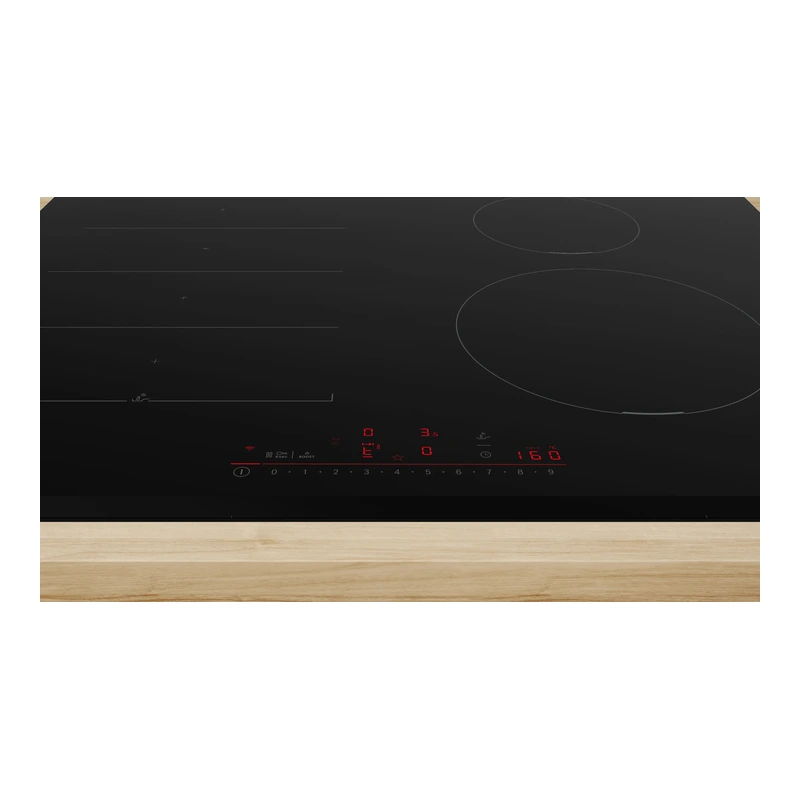

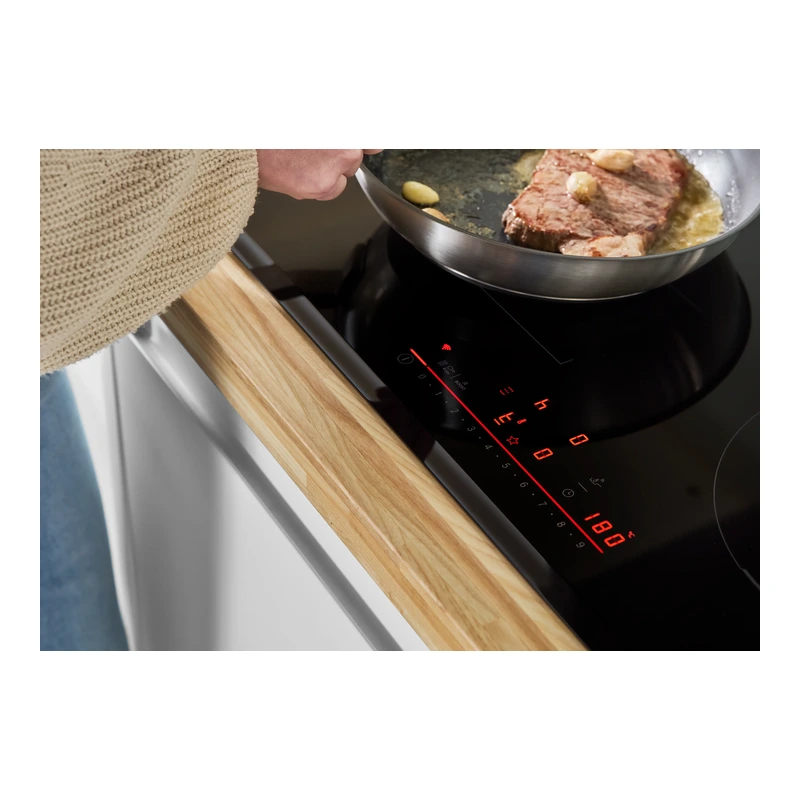

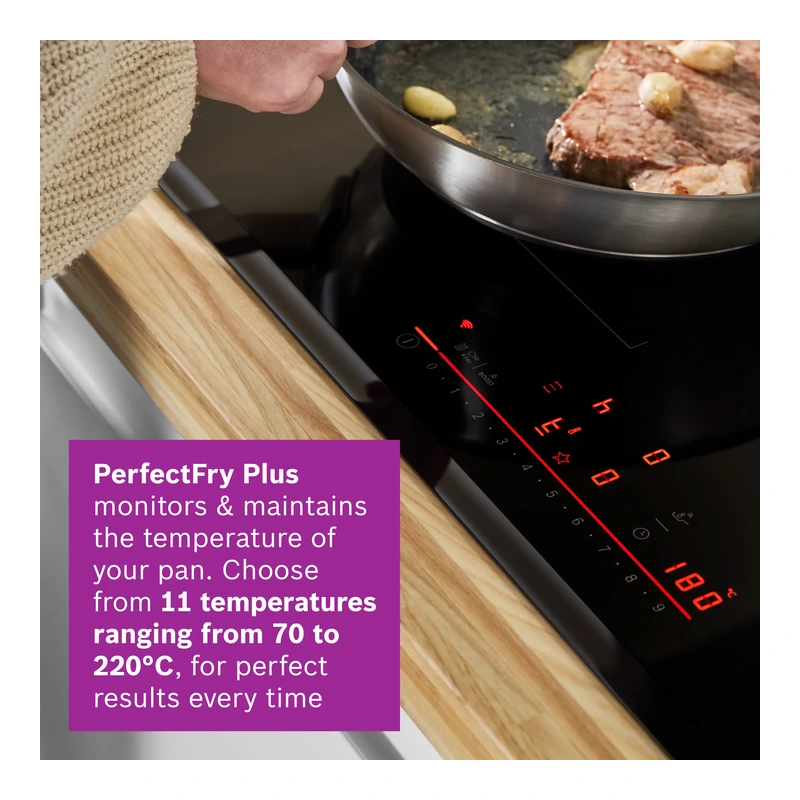

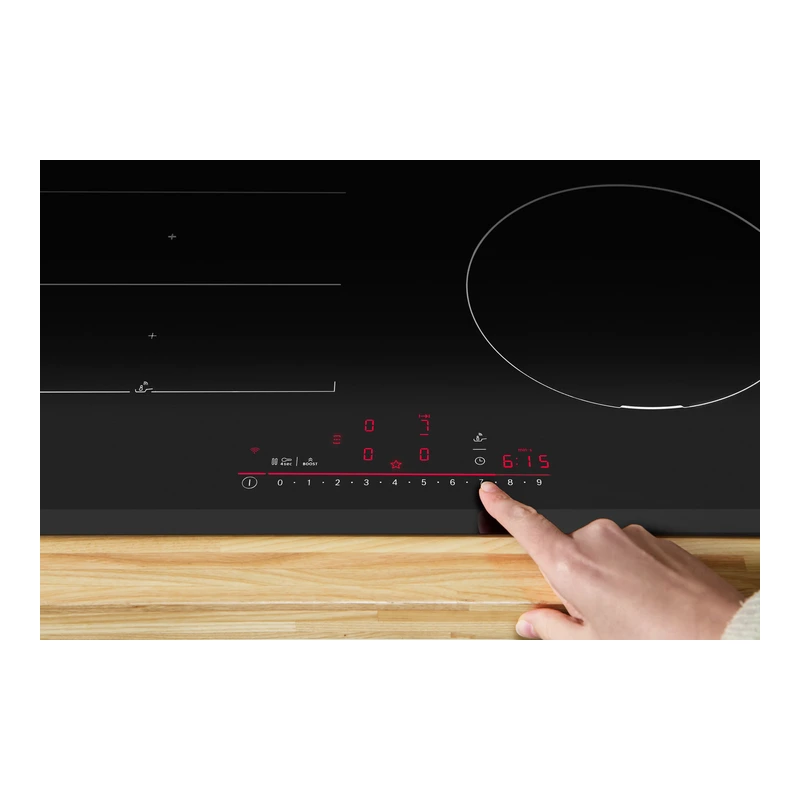

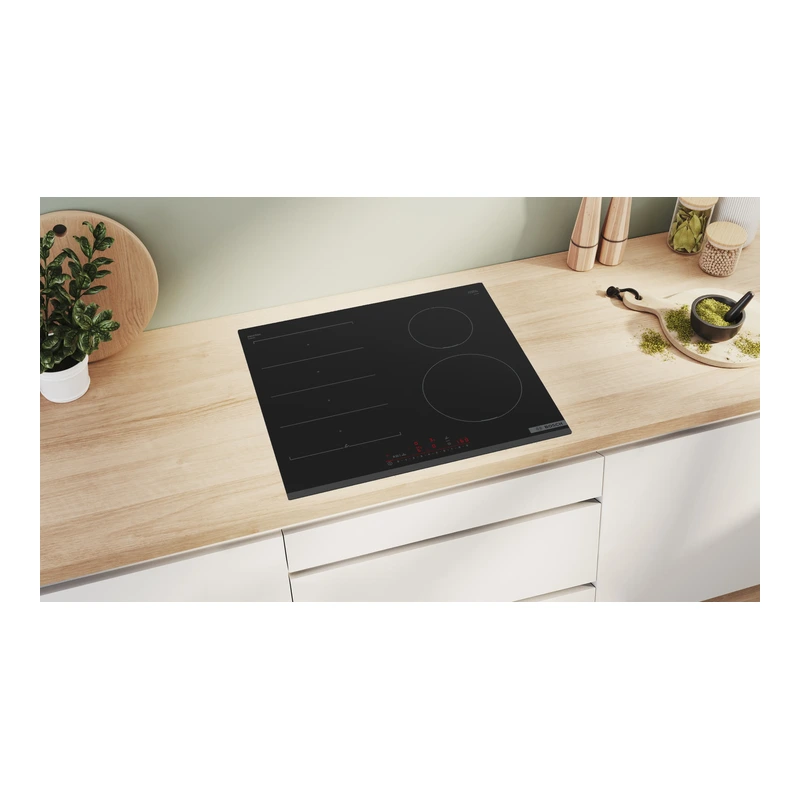

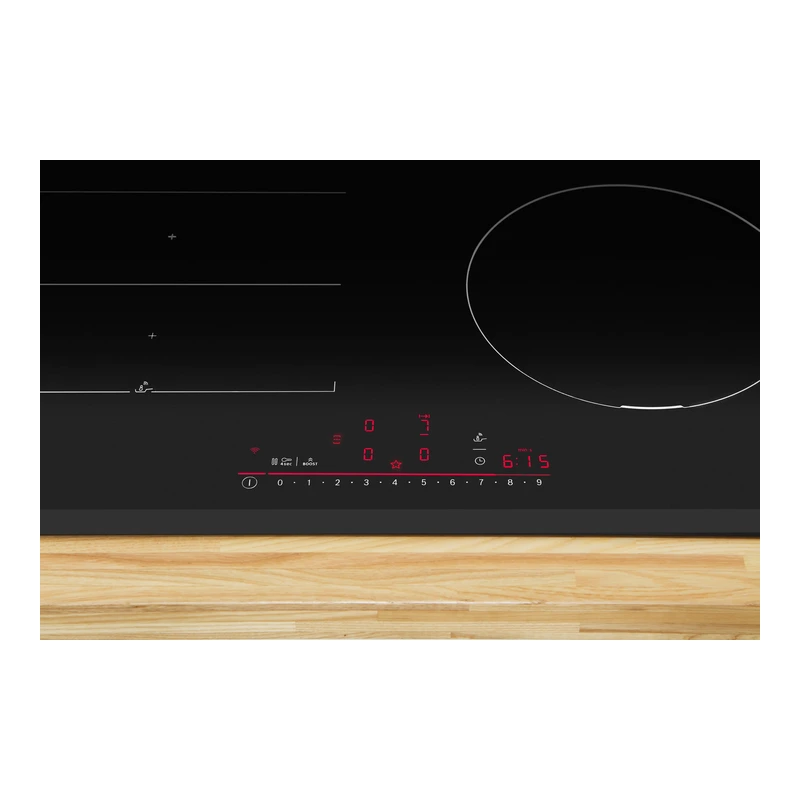

The Series 6 PIX631HC1E is a 60 cm built–in induction hob with four cooking zones and a black ceramic glass surface. It offers FlexInduction for flexible use of cookware, DirectSelect and Multitouch+ touch control, and 17–stage power settings for precise cooking. Features such as PerfectFry Plus, PowerBoost, Pan Boost and keep warm support everyday cooking, while Home Connect compatibility and Smart Hood Automatic add connected convenience.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Appliance type	Cooking zone ceramic
Built–in / Free–standing	Built–in
Heating type	Electric hob
Number of cooking zones	4

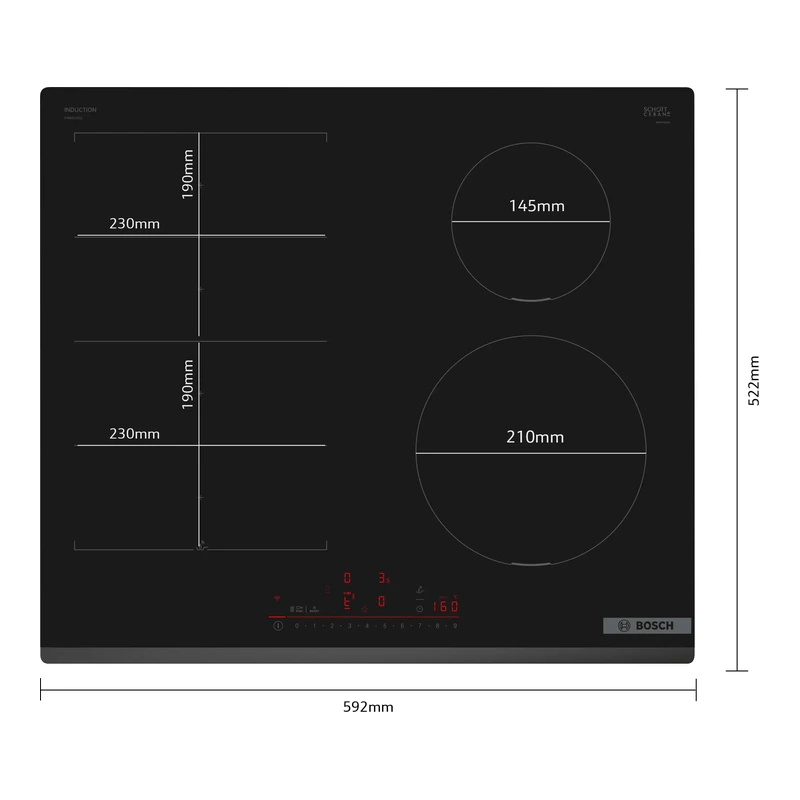

Cooking zone front left	190 mm, 230 mm, 2.2 kW (max. power 3.7 kW)
Cooking zone rear left	190 mm, 230 mm, 2.2 kW (max. power 3.7 kW)
Cooking zone rear right	145 mm, 1.6 kW (max. power 2.2 kW)
Cooking zone front right	210 mm, 2.5 kW (max. power 3.7 kW)
Width of the appliance	592 mm

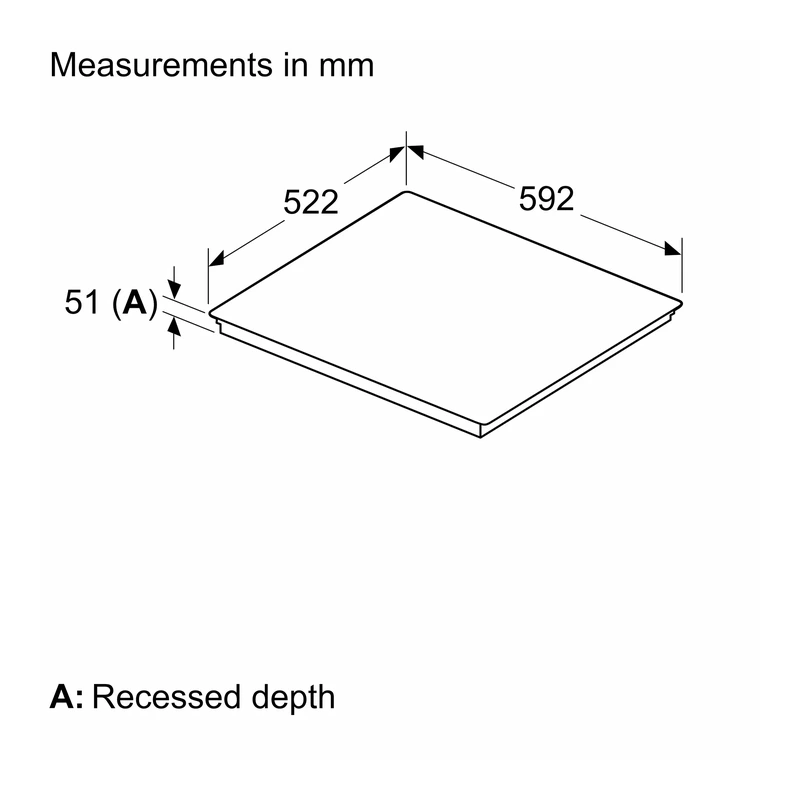

Dimensions (H x W x D)	51 x 592 x 522 mm

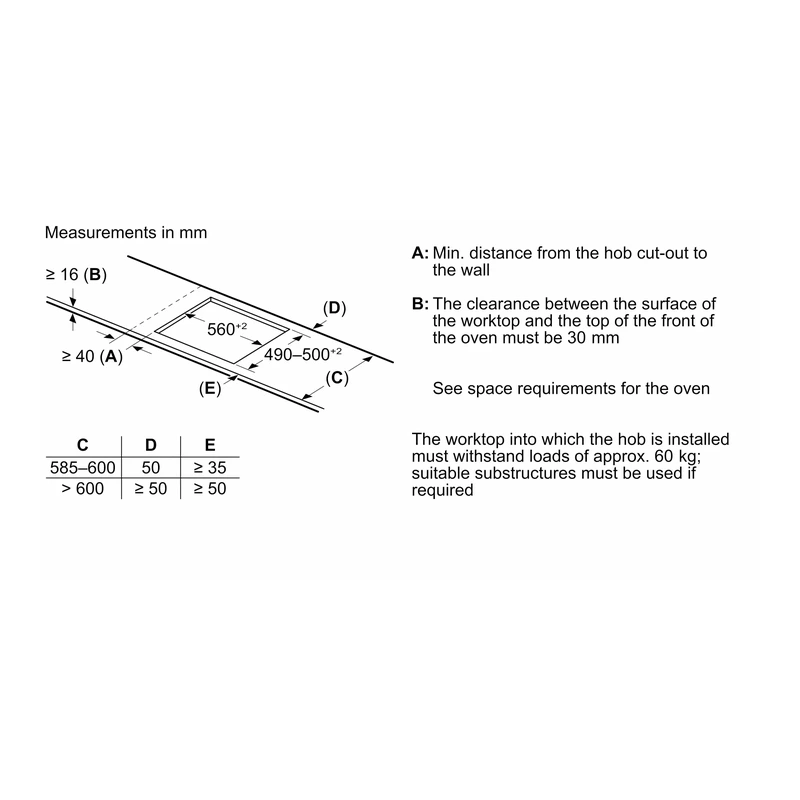

Required niche size (H x W x D)	51 x 560–560 x 490–500 mm
Min. worktop thickness	16 mm
Dimensions of packed product (H x W x D)	130 x 750 x 600 mm
Net weight	13.5 kg
Gross weight	14.6 kg
Basic surface material	Ceramic glass
Colour of surface	Black
Location of control panel	Front
Residual heat indicator	Separate, 2 stage for each zone
Length of electrical supply cord	110 cm
Voltage	220–240 V
Frequency	50; 60 Hz
Connected load	7.4 kW
Power management options	16 A, 13 A or 10 A connection
EAN code	4242005394111
