| Product name |

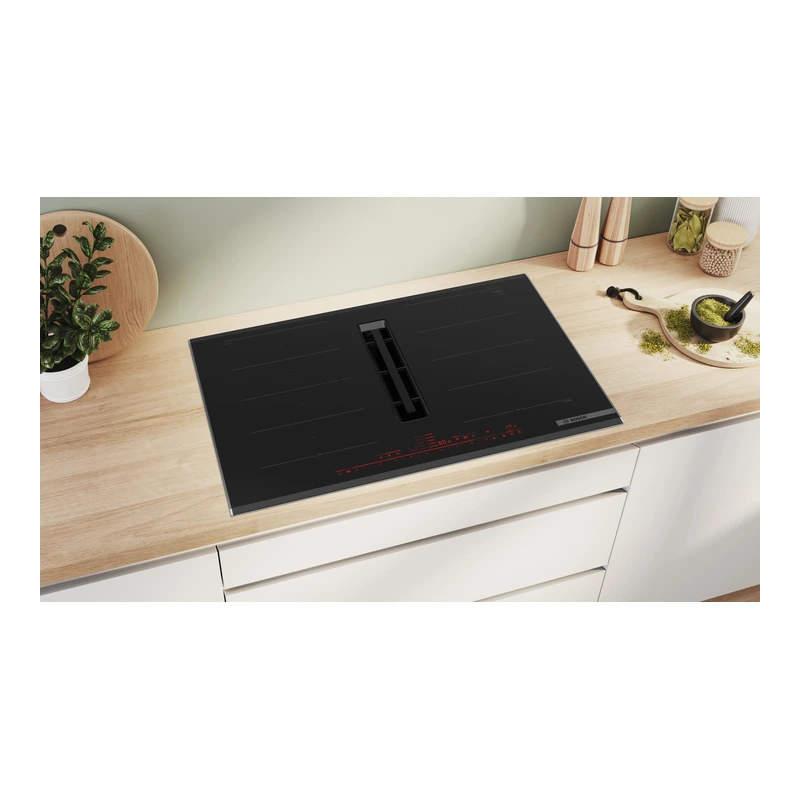

Series 8, Induction hob with integrated ventilation system, 80 cm, surface mount with frame |
| Model code |
PXX875D67E |
| Appliance type |
Cooking zone ceramic |
| Installation |
Built–in, suitable for installation into a 60 cm base cabinet |
| Heating type |
Electric hob (induction) |
| Number of cooking zones |
4 |
| Flex zones |
2 Flex zones, each 40 cm long |
| Cooking zone front left |
200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
| Cooking zone rear left |
200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
| Cooking zone rear right |
200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
| Cooking zone front right |
200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
| PowerBoost |
PowerBoost function for all zones (50% more energy than highest standard level) |
| PanBoost |
PanBoost function for faster pan heating |
| Power levels |
17–stage power settings for each zone (9 main + 8 intermediate) |
| Controls |
DirectSelect Premium touch control, front control panel |
| Convenience timers |
Timer for all zones, count up timer per cooktop, usage time display and acoustic alarm |
| Keep warm function |
Yes (preset low power level) |
| Automatic functions |
Automatic zone connection on Flex zone, MoveMode (3 levels), automatic setting transfer, automatic zone selection, QuickStart and ReStart functions |
| Connectivity |
Home Connect enabled; Dish assistant via Home Connect app |
| Cooking assistance |
PerfectCook sensor ready (sensor sold separately), PerfectFry with 5 frying and 5 cooking levels |

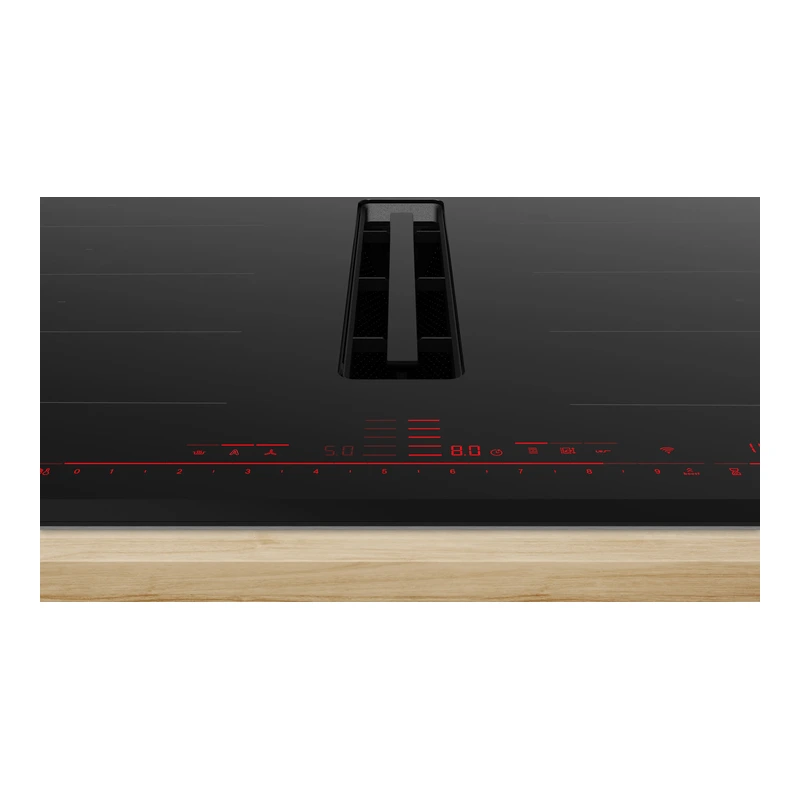

| Ventilation type |
Fully integrated downdraft extractor, suitable for ducted or recirculated extraction (convertible air circulation) |
| Fan power settings |
17 electronically controlled fan power levels + 2 Boost/Intensive levels with automatic revert |
| Max. air extraction (ducted) |
500 m³/h (max. normal), 622 m³/h (Boost/Intensive) |
| Min. air extraction (ducted) |
154 m³/h (min. normal, according to EN 61591) |
| Max. air recirculation |
499 m³/h (max. normal), 595 m³/h (Boost/Intensive) |
| Min. air recirculation |
132 m³/h (min. normal, according to EN 61591) |
| Noise level (ducted) |
42 dB re 1 pW (min. normal), 69 dB re 1 pW (max. normal), 74 dB re 1 pW (Boost/Intensive) |
| Noise level (recirculated) |
41 dB re 1 pW (min. normal), 68 dB re 1 pW (max. normal), 72 dB re 1 pW (Boost/Intensive) |
| Odour filter |
Clean Air Plus odour filters for recirculation; saturation indication and reminders via user interface and Home Connect app |
| Grease filter |
Integrated stainless–steel grease filters with 12 filtration layers; grease filtration efficiency 94% |
| Grease filtration efficiency class |
B (according to Regulation (EU) No 65/2014) |
| Energy Efficiency Class (ventilation) |
B (range from A+++ to D) |
| Fluid Dynamic Efficiency |
A |
| Average energy consumption (ventilation) |
57 (unit not stated in source) |
| Residual heat indicator |
Separate, 2 stage residual heat indicator for each zone |
| Basic surface material |
Ceramic glass with floating, heat–resistant glass ceramics air intake element |
| Surface colour |
Black, Stainless steel |

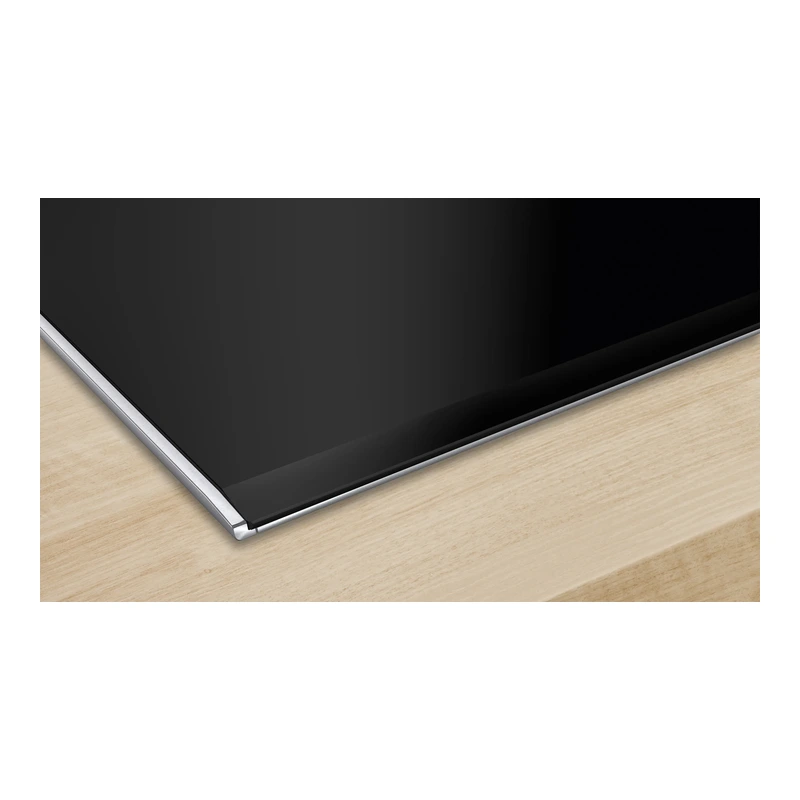

| Frame colour |
Stainless steel (profile trim with front facette and side trim) |

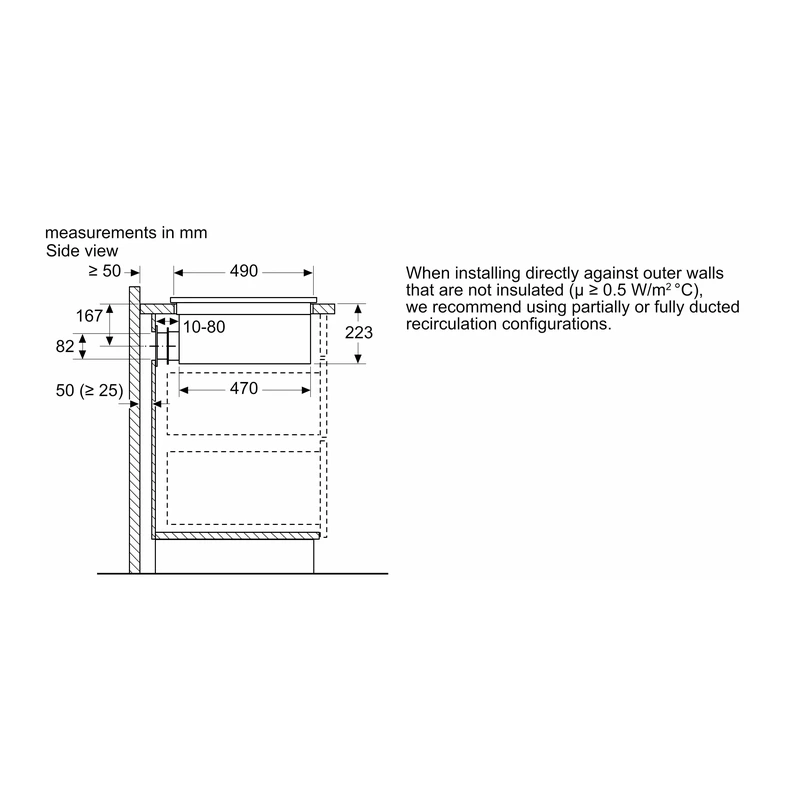

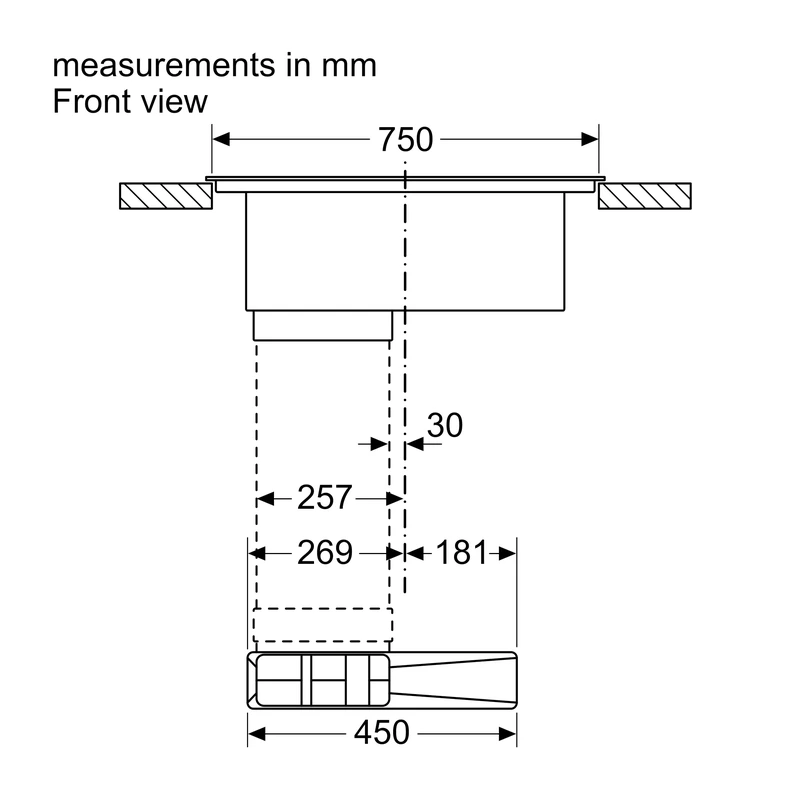

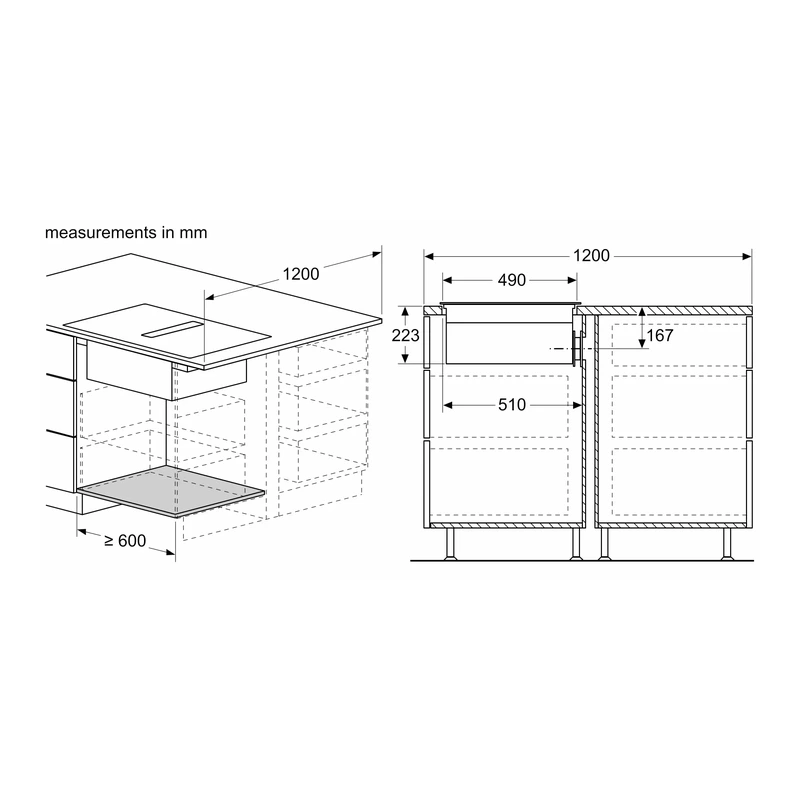

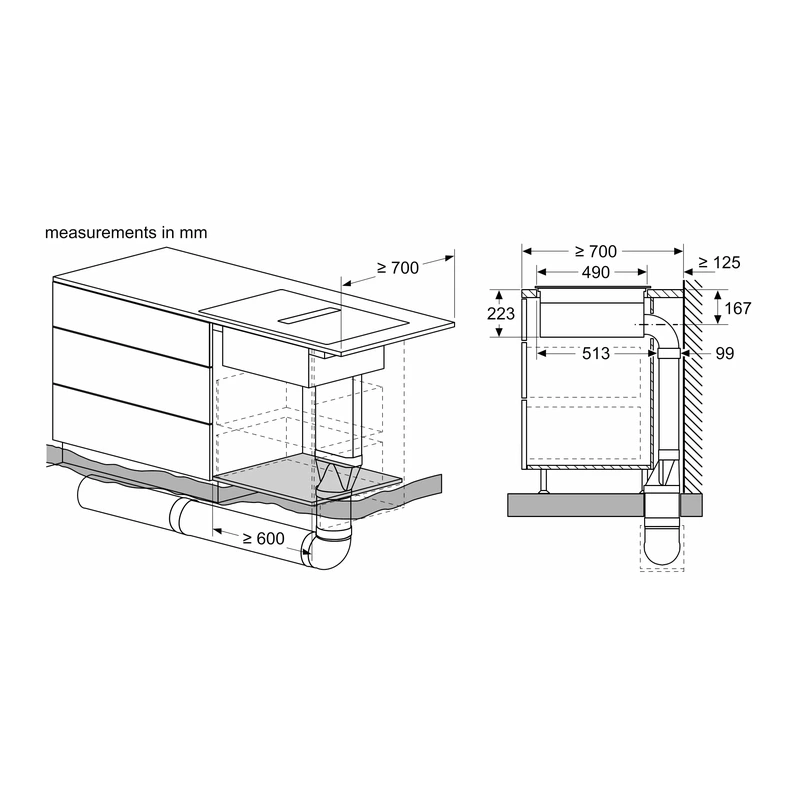

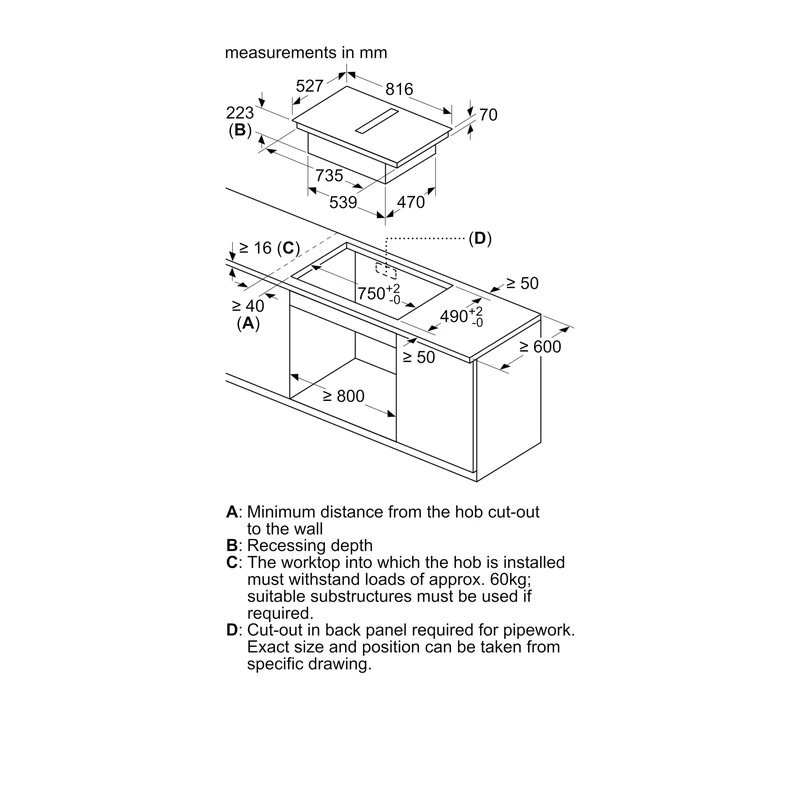

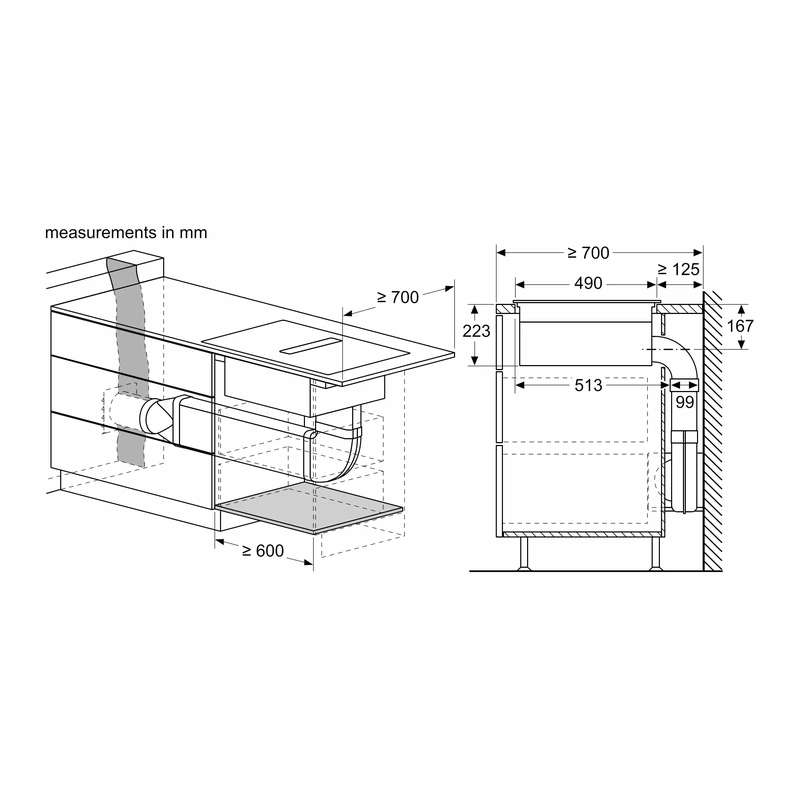

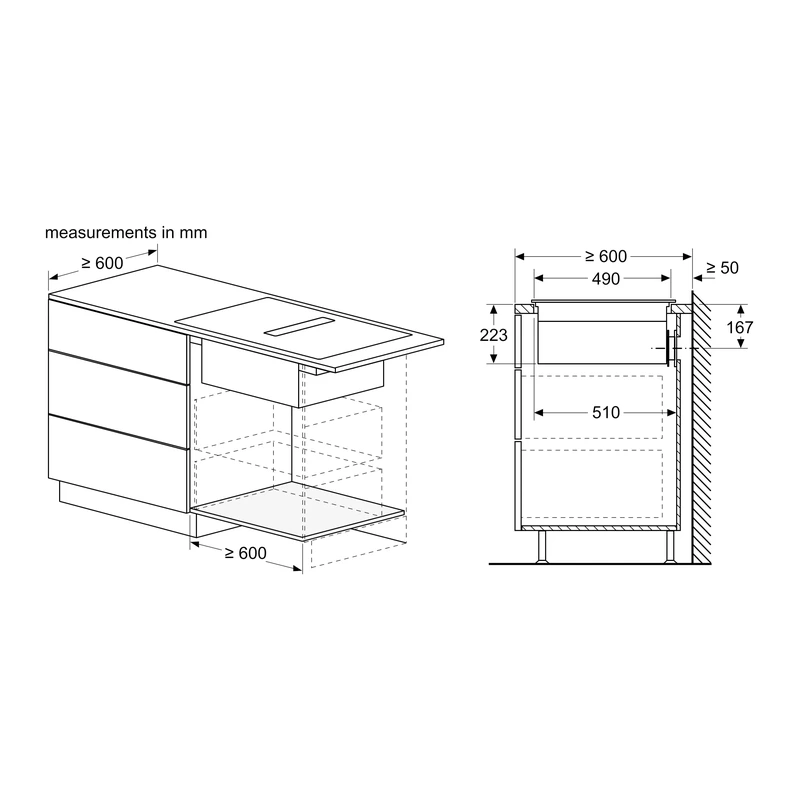

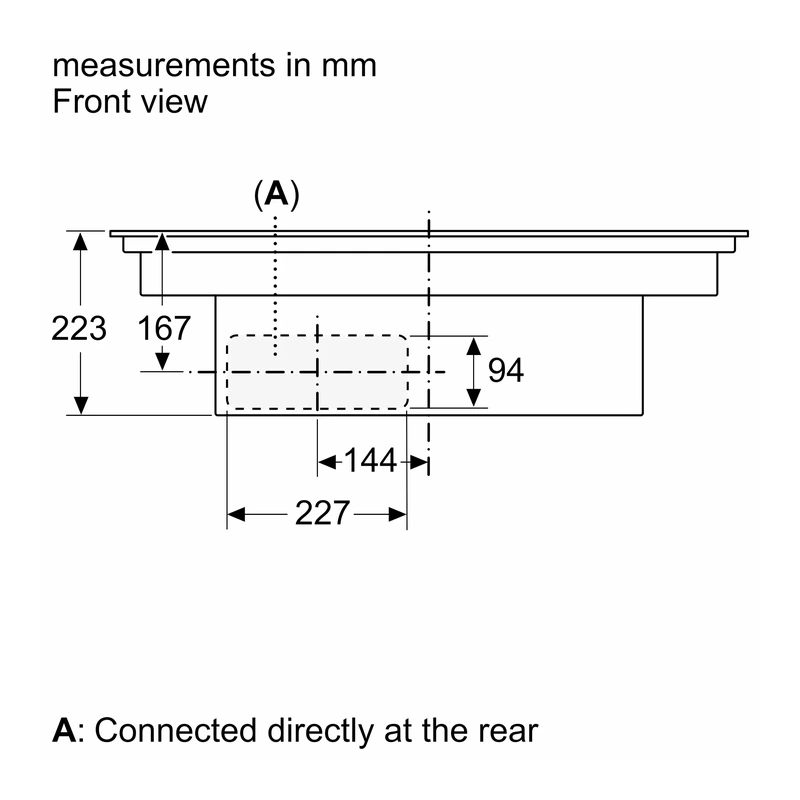

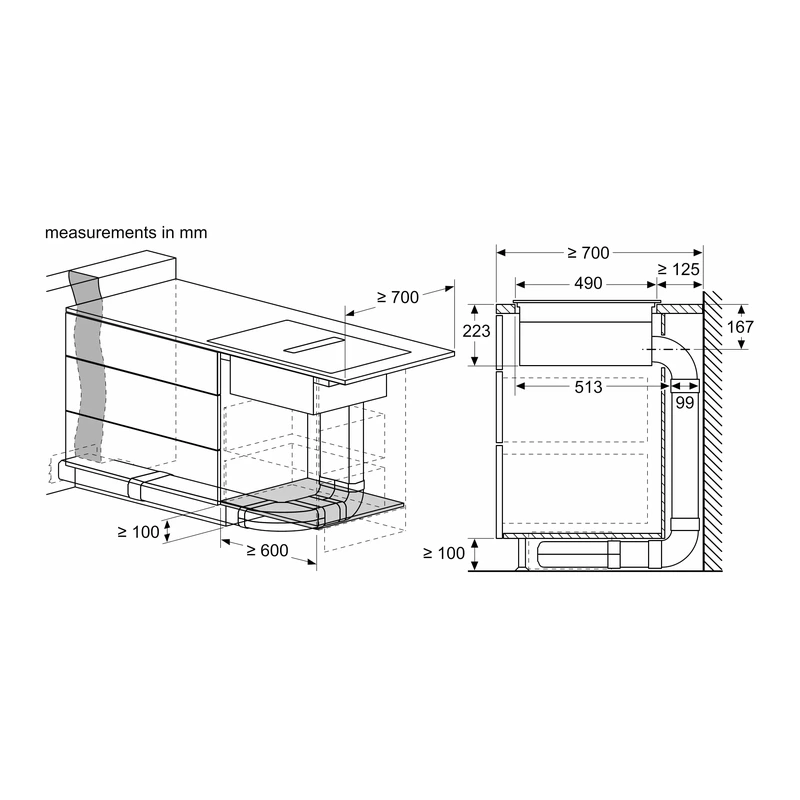

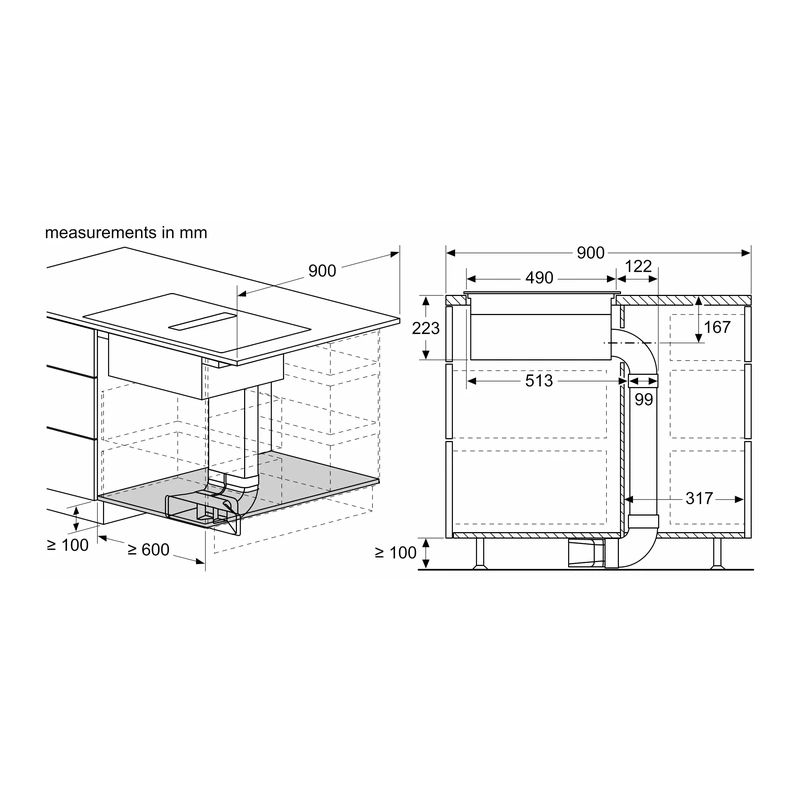

| Dimensions (H x W x D) |
223 x 816 x 527 mm |

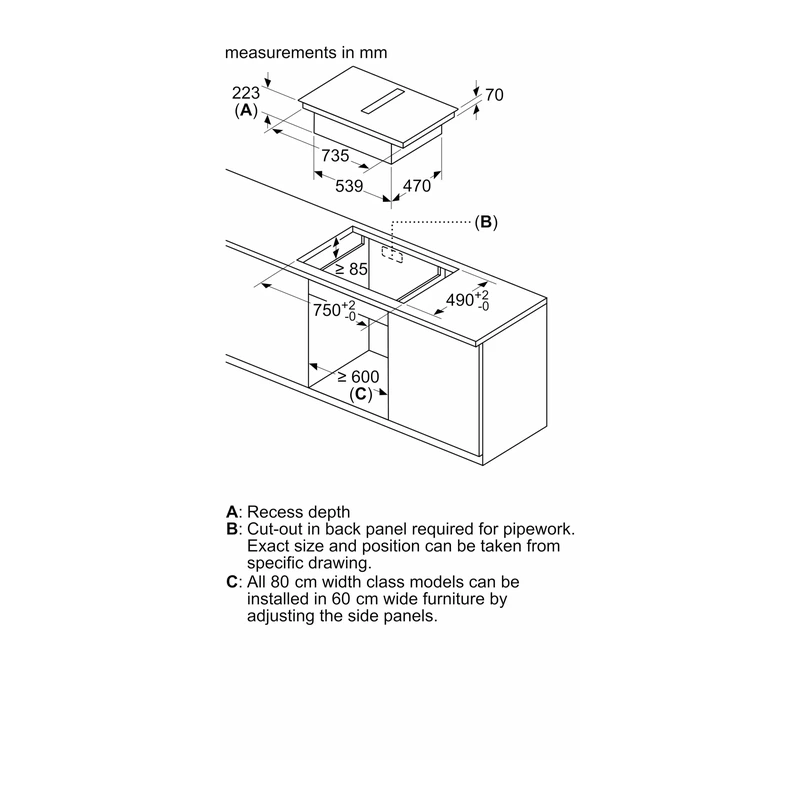

| Required niche size (H x W x D) |
223 x 750–750 x 490–490 mm |
| Minimum worktop thickness |
16 mm (top mounted and flush installed with standard installation system) |
| Max. immersion depth |
223 mm below worktop surface |
| Dimensions of packed product (H x W x D) |
430 x 940 x 660 mm |
| Net weight |
28.7 kg |
| Gross weight |
33.4 kg |
| Overall appliance weight (planning notes) |
26 kg (bearing capacity and stability must be supported as required) |
| Electrical connection |
Connected load 7.4 kW; power management options for 16A, 13A or 10A connection |
| Voltage |
220–240/380–415 V |
| Frequency |
50–60 Hz |
| Power cord |
Length 1.1 m; cable included |
| Sealed burners |
No |
| Heating with booster |
All zones |
| Power of 2nd heating element |
3300.0 W |
| Noise level (general spec) |
69 dB(A) re 1 pW |
| Clean filter reminders |
Yes |
| Safety features |
Control panel lock, Freeze function, main on/off switch, automatic safety shut off, watertight blower system, Needle Flame Test compliant (IEC 60695–11–5), V2 flammability class (UL94) |
| Liquid collection |
Upper liquid collector 200 ml; liquid safety collector 700 ml; total capturing capacity 900 ml, easily detachable and dishwasher safe |
| Included accessories |
1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter |
| Optional accessories |

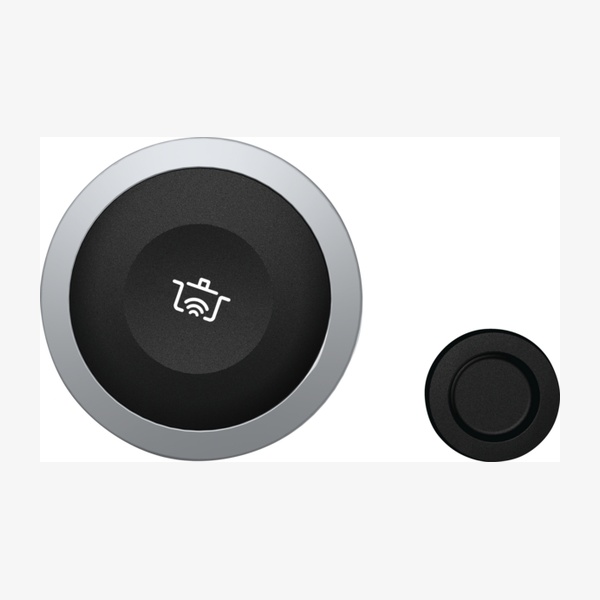

HEZ32WA00 Wireless food thermometer; HEZ390011 Stainless Steel roaster with glas lid; HEZ390012 Steaming Rack for Stainless Steel roaste; HEZ39050 Wireless temperature sensor for cooktop; HEZ390512 Teppan Yaki (large); HEZ390522 Griddle Plate; HEZ9CF240 Fry pan, coated 24cm Ø; HEZ9CF280 Fry pan, coated 28cm Ø; HEZ9ES100 Espresso maker 4 cups; HEZ9FE280 Iron pan Ø 18 / 28 cm; HEZ9FF010 Flex Pan, large; HEZ9FF030 Flex Pan set, 3 pcs.; HEZ9FF040 Flex Pan set, 4 pcs.; HEZ9SE030 Set of 2 pots and 1 pan; HEZ9SE040 4 pieces Set; HEZ9SE060 6 pieces Set; HEZ9TY010 Teppan Yaki; HEZ9VDKE1 Exhaust kit; HEZ9VDKR0 Recirculation kit 2 L–bow (70cm); HEZ9VDKR1 Recirculation kit S and L–bow (60cm); HEZ9VDKR2 Recirculation kit 1x L–bow; HEZ9VDSB1 90° flat duct bend horizontal; HEZ9VDSB2 90° flat duct L vertical; HEZ9VDSB3 90° flat duct M vertical; HEZ9VDSB4 90° flat duct S vertical; HEZ9VDSI0 Adapter round–flat; HEZ9VDSI1 90° Adapter round–flat; HEZ9VDSM1 Straight tube 500mm; HEZ9VDSM2 Straight tube 1000mm; HEZ9VDSS1 Connector sleeve (female); HEZ9VDSS2 Flex sleeve (female); HEZ9VEDU0 Acoustics Filter; HEZ9VRCR1 Clean Air Plus odor filter (replacement); HEZ9VRPD1 Plinth Diffusor
|
