What is the capacity of the Bosch SMV2HTX02G dishwasher?

The Bosch SMV2HTX02G has a capacity of 13 place settings.

Which programmes are available on this dishwasher?

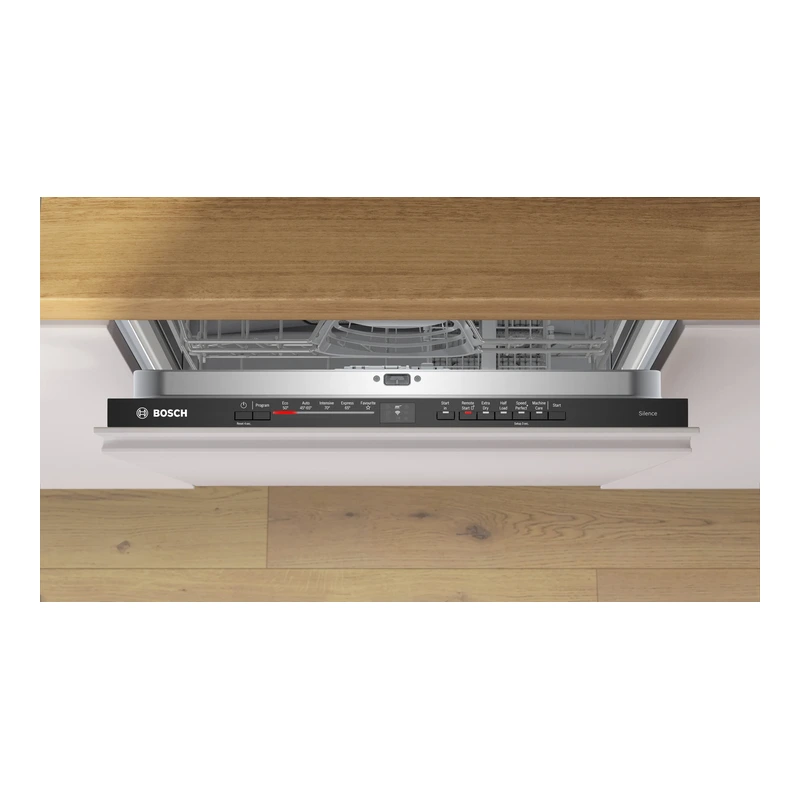

It offers 5 programmes: Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65 °C and Favourite. The default Favourite programme is Pre–Rinse. There is also a Machine Care programme.

Does the SMV2HTX02G support Home Connect and remote control?

Yes. The dishwasher is Home Connect ready on WLAN, supports Remote Start and add–on functions via the Home Connect app, including Hygiene+ and Silence on Demand.

How energy and water efficient is the Eco programme?

In the Eco 50 °C programme, the appliance uses 84 kWh per 100 cycles and 9.0 litres of water per cycle. The programme duration is 4:30 h and the Energy Efficiency Class is D.

What is the noise level during operation?

The airborne acoustical noise emissions are 46 dB(A) re 1 pW, with a Noise Efficiency Class of C. A Silence on Demand function via the app offers up to 30 minutes of additional noise reduction.

What safety features does this dishwasher have?

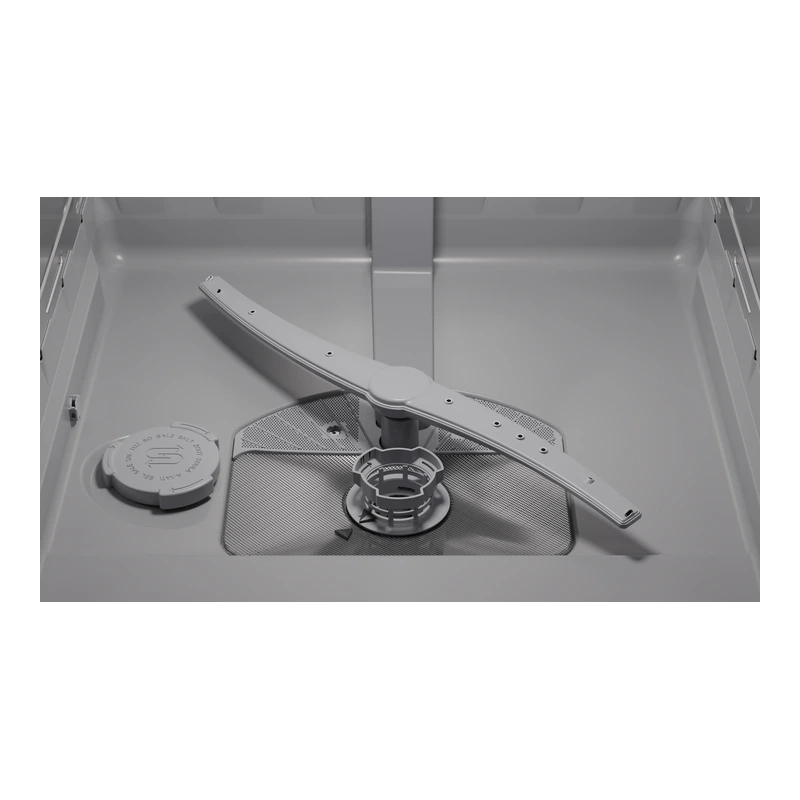

The SMV2HTX02G includes AquaStop, providing Bosch’s warranty in case of water damage for the lifetime of the appliance (full warranty terms not stated in source). It also features steam protection for the worktop and a self–cleaning filter system with a 3 piece corrugated filter.

Product Information Sheet

Bosch Series 2 Dishwasher

SKU: SMV2HTX02G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

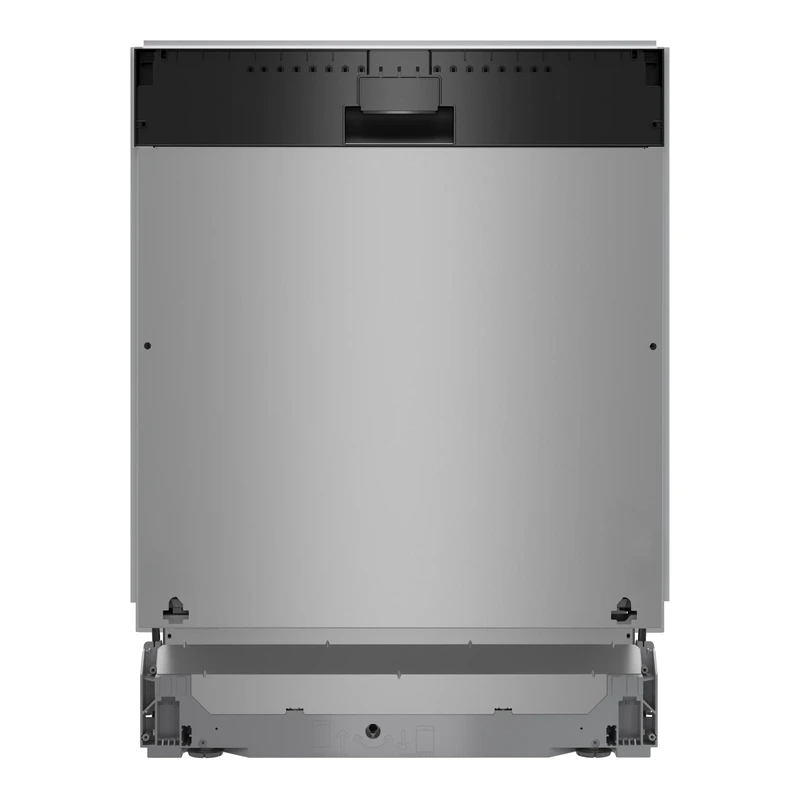

Bosch SMV2HTX02G Series 2 Dishwasher

SKU: SMV2HTX02G · EAN: 4242005270330

Fully Integrated

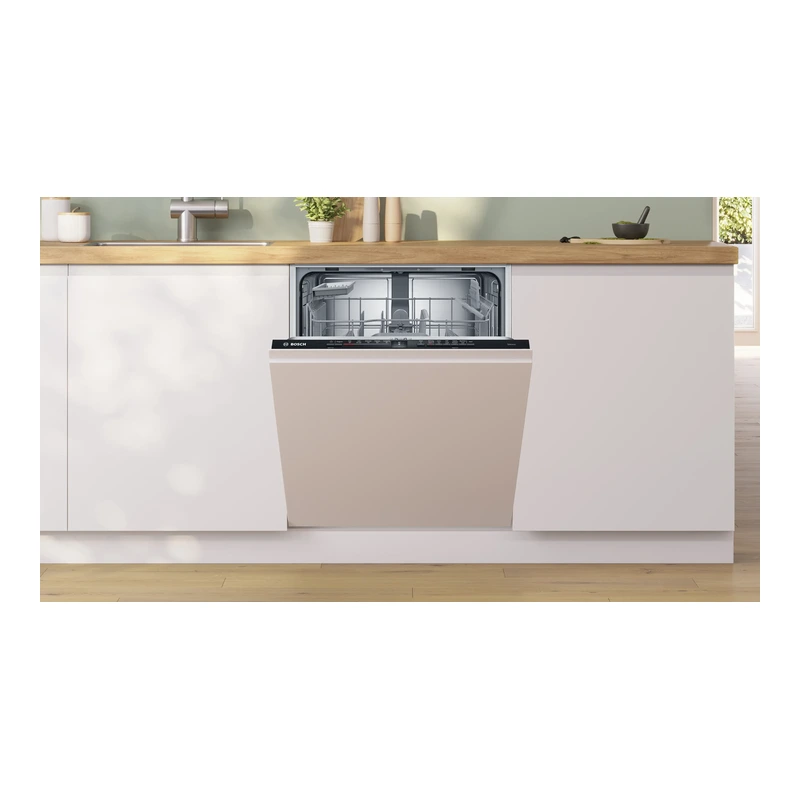

The Bosch SMV2HTX02G is a Series 2 fully–integrated 60 cm dishwasher designed for built–in installation with a 13 place setting capacity. It offers connected convenience via Home Connect, allowing remote start and add–on functions such as Silence on Demand. With Extra Dry, SpeedPerfect+ and AquaStop, it combines flexible programmes, efficient drying and water protection for everyday dishwashing in modern kitchens.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / model	Series 2, Fully–integrated dishwasher, 60 cm – SMV2HTX02G
Installation typology	Integrated, Built–in
Energy Efficiency Class	D (scale A to G)
Energy consumption (Eco 50 °C)	84 kWh per 100 cycles
Water consumption (Eco 50 °C)	9.0 litres per cycle
Programme duration (Eco 50 °C)	4:30 h

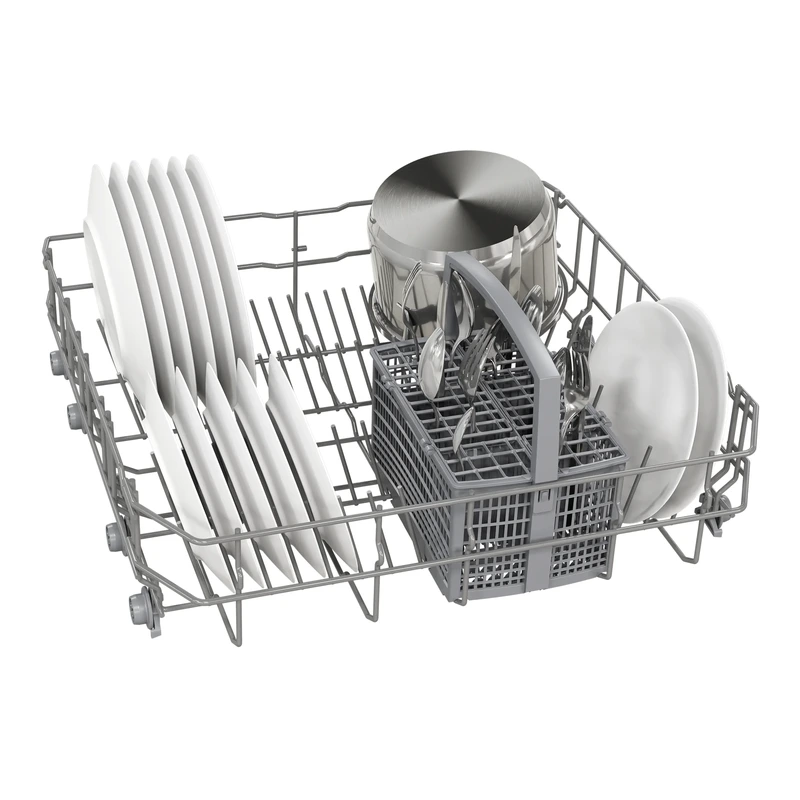

Capacity	13 place settings
Airborne acoustical noise	46 dB(A) re 1 pW
Noise emission class	C

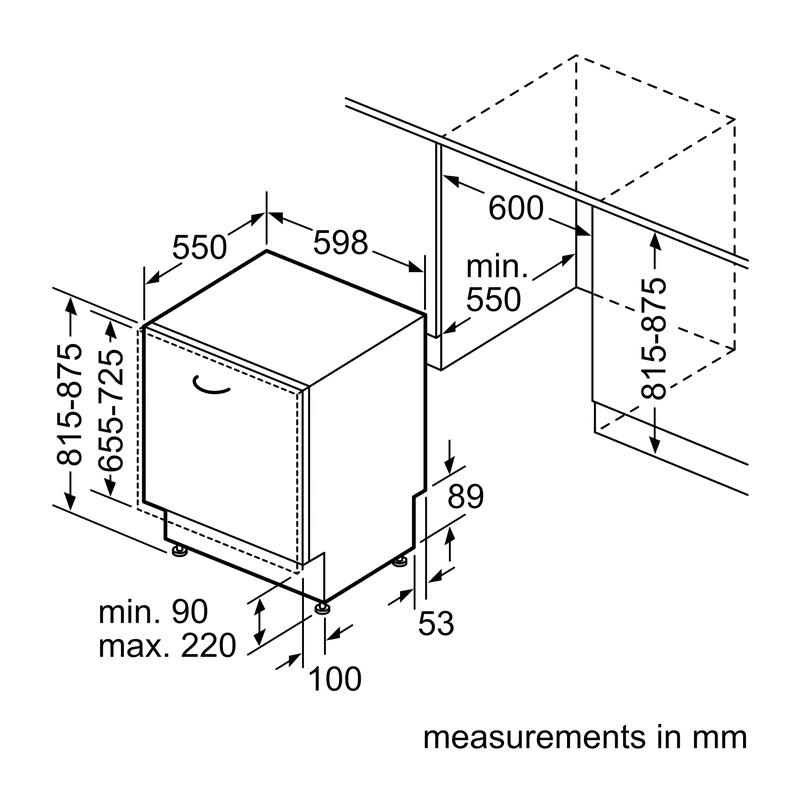

Dimensions (H x W x D)	81.5 x 59.8 x 55 cm
Required niche size (H x W x D)	815–875 x 600 x 550 mm
Depth with door open 90°	1150 mm
Adjustable feet	Yes – all from front, max. 60 mm
Adjustable plinth	Both horizontal and vertical
Height of removable worktop	0 mm
Net / gross weight	32.3 kg / 34.1 kg
Connection rating	2400 W
Fuse protection	10 A
Voltage	220–240 V
Frequency	50; 60 Hz

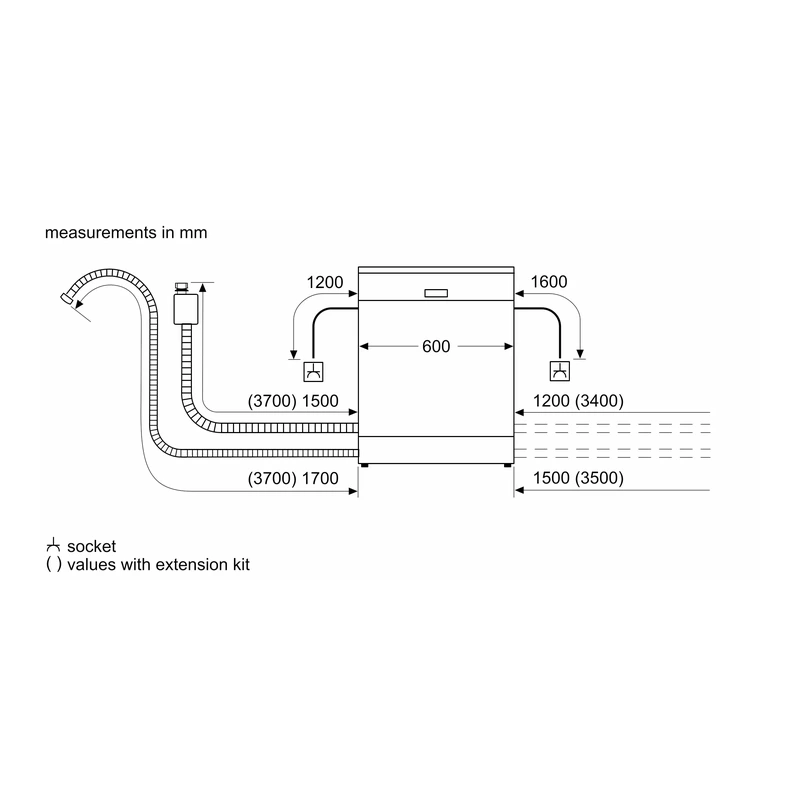

Electrical supply cord length	175 cm
Plug type	GB plug
Inlet hose length	165 cm
Outlet hose length	190 cm
EAN code	4242005480166
