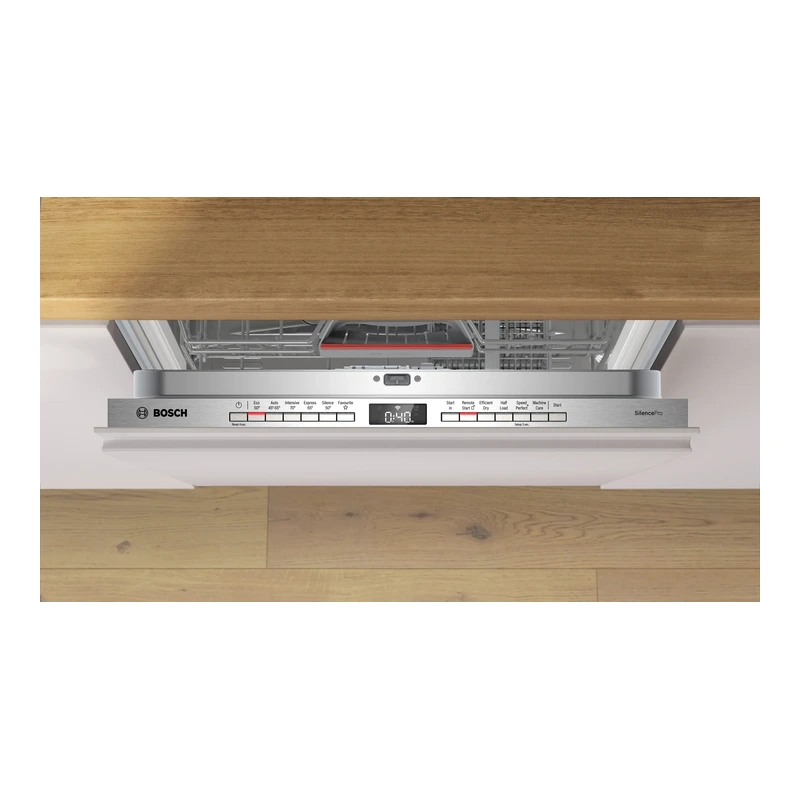

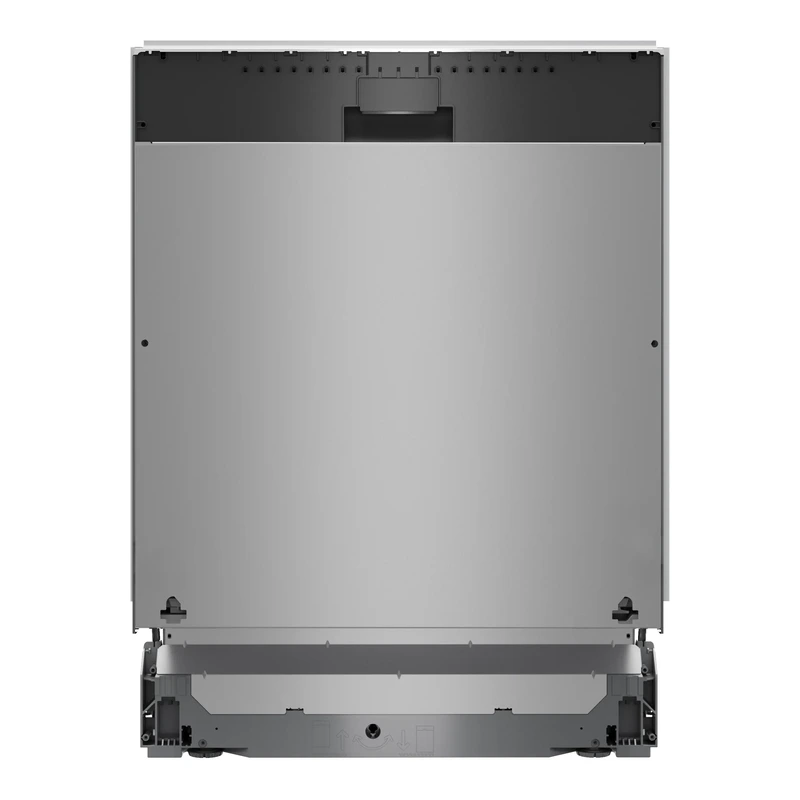

Bosch SMV4EAX23G Series 4 Dishwasher

SKU: SMV4EAX23G · EAN: 4242005470600

Fully Integrated

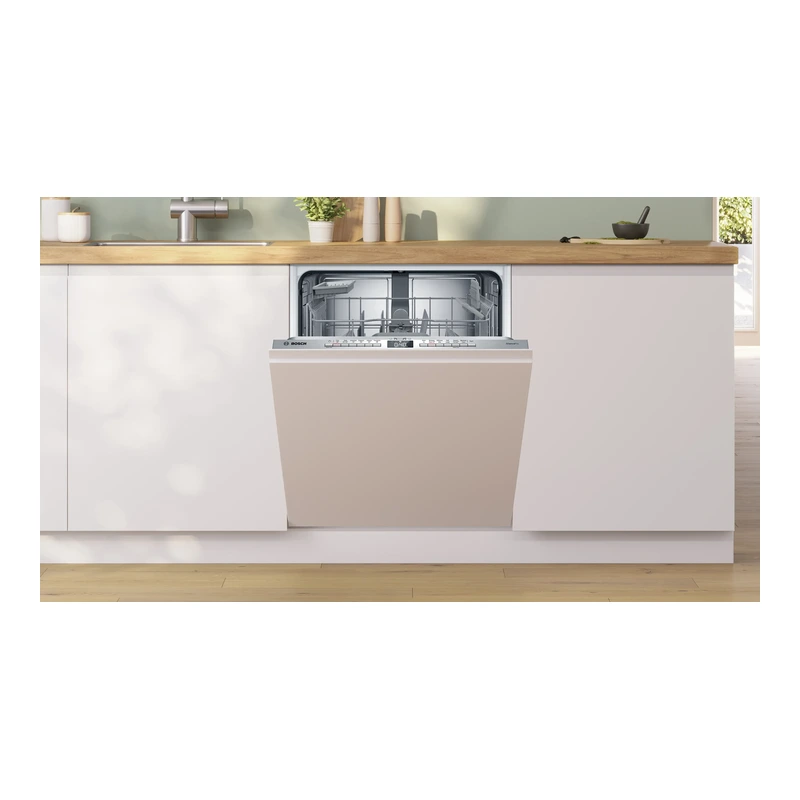

The SMV4EAX23G is a Series 4 fully–integrated 60 cm dishwasher designed for built–in installation with a capacity of 13 place settings. It offers C class energy efficiency, improved drying performance with EfficientDry and a very quiet 40 dB operation. With Home Connect readiness for smart remote control, flexible Vario Flex baskets and Rackmatic height adjustment, it provides convenient loading, versatile programmes and efficient cleaning for everyday dishwashing needs.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / model	Series 4, Fully–integrated dishwasher, 60 cm, SMV4EAX23G

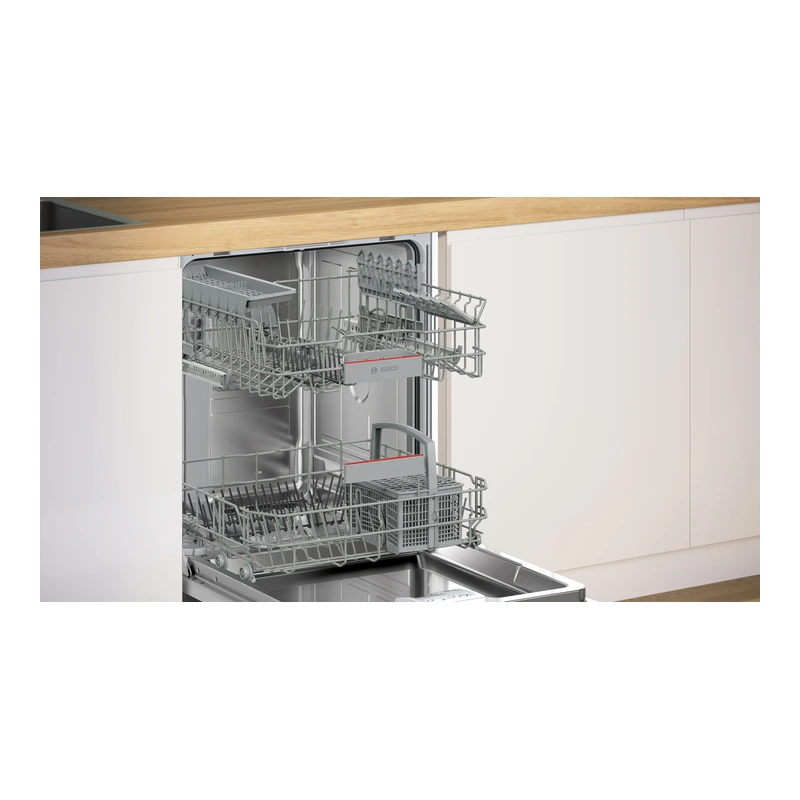

Installation type	Built–in, integrated
Energy efficiency class¹	C (scale A to G)
Energy consumption²	74 kWh per 100 cycles (Eco 50 °C)
Water consumption³	9.0 litres per cycle (Eco 50 °C)
Capacity	13 place settings
Programme duration⁴ (Eco)	3:20 h (Eco 50 °C)
Noise level	40 dB(A) re 1 pW
Noise efficiency class	B
Noise level (silence programme)	39 dB(A) re 1 pW
Programmes	Eco 50 °C; Auto 45–65 °C; Intensive 70 °C; Express 65 °C; Silence 50 °C; Favourite
Default favourite programme	Pre–Rinse
Special options	Remote Start; Efficient Dry; Half Load; SpeedPerfect+
Add–on functions (app)	Hygiene+; Silence on Demand

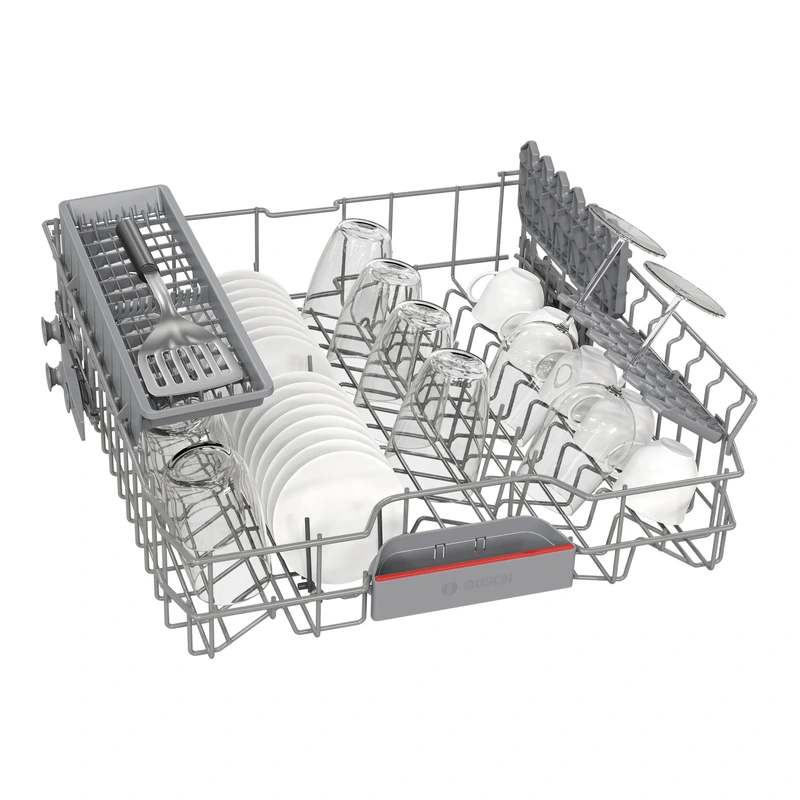

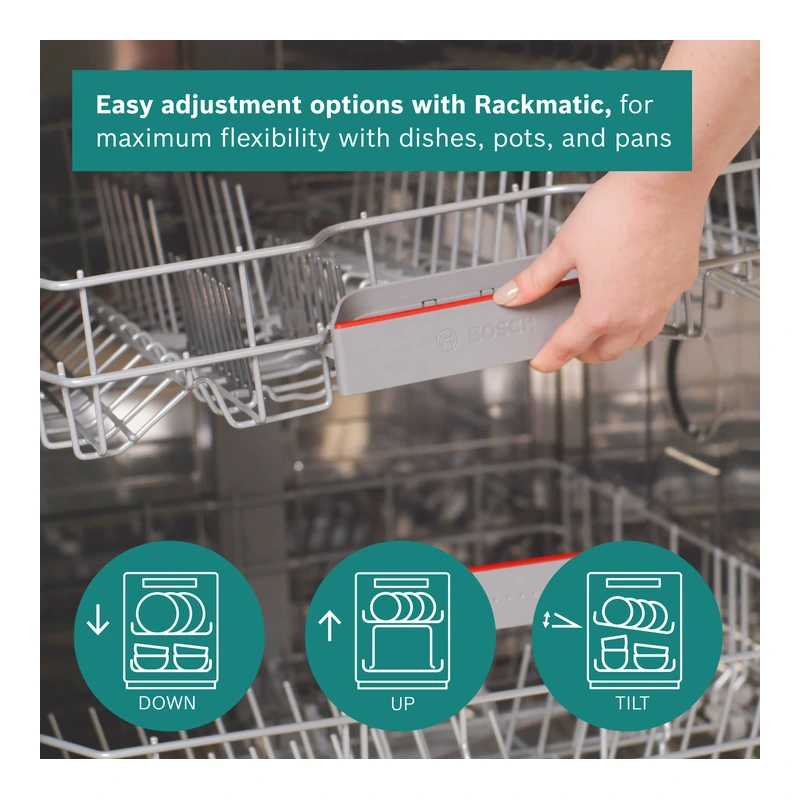

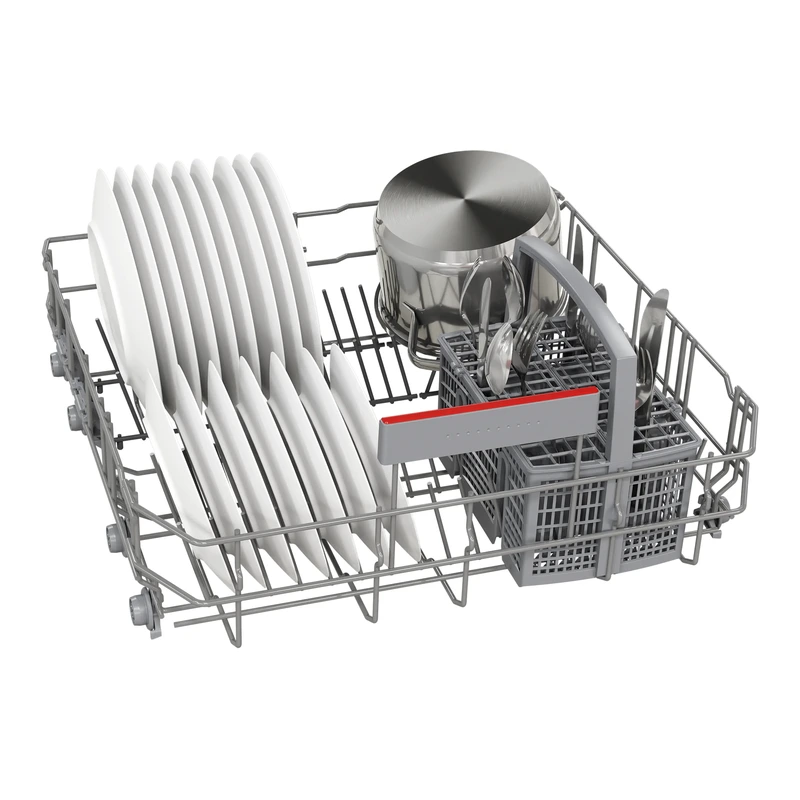

Flexible basket system	Vario Flex baskets; 3 stage Rackmatic top basket; low friction wheels on bottom basket; Rack Stopper

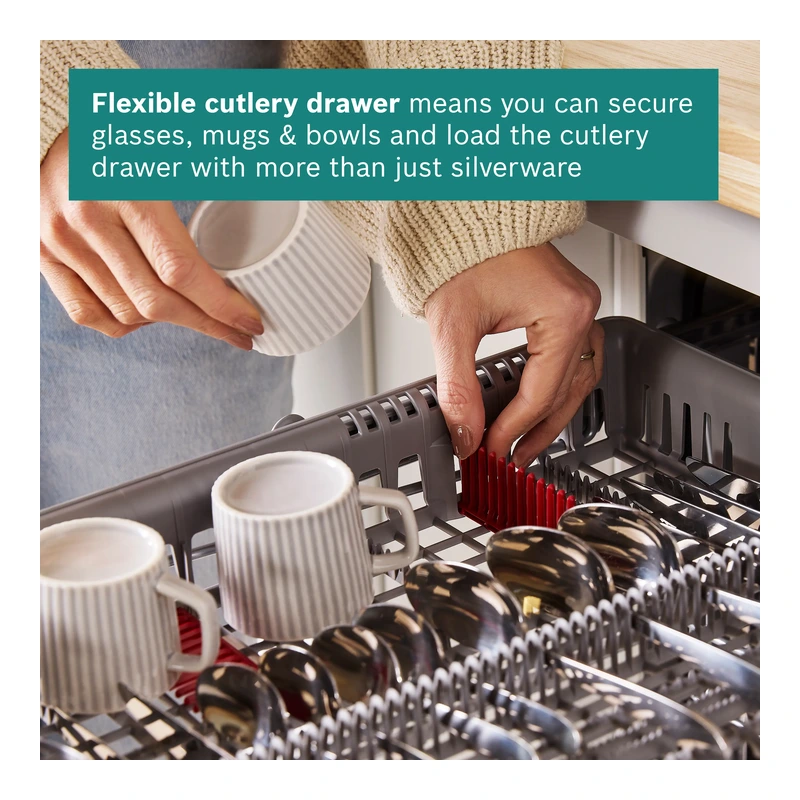

Racks and inserts	2 foldable plate racks in top basket; 4 foldable plate racks in bottom basket; knife rack in top basket; moveable cutlery basket; upper rack cup shelf
Connectivity	Home Connect ready on WLAN; Remote Start; add–on functions via Home Connect app

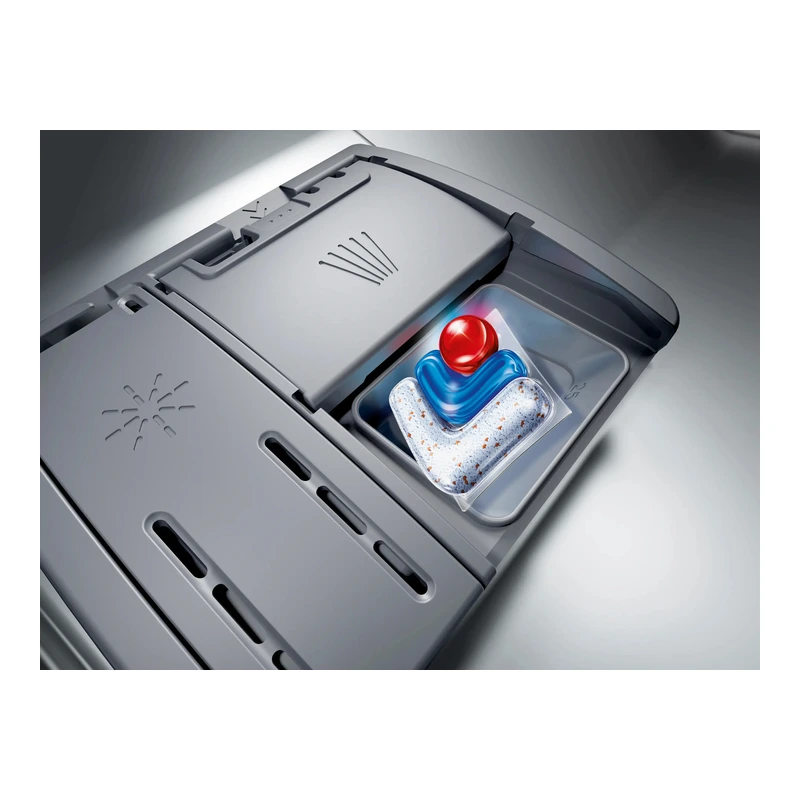

Innovations and technology	Efficient Dry; Heat Exchanger; DosageAssist; EcoSilence BLDC drive; Automatic detergent detection; AquaSensor III; AquaMix glass protection system
Control design	Push button top edge controls; acoustic end of cycle indicator

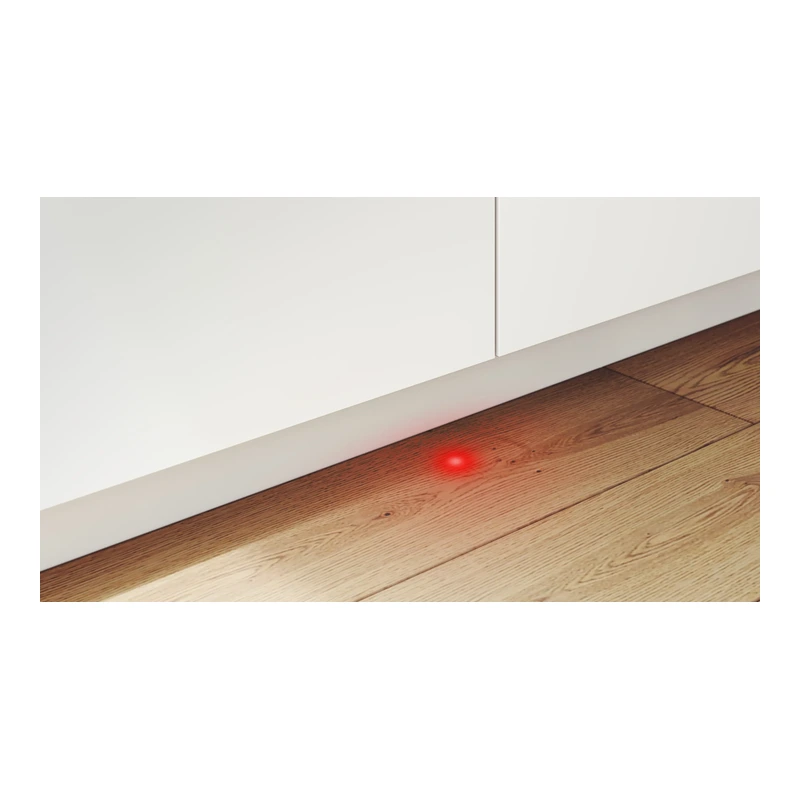

Visual indicators	InfoLight (Red) – light projection on the floor
Time delay	3, 6 or 24 hours

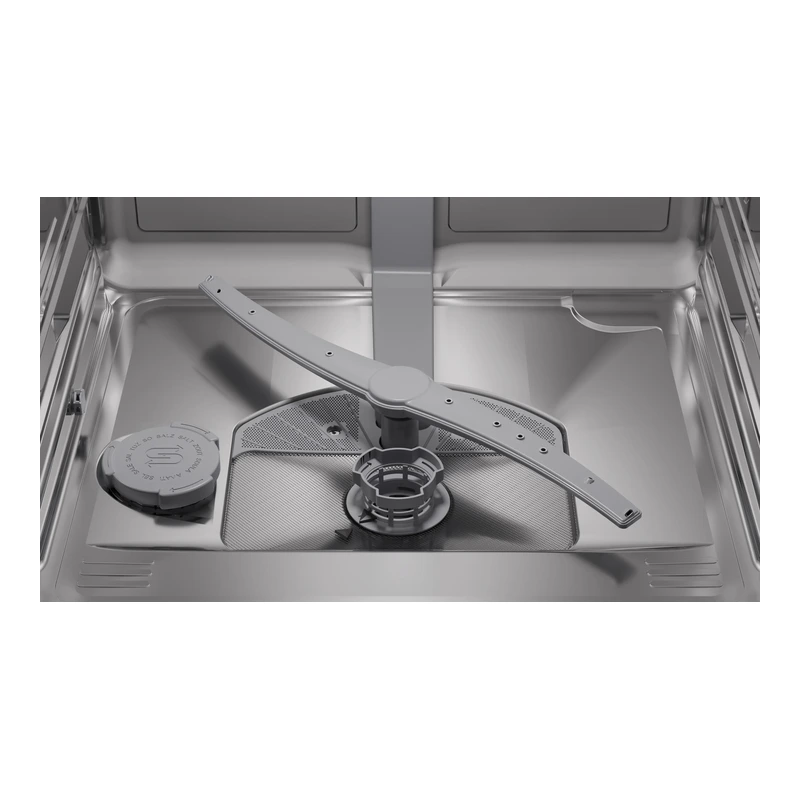

Safety features	AquaStop; self–cleaning filter system with 3 piece corrugated filter; steam protection for worktop
Interior material	Stainless steel interior

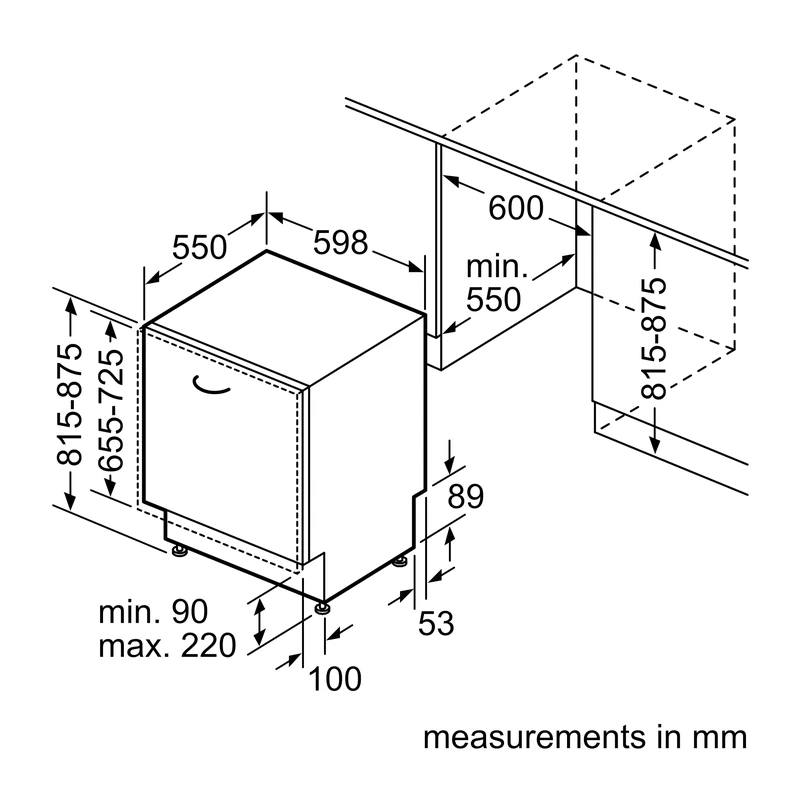

Product dimensions (HxWxD)	81.5 x 59.8 x 55 cm
Required niche size (HxWxD)	815–875 x 600 x 550 mm
Depth with door open 90°	1150 mm
Height of removable worktop	0 mm
Adjustable feet	Yes – all from front; maximum adjustability 60 mm
Adjustable plinth	Both horizontal and vertical
Net weight	40.8 kg
Gross weight	43.0 kg
Connection rating	2400 W
Fuse protection	10 A
Voltage	220–240 V
Frequency	50; 60 Hz

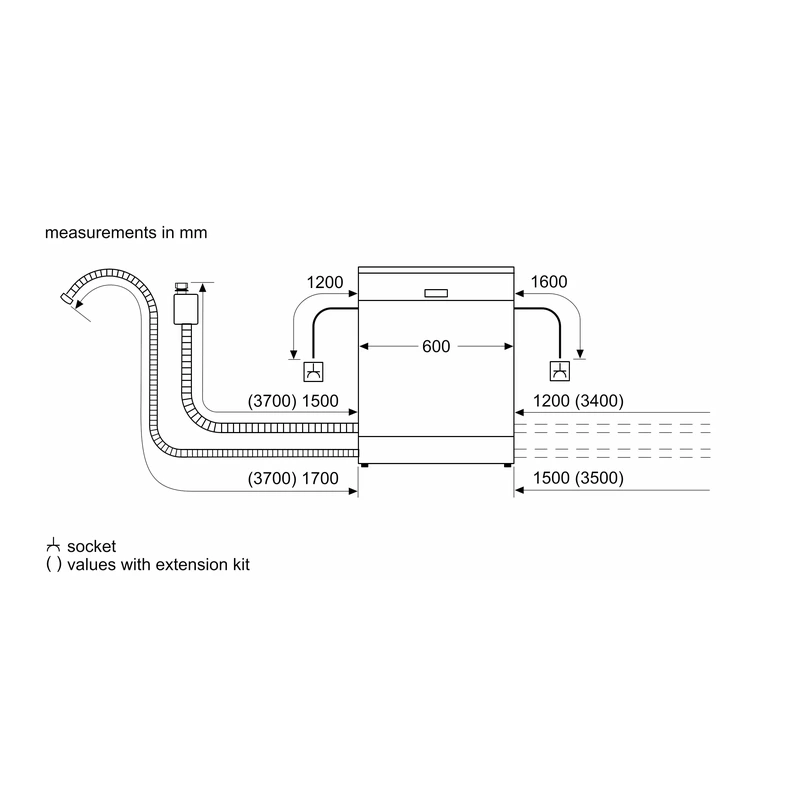

Length of electrical supply cord	175 cm
Plug type	GB plug
Length of inlet hose	165 cm
Length of outlet hose	190 cm
EAN code	4242005470600
Machine Care	Machine Care programme available

¹ Scale of Energy Efficiency Classes from A to G. ² Energy consumption in kWh per 100 cycles (programme Eco 50 °C). ³ Water consumption in litres per cycle (programme Eco 50 °C). ⁴ Duration of programme Eco 50 °C.
