What is the capacity of the Bosch SMV4ECX23G dishwasher?

The capacity is 14 place settings.

How energy efficient is this dishwasher?

It has an Energy Efficiency Class of C on a scale from A to G, with energy consumption of 75 kWh per 100 cycles in the Eco 50 °C programme.

How quiet is the SMV4ECX23G in operation?

The airborne acoustical noise emissions are 40 dB(A) re 1 pW, with a Noise Efficiency Class of B. In the silence programme, the noise level is 39 dB(A) re 1 pW.

Which wash programmes are available?

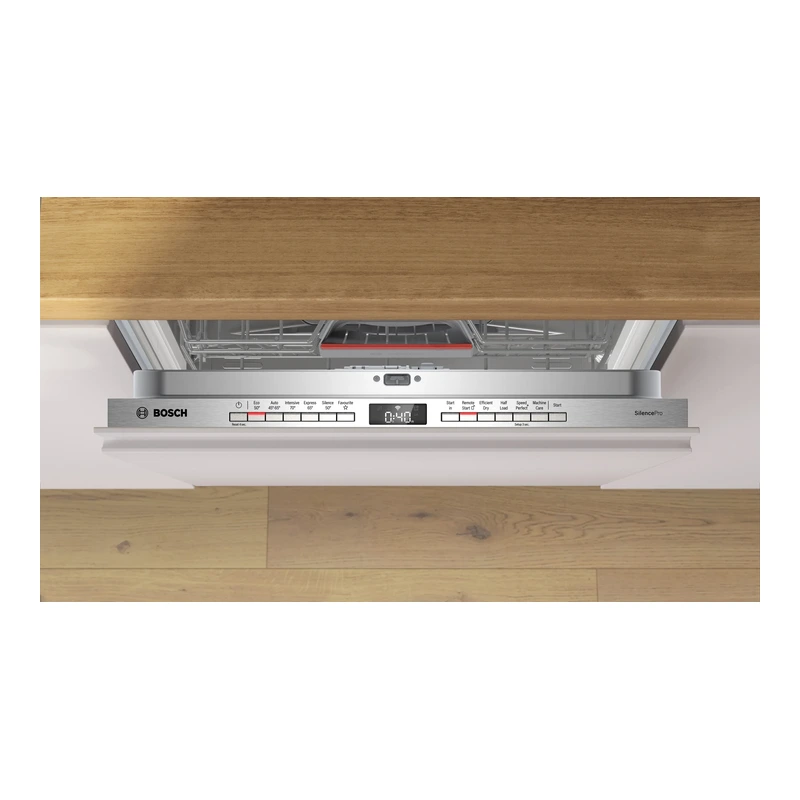

The dishwasher provides Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65 °C, Silence 50 °C and a Favourite programme, with Pre–Rinse as the default Favourite.

Can this dishwasher be controlled remotely?

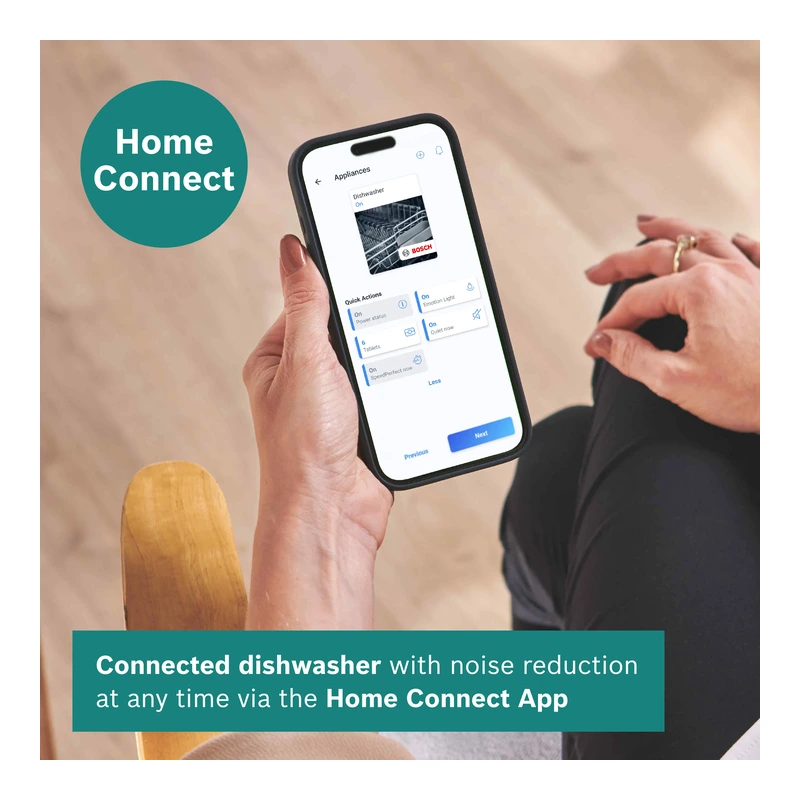

Yes. It is Home Connect ready on WLAN and offers Remote Start, plus additional functions such as Hygiene+ and Silence on Demand via the Home Connect app.

What niche size is required for installation?

The required niche size for installation is 815–875 x 600 x 550 mm (H x W x D).

Product Information Sheet

Bosch Series 4 Dishwasher

SKU: SMV4ECX23G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch SMV4ECX23G Series 4 Dishwasher

SKU: SMV4ECX23G · EAN: 4242005470617

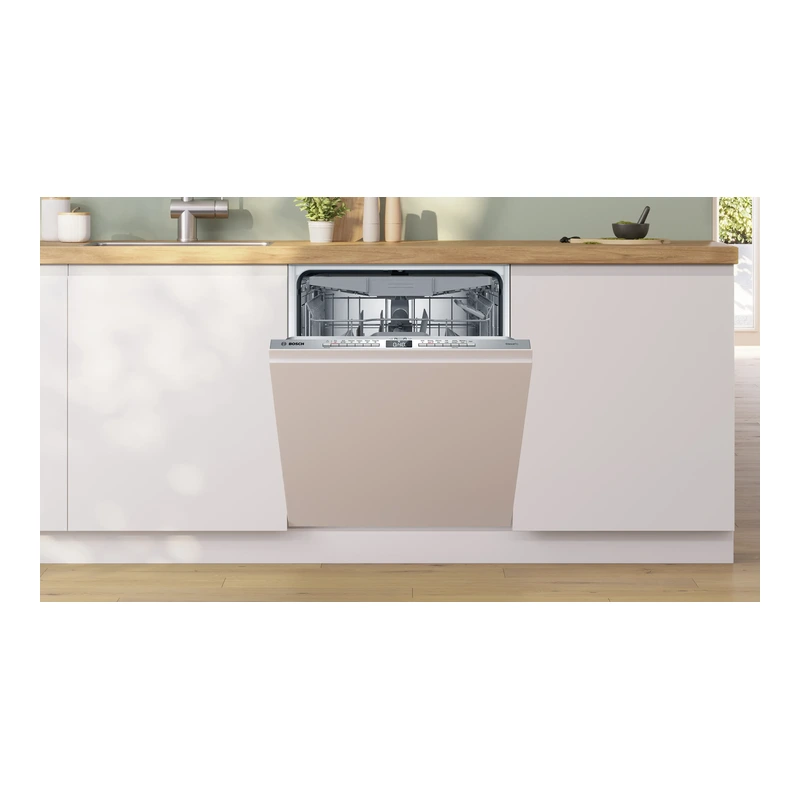

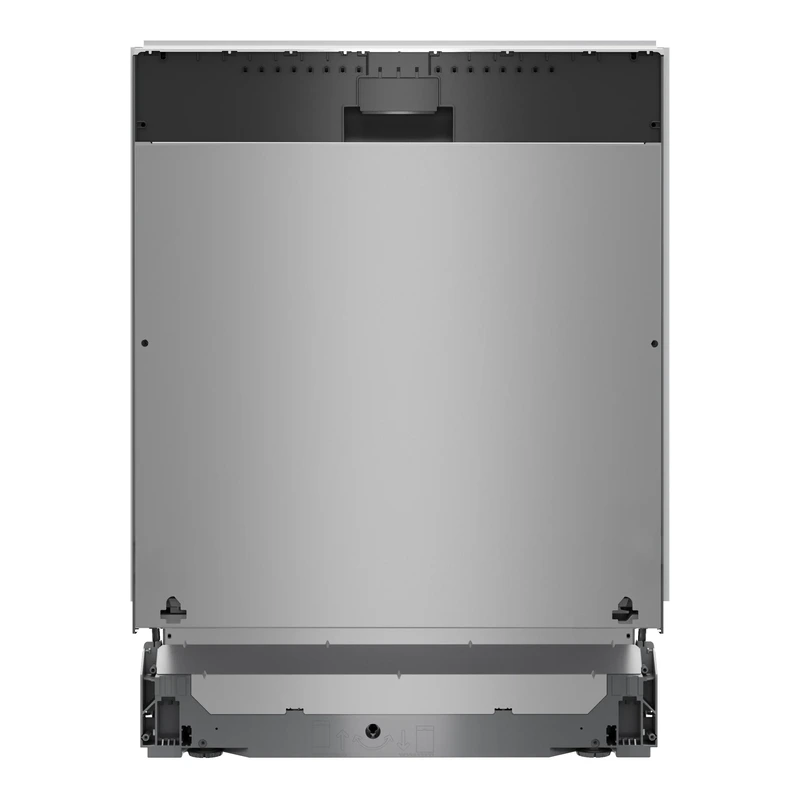

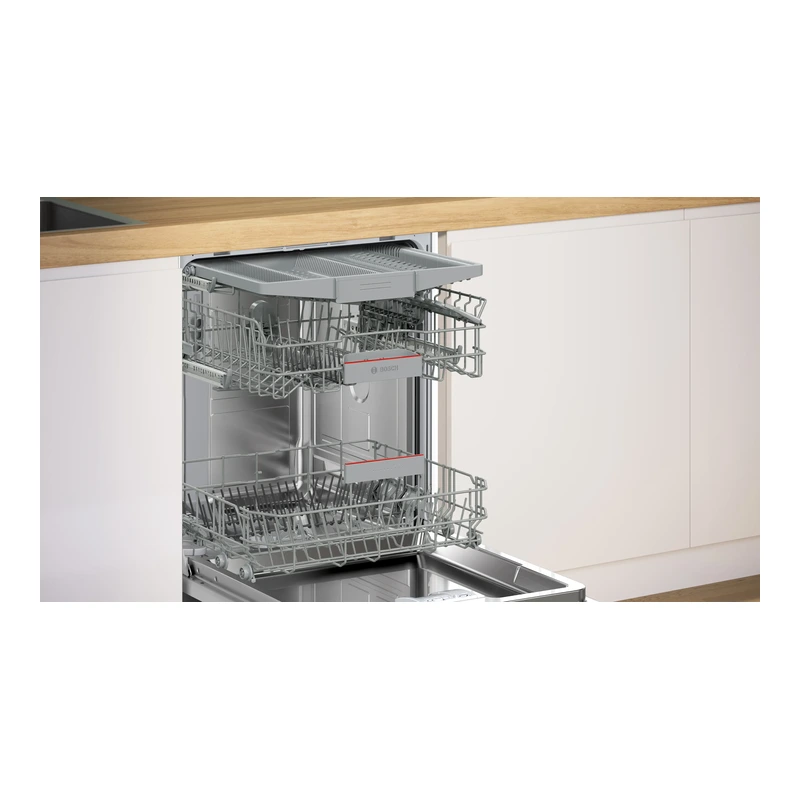

Fully Integrated

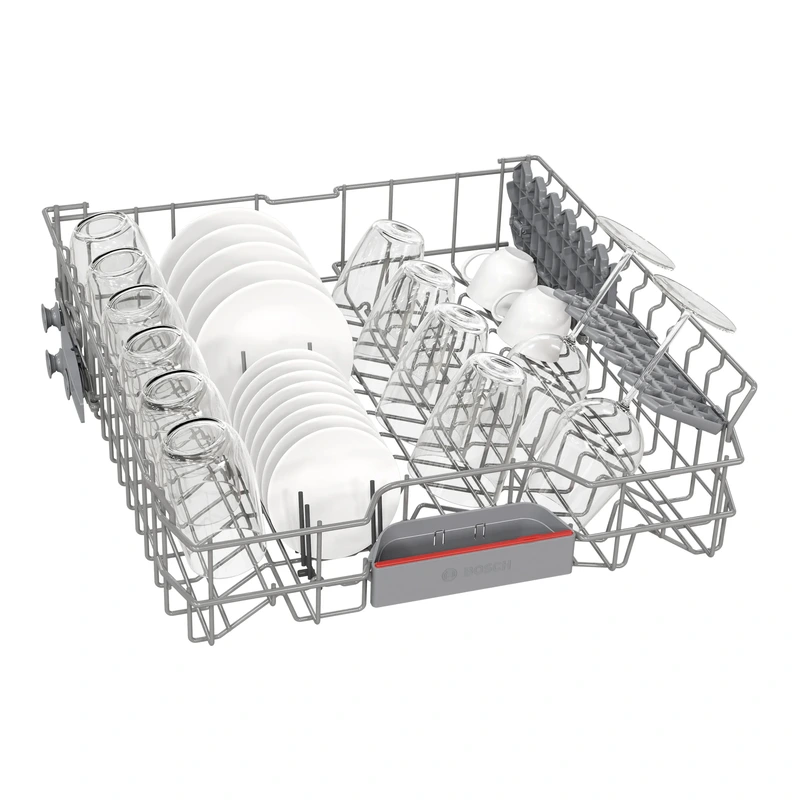

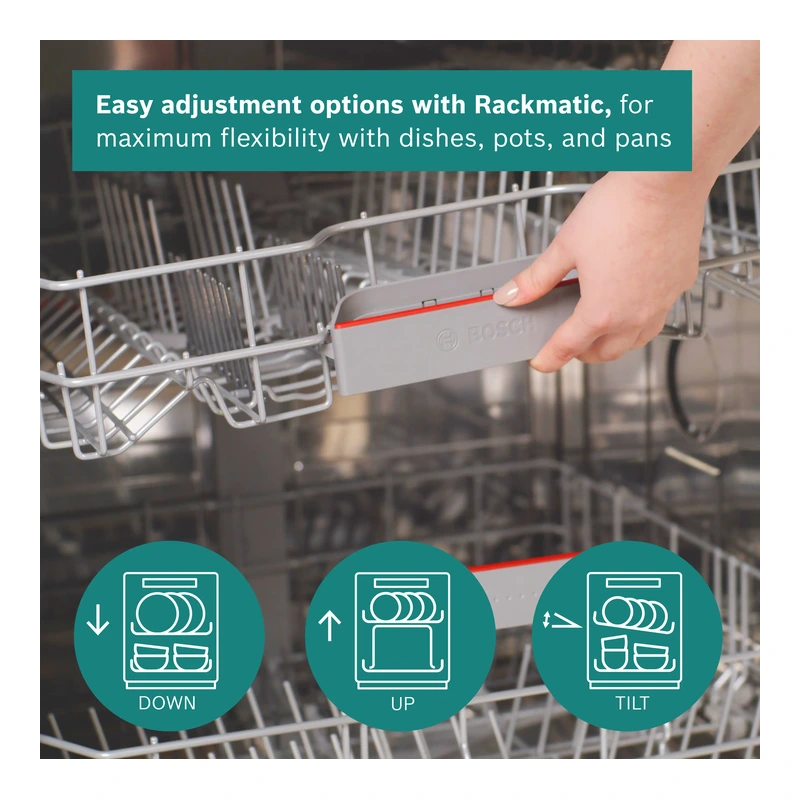

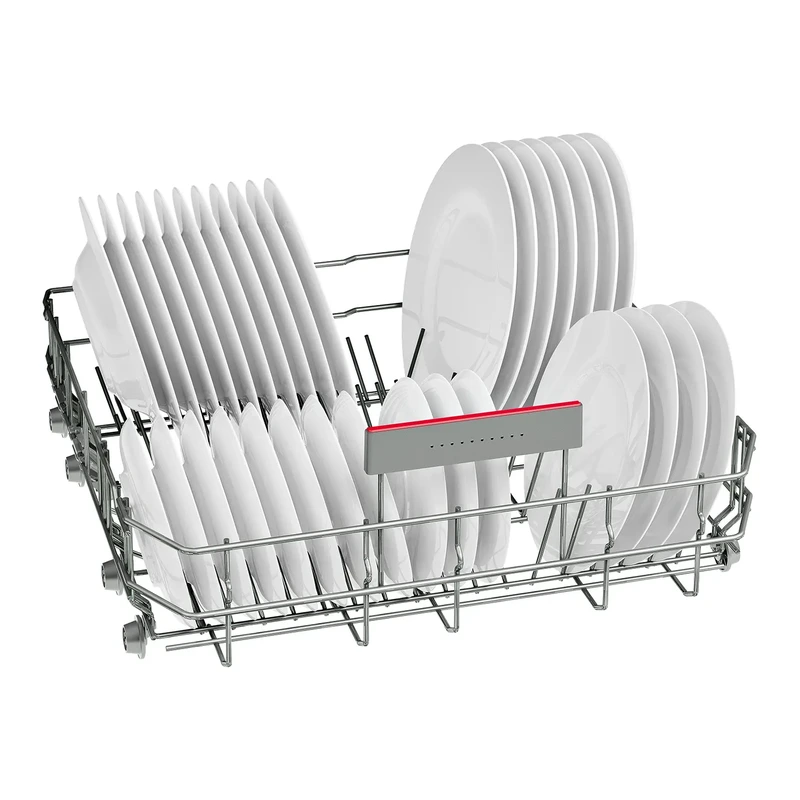

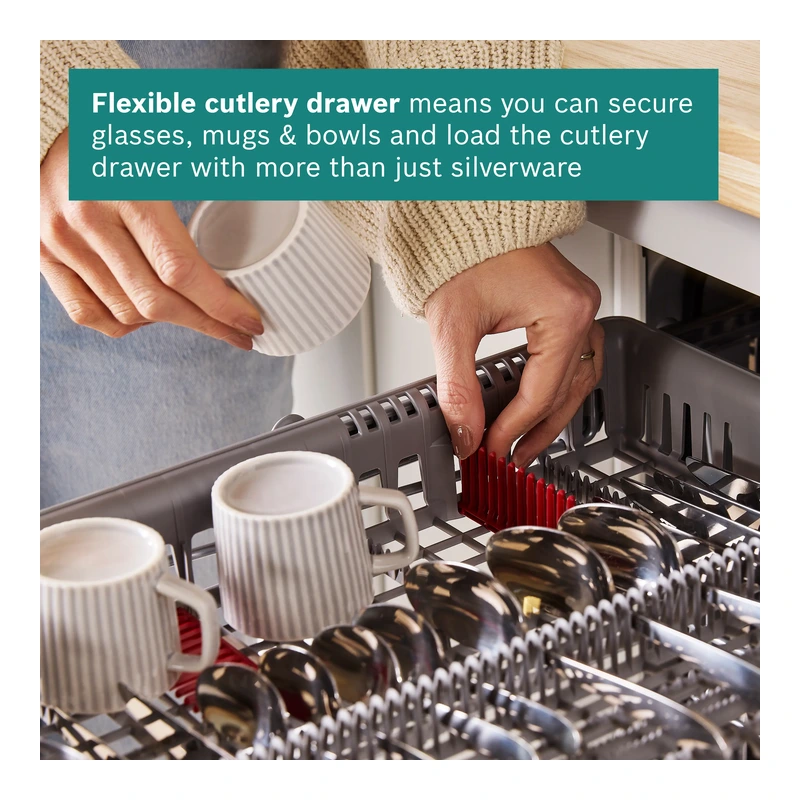

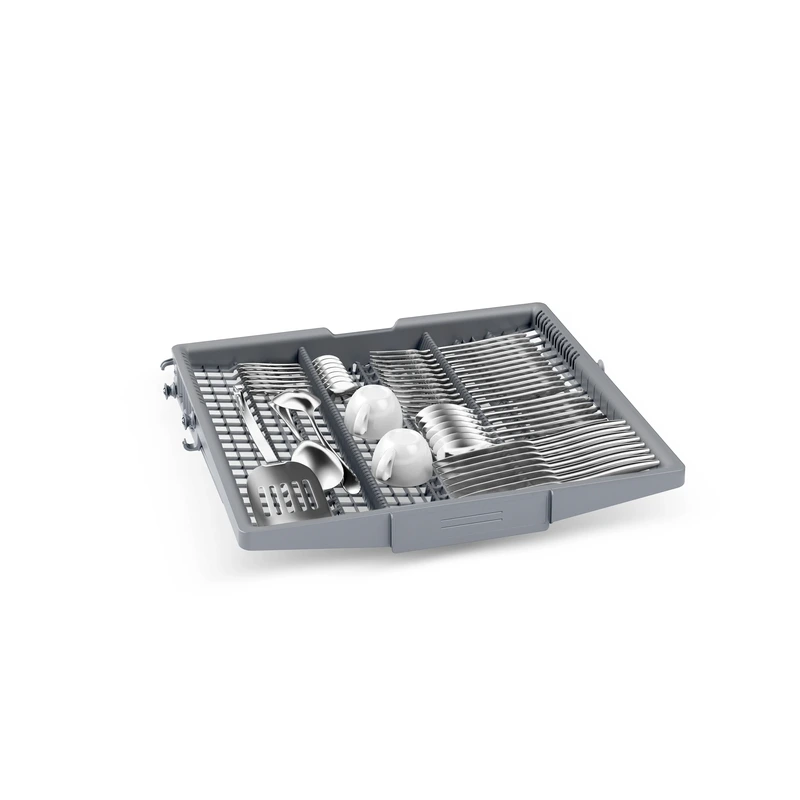

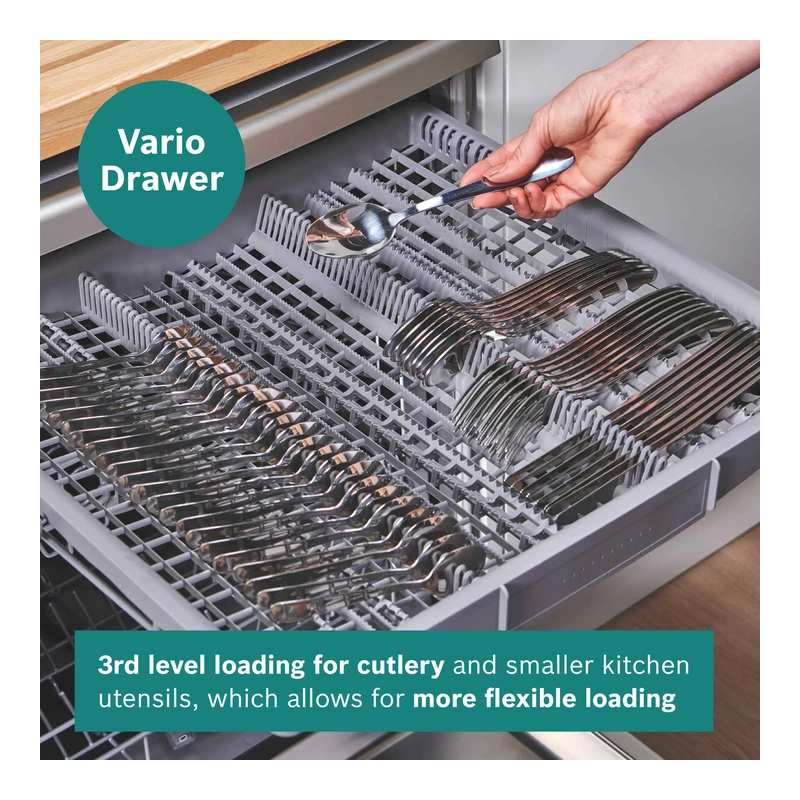

The Bosch Series 4 SMV4ECX23G is a fully–integrated 60 cm dishwasher offering 14 place settings and quiet performance from 40 dB(A). It is designed for built–in installation and supports smart remote control via Home Connect. Key advantages include EfficientDry automatic door opening for improved drying, SpeedPerfect+ for reduced washing time, and flexible loading with VarioDrawer, Vario Flex baskets and Rackmatic height adjustment.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / code	Series 4, Fully–integrated dishwasher, 60 cm – SMV4ECX23G
Installation typology	Integrated
Built–in / Free–standing	Built–in
Energy Efficiency Class	C (scale from A to G)
Energy consumption (Eco 50 °C)	75 kWh per 100 cycles
Water consumption (Eco 50 °C)	9.0 litres per cycle
Programme duration (Eco 50 °C)	3:20 h
Capacity	14 place settings
Airborne acoustical noise	40 dB(A) re 1 pW
Noise emission class	B
Noise level (silence programme)	39 dB(A) re 1 pW

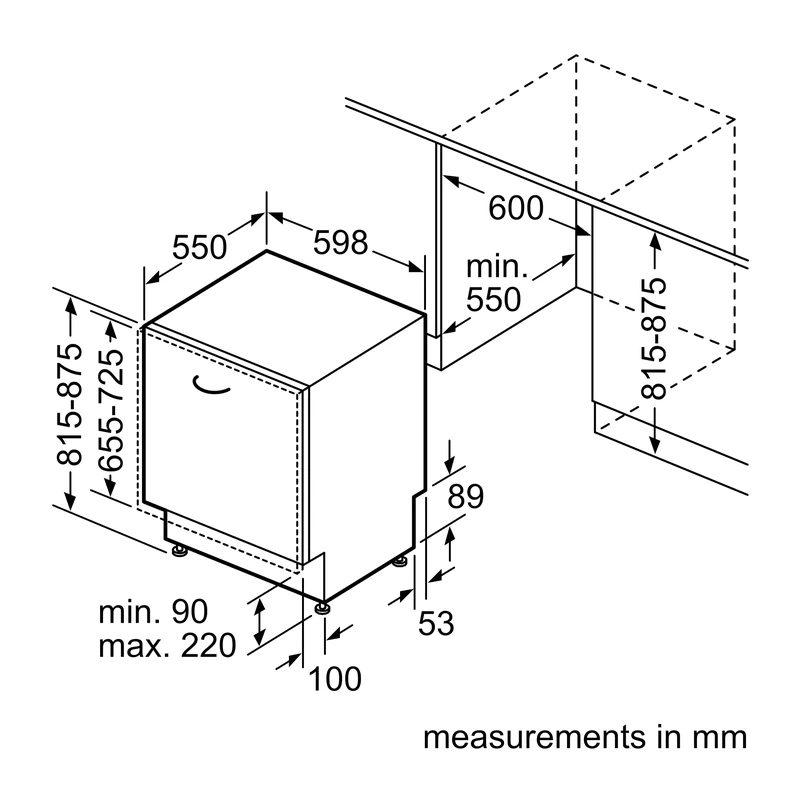

Required niche size (H x W x D)	815–875 x 600 x 550 mm
Depth with open door 90°	1150 mm
Product dimensions (H x W x D)	81.5 x 59.8 x 55 cm
Adjustable feet	Yes – all from front; maximum adjustability 60 mm
Adjustable plinth	Both horizontal and vertical
Height of removable worktop	0 mm
Net / Gross weight	41.3 kg / 43.5 kg
Connection rating	2400 W
Fuse protection	10 A
Voltage / Frequency	220–240 V; 50; 60 Hz

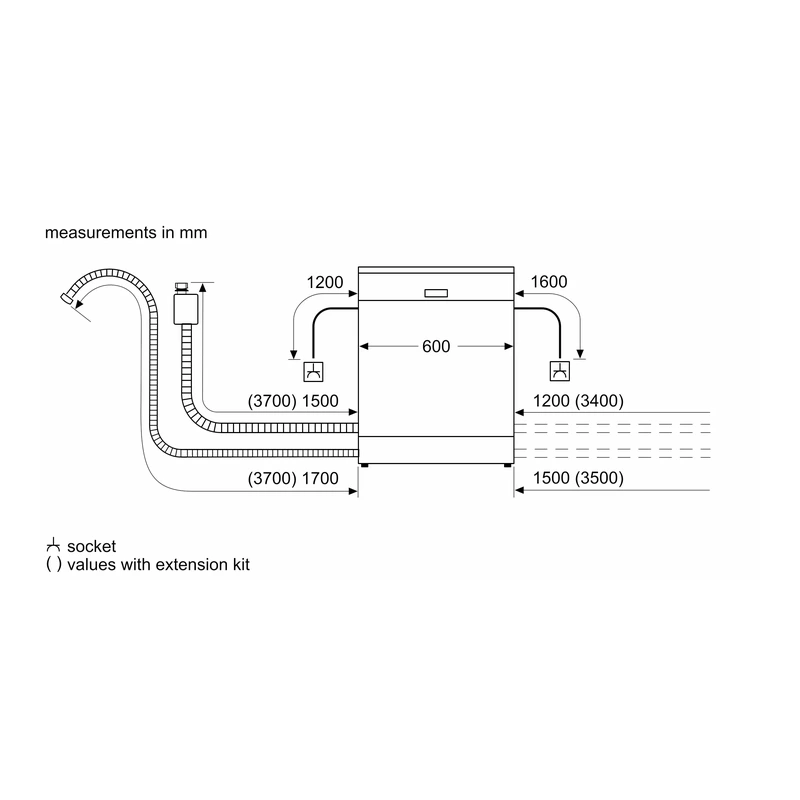

Electrical supply cord length	175 cm – GB plug
Inlet hose length	165 cm
Outlet hose length	190 cm
EAN code	4242005470617

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Bosch →

Optional Accessories

— add individually to your enquiry

Optional

SMZ5035

Bosch Decor strip

Optional

SMZ5100

Bosch Vario-cutlery basket

Optional

SGZ0BI01

Bosch Decor strip

Optional

SGZ8BI00

Bosch Split Door Furniture

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Bosch dealer, with full manufacturer warranty. Established 1967.
