How many cooking zones does this induction hob have?

This hob has four cooking zones, with the option to simply pair two zones to create a SmartZone.

Does this hob require overhead ventilation?

No. The hob has integrated ventilation, providing powerful extraction without the need for bulky overhead ventilation.

How is the integrated ventilation controlled?

The integrated ventilation offers nine fan speeds plus a boost function, allowing you to select the perfect extraction rate for your cooking.

Is the grease filter easy to clean?

Yes. The grease filter tray is designed for simple removal and effectively captures spills, and the grease filter is dishwasher safe.

What safety features are included with this hob?

Safety features include the inherent safety of induction, keylock, pan detection system, safety time out and surface hot indicators.

What are the dimensions of this hob?

The hob has a height of 218 mm, a width of 830 mm and a depth of 515 mm.

Product Information Sheet

Fisher & Paykel Venting Induction Hob

SKU: CID834DTB4

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

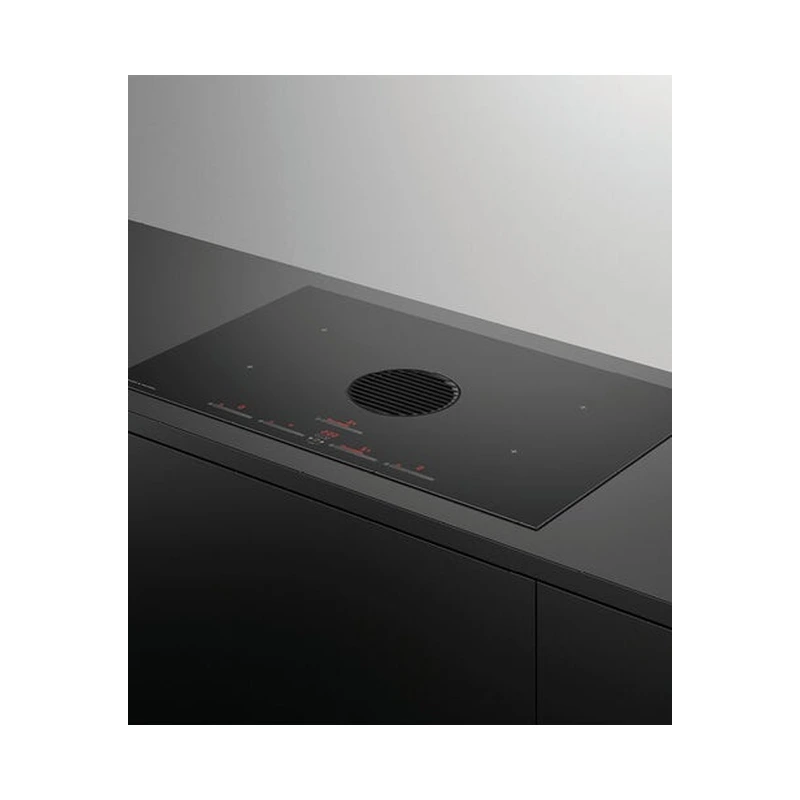

Fisher & Paykel CID834DTB4 Venting Induction Hob

SKU: CID834DTB4 · EAN: 9415112822289

Frameless

A true two-in-one appliance, this 83cm Series 9 induction hob with integrated ventilation combines the precision of induction cooking with powerful extraction in one seamless, stylish hob. Designed for islands or spaces without overhead ventilation, it offers four cooking zones with SmartZone pairing, nine fan speeds plus boost, and a minimal black glass finish with durable matte black detailing to suit a considered, cohesive kitchen design.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	83cm Series 9 4 Zone Induction Hob with Integrated Ventilation
Series	Series 9 \| Minimal
Number of zones	4
SmartZone	SmartZone 3700 W
Dimensions – Height	218 mm
Dimensions – Width	830 mm
Dimensions – Depth	515 mm
Energy rating	A+
Heat settings	9
Induction technology	Induction cooking technology •
Control type	Soft-touch electronic controls; Touch and slide controls; Touch&Slide controls
Timers	Auto cut-off timer for each zone; Minute timer
Performance functions	Gentle heat •; Pause function •; PowerBoost •; SmartZone •
Fan speeds	9 + boost
Air outlet size	220mm W x 90 mm H
Ducting direction	Side, Rear
Ducting type	Ducted externally
Motor type	Brushless motor •
Maximum air flow (Boost)	660 m³/hr
Maximum air flow (Level 9)	623 m³/hr
Minimum air flow	192 m³/hr
Maximum noise level (Boost)	70 dBA
Maximum noise level (Level 9)	69 dBA
Minimum noise level	38 dBA
Maximum power	7.4 kW
Supply voltage	220 – 240 V
Supply frequency	50 Hz
Electrical connection	Terminal block
Zone rating – Left front	2100W (3000W with PowerBoost)
Zone rating – Left rear	2100W (3000W with PowerBoost)
Zone rating – Right front	2100W (3000W with PowerBoost)
Zone rating – Right rear	2100W (3000W with PowerBoost)
Surface material	Minimal style, sleek black glass finish
Grease filter	Dishwasher safe grease filter; grease filter tray designed for simple removal
Cleaning features	Flat easy clean glass surface •; Flush grille •
Safety features	Keylock •; Pan detection system •; Safety time out •; Surface hot indicators •
Accessories (sold separately)	Square grille & butterfly valve for wall exhaust 82393 DO-G-SS (optional)
Optional ducting accessories	Duct 1m Connector 222x89 82389 D1-C-222-89; Ducting adaptor 82392 DA-219-98-150; Elbow 90° horizontal 222x89 82390 E90-H-222-89; Elbow 90° vertical 222x89 82391 E90-V-222-89
SKU	82228
