Installation and planning

• To be installed in an upper cabinet without base.

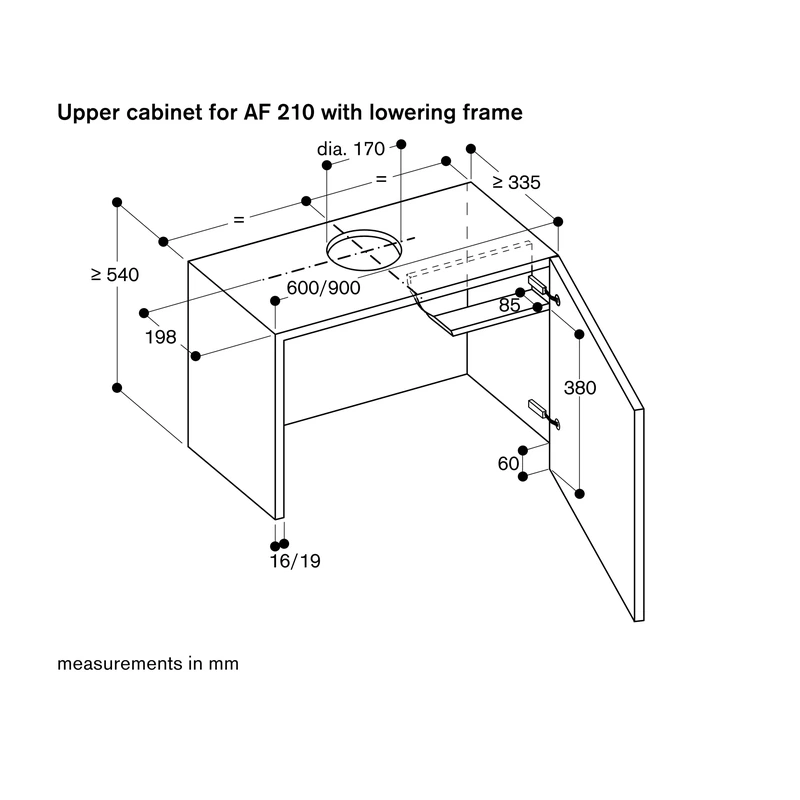

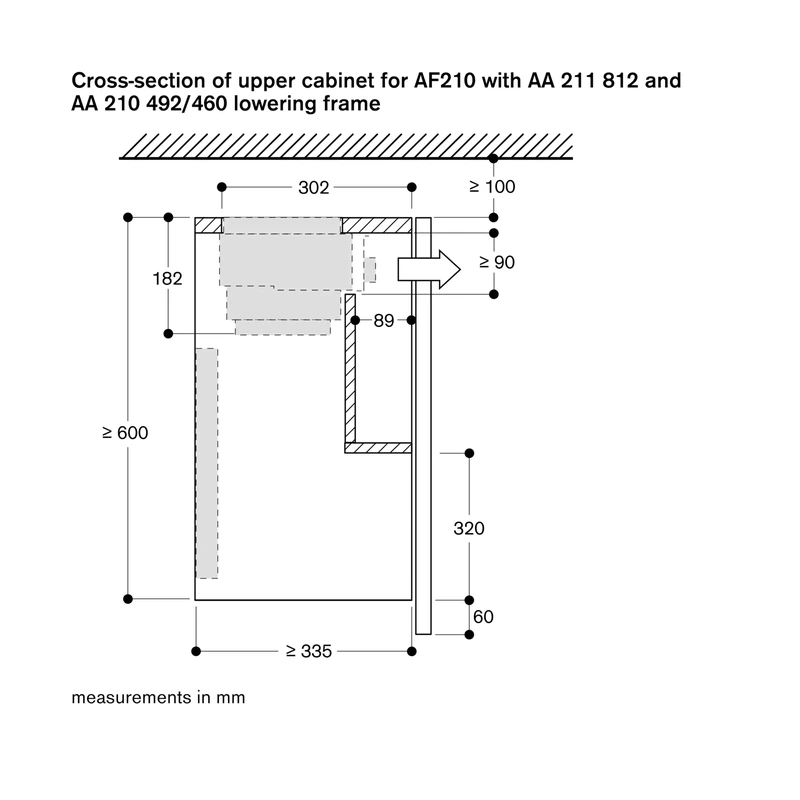

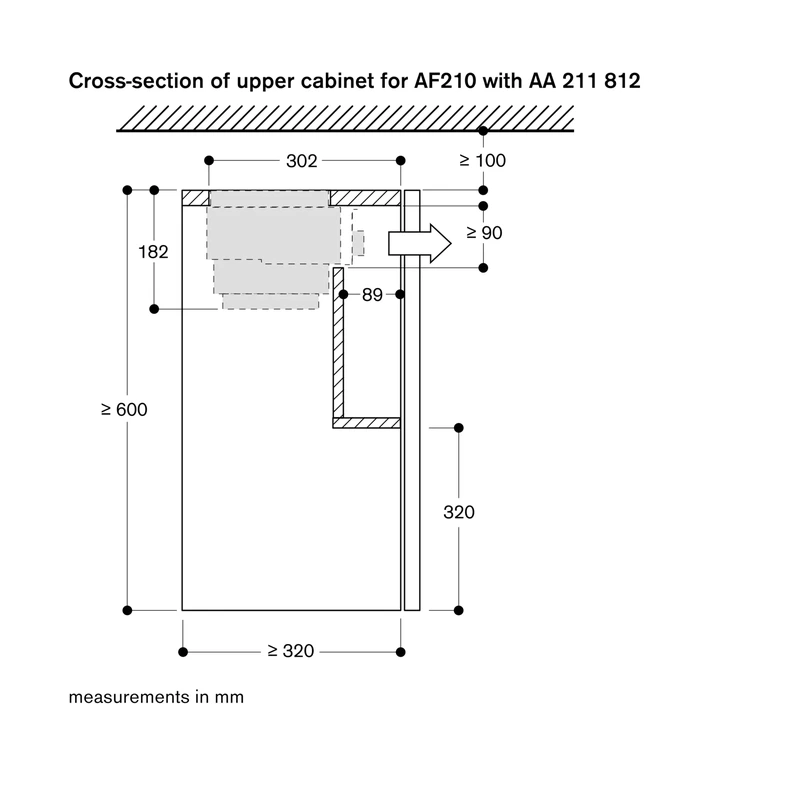

• Required cavity depth of the upper cabinet with lowering frame: 335 mm.
• Required cavity height of the upper cabinet with lowering frame: 600 mm.
• For air recirculation, an external air recirculation module is required.
• Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet.
• The activated charcoal filter can be changed from the front by simply pulling out the filter.
• The door of the upper cabinet must be fully open in order to change the activated charcoal filter.
• When installing in air extraction mode with a chimney–vented fireplace, the hood's power supply line needs a suitable safety switch.
• Clearance above gas appliances: minimum 65 cm (more than total load gas 12 kW: minimum 70 cm).
• Clearance above electric appliances: minimum 43 cm.
• Patented easy mounting system for simple installation.

Operation and functions

• Controls located at the front.
• Three electronically controlled power levels and an intensive mode.
• Automatic function with sensor–controlled power adjustment depending on the build–up of cooking vapours.
• Sensor–controlled run–on function.
• The fan is activated when the steam screen is extended.
• Light can be switched on separately from the fan.

Cleaning and maintenance

• Stainless steel grease filter is dishwasher–safe.
• Grease filter saturation indicator supports timely cleaning.
• Airflow–optimised interior is designed for ease of cleaning.
• Recirculation module with activated charcoal filter offers long replacement intervals.

Optional accessories

• AA210110: Active charcoal filter for recirculation module.

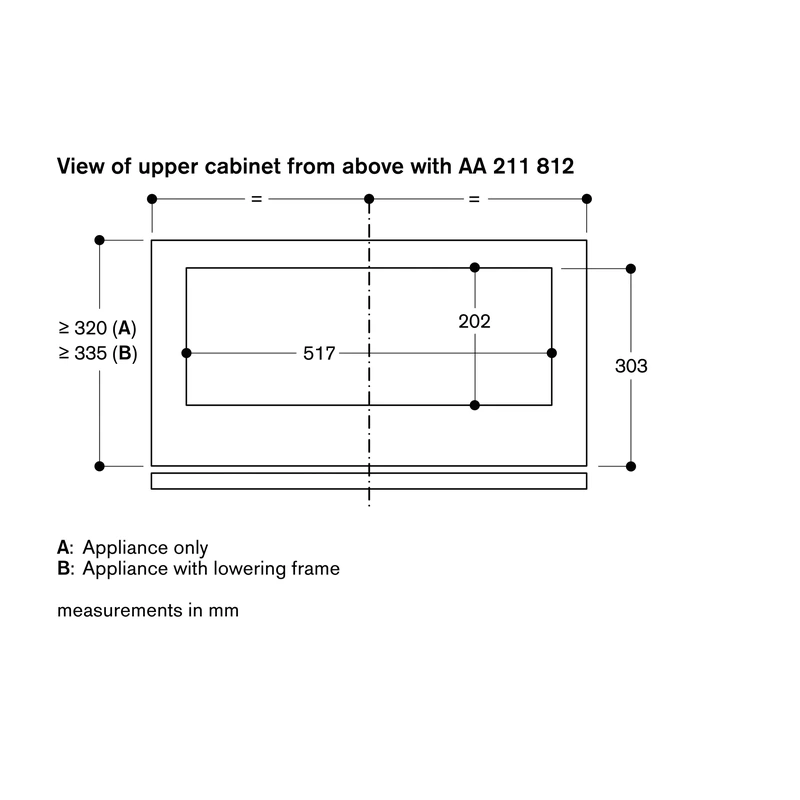

• AA211812: Recirculation module with active charcoal.

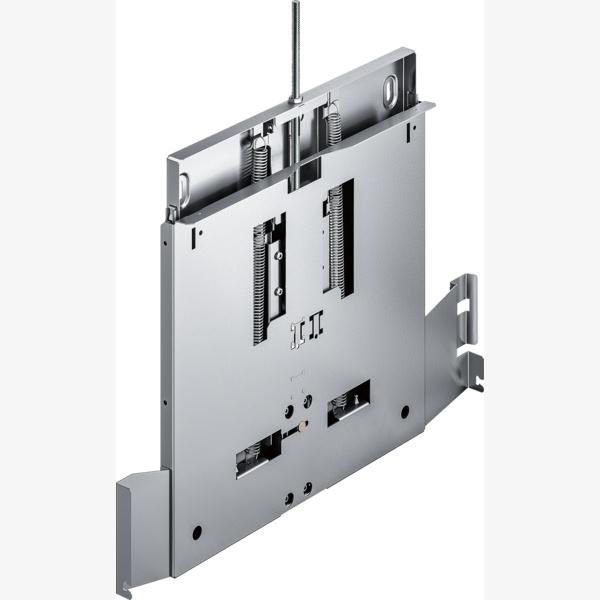

• AA210460: Lowering frame, 60 cm.
• Recirculation module with activated charcoal filter provides a silent and highly efficient air recirculation solution with odour reduction comparable to air extraction and long replacement intervals.
• The patented lowering frame allows the flat kitchen hood to disappear completely into the upper cabinet.
