Installation options

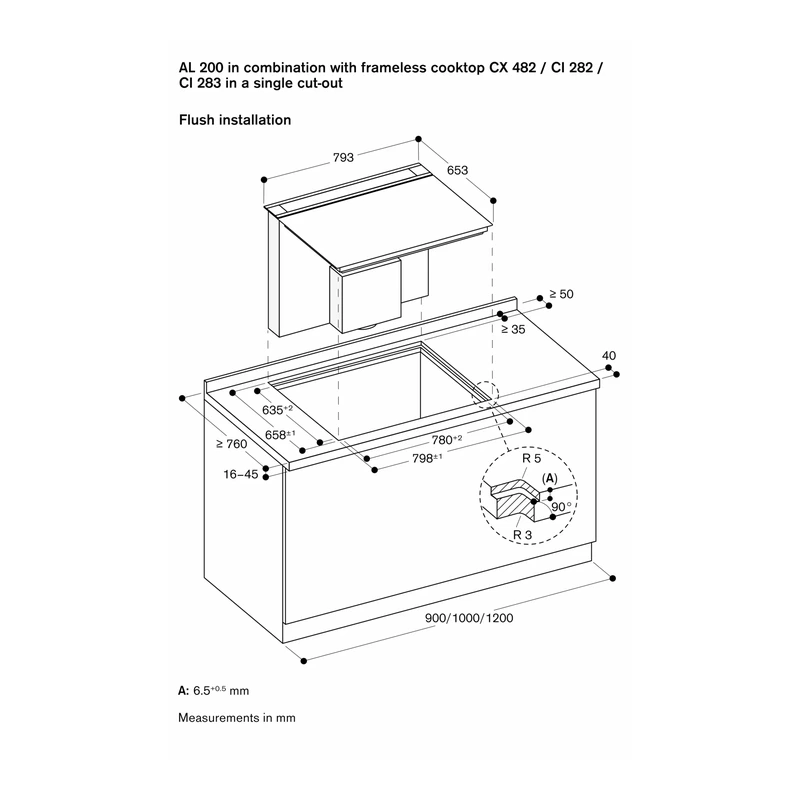

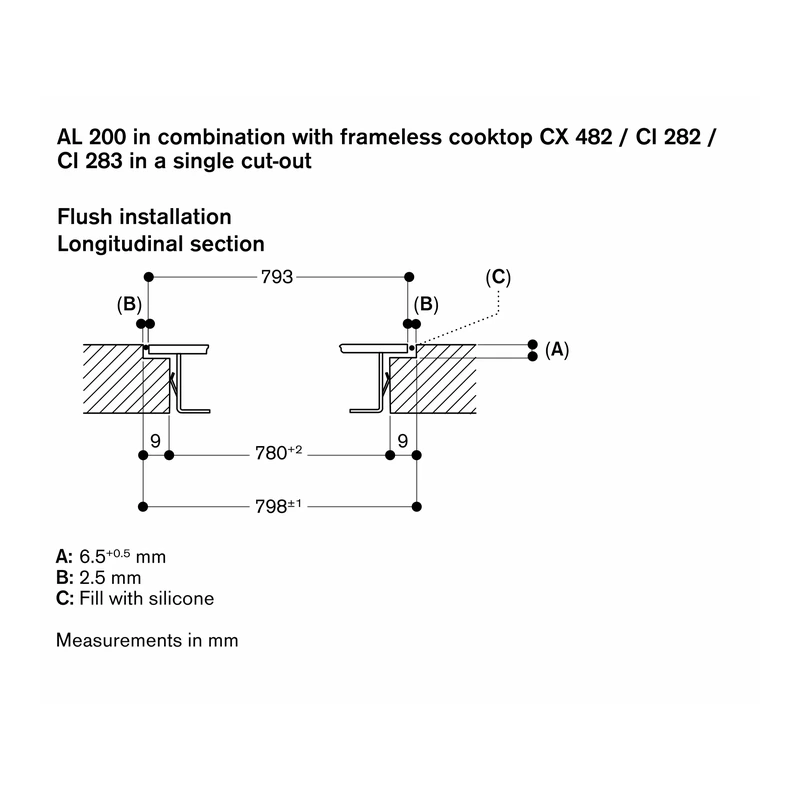

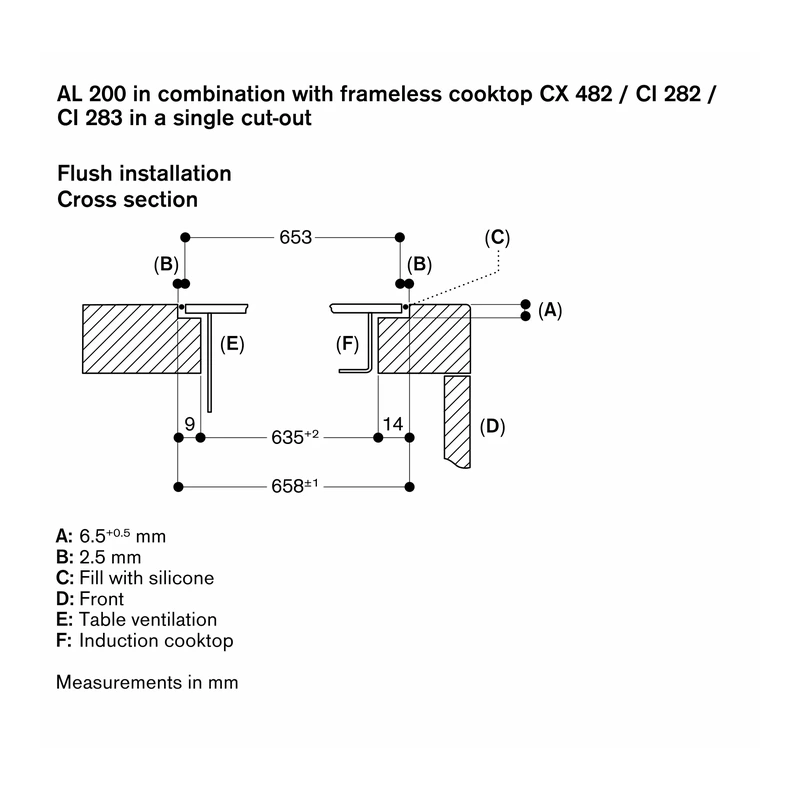

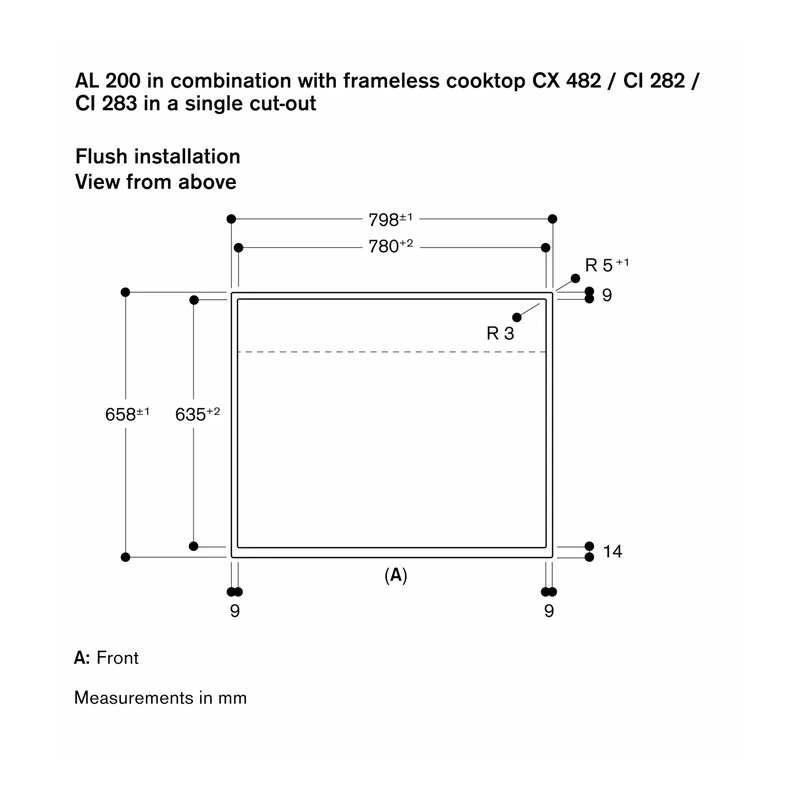

• Designed for flush mounting in a single worktop cut-out with compatible frameless cooktops (CX 482, CI 282, CI 283).

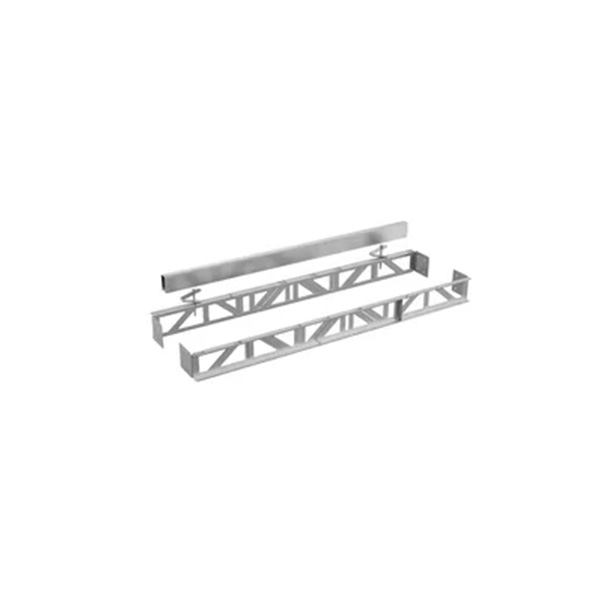

• For a single worktop cut-out, an installation accessory with connection strip and furniture supports must be placed between appliances to ensure cabinet stability.

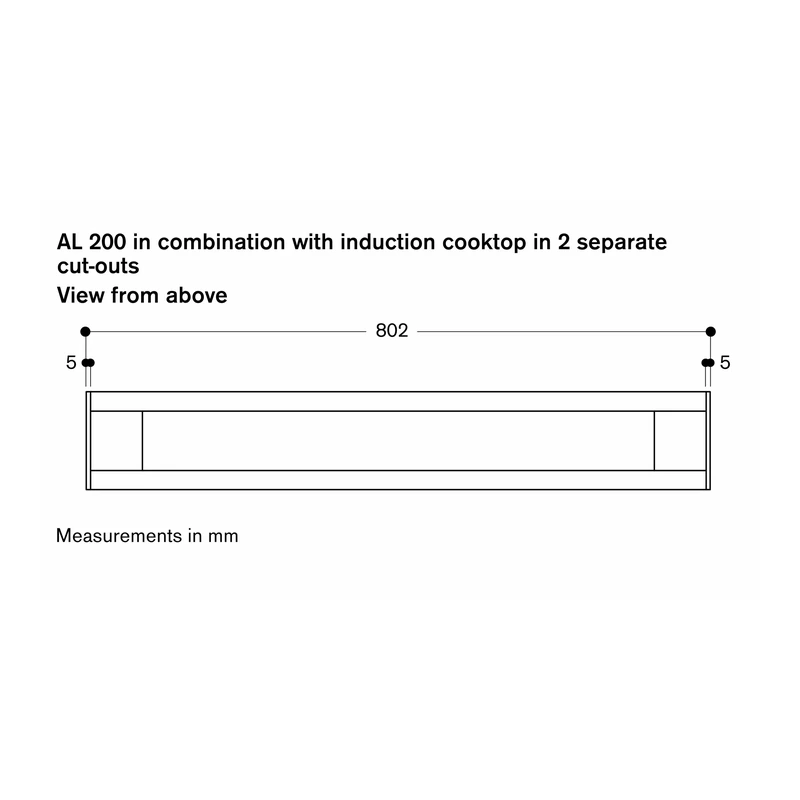

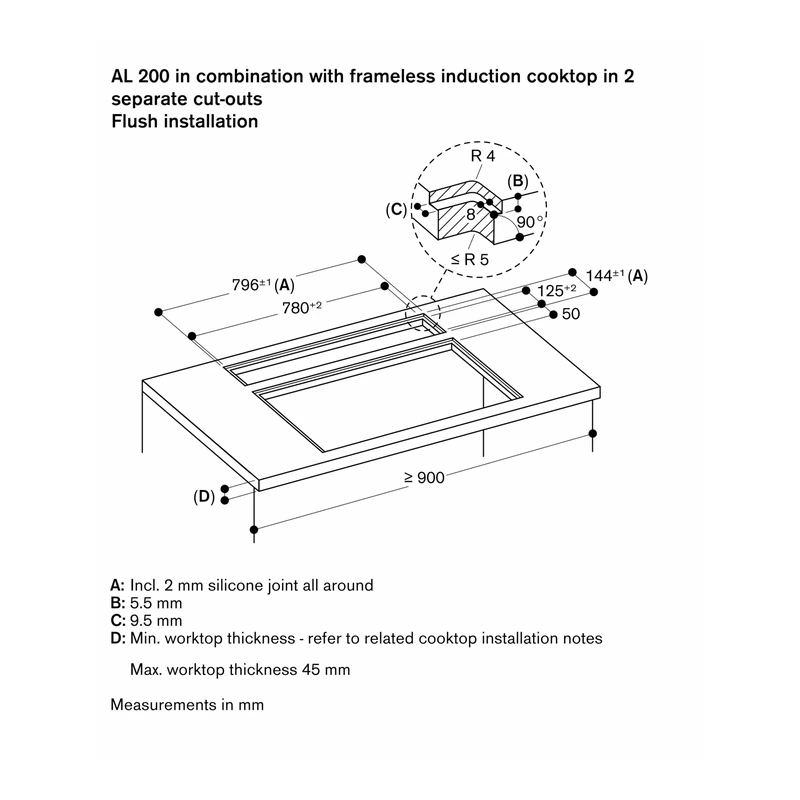

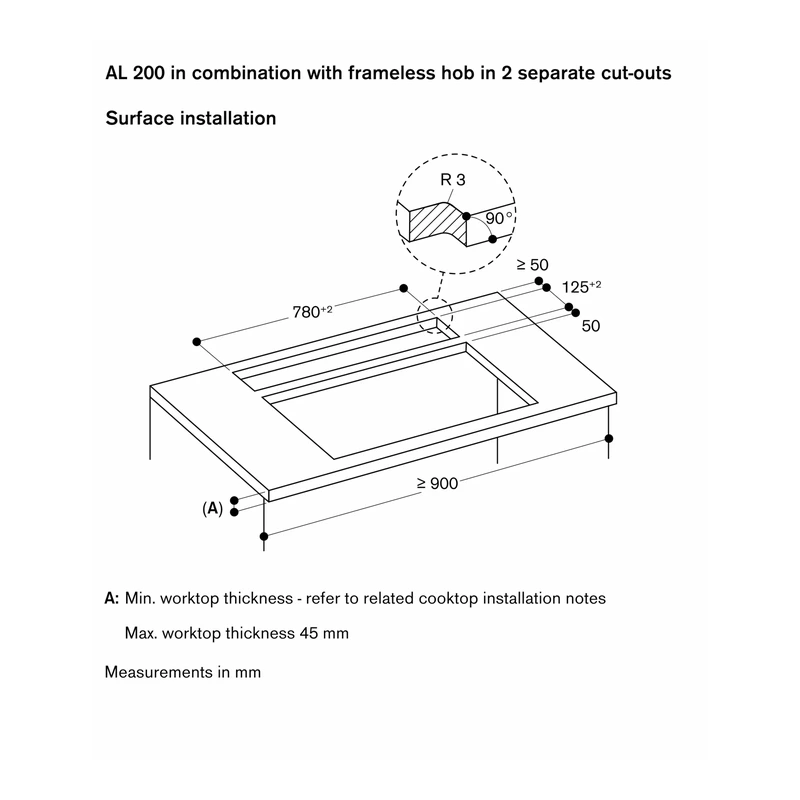

• For surface mounting in two separate worktop cut-outs, use induction cooktops CX 482 / VI 482 or CI 282 / CI 283 with accessory AA 200 900.

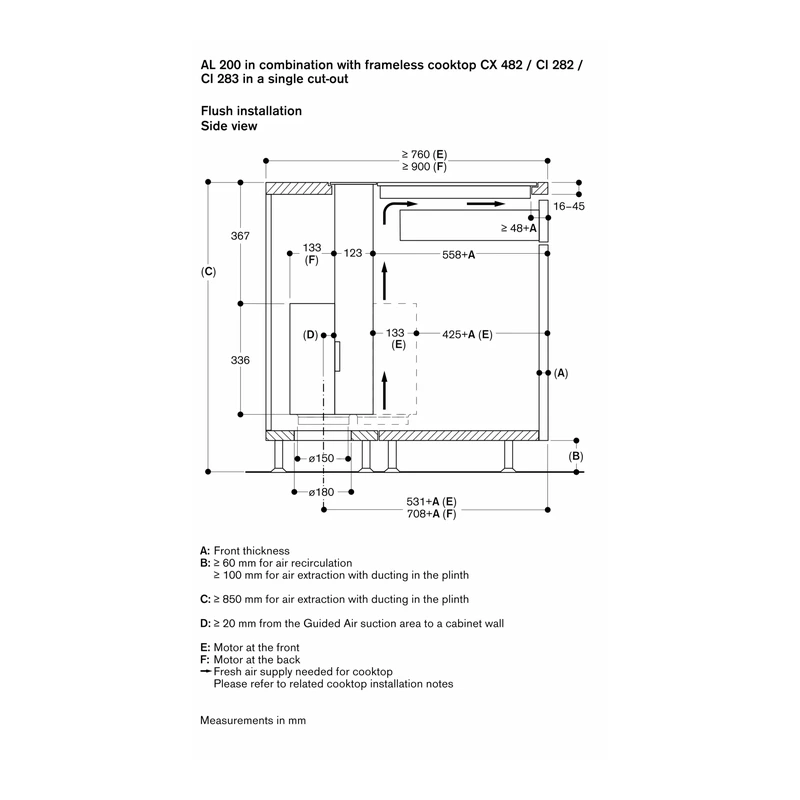

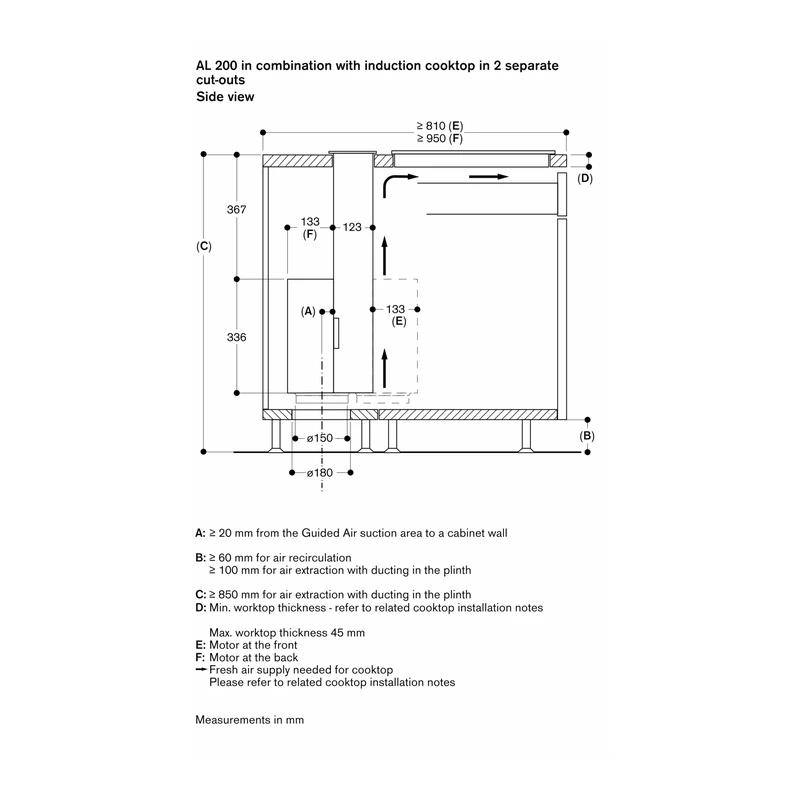

• Can be installed within a cabinet or between two cabinets, for example in an island installation deeper than 100 cm.

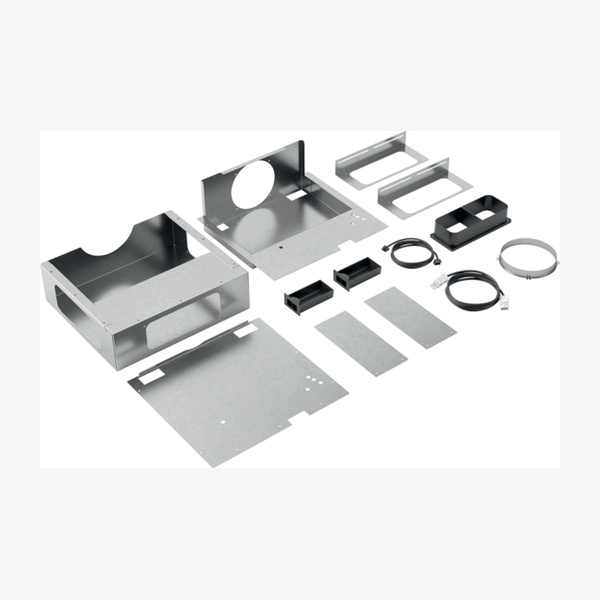

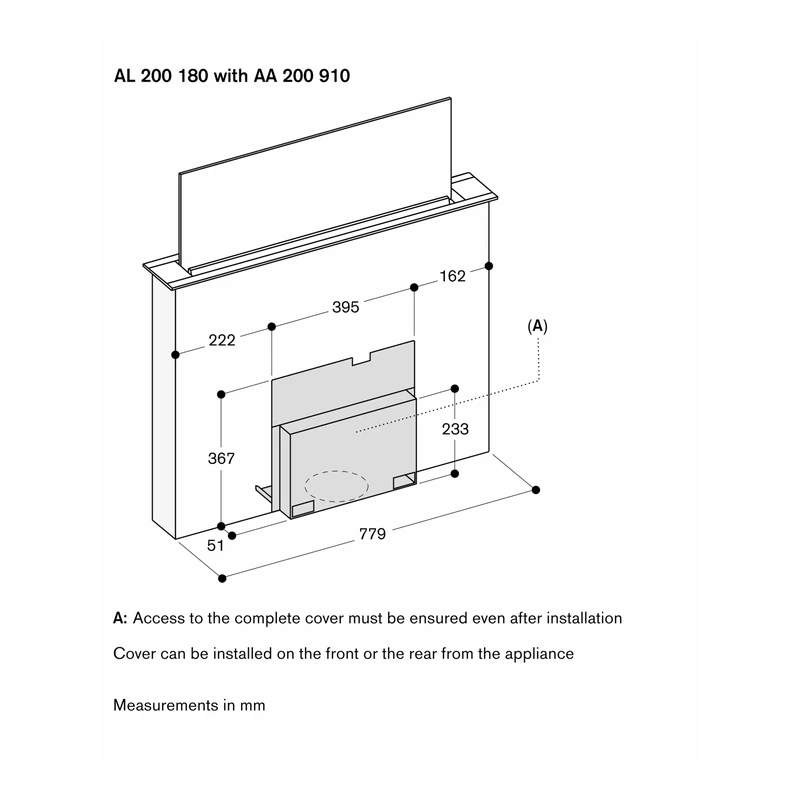

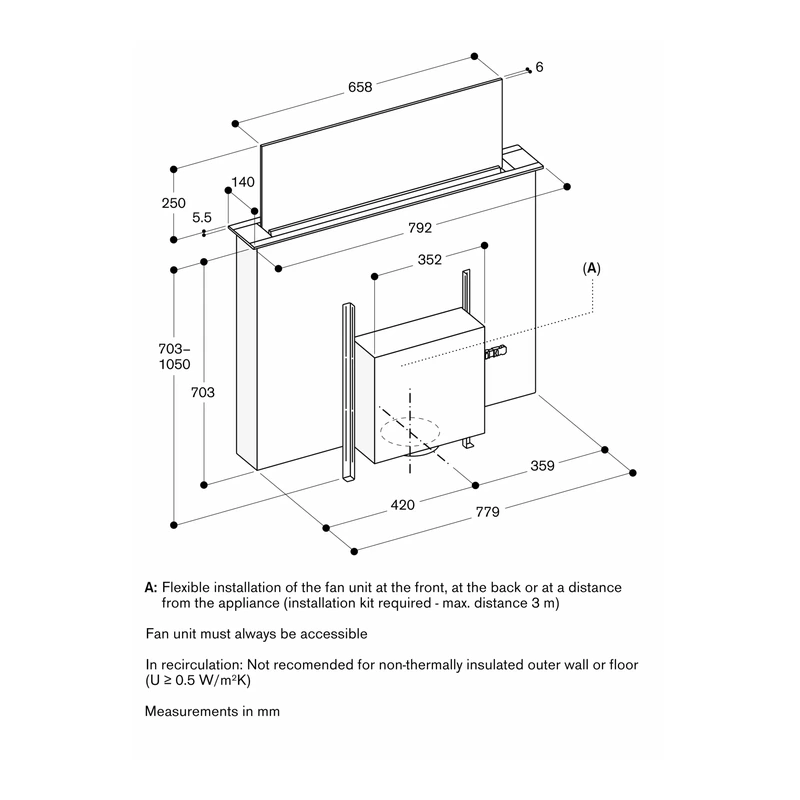

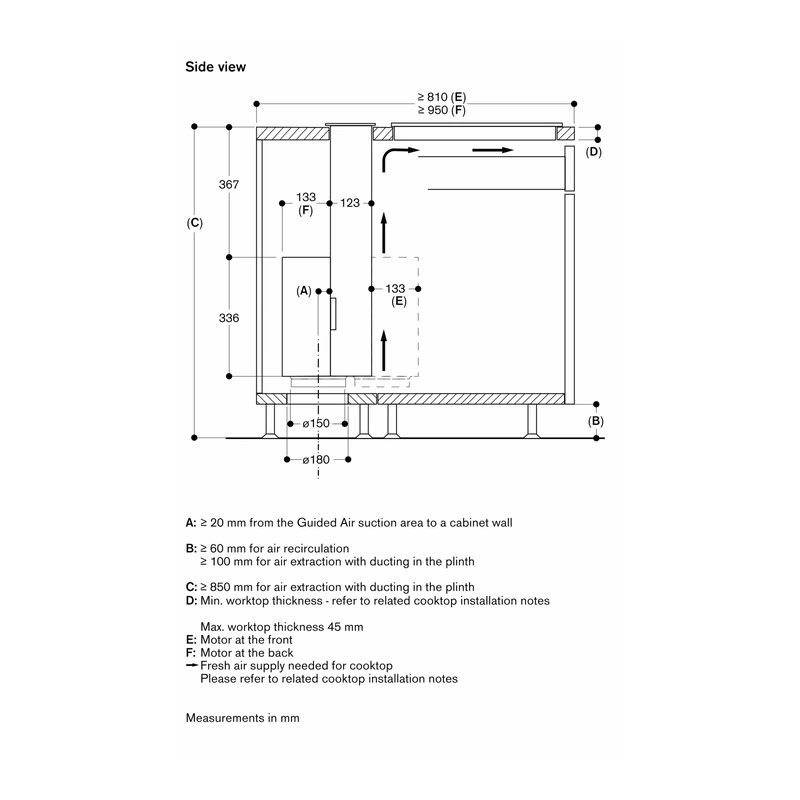

• Fan unit can be positioned at the front (compact wall solution), at the back (without loss of drawer space), or at a distance using kit AA 200 910.
• Whatever the installation situation, the fan unit should always remain accessible.

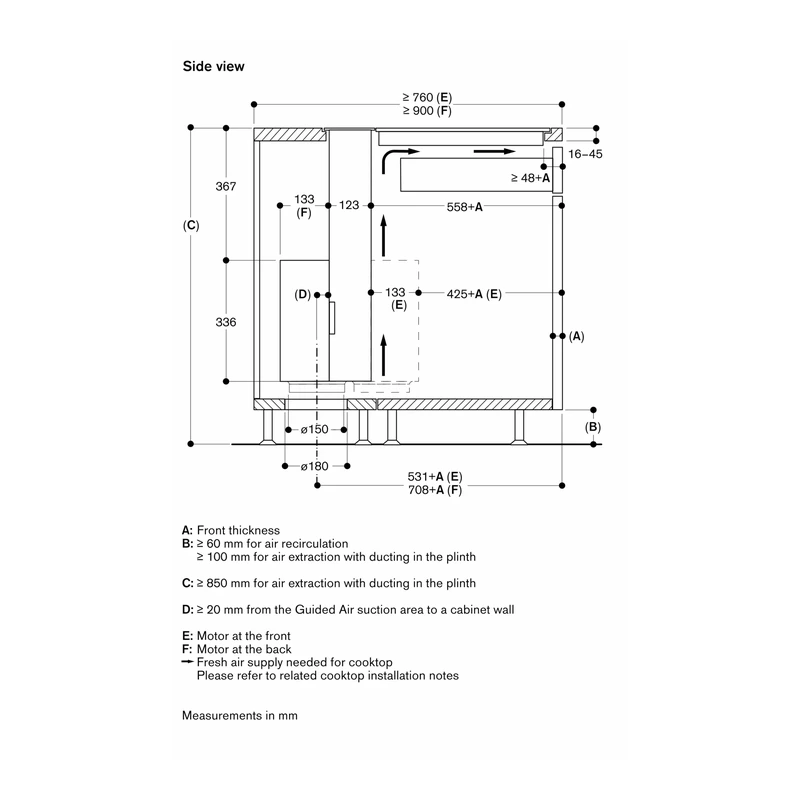

Clearances and planning notes

• No upper cabinets should be installed above the table ventilation.
• Maintain at least 65 cm from the table ventilation to open shelves.
• Maintain at least 50 cm to the left and right of the table ventilation to a wall or neighbouring tall cabinets.
• Maintain at least 5 cm from the table ventilation frame to the wall.
• Maintain at least 2 cm from the Guided Air suction area to a cabinet wall.
• The bearing capacity and stability of thin worktops must be supported by suitable substructures, taking appliance weight and additional loads into account.
• In air extraction mode, ensure adequate fresh air supply if operating simultaneously with a chimney-vented fireplace.

Air extraction and recirculation

• For air extraction, a one-way flap with maximum opening pressure of 65 Pa should be installed.
• For optimum performance in air recirculation, an outflow surface area of at least 400 cm² is recommended.

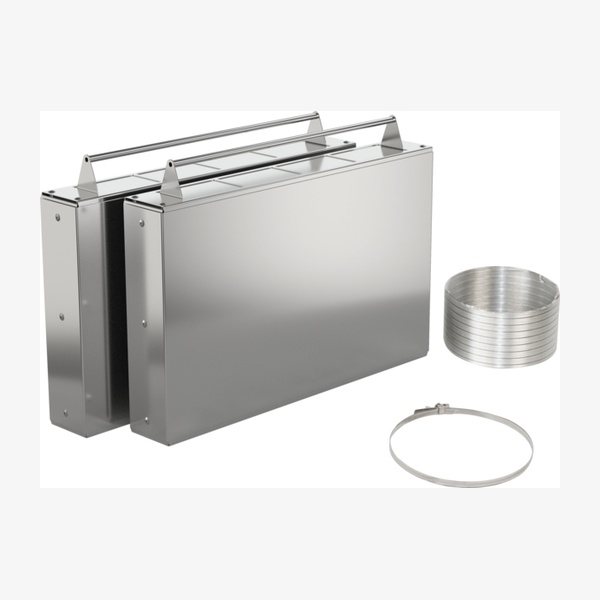

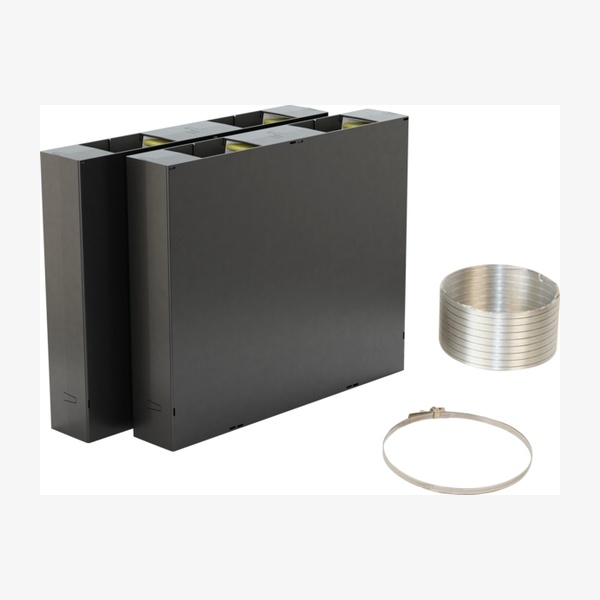

• An air recirculation module is required for recirculation operation.

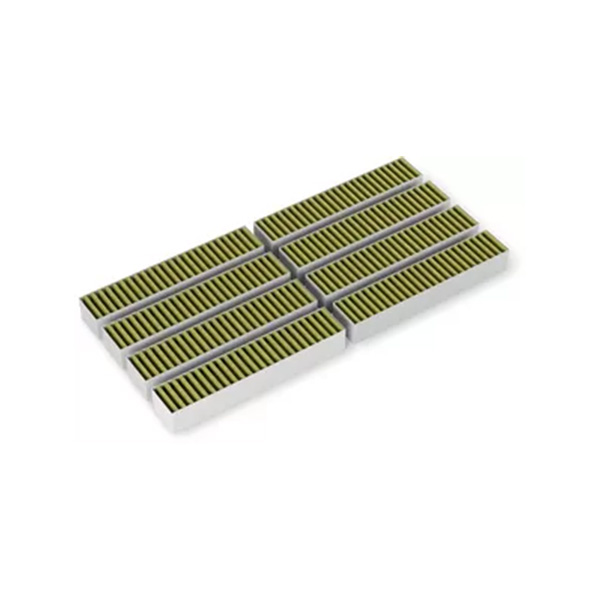

• Activated charcoal filter is easily removable from above when using the air recirculation system.

Filters and maintenance

• 2 large-scale metal grease filters are included, designed to be easy to remove and dishwasher-safe.
• Grease filter saturation indicator signals when cleaning is required.
• Activated charcoal filter saturation indicator supports timely replacement in recirculation mode.
• Overflow protection: 170 ml capacity in the grease filter and 600 ml in the remote fan unit.

Controls and connectivity

• One user interface for setting power levels and a separate user interface for Guided Air technology.
• Automatic function with sensor-controlled run-on function for continued ventilation.
• Selected digital services via Home Connect, including cooktop-based ventilation control with suitable cooktop, remote control, monitoring and remote diagnostics.
• Integrated WiFi module for digital services; availability of functionality depends on Home Connect services in the country.
• WiFi module can be switched off; instructions are provided in the user manual.

Worktop and materials

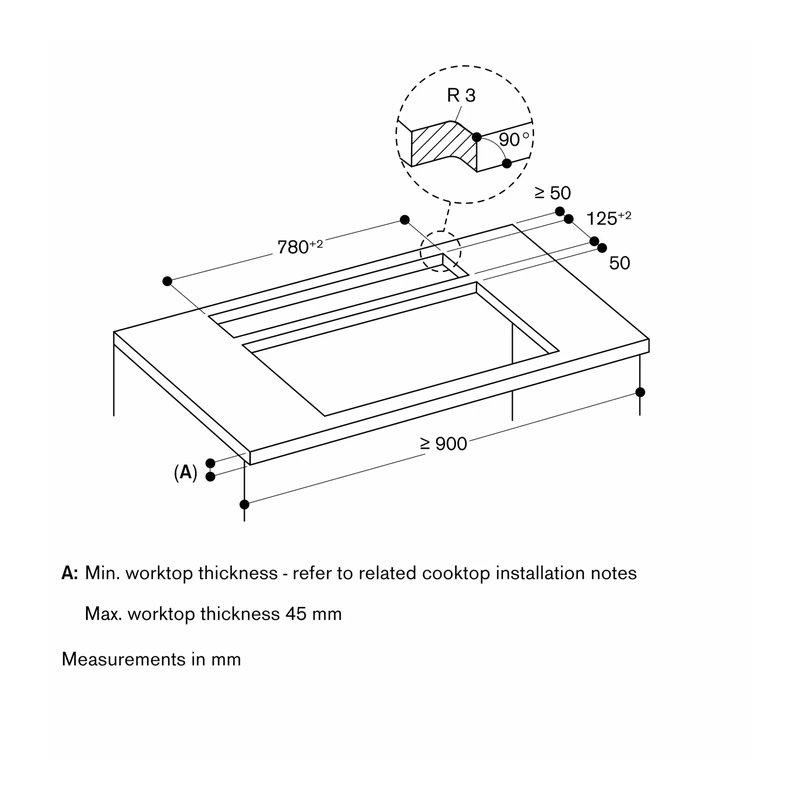

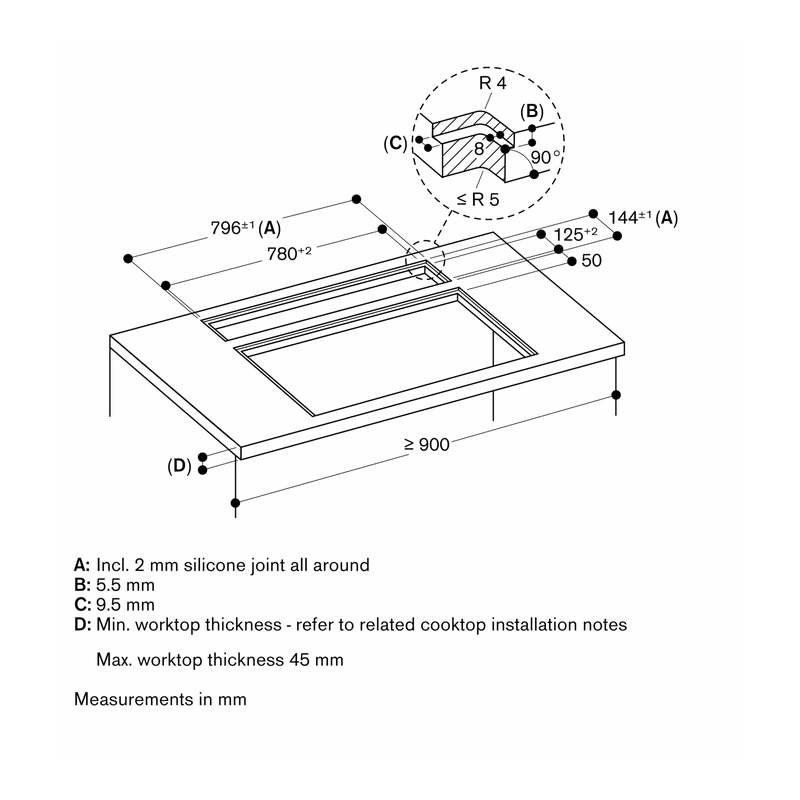

• Installation is possible in worktops made of stone, synthetics or solid wood.
• Heat resistance and watertight sealing of cut edges must be observed.
• For other materials, the worktop manufacturer should be consulted.
