Does the AW442120 have its own motor?

No, the AW442120 is motorless. It is designed to be combined with Gaggenau BLDC remote fan units, and its power levels depend on the selected remote fan unit.

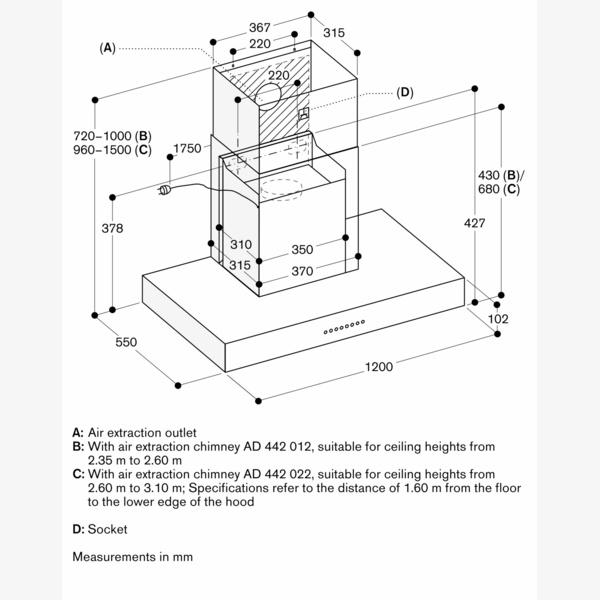

Can this hood be used in both extraction and recirculation modes?

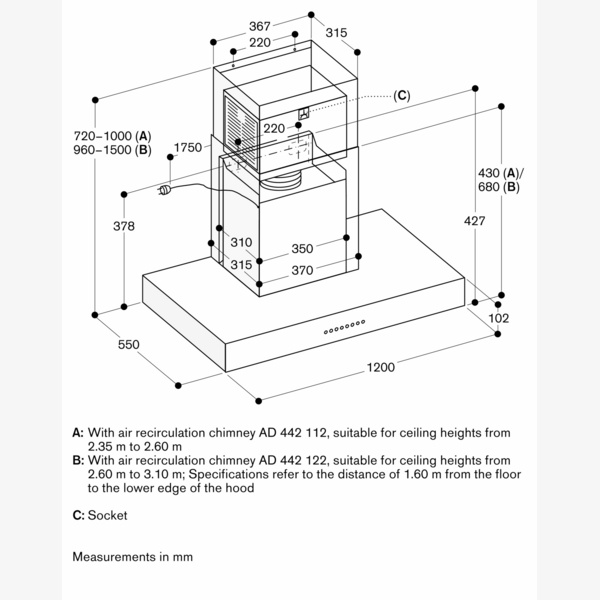

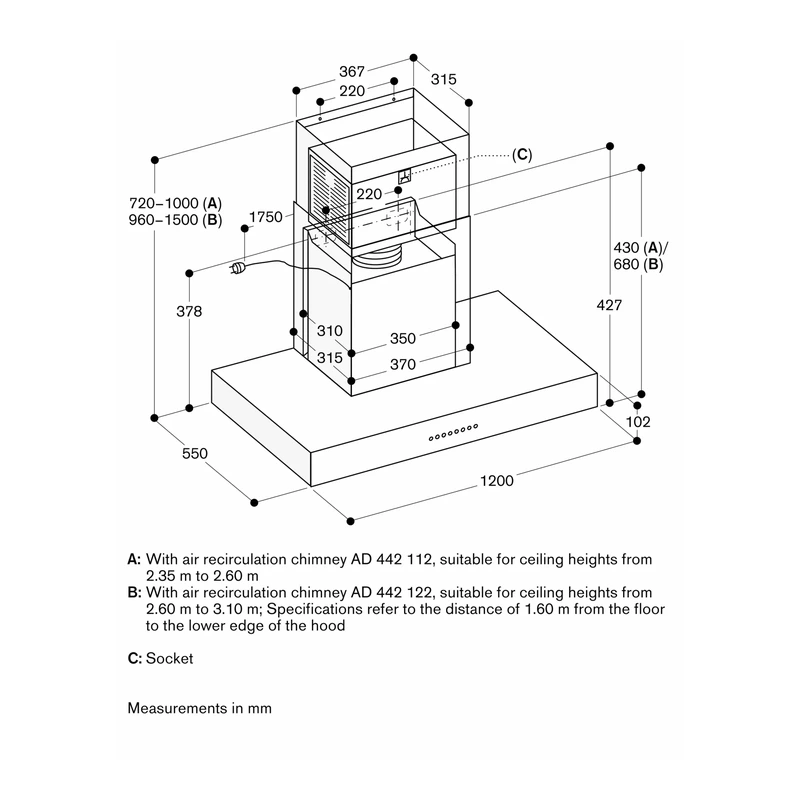

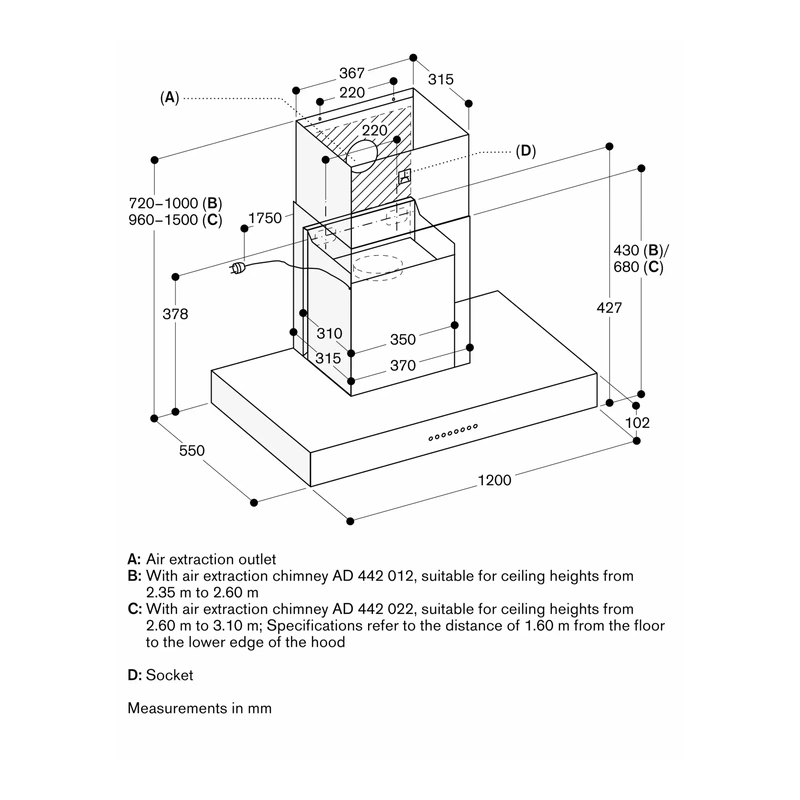

Yes. The hood can operate as an air extraction or recirculation system. For recirculation, a recirculation module with activated charcoal filters is installed in the inner chimney, and special air recirculation chimneys are available.

What type of lighting does the hood provide?

It uses neutral white surface LED lights at 3500 K, with 3 x 10 W lamps. The lighting is continuously dimmable and offers an illuminance of 940 lx for ideal illumination of the whole cooktop.

How is grease filtration handled and how do I clean the filter?

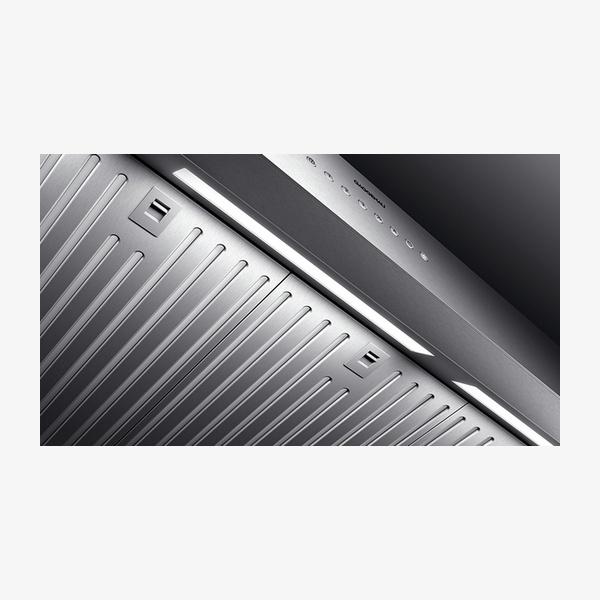

The hood features an angled baffle filter with high grease absorption. The baffle filter is dishwasher-safe for convenient cleaning, and a grease filter saturation indicator signals when attention is required.

What installation clearances are required above the hob?

The minimum clearance above gas appliances is 70 cm, and the minimum clearance above electric appliances is 60 cm. These clearances should be observed during planning and installation.

Is there any special requirement when combining the hood with a fireplace?

When installing the ventilation hood in air extraction mode together with a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Product Information Sheet

Gaggenau 400 Series Chimney Hood

SKU: AW442120

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

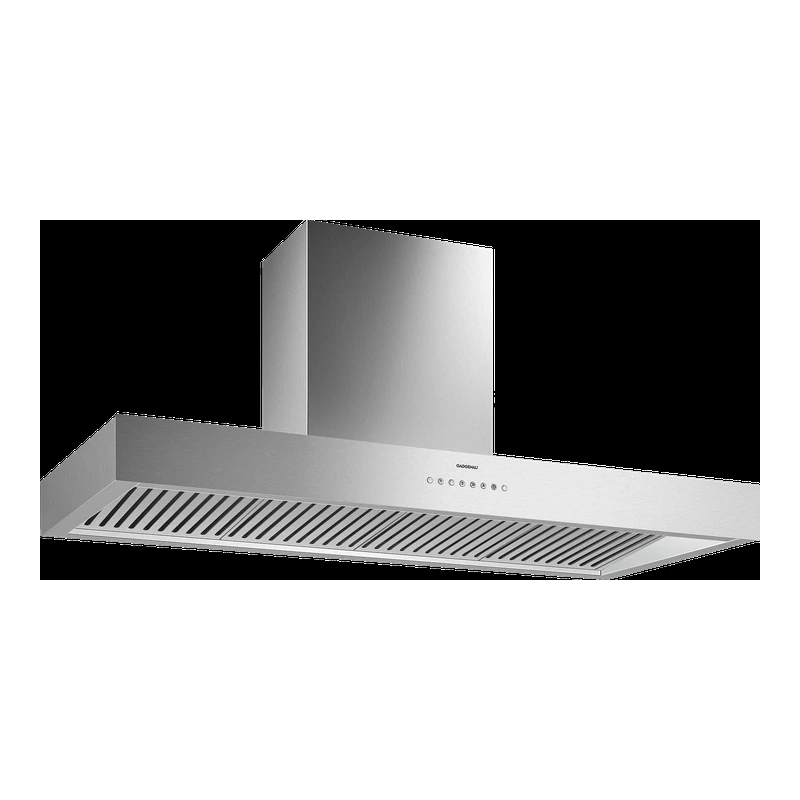

Gaggenau AW442120 400 Series Chimney Hood

SKU: AW442120 · EAN: 4242006239022

Stainless Steel-Requires BLDC Motors & Flue

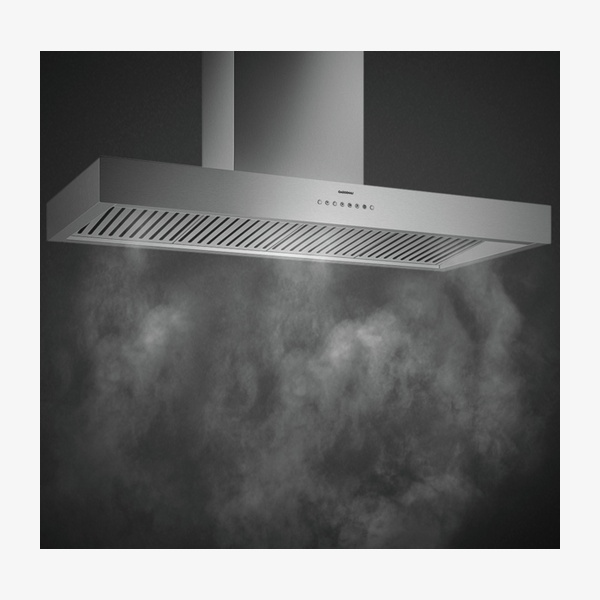

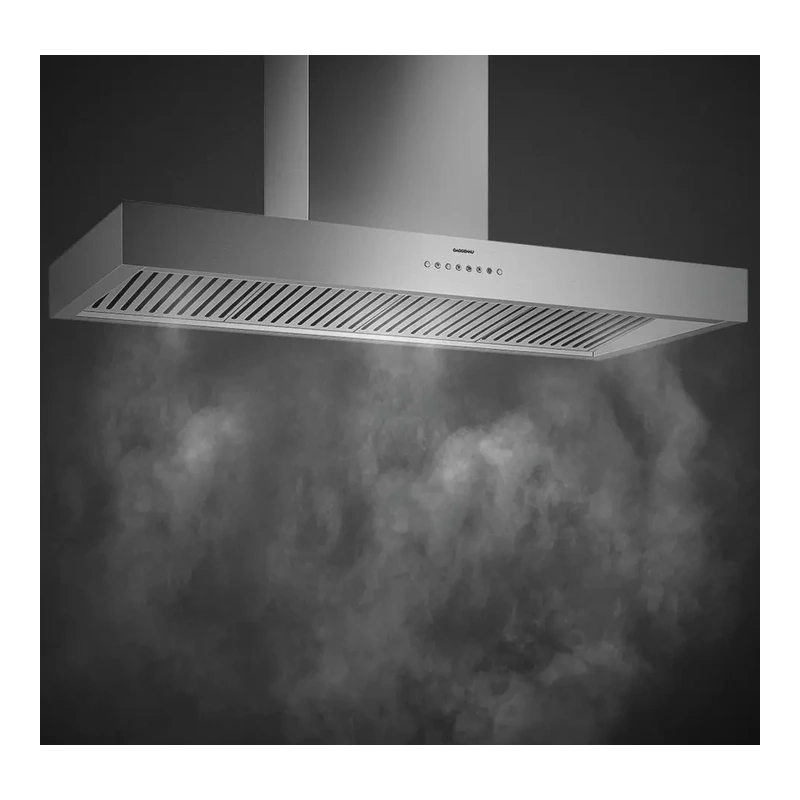

The AW442120 is a 120 cm stainless steel wall-mounted hood from the 400 series, designed for use with remote fan units. It offers highly efficient extraction of cooking vapours thanks to a large vapour collection area, angled baffle filter and automatic, sensor-controlled power adjustment. With neutral white, dimmable LED surface lighting and the option of air extraction or recirculation via a dedicated module, it combines professional hood technology with classic Gaggenau design.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Wall-mounted hood 400 series
Model code	AW442120
Width	120 cm
Material / finish	Stainless steel
Motor	Motorless, to be combined with Gaggenau BLDC remote fan units
Operating modes	Air extraction or recirculation (with recirculation module and activated charcoal filters)
Control levels	Three electronically controlled power levels and an intensive mode
Automatic function	Sensor-controlled power adjustment with sensor-controlled run-on function
Filter type	Angled baffle filter with high grease absorption, dishwasher-safe; grease filter saturation indicator

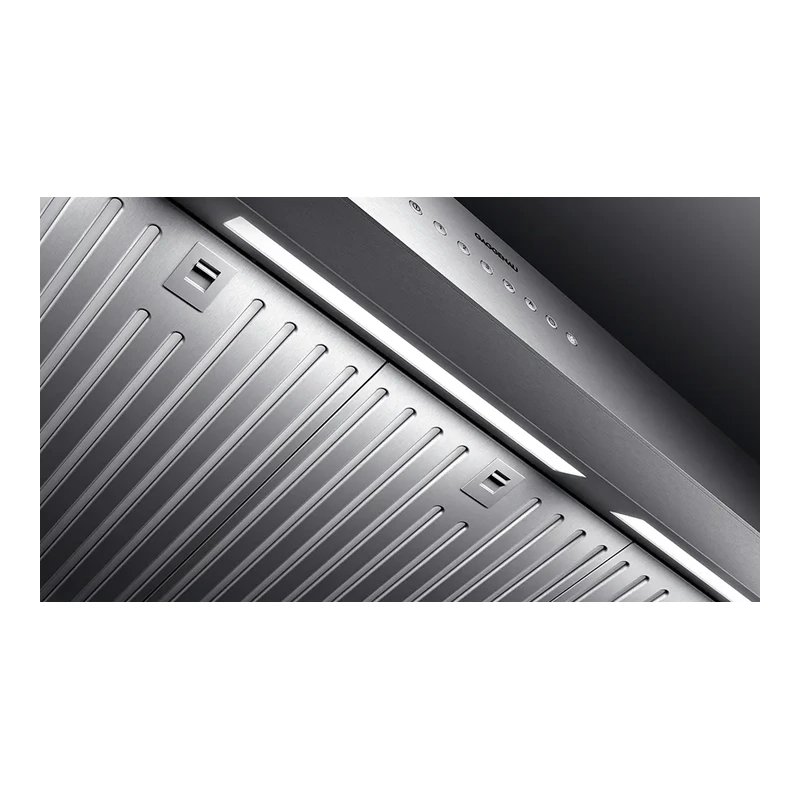

Lighting	Neutral white surface LED light (3500 K), continuously dimmable
Lamp output	3 x 10 W
Illuminance	940 lx
Energy efficiency class	A (scale from A+++ to D), referred to configuration with remote fan unit AR 400 143
Annual energy consumption	48.1 kWh/year (referred to configuration with AR 400 143)
Ventilation efficiency class	A
Illumination efficiency class	B
Grease filter efficiency class	B
Sound level (normal mode)	Min. 47 dB / max. 64 dB (referred to configuration with AR 400 143)
Total connected load	40 W
Electrical connection cable	1.8 m, pluggable
Connection to remote fan unit	Via network cable to respective appliances
Recommended clearance above gas appliances	Minimum 70 cm
Recommended clearance above electric appliances	Minimum 60 cm
Compatible remote fan unit (example)	AR 400 143 (ideal for space-saving installation in the AW 442)

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Gaggenau →

Mandatory Accessories

— automatically included with your enquiry

Mandatory

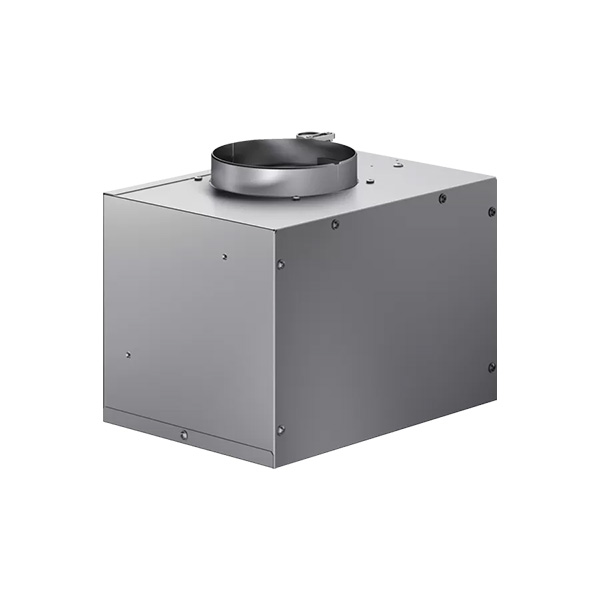

AR400143

Gaggenau BLDC Chimney Installation Motor

Included automatically.

Optional Accessories

— add individually to your enquiry

Optional

AA400510

Gaggenau Window Contact Switch

Optional

AA442110

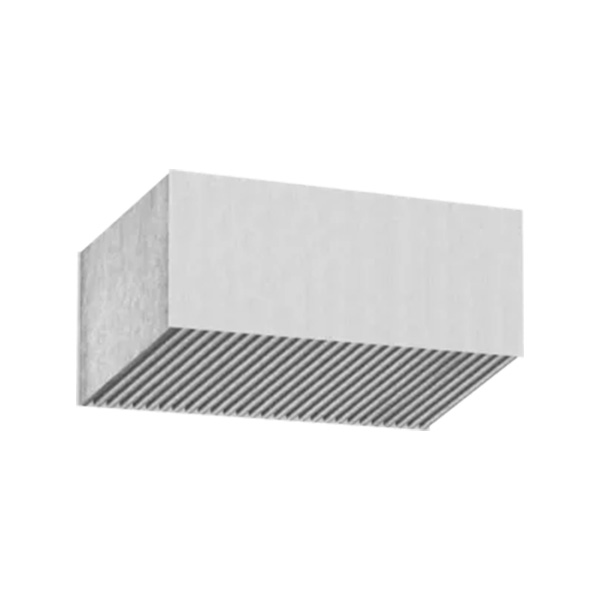

Gaggenau Charcoal Filter

Optional

AA442810

Gaggenau Air Recirculation Module

Optional

AD442392

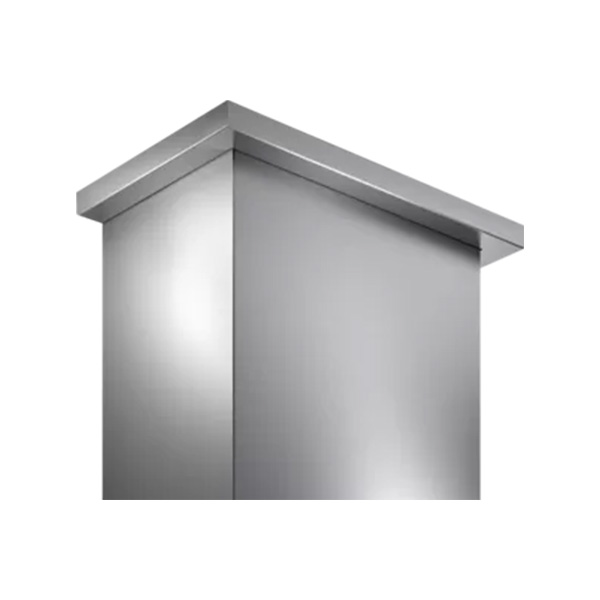

Gaggenau Ceiling Collar

Optional

AD442012

Gaggenau Extraction Duct

Optional

AD442022

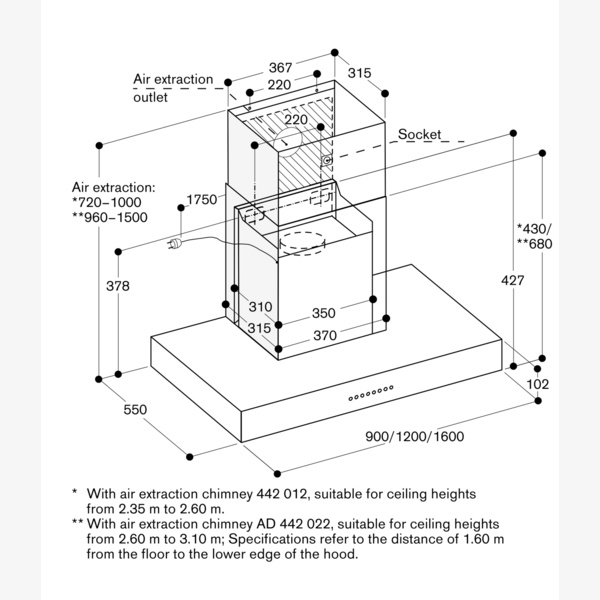

Gaggenau Extraction Duct

Optional

AD442112

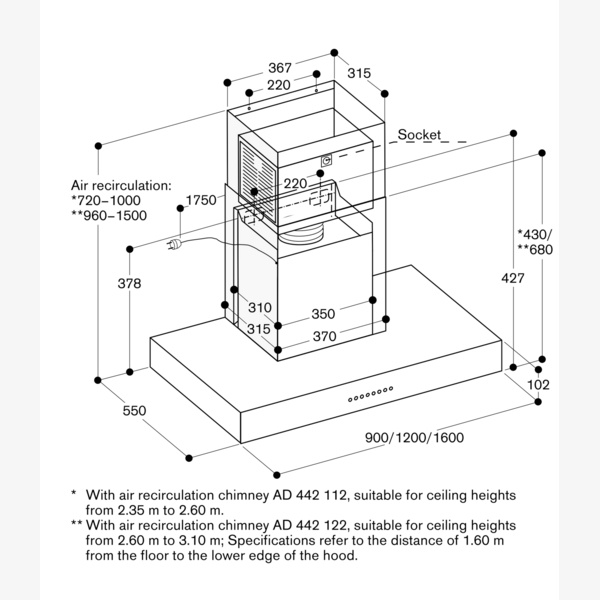

Gaggenau Recirculation Duct

Optional

AD442122

Gaggenau Recirculation Duct
