Installation requirements

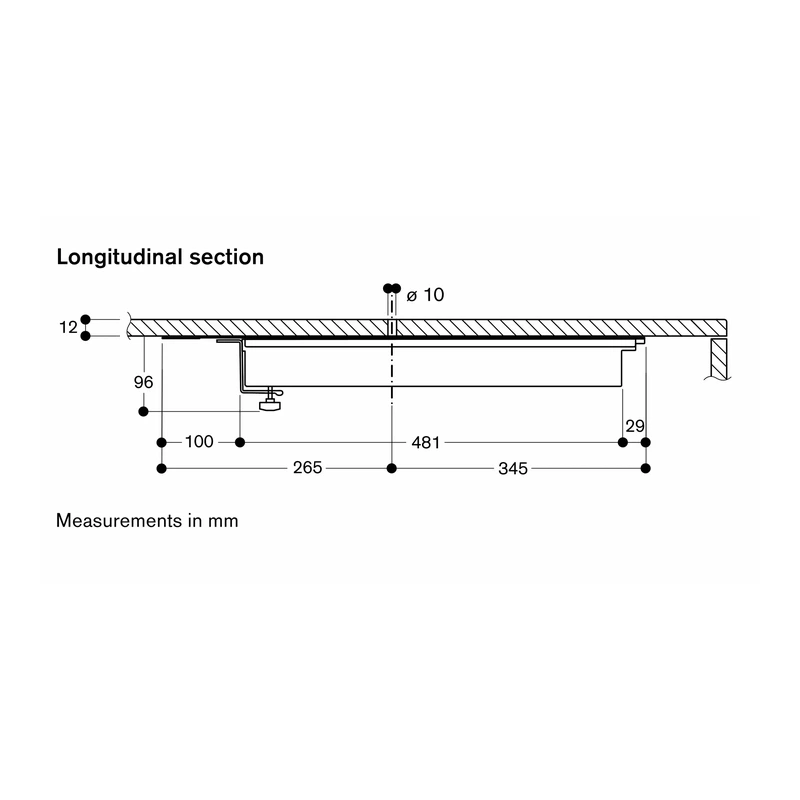

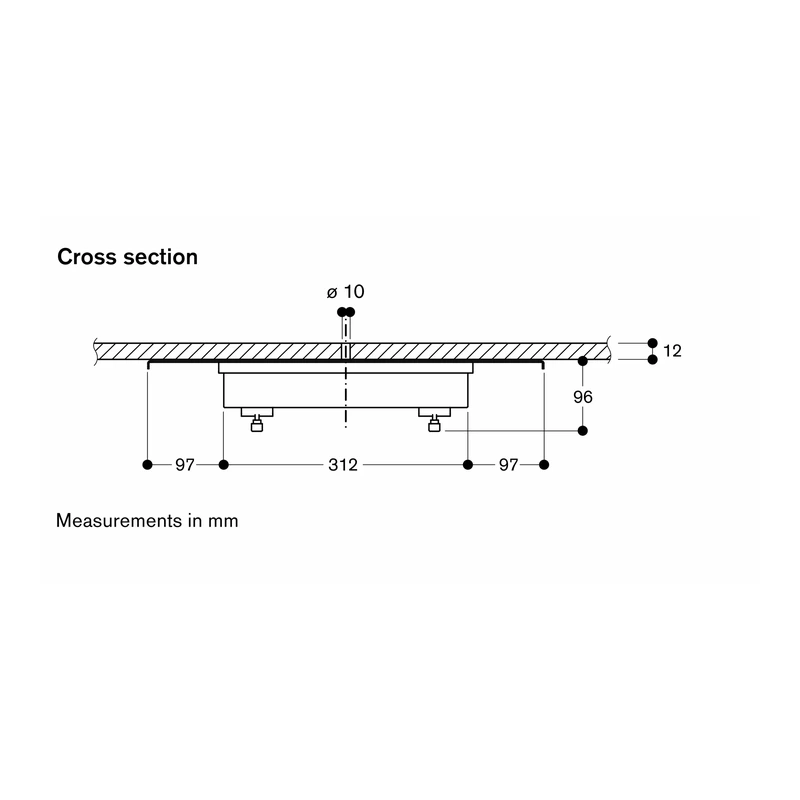

• The integrated induction module must be installed under a Dekton worktop in 12 mm thickness.
• Do not install other appliances below, e.g. ovens, refrigerators or dishwashers.
• Bearing capacity and stability must be supported using suitable substructures, considering appliance weight and additional loads.

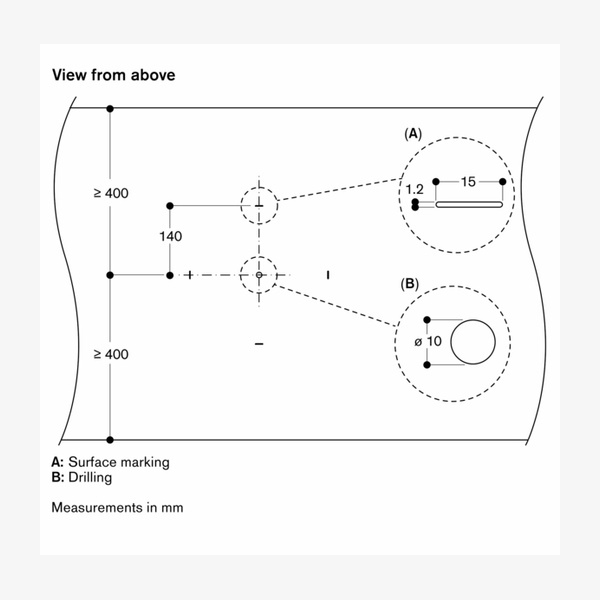

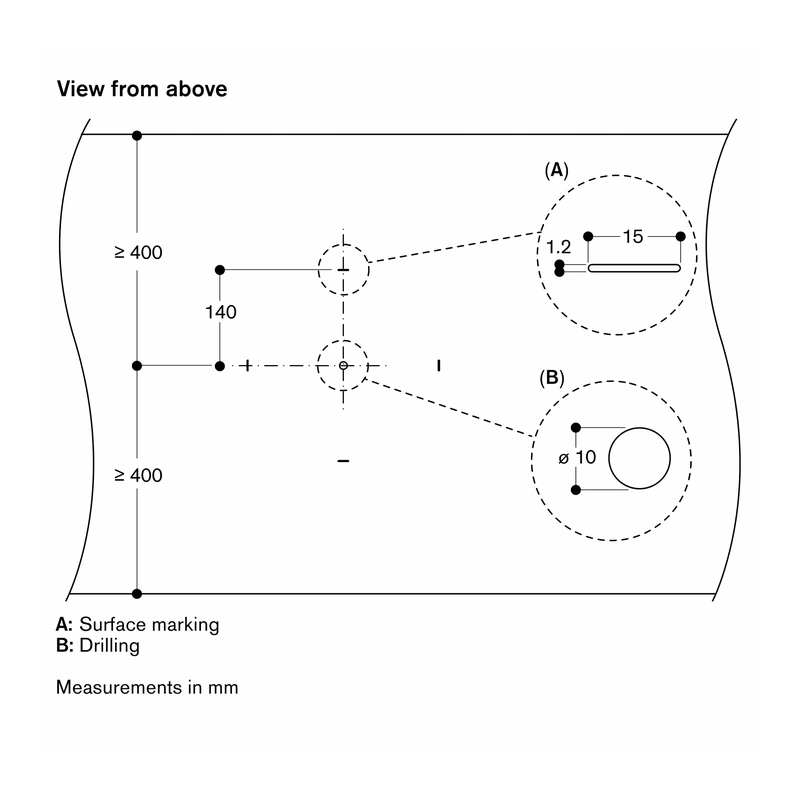

• A 10 mm hole must be planned in the centre of the cooking zone; markings to indicate the cooking zone need to be planned.
• No other cut-outs are permitted in the same worktop piece.

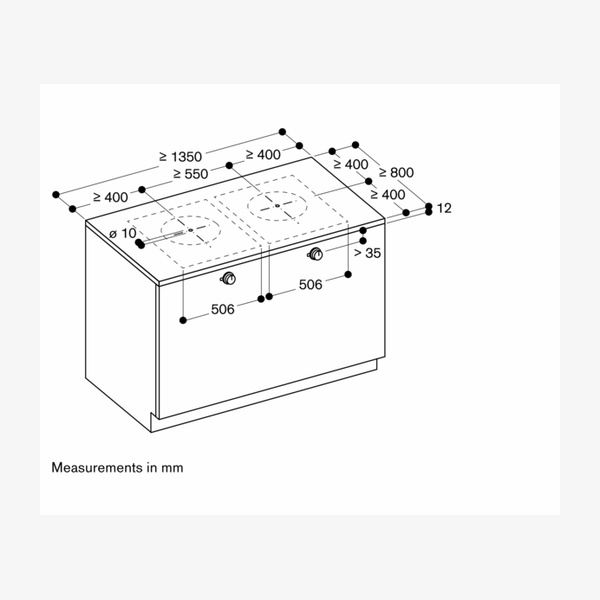

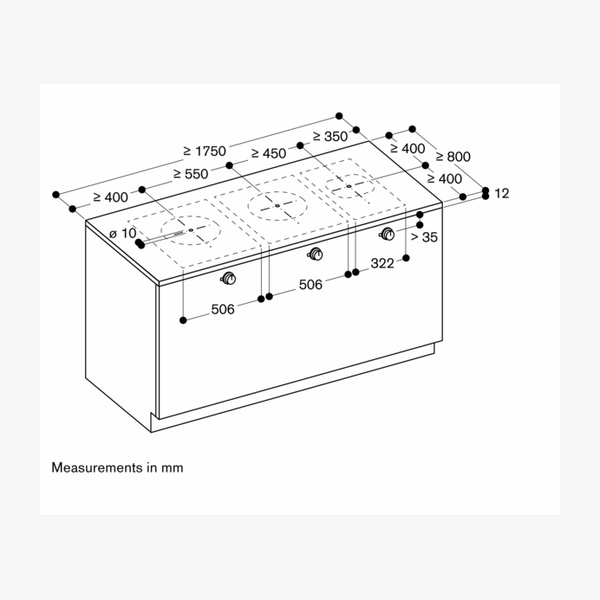

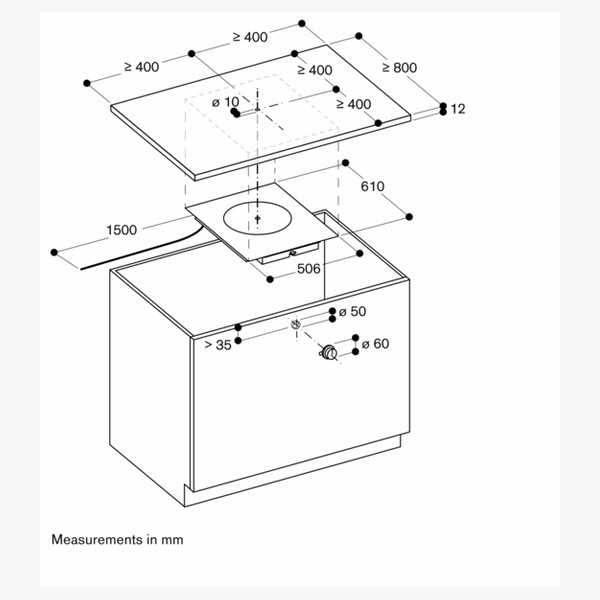

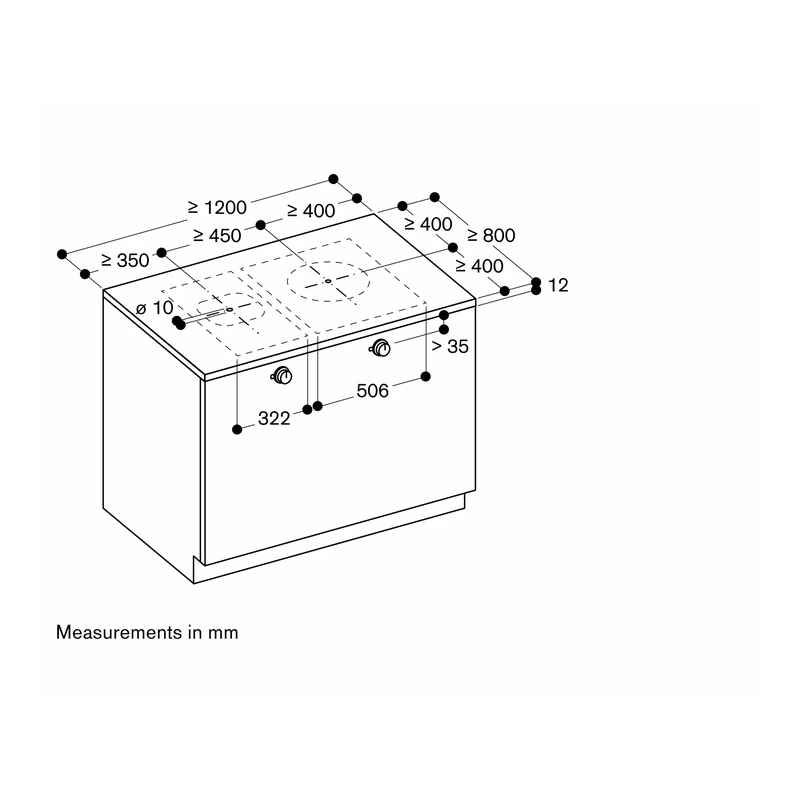

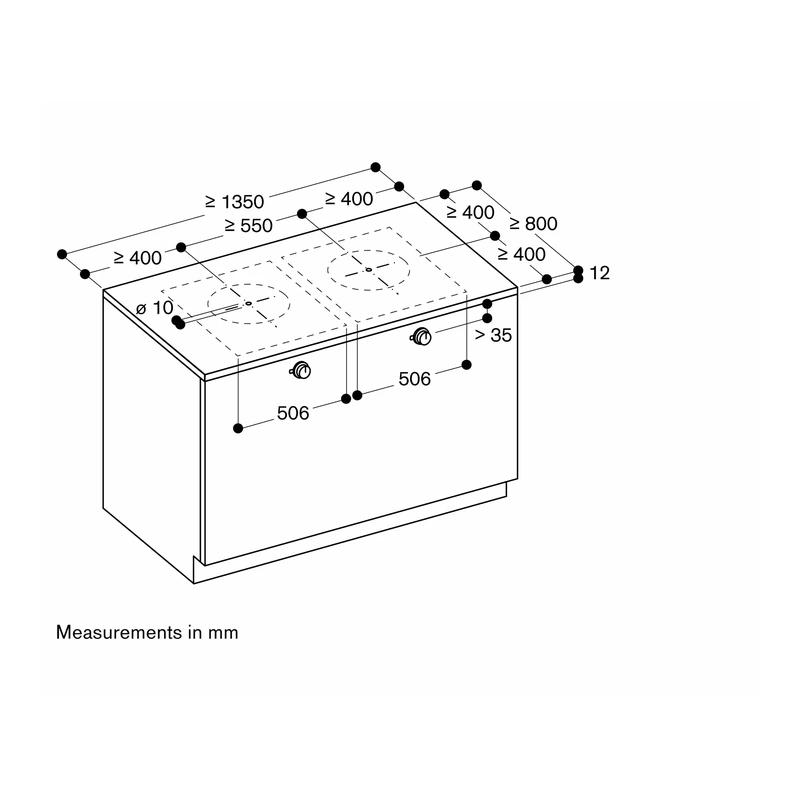

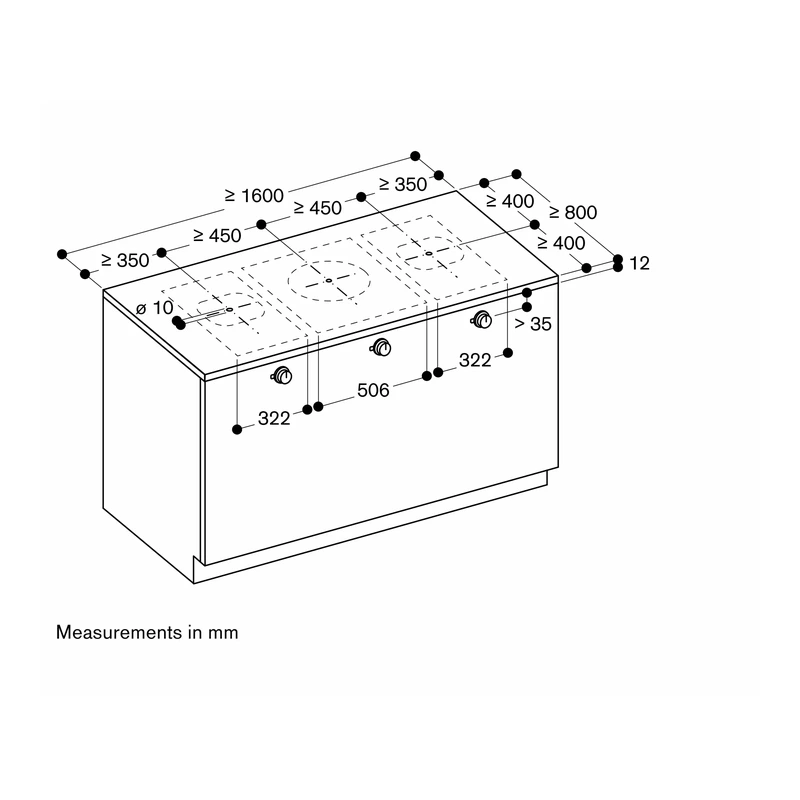

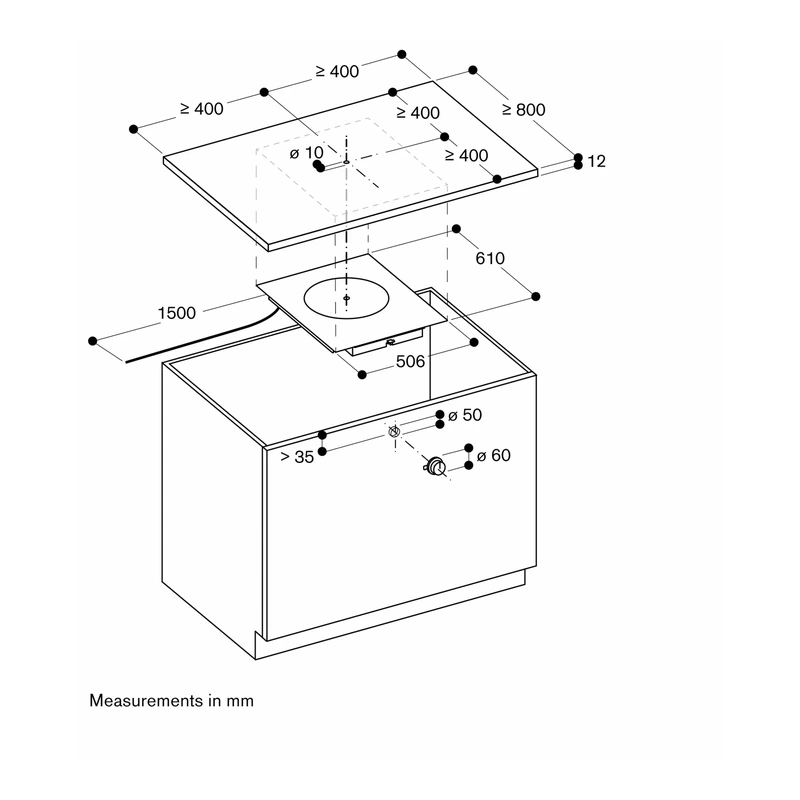

• Minimum distances: 400 mm from cooking zone centre to lateral, front and rear edges of the worktop.

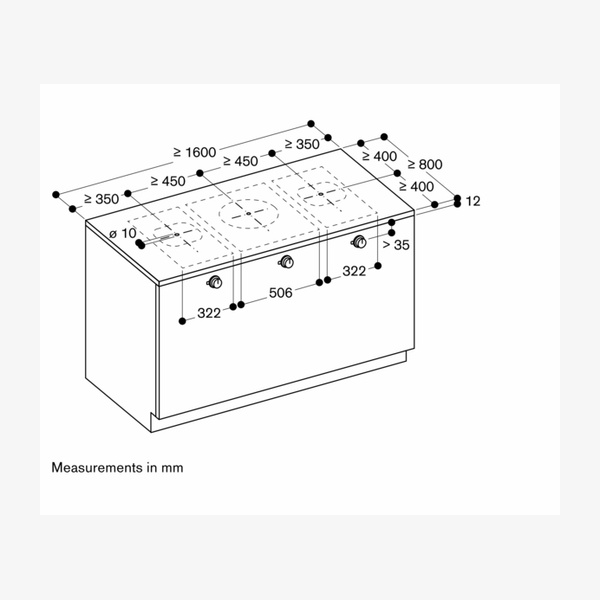

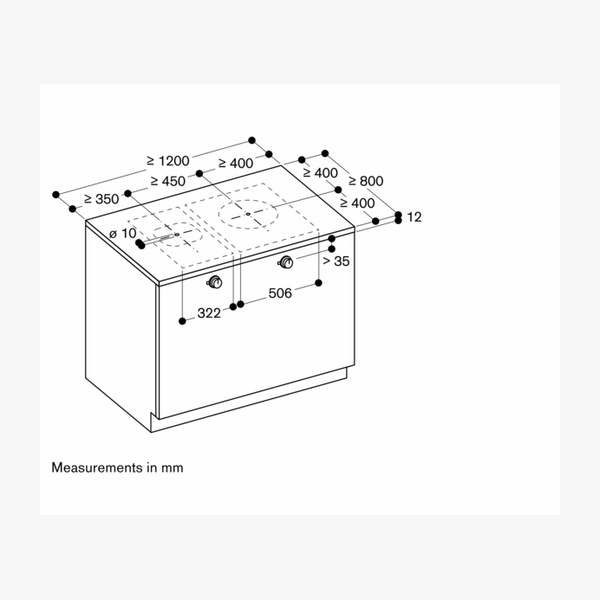

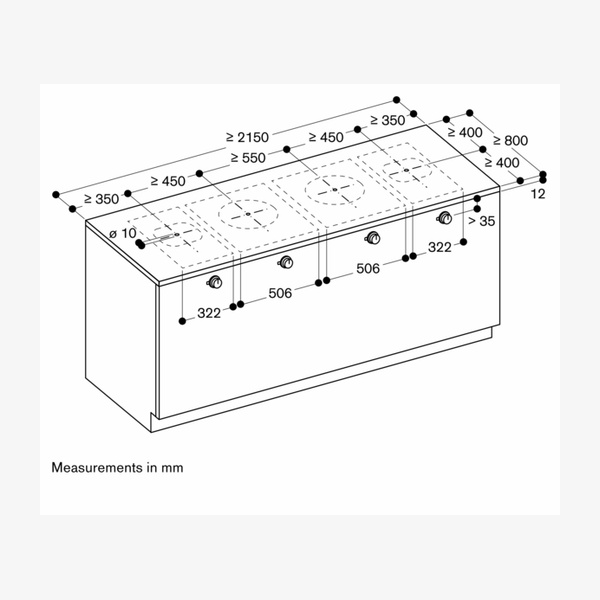

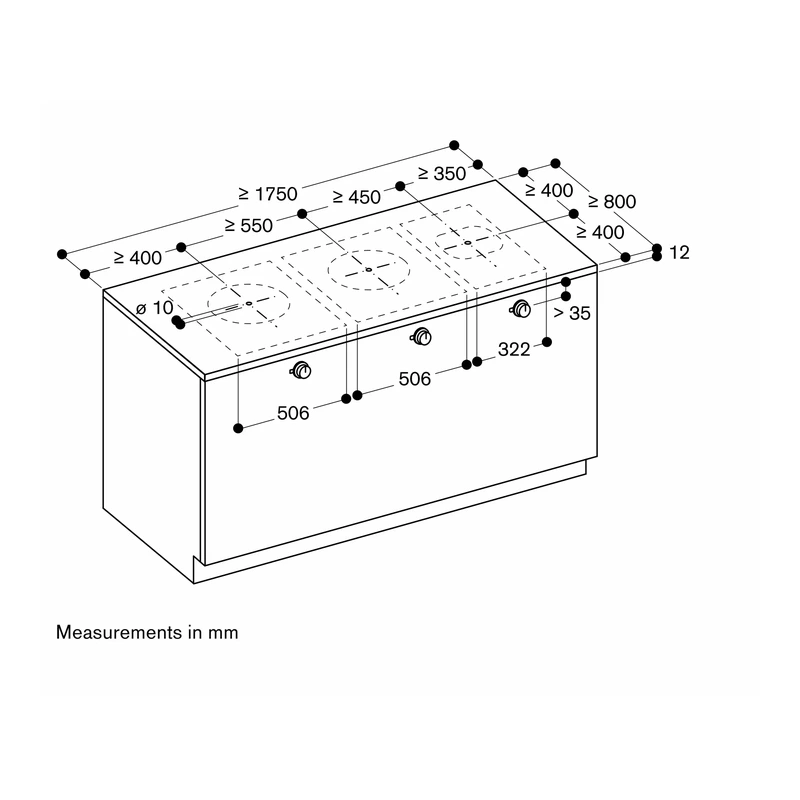

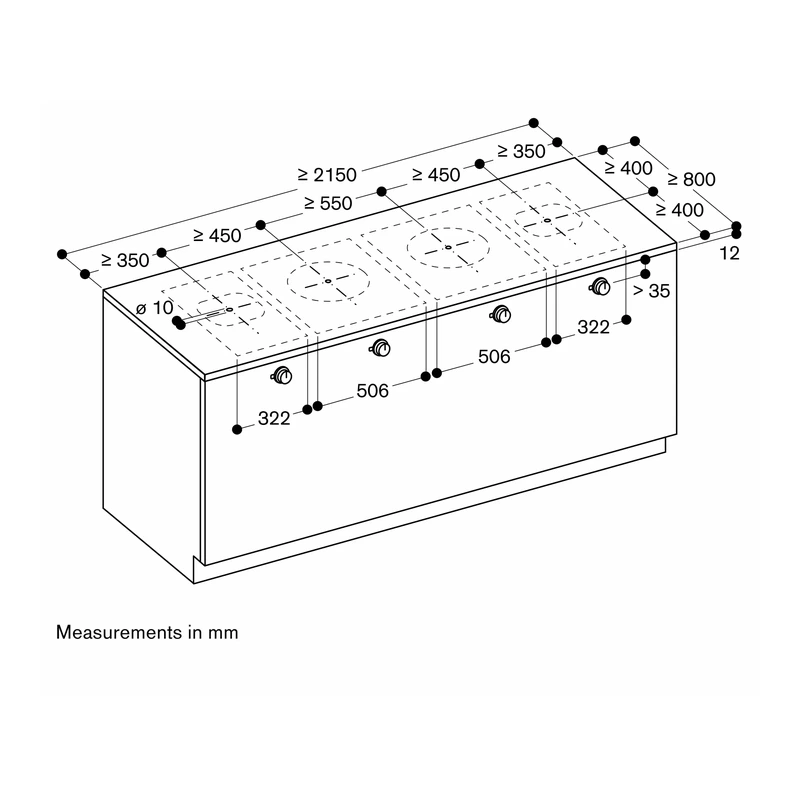

• Minimum distance between cooking zone centres: 450 mm or 550 mm depending on combination.

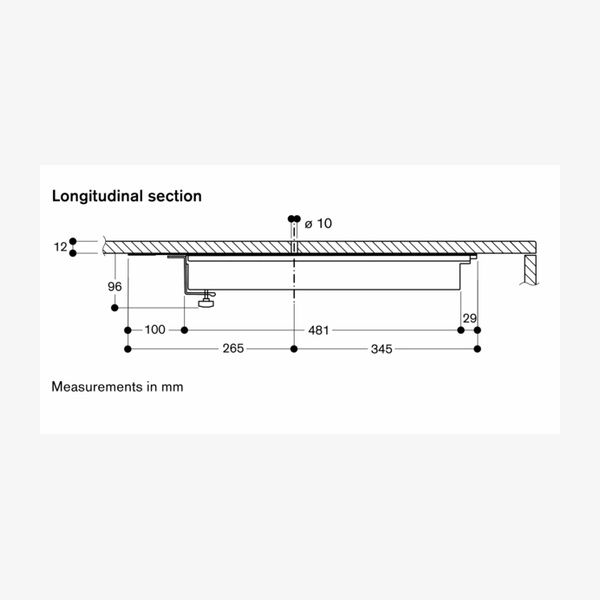

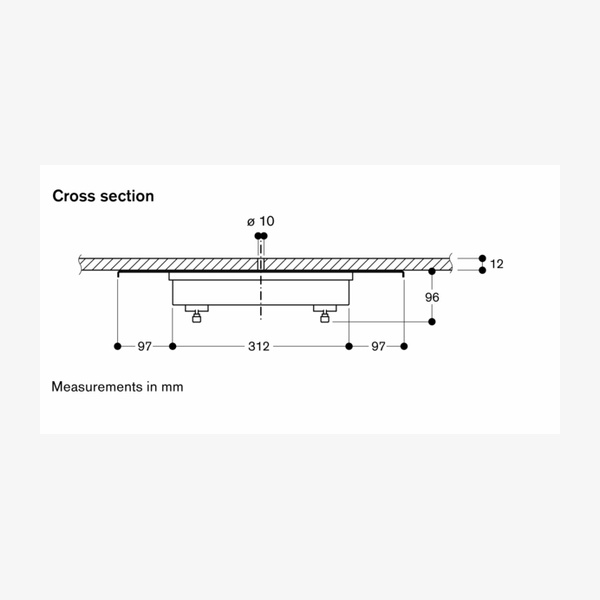

• Minimum distances at the back wall of the furniture and openings should follow dimensional drawings.

Operation and functions

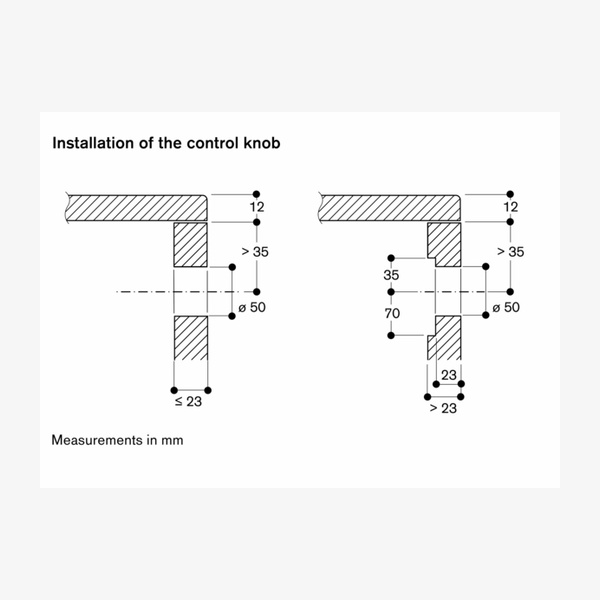

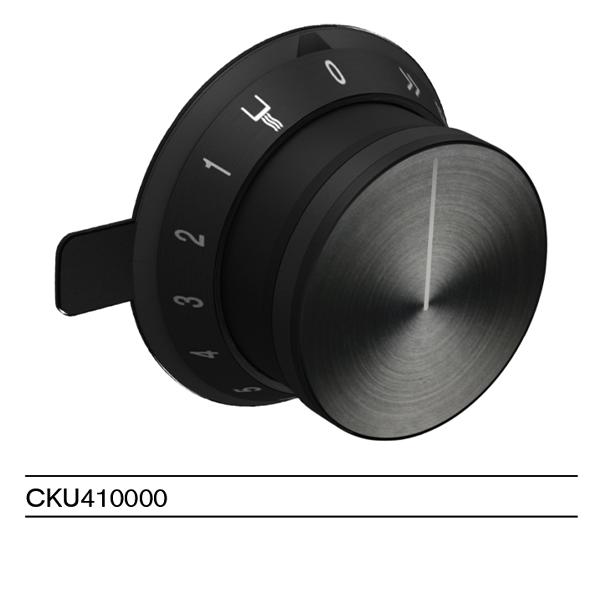

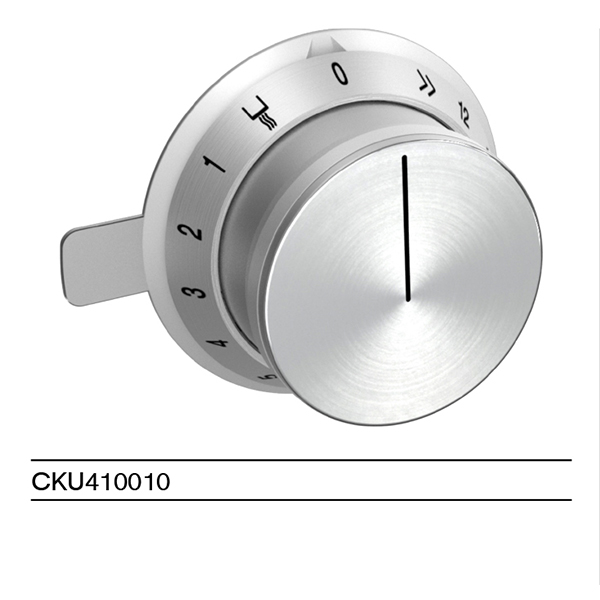

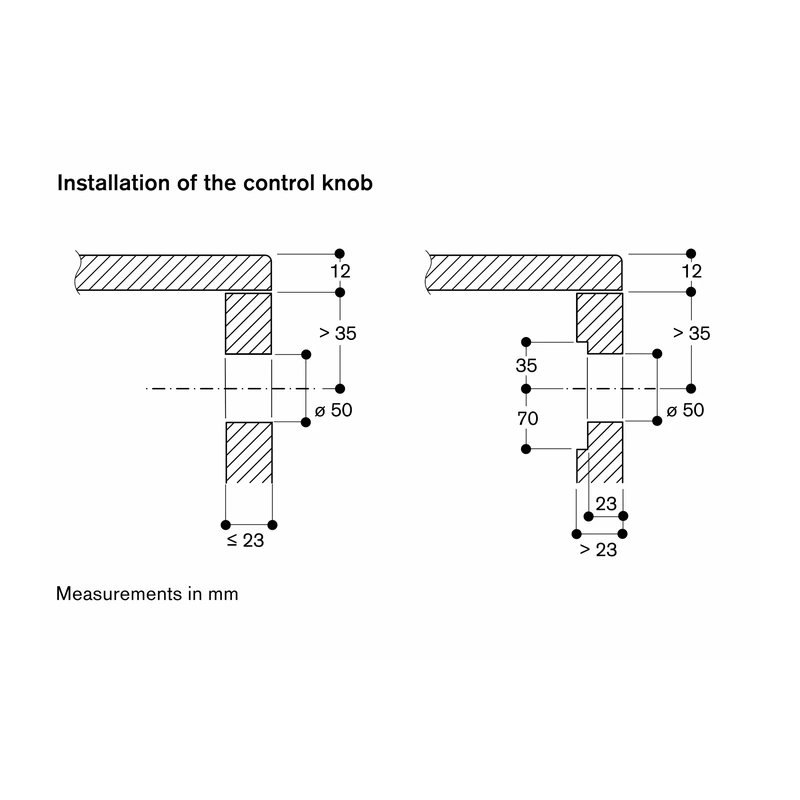

• Operated via control knobs with illuminated ring, cooking zone and output level markings.
• Electronic power control in 12 stages (1…12) for precise heat adjustment.
• Booster function for increased power up to 2700 W on the 28 cm zone.
• Keep warm function to maintain food at a constant temperature.
• Options menu available for further settings.

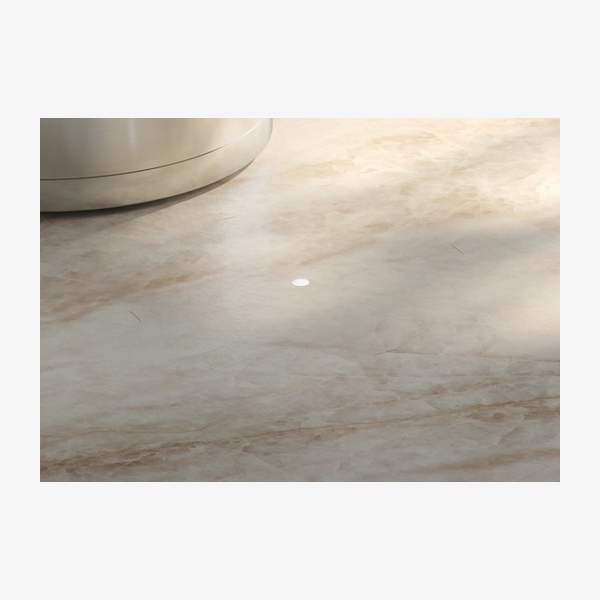

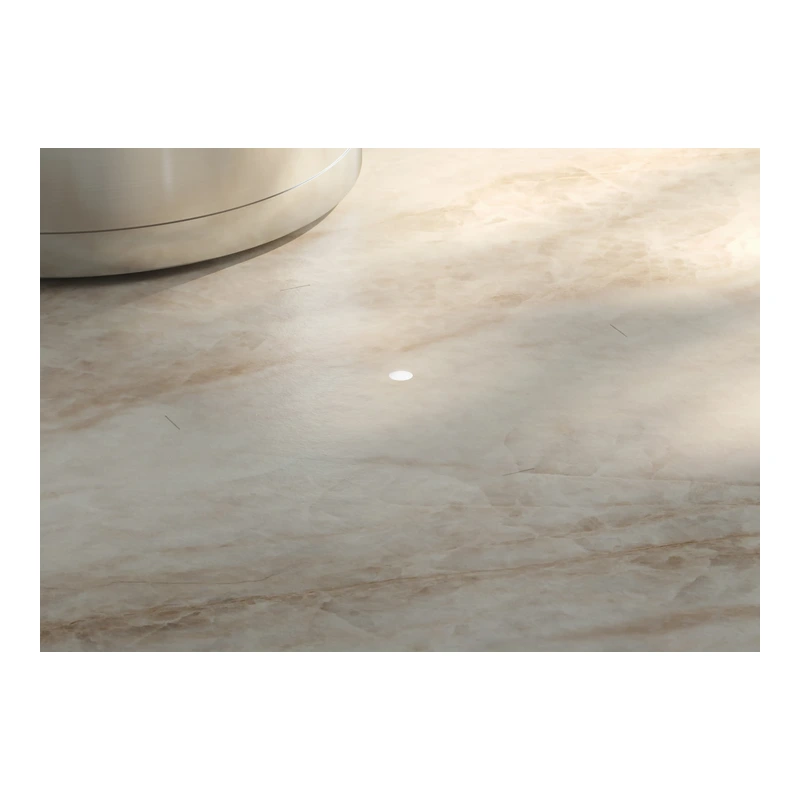

• Cooking zone centre light indicates operation and residual heat directly on the surface.

Safety and compatibility

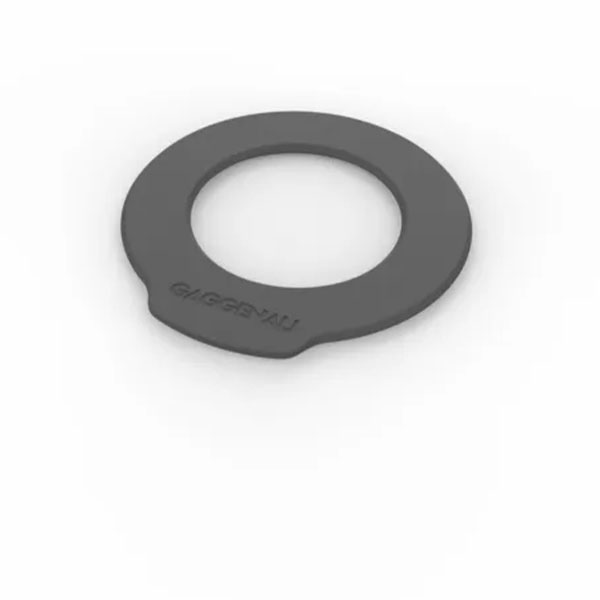

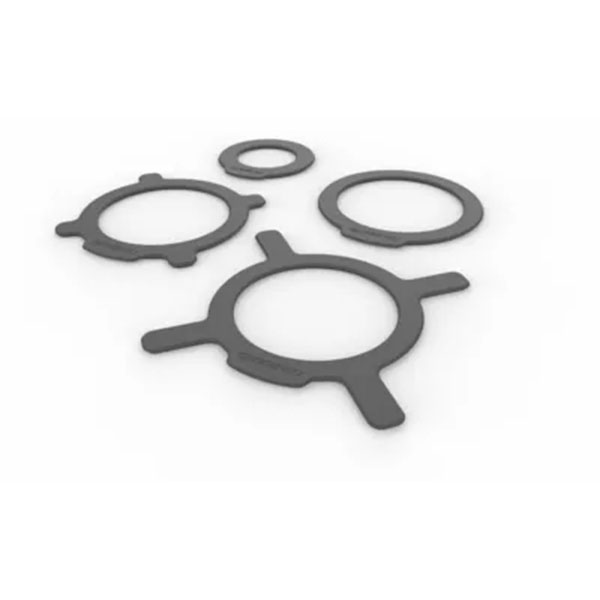

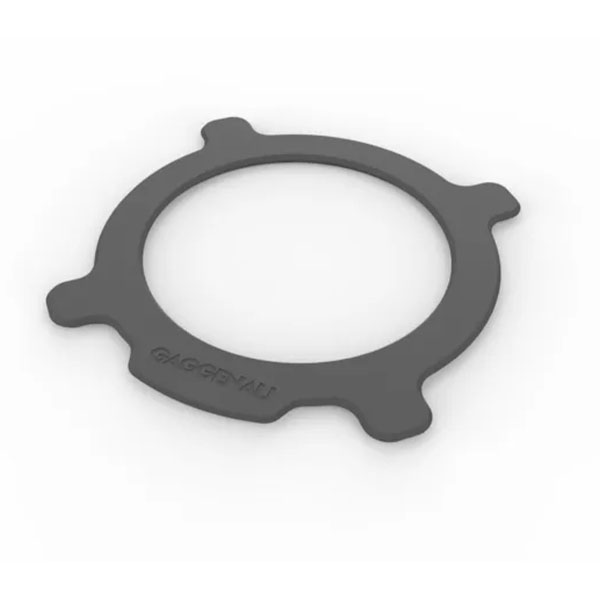

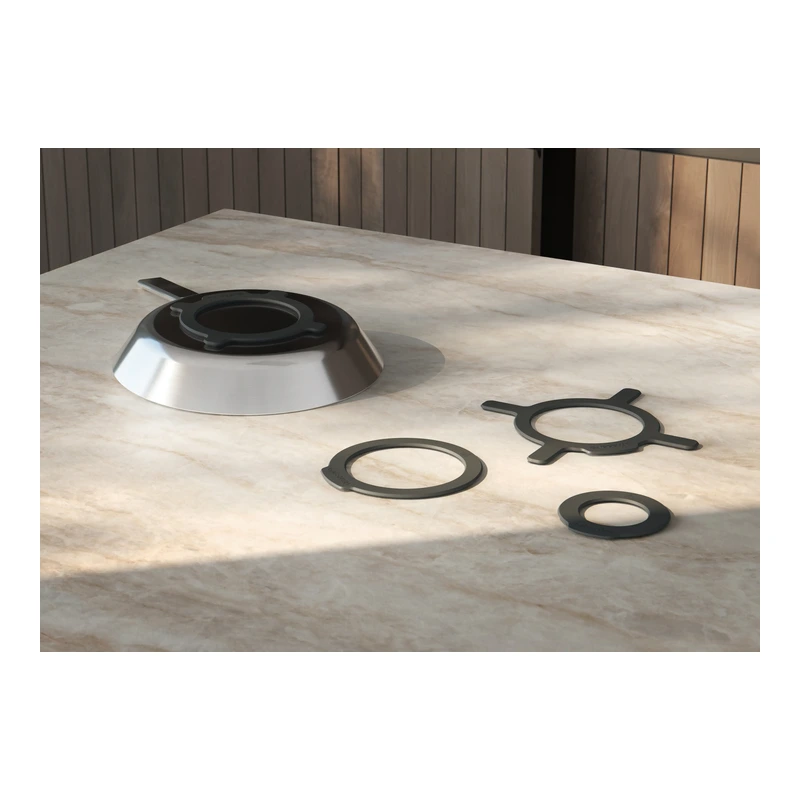

• Only operates with enhanced surface protector.
• Includes operation indicator and pot detection.
• 2-stage residual heat indication is provided directly on the surface and on the knob.
• Automatic safety shut-off is included.
• Operates with magnetic (induction) iron pots and pans only; sandwich bottom cookware is recommended for optimal heat distribution.
