Control and handling

• Twist-Pad control with removable magnetic knob (black), also stated as available in stainless steel or black.
• User-friendly control with two colour display (white / orange).
• Cooking zone and cooking area marking for easy positioning.
• Electronic power control with 17-stage power settings for each cooking zone.
• Control of the ventilation system with 3 electronically controlled power levels and 1 intensive mode.

Cooking functions

• Flex function for rectangular cooking areas.
• Automatic pot detection when the cooktop is switched on.
• Professional cooking function.
• Cooking sensor function (in use with cooking sensor CA 060 300).
• Frying sensor function.
• Booster function for pots and booster function for pans.
• Keep warm function.
• Stopwatch, cooking timer for up to 99 minutes and short-term timer.
• Memory function and options menu.
• Power management.

Ventilation functions

• Automatic sensor-controlled performance adjustment of the ventilation system.
• Automatic activation of the ventilation system when a cooking zone is used.
• Interval ventilation, 6 minutes.
• Automatic sensor-controlled or manual run-on function.
• Air extraction or recirculation operation possible.
• Integrated activated charcoal filter easily removable from above for air recirculation system.
• Fan technology with highly efficient, brushless DC motor and airflow-optimised interior for efficient air circulation.

Cleaning and maintenance

• Large-scale metal grease filter, easy to remove and dishwasher-safe.
• Removable, dishwasher-safe grease filter unit.
• High-grade black zinc die-casted cover for ventilation system, dishwasher-safe.
• Grease filter and activated charcoal filter saturation indicator.
• Detachable, dishwasher-safe two-stage overflow protection.
• Removable overflow container, 0.9-litre capacity, dishwasher-safe.

Safety features

• Main switch and operation indicator.
• Pot detection.
• 2-stage Hh residual heat indicator for each zone.
• Child lock.
• Safety shut-off.
• Overflow protection and removable overflow container.
• When installing with a ventilation hood in air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs a suitable safety switch.

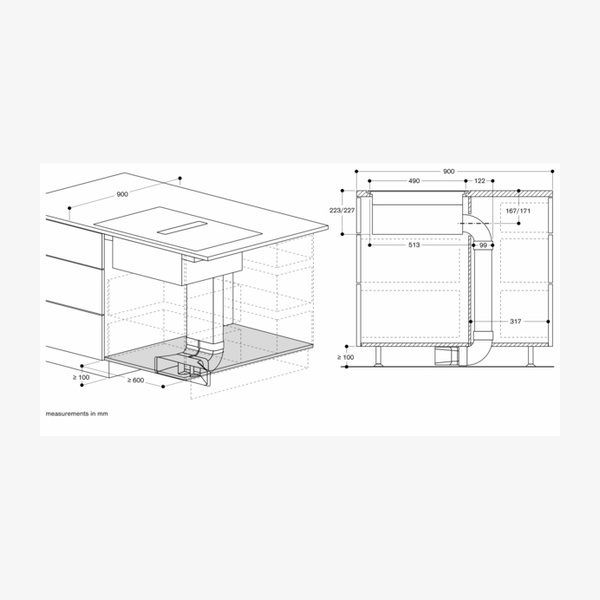

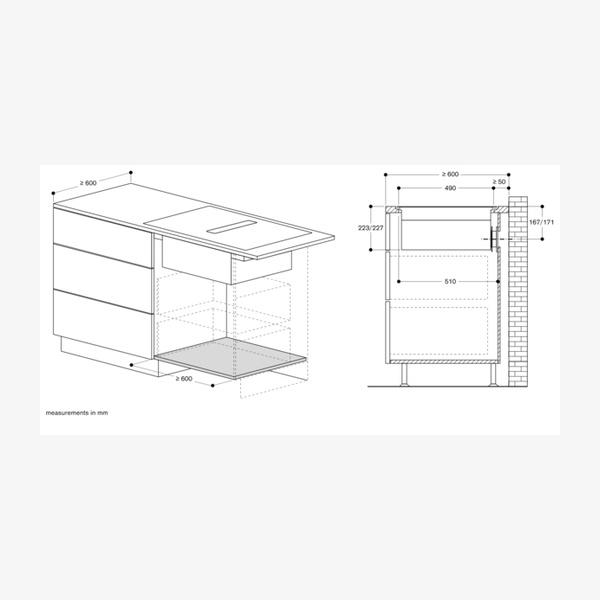

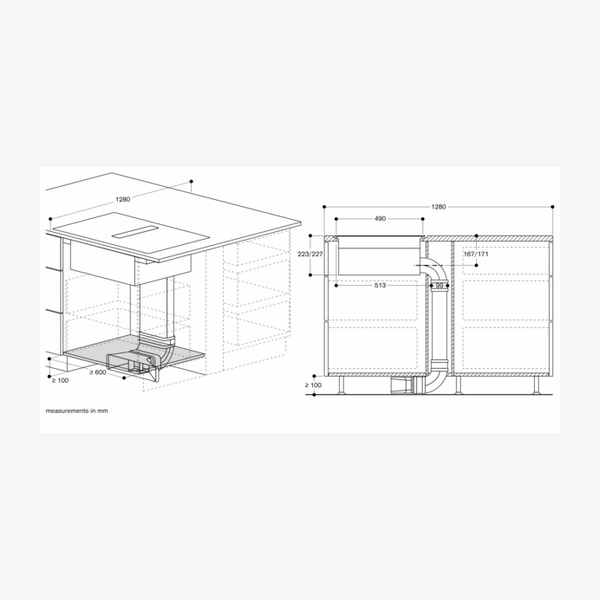

Installation notes

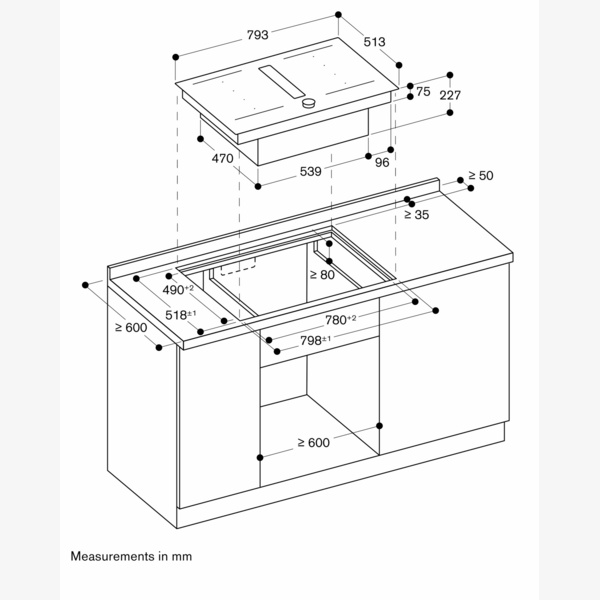

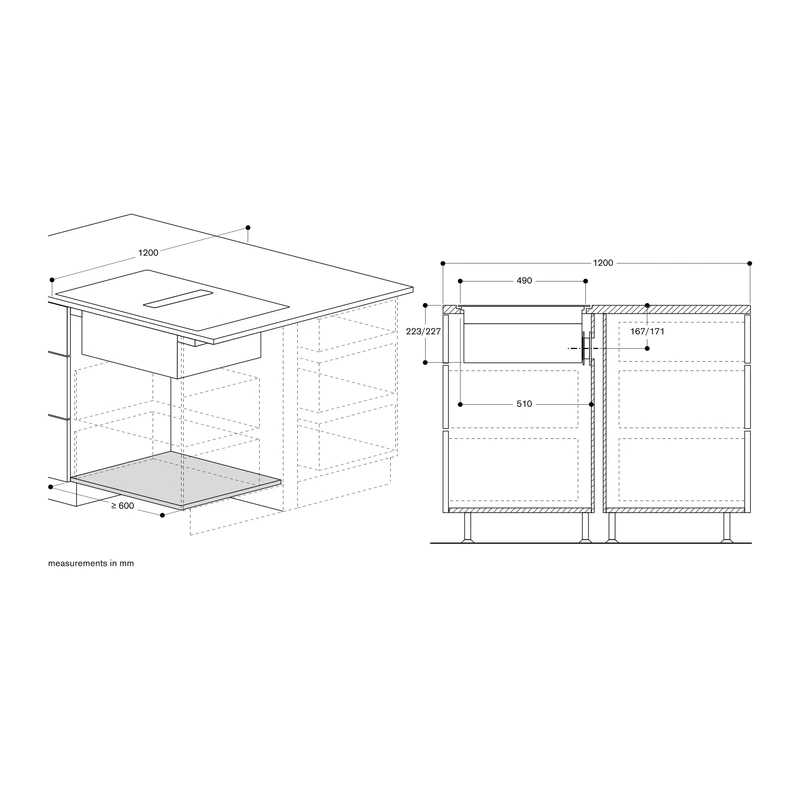

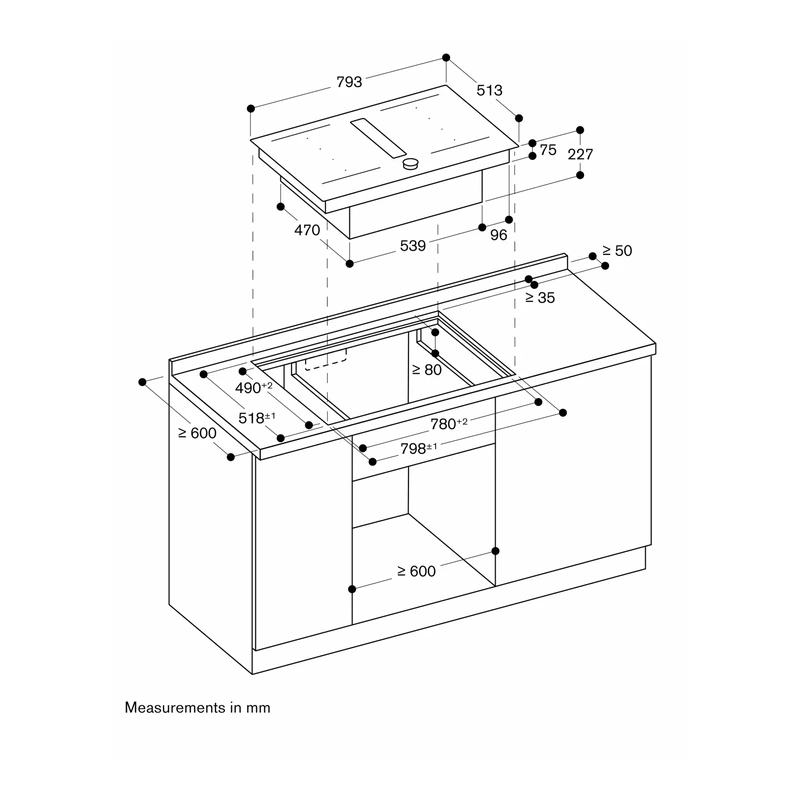

• Bottom cabinet width: minimum 60 cm.

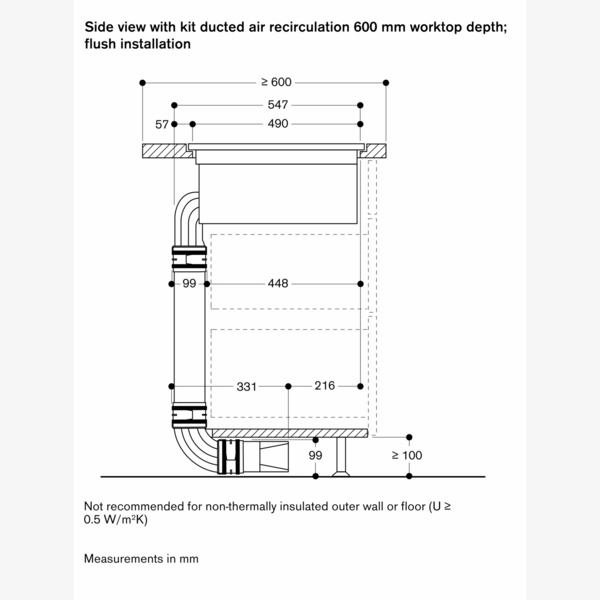

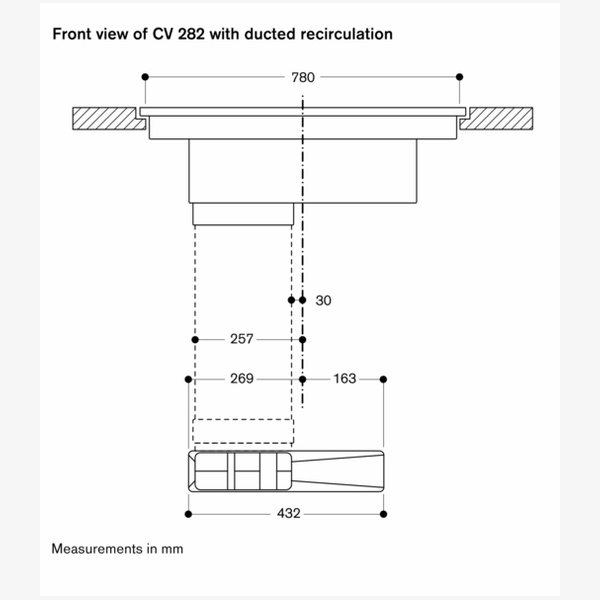

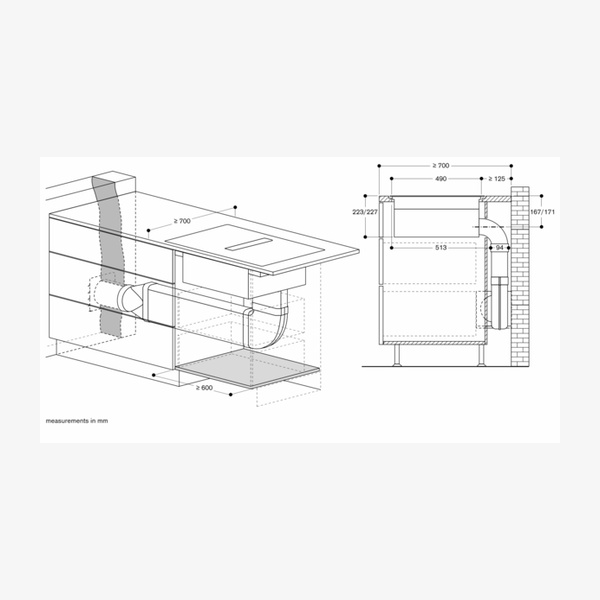

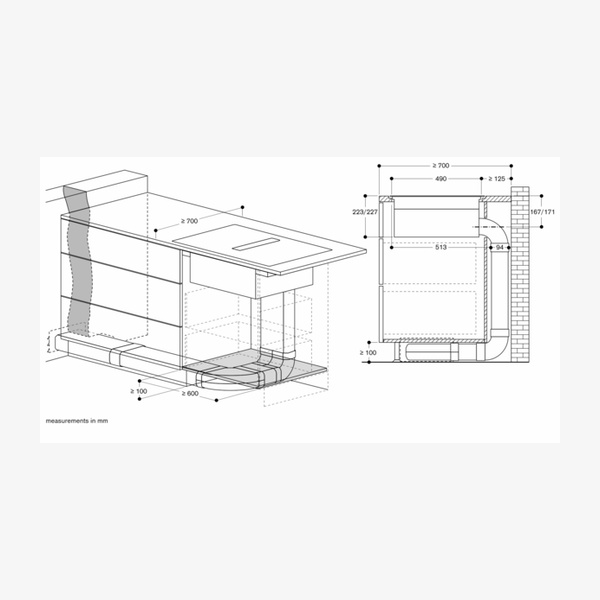

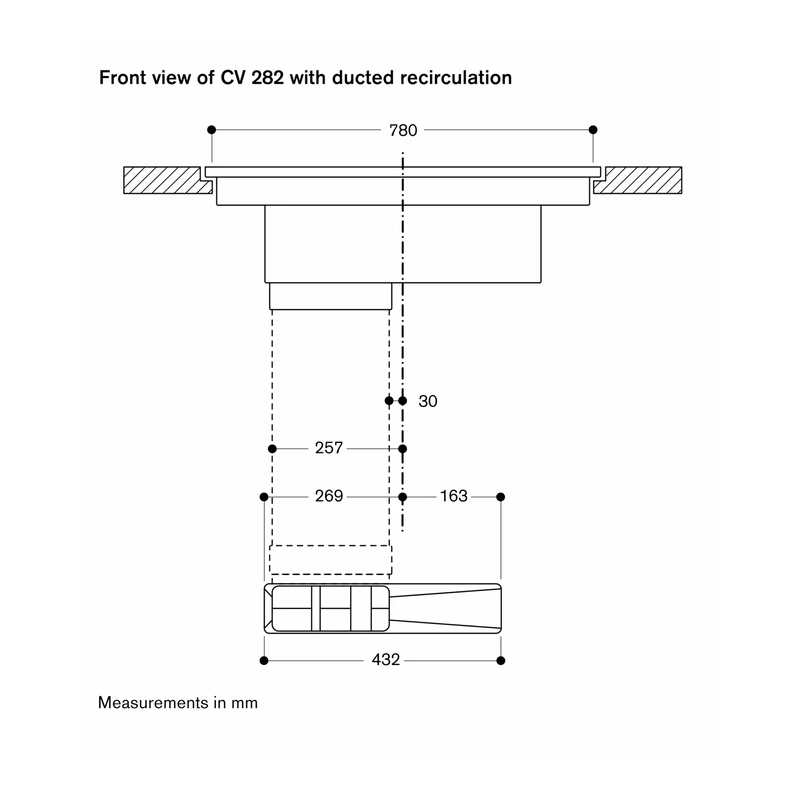

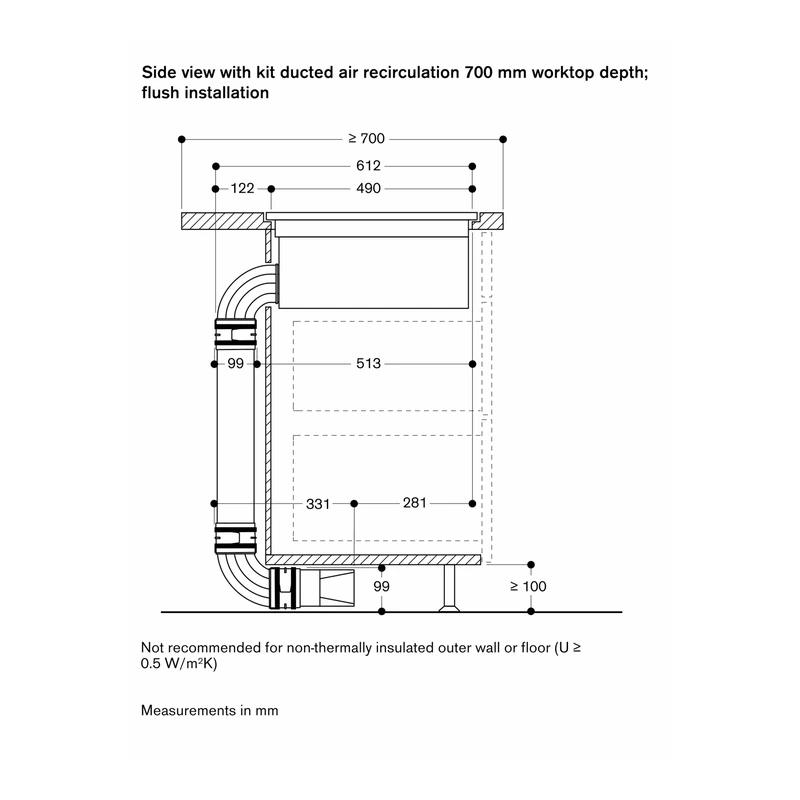

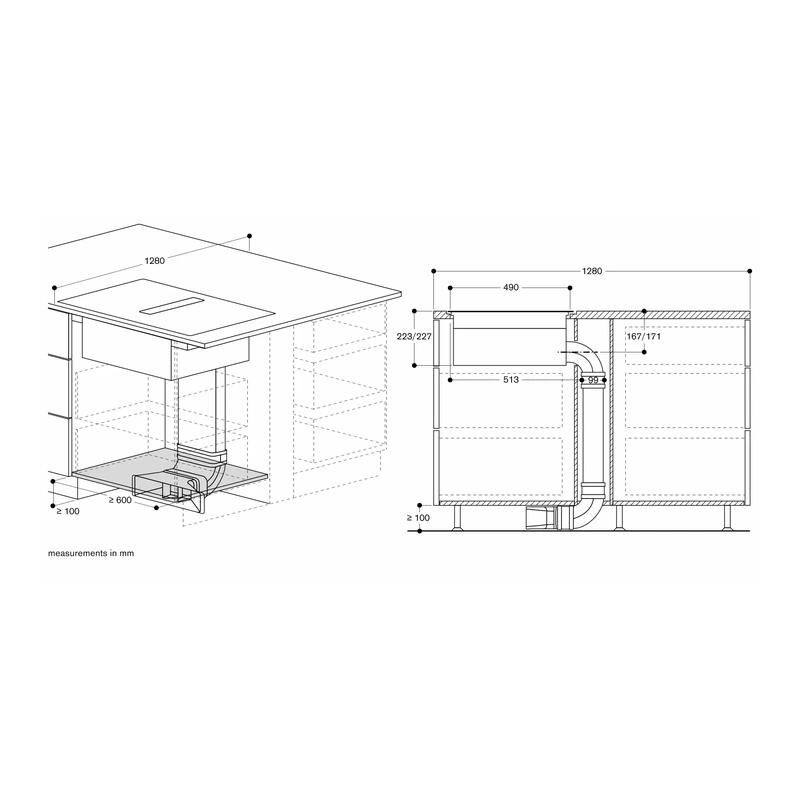

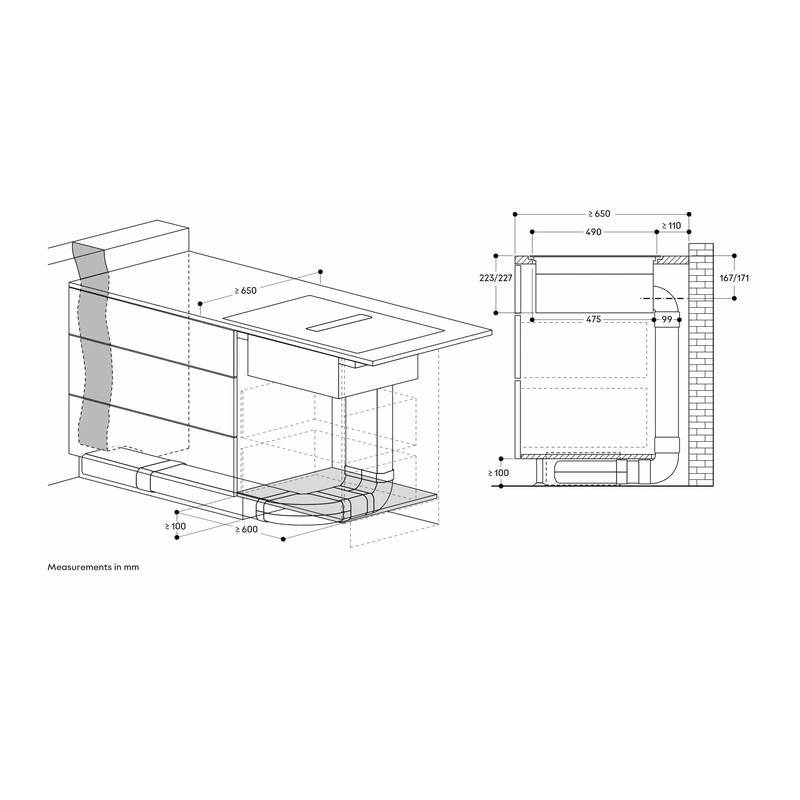

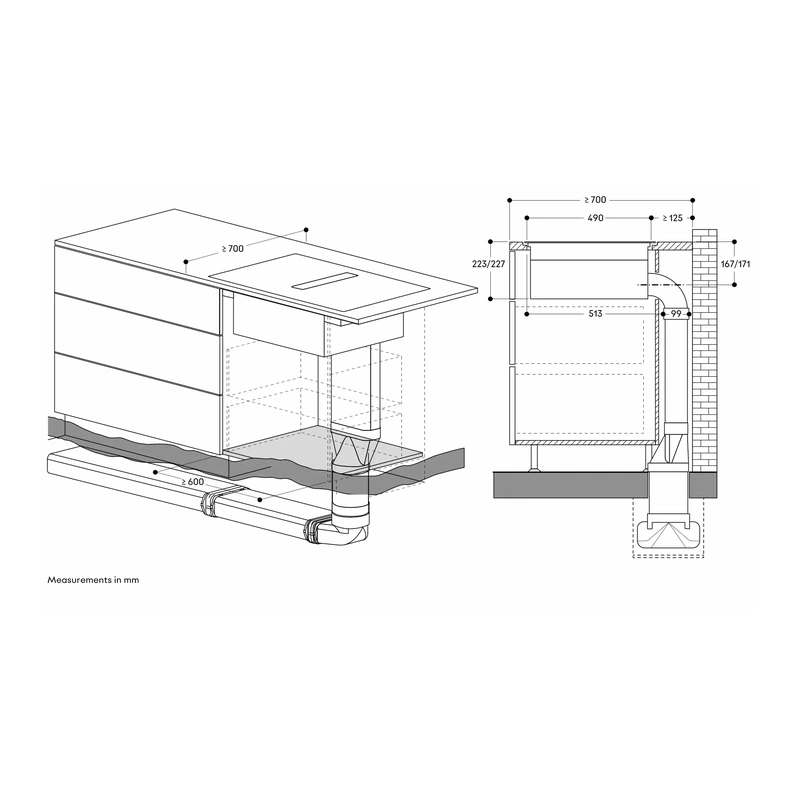

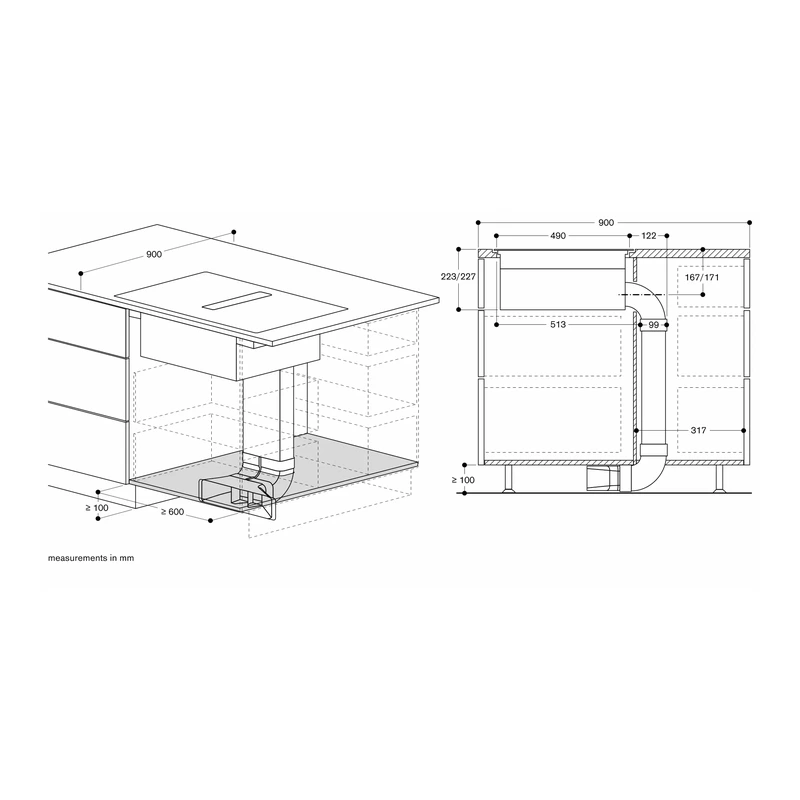

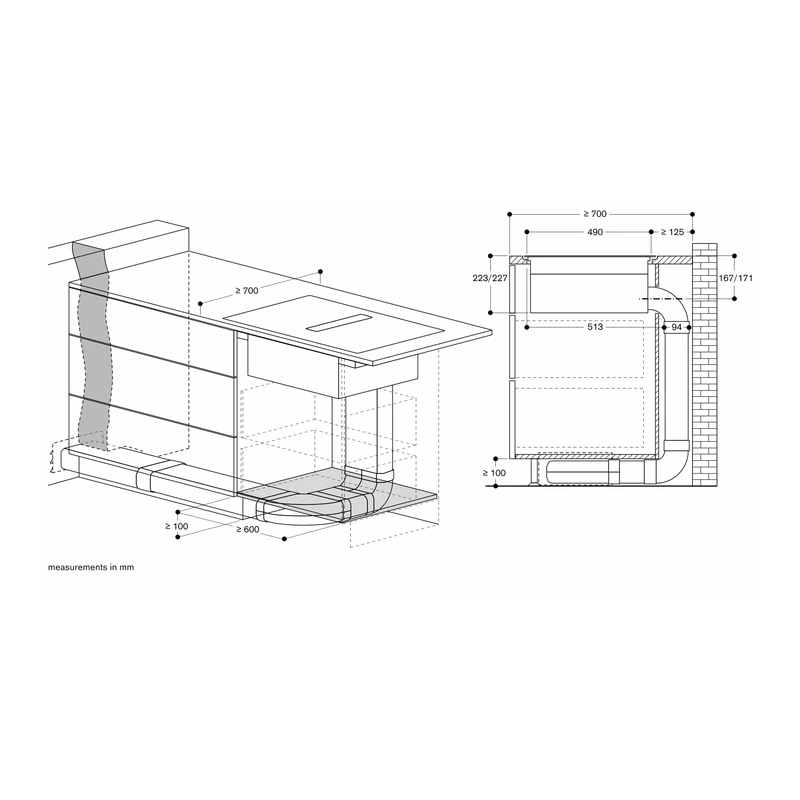

• Worktop depth: minimum 60 cm with unducted recirculation, minimum 65 cm with ducted recirculation/extraction.

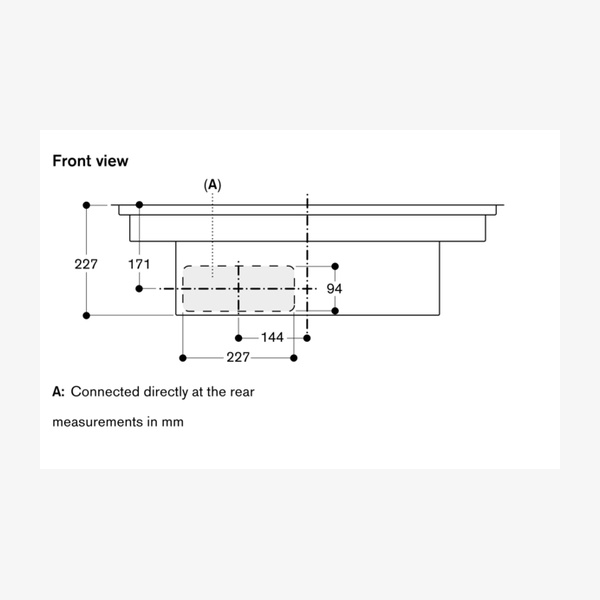

• Immersion depth: 227 mm.

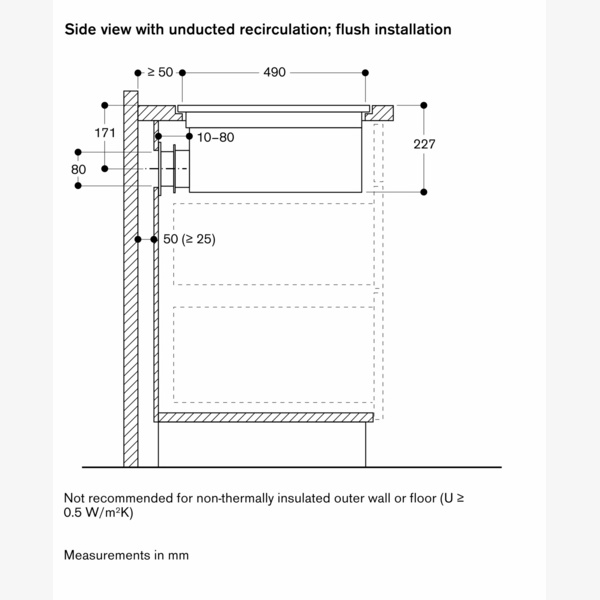

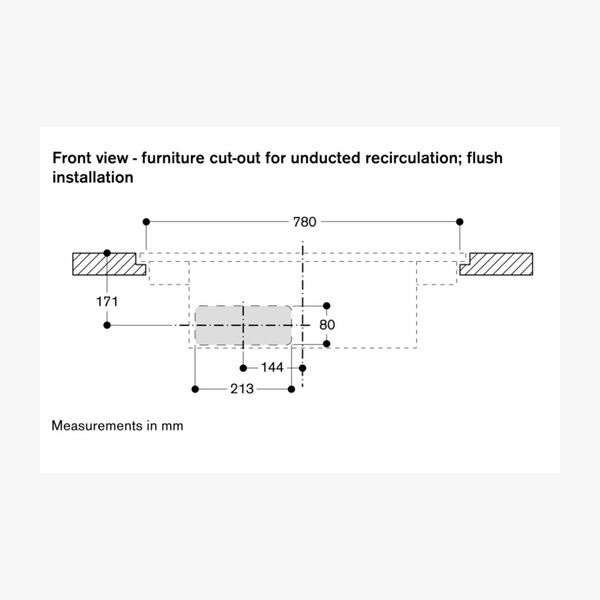

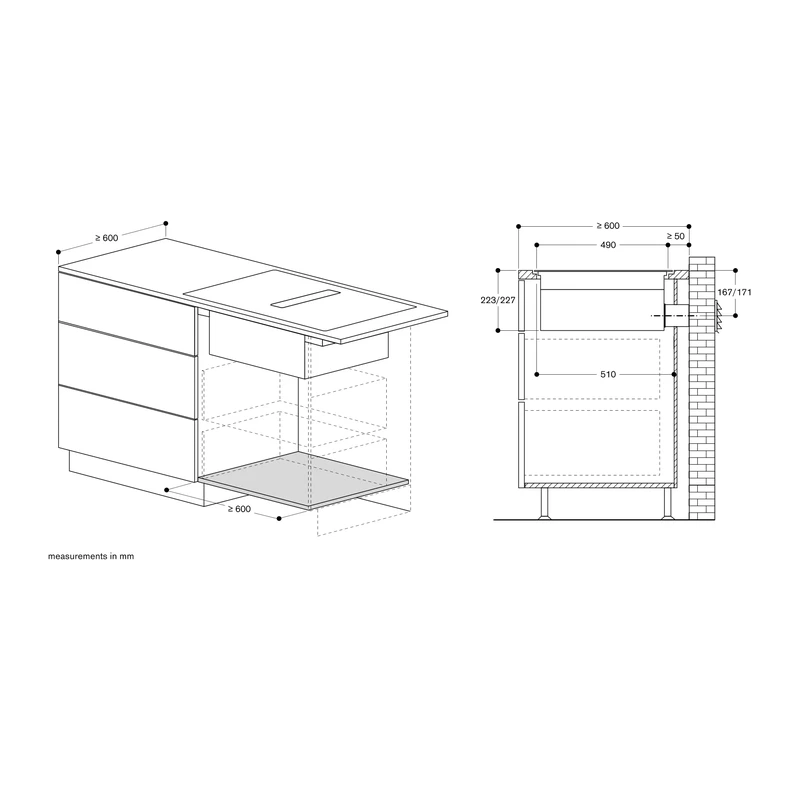

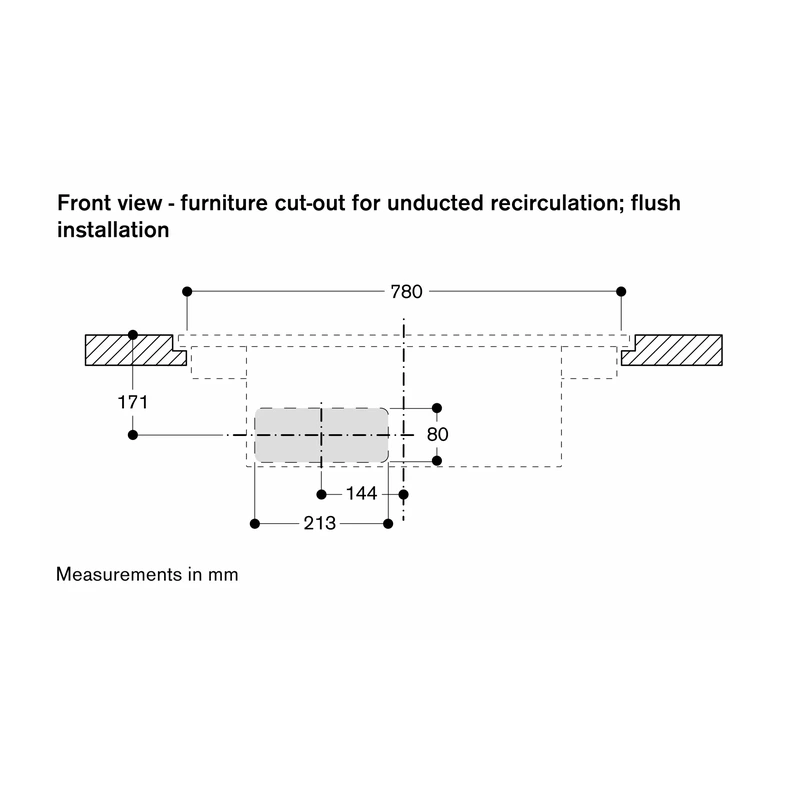

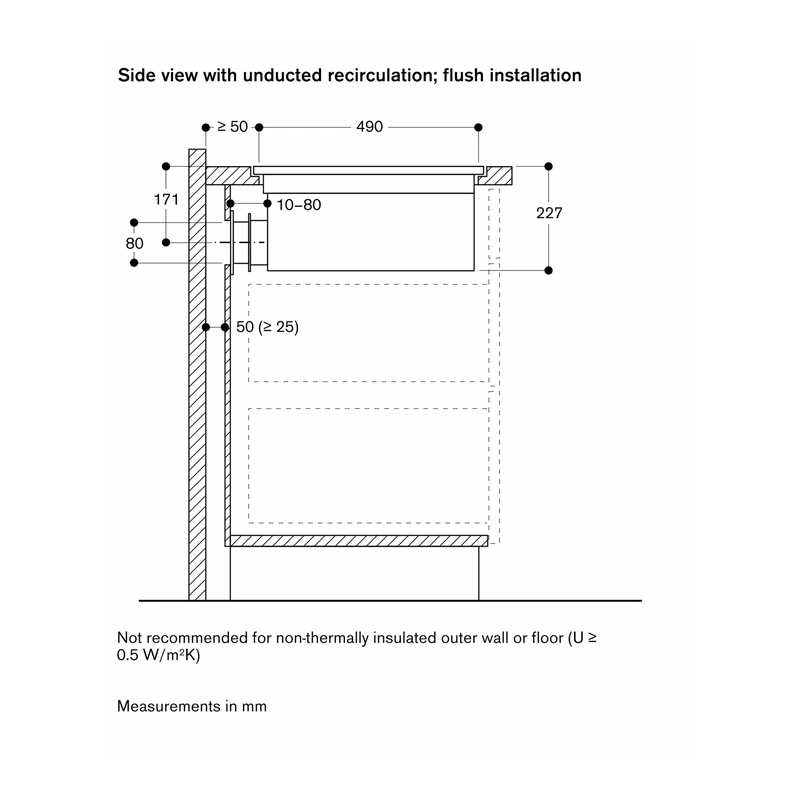

• The unducted recirculation set CA 082 011 requires a vertical aperture of minimum 25 mm behind the back panel of the furniture (50 mm suggested for ideal performance).

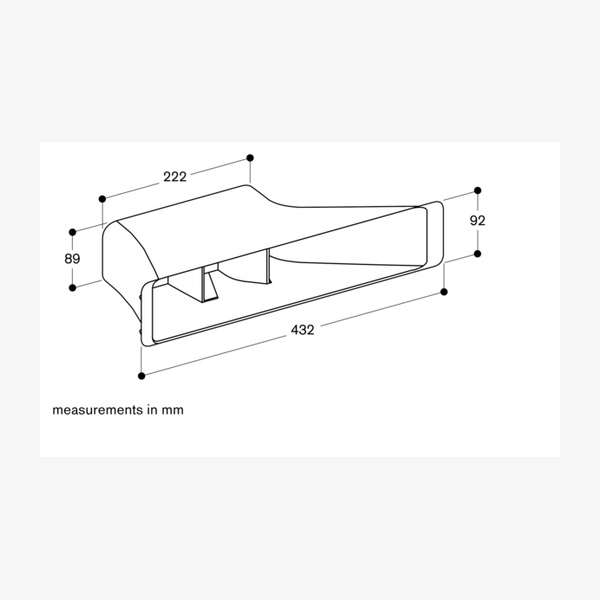

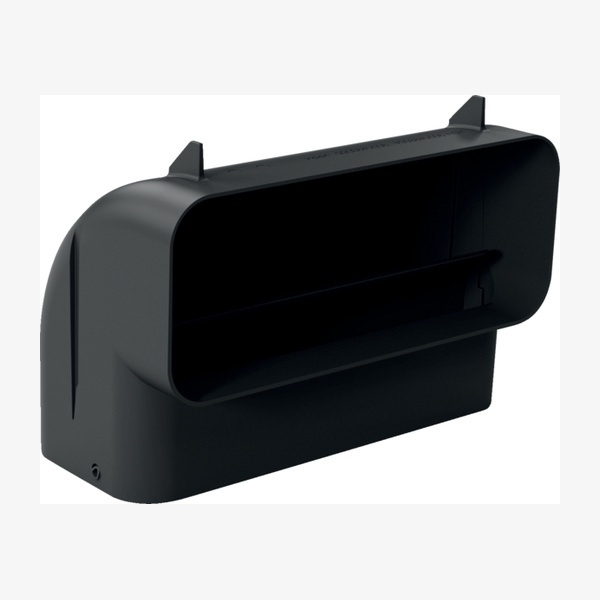

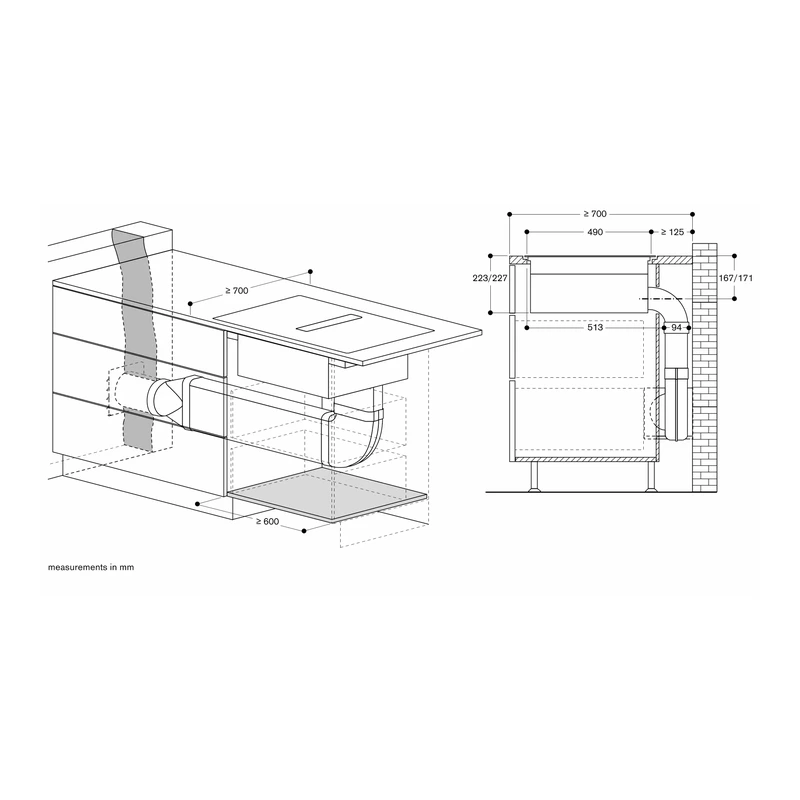

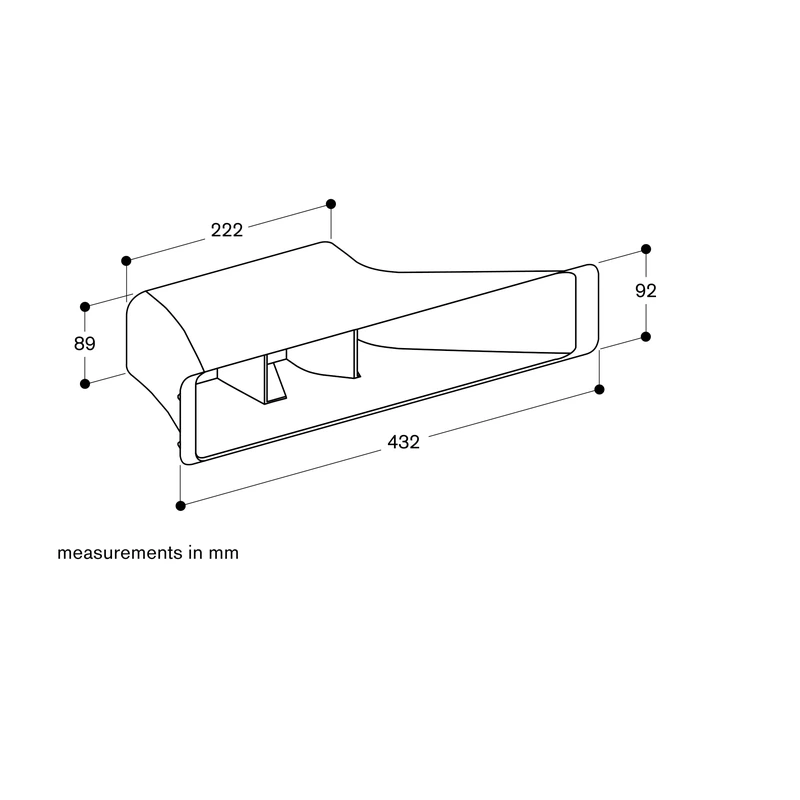

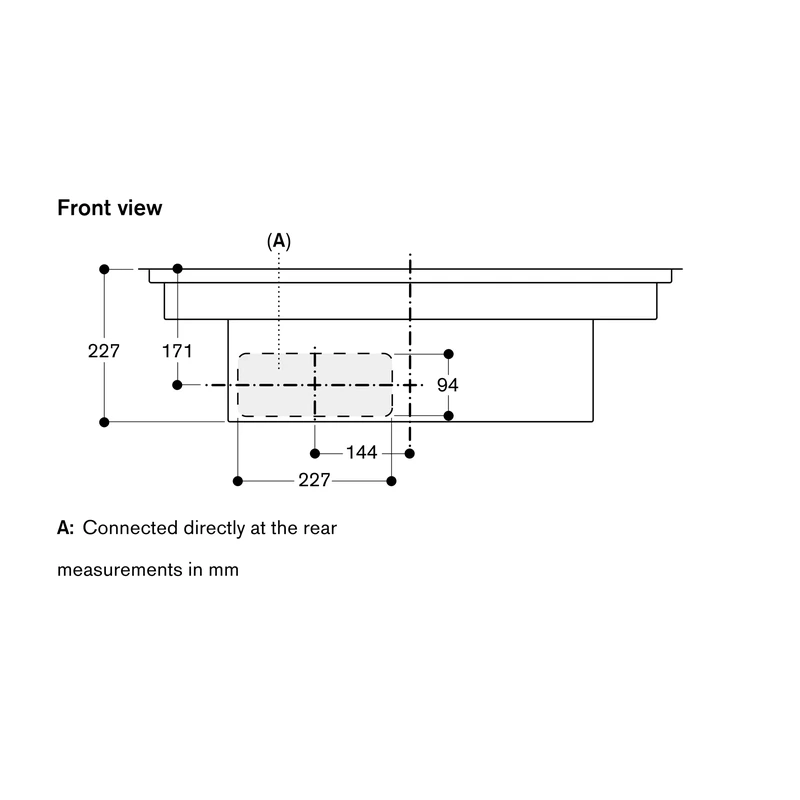

• The air outlet on the backside of the appliance can directly be accessed with a flat duct element (DN 150).

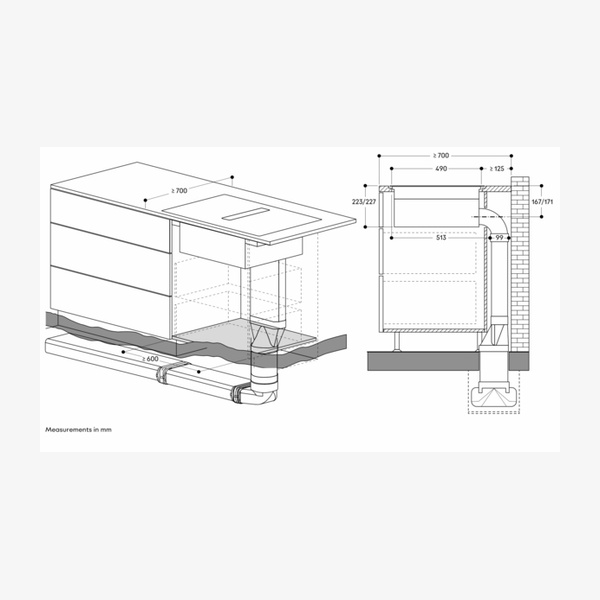

• In air extraction a one-way flap with a maximum opening pressure of 65 Pa should be installed.
• For optimum performance in air recirculation an outflow surface area of at least 400 cm² is recommended.
• Appliance must be fixed from underneath and must be freely accessible from below.
• The bearing capacity and stability, in particular for thin worktops, must be supported using suitable substructures.

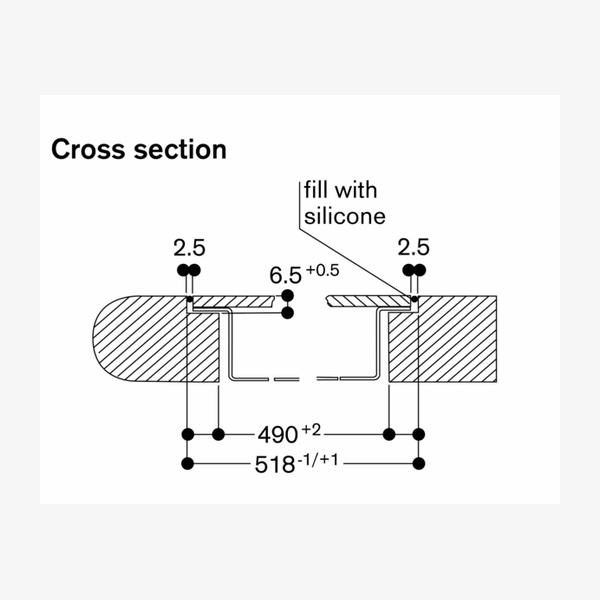

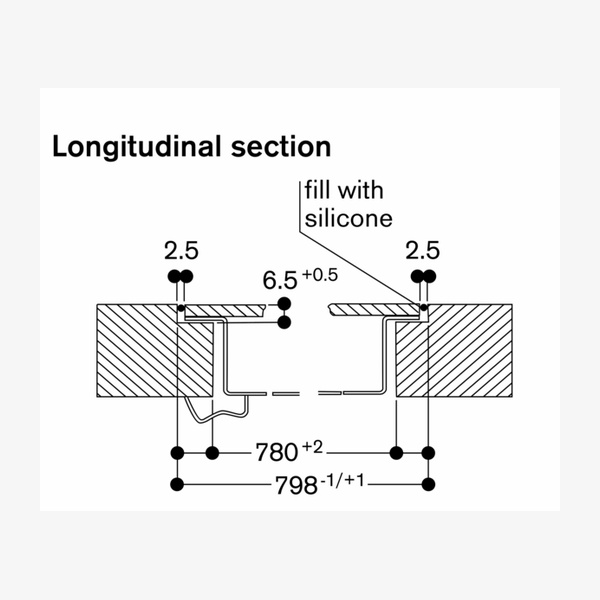

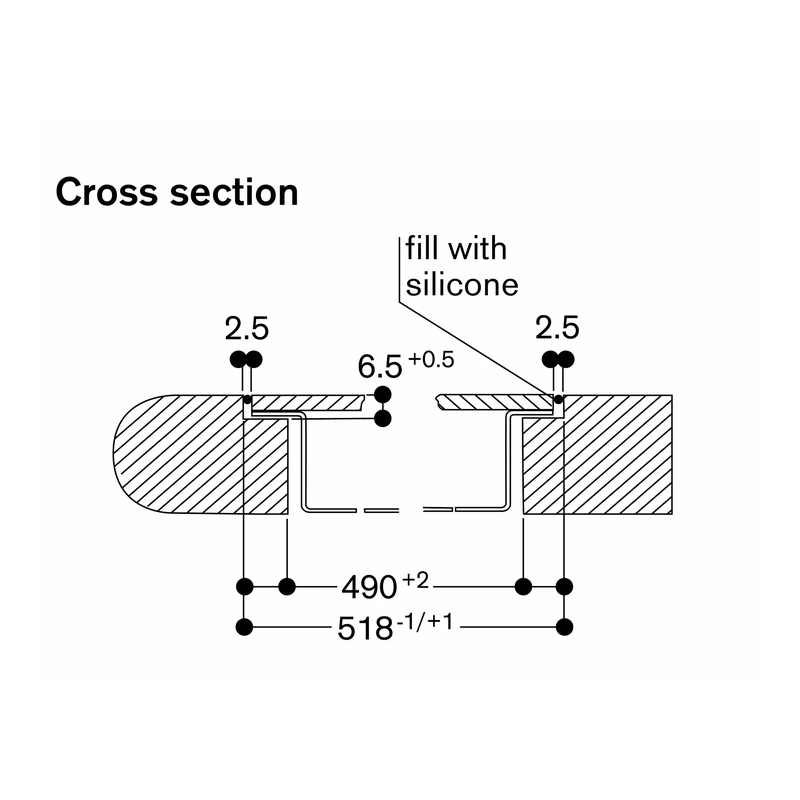

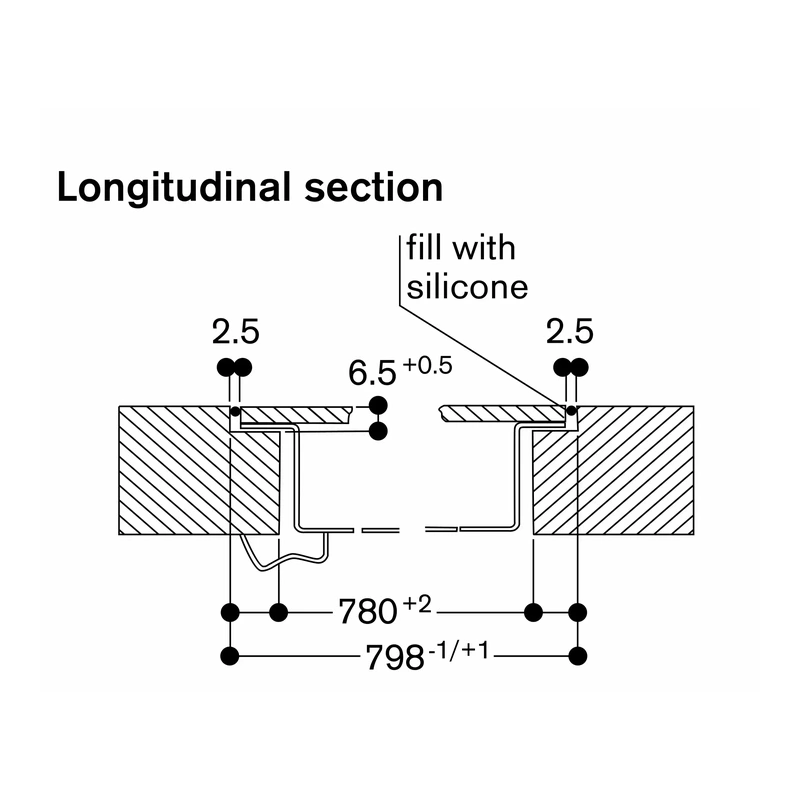

• The groove must be continuous and even to ensure uniform placing of the appliance on the gasket; do not use discontinuous lining.

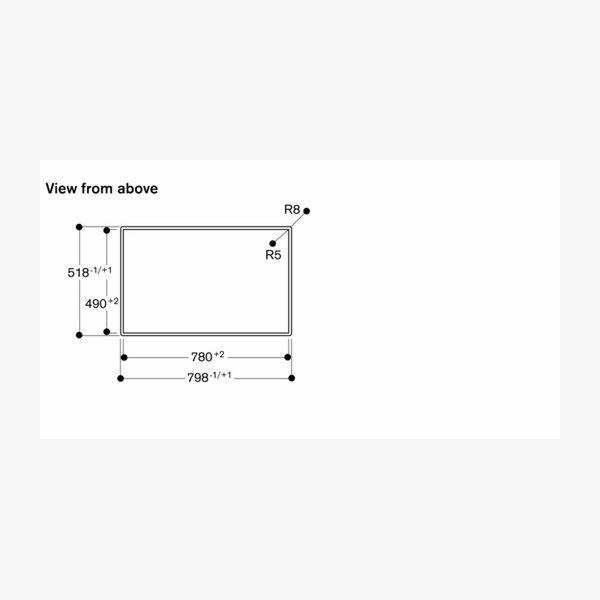

• Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and the worktop cut-out.

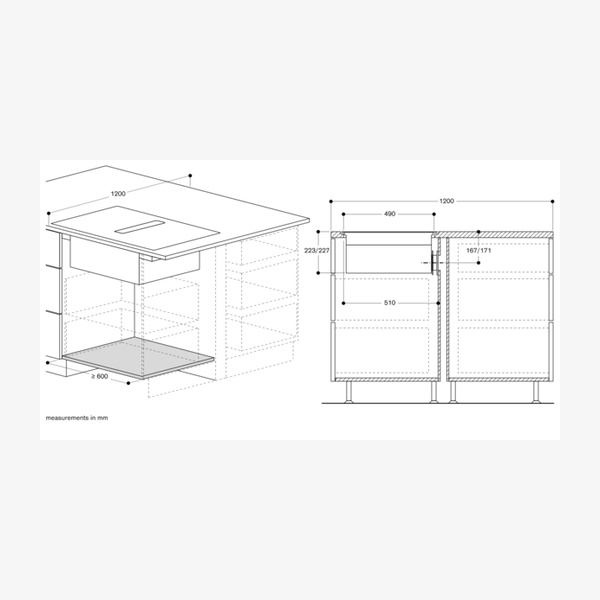

• Comply with the clearances from underneath the worktop to the overflow container: minimum 300 mm to remove and empty the container.
• Installation is possible in worktops made of stone, synthetics or solid wood; heat resistance and watertight sealing of cut edges must be observed. For other materials please consult the worktop manufacturer.

Cookware compatibility

Operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended.

Digital connectivity

Selected digital services (Gaggenau Home Connect) include remote control and monitoring of ventilation, remote monitoring of cooking zones and remote diagnostics. Power consumption in network standby is 2 W. The WiFi module can be switched off; please check the user manual for instructions.

Optional and special accessories

• CA050300: Flex pan set, 3 pcs.
• CA051301: Teppan Yaki.
• CA052300: Griddle Plate.
• CA055300: Flex pan large.

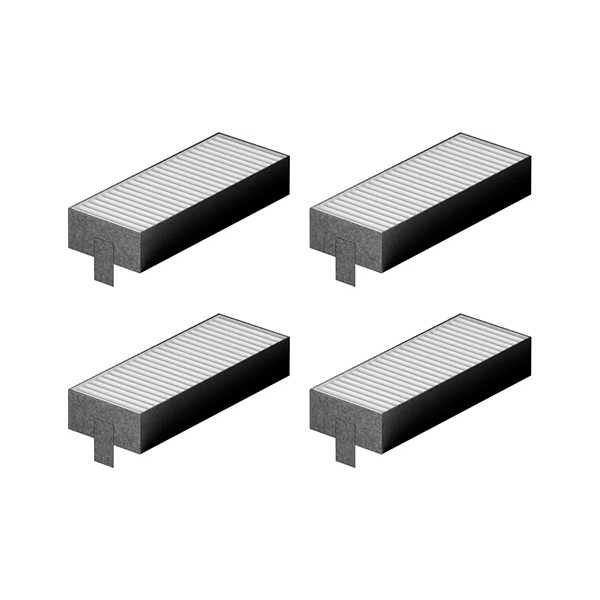

• CA084010: Acoustic filter.

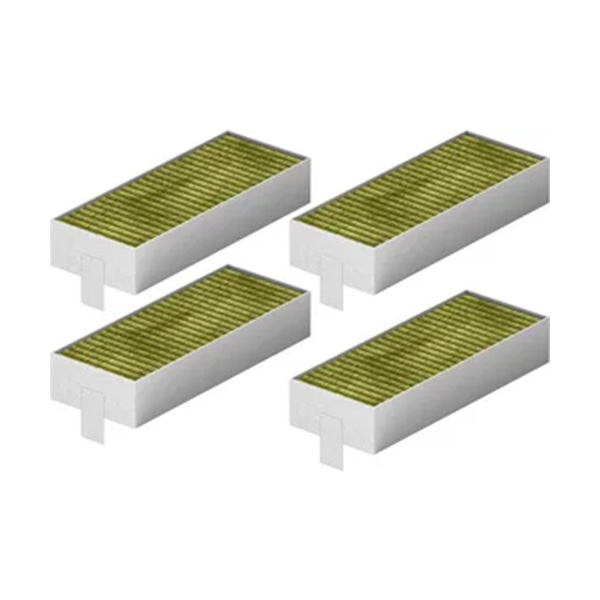

• CA282112: Recirculation replenishment filter CV.

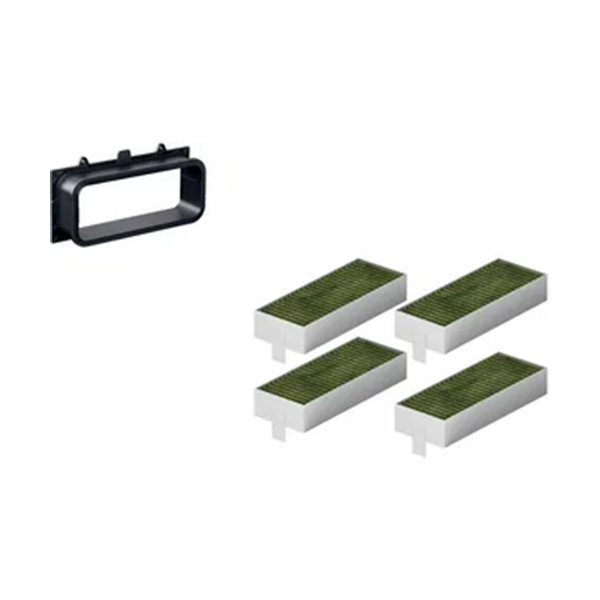

• CA082011: Kit unducted recirculation.

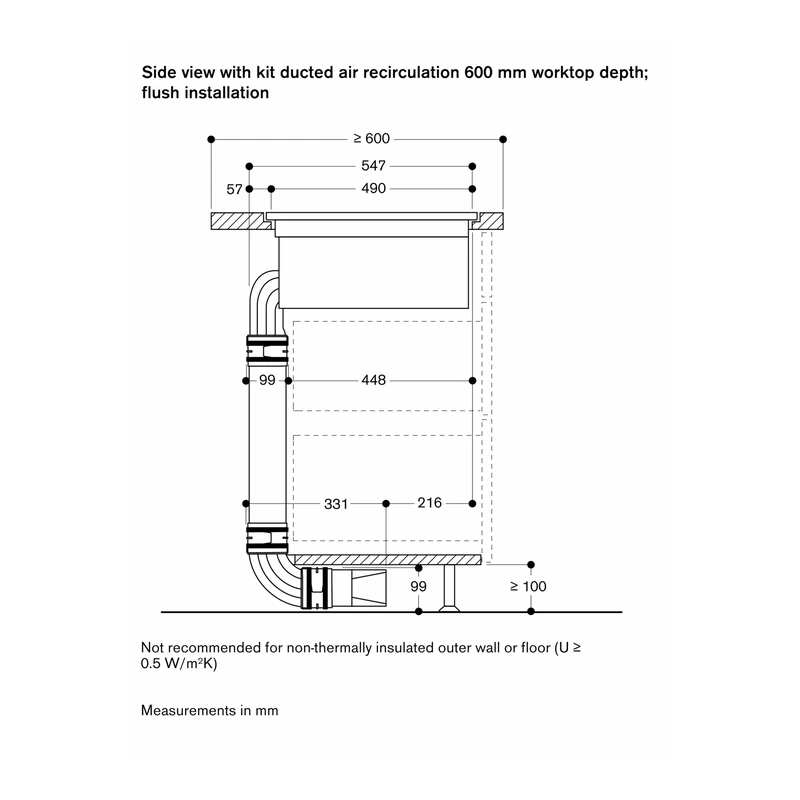

• CA082061: Kit ducted recirculation, 60 cm worktop.

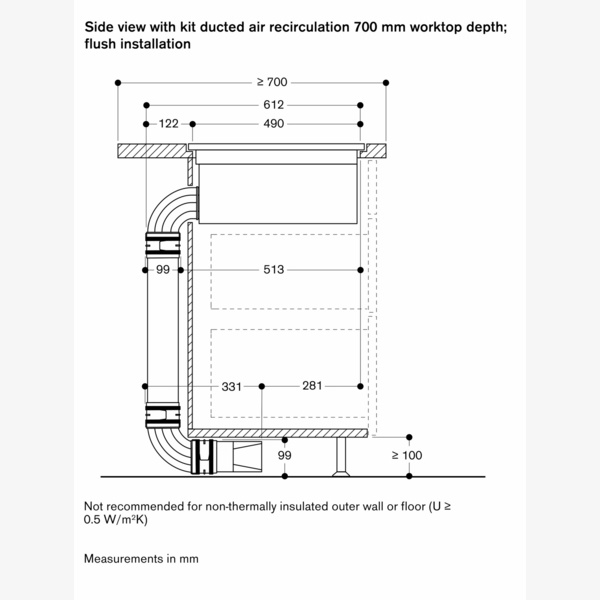

• CA082071: Kit ducted recirculation, 70 cm worktop.
• CA084010: Acoustic filter (also listed under installation accessories).
• Part No. 17006018: Frying sensor pan, ø 20 cm.
• Part No. 17006184: Frying sensor pan, ø 24 cm.
