What type of cookware can I use with the CV492105?

The appliance operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended.

Can the CV492105 be used with air extraction and recirculation?

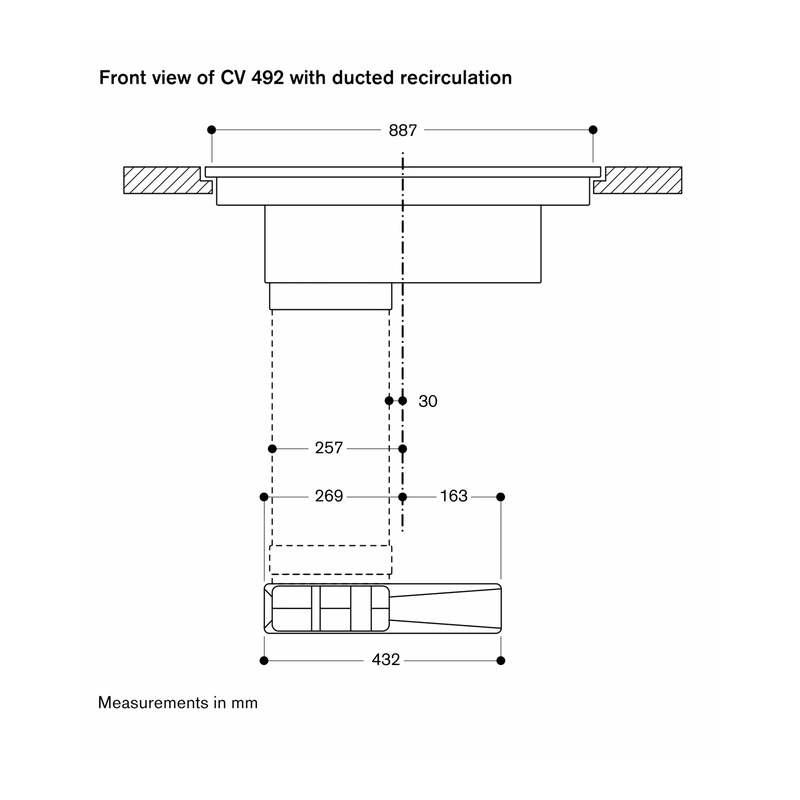

Yes. The appliance supports both air extraction and recirculation. For recirculation, it uses an integrated activated charcoal filter that is easily removable from above. Ducted and unducted recirculation kits are available as accessories.

How is the ventilation system controlled?

The ventilation is controlled via the control knobs with illuminated ring and offers 3 electronically controlled power levels and 1 intensive mode. It includes automatic sensor-controlled performance adjustment, automatic activation when a cooking zone is used, interval ventilation (6 min) and an automatic or manual run-on function.

What safety features does the CV492105 include?

Safety features include an operation indicator, pot detection, 2 stage Hh residual heat indicator for each zone, child lock, safety shut-off, detachable dishwasher-safe two-stage overflow protection and a removable 0.9-litre overflow container.

Is the cooktop compatible with Home Connect?

Yes. The appliance features an integrated WiFi module for selected digital services via Home Connect, including remote control and monitoring of ventilation, remote monitoring of cooking zones and remote diagnostics. Availability of Home Connect Services depends on the country.

What are the minimum installation requirements for the cabinet and worktop?

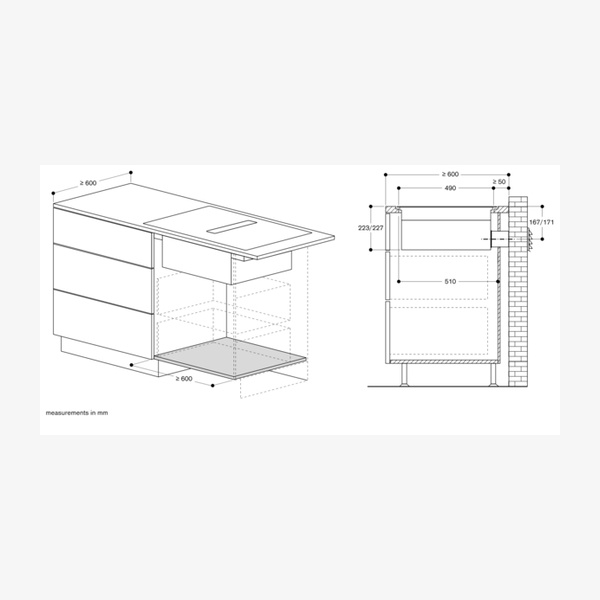

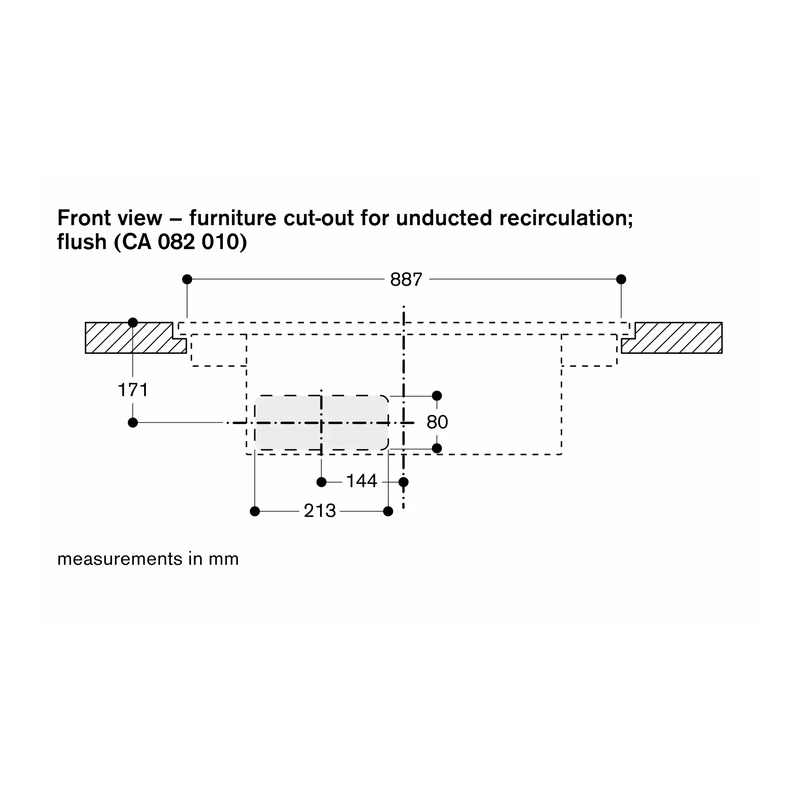

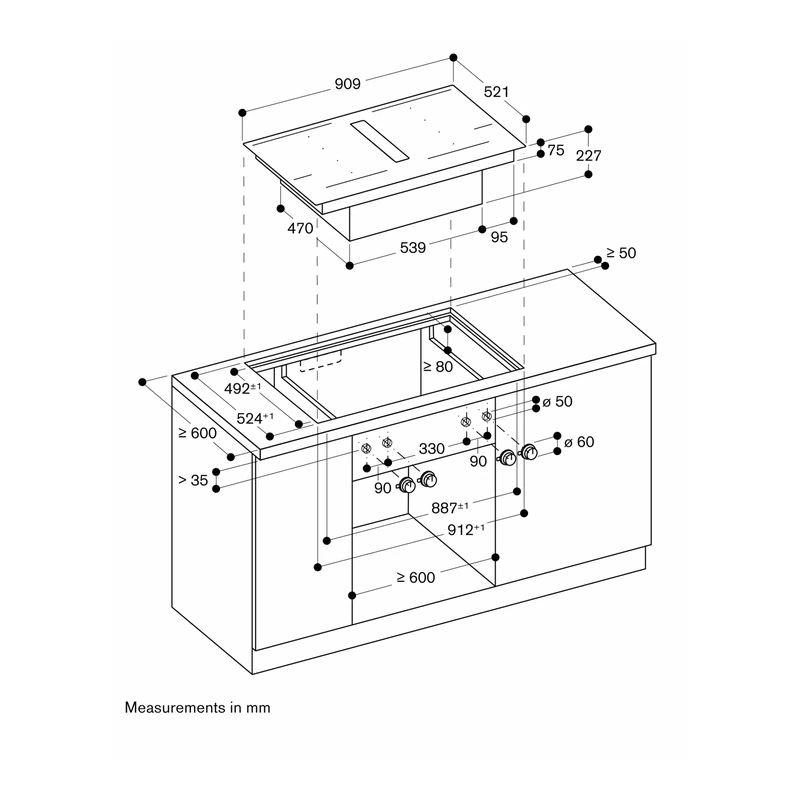

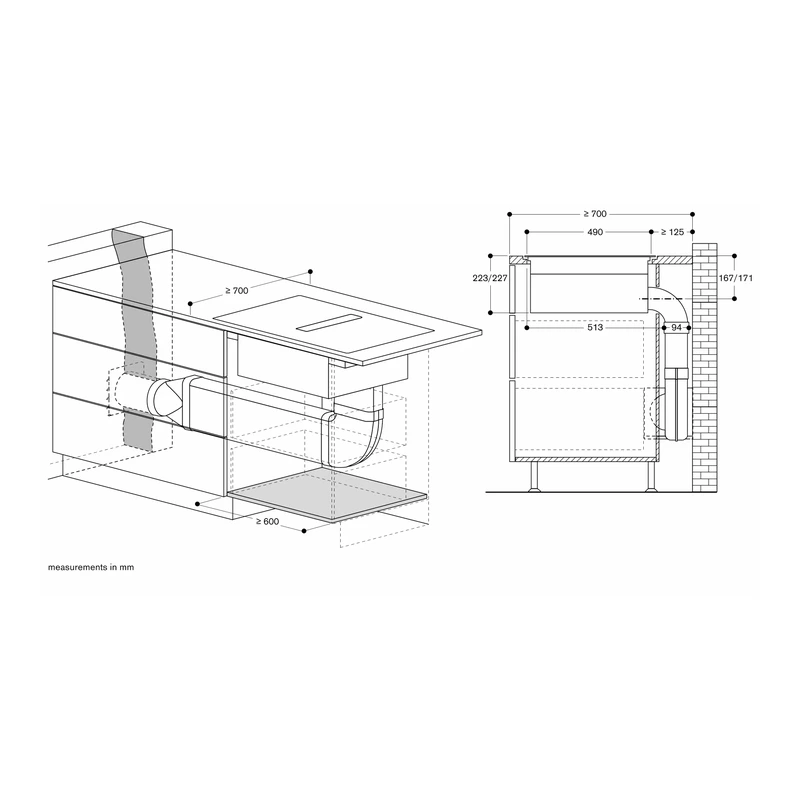

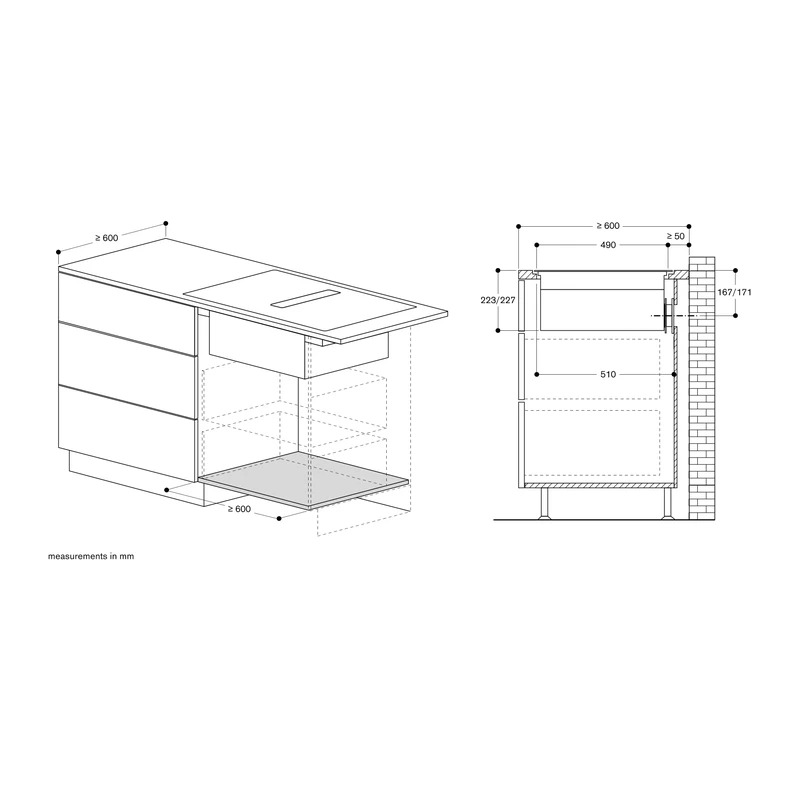

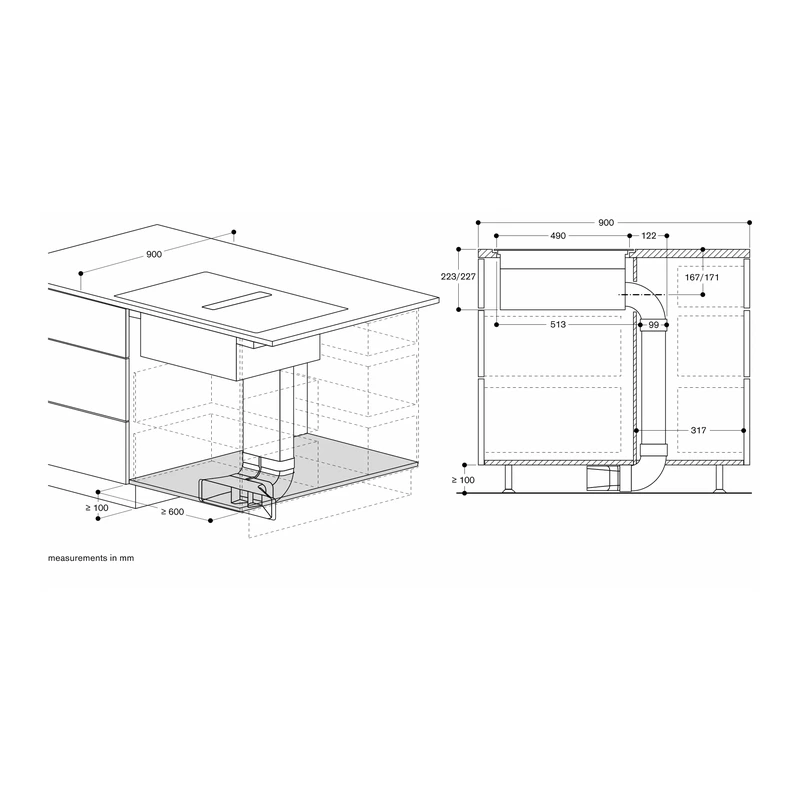

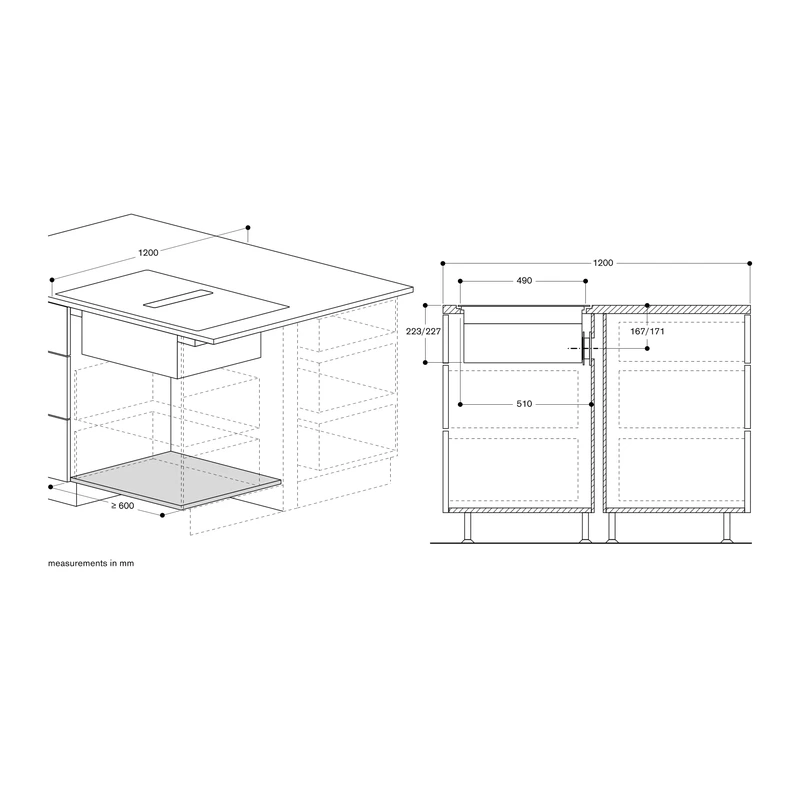

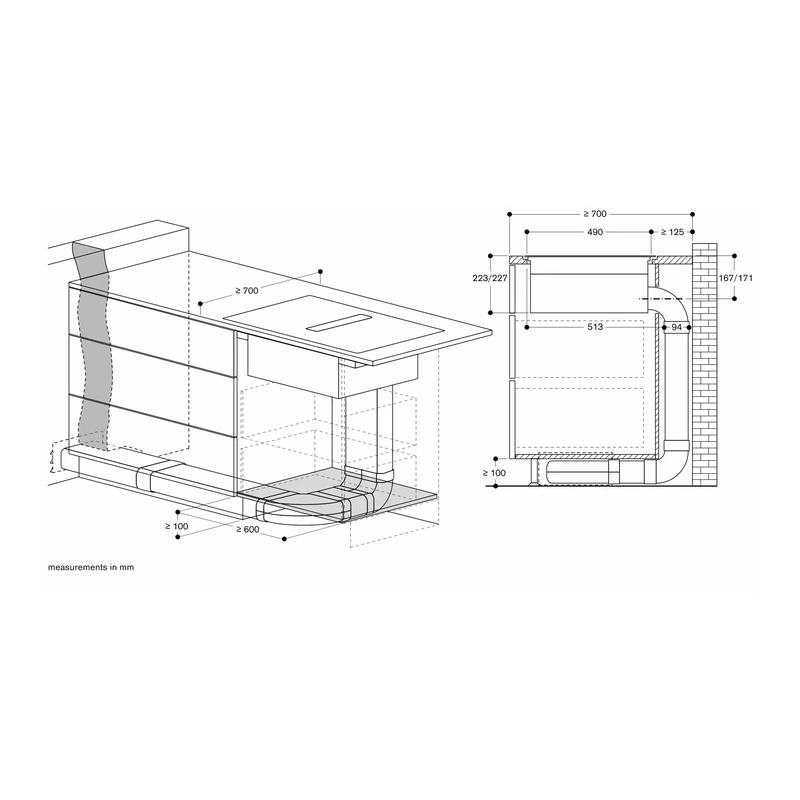

The bottom cabinet must be at least 60 cm wide. The worktop depth must be at least 60 cm for unducted recirculation and 65 cm for ducted recirculation or extraction. A continuous and even groove and sufficient bearing capacity and stability are required.

Product Information Sheet

Gaggenau 400 Series Venting FlexInduction Hob

SKU: CV492105

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 11 June 2026

Gaggenau CV492105 400 Series Venting FlexInduction Hob

SKU: CV492105

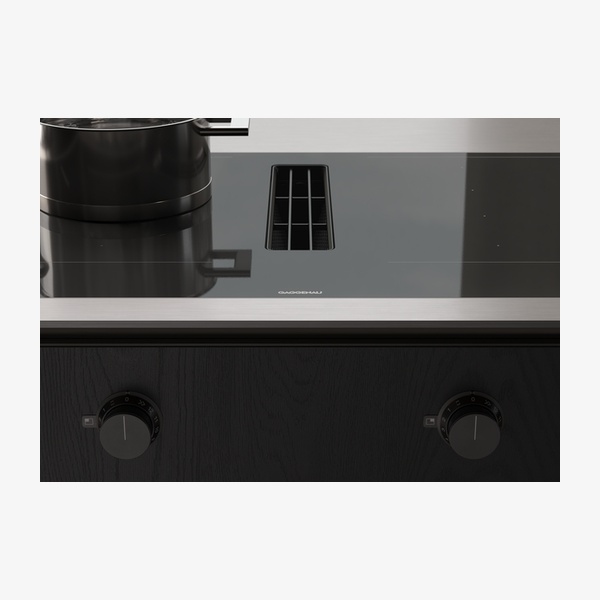

Frameless-Furniture Mounted Controls

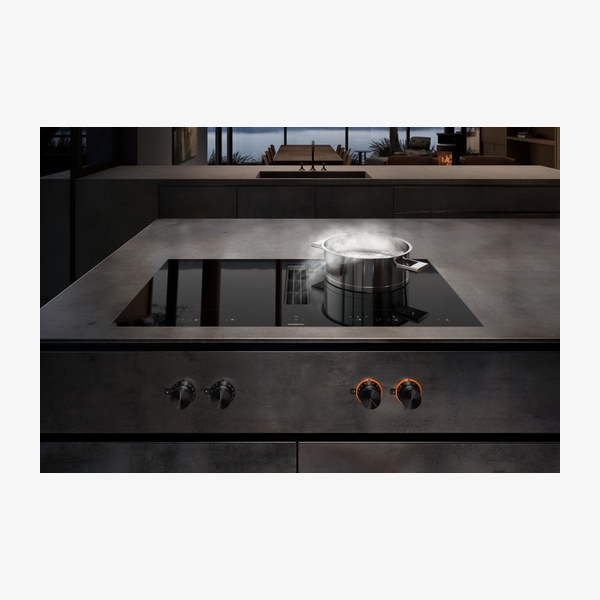

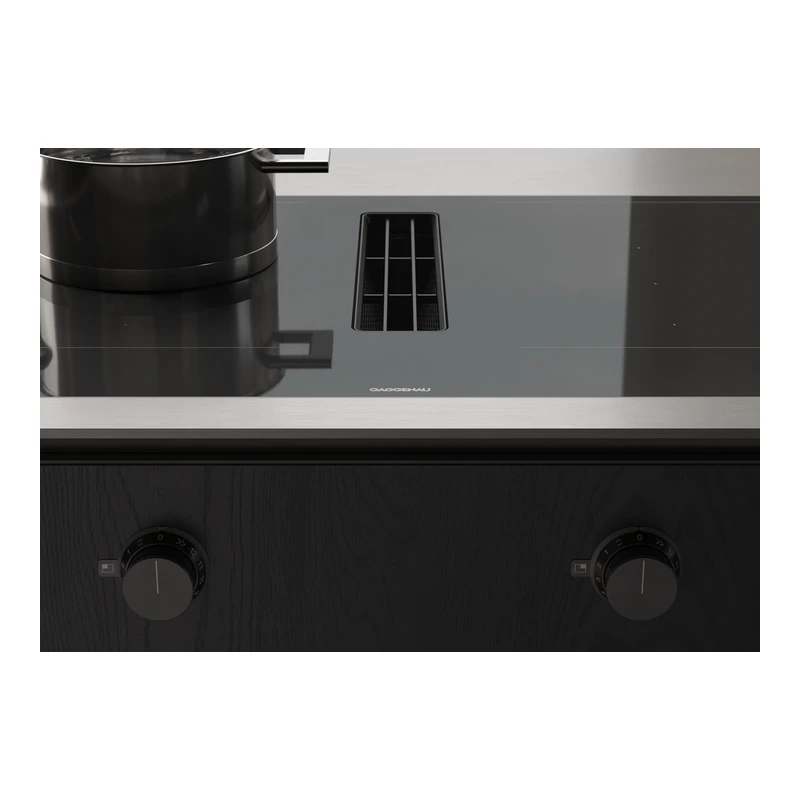

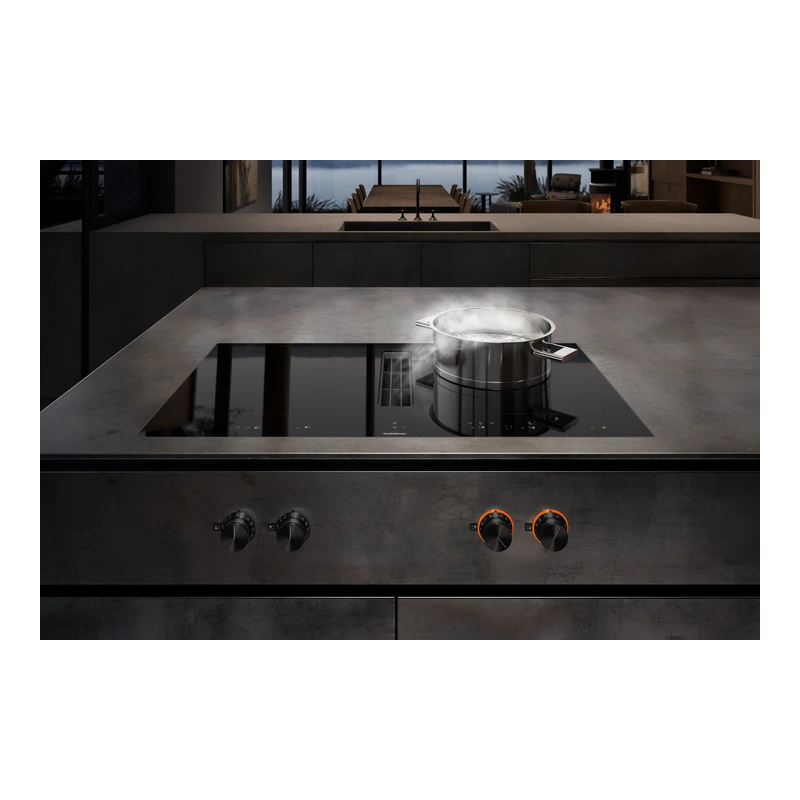

The CV492105 is a 90 cm flex induction cooktop from the 400 series with a highly efficient ventilation system integrated into the cooking surface. It offers flexible positioning of cookware with combined rectangular cooking areas and automatic extension. Featuring fully automatic ventilation functions, energy-saving low-noise fan technology and Home Connect digital services, it is designed for users seeking precise control via solid stainless steel or black knobs in a frameless flush installation.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Flex induction cooktop with integrated ventilation system 400 series
Model	CV492105
Width	90 cm
Cooking zones	2 flex induction cooking areas 23x20 cm (2200 W, booster 3700 W), linked 23x40 cm (3300 W, booster 3700 W), with automatic extension up to 32x30 cm (3300 W, booster 3700 W). Repeated on both sides (total of two such flex areas).
Ventilation air output (extraction)	532 / 636 m³/h (output level 3 / Intensive) according to EN 61591.
Ventilation air output (recirculation)	487 / 611 m³/h (output level 3 / Intensive) according to EN 61591.
Sound power level (extraction)	70 / 74 dB (A) re 1 pW (output level 3 / Intensive) according to EN 60704-3.
Sound levels (recirculation)	67 / 72 dB (A) re 1 pW and 55 / 61 dB (A) re 20 μPa (output level 3 / Intensive).
Normal mode sound level	61 dB min. / 70 dB max. (normal mode).

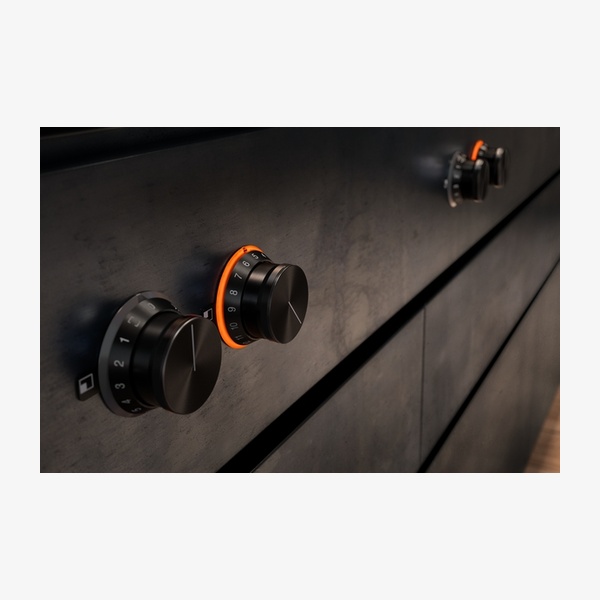

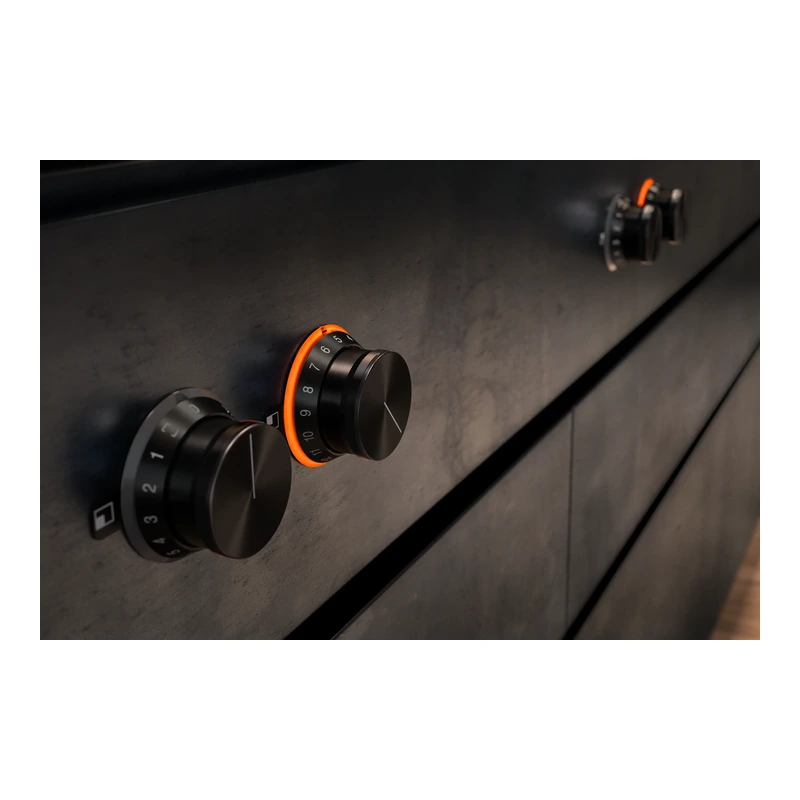

Control type	Control knobs with illuminated ring, cooking zone and output level markings; electronic power control in 12 stages (1…12); two colour display (white / orange).
Ventilation power levels	3 electronically controlled power levels plus 1 intensive mode.
Energy efficiency class	A (range of energy efficiency classes from A+++ to D).
Annual energy consumption	56.9 kWh/year.
Ventilation efficiency class	A.
Illumination efficiency class	-
Grease filter efficiency class	B.

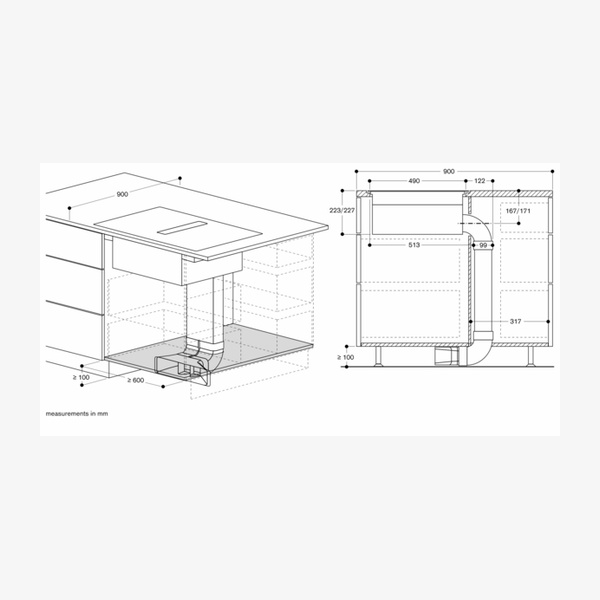

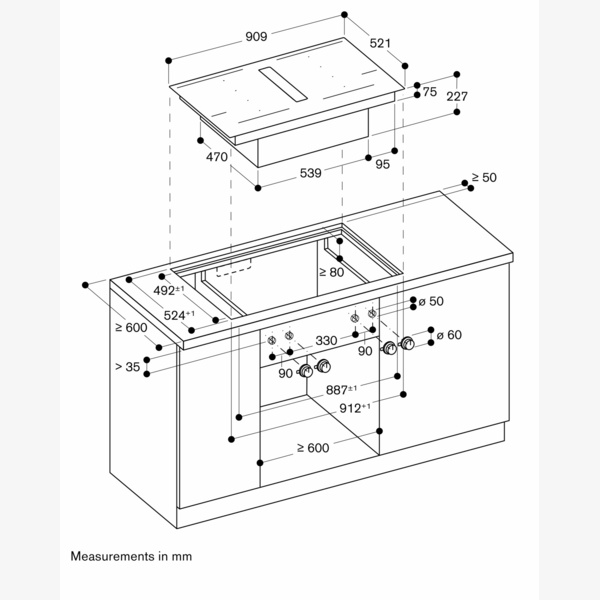

Bottom cabinet width (min.)	60 cm.

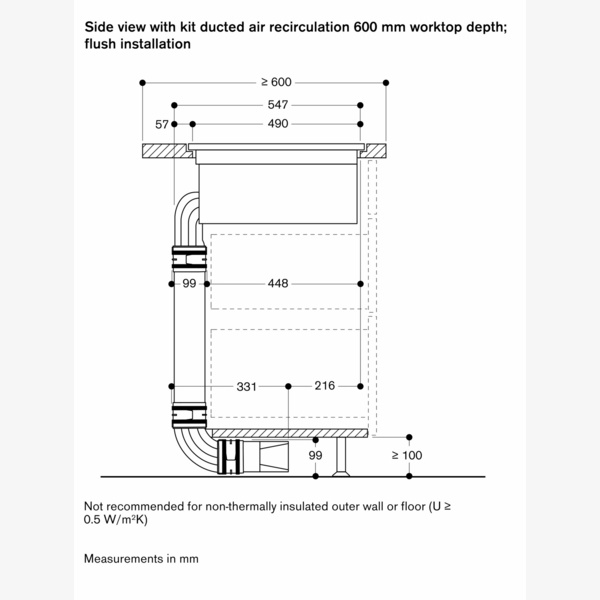

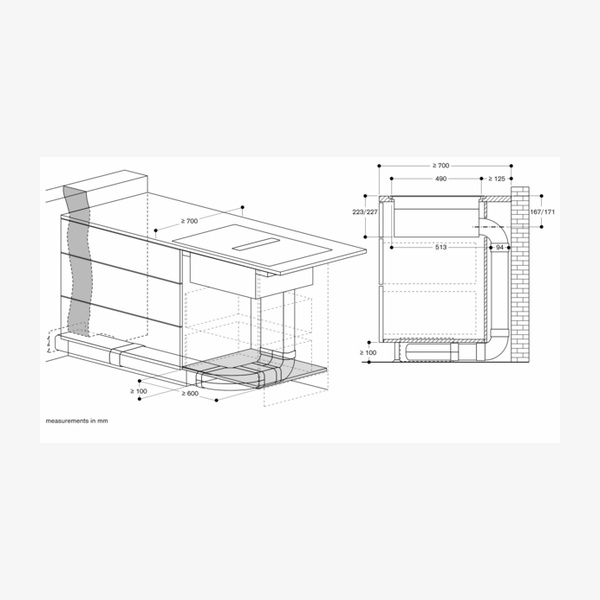

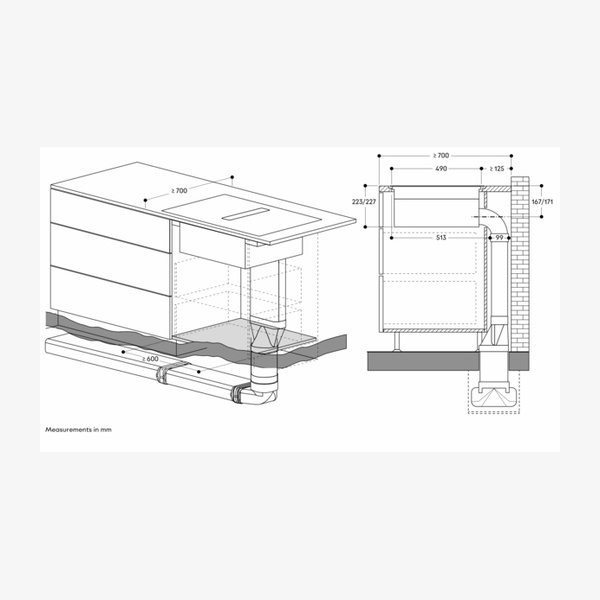

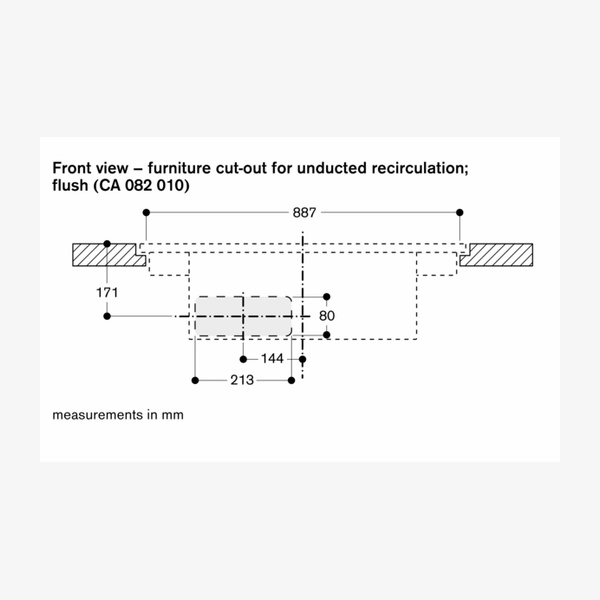

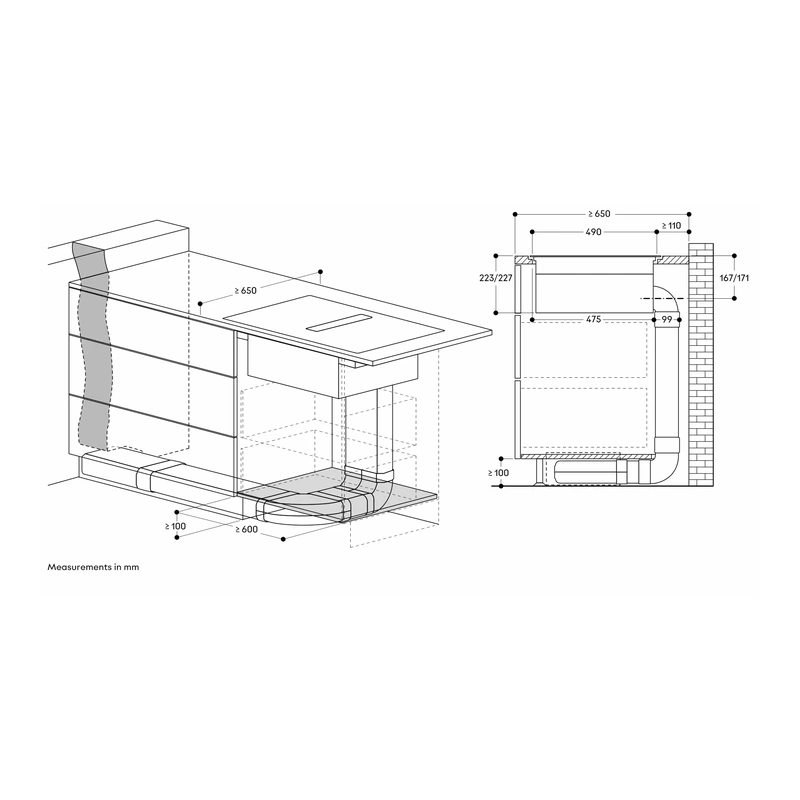

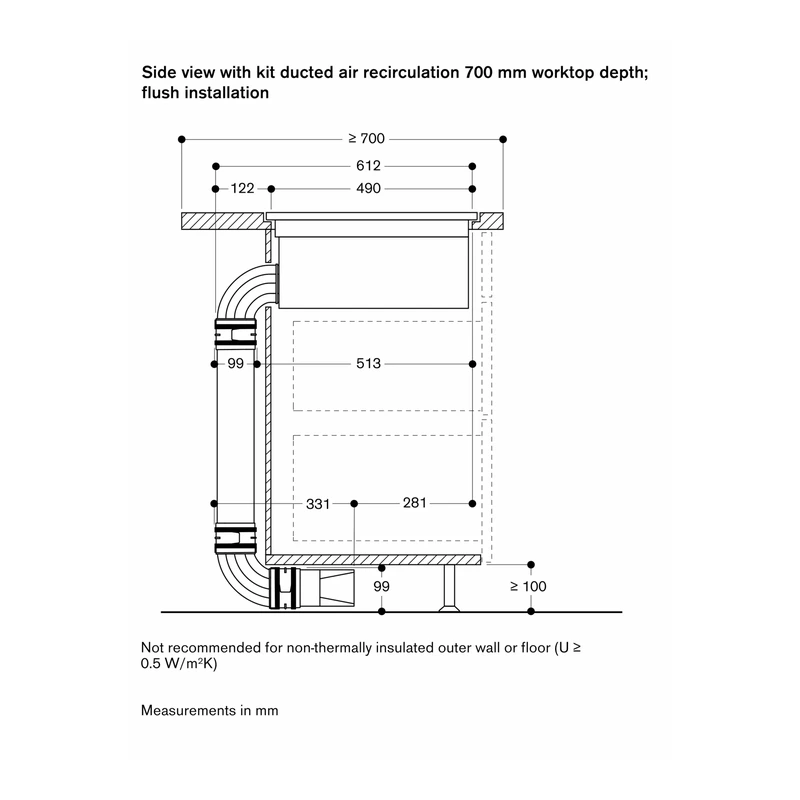

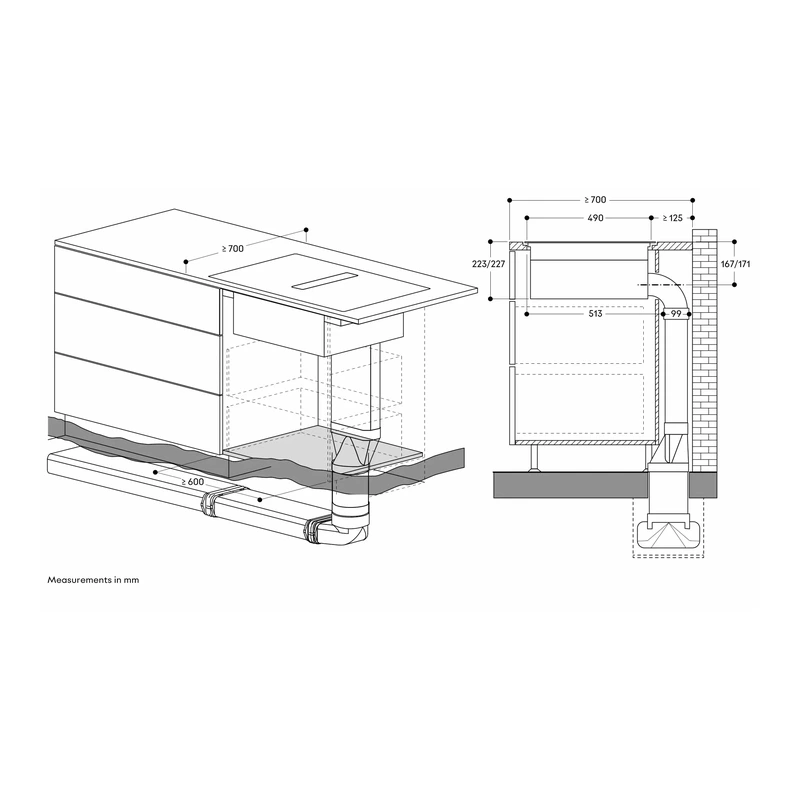

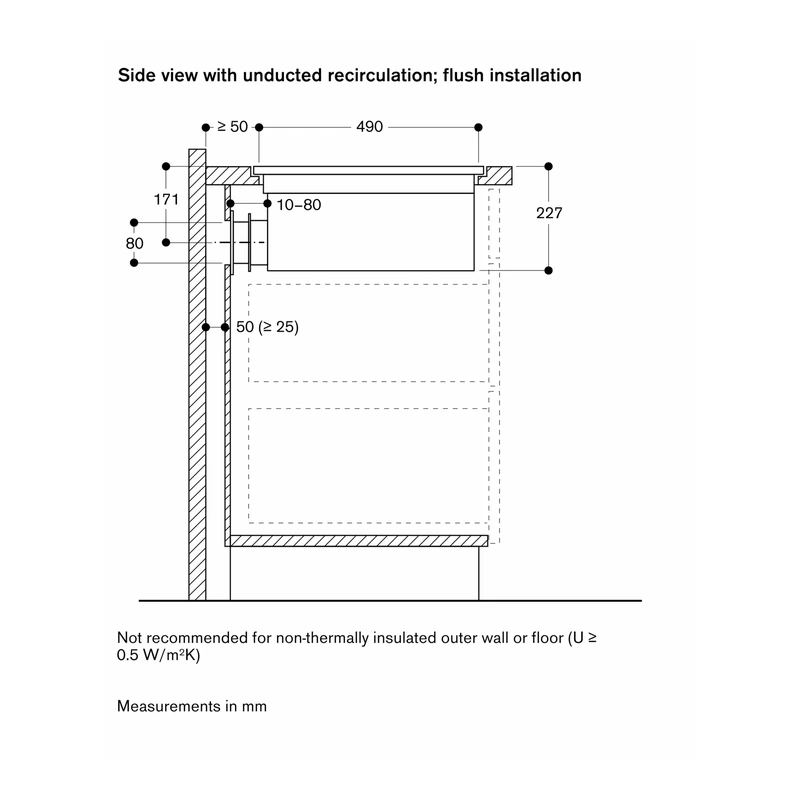

Worktop depth (min.)	60 cm with unducted recirculation; 65 cm with ducted recirculation/extraction.
Immersion depth	227 mm.
Outflow surface (recirculation)	Recommended at least 400 cm² for optimum performance.
Equivalent ducting length	Lmax 28 m to ensure good performance.
Appliance weight	Approx. 32.
Overflow container capacity	0.9-litre, removable and dishwasher-safe.
Clearance to overflow container (min.)	300 mm from underneath the worktop to remove and empty the container.
Total connected load	7.4 kW.
Connecting cable	1.50 m without plug.
Standby power (display off)	0.5 W.
Standby power (network)	2 W.
WiFi module	Integrated for digital services (Home Connect).
Cookware compatibility	Operates with magnetic (induction) iron pots and pans only; sandwich bottom cookware recommended for optimal heat distribution.

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Gaggenau →

Mandatory Accessories

— automatically included with your enquiry

400 Series 4 Knob Induction Hob Controls

Select one — mandatory

CKI440010

Gaggenau 400 Series 4 Knob Set for Induction Hob

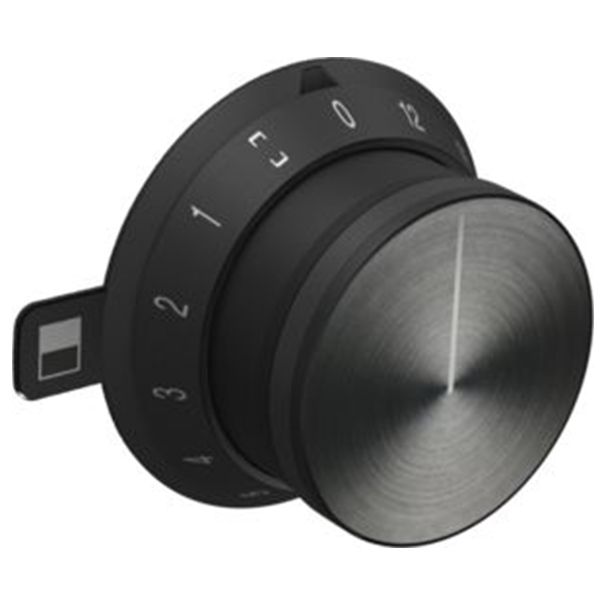

CKI440000

Gaggenau 400 Series 4 Knob Set for Induction Hob

Your selection will be included with your enquiry.

Optional Accessories

— add individually to your enquiry

Optional

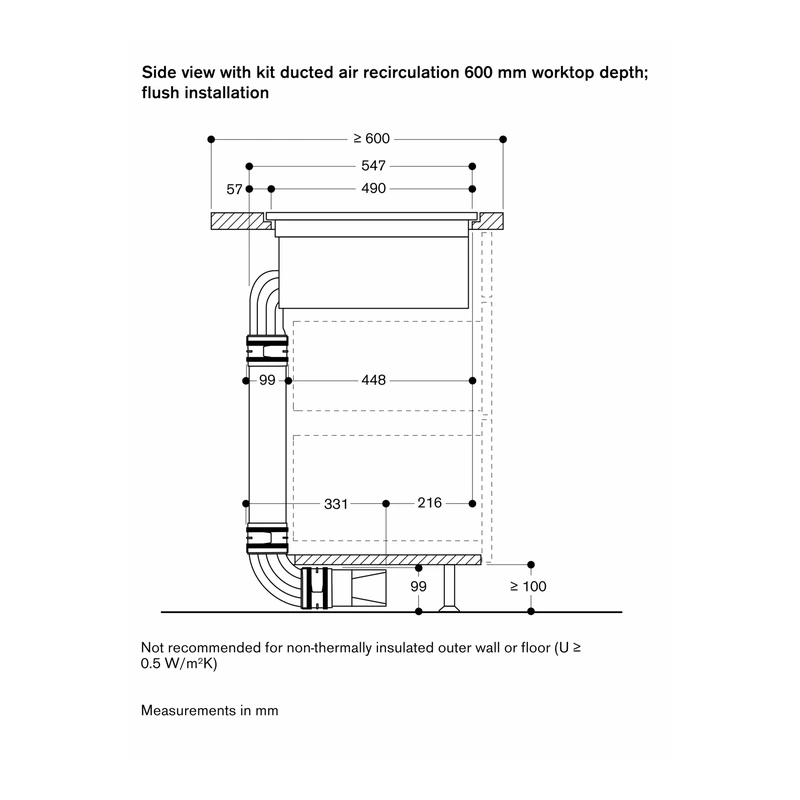

CA082061

Gaggenau Ducted Recirculation Set - 60cm Worktop Depth

Optional

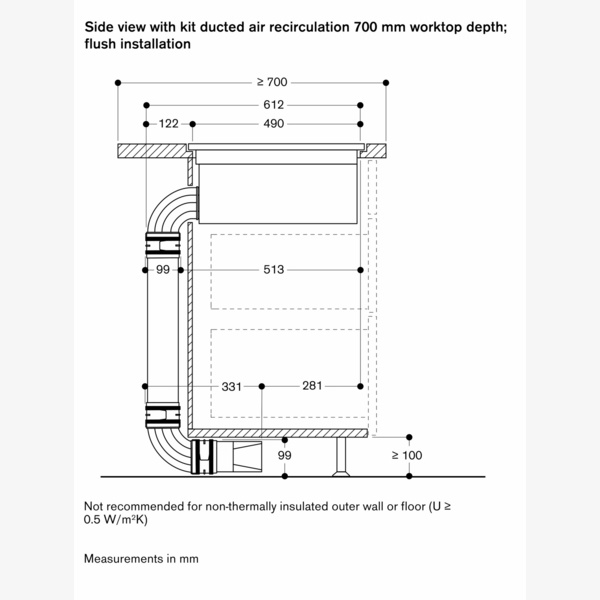

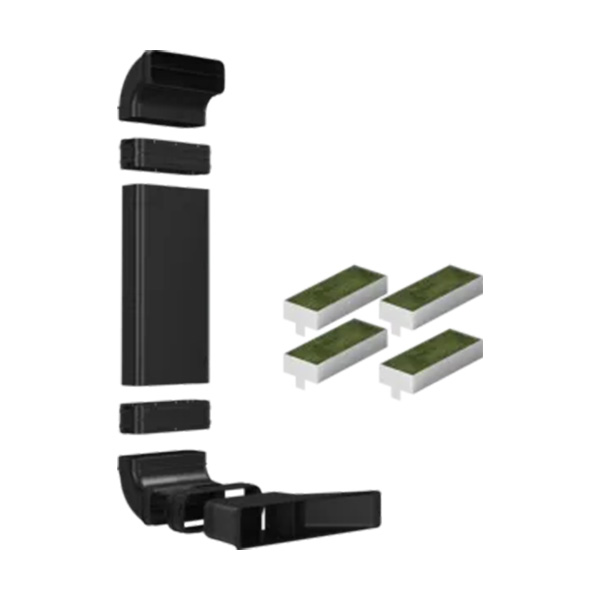

CA082071
