Controls and Functions

• Control knobs with illuminated ring, cooking zone and output level markings.
• Electronic power control in 12 stages (1…12).
• User-friendly control with two colour display (white / orange).
• Ventilation system with 3 electronically controlled power levels and 1 intensive mode.
• Flex function for rectangular cooking areas.
• Frying sensor function.
• Booster function.
• Automatic sensor-controlled performance adjustment of the ventilation system.
• Automatic activation of the ventilation system when a cooking zone is used.
• Interval ventilation, 6 min.
• Automatic sensor-controlled or manual run-on function.
• Grease filter and activated charcoal filter saturation indicator.
• Stopwatch and short-term timer.
• Memory function and options menu.
• Power management.

Cleaning and Maintenance

• Large-scale metal grease filter is removable and dishwasher-safe.
• Grease filter unit is removable and dishwasher-safe.
• High-grade black zinc die-casted cover for ventilation system is dishwasher-safe.
• Detachable, dishwasher-safe two-stage overflow protection.
• Removable overflow container (0.9 litre), dishwasher-safe.
• Integrated activated charcoal filter is easily removable from above for the air recirculation system.

Safety Features

• Operation indicator.
• Pot detection.
• 2 stage Hh residual heat indicator for each zone.
• Child lock.
• Safety shut-off.

Cookware and Operation

The appliance operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.

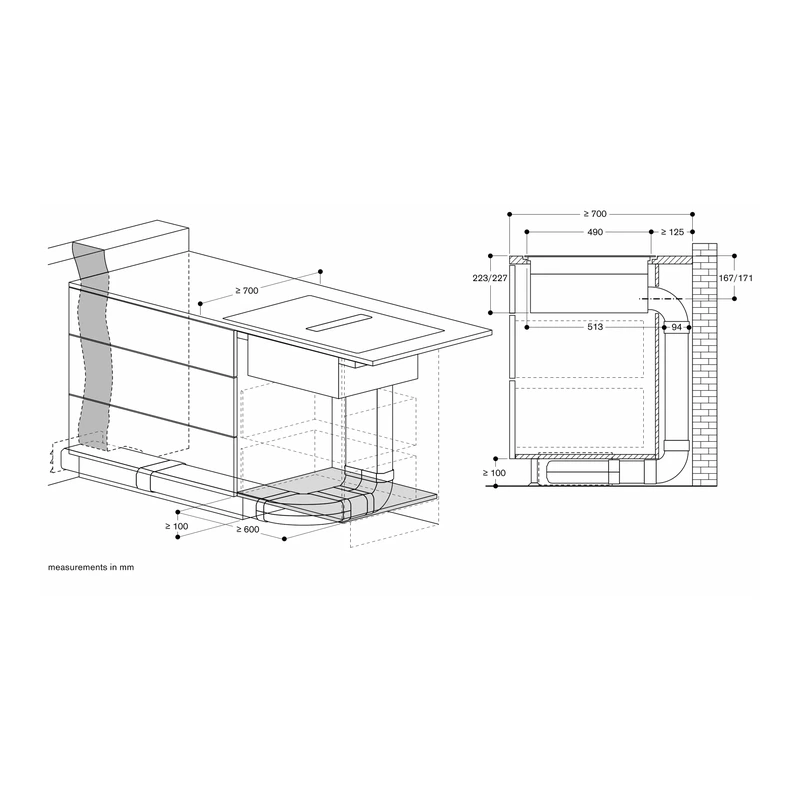

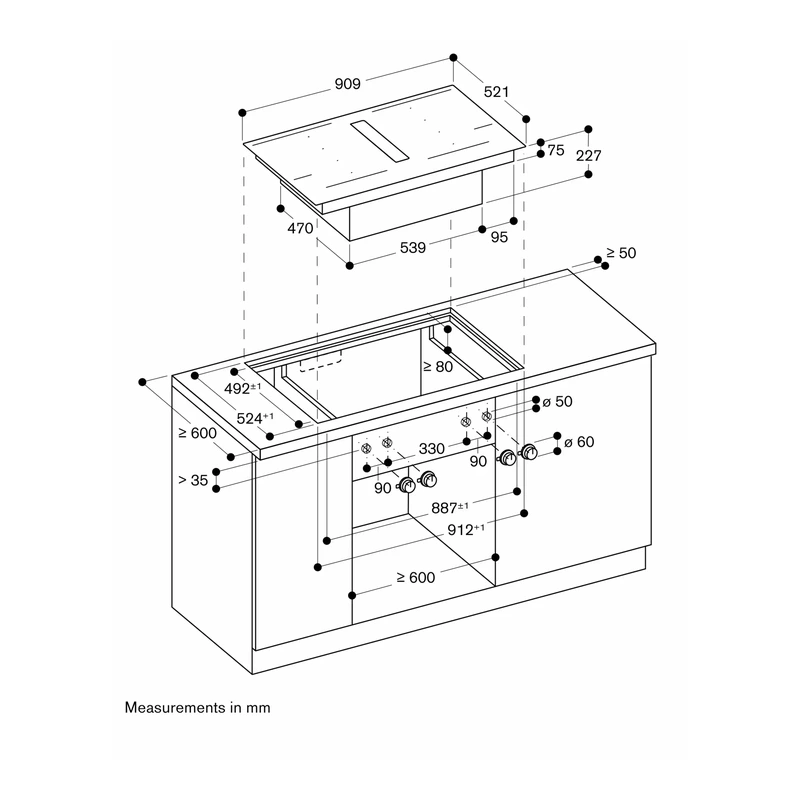

Installation Notes

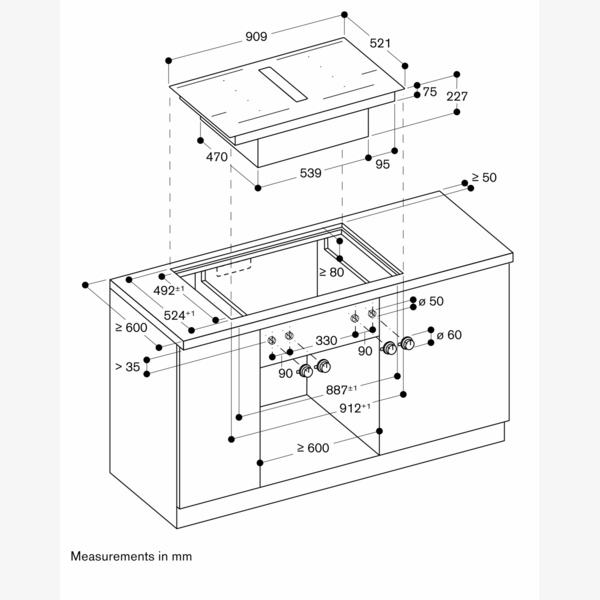

• Bottom cabinet width minimum 60 cm.

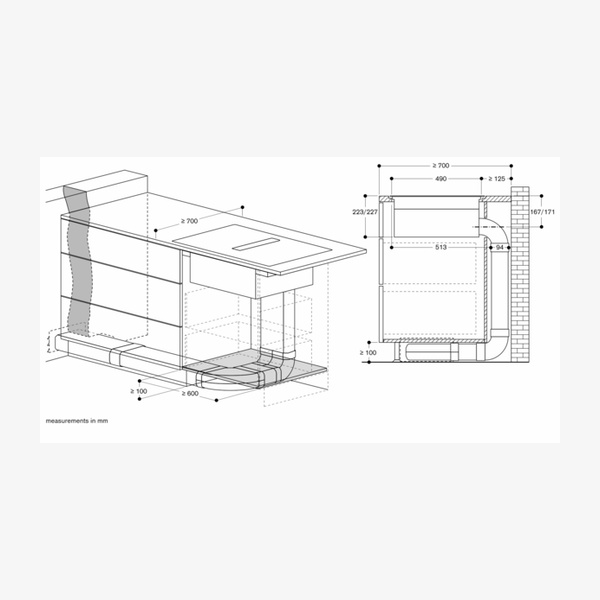

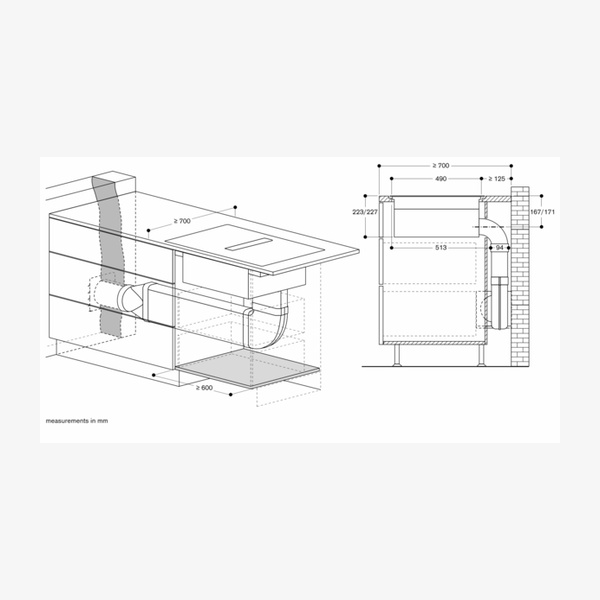

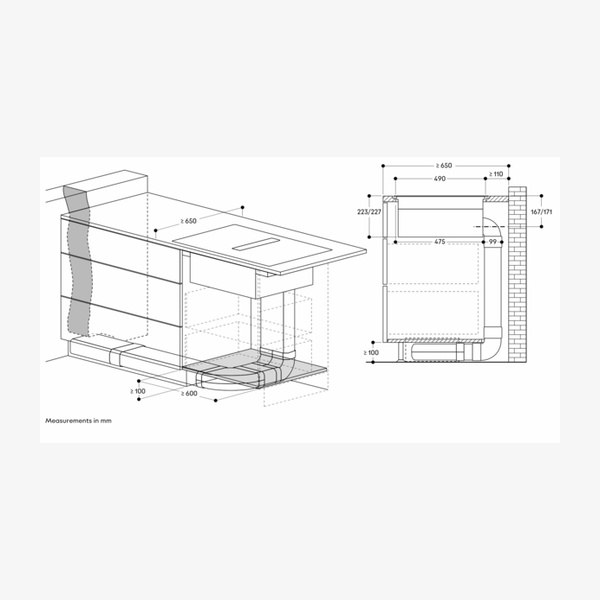

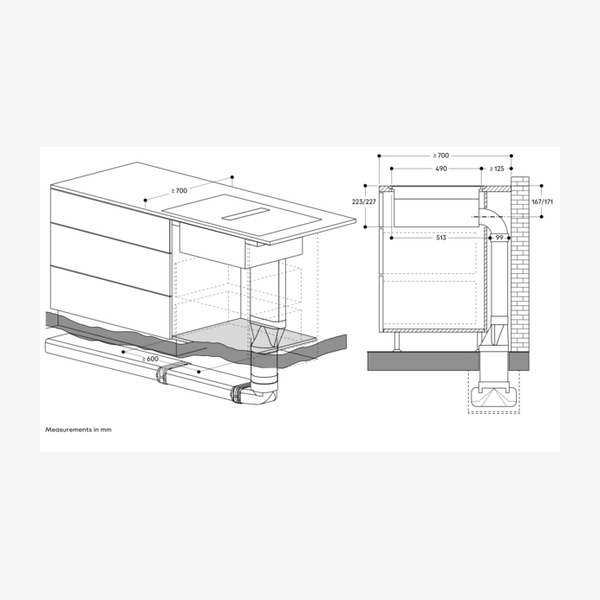

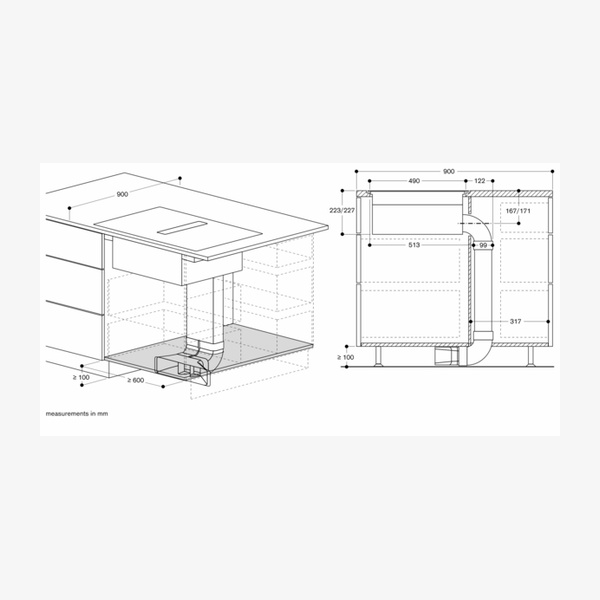

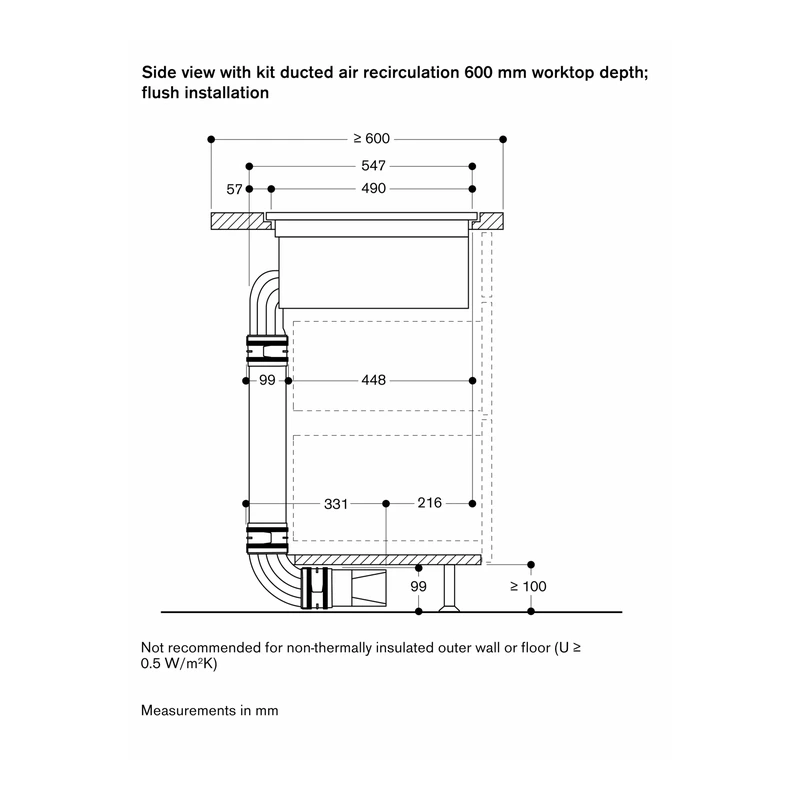

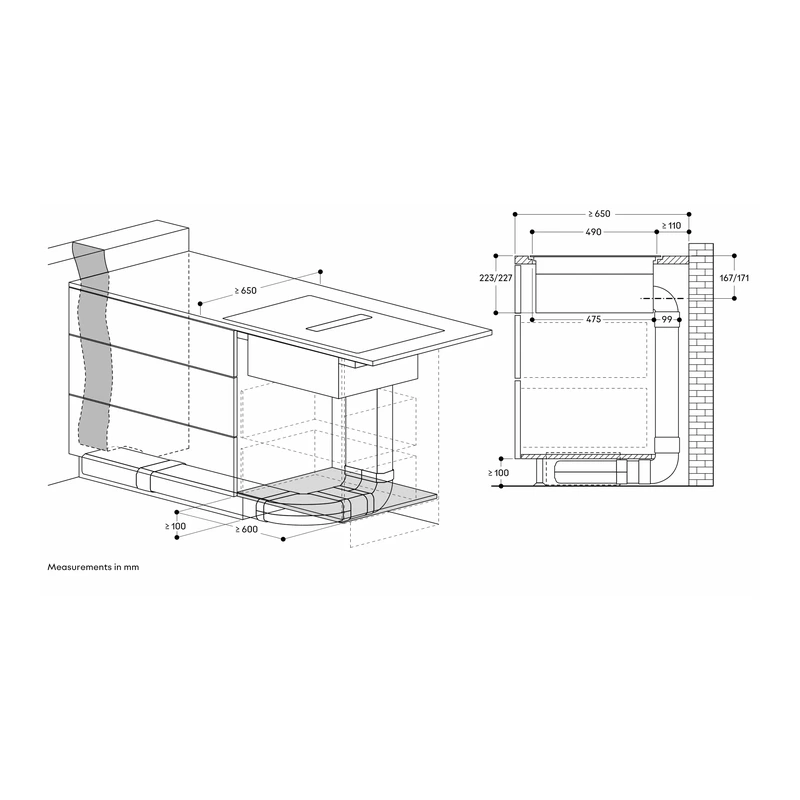

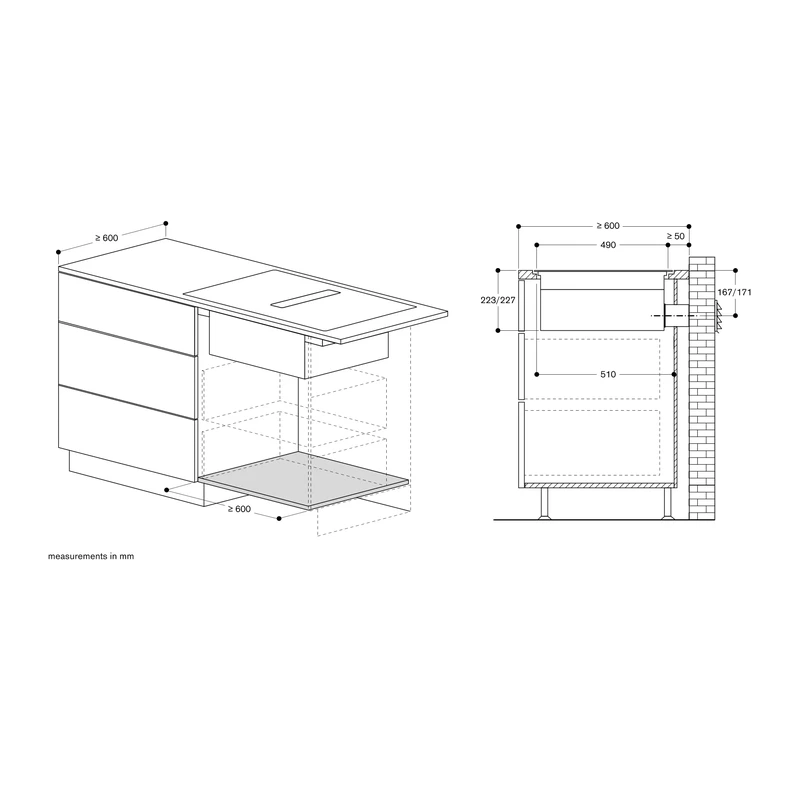

• Worktop depth minimum 60 cm with unducted recirculation; minimum 65 cm with ducted recirculation or extraction.
• Immersion depth 227 mm.

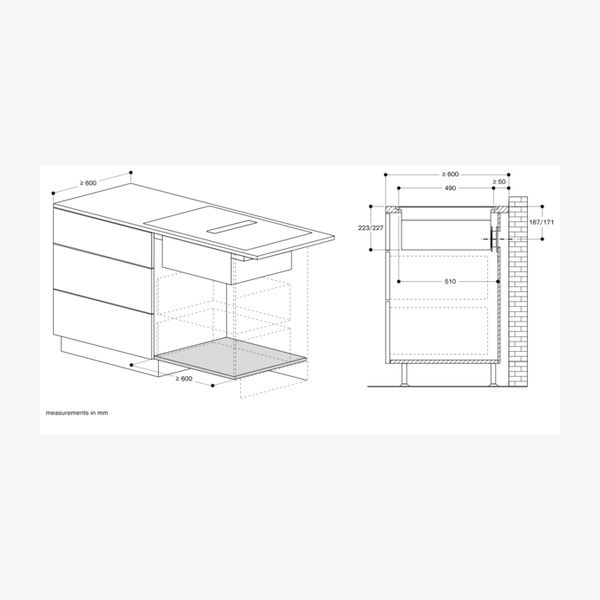

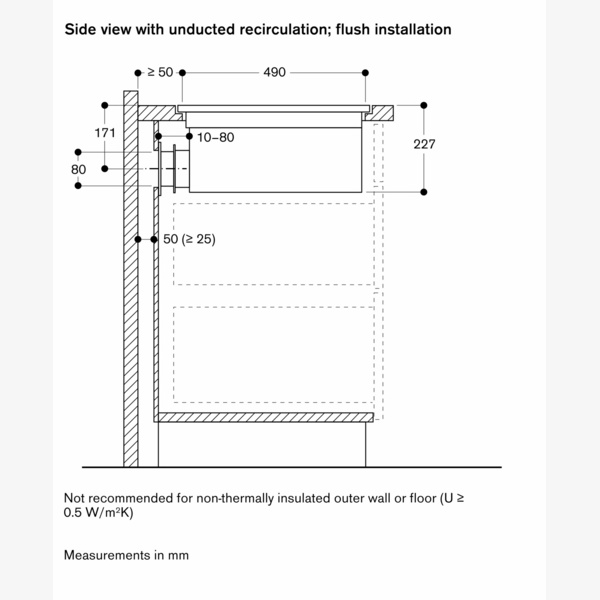

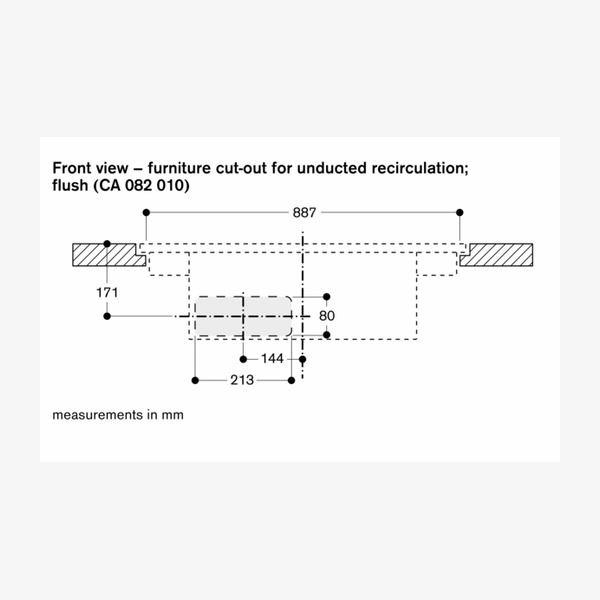

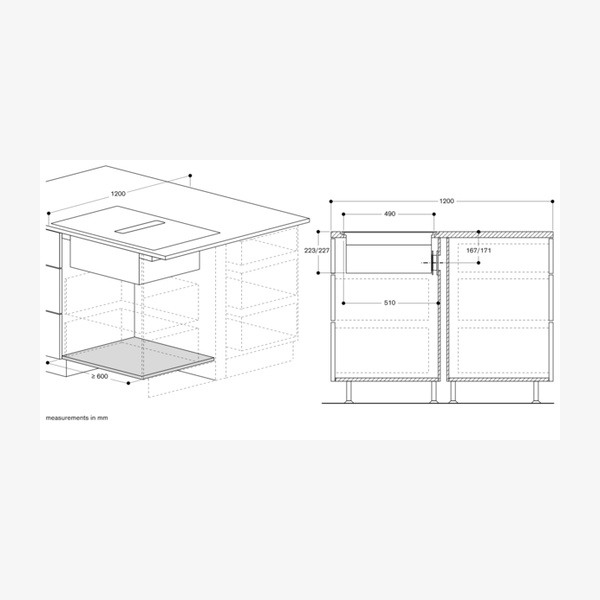

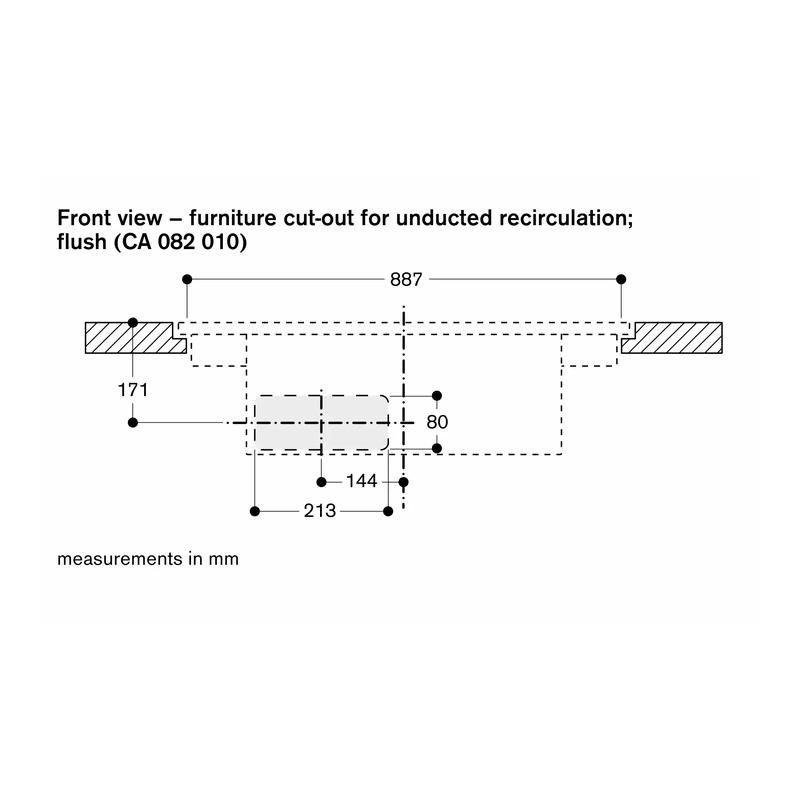

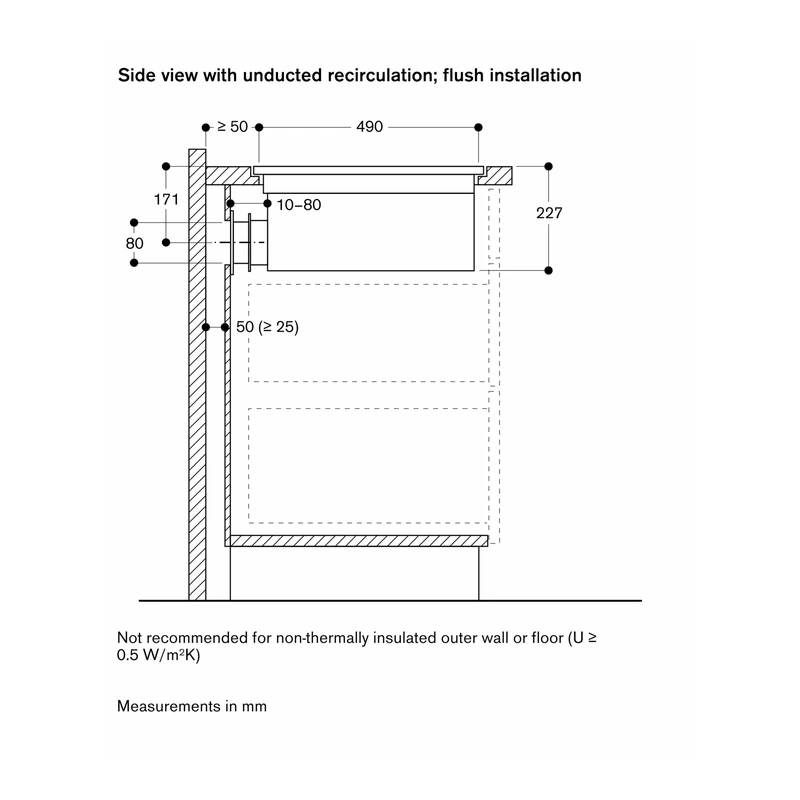

• Unducted recirculation set CA082011 requires a vertical aperture of minimum 25 mm behind the furniture back panel; 50 mm suggested for ideal performance.

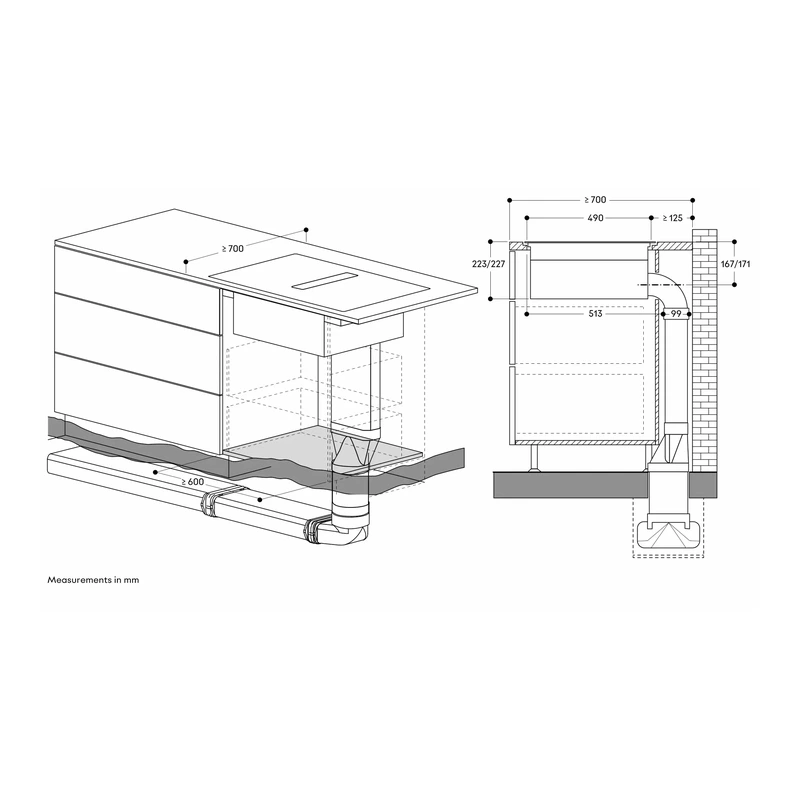

• In air extraction, a one-way flap with a maximum opening pressure of 65 Pa should be installed.
• Appliance must be fixed from underneath and must be freely accessible from below.
• Installation is possible in worktops made of stone, synthetics or solid wood; heat resistance and watertight sealing of cut edges must be observed. For other materials, consult the worktop manufacturer.
• Bearing capacity and stability, especially with thin worktops, must be supported with suitable substructures, taking into account appliance weight and additional loads.

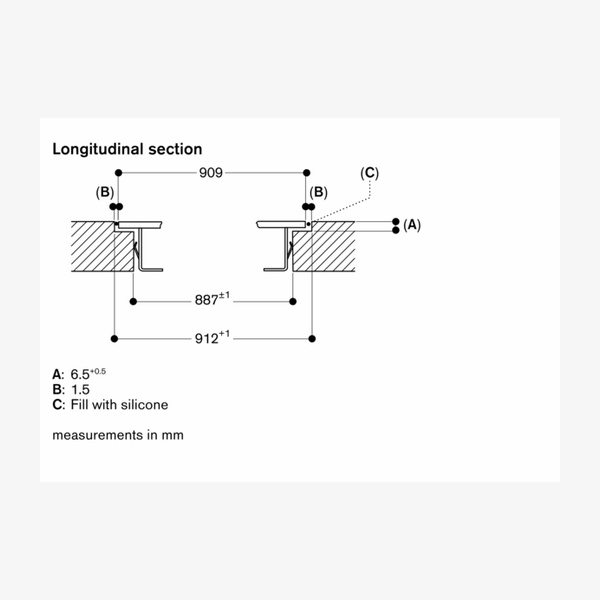

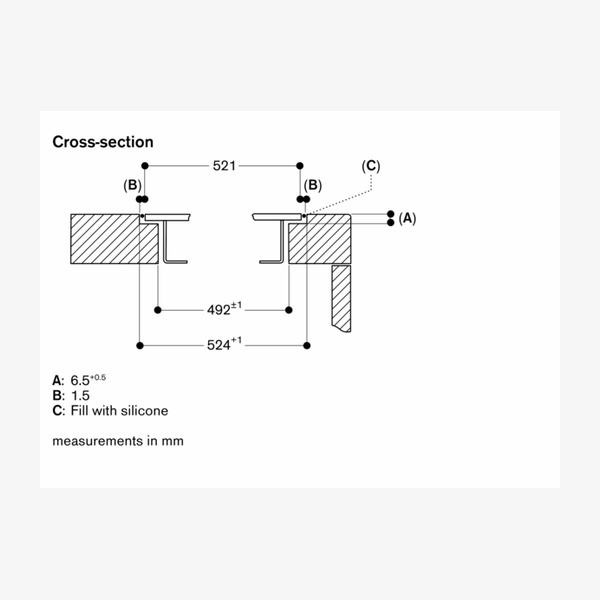

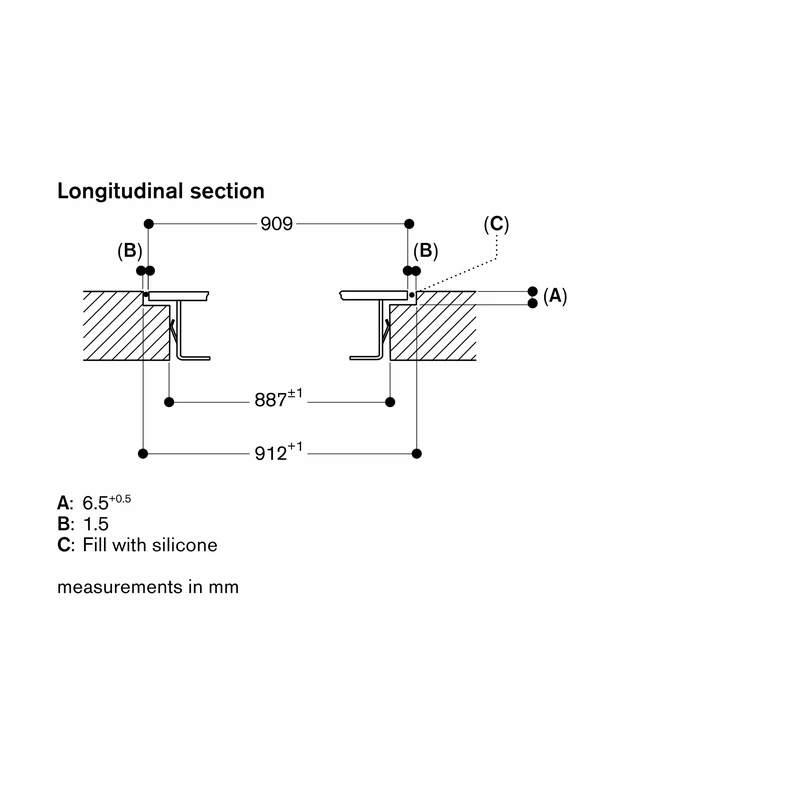

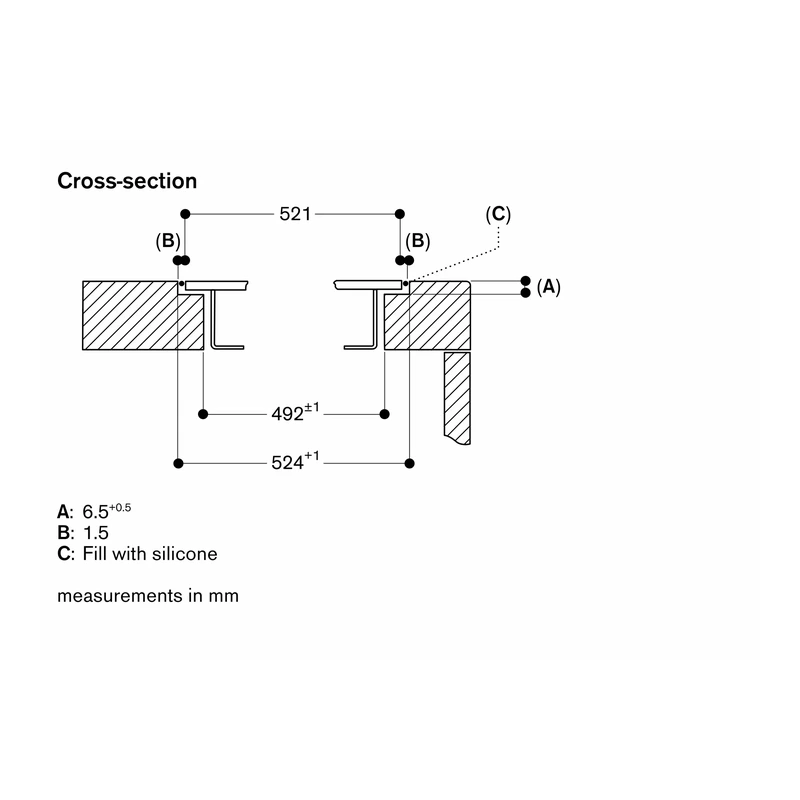

• Groove must be continuous and even to ensure uniform placing of the appliance on the gasket; do not use discontinuous lining.
• Joint width may vary due to dimensional tolerances of the glass ceramic cooktop and worktop cut-out.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs a suitable safety switch.

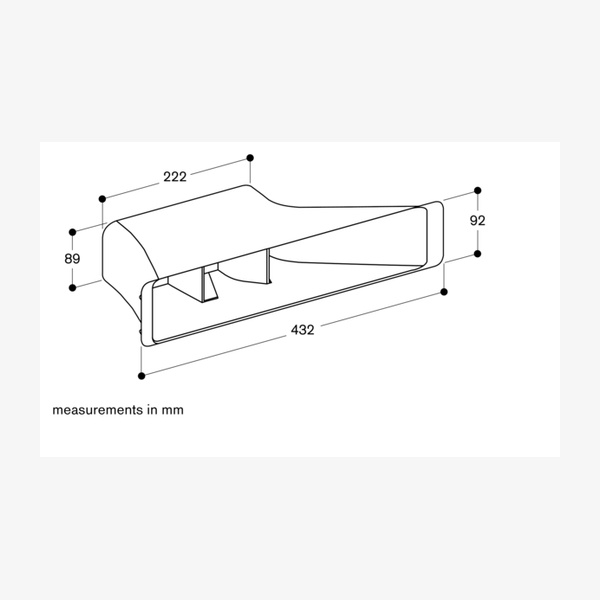

• The appliance’s air outlet on the backside can be directly accessed with a flat duct element (DN 150).
• Please check the user manual for how to switch off the WiFi module.

Optional Accessories and Kits

Optional accessories:

• CA050300: Flex pan set, 3 pcs.
• CA051300: Teppan Yaki (large).
• CA051301: Teppan Yaki.
• CA052300: Griddle Plate.
• CA055300: Flex pan large.
• CA084010: Acoustic filter.
• CA282112: Recirculation replenishment filter CV.

Installation accessories:

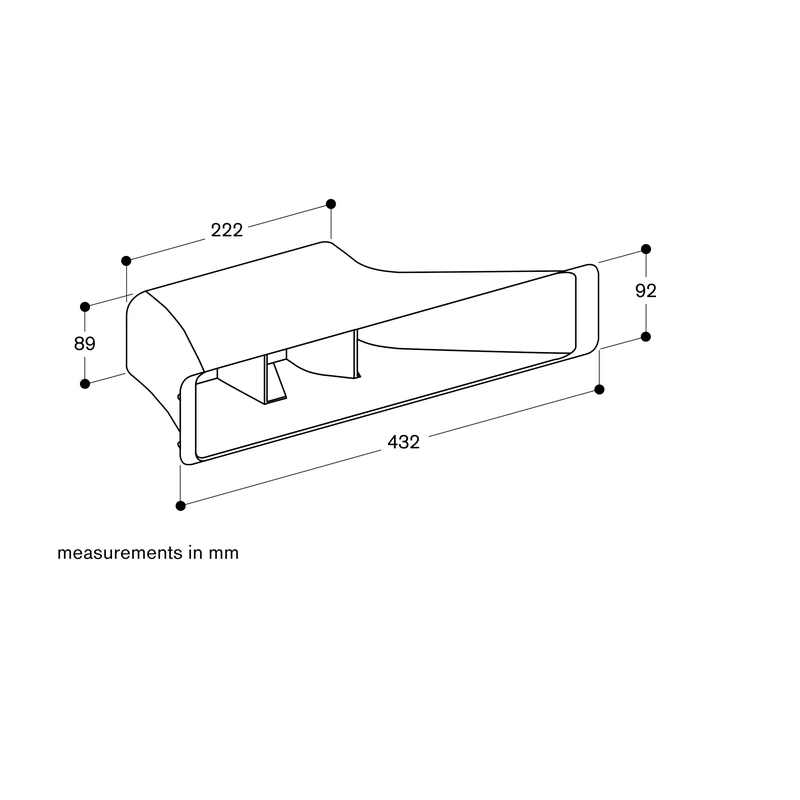

• AD857050: Plinth diffusor for CV282/482/492.
• CA082011: Kit unducted recirculation.

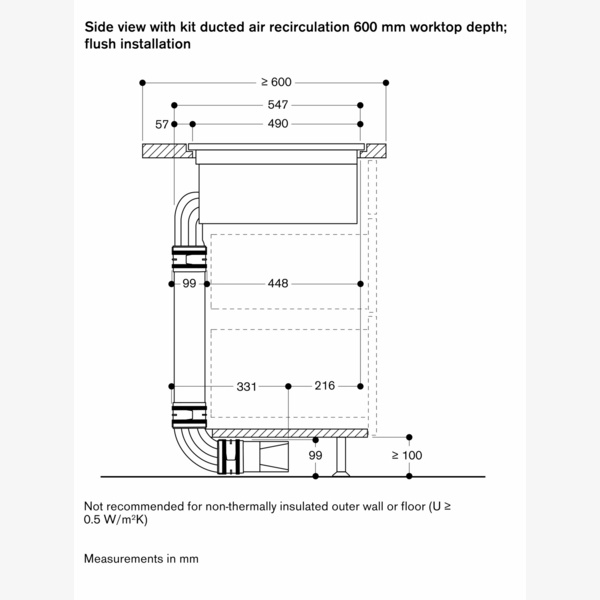

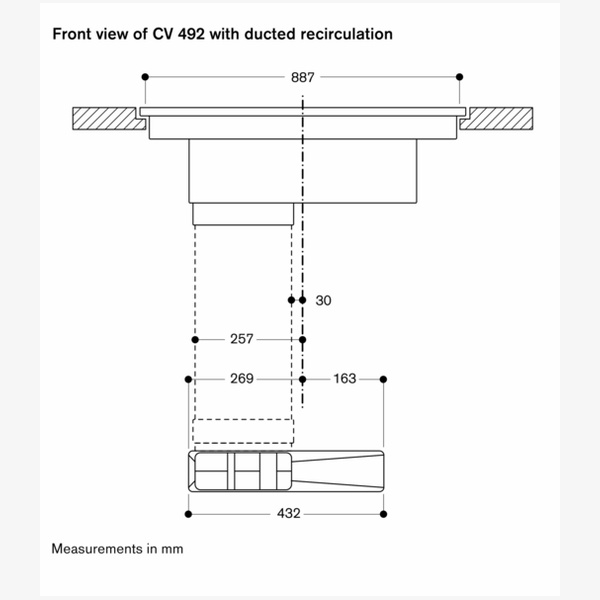

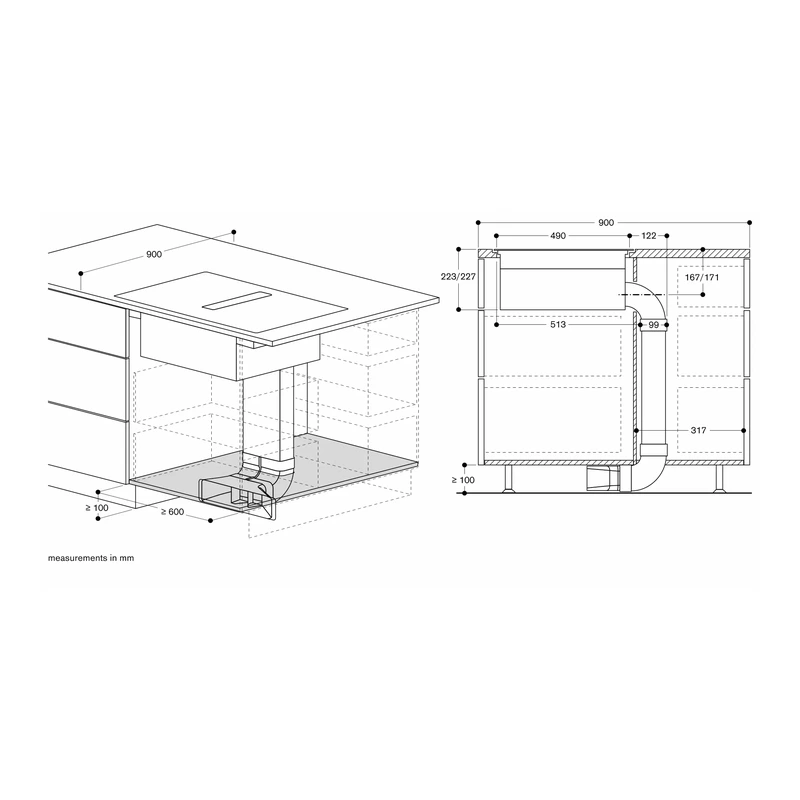

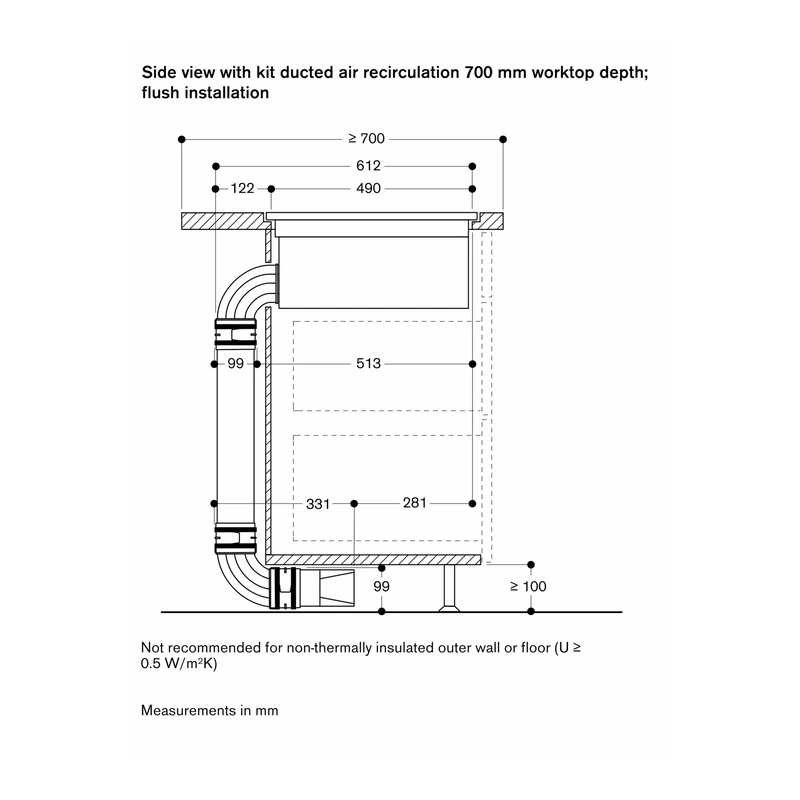

• CA082061: Kit ducted recirculation, 60 cm worktop.

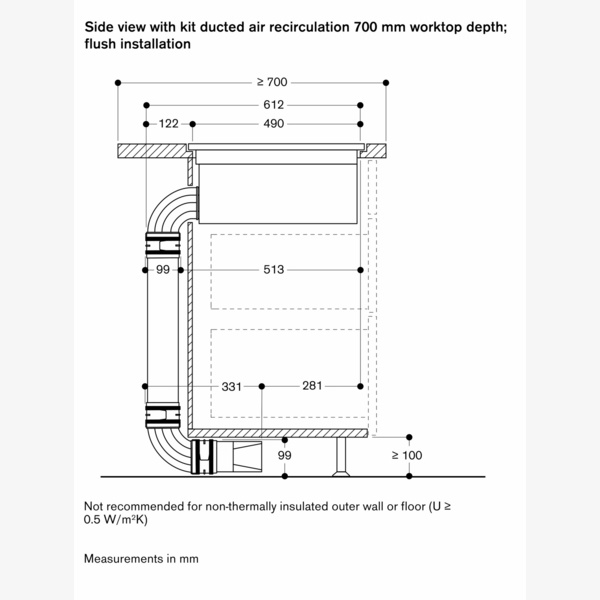

• CA082071: Kit ducted recirculation, 70 cm worktop.
• CA084010: Acoustic filter.
• CKI440000: 4 knobs, induction, black.
• CKI440010: 4 knobs, induction, stainless steel.

Special accessories (order as spare parts):

• Part No. 17006018: Frying sensor pan, ø 20 cm.
• Part No. 17006184: Frying sensor pan, ø 24 cm.
• Part No. 17006185: Frying sensor pan, ø 28 cm.
• Part No. 17006019: Frying sensor pan, ø 32 cm.
