What is the capacity of the GS471120 steam oven?

The GS471120 has a net volume of 50 litres and a usable volume of 50 according to 2010/30/EC.

Which cooking modes are available?

The appliance offers hot air with 0% to 100% humidity, grill with circulated air, grill levels with humidity, sous-vide cooking, low temperature cooking, dough proving, keeping warm, defrosting and regenerating. It also provides 200 automatic programmes and setting recommendations.

Does the oven have automatic cleaning?

Yes. It features automatic cleaning, automatic descaling for the steam generator, a drying programme and automatic drying of the cavity at the end of the cooking process. The stainless steel interior and dishwasher-safe removable parts support easy cleaning.

What safety features are included?

Safety features include a child lock, electronic door lock, safety shut-off, thermally insulated triple-glazed door and cooled housing with temperature protection.

Is the GS471120 compatible with Home Connect?

Yes. Selected digital services (Gaggenau Home Connect) are supported, including remote control, monitoring and door opening via voice assistant, as well as software updates.

What water connection does the oven require?

The appliance has a fixed inlet and outlet water connection and requires only a cold water connection. It is supplied with a 3.0 m inlet hose (ISO228-G 3/4'' connection) and a 3.0 m outlet hose. Softened water must have conductivity greater than 200 µS/cm for water detection.

Product Information Sheet

Gaggenau Expressive Series Combi Steam Oven

SKU: GS471120

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

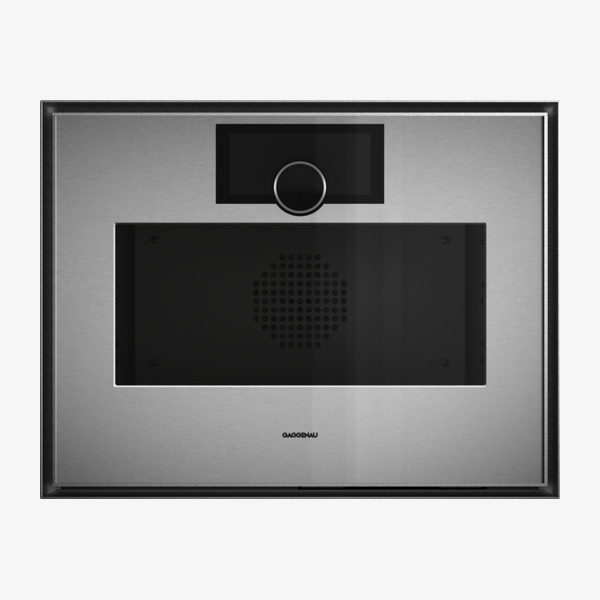

Gaggenau GS471120 Expressive Series Combi Steam Oven

SKU: GS471120

Stainless Steel & Dark Glass Left Hinge

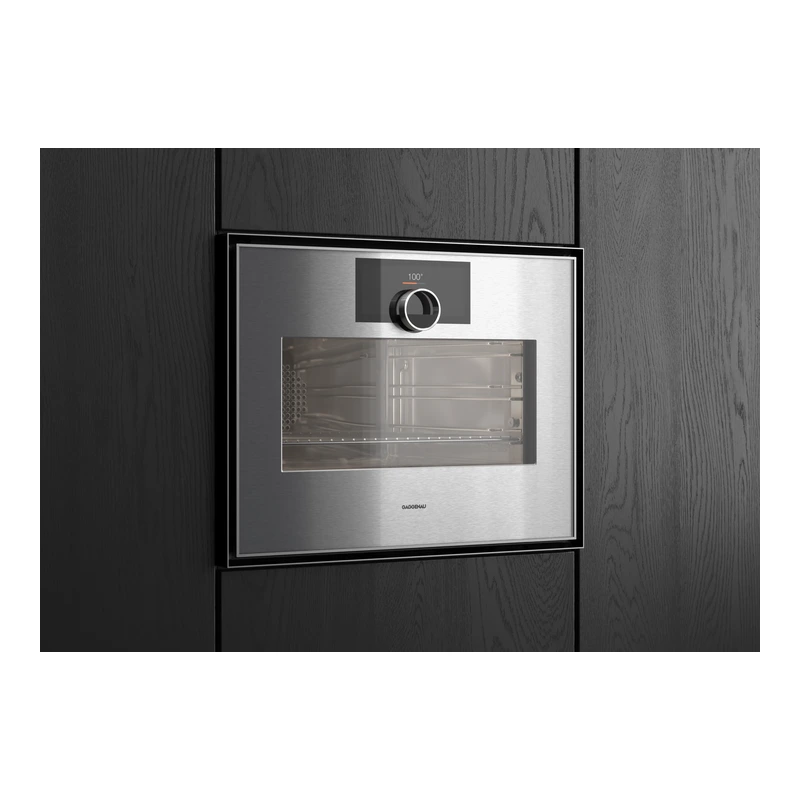

The Gaggenau GS471120 is a built-in steam oven with a net volume of 50 litres, designed for side installation with a lateral, cushioned door opening. It combines hot air from 30 °C to 230 °C with selectable humidity levels, sous-vide and low temperature cooking, plus full surface grilling behind glass ceramic. A full touch display with stainless steel control ring, automatic cleaning, descaling and drying, and Home Connect digital services support convenient, precise cooking.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	GS471120
Type	Built-in
Door opening	Lateral, cushioned, electronic, approx. 110° opening angle (reducible to approx. 97°)
Net volume	50 litres
Number of cavities	Not stated in source
Usable volume (2010/30/EC)	50
Heating range	Hot air 30 °C to 230 °C
Humidity levels	0%, 30%, 60%, 80% or 100%
Grill power	Full surface grill 2 kW behind glass ceramic
Tray levels	3 tray levels

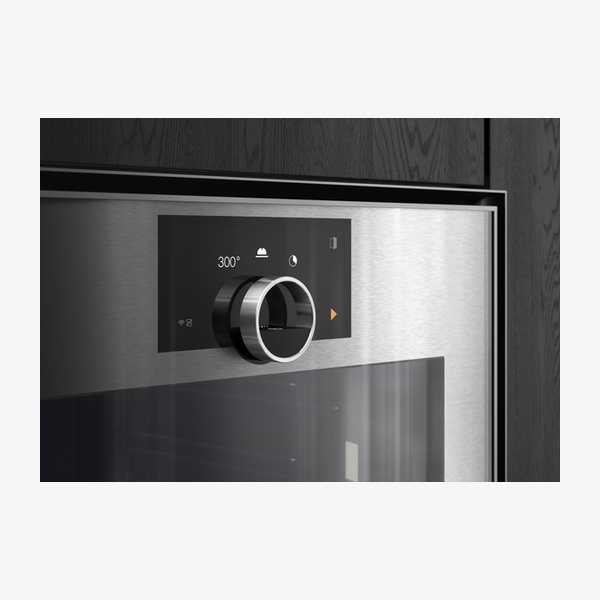

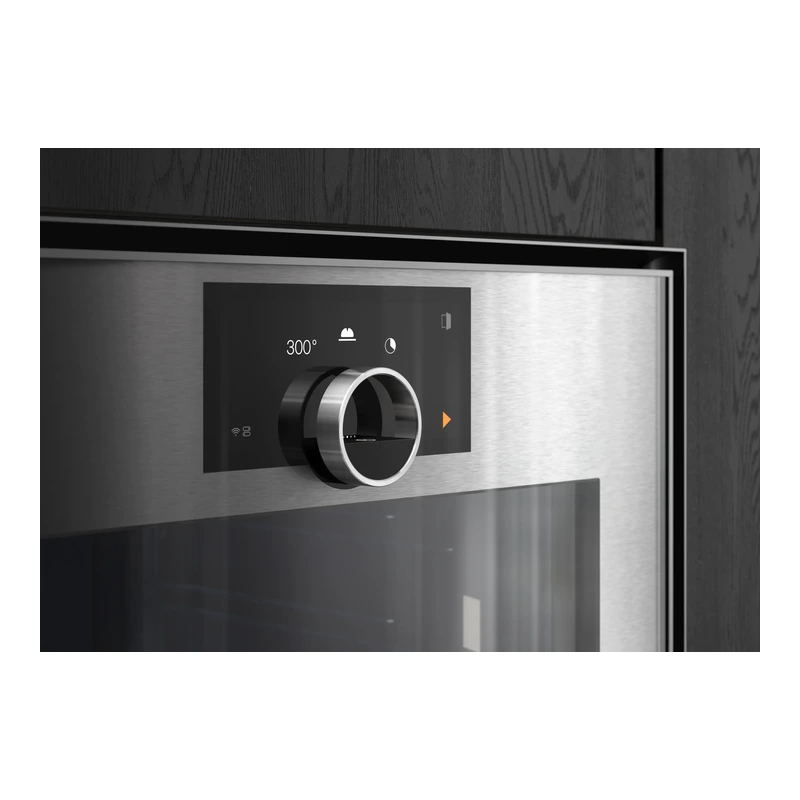

Display	Full touch display with control ring, 42 display languages, info texts, animated quick guides

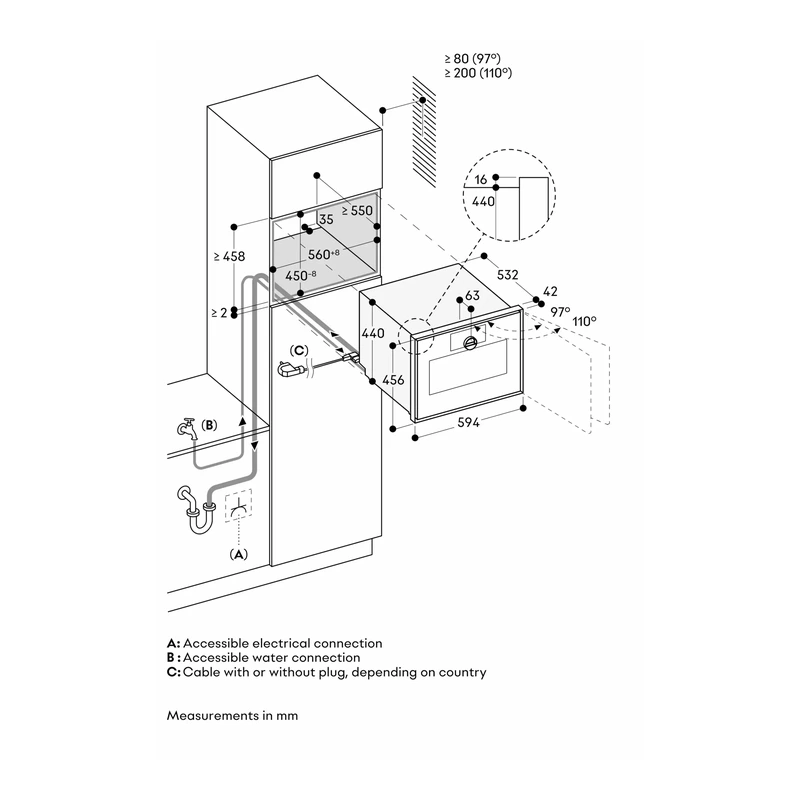

Dimensions (H x W x D)	456 x 594 x 532 mm
Packed dimensions (H x W x D)	610 x 710 x 700 mm

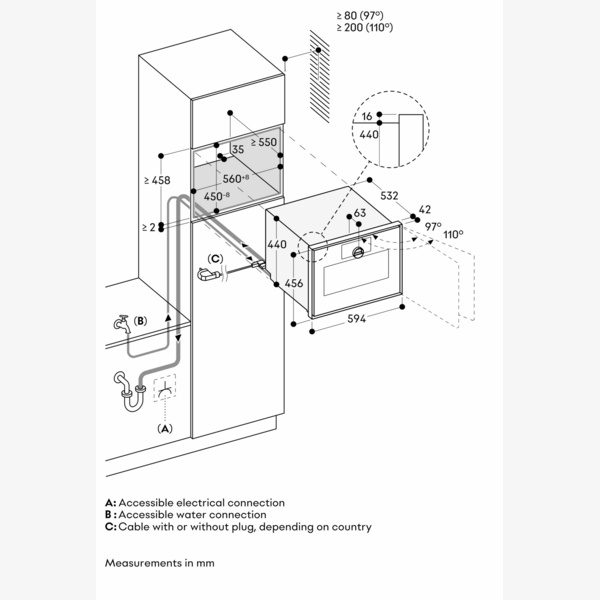

Required niche size (H x W x D)	442–450 x 560–568 x 550 mm
Front protrusion	Protrusion from appliance front to furniture cabinet 42 mm
Control panel material	without panel

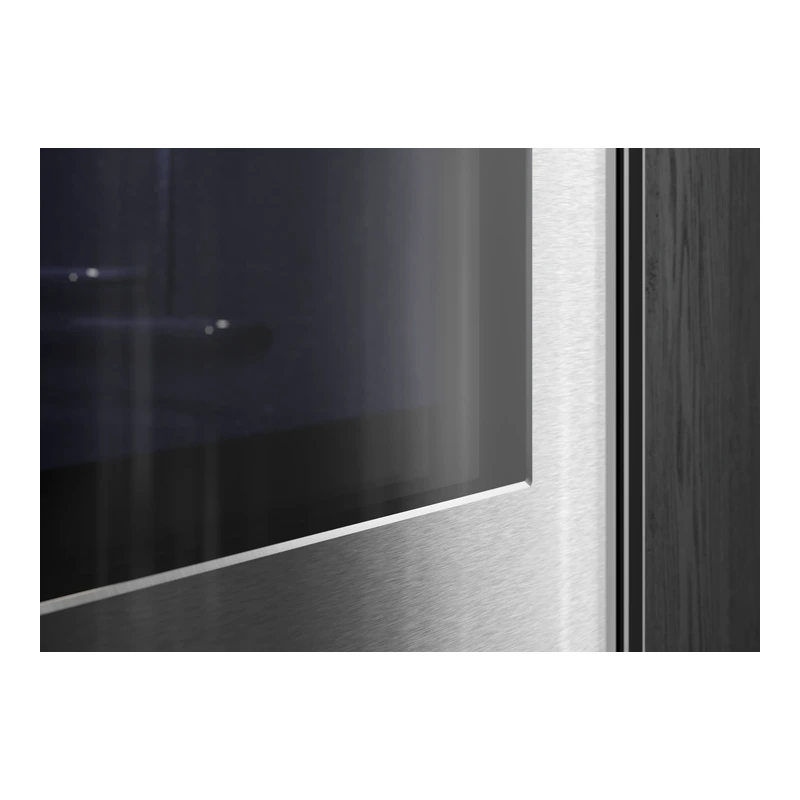

Door material	Stainless steel behind glass
Net weight	46.2 kg (unit not stated in source)
Electrical cord length	1.75 m
EAN code	4242006309701
Fuse protection	16
Voltage	220–240 V (unit not stated in source)
Frequency	50
Plug type	Gardy plug w/ earthing
Energy efficiency class	A (range A+++ to D)
Energy efficiency index (2010/30/EC)	94.7
Energy consumption per cycle forced air (2010/30/EC)	0.72 kWh (unit not stated in source)
Energy consumption conventional (2010/30/EC)	Not stated in source
Gas energy consumption	Not stated in source
Total connected load	3.1 kW

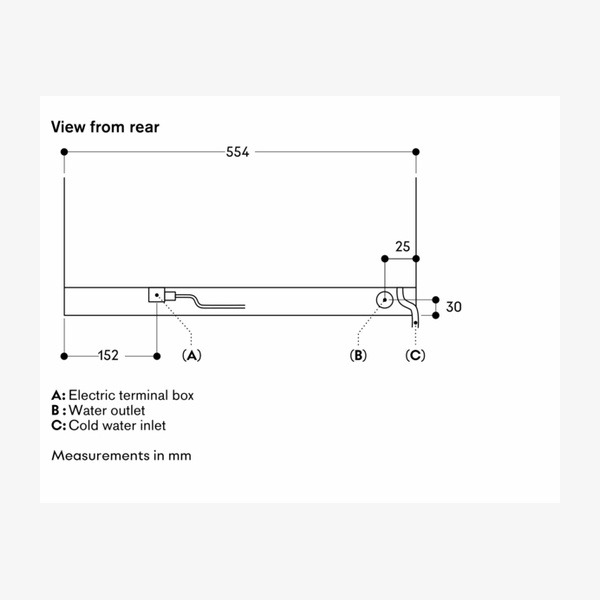

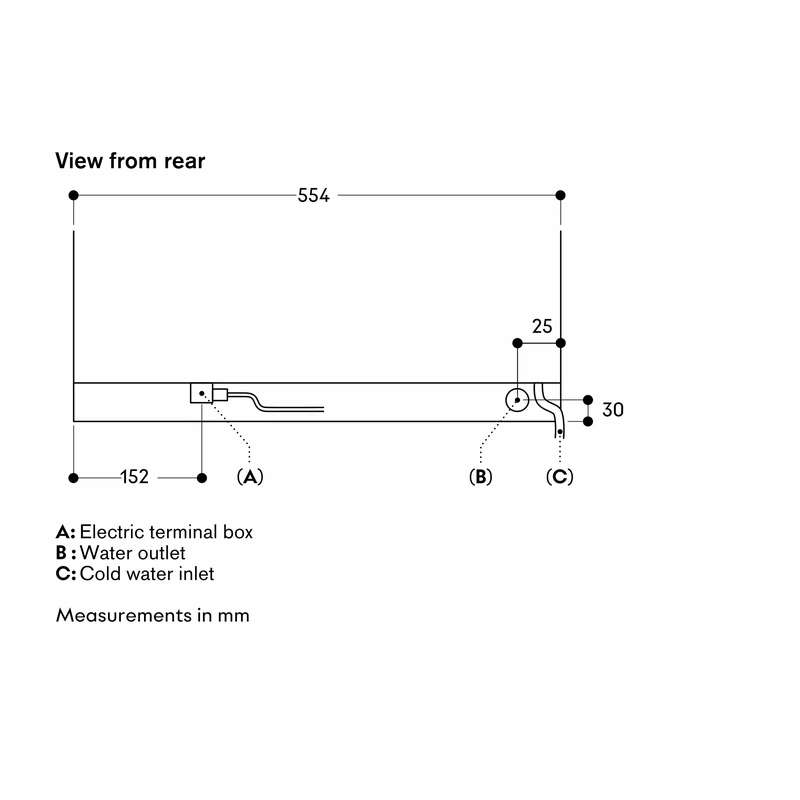

Water connection	Only cold water connection, fixed inlet and outlet water connection
Inlet hose	3.0 m, connection pipe thread ISO228-G 3/4'' (Ø 26.4 mm), extendable

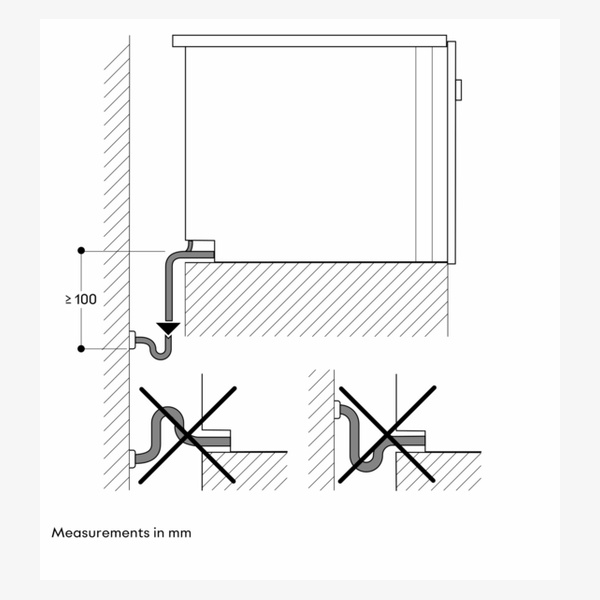

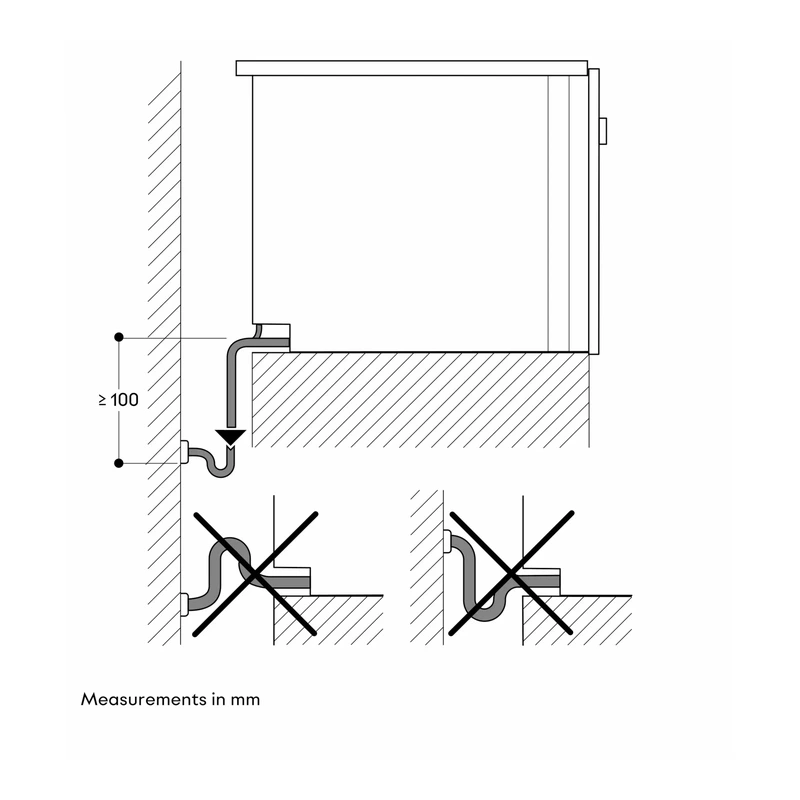

Outlet hose	3.0 m (HT–Hose) Ø 25 mm, extendable, maximum length 5 m
Water conductivity requirement	Softened water must have conductivity > 200 µS/cm to allow water detection
Colour variants	GS471120
Creation date of data	created on 2025-12-13

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Gaggenau →

Optional Accessories

— add individually to your enquiry

Optional

BA010050

Gaggenau Core Temperatute Probe

Optional

BA010301

Gaggenau Triple Telescopic Rack

Optional

BA020361

Gaggenau Baking Tray

Optional

BA020370

Gaggenau Oven Accessory

Optional

BA020382

Gaggenau Insert, non-stick, unperforated

Optional

BA020391

Gaggenau Insert, non-stick, perforated

Optional

BA046118

Gaggenau Glass tray 60cm for GO Ovens

Optional

CLS10040

Gaggenau Cleaning Cartridge

Optional

GN010330

Gaggenau Oven Accessories

Optional

GN114130

Gaggenau Stainless Steel Cooking Dish

Optional

GN114230

Gaggenau Stainless Steel Cooking Dish

Optional

GN124130

Gaggenau Stainless Steel Cooking Dish

Optional

GN124230

Gaggenau Accessories

Optional

GA601010

Gaggenau Adjustable Installation Partition 60cm

Optional

GZ010011

Gaggenau Extension for Water Outlet

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Gaggenau dealer, with full manufacturer warranty. Established 1967.
