What is the net volume and maximum load capacity?

The vacuuming drawer has a net volume of 7 litres and a capacity load of max. 10 kg.

Which vacuum levels are available?

There are 3 vacuuming levels for vacuuming in the chamber with vacuum up to max. 99 %, and 3 vacuuming levels for vacuuming outside the chamber with vacuum up to max. 90 %.

What applications is this vacuuming drawer suitable for?

It is suitable for vacuuming for sous-vide cooking, fast marinating and flavouring, vacuuming of vacuuming containers outside the chamber, and vacuuming of liquids in bottles outside the chamber.

What is the maximum size of vacuuming bags that can be used?

The maximum size of vacuuming bags is W 240 mm x L 350 mm.

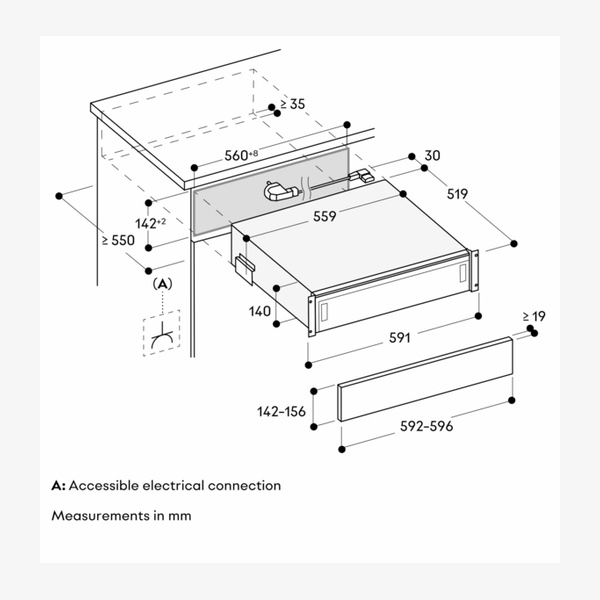

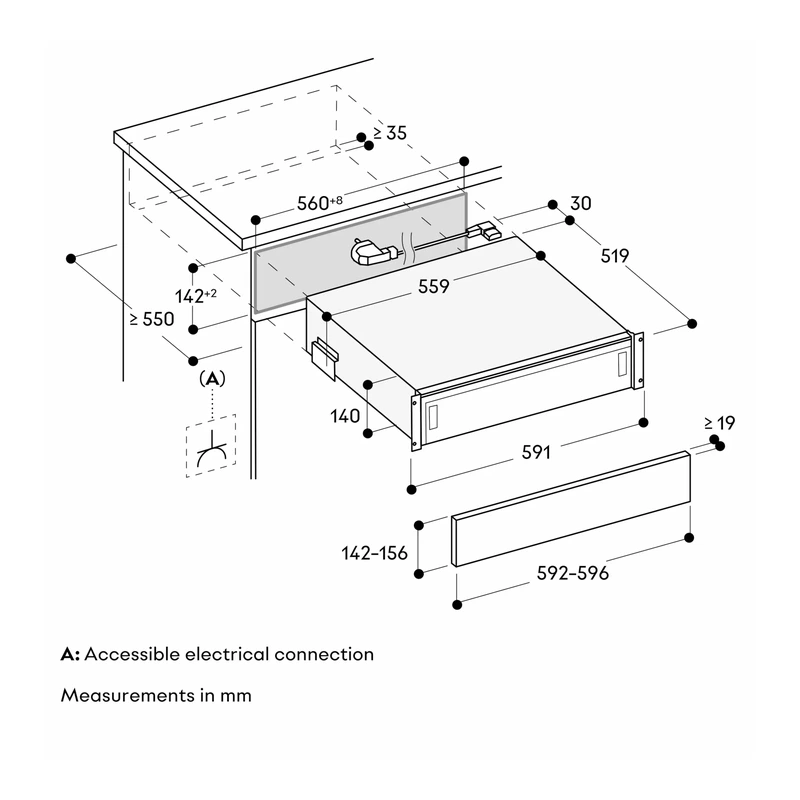

Are special installation conditions required?

The niche should be planned without a back wall. Installation of GO/GS/GM/GC is possible directly above the drawer without an intermediate shelf, but installation directly above a dishwasher is not allowed. A handle or recessed grip is necessary to open the fully integrated variant, and a minimum lateral gap of 5 mm between appliance front and furniture panel is required.

What electrical connection is required?

The total connected load is 0.32 kW and the appliance has a 1.50 m pluggable connection cable. The socket can be planned behind the appliance.

Product Information Sheet

Gaggenau Expressive Series Vacuum Drawer

SKU: GV051190

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Gaggenau GV051190 Expressive Series Vacuum Drawer

SKU: GV051190

Integrated

The Gaggenau GV051190 is a 60 x 14 cm vacuuming drawer with a hygienic stainless steel vacuuming chamber and touch key operation. It offers three vacuuming levels for use inside and outside the chamber, supporting food preservation and sous-vide preparation. With a net volume of 7 litres, capacity load up to 10 kg and multiple included accessories, it is designed for vacuuming bags, containers and bottles to help maintain food freshness and quality.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Vacuuming drawer Gaggenau Expressive series
Model code	GV051190
Dimensions	60 x 14 cm
Niche compatibility	Integrable in 14 cm high niche; built-in under worktop or in single niche
Vacuuming chamber height (applicable)	Up to 95 mm
Net volume	7 litres
Capacity load	Max. 10 kg
Vacuum levels (in chamber)	3 vacuuming levels, max. 99 %
Vacuum levels (outside chamber)	3 vacuuming levels, max. 90 %
Maximum bag size	W 240 mm x L 350 mm
Utility space in chamber	W 210 mm x L 275 mm
Raised vacuuming platform	44 mm, deployable
Heat-sealing levels	3 heat-sealing levels for different strengths of bag material
Sealing bar	Non-stick coating, removable
Cover	Safety glass cover, opens automatically after vacuuming
Front weight	Up to 3 kg
Lateral gap requirement	Necessary lateral gap between appliance front and furniture panel of min. 5 mm
Back wall in niche	Plan the niche without back wall
Installation above appliances	Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf; installation directly above a dishwasher is not allowed
Handle requirement	To open the fully integrated variant, a handle or a recessed grip is necessary
Socket position	The socket can be planned behind the appliance
Total connected load	0.32 kW
Connection cable	1.50 m, pluggable
