What is the total capacity of the Gaggenau RVF477190 freezer?

The total volume of the RVF477190 freezer is 516 litres.

Does the freezer need manual defrosting?

No. The appliance uses no-frost technology and features automatic defrosting with defrost water evaporation.

What is the temperature range for the freezer compartment?

The freezer temperature is adjustable from −16 °C to −24 °C, with fast freezing available at −30 °C.

Is there an integrated ice maker and how much ice does it produce?

Yes. The freezer has an integrated ice maker hidden in one drawer, with ice cube production of approximately 2.4 kg per 24 hours and a removable ice storage container of approximately 3 kg capacity.

Can the RVF477190 be installed side-by-side with other appliances?

Yes. The drawers in the RVC and RVF models are positioned at the same height so that glass shelves and door racks can be aligned level in side-by-side installation. An installation kit side-by-side (RVA460000) is available as an optional accessory.

What is the energy efficiency and noise level of this freezer?

The RVF477190 has an energy efficiency class D, with energy consumption of 277 kWh per year and a noise level of 38 dB (A) re 1 pW.

Product Information Sheet

Gaggenau Expressive 400 Series Freezer

SKU: RVF477190

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Gaggenau RVF477190 Expressive 400 Series Freezer

SKU: RVF477190

Built In Integrated Left Hinge

The Gaggenau RVF477190 is a Vario cooling Expressive series freezer with a total volume of 516 litres and a dark brushed stainless steel interior refined with solid anthracite aluminium elements. It offers warm-white, glare-free LED lighting and flexible storage with adjustable shelves, door racks and fully extendable drawers. With no-frost technology, fast freezing at −30 °C, integrated ice maker and Home Connect digital services, it is designed for high-end, built-in kitchen installations.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Freezer Vario cooling Expressive series
Model	RVF477190
Installation type	Vario cooling, suitable for side-by-side installation with RVC and RVF models

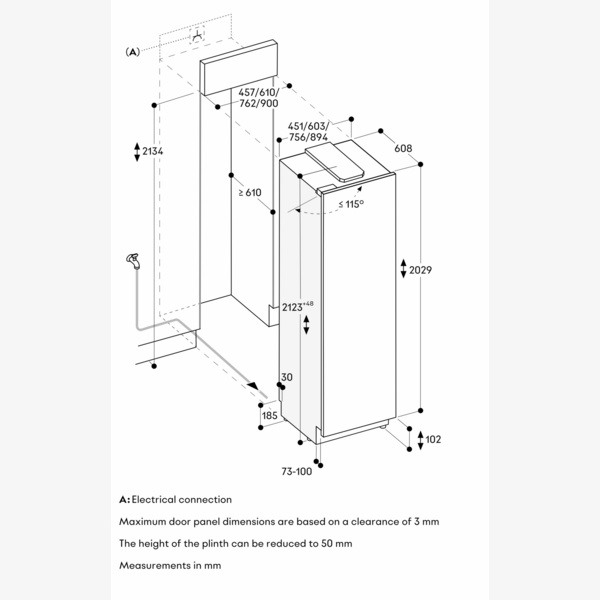

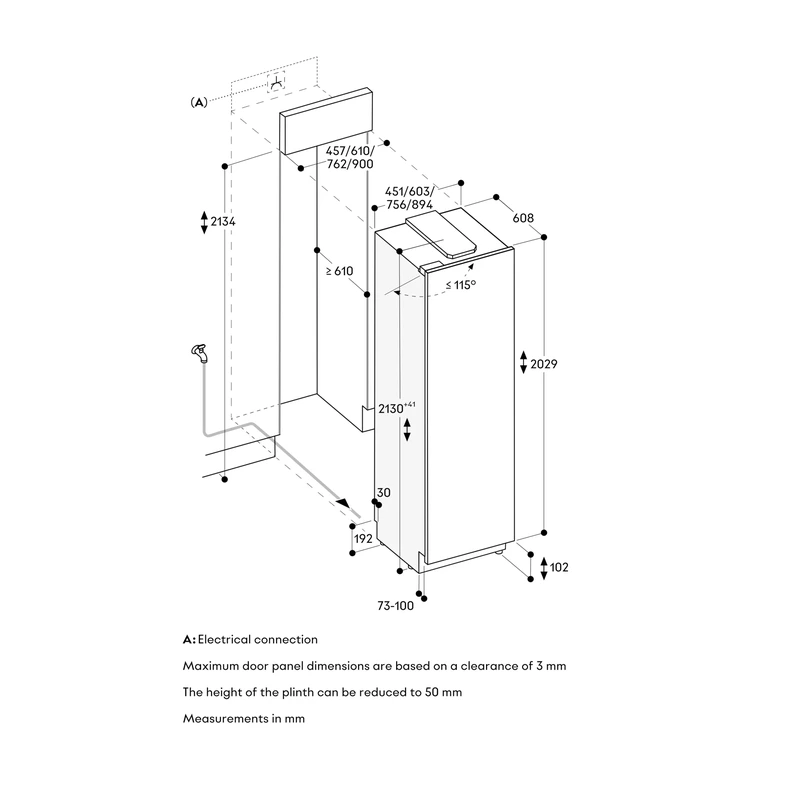

Dimensions (H x W)	213.4 x 76.2 cm
Total volume	516 litres
Freezer temperature range	−16 °C to −24 °C
Fast freezing temperature	−30 °C (no-frost technology with fast freezing)
Freezer compartment rating	4-star freezer compartment
Freezing capacity	25 kg / 24 h
Storage time after malfunction	19 h
Lighting	Warm-white, glare-free LED lighting (3000 K) within freezer compartment
Shelves	3 aluminium-framed safety glass shelves, individually adjustable in height
Door racks	4 height-adjustable door racks with flexible positioning
Drawers	3 fully extendable drawers with cushioned closing system

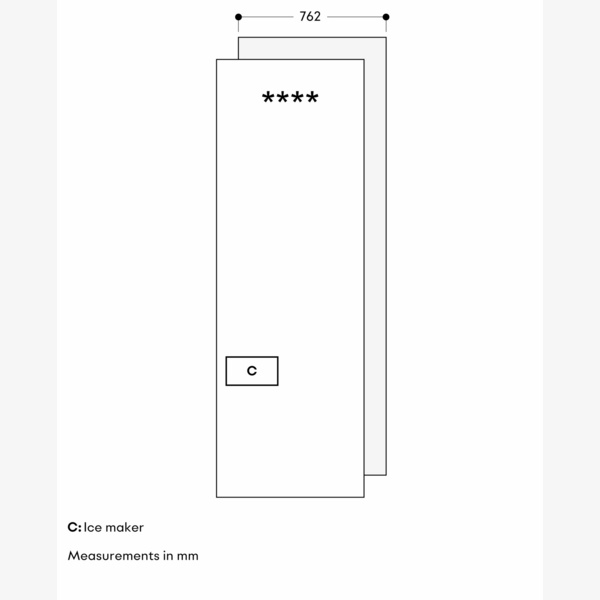

Ice maker location	Hidden in one drawer
Ice production	Approx. 2.4 kg / 24 h
Ice storage capacity	Approx. 3 kg (removable ice storage container)
Energy efficiency class	D (range A to G)
Energy consumption	277 kWh/year
Noise level	38 dB (A) re 1 pW
Door hinge	Left, reversible

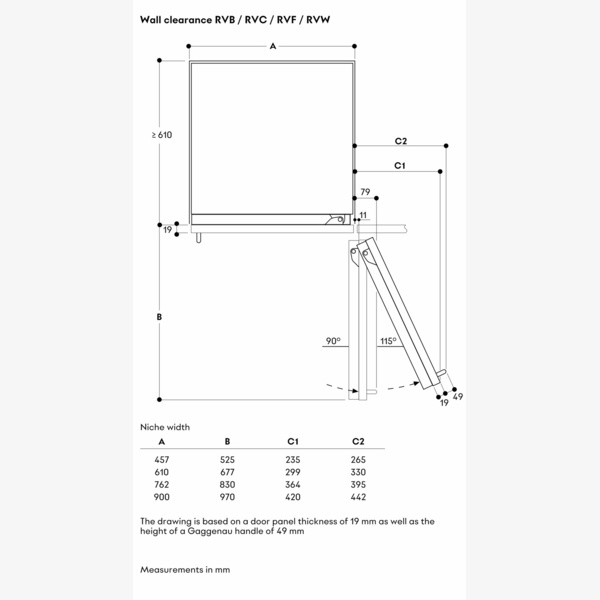

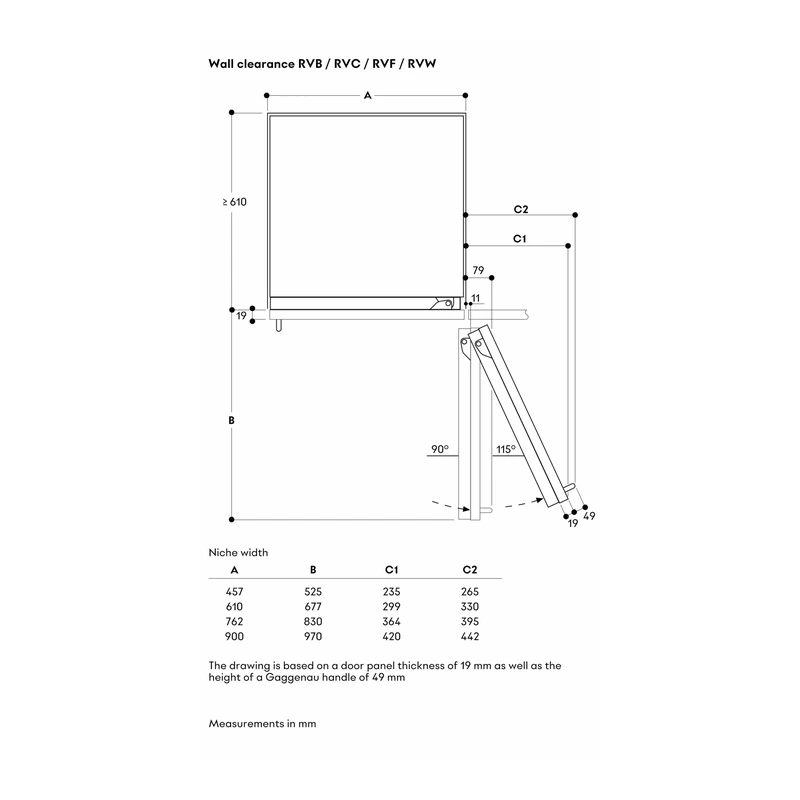

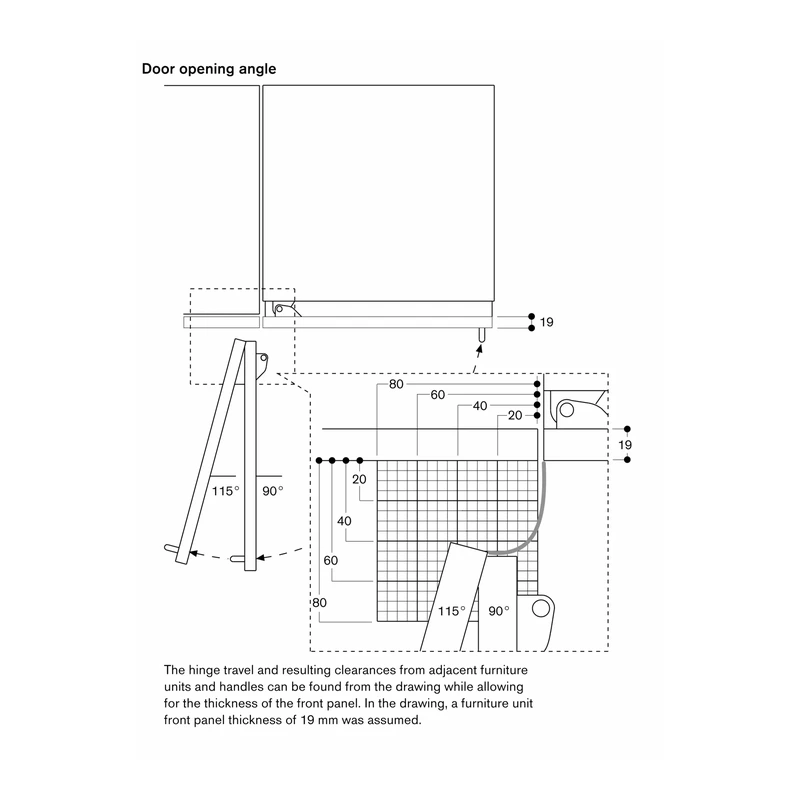

Door opening angle	115°, fixable at 90°
Max. door panel weight	39 kg
Connected load	0.300 kW
Connecting cable	3.0 m, pluggable

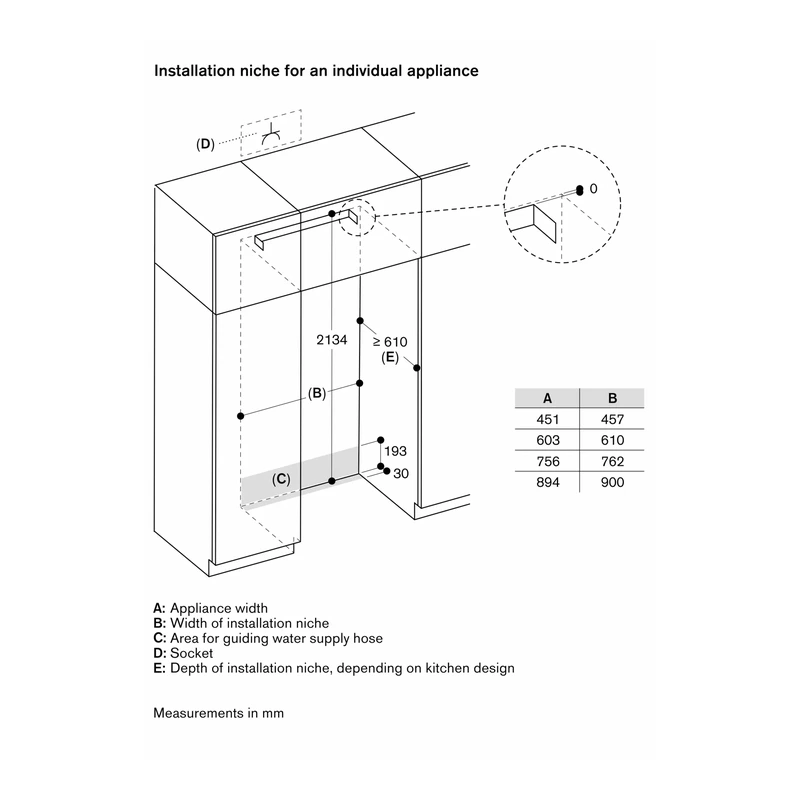

Water inlet connection	Supply hose 1.8 m with 3/4' connection
Water pressure range	2 bar to 8 bar (0.2 MPa to 0.8 MPa)
Rest mode certification	Star-K

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Gaggenau →

Optional Accessories

— add individually to your enquiry

Optional

RA450012

Gaggenau Activated Charcoal Water Filter

Optional

RVA423141

Gaggenau Side Trims - RVY497

Optional

RVA460000

Gaggenau For Side by Side Install

Optional

RVA460020

Gaggenau For Side by Side Install - RVY497
