How many wine bottles can the RVW417170 hold?

The cabinet has a capacity of 68 bottles, based on 0.75 l standard bottles, and a total volume of 280 litres.

How many climate zones does this wine cabinet have?

It provides 3 independently controllable climate zones, 2 of which feature automatic tempering programmes.

What temperature range is available for storing wine?

In manual mode, temperatures can be set from +5 °C to +20 °C. In automatic tempering programmes, the range is from +3 °C to +20 °C.

Is it possible to store Magnum bottles?

Yes. Storage of Magnum bottles is possible on every tray, with up to 2 Magnum bottles per tray.

What accessories are included with the RVW417170?

The appliance is supplied with 2 bottle holder grid plates and 1 bottle presenter.

Does the wine cabinet have a lockable door?

The door can be locked when the optional door lock RVA 420 010 is used.

Product Information Sheet

Gaggenau Expressive 400 Series Winecellar

SKU: RVW417170

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Gaggenau RVW417170 Expressive 400 Series Winecellar

SKU: RVW417170

Built In Integrated Right Hinge

The Gaggenau RVW417170 is a wine climate cabinet from the Vario cooling Expressive series with three independently controllable climate zones and capacity for 68 bottles (0.75 l standard). It offers automatic tempering programmes, humidity control and low–vibration operation for long–term storage. Warm white, glare–free LED lighting and oak wood bottle trays present wine attractively, while features such as opening assist, full touch TFT display and selected digital services support convenient handling.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Wine climate cabinet Vario cooling Expressive series
Model	RVW417170

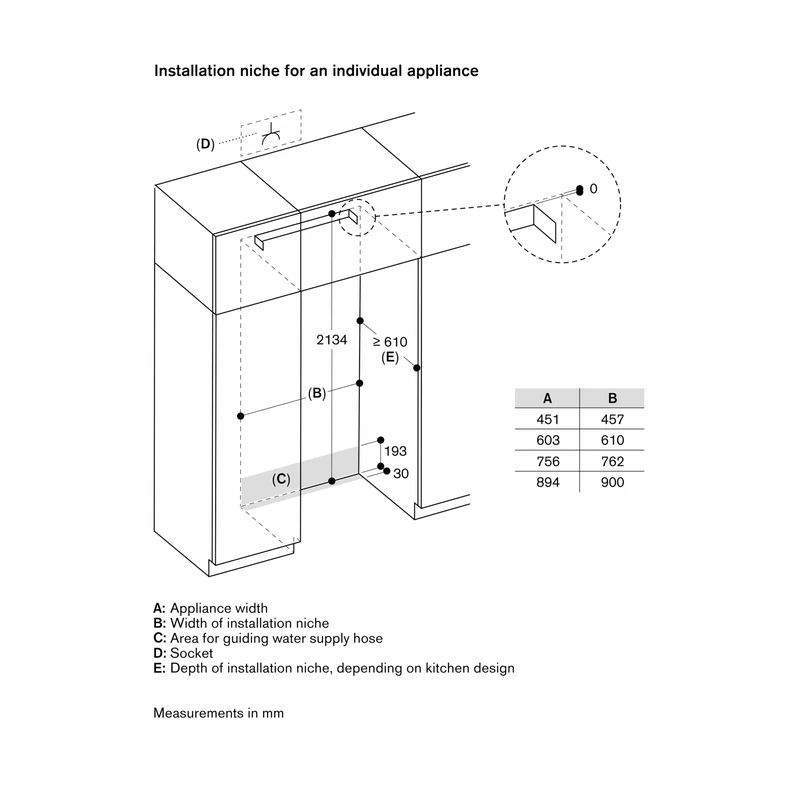

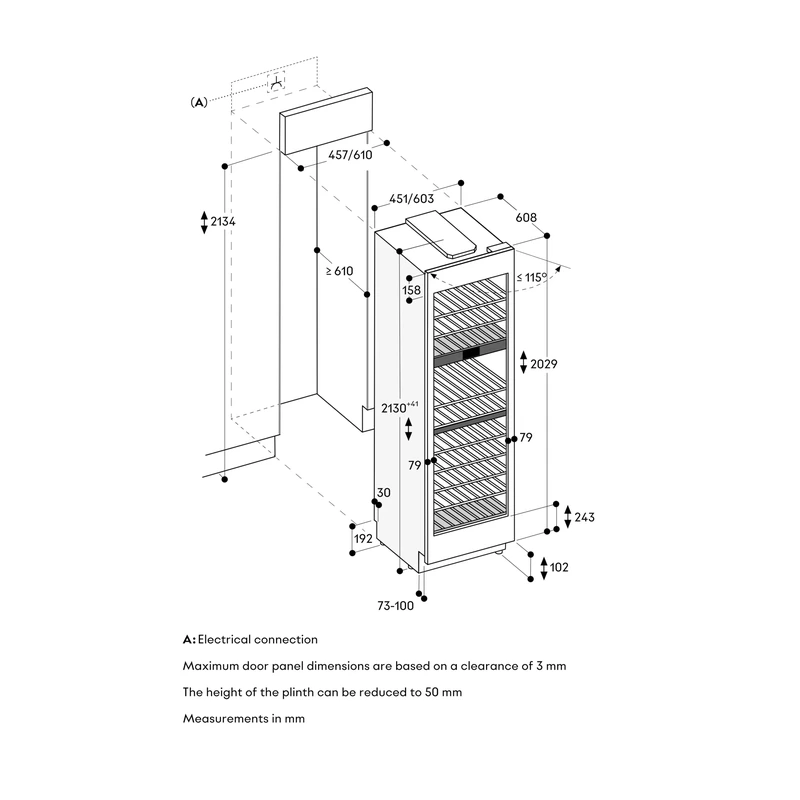

Dimensions	213.4 x 45.7 cm

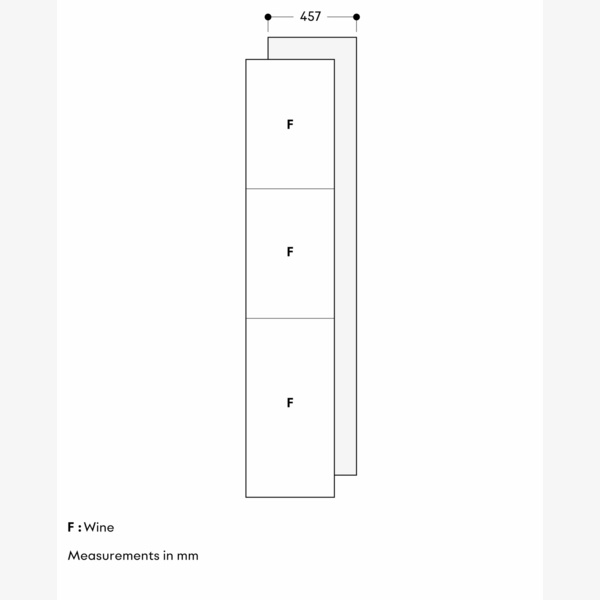

Climate zones	3 independently controllable climate zones (2 with automatic tempering programmes)
Temperature range (manual mode)	+5 °C to +20 °C
Temperature range (automatic tempering)	+3 °C to +20 °C

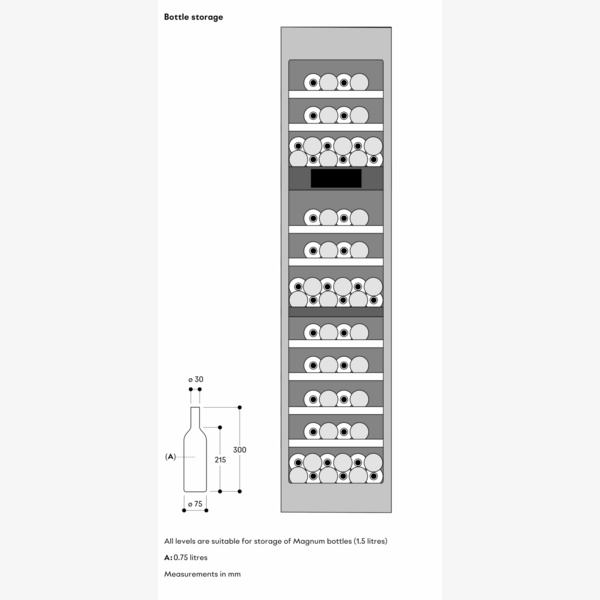

Capacity	68 bottles (based on 0.75 l standard bottles)
Total volume	280 litres

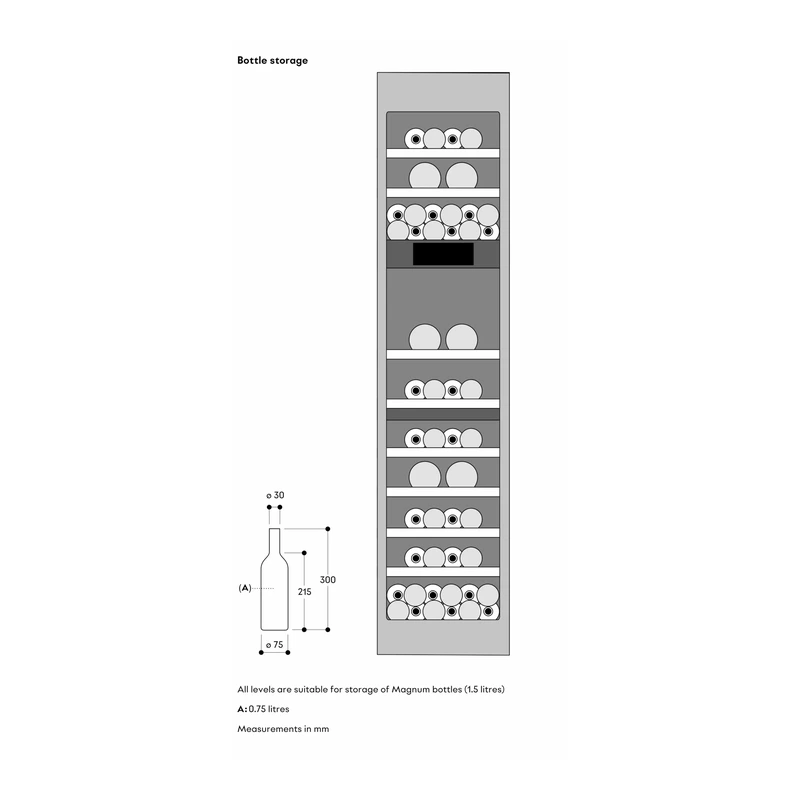

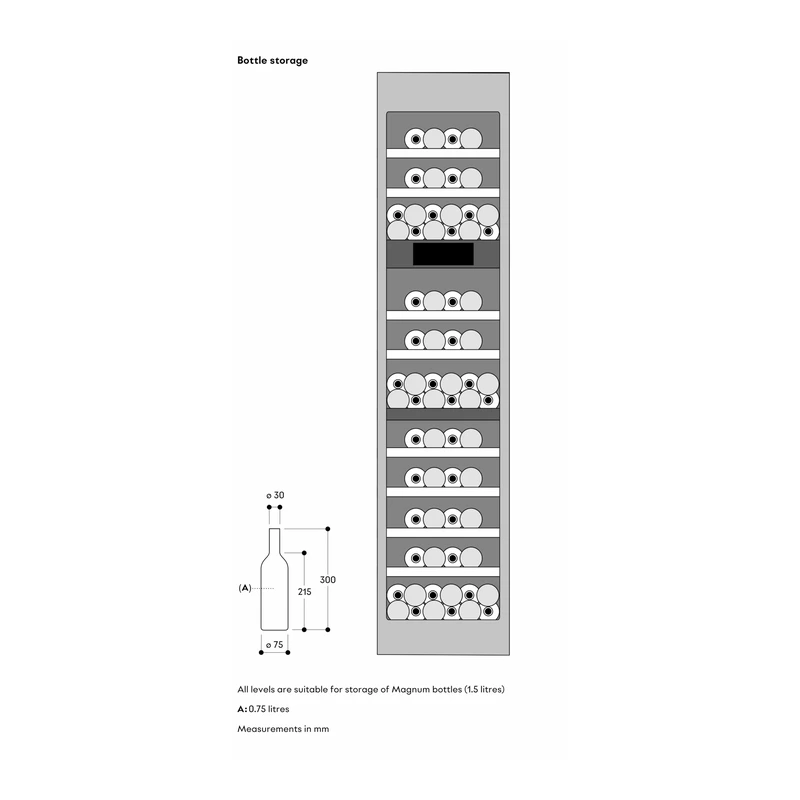

Bottle trays	10 bottle trays, thereof 8 fully extendable; space for max. 11 bottle trays

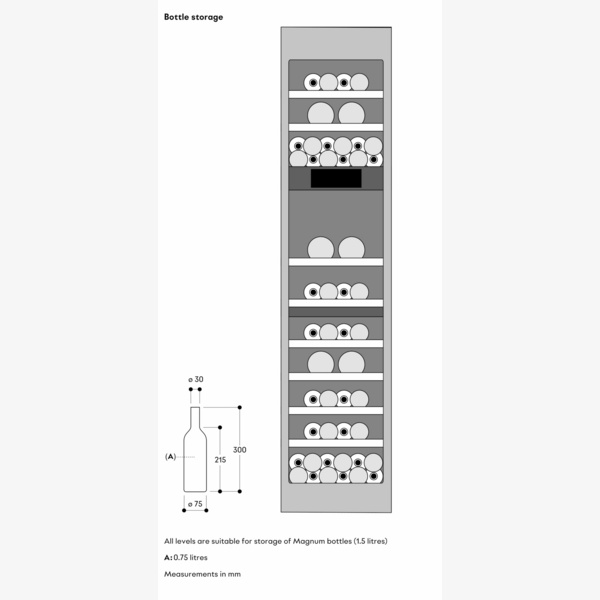

Magnum bottle storage	Storage of Magnum bottles possible on every tray (up to 2 Magnum bottles)
Interior design	Dark brushed stainless steel interior; bottle trays made of oak wood and solid aluminium in anthracite
Lighting	Warm white and glare–free LED light bars (3000 K) in each climate zone; 3 pre–defined light scenarios with individualisation possibility
Control display	Full touch TFT display
Air purification	Activated charcoal air filter in each climate zone
UV protection	UV transmission: 19 %
Energy efficiency class	F (range of energy efficiency classes from A to G)
Energy consumption	121 kWh/year
Noise level	38 dB (A) re 1 pW
Hinge type	Flat hinge; door hinge right, reversible

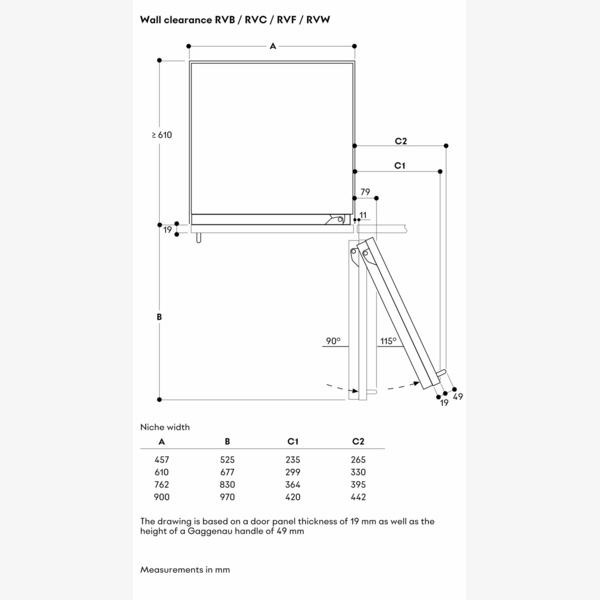

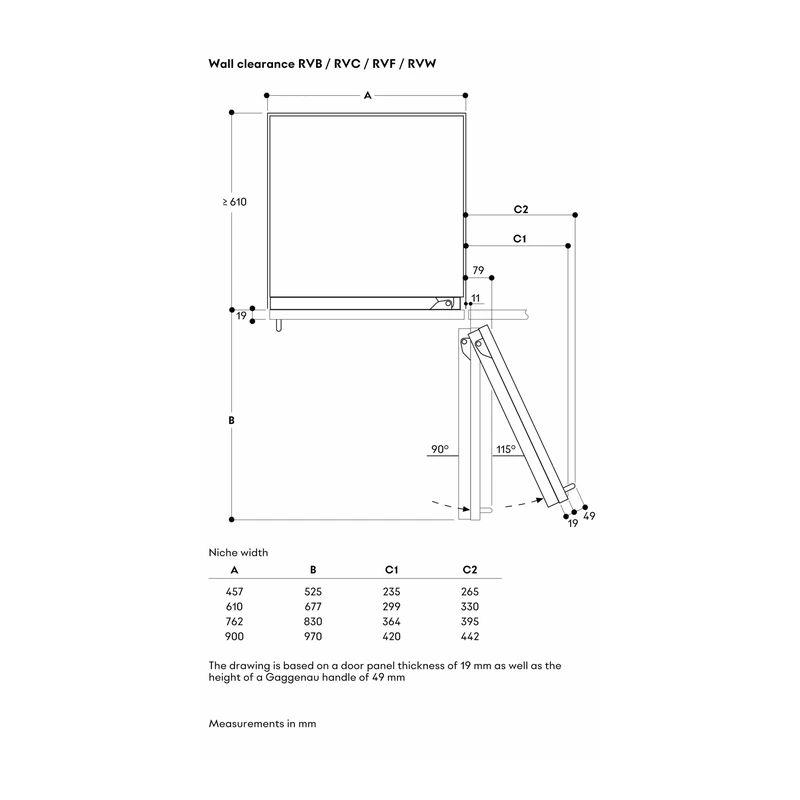

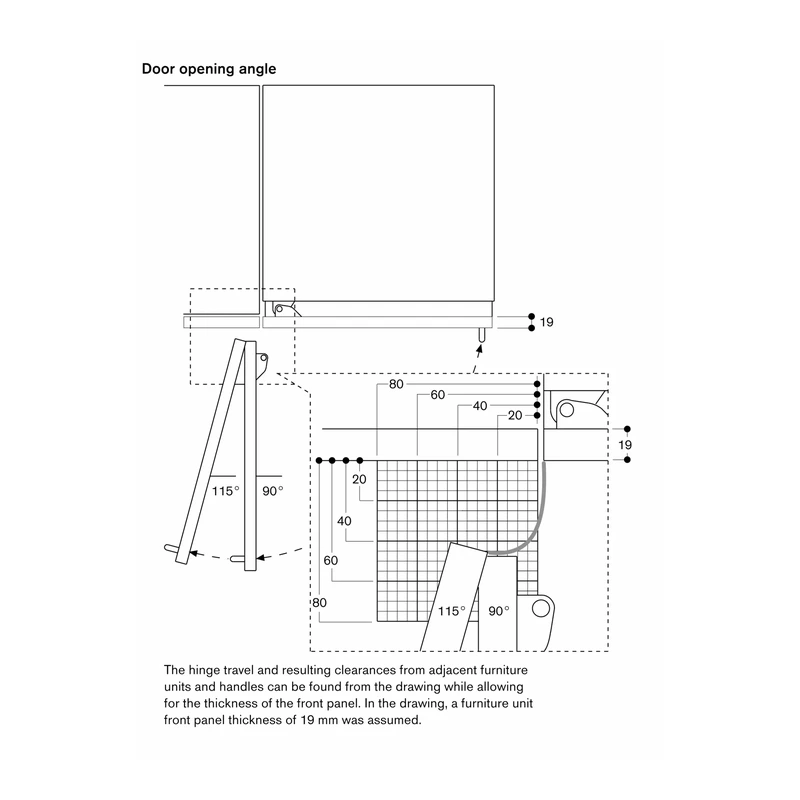

Door opening angle	115°, fixable at 90°

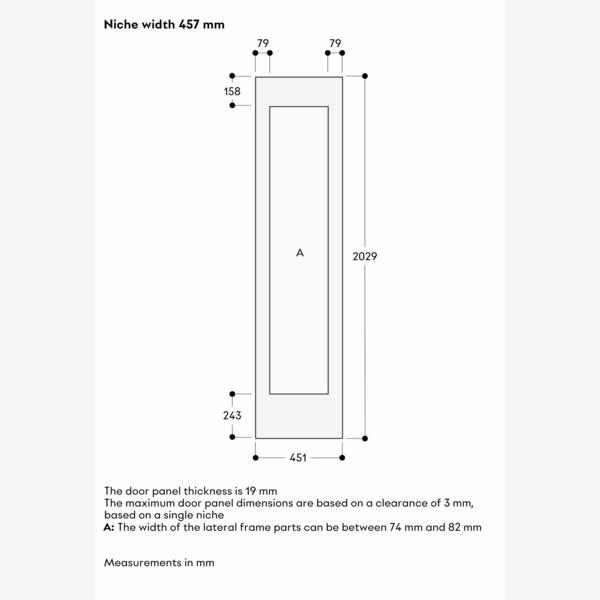

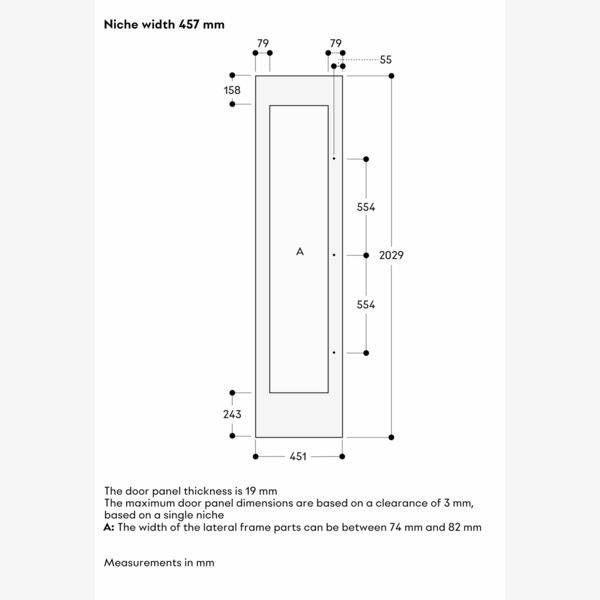

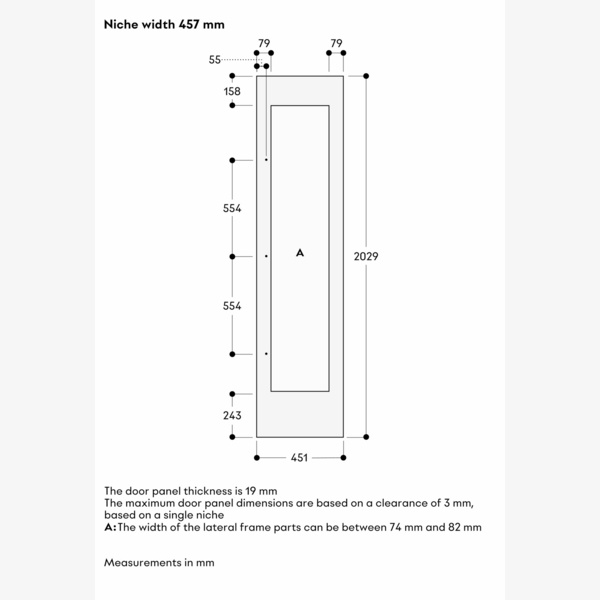

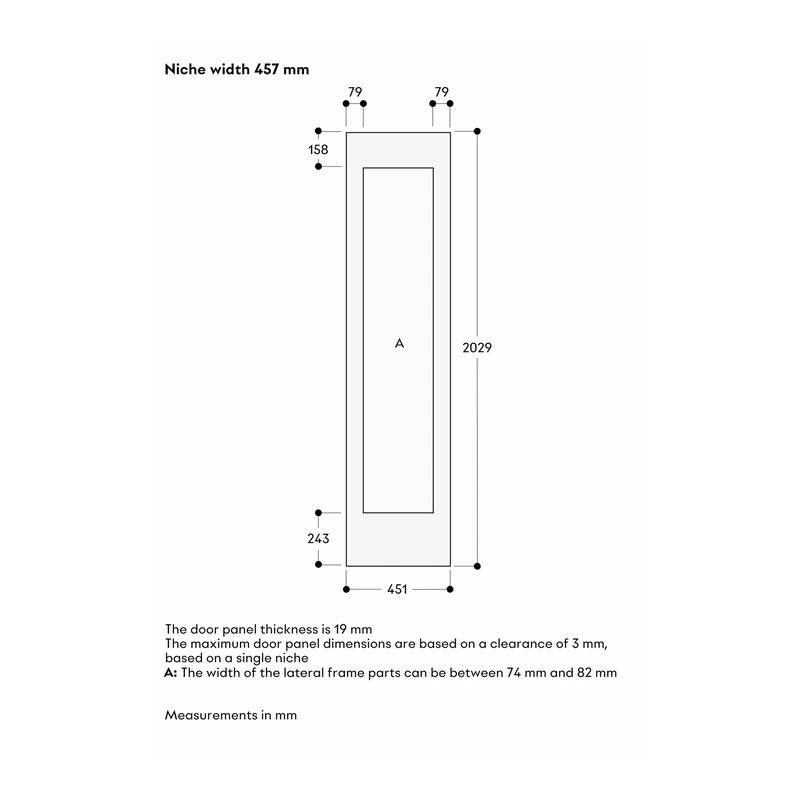

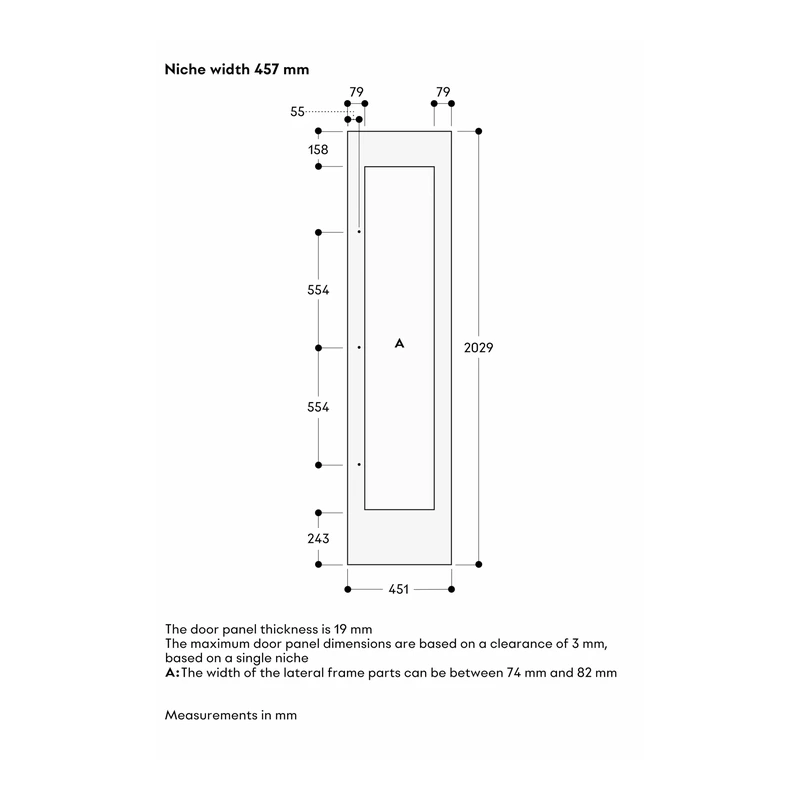

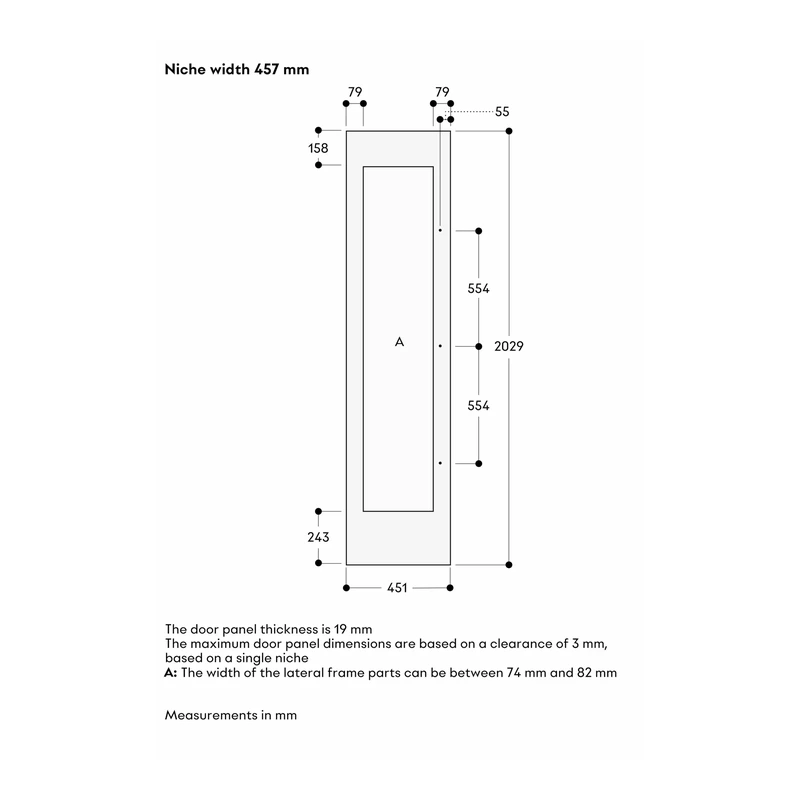

Max. door panel frame weight	74 kg
Installation altitude	No transport/operation above 2000 m sea level
Total connected load	0.300 kW
Connecting cable	3.0 m, pluggable
Included accessories	2 x bottle holder grid plate; 1 x bottle presenter
