What is the total storage volume of the RVY497190?

The appliance has a total volume of 576 litres, with 379 litres for all refrigerator compartments and 197 litres for the freezer compartment.

What temperature ranges can be set for cooling and freezing?

The cooling compartment can be set from +2 °C to +8 °C. The fresh climate drawers offer −1 °C to +2 °C, while the freezer compartment can be set between −16 °C and −24 °C, with fast freezing at −30 °C.

Does the fridge-freezer require a water connection?

Yes. The integrated ice maker has a fixed inlet water connection. A shut-off valve must be planned next to the appliance and always be accessible. Water pressure must be between 2 bar and 8 bar, and if it exceeds 0.8 MPa (8 bar), a pressure relief valve is required between the water tap and hose set.

How does the appliance help preserve food freshness?

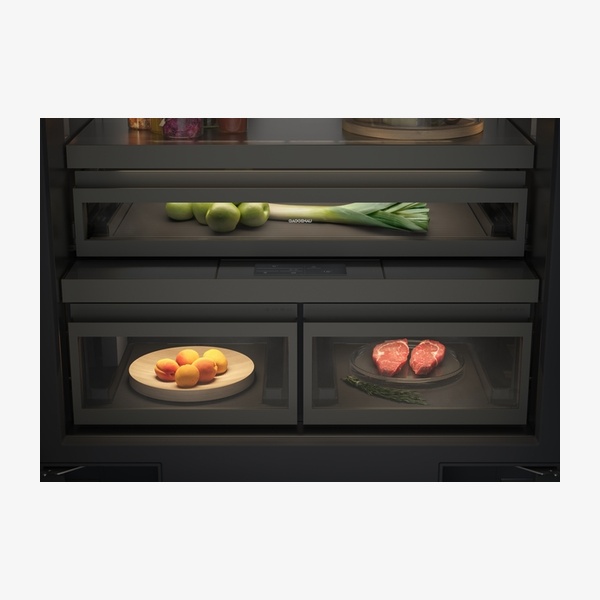

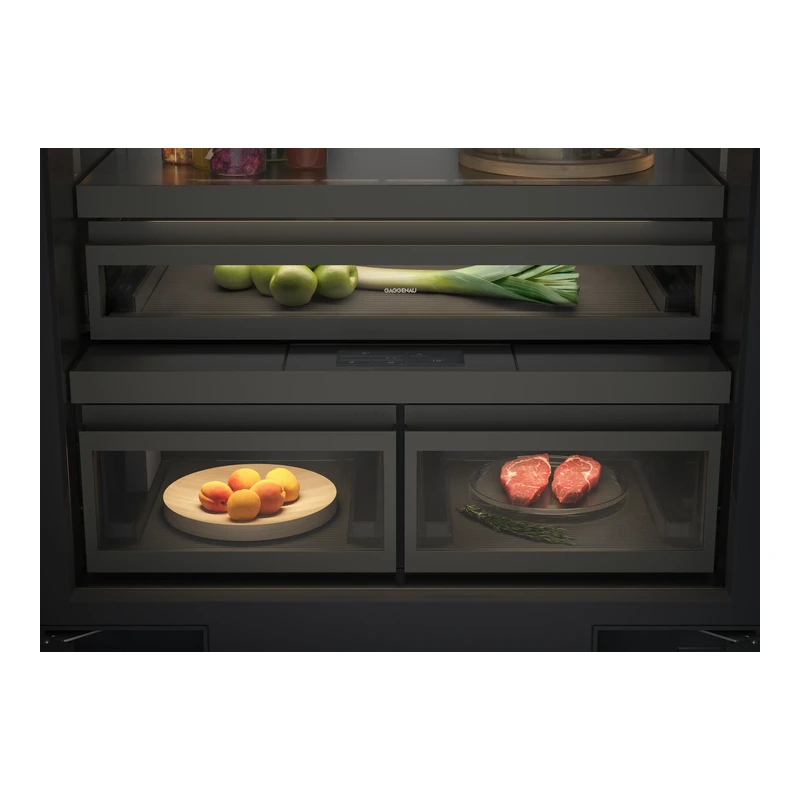

The professional freshness system uses two fresh climate drawers with dedicated programmes and adjustable humidity, a chilled drawer with lower temperature, constant air purification by two activated charcoal air filters, and extended food preservation with ethylene absorbers.

What digital features are available via Gaggenau Home Connect?

Selected digital services include remote control and monitoring, software updates, storage management with cameras, automatic programme selection of fresh climate drawers via object recognition, and a personalisation function for saving custom programmes.

What happens when rest mode is activated?

When rest mode is active, the appliance is certified by Star-K and can only be opened using a handle.

Product Information Sheet

Gaggenau Vario 400 Fridge Freezer

SKU: RVY497190

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

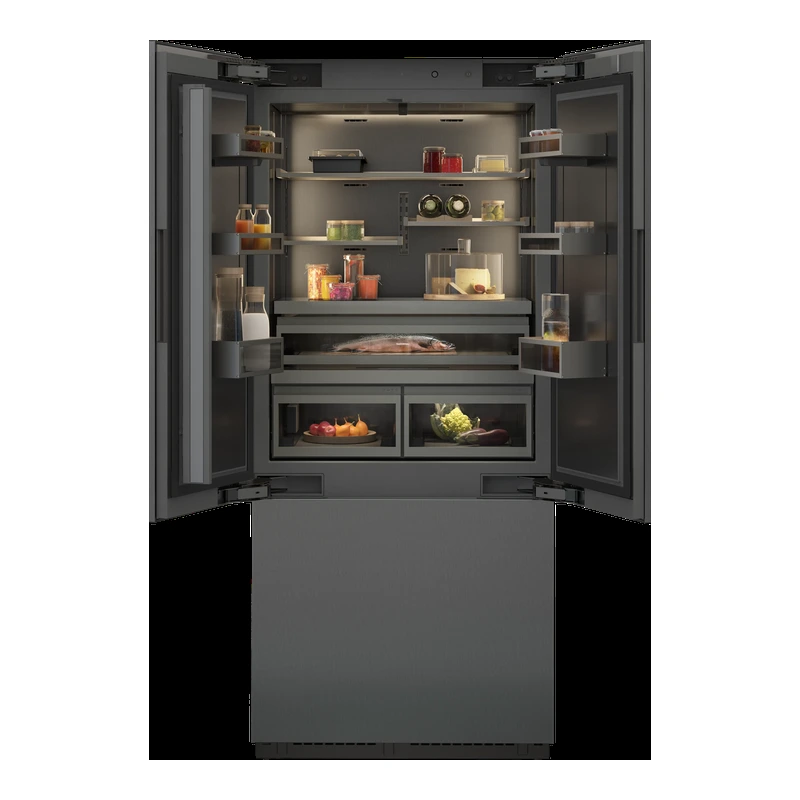

Gaggenau RVY497190 Vario 400 Fridge Freezer

SKU: RVY497190

Built In Integrated - 3 Door

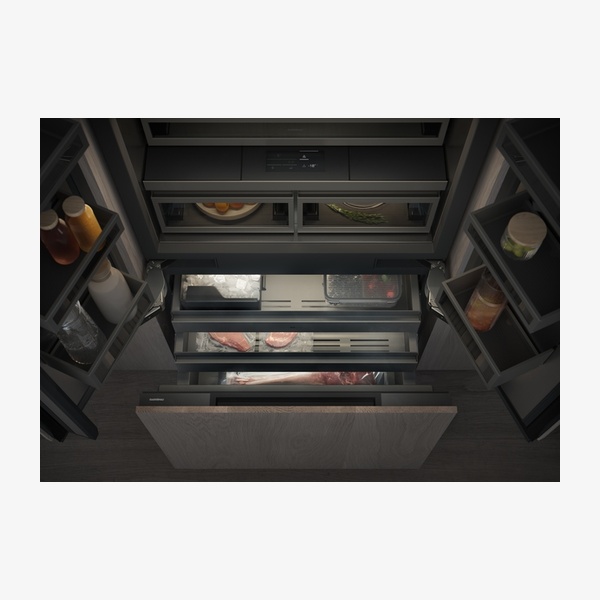

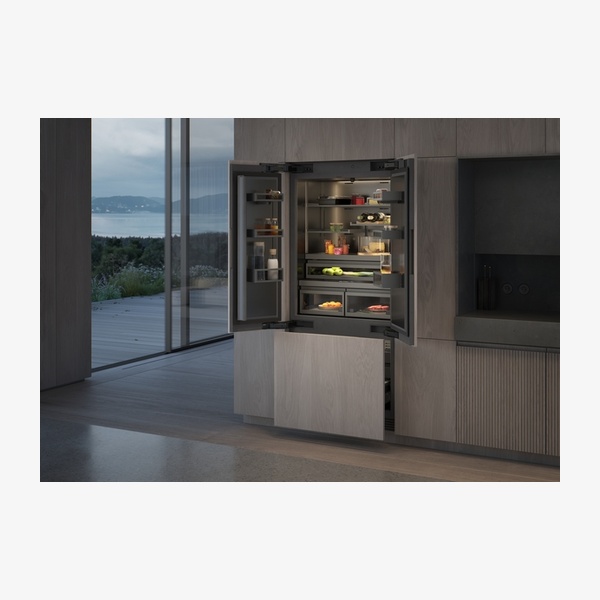

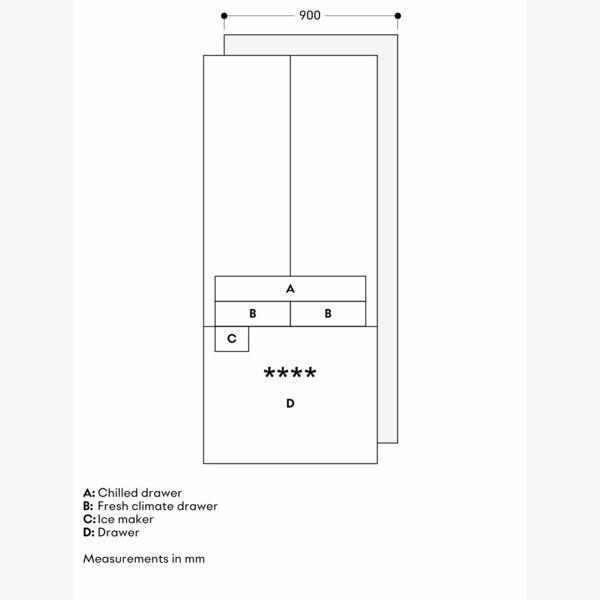

The RVY497190 is a fridge-freezer combination from the Vario cooling Expressive series, featuring a dark brushed stainless steel interior refined with solid anthracite aluminium elements. It offers a professional freshness system with fresh climate drawers and a chilled drawer, plus a spacious no-frost freezer with integrated ice maker. Warm white, glare-free LED lighting and an intuitive full touch TFT display support flexible storage, user guidance and selected digital services.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Fridge-freezer combination Vario cooling, Expressive series
Model	RVY497190

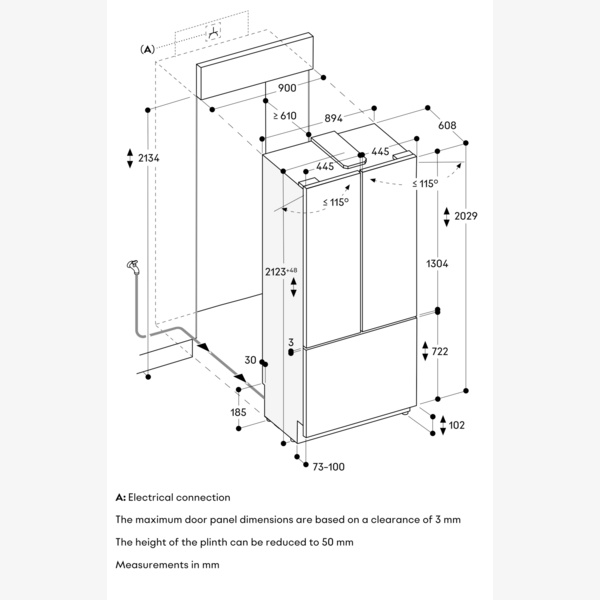

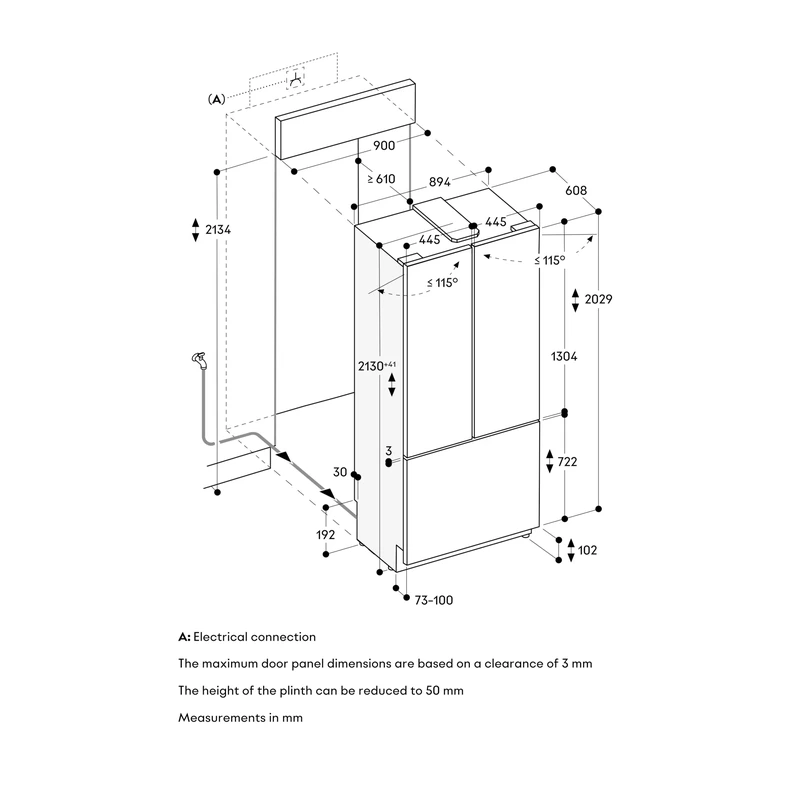

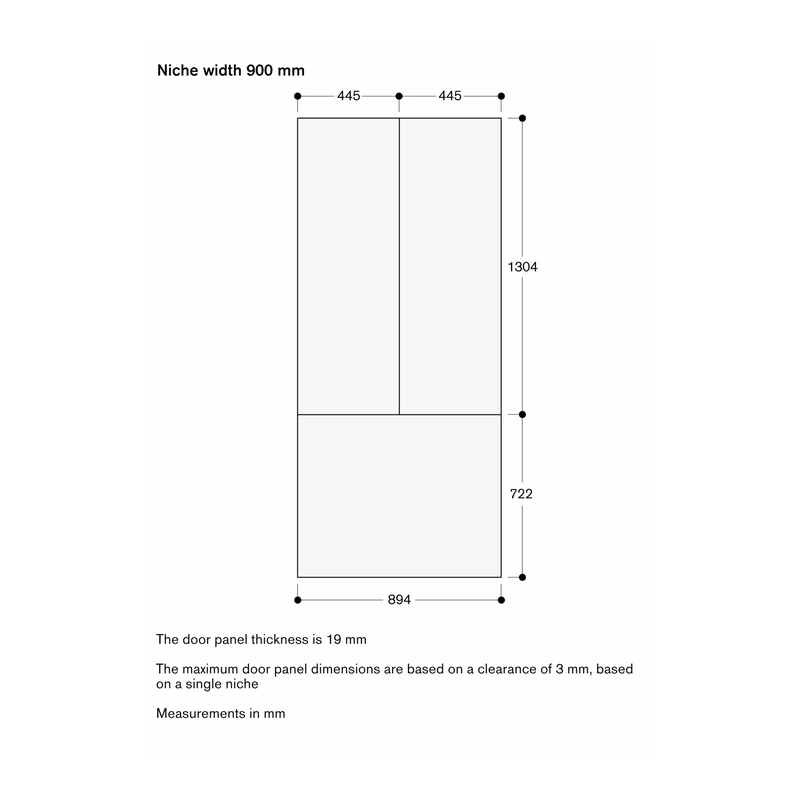

Dimensions	213.4 x 90 cm
Interior finish	Dark brushed stainless steel with solid anthracite aluminium elements
Total volume	576 litres
Refrigerator volume	Total volume of all refrigerator compartments: 379 litres
Freezer volume	197 litres
Energy efficiency class	D (range of energy efficiency classes from A to G)
Energy consumption	285 kWh/year
Noise level	39 dB (A) re 1 pW
Cooling temperature range	+2 °C to +8 °C
Fresh climate drawer temperature	−1 °C to +2 °C
Freezer temperature range	−16 °C to −24 °C
Fast freezing	No-frost technology with fast freezing at −30 °C
Freezing capacity	14 kg/24 h
Storage time after malfunction	19 h

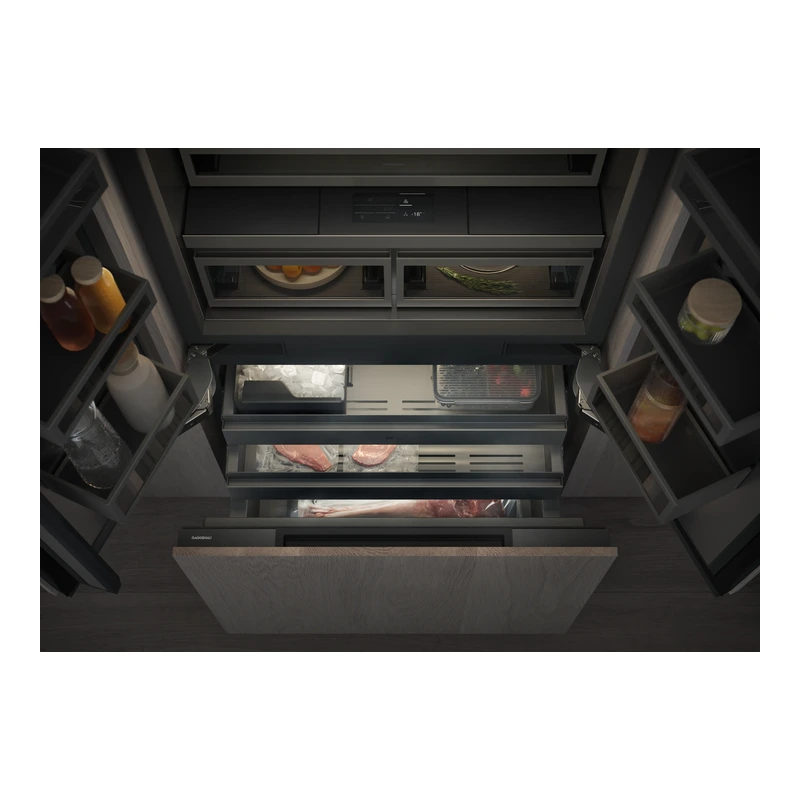

Freezer compartment	4-star freezer compartment, spacious, fully extendable, 2 extendable interior drawers

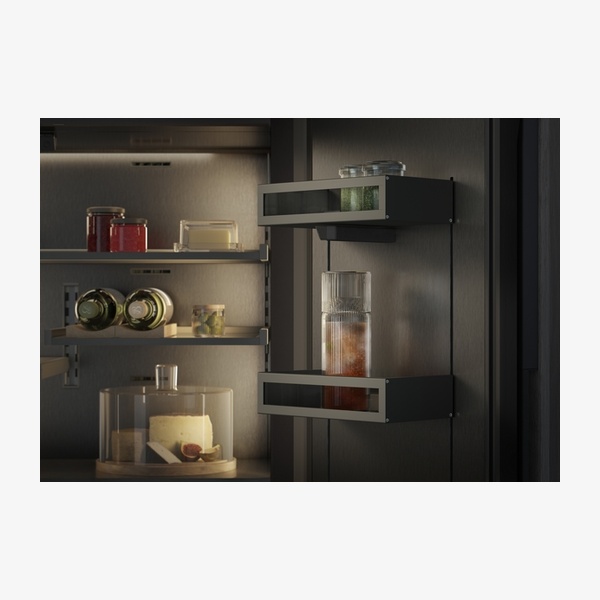

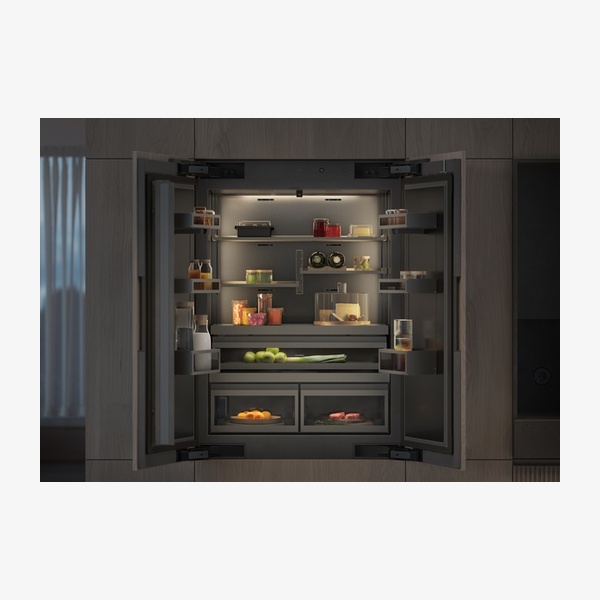

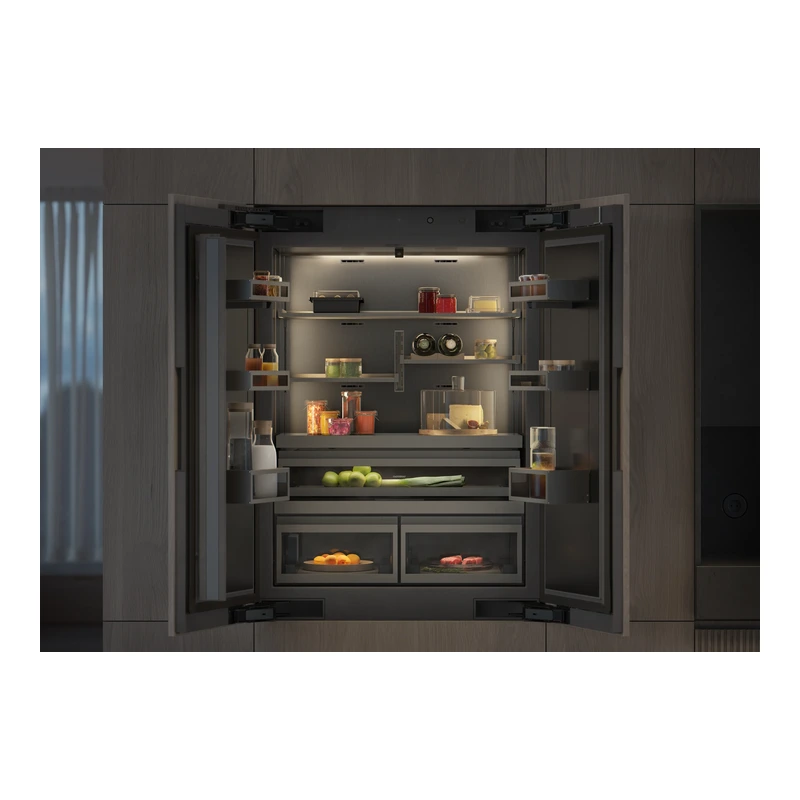

Shelves in refrigerator	3 aluminium-framed safety glass shelves, individually adjustable in height; 1 integrated safety glass shelf

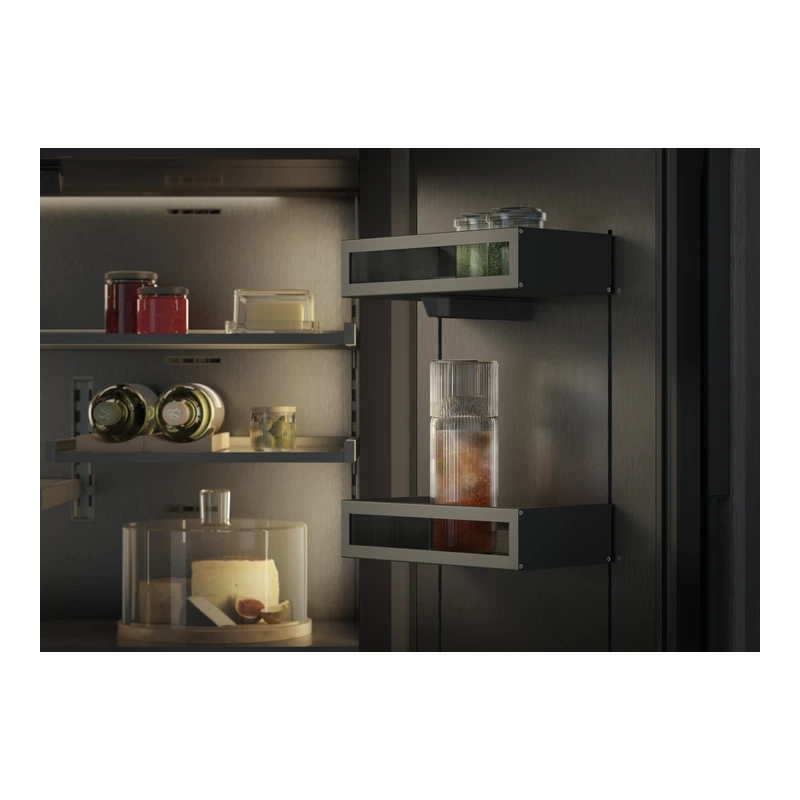

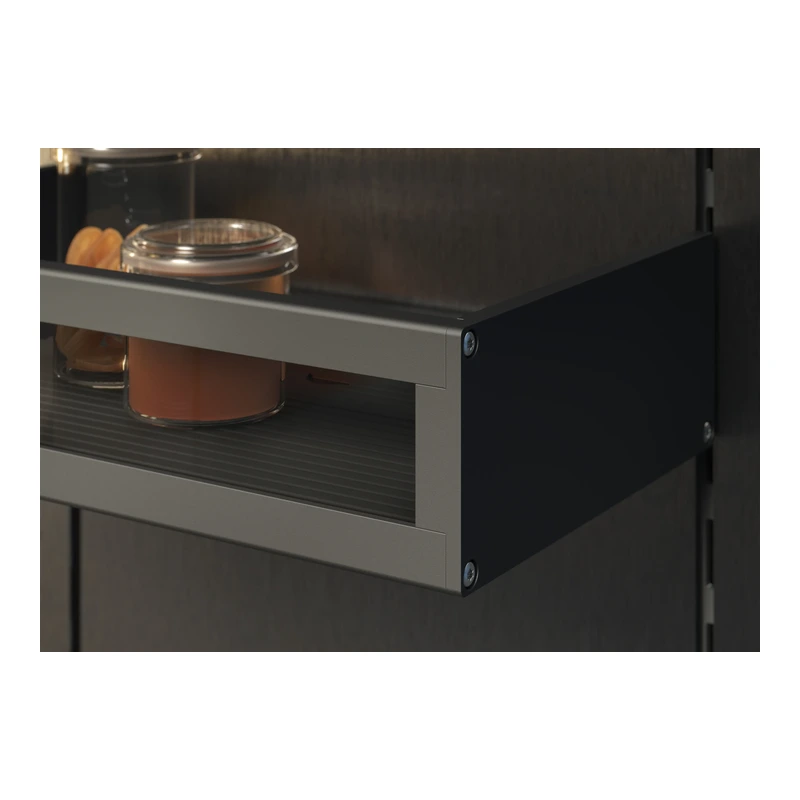

Door racks	6 door racks, thereof 4 height adjustable; solid anthracite aluminium door racks
Lighting	Warm white and glare-free LED light concept (3000 K), hidden LED light bars; LED lighting within freezer compartment
Air purification	Constant air purification by 2 activated charcoal air filters

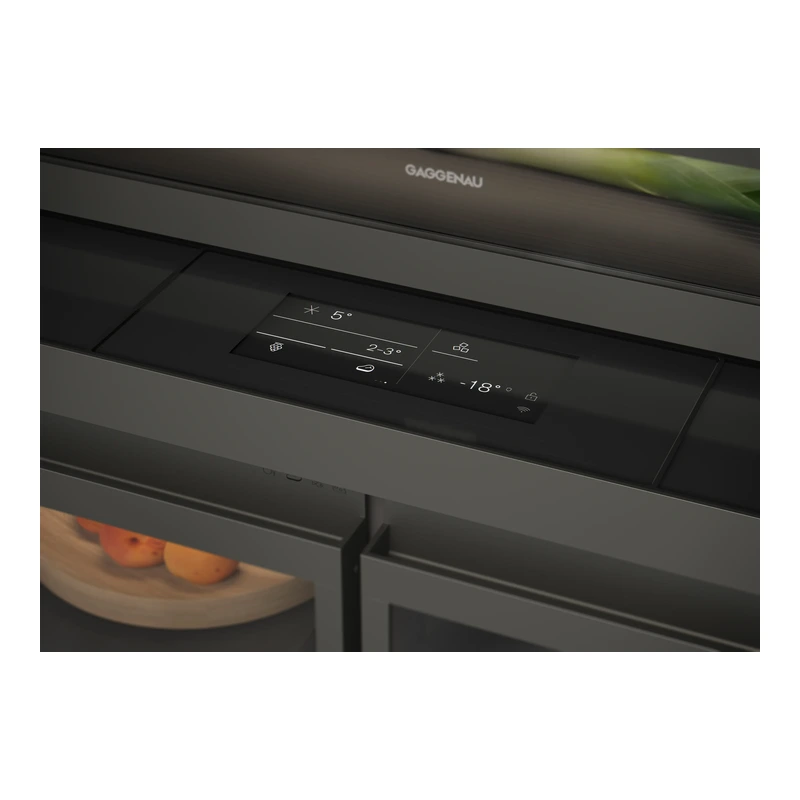

Display	Full touch TFT display, easy accessible

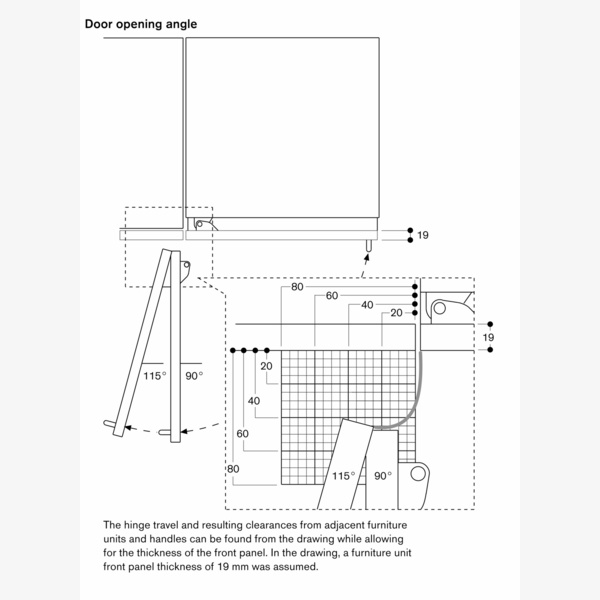

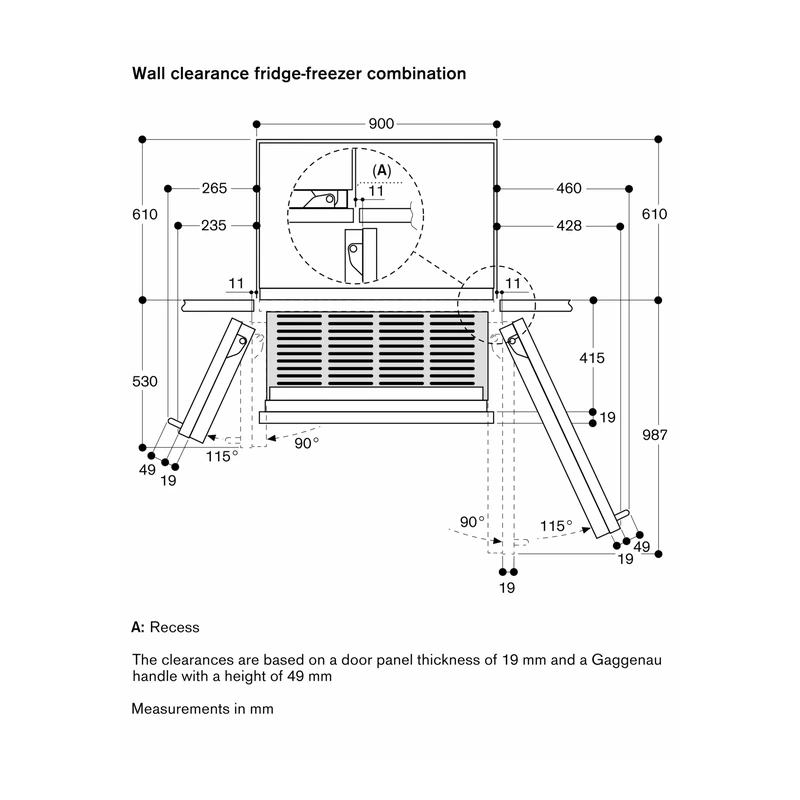

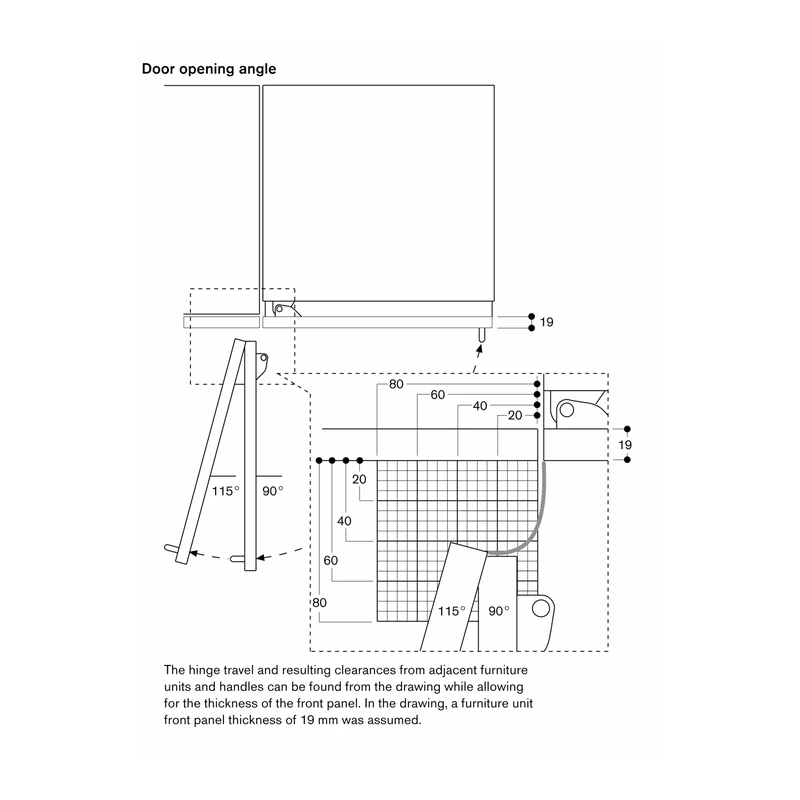

Door system	Flat hinge; opening assist for door and drawer; cushioned door closing system; door opening angle 115°, fixable at 90°

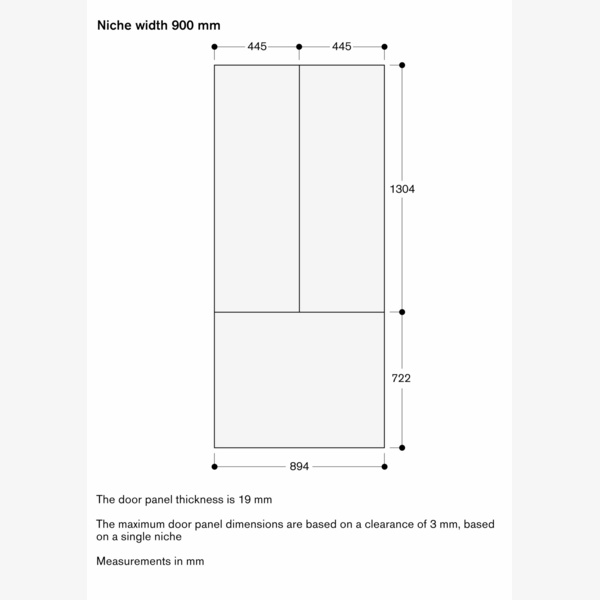

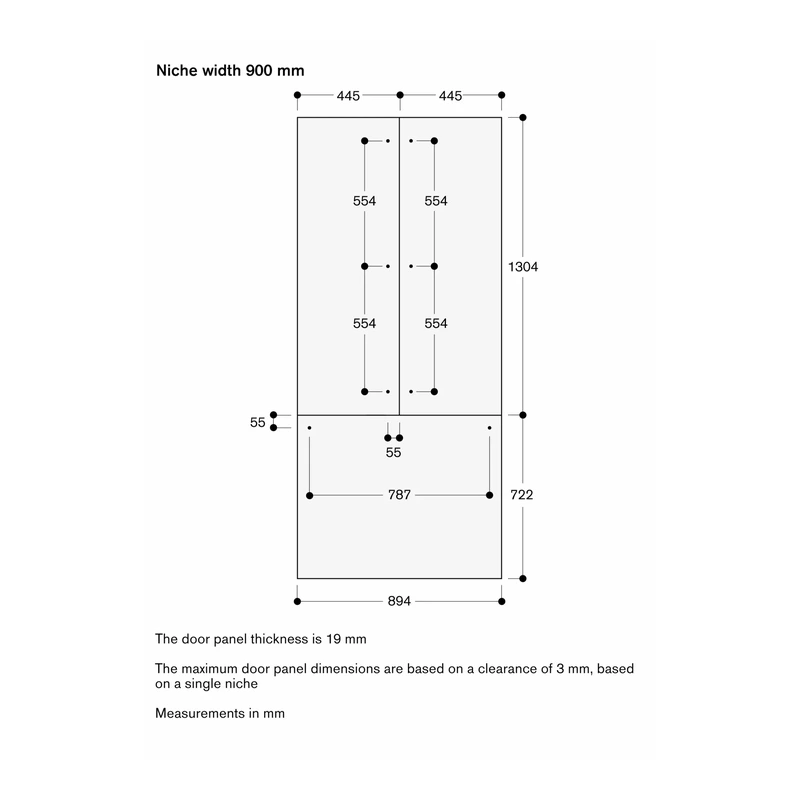

Max. door panel weight	Each door 64 kg; drawer 14 kg
Total connected load	0.200 kW
Connecting cable	3.0 m, pluggable

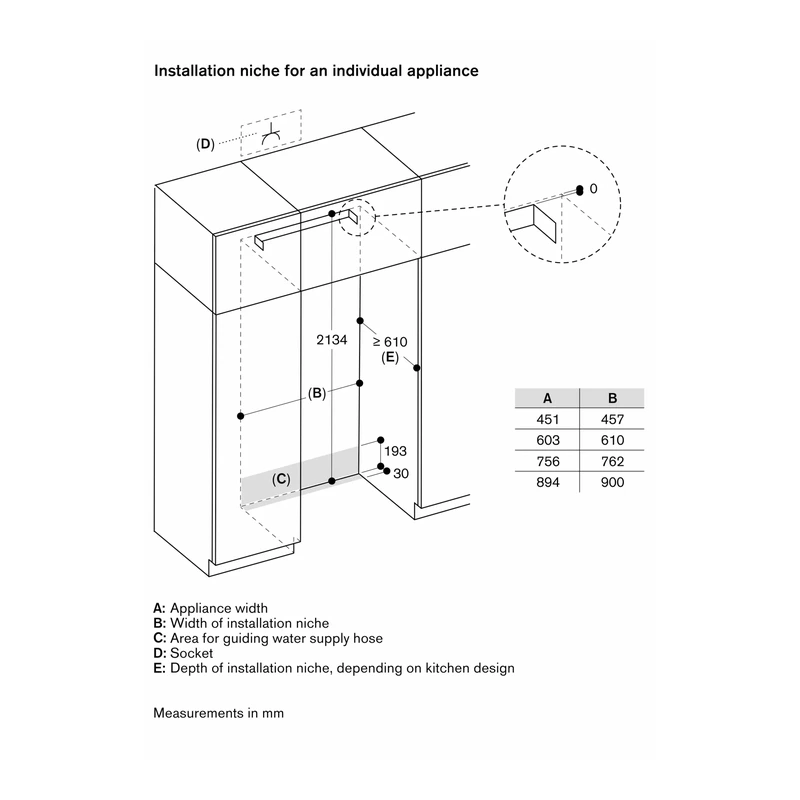

Water connection	Fixed water inlet, supply hose 1.8 m with 3/4' connection; water pressure 2 bar to 8 bar

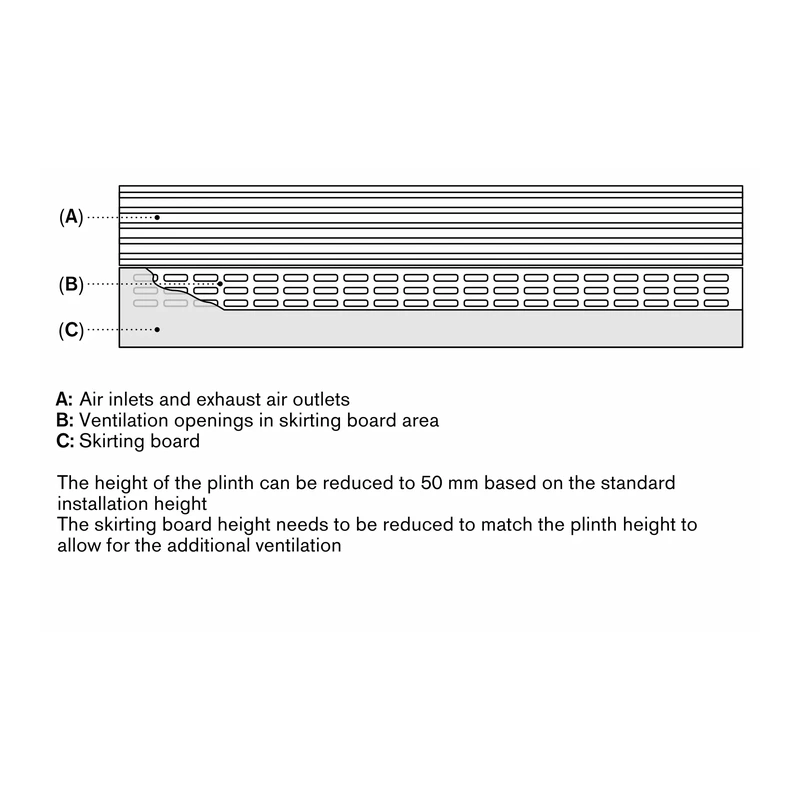

Water filter	Particle filter for water inlet, integrated in ventilation grille area; saturation indicator for filter via full touch TFT display
Ice maker performance	Ice cube production approx. 3 kg/24 h; removable ice storage container approx. 3 kg capacity; integrated ice cube scoop
Rest mode	Rest mode certified by Star-K; when active, the appliance can only be opened using a handle
Alarms	Open-door and malfunction alarm
Digital services	Selected digital services (Gaggenau Home Connect): remote control and monitoring, software updates, storage management with cameras, automatic programme selection of fresh climate drawers via object recognition, personalisation function for saving custom programmes

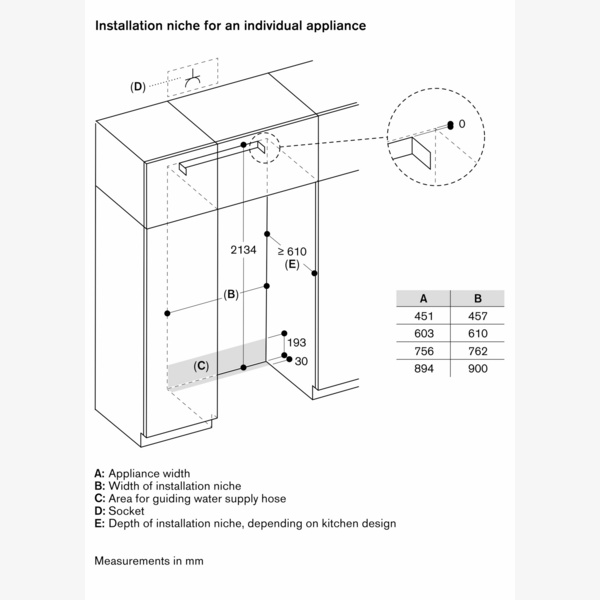

Planning notes – shut-off valve	Shut-off valve for water connection must be planned next to the appliance and always be accessible
Planning notes – water pressure	If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Gaggenau →

Optional Accessories

— add individually to your enquiry

Optional

RVA421922

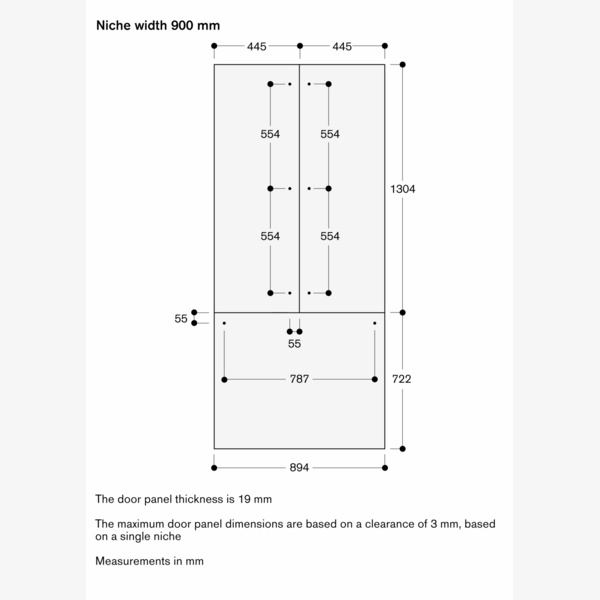

Gaggenau Door Panel - RVY497

Optional

RVA428922

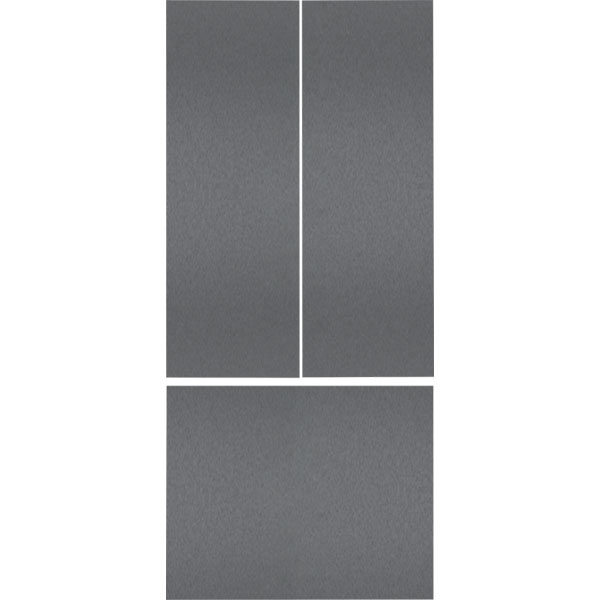

Gaggenau Door Panel Handleless - RVY497

Optional

RVA460000

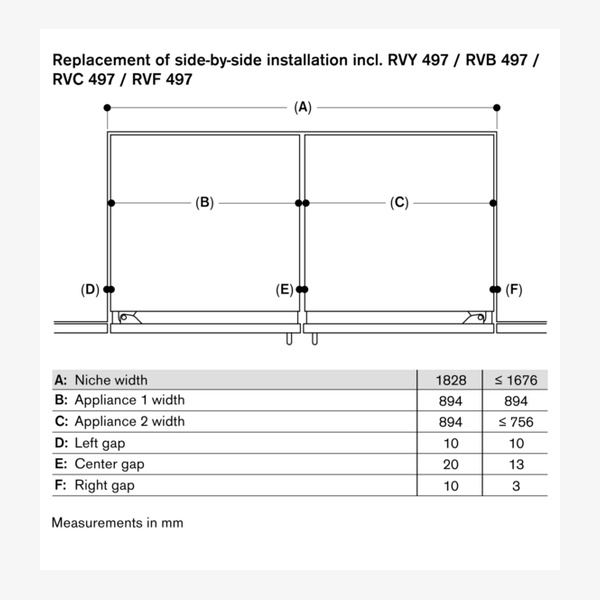

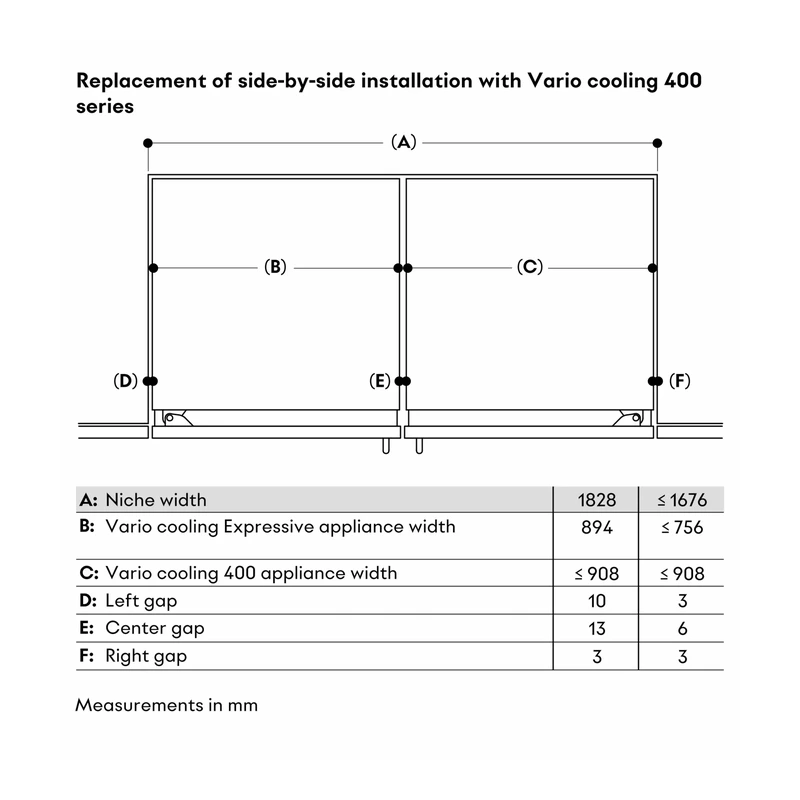

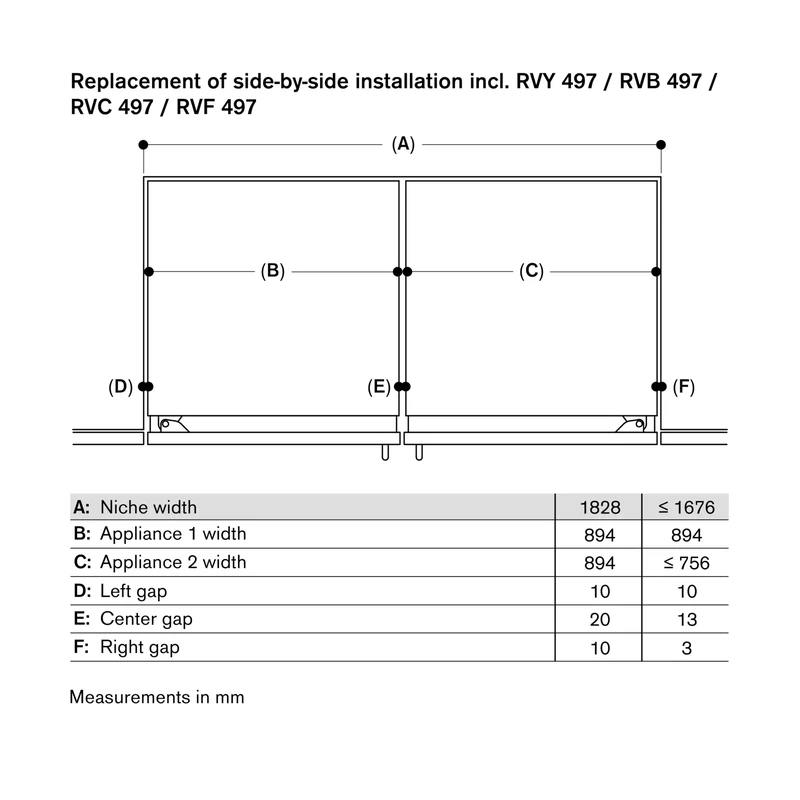

Gaggenau For Side by Side Install

Optional

RVA460020

Gaggenau For Side by Side Install - RVY497

Optional

RVA460900

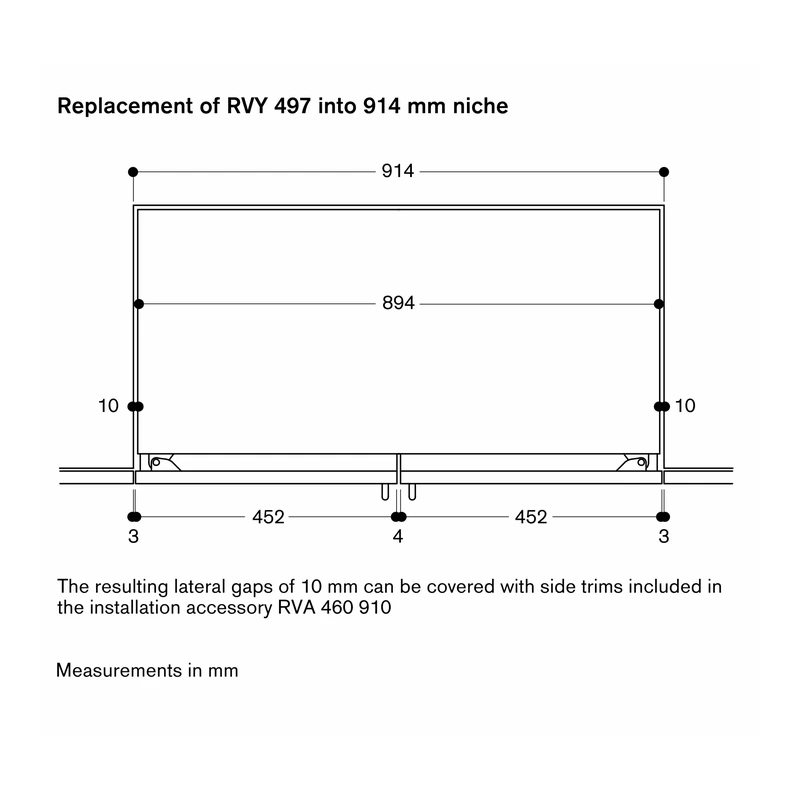

Gaggenau For Side by Side Install Unmodified Niche - RVY497

Optional

RVA460910

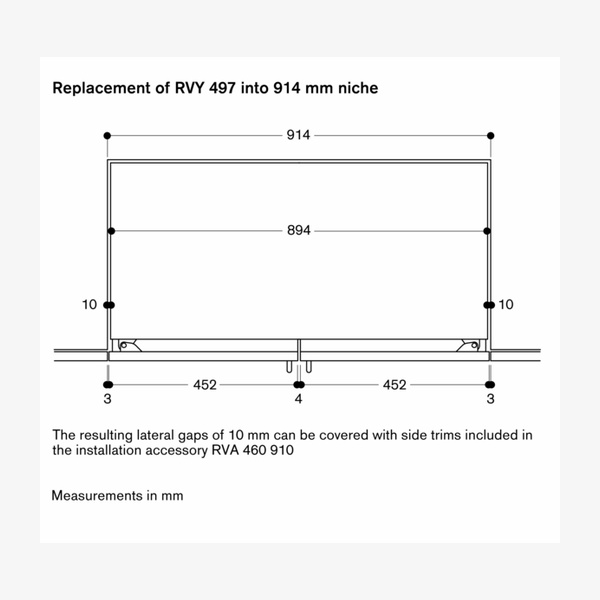

Gaggenau For Side by Side Install Unmodified Niche 91.4cm - RVY497

Optional

RA425910

Gaggenau Handle - Short

Optional

RA460030

Gaggenau Connecting Element

Optional

ACLETHRF10

Gaggenau Ethylene Absorber Refill Kit - RVY497

Optional

ACLETHST10

Gaggenau Ethylene Absorber Starter Kit - RVY497

Optional

RA430100

Gaggenau Storage Container with Lid

Optional

RA450012

Gaggenau Activated Charcoal Water Filter

Optional

RVA438040

Gaggenau Bottle Support- RVY497

Optional

RVA450220

Gaggenau Active Charcoal Filter - RVY497

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Gaggenau dealer, with full manufacturer warranty. Established 1967.
