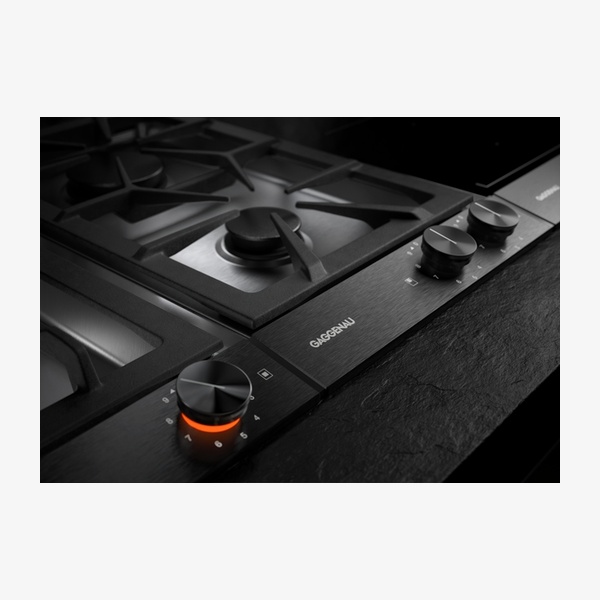

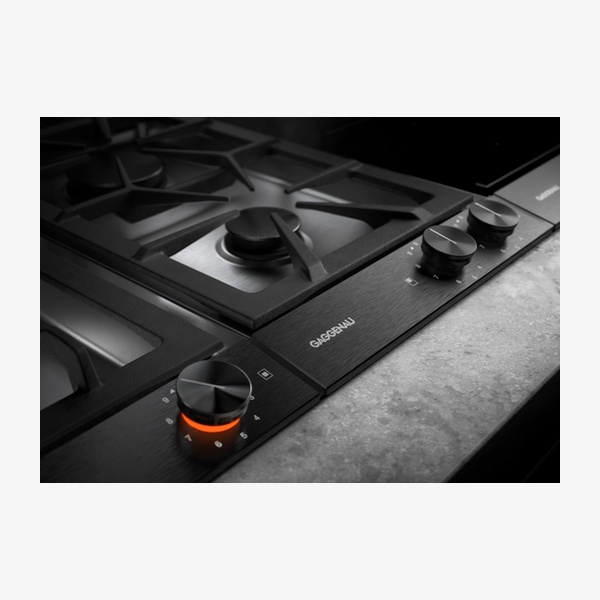

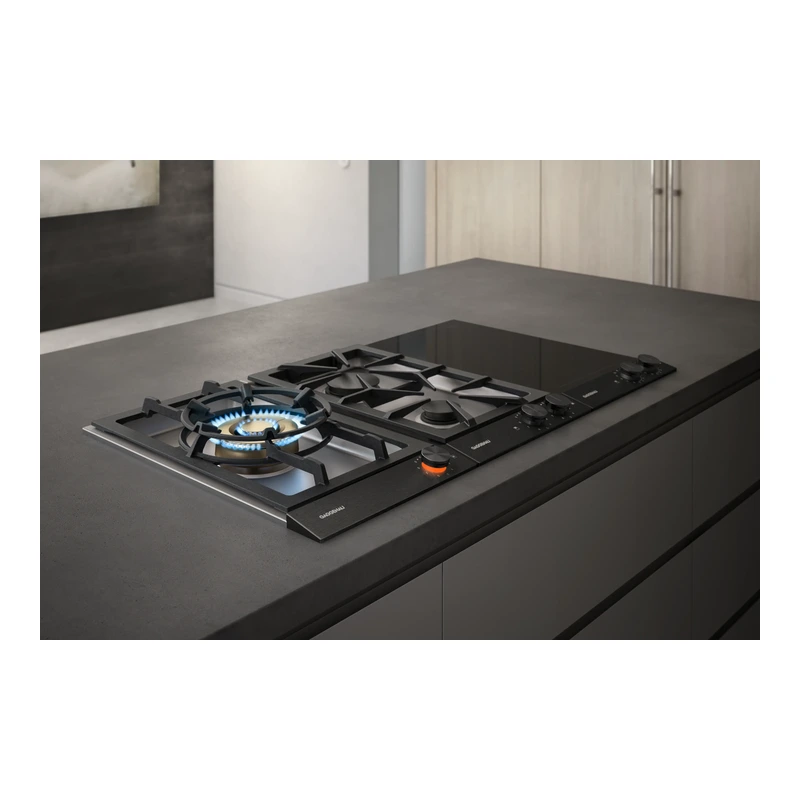

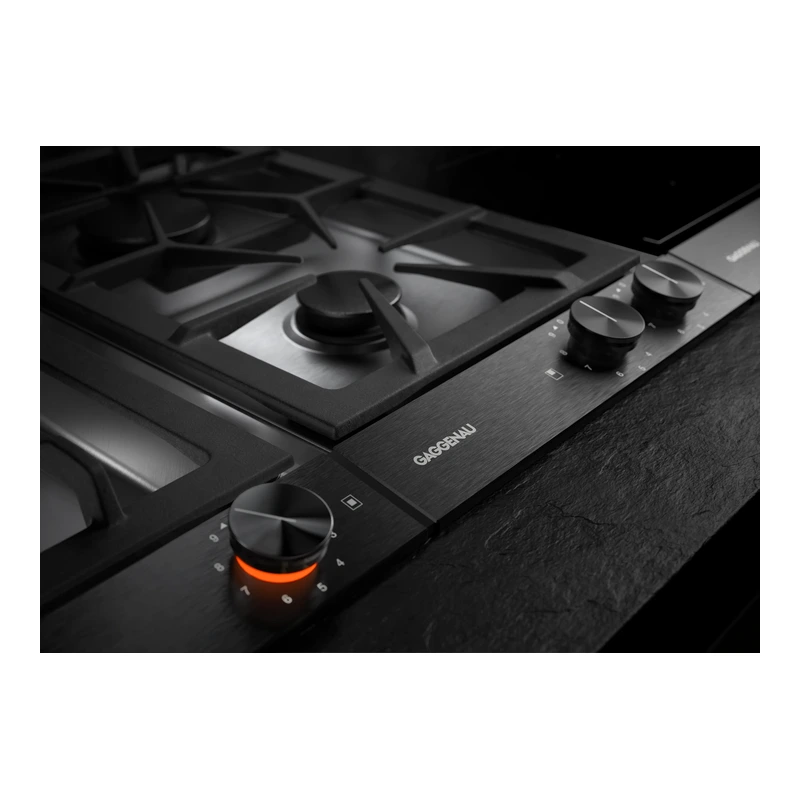

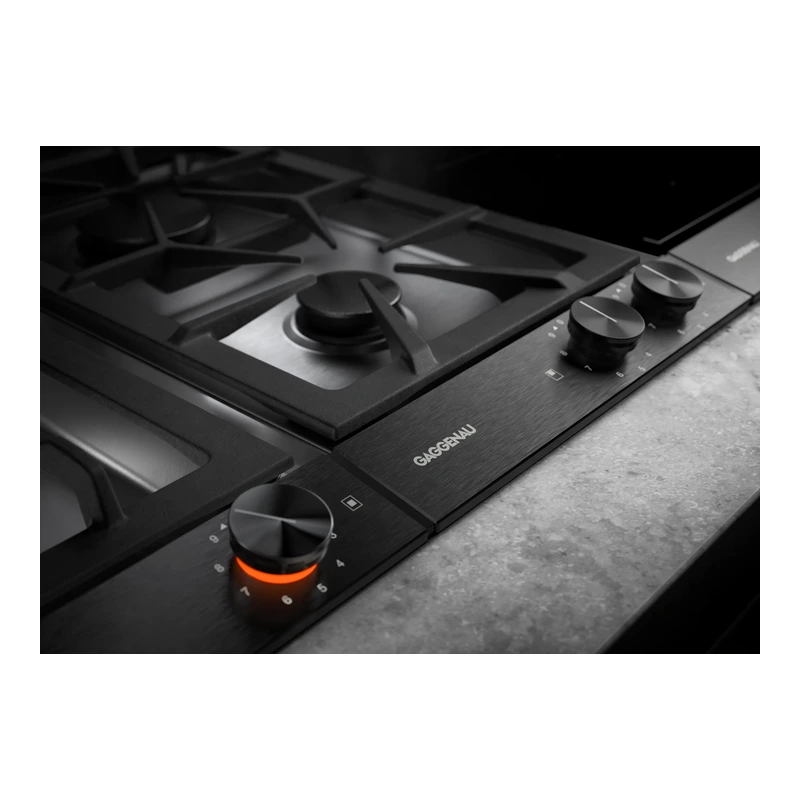

The cooktop is equipped with an integrated control panel and control knobs with illuminated ring for comfortable, secure handling. One-handed operation and electric ignition simplify lighting the multi-ring wok burner. To close a compatible cover, the cast pan support can be easily reversed. The multi-ring burner, made of solid, heat-resistant brass, is suitable for pots up to a maximum diameter of 30 cm.

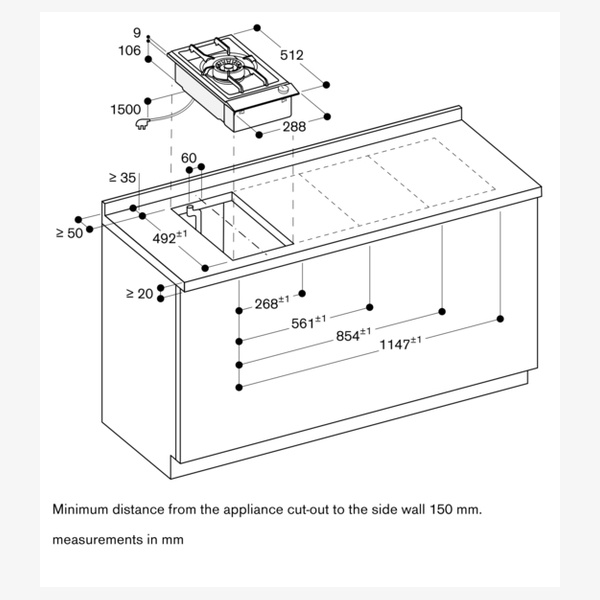

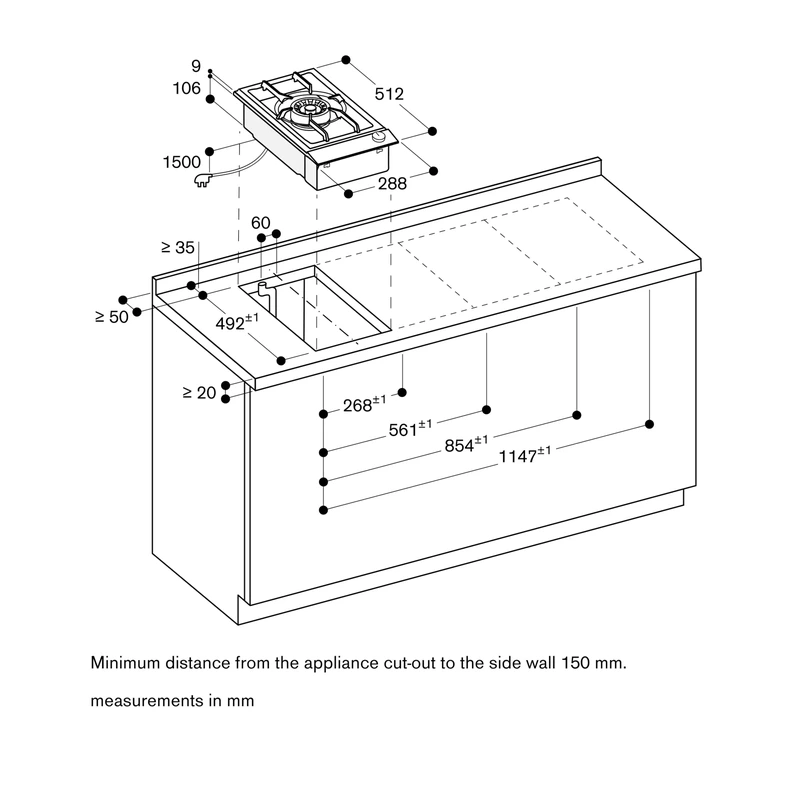

For planning and installation, the appliance can be snapped into the worktop from above. A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be maintained, or appropriate thermal insulation fitted. The minimum distance between the cooktop surface and a cabinet above made of combustible material must be 65 cm. The minimum distance to any ventilation unit above is defined in the planning hints for the relevant ventilation product.

Where the total connected gas load of appliances exceeds 11 kW, local regulations concerning room ventilation, room size and the combination of extraction or recirculation hoods must be observed.

Included and Optional Accessories

• Included accessory: 1 x wok attachment ring.
• Optional accessory VD200020: Black cover series 200.
• Optional accessory WP400001: Wok pan.
• Optional accessory VV200010: Connecting strip series 200 stainless steel.
• Optional accessory VV200020: Connecting strip series 200 black.
