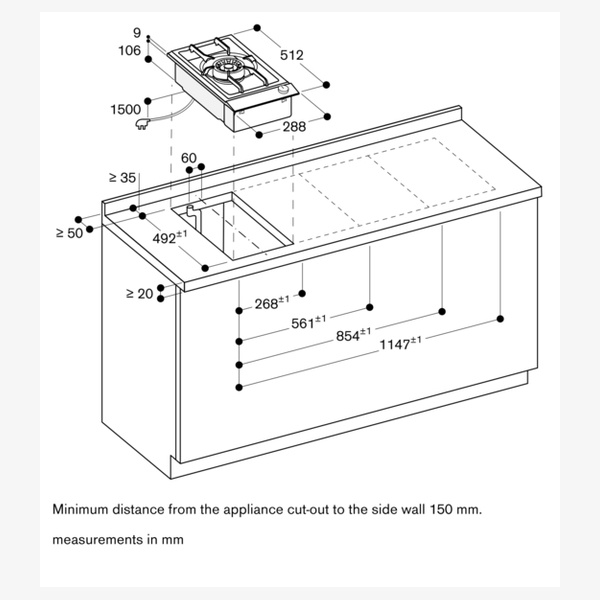

Installation and Planning Notes

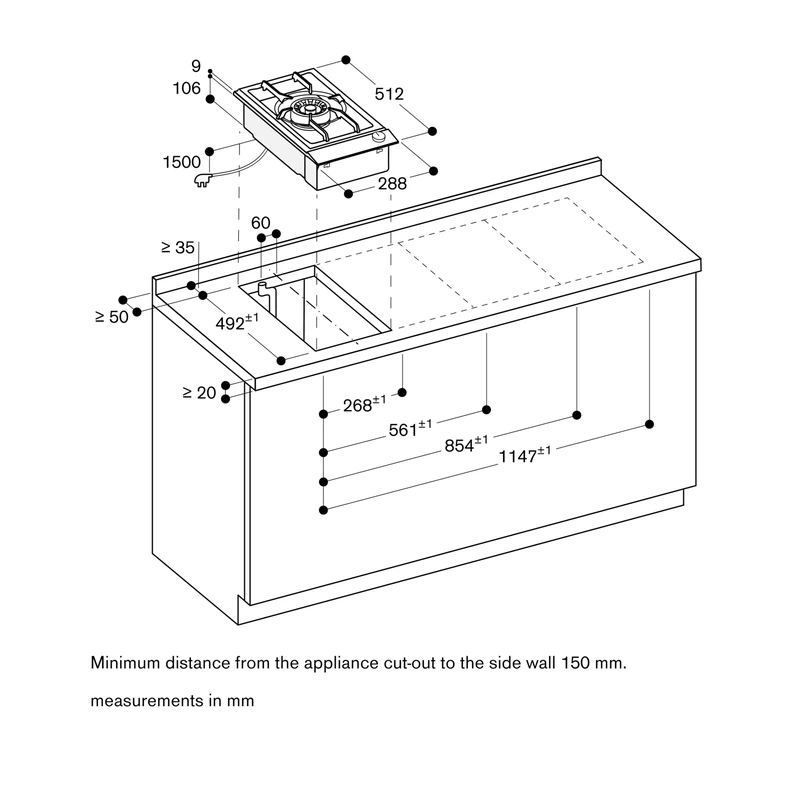

• Appliance can be snapped into the worktop from above.
• A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
• With a total connected load of more than 11 kW, local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.
• The minimum distance between the cooktop surface and a cabinet above, out of combustible material, needs to be 65 cm.
• The minimum distance to a ventilation above is shown at the planning hints for the individual ventilation product.

Safety and Operation

• Thermoelectric safety pilot helps ensure safe gas operation.
• Residual heat indication and operation indicator provide visual status information.
• One-handed operation with electric ignition supports convenient lighting of the burner.
• To close the cover, the pan support can be easily reversed.
