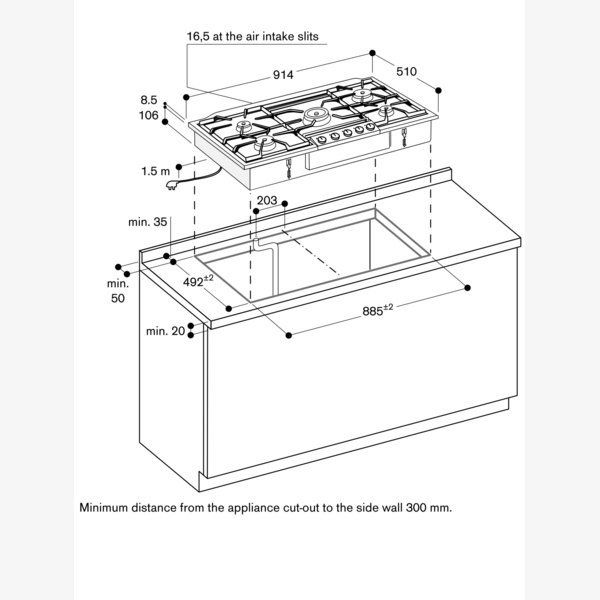

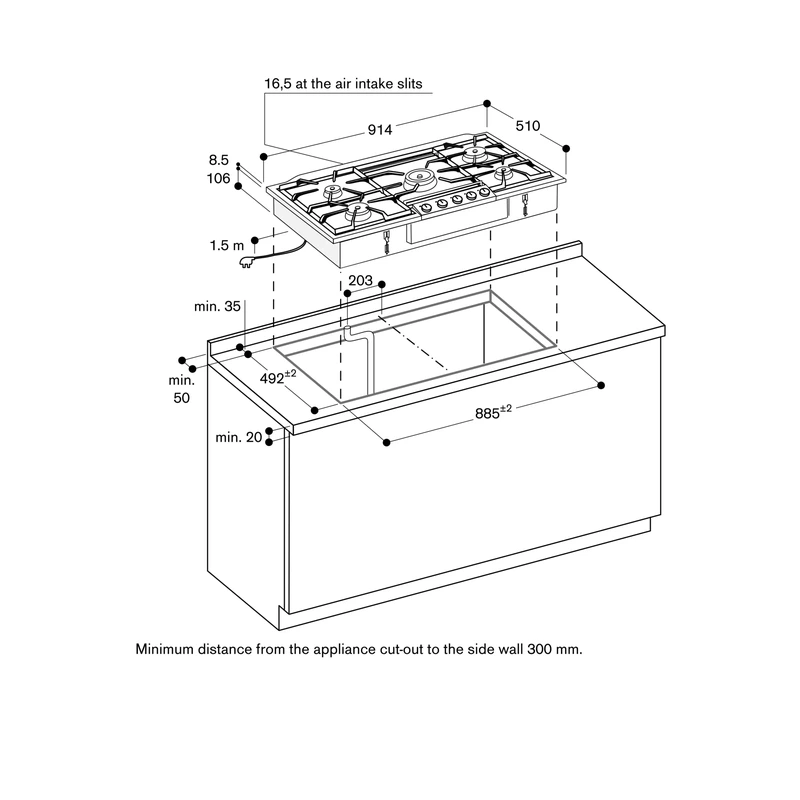

Installation requirements

• Installation in a 90 cm wide lower cabinet is required.
• Appliance can be snapped into the worktop from above.
• No intermediate shelf is required.
• Rear panel and wall trims must be heat-resistant and consist of a non-flammable material.
• The minimum distance between the cooktop surface and a cabinet above, out of combustible material, needs to be 76 cm.
• The minimum distance to a ventilation above is shown at the planning hints for the individual ventilation product.

Clearances and ventilation

• A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
• With a total connected load of more than 11 kW, local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.

Safety information

• Equipped with a thermoelectric safety pilot.
• Residual heat indication and operation indicator support safe use.
