Handling and functions

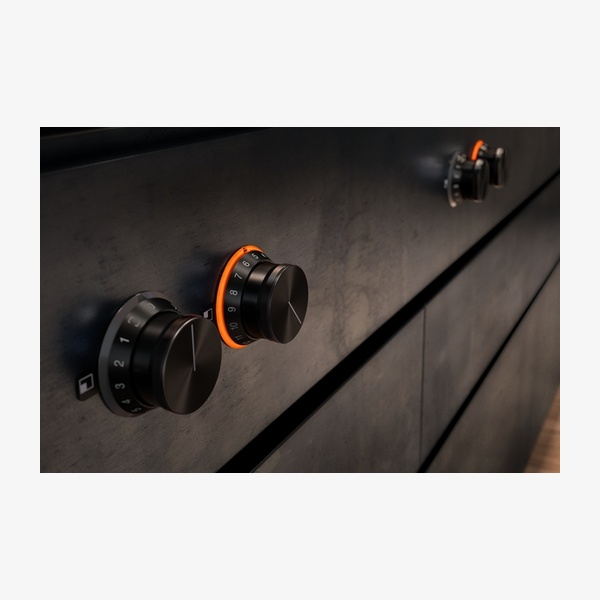

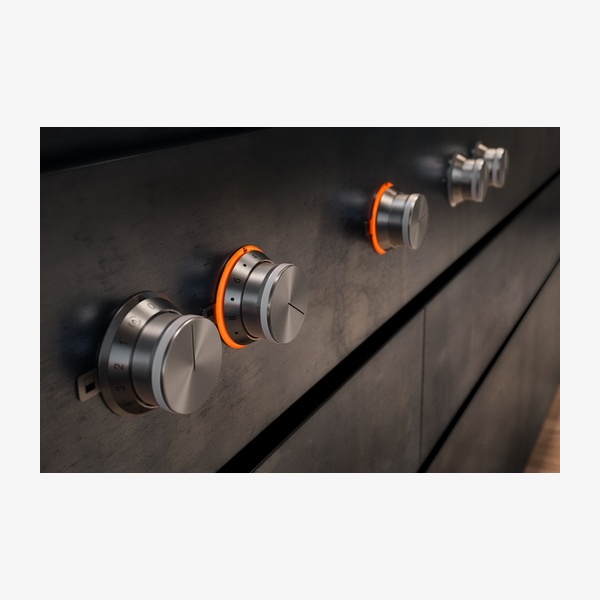

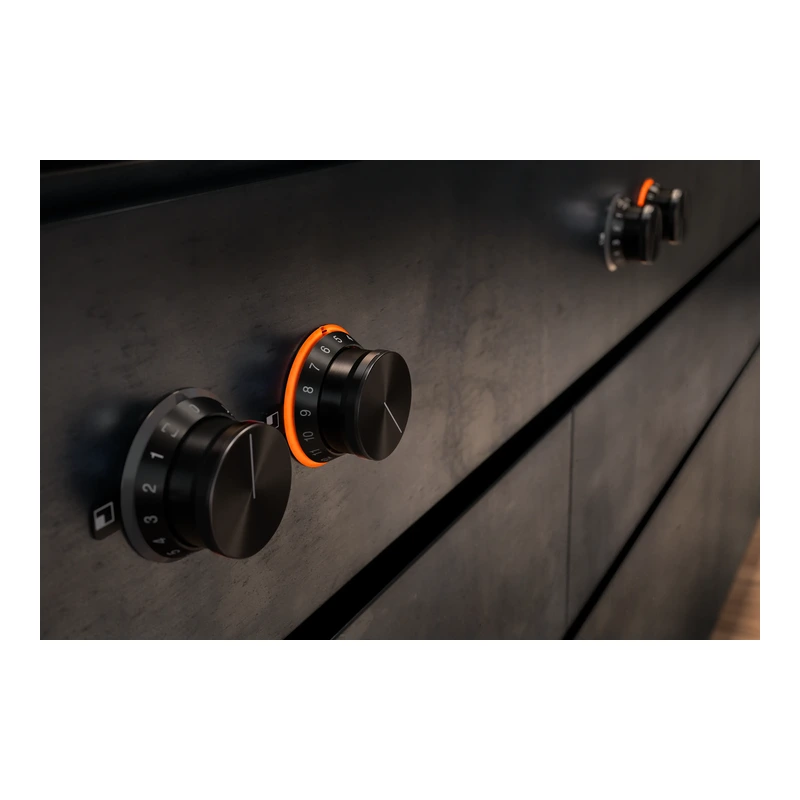

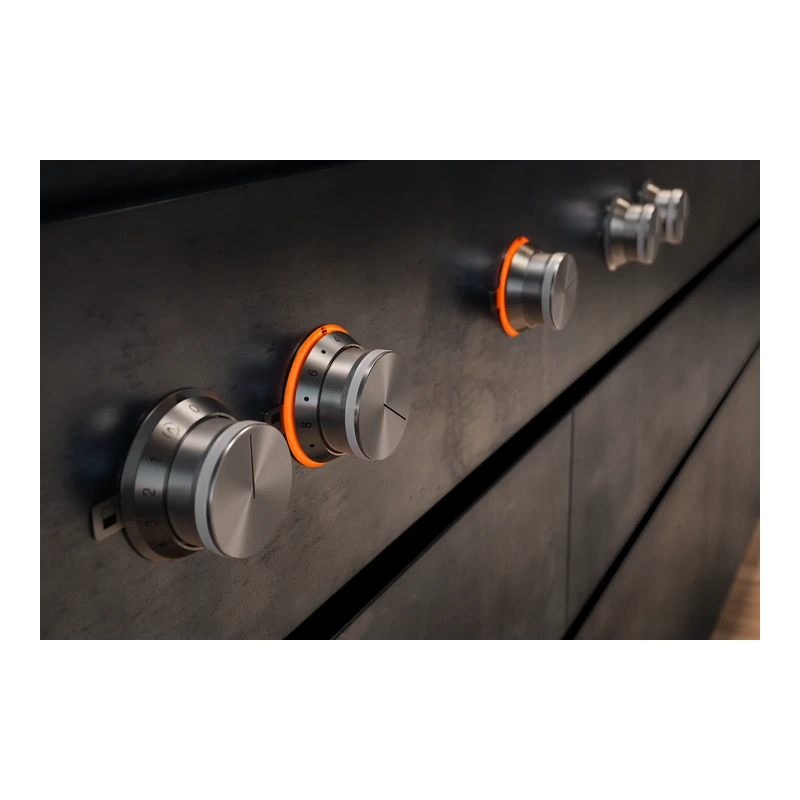

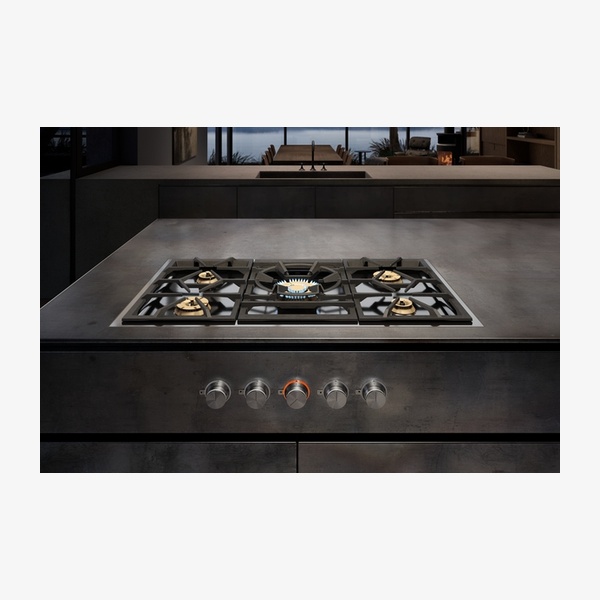

• Control knobs with illuminated ring, cooking zone and output level markings.
• One-handed operation for all burners.
• Full electronic control in 12 output levels for exact power level adjustment plus simmer function.
• Simmer function for cooking on a very low output level.

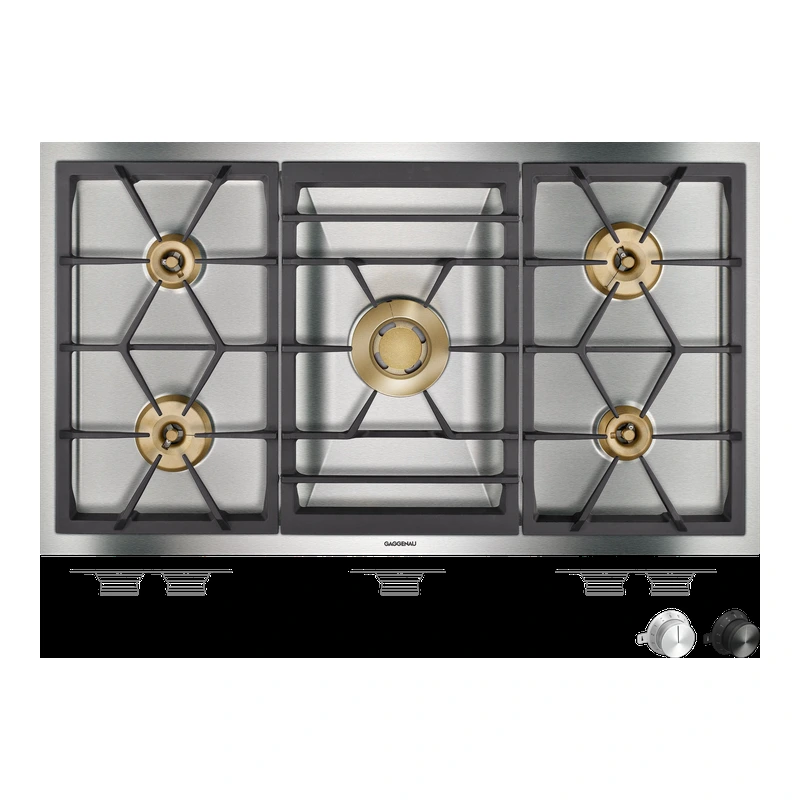

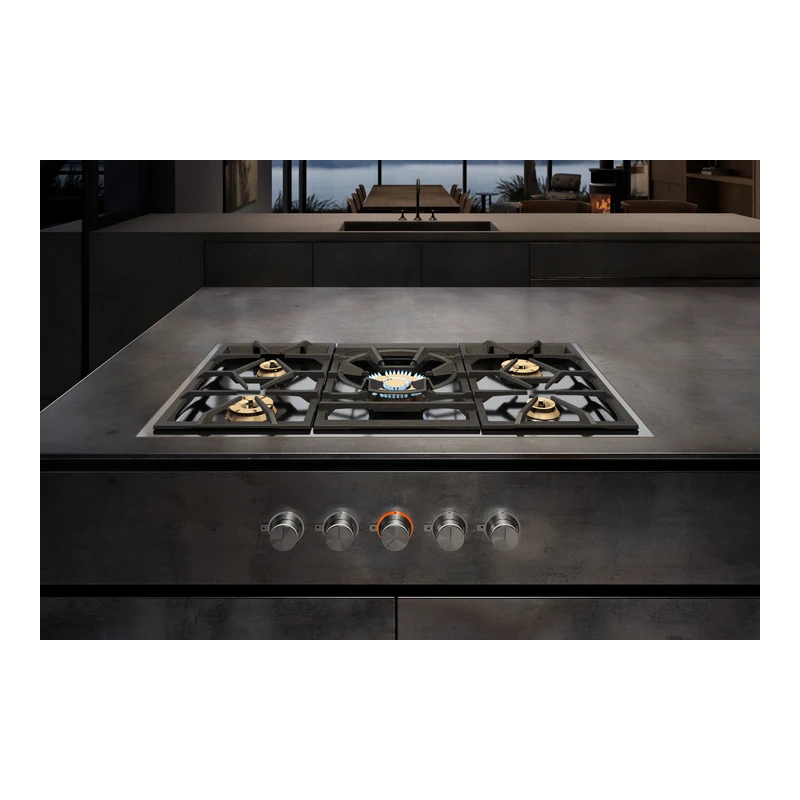

• Three-part cast pan support with flat, continuous pot surface.

Safety and ventilation

• Electronic flame monitoring with automatic re-ignition.
• Residual heat indication and safety shut-off.
• With a total connected load of more than 11 kW, local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed.
• A minimum lateral clearance of at least 300 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
• Rear panel and wall trims must be heat-resistant and consist of a non-flammable material.
• The minimum distance between the cooktop surface and a cabinet above, out of combustible material, needs to be 76 cm.
• The minimum distance to a ventilation above is shown at the planning hints for the individual ventilation product.
• The combination with VL 414 is not recommended, since the air extraction from the centre burner cannot be guaranteed due to the distance.

Planning and installation notes

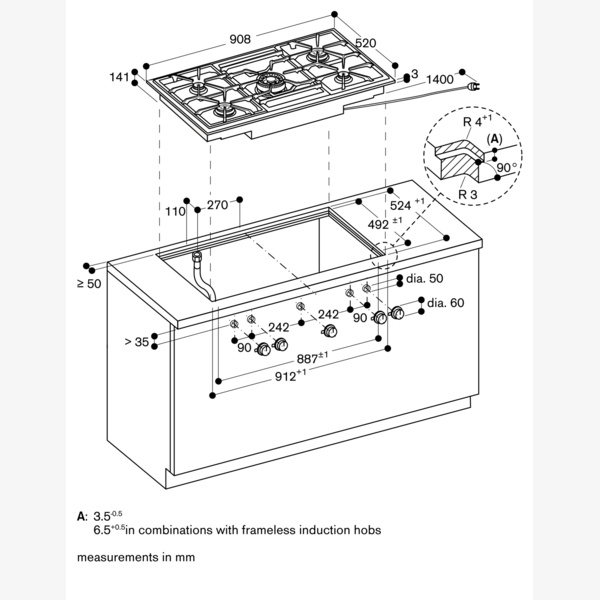

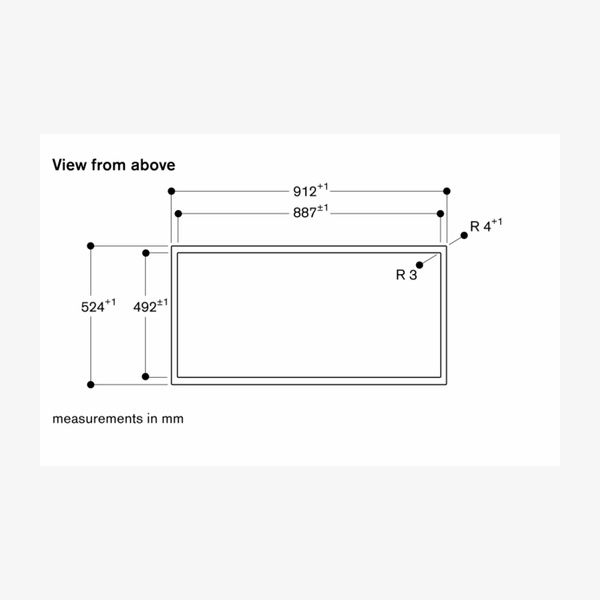

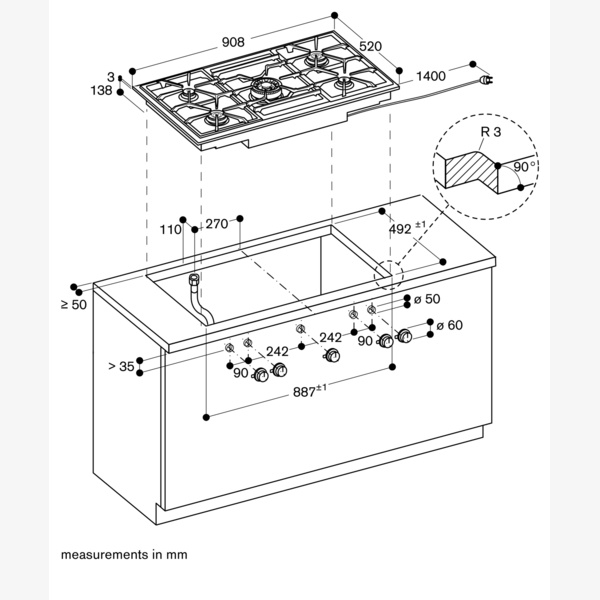

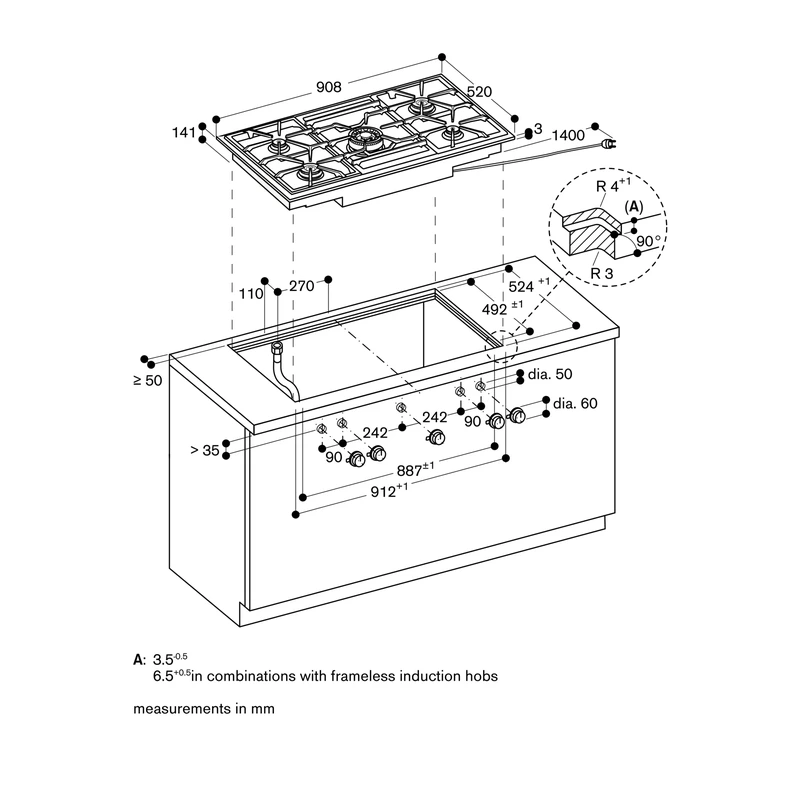

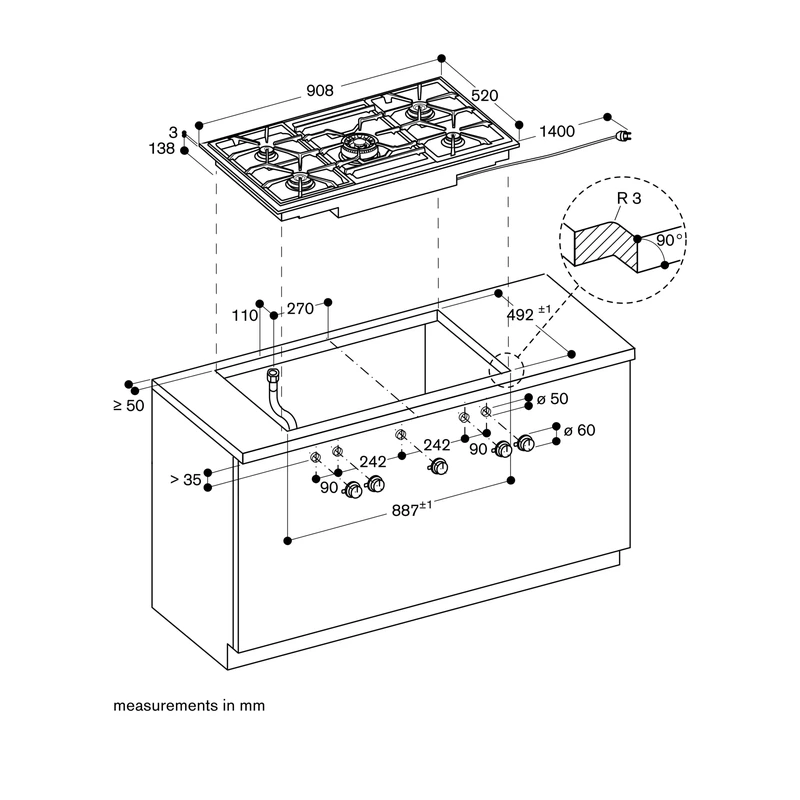

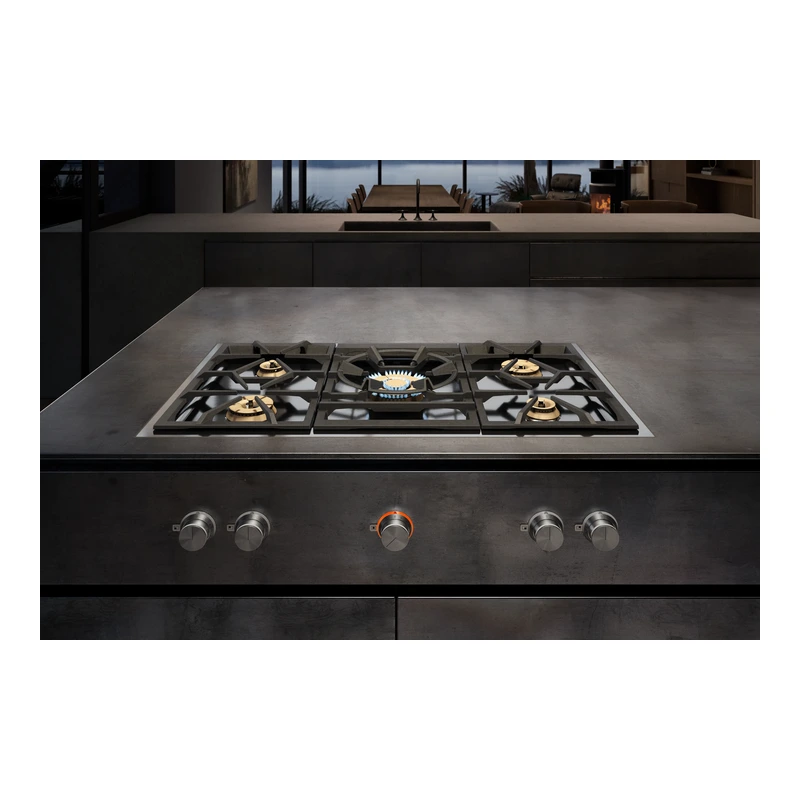

• Depending on the type of installation (surface-mounted or flush-mounted, with or without an appliance cover), the specific location of the cut-out and the knob positions may vary.
• The horizontal positioning of the knobs may be aligned with the specific burners.

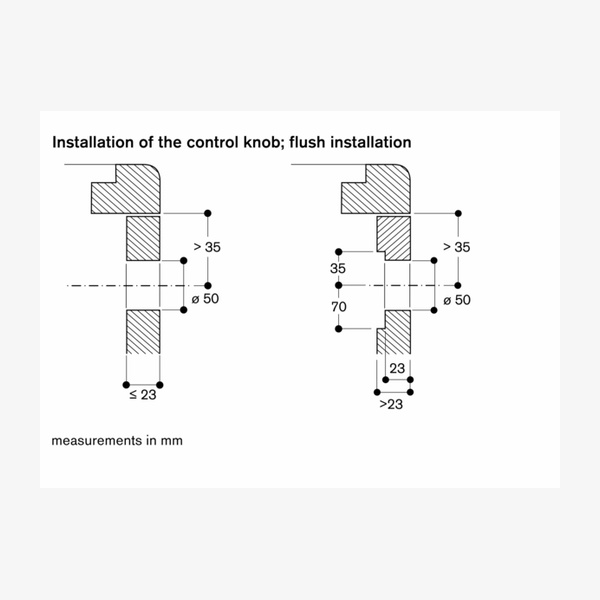

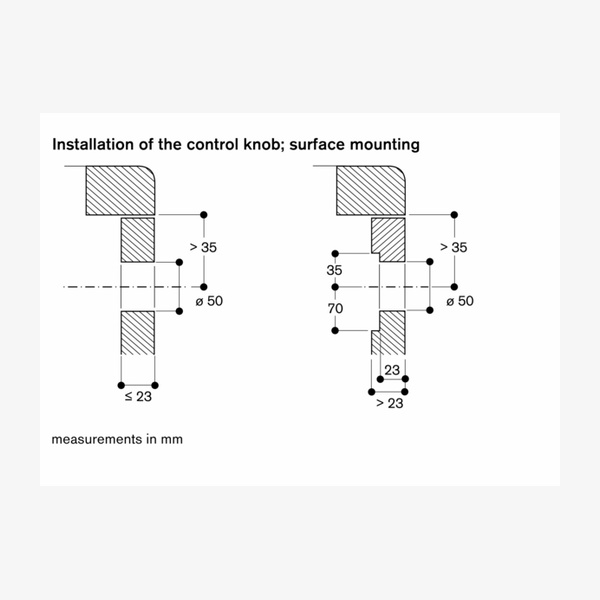

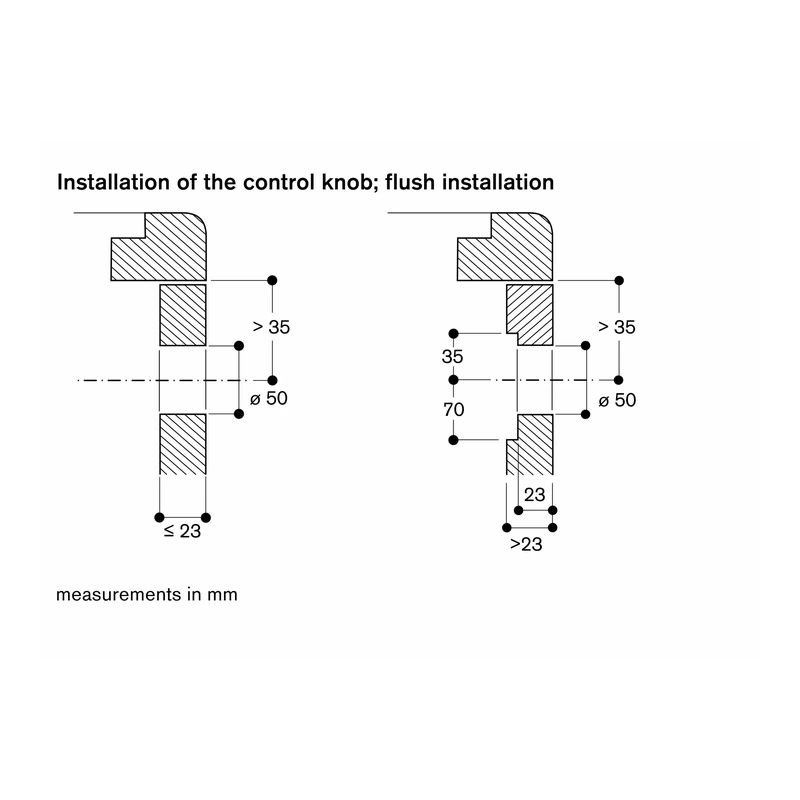

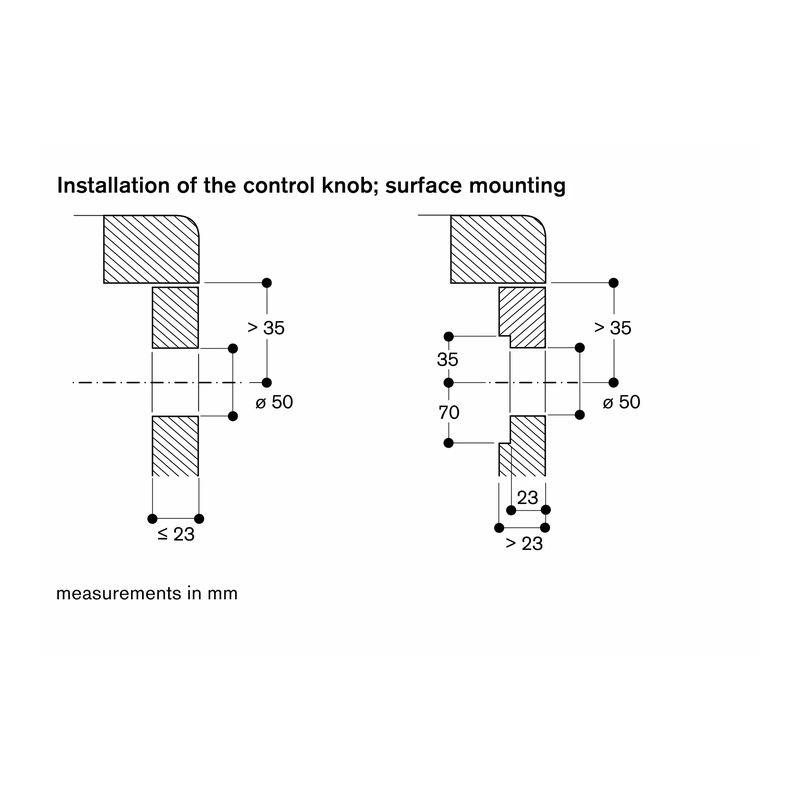

• The drawing “Installation of the control knob” must be observed if the panel is more than 23 mm thick (there must be a recess at the rear).
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures, taking into account the appliance weight and additional loads.

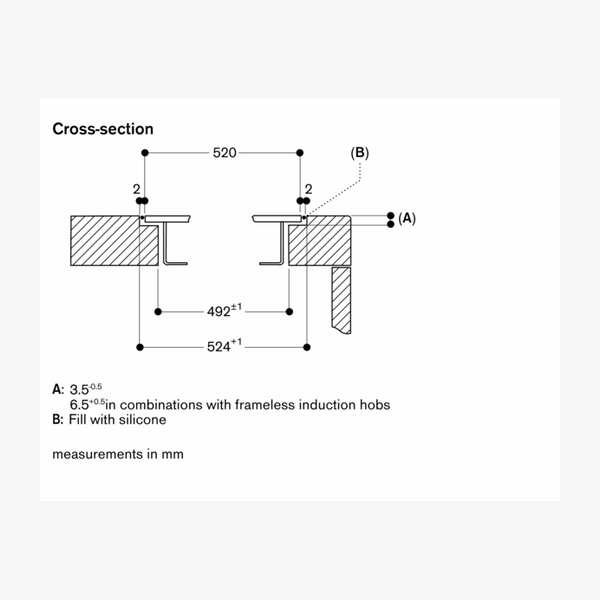

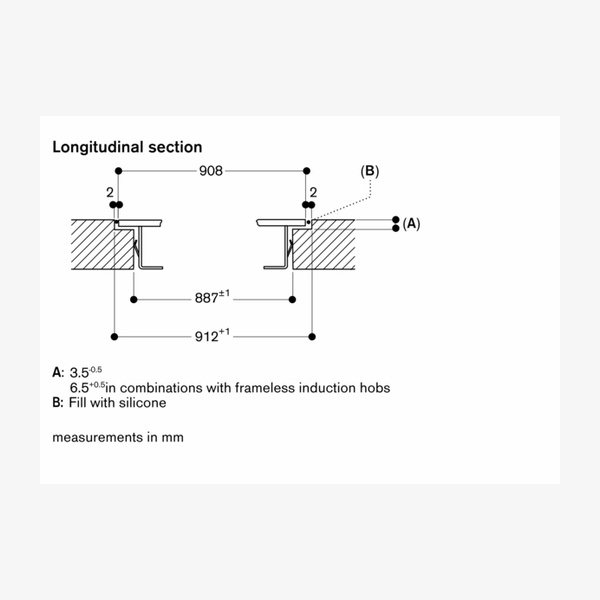

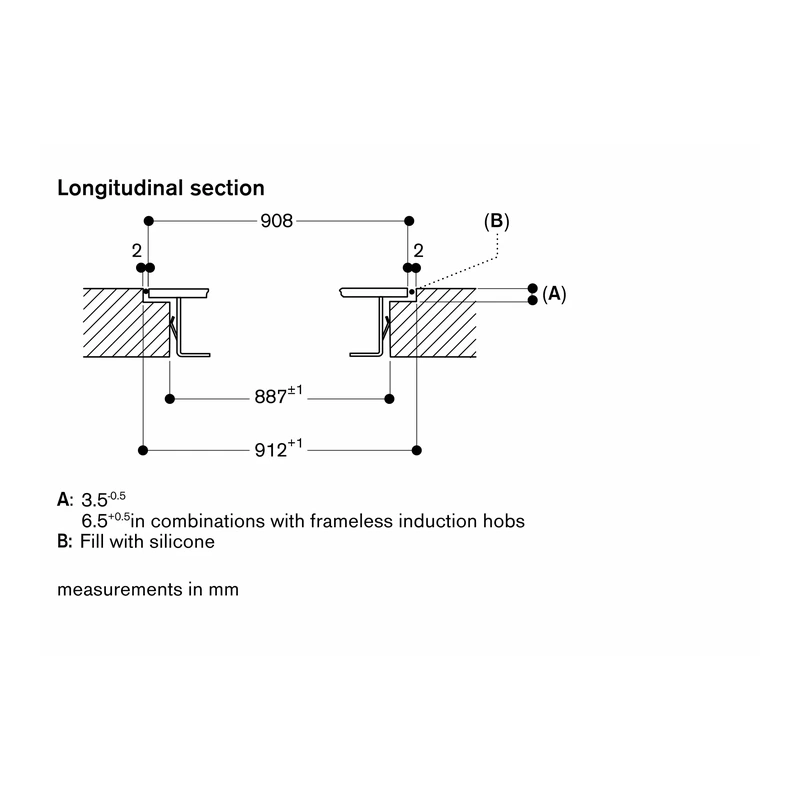

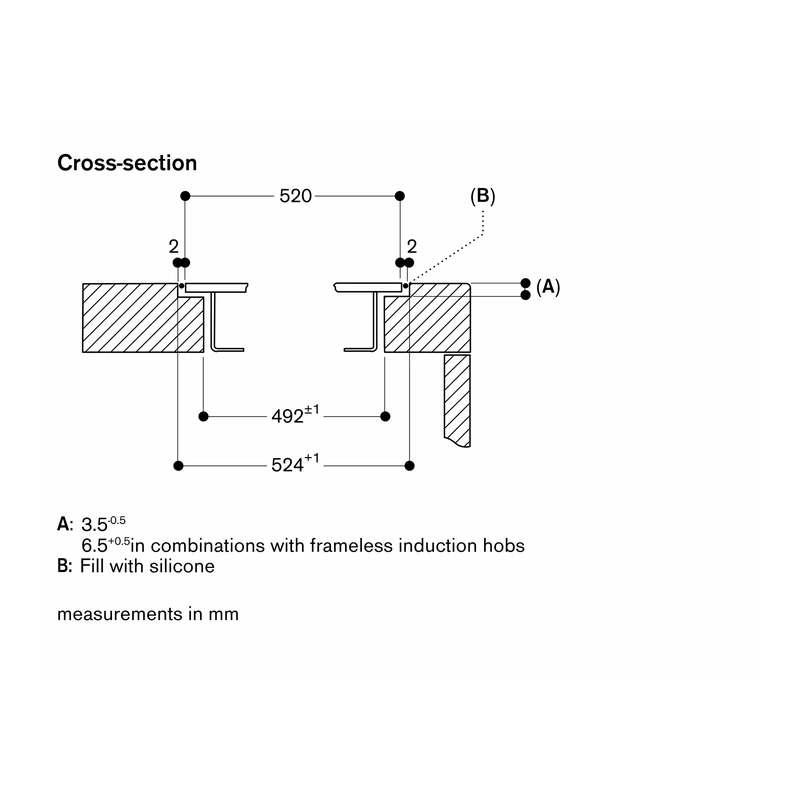

• Additional instructions for flush installation: installation is possible in worktops made of stone, synthetics or solid wood.
• Heat resistance and watertight sealing of the cut edges must be observed. For other materials, the worktop manufacturer must be consulted.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
• If installing several appliances in individual cut-outs, allow for a division bar of minimum 50 mm between the individual cut-outs.
• Special nozzles can be ordered as spare parts.
• Plan for an electrical connection; the appliance is not operable without power supply.
• Air intake from above; no intermediate shelf required.
• Installation in a 90 cm wide lower cabinet is required.
• Appliance can be snapped into the worktop from above.
