Handling and controls

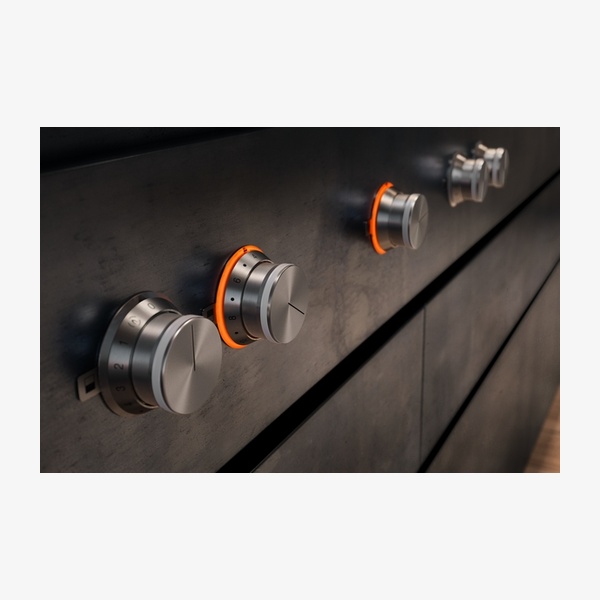

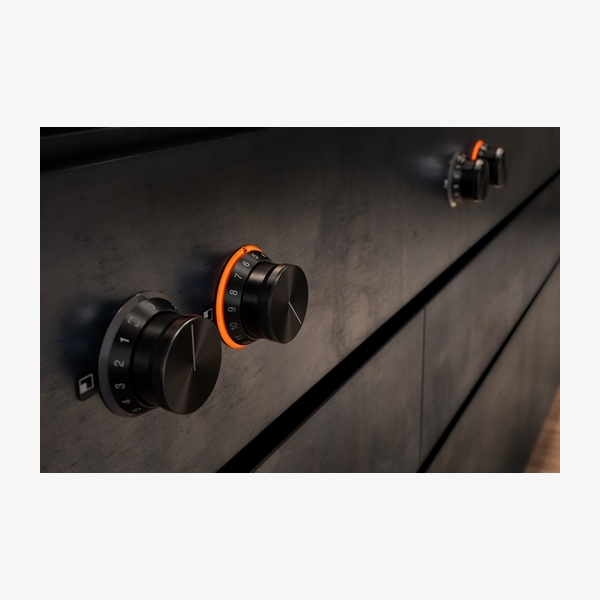

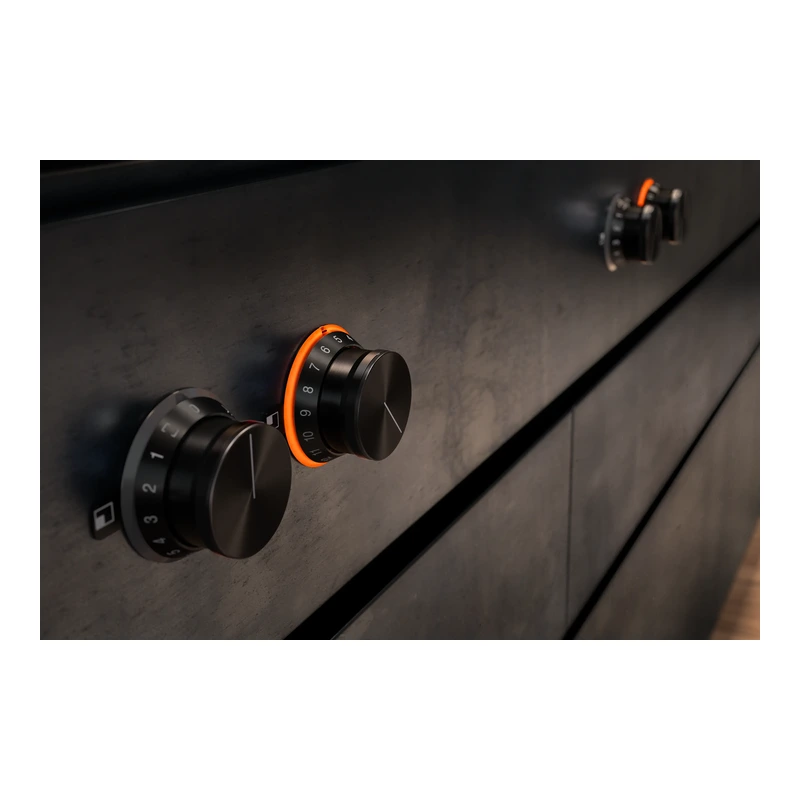

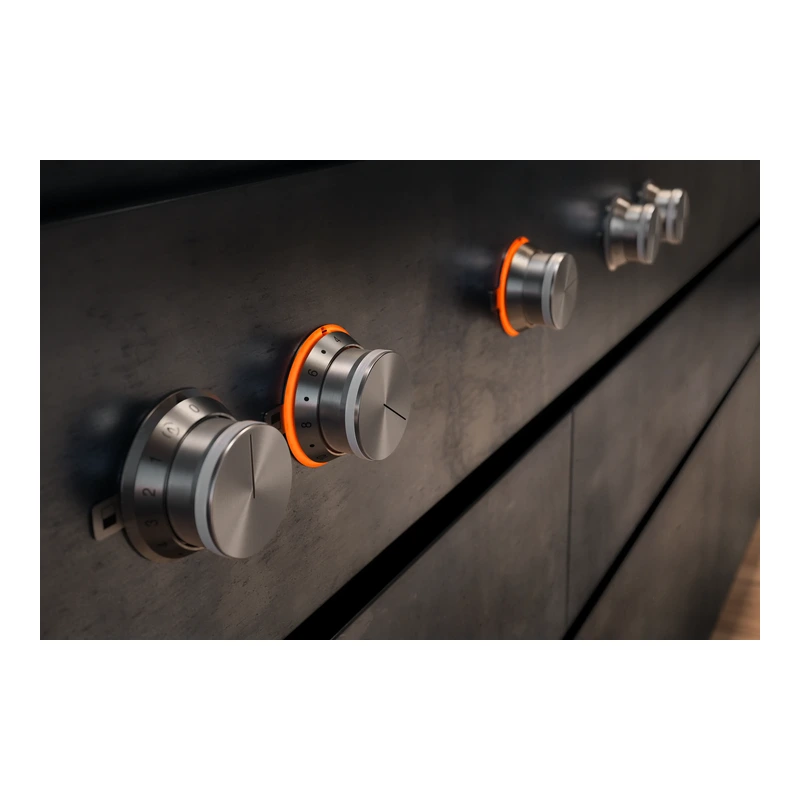

Handling is via control knobs with illuminated ring, with cooking zone and output level markings. Electronic power control in 12 stages (1…12) and a user friendly two colour display (white / orange) support easy operation. An options menu provides access to features such as stopwatch, short-term timer and power management.

Functions and digital services

• Flex function for rectangular cooking areas.
• Frying sensor function.
• Booster function.
• Stopwatch and short-term timer.
• Power management.
• Selected digital services (Gaggenau Home Connect) including cooktop-based ventilation control (with suitable hood), remote monitoring and remote diagnostics.

The availability of Home Connect functionality depends on the availability of the Home Connect services in the relevant country. Home Connect services are not available in every country. Please check the user manual for how to switch off the WiFi module.

Safety and planning notes

• Operation indicator, pot detection and 2 stage Hh residual heat indicator for each zone.
• Safety shut-off function.
• Horizontal positioning of the knobs may be aligned with the specific cooking areas.

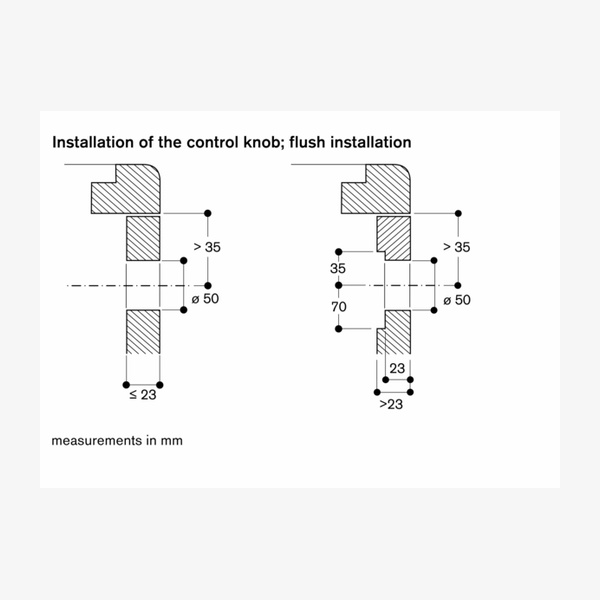

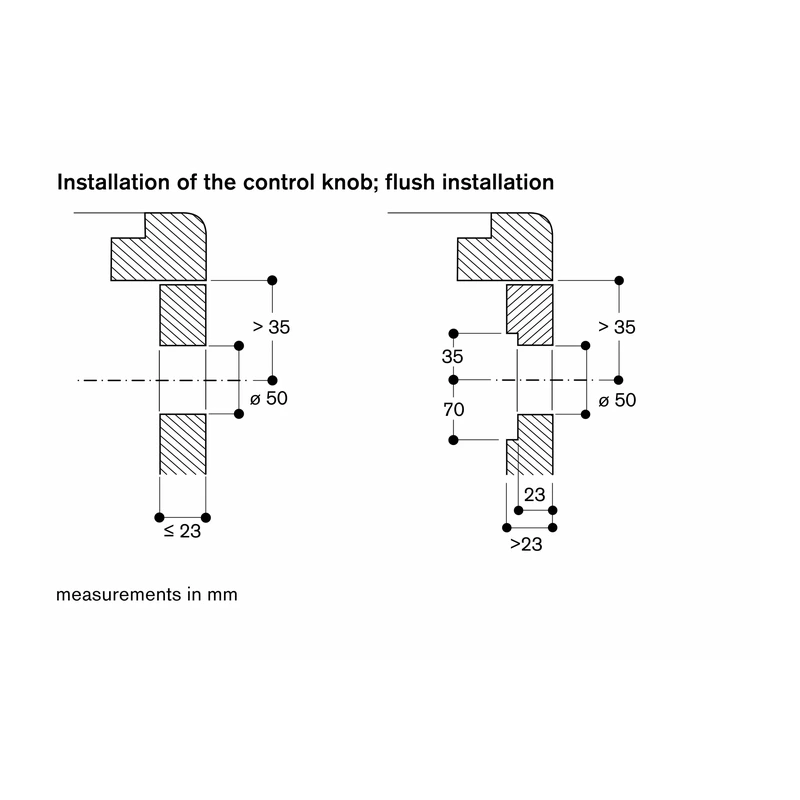

• If the panel is more than 23 mm thick, the drawing for installation of the control knob must be observed, with a recess at the rear.
• Bearing capacity and stability, especially with thin worktops, must be ensured using suitable substructures, taking into account appliance weight and additional loads.

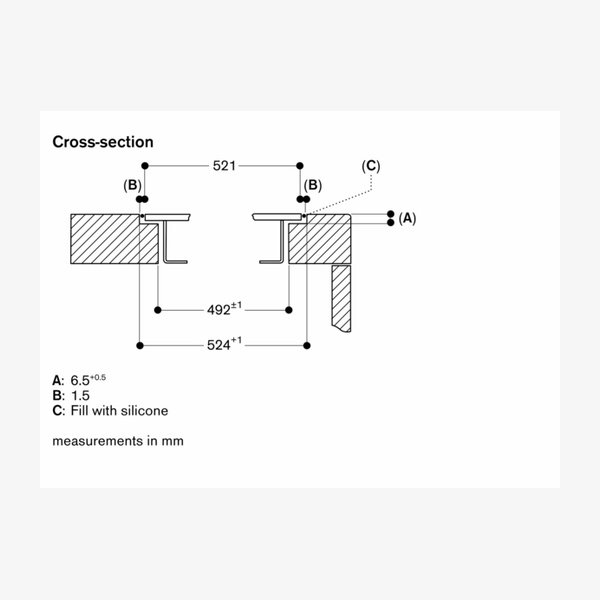

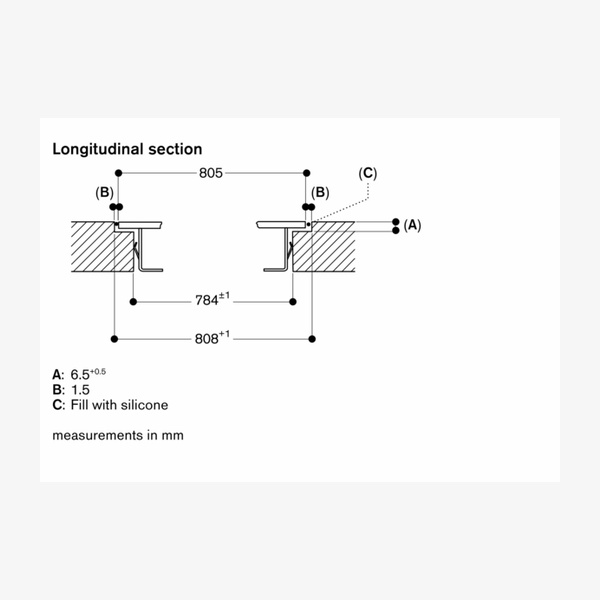

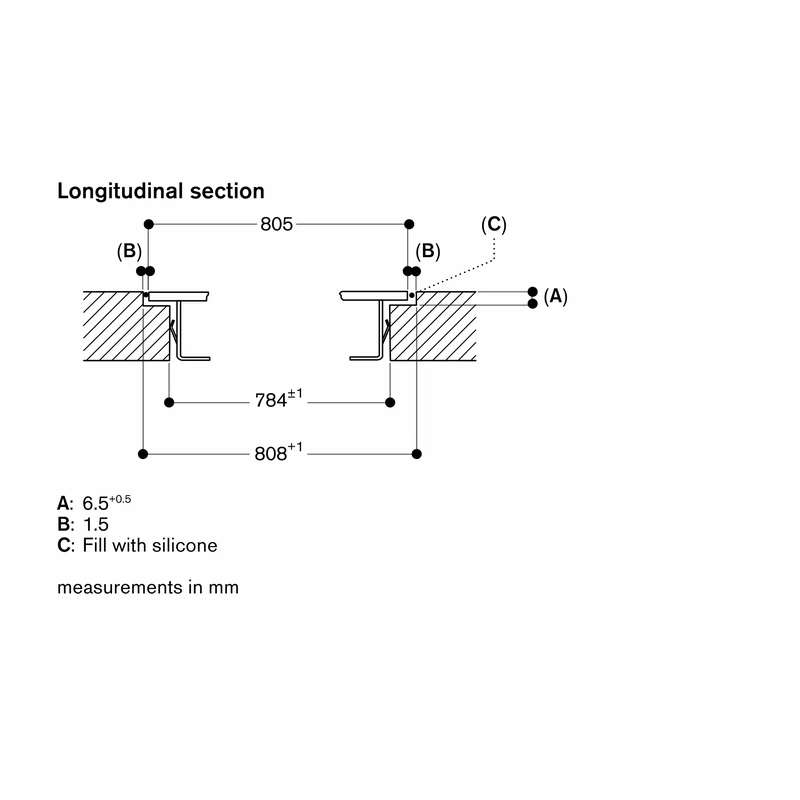

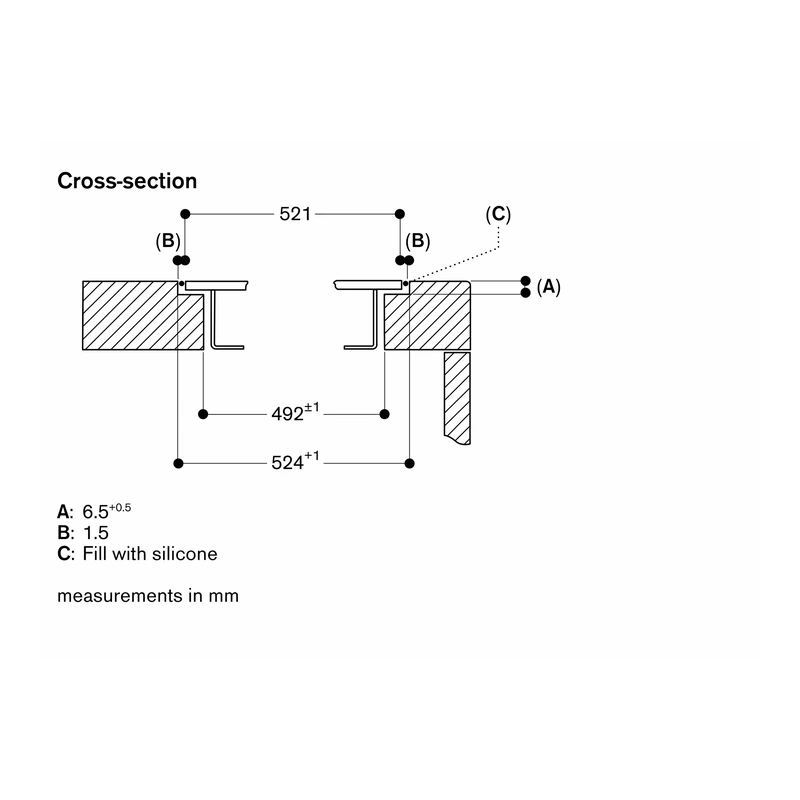

• The groove must be continuous and even to allow uniform placing of the appliance on the gasket; discontinuous lining should not be used.
• Joint width may vary due to size tolerances of the combinations and of the worktop cut-out.

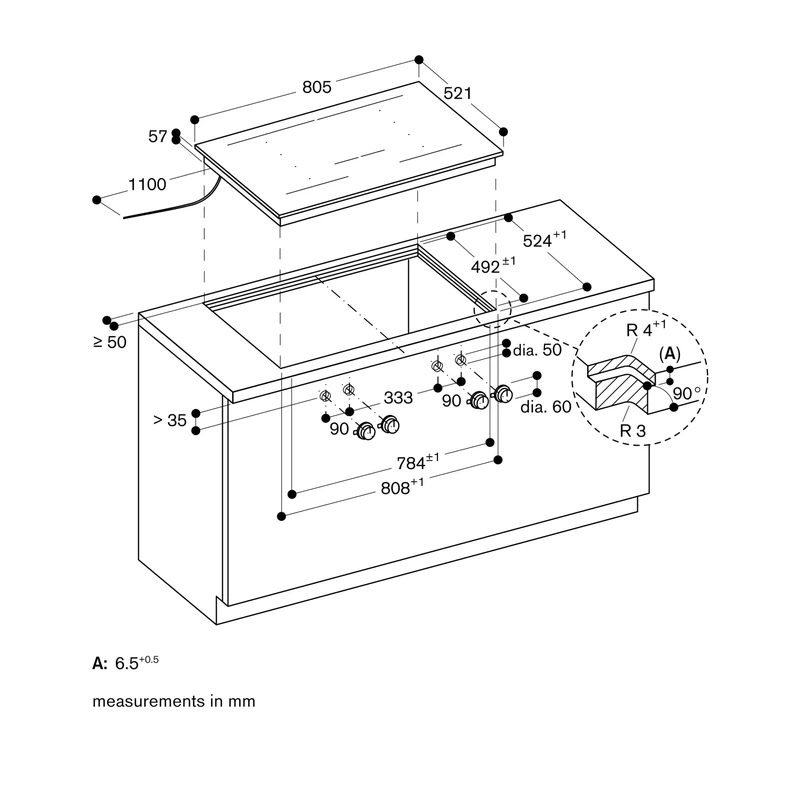

• If installing several appliances in individual cut-outs, allow for a division bar of minimum 50 mm between individual cut-outs.

Compatible accessories

Optional accessories:

• CA050300: Flex pan set, 3 pcs.
• CA051300: Teppan Yaki (large).
• CA052300: Griddle Plate.
• CA055300: Flex pan large.

Installation accessories:

• CKI440000: 4 knobs, induction, black.
• CKI440010: 4 knobs, induction, stainless steel.
• VA420004: Connecting strip Serie 400, flush, short.

Special accessories (order as spare parts):

• Part No. 17006018 – Frying sensor pan, ø 20 cm.
• Part No. 17006184 – Frying sensor pan, ø 24 cm.
• Part No. 17006185 – Frying sensor pan, ø 28 cm.

The wok pan WP 400 001 cannot be used with this appliance.
