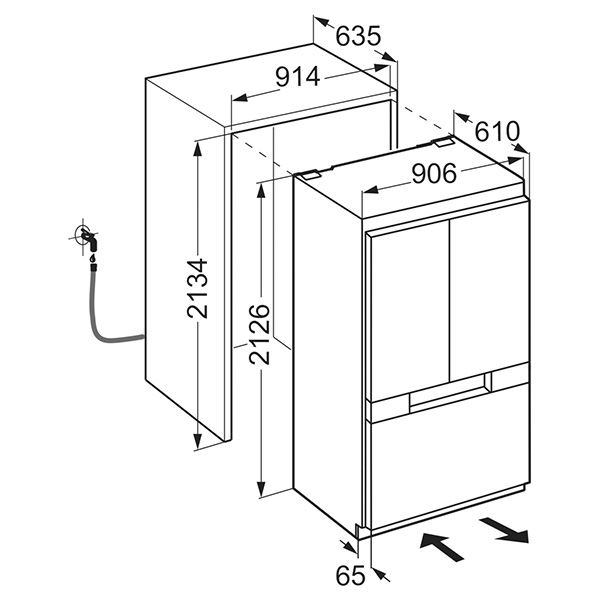

Appliance and recess dimensions

The appliance depth is 610 mm and it is designed for flush installation in units with a depth of 635 mm using stainless steel or customer-specific panels. Recess dimensions for this model are 213.4 cm (H) x 91.4 cm (W) x 63.5 cm (D). Installation spaces of standard European depth (610 mm) or deeper cut-outs of 635 mm are supported, including configurations where the cut-out depth is 635 mm plus the thickness of a custom panel for inset installations.

Door panels and panels weight

For inset installation, refrigerator compartment door panel dimensions are 1255 mm (H1) x 451 mm (W1) with HS = 6 mm and W2 = 908 mm. For overlay installation, H1 is 1258 mm (plus top overlap), H2 is 768 mm, HS is 6 mm, W1 is 454 mm (plus exterior overlap) and W2 is 914 mm (plus side overlaps). Thickness of the panel is minimum 16 mm (with specific screw considerations for five-piece shaker style panels) and maximum 30 mm. Maximum weight of panel 1 is 40 kg and panel 2 is 30 kg.

Door panels may be overlay or inset. For overlay installation, unit depth is 635 mm; for inset installation, unit depth is 635 mm plus the thickness of the custom panel. The minimum permitted gap between panels is 3 mm. For overlay installations, example configurations show carcass framing of 19 mm and panel thickness of 30 mm.

Installation space requirements

• The floor must bear the appliance weight plus approximately 218 kg to 544 kg of food, depending on model net capacity.
• The floor should be level; the appliance must be supported or levelled to keep ventilation openings clear.
• Recess dimensions must be correctly measured and the power socket located in the correct position.
• The unit recess should be comprised of material at least 16 mm thick and must line up flush at a depth of at least 102 mm from the outside edge.
• Parts of the recess are visible when the door is opened; matching interior and carcass finishes are recommended.
• An installation space between the unit rear wall and kitchen rear wall allows for electricity and water connections and the anti-tipping device.
• Installations behind the appliance are not possible.

Adjustable feet and anti-tipping device

The adjustable feet are fully retracted at the minimum height. The appliance height is increased by turning the adjustable feet from the front once the appliance is positioned in the recess so that it contacts the anti-tipping device. To achieve the minimal plinth panel height of 102 mm, the adjustable feet must be raised by 6 to 8 mm. For higher plinth panels, the feet can be raised by up to 19 mm. The anti-tipping device at the base of the appliance must be secured to the floor or wall.

Ventilation and plinth panel

Monolith appliances are ventilated entirely via the plinth panel. Door panels must close at least 102 mm above the floor and the grille in the plinth panel must not be obstructed. Spacers supplied with the appliance must be fitted to separate warm outgoing air from incoming fresh air. Liebherr offers 102 mm high stainless steel plinth panels in widths from 45.7 cm to 182.8 cm, including a 91.4 cm version for this model and Side-by-Side combinations. Plinth panels are assembled using an adhesive joint pre-assembled on the appliance.

Door spacing requirements

The appliance must be installed so that doors, including handles, do not bump adjoining cupboards, work surfaces, walls or other kitchen elements. A 90° door opening limiter (included in scope of supply) can be inserted into the hinge to limit the opening angle from 115° to 90°. A minimum spacing of 76 mm is recommended to avoid collisions at a 90° opening angle. Further options include reducing door panel thickness if greater than 19 mm, repositioning adjacent elements, or using a stopper.

Side-by-Side installation options

Monolith appliances may be installed:

• Individual positioning – installed as stand-alone appliances with hinge on left or right. A spacing of at least 76 mm is required to prevent collisions for a 90° opening.
• Side-by-Side in a fitted unit – requires a Side-by-Side set if spacing between appliances is less than 102 mm. A spacing of at least 76 mm is again required to avoid collisions at 90° opening.
• Side-by-Side in separate units – when the dividing wall between units is less than 102 mm thick, a Side-by-Side set is required. In back-to-back door positioning, at least 154 mm spacing is necessary.
• Side-by-Side with three units – different options allow combinations of three Monolith units, using one or two Side-by-Side sets and, where applicable, carcass sides of at least 16 mm thickness. Minimum distances of 102 mm or 154 mm are required to prevent handle and door collisions, depending on door opening direction.

Side-by-Side sets include sidewall heaters, metal brackets, screws and decorative trim. The sidewall heater prevents condensation between appliances when installed in separate carcasses and is required when the distance between units is less than 102 mm. The Side-by-Side set increases energy consumption by 0.4 kWh/24 h for two units and 0.8 kWh/24 h for three units.

Water connection, IceMaker and InfinitySpring

Models fitted with InfinitySpring and IceMaker must be connected to a water supply. The water pressure must be between 2.8 and 6.2 bar. Only the supply hose delivered with the appliance must be used. A shut-off valve must be installed between the hose line and the mains water supply so the water can be stopped if necessary; it must not be installed behind the appliance. Water quality must comply with regional drinking water regulations and the IceMaker is for producing ice cubes in normal household quantities with suitable water.

All devices and systems supplying water to the appliance must meet relevant provisions. If water hardness is high, a water softener is recommended and a filter must be used if solids such as sand are present. The water filter for InfinitySpring and IceMaker is located in the front section of the appliance base and must be replaced regularly. An InfinitySwipe alarm reminds the user when replacement is due. All repairs and work on InfinitySpring and IceMaker should only be undertaken by customer service or other trained individuals.

Electrical safety and ambient conditions

The appliance must be operated using alternating current within the permitted voltage and frequency for the relevant country. Power sockets must be earthed, electrically protected and not located behind the appliance, and must be easily accessible to disconnect the appliance if necessary. A separate circuit is recommended to prevent food spoilage caused by failures from other appliances.

• Do not connect to unearthed sockets.
• Do not use extension cables or multi-sockets due to overheating and fire risk.
• Do not connect using an inverter because imperfect sine wave voltage can cause overheating and fire hazards in the control electronics.

The appliances are designed for climate class SN–T (10 °C to 43 °C) and should not be operated outside this ambient temperature range. Refrigerant circuits have been checked for tightness and the appliances meet applicable safety regulations.

Start-up and standing time

To prevent potential damage, the appliance should stand for one hour in the installation location before switching on so that fluids in the coolant and lubrication system are evenly distributed.

Optional accessories

Optional accessories for this model include:

• Handles – flat brushed aluminium, square brushed aluminium and round stainless steel handles in 810 mm lengths for refrigerator compartments and relevant freezer compartments, with 770 mm screw hole spacing (some specific models use 618 mm spacing).

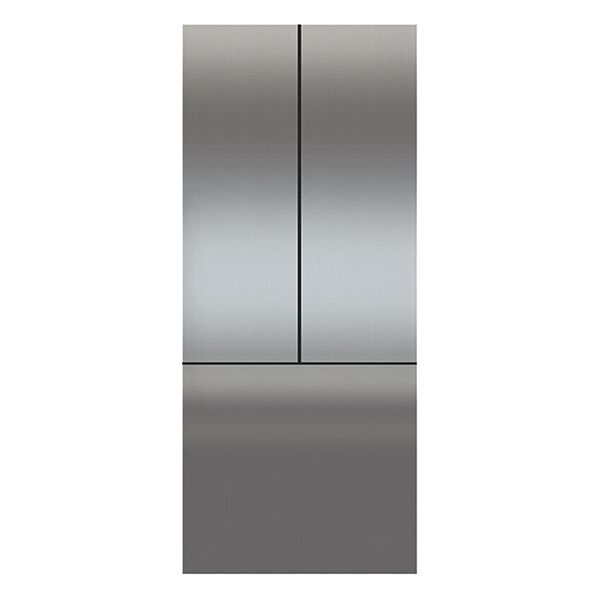

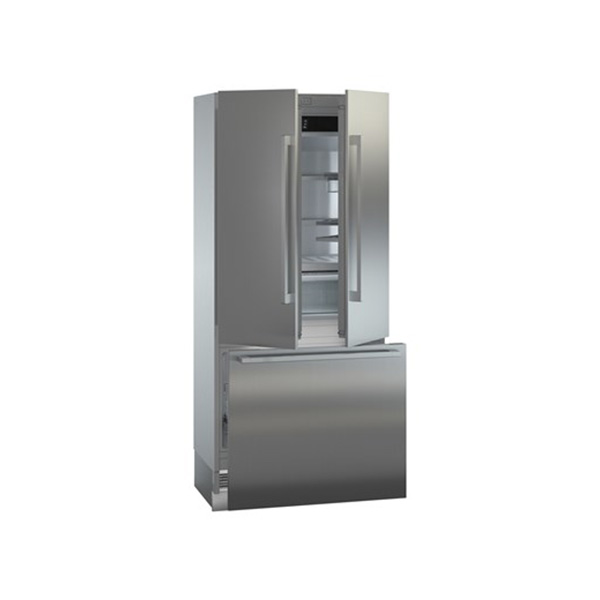

• Stainless steel panel set – 91.4 cm FrenchDoor set (code 9903 022) with refrigerator compartment panel dimensions per door 451 mm x 1255 mm x 19 mm, weight 11 kg, and freezer compartment panel 908 mm x 768 mm x 19 mm, weight 13.8 kg. Holes for handle fitting are drilled centrally with a spacing of 770 mm so panels can be rotated 180° if the door hinge is changed.
• Stainless steel plinth panels (102 mm high) – including 91.4 cm (code 9902 349) for this model and other widths for Side-by-Side combinations.
• Side-by-Side set – includes sidewall heater, metal brackets, screws and decorative trim; no additional mains connection is required for the heater.
• Sidewall heater – for preventing condensation when installing Side-by-Side units in separate carcasses, required if distance between integrated units is less than 102 mm.
• Door hinge exchange set – for hinge exchange, to be carried out by an authorised engineer (note: not available for this model according to the accessory list).
• Filters – FreshAir activated charcoal filter and water filter sets compatible with ECBN 9673 (e.g. FreshAir filter 9882 471; FreshAir filter and water filter set 9903 047; water filter 9880 980).
• Ice accessories – ice cube scoop (9901 841) and ice cube tongs (9901 871) compatible with ECBN 9673.
• Cleaning & care – stainless steel care product 250 ml (8409 030) and stainless steel cleaner 250 ml (8409 022) for Monolith models.
