Miele DAZ 1620 Integrated Hood

SKU: DAZ1620 · EAN: 4002516852599

Stainless Steel

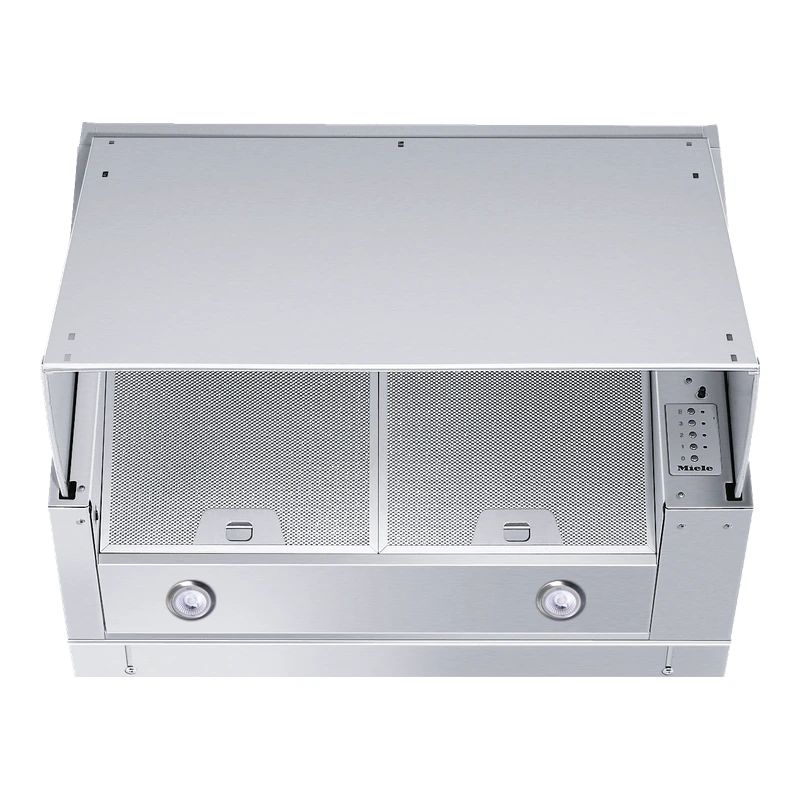

The Miele DAZ 1620 is a stainless steel slot-in cooker hood designed to be invisibly concealed behind kitchen décor. It offers energy-efficient and uniform illumination via two LED spotlights and convenient light-touch switches with LEDs. With three power levels plus a Booster level, a dual-action blower and two dishwasher-safe metal grease filters, it is suitable for kitchens requiring effective extraction or recirculation and straightforward cleaning.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Exhaust air performance (EN 61591)
Product name	DAZ 1620 Slot-in cooker hood
Colour	Stainless steel (PF)

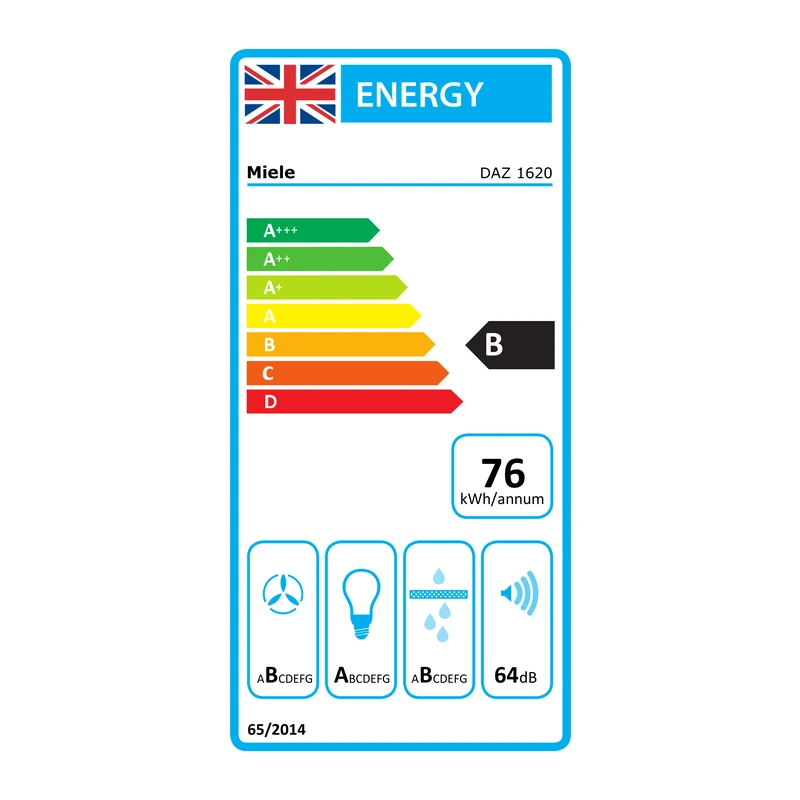

Energy efficiency class (A+++ – D)	B
Annual energy consumption	75.9 kWh/year
Lighting efficiency class	A
Fluid dynamic efficiency class	B
Operating modes	Type of air guide can be retrofitted; suitable for exhaust air and recirculation
Controls	Electronic controls; light-touch switches with LEDs
Power levels	3 power levels plus 1 Booster level
AC motor	Yes (AC motor)
Filter system	2 dishwasher-safe metal grease filters
Lighting	2 x 1.0 W LED spotlights
Light intensity	170 lx
Dual-action blower	Yes
Air throughput Level 1	300 m³/h
Air throughput Level 2	470 m³/h
Air throughput Level 3	620 m³/h
Air throughput Booster level 1	730 m³/h
Sound power Level 1 (EN 60704-3)	47.0 dB(A) re 1 pW
Sound power Level 2 (EN 60704-3)	58.0 dB(A) re 1 pW
Sound power Level 3 (EN 60704-3)	64.0 dB(A) re 1 pW
Sound power Booster level 1 (EN 60704-3)	68.0 dB(A) re 1 pW
Sound pressure Level 1 (EN 60704-2-13)	39.0 dB(A) re 20 µPa
Sound pressure Level 2 (EN 60704-2-13)	49.0 dB(A) re 20 µPa
Sound pressure Level 3 (EN 60704-2-13)	55.0 dB(A) re 20 µPa
Sound pressure Booster level 1 (EN 60704-2-13)	59.0 dB(A) re 20 µPa
Recirculation performance (EN 61591)
Air throughput Level 1	255 m³/h
Air throughput Level 2	355 m³/h
Air throughput Level 3	410 m³/h
Air throughput Booster level 1	430 m³/h
Sound power Level 1 (EN 60704-3)	64.0 dB(A) re 1 pW
Sound power Level 2 (EN 60704-3)	71.0 dB(A) re 1 pW
Sound power Level 3 (EN 60704-3)	74.0 dB(A) re 1 pW
Sound power Booster level 1 (EN 60704-3)	75.0 dB(A) re 1 pW
Sound pressure Level 1 (EN 60704-2-13)	55.0 dB(A) re 20 µPa
Sound pressure Level 2 (EN 60704-2-13)	62.0 dB(A) re 20 µPa
Sound pressure Level 3 (EN 60704-2-13)	65.0 dB(A) re 20 µPa
Sound pressure Booster level 1 (EN 60704-2-13)	66.0 dB(A) re 20 µPa
Dimensions and installation
Canopy width	599 mm
Canopy height	450 mm
Canopy depth	275 mm
Net weight	11.8 kg
Length of supply lead	1.2 m
Standard plug fitted	Yes
Minimum height above electric hobs	650 mm
Minimum safety distance above gas hobs	650 mm (max. 12.6 kW total power, burner ≤ 4.5 kW)
Extraction ducting connection	At top
Diameter of exhaust duct	150 mm
Fitting template	Included
Electrical data
Number of phases	1
Total rated load	0.25 kW
Voltage	230 V
Fuse rating	5 A
Frequency	50 Hz
Identification
Material number	12697770
EAN number	4002516852599
Old material number	28Z1620SGB
