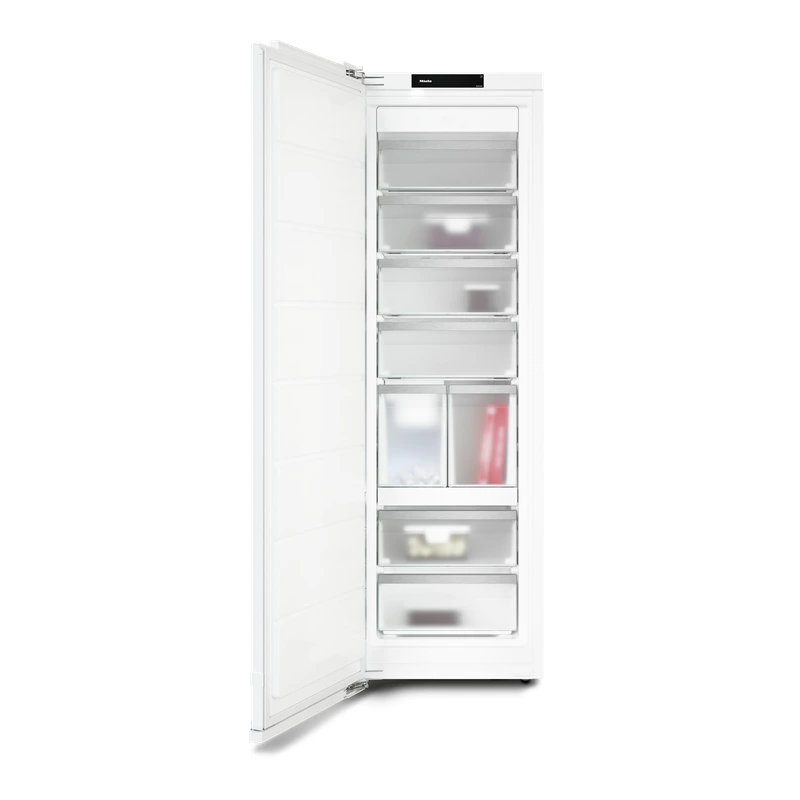

Miele FNS7794D Freezer

SKU: FNS7794D · EAN: 4002516747031

Built In Integrated Left Hinge Not Reversible

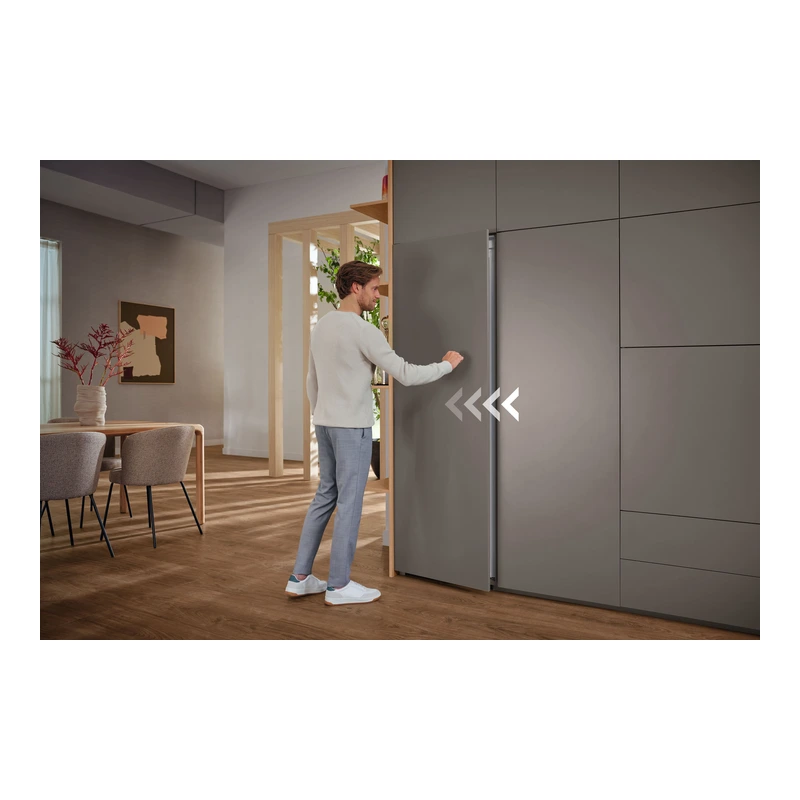

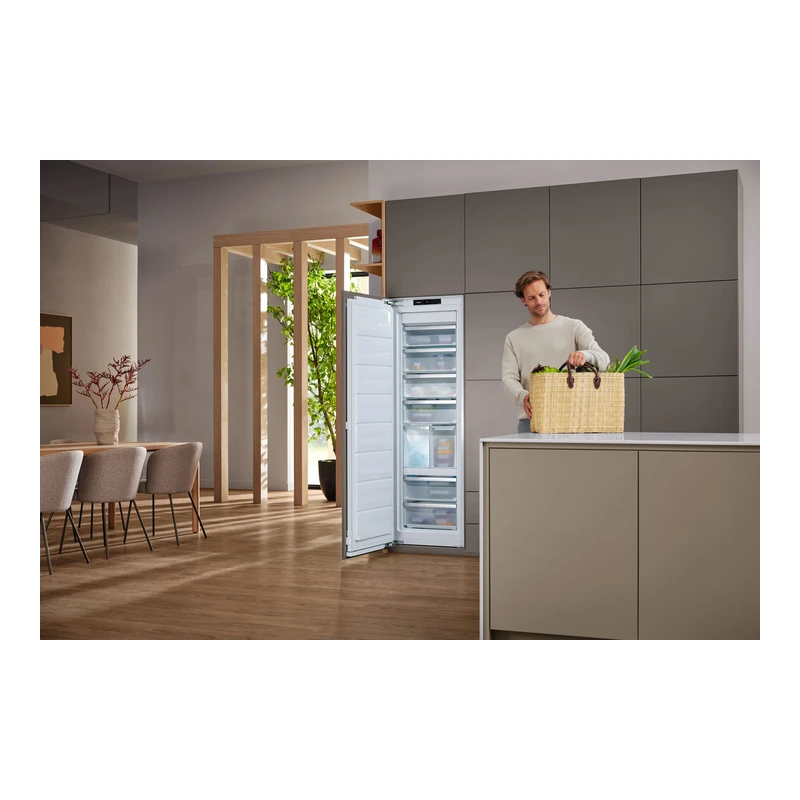

The Miele FNS 7794 D L is a built–in freezer designed for integrated kitchens, offering convenient frozen food storage with 8 drawers, including 2 Ice&PizzaBoxes. It features automatic door opening and closing via ActiveDoor, a mains–water IceMaker for fresh ice cubes and NoFrost technology to prevent icing and defrosting. With LED lighting, SoftClose door technology and connectivity with Miele@home, it is suitable for users seeking a high–specification integrated freezer.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	FNS 7794 D L
Appliance category	Freezer
Construction type	Built-in appliance, integrated appliance
Door hinge	Left
Door hinge technology	Fixed door
Side-by-side enabled	Yes
Freezer compartment lighting	LED
IceMaker lighting	Yes
Networking	Miele@home
Door opening aid	ActiveDoor
User interface	FreshTouch operating concept
Number of temperature zones	1
Independent fridge/freezer regulation	No
NoFrost	Yes
VarioRoom	Yes
SoftClose	Yes

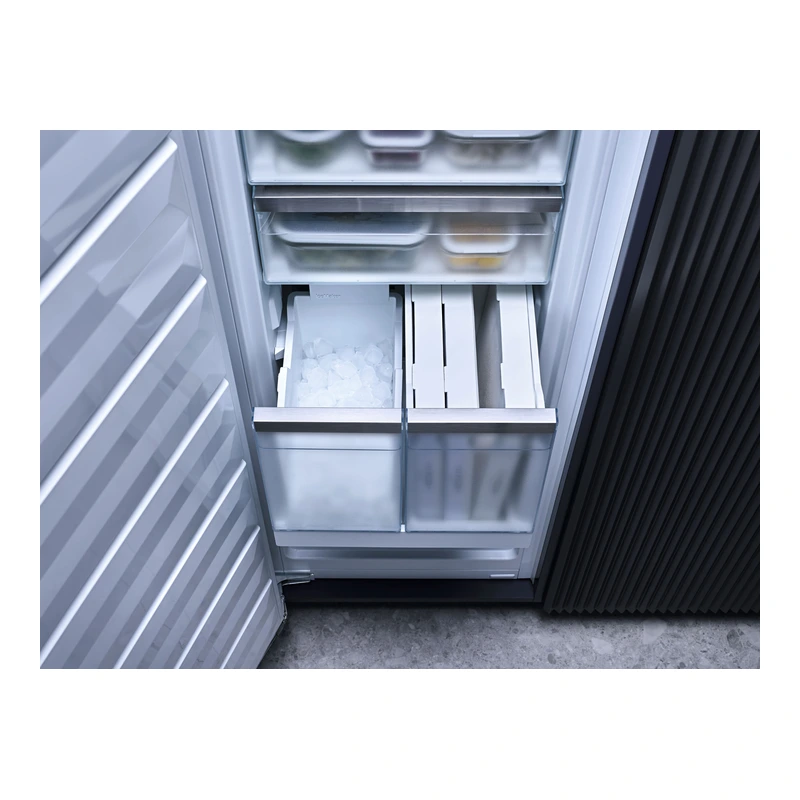

Ice cube maker	IceMaker with mains water connection
SuperFreeze	Yes
Sabbath mode	Yes
Party mode	Yes

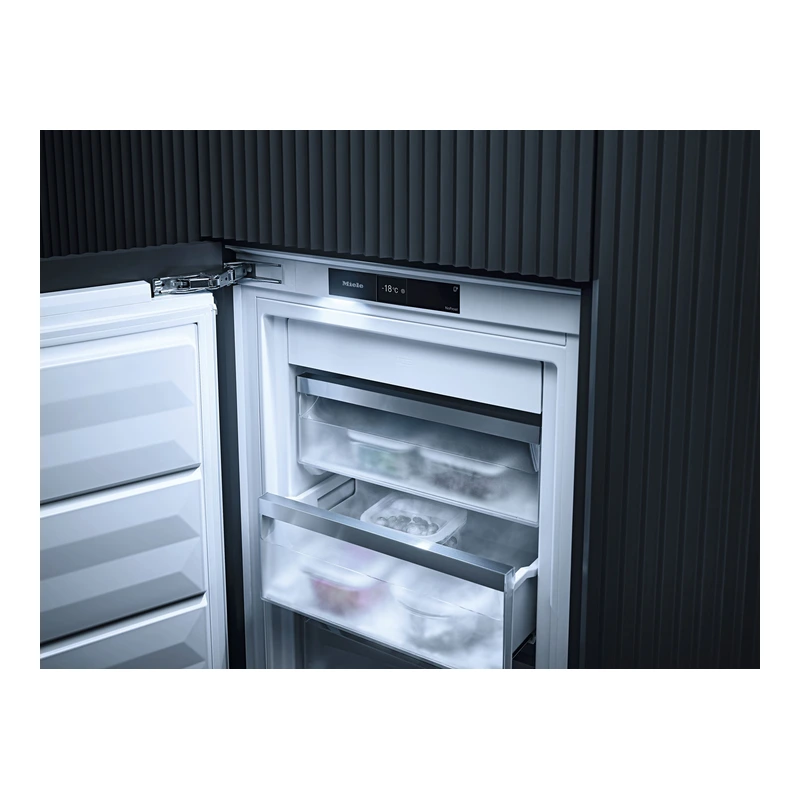

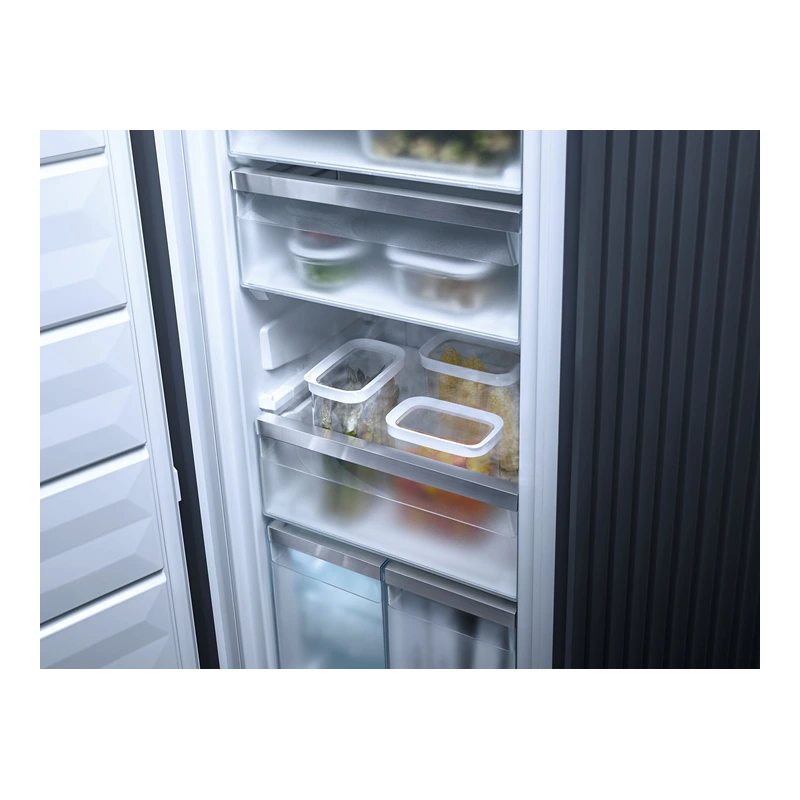

Number of freezer drawers	8 (6 on runners, 2 Ice&PizzaBox)

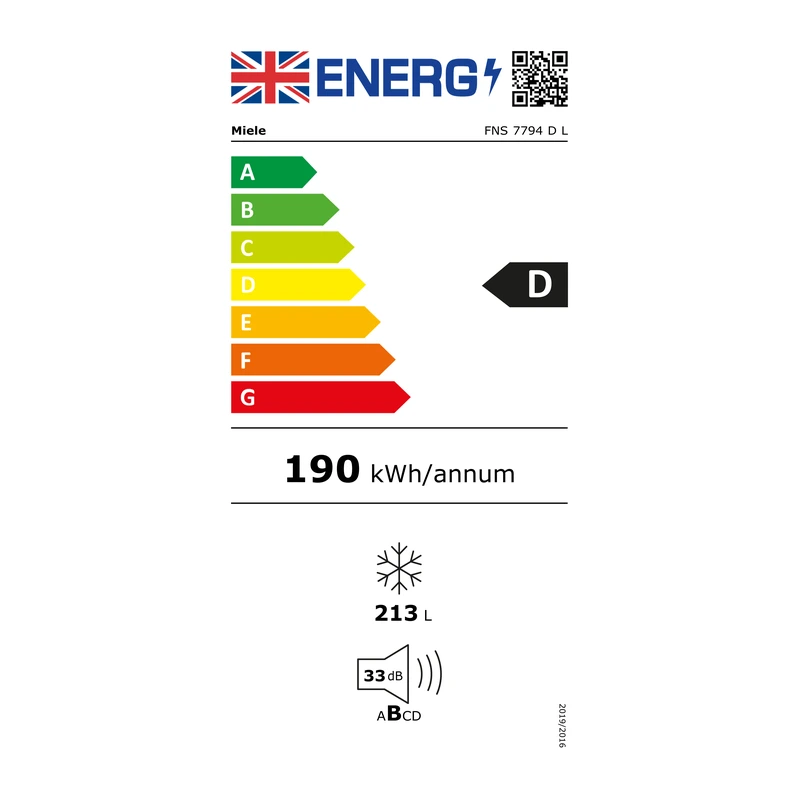

Energy efficiency class (A–G)	D
Annual energy consumption	189.80 kWh
Energy consumption in 24 h	0.52 kWh
4*–freezer compartment volume	213 l
Total usable capacity	213 l
Freezer capacity	12.00 kg/24 h
Ice cube production	0.8 kg per day
Storage time in case of fault	9 h
Climate range	SN–T
Noise emission class (A–D)	B
Sound emissions	33 dB(A) re 1 pW
Lock function	Yes
Acoustic door alarm	Yes
Acoustic temperature alarm	Yes
Optical door alarm	Yes
Optical temperature alarm	Yes
Power cut indication	For freezer section
Niche width	min. 560 mm – max. 570 mm
Niche height	min. 1777 mm – max. 1793 mm
Niche depth	550 mm
Appliance width	559 mm
Appliance height	1770 mm
Appliance depth	546 mm
Weight	75.2 kg
Max. door front weight	26 kg (refrigerator)
Voltage	220–240 V
Frequency	50–60 Hz
Current consumption	1300 mA
Fuse rating	10 A
Number of phases	1
Length of supply lead	2.2 m
EAN	4002516747031
Material number	12443650
Old material number	37779401EU1

* The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher.
