What is the oven capacity of the Miele H 7860 BP?

The oven compartment volume is 76 l and provides 5 numbered shelf levels for flexible cooking and baking.

Does the H 7860 BP have self-cleaning?

Yes, it features Pyrolytic self-cleaning, a CleanGlass door, a hinged grill element and PyroFit accessories to support minimal cleaning effort.

Which cooking modes are available?

Available modes include Fan plus, Conventional heat, Moisture plus (and combinations with Conventional heat, Fan plus and Intensive bake), Intensive bake, Auto roast, Fan grill, Grill, Economy grill, Top heat, Bottom heat, Low temperature cooking, Eco fan heat, Defrosting, Automatic programmes, Country-specific automatic programmes and Special applications.

Is the H 7860 BP compatible with smart home networking?

Yes, the oven supports networking with Miele@home and offers features such as FoodView and MotionReact for enhanced user convenience.

What is the temperature range of the oven?

The temperature range is 30 – 300 °C, with electronic temperature regulation from 30 °C to 300 °C.

Which accessories are supplied with the oven?

Supplied accessories are: baking tray with PerfectClean HBB 71, universal tray with PerfectClean HUBB 71, baking and roasting rack PyroFit, PyroFit FlexiClip runners, wireless food probe, removable PyroFit side runners (pair), grilling and roasting insert with PerfectClean and 2 descaling tablets.

Product Information Sheet

Miele Vitroline Single Oven

SKU: H7860BPOBBL

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

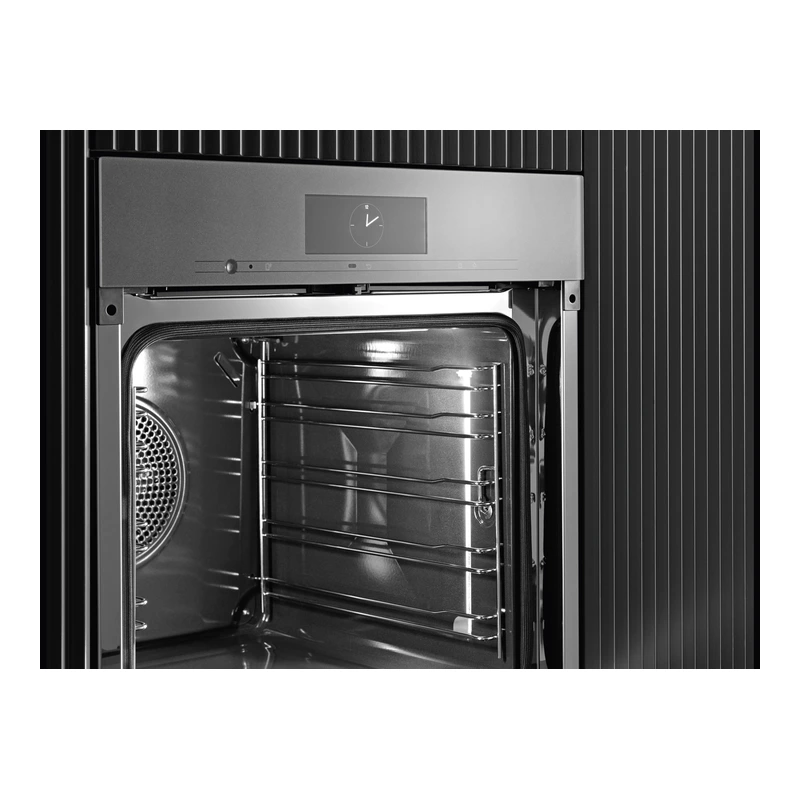

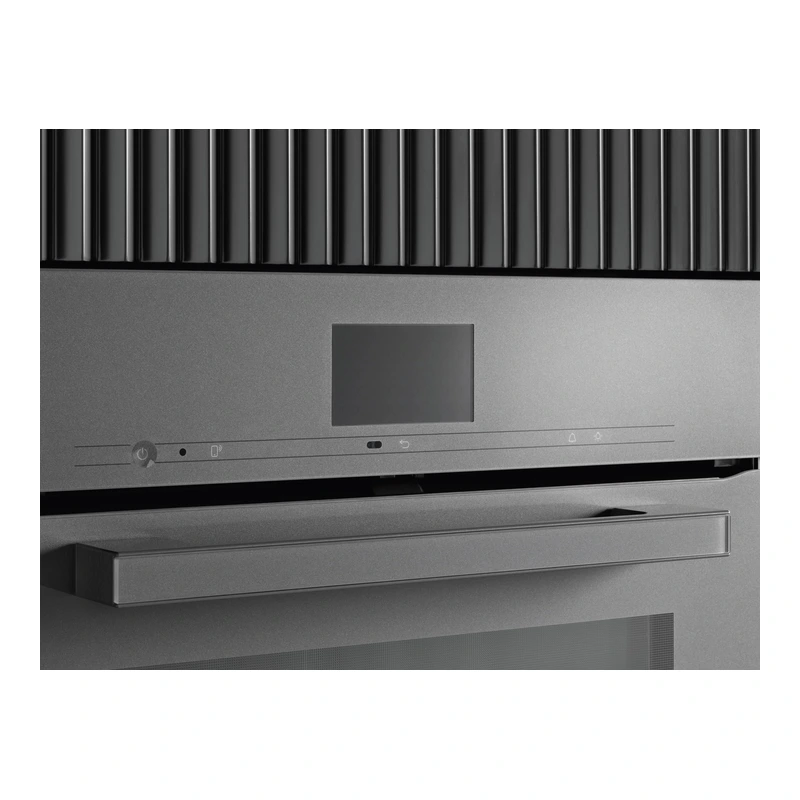

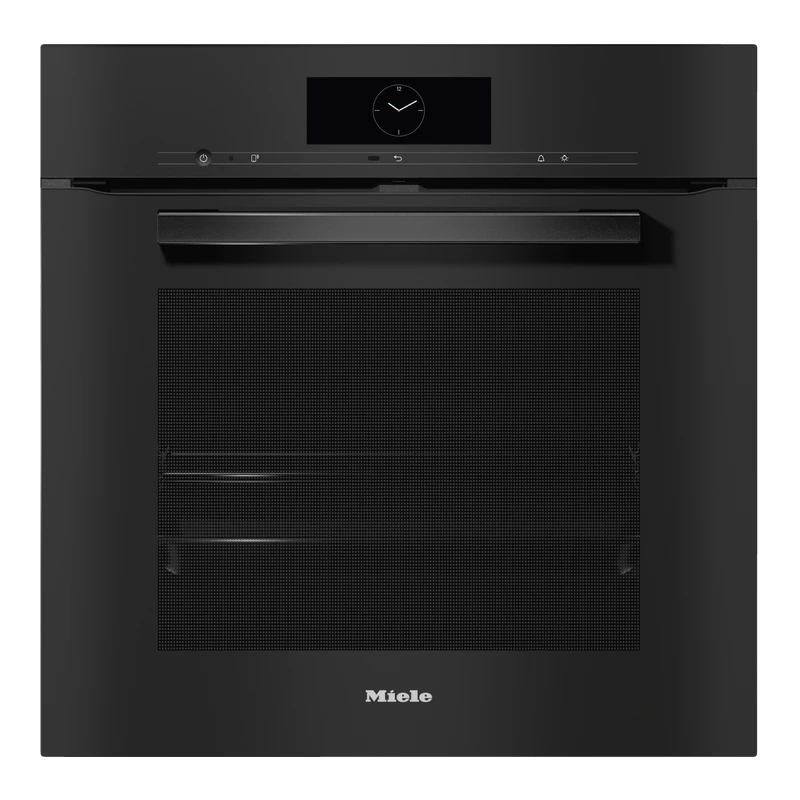

Miele H7860BPOBBL Vitroline Single Oven

SKU: H7860BPOBBL · EAN: 4002516157007

Obsidian Black

The Miele H 7860 BP is a built-in VitroLine oven in Obsidian black with a 76 l oven compartment, designed for seamless integration. It offers an M Touch display with MotionReact, wireless food probe and BrilliantLight for clear visibility. A+ energy efficiency, Moisture plus functions, TasteControl and a wide range of automatic and country-specific programmes support versatile cooking and baking with minimal effort, helped by Pyrolytic self-cleaning, PyroFit accessories and CleanGlass door.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Built-in oven
Series / design	VitroLine
Colour	Obsidian black
Oven compartment volume	76 l
Number of shelf levels	5 (numbered shelf levels)
Oven light	BrilliantLight
Temperatures	30 – 300 °C
Electronic temperature regulation min.	30 °C
Electronic temperature regulation max.	300 °C

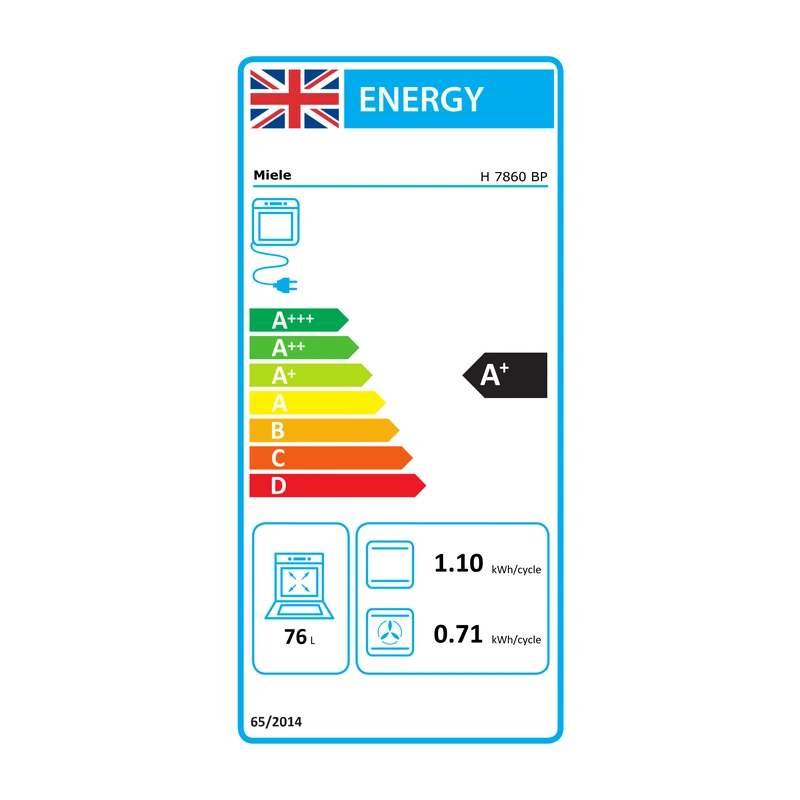

Energy efficiency class (A+++ – D)	A+
Power rating in off mode	0.3 W
Power rating in standby mode	0.8 W
Power rating in networked standby	2.0 W
Time until automatic switch to standby	20 min
Time until automatic switch to off mode	20 min
Time until automatic switch to networked standby	20 min
Steam generator power	1.10 kW
Fresh water container volume	0.3 l
Niche width (min. / max.)	560 – 568 mm
Niche height (min. / max.)	590 – 595 mm
Niche depth	550 mm
Appliance width	595 mm
Appliance height	596 mm
Appliance depth	568 mm
Weight	47.0 kg
Total rated load	3.70 kW
Voltage	220–240 V
Frequency	50 Hz
Fuse rating	16 A
Number of phases	1
Neutral conductor	Yes
Length of supply lead	1.50 m
Replacing lamps	Service
