How many bottles can the KWTUS 7074 F hold?

The wine conditioning unit has a total usable capacity of 92 l and can store up to 32 bottles of 0.75 l Bordeaux size.

What temperature range does this wine unit offer?

It provides two temperature zones with a minimum temperature setting of 5°C and a maximum temperature setting of 20°C.

Is this model suitable for built-under installation in a standard 600 mm niche?

Yes. It is a built-under, integrated undercounter appliance designed for a niche width of 600 mm, niche height between 820 mm and 880 mm, and niche depth of 580 mm.

Does the door hinging need to be specified when ordering?

The appliance is supplied with a right-hand door hinge, and the door hinging is convertible, allowing it to be changed if required.

What safety features are included?

It features a lock function plus acoustic and optical door alarms and acoustic and optical temperature alarms to alert you to any issues.

What accessories are included with the appliance?

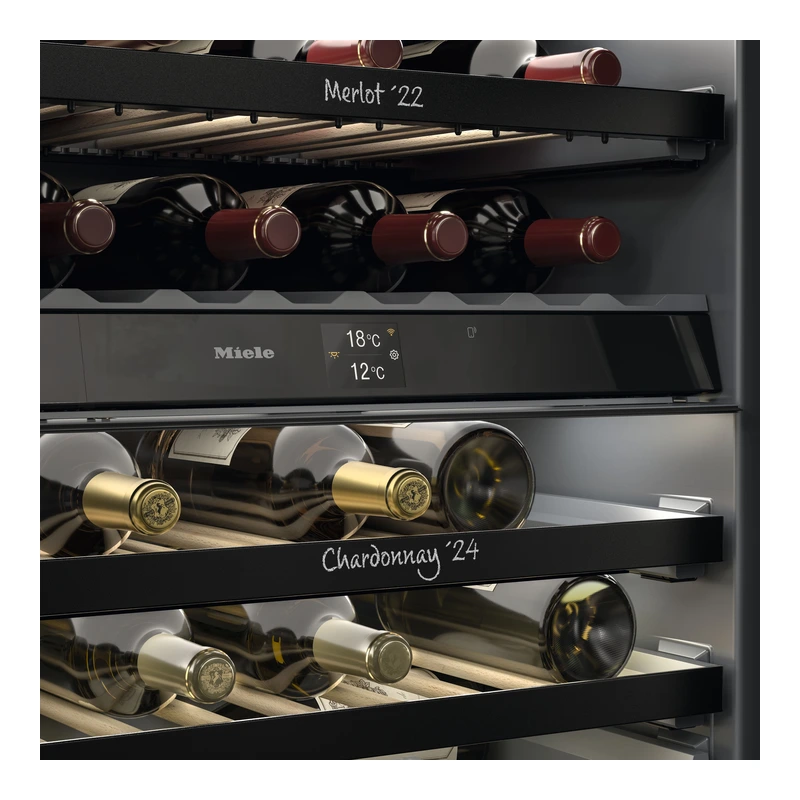

A white chalk pen is included for use with the NoteBoard on the wooden shelves.

Product Information Sheet

Miele KWTUS 7074 F OBSW Winecellar

SKU: KWTUS7074FOBSW

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

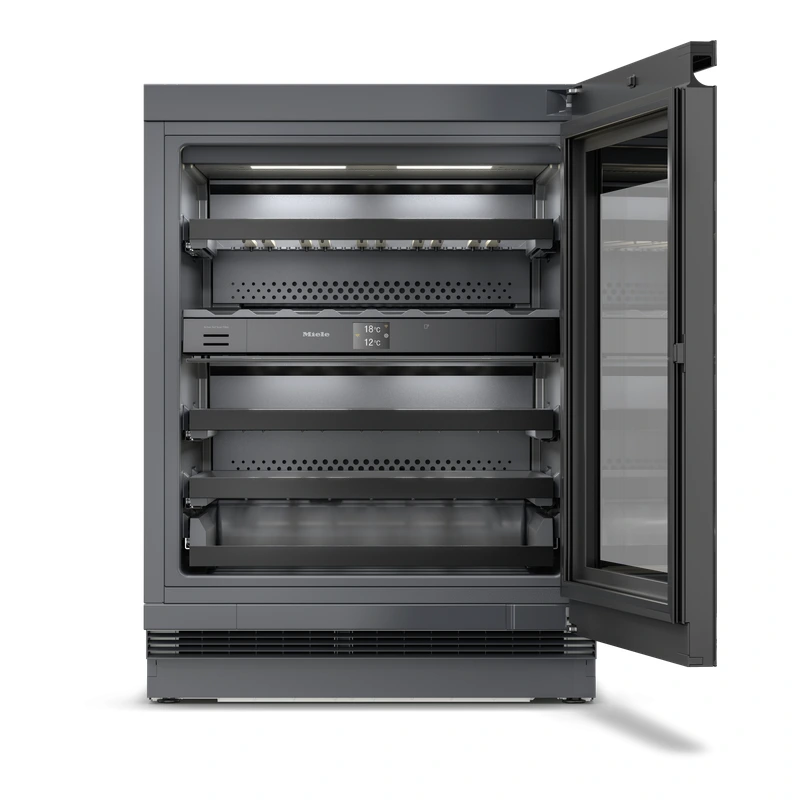

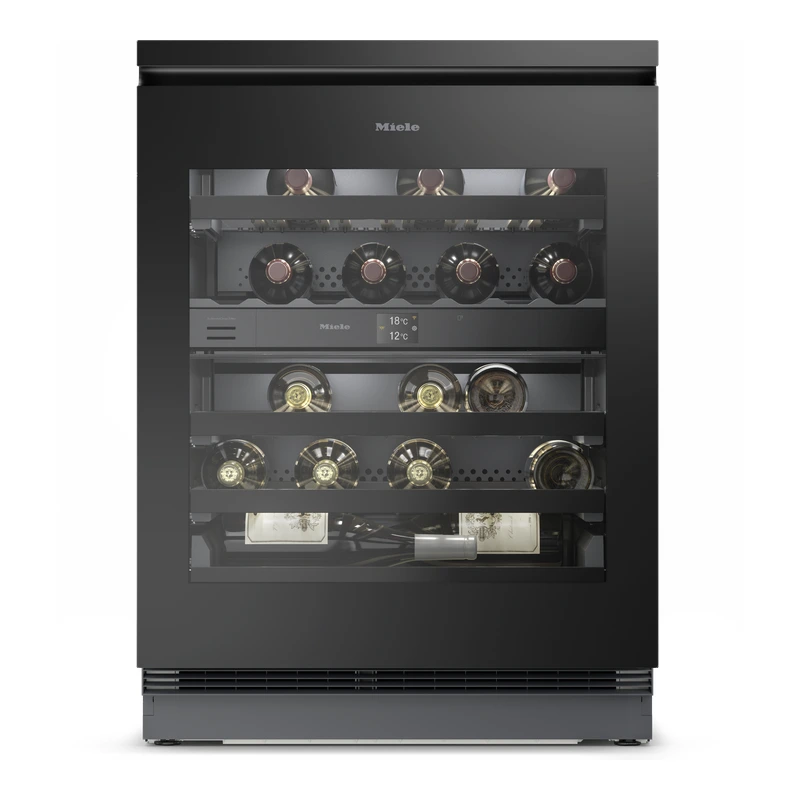

Miele KWTUS 7074 F OBSW Winecellar

SKU: KWTUS7074FOBSW · EAN: 4002516861942

Built Under Integrated Tinted Glass

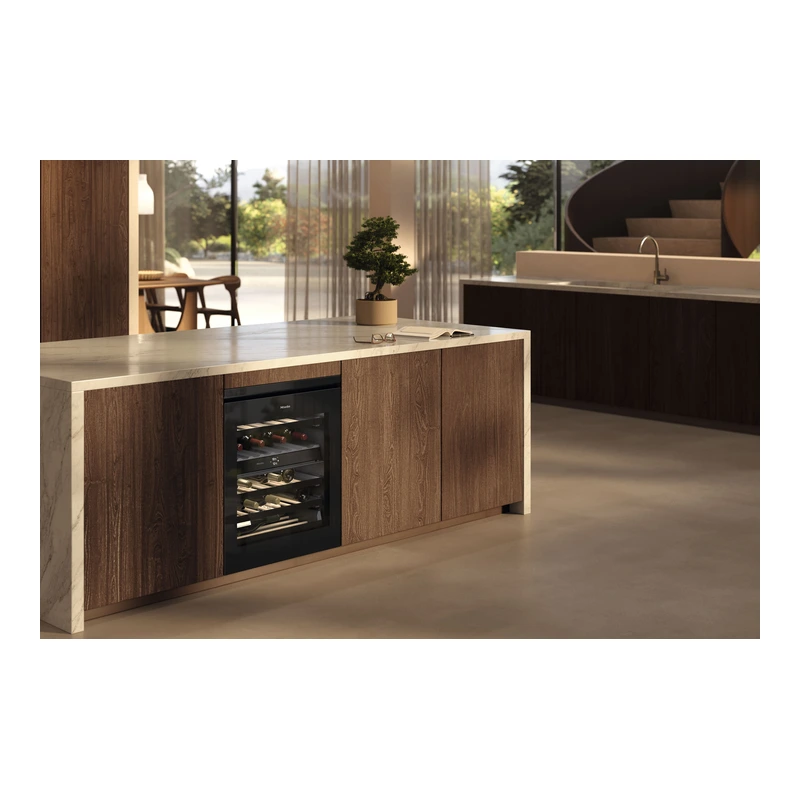

The KWTUS 7074 F is a built-under wine conditioning unit designed for integrated, undercounter installation. It offers two separate temperature zones for perfect drinking and storage temperatures, with low-vibration storage to protect your wines. FlexiFrame beechwood shelves allow storage of different bottle sizes and shapes, supported by ActiveHumidity for perfect regulation of humidity. With UV-resistant insulated glass, dimmable LED lighting and convenient FreshTouch controls, it provides compact, high-quality wine storage for the home.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	KWTUS 7074 F
Appliance category	Wine conditioning unit
Construction type	Built-in appliance; Integrated appliance; Undercounter appliance
Door hinge	Right; Convertible door hinging
Side-by-side enabled	Yes
Casing colour	Black
Front colour	Obsidian Black glass
Wine compartment lighting	Continuously dimmable LED
Networking	Networking with Miele@home
Filters and cooling	Active AirClean filter; DynaCool; ActiveHumidity
Door opener	Concealed door opener FrontOpen
Total number of shelves	5
Number of shelves (standard)	4
Shelf material	Beechwood
FlexiFrame racks	3
Shelves for crosswise storage	1
SelfClose FlexiFrame	Yes
NoteBoard	Yes
Low-vibration storage	Yes
Operating concept	FreshTouch
Independent fridge/freezer temperature regulation	No
Number of temperature zones	2
Temperature setting range	Min. 5°C / Max. 20°C
Sabbath mode	Yes
Fridge section back wall	Dry back wall grey

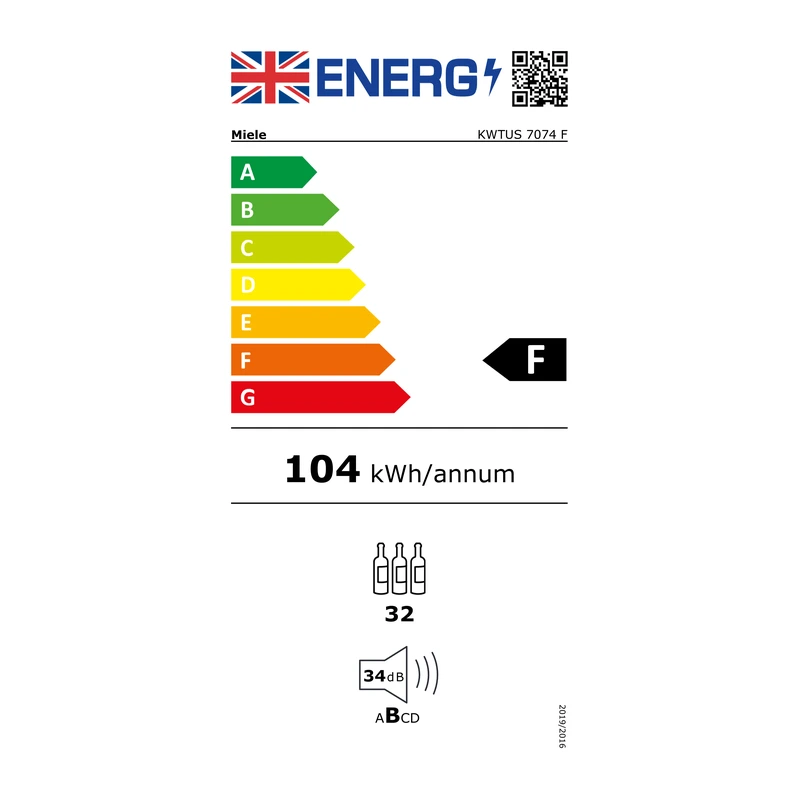

Energy efficiency class (A–G)	F
Annual energy consumption	104.00 kWh
Energy consumption in 24 h	0.28 kWh
Lock function	Yes
Door alarms	Acoustic door alarm; Optical door alarm
Temperature alarms	Acoustic temperature alarm; Optical temperature alarm
Niche width	Min. 600 mm / Max. 600 mm
Niche height	Min. 820 mm / Max. 880 mm
Niche depth	580 mm
Appliance width	597 mm
Appliance height	819 mm
Appliance depth	563 mm
Weight	44.0 kg
Climate class	SN-ST
Refrigerator compartment volume	92 l
Total usable capacity	92 l
0.75 l Bordeaux bottle capacity	32 bottles
Airborne noise emission class (A–D)	B
Sound emissions	34 dB(A) re 1 pW
Current consumption	1500 mA
Voltage	220–240 V
Fuse rating	13 A
Number of phases	1
Frequency	50–60 Hz
Length of supply lead	2.2 m
EAN	4002516861942
Material number	12731310
Old material number	39707410GB
Accessories included	White chalk pen

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Miele dealer, with full manufacturer warranty. Established 1967.

Enquire About This Product

Our specialists are on hand to answer any questions about the Miele KWTUS 7074 F OBSW Winecellar. Get in touch and we'll respond within one working day.

+44 (0)208 455 3925 [email protected]

Full Name *

Email *

Phone *

Message *

I agree to Woodalls using my details to respond to my enquiry. I have read the Privacy Policy.

Your Enquiry List

Miele KWTUS 7074 F OBSW Winecellar

Miele KWTUS 7074 F OBSW Winecellar

Delivery & Returns

Related Products

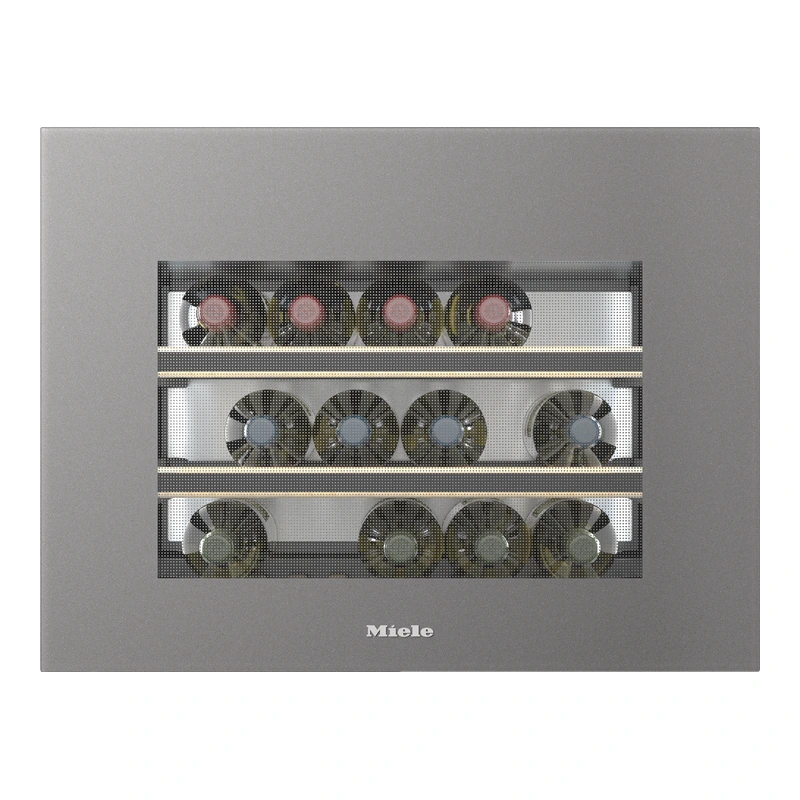

Miele KWT7112IGGRGR Compact Wine Cellar

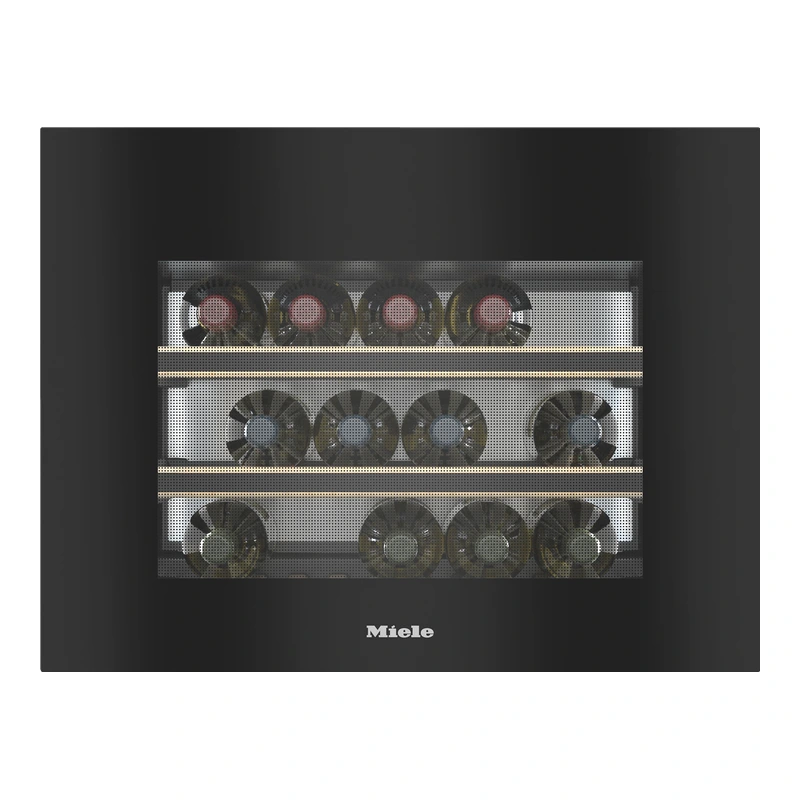

Miele KWT7112IGOBBL Compact Wine Cellar

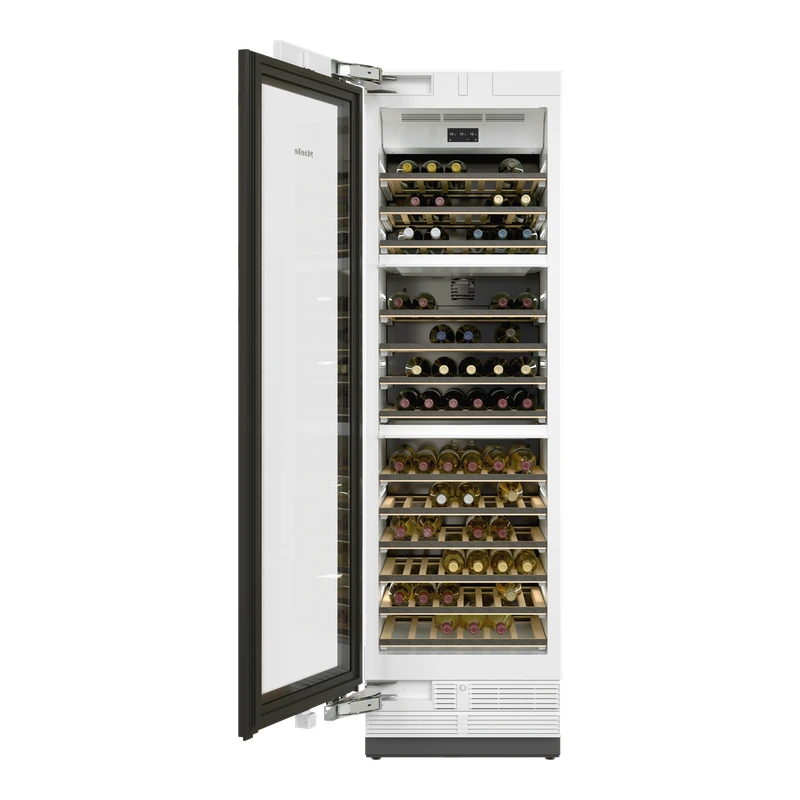

Miele KWT2612VI Winecellar

Miele KWT2612VI Winecellar

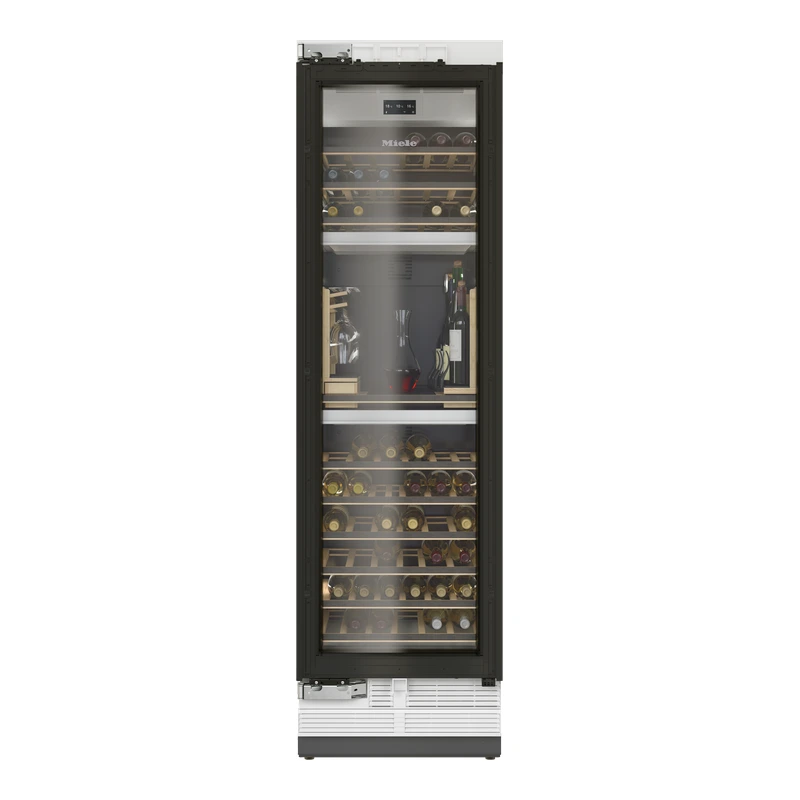

Miele KWT2672VIS Winecellar

Miele KWT2672VIS Winecellar

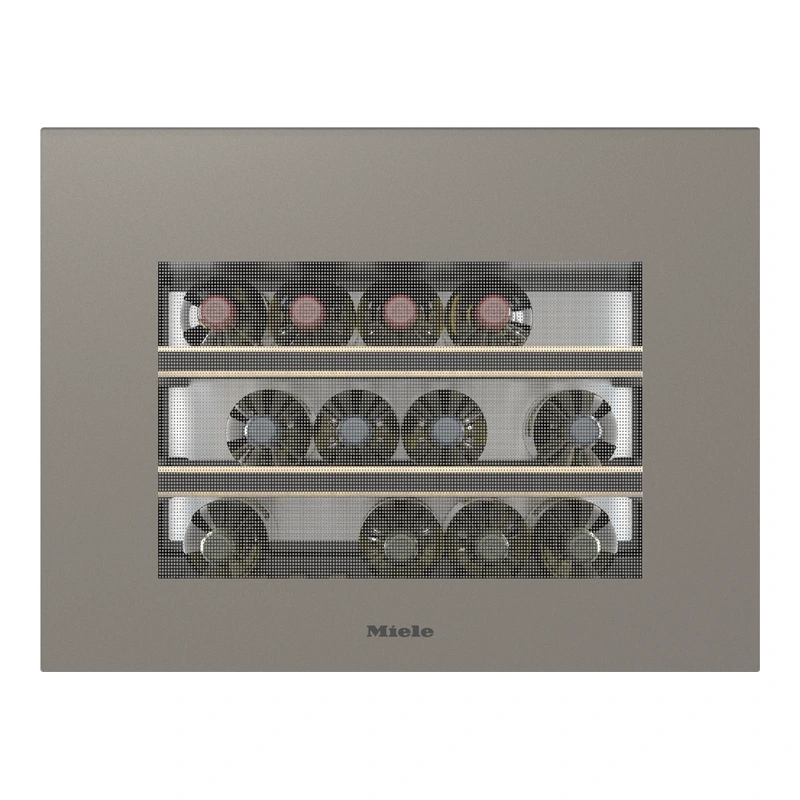

Miele KWT7112IG Compact Winecellar

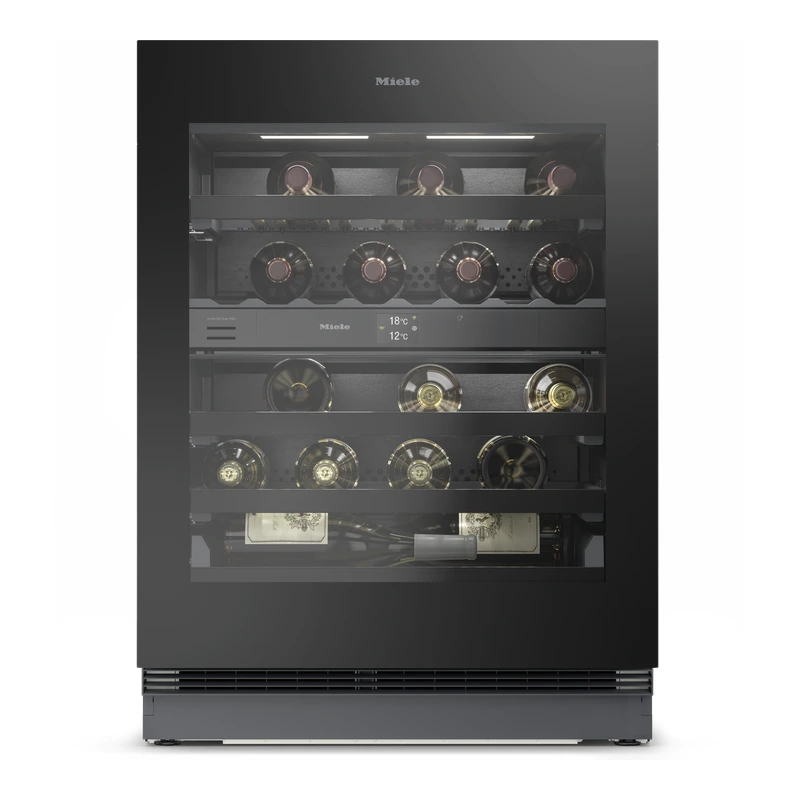

Miele KWTUS 7096 E OBSW Winecellar
