What cooking modes does the M 2234 SC offer?

It provides microwave, grill, and microwave/grill combination modes, as well as automatic programmes for defrosting and cooking.

What is the capacity and size of the oven compartment?

The oven compartment volume is 17 l, with an interior height of 20.2 cm and a turntable diameter of 27.2 cm.

What accessories are supplied with the appliance?

The appliance is supplied with 1 grilling rack, 1 gourmet plate and 1 turntable.

What is the maximum microwave and grill power?

The maximum microwave power is 800 W and the quartz grill power rating is also 800 W.

Which installation niche dimensions are required?

The required niche width is 562–568 mm, niche height is 350–362 mm and minimum niche depth is 310 mm.

Does the appliance have safety and child lock features?

It includes an appliance cooling system with touch-cool front, system lock, safety switch-off and a safety lock 'Door' warning.

Product Information Sheet

Miele Microwave Inc Grill

SKU: M2234SC

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

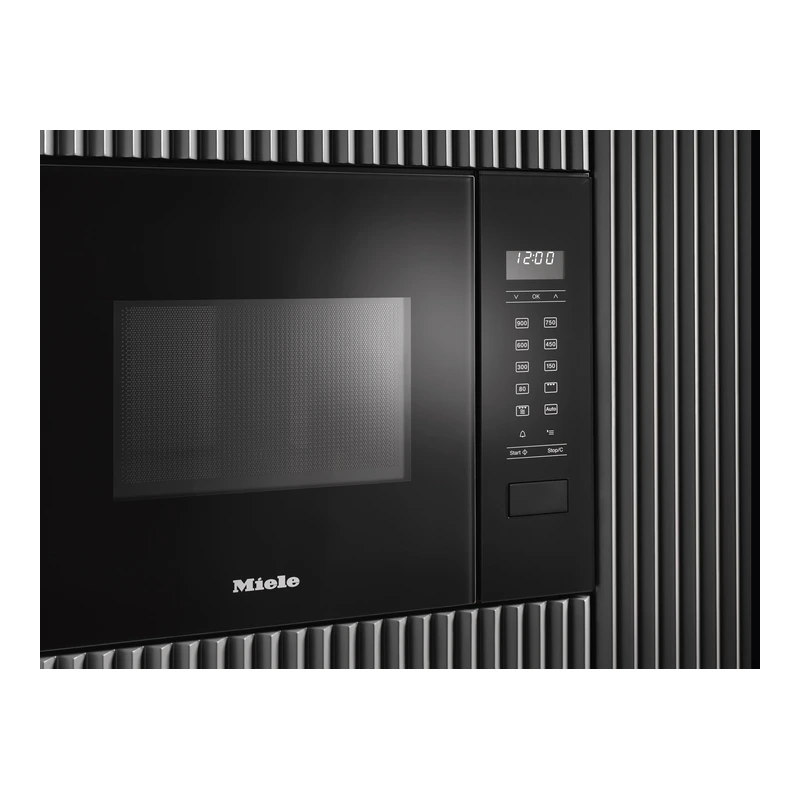

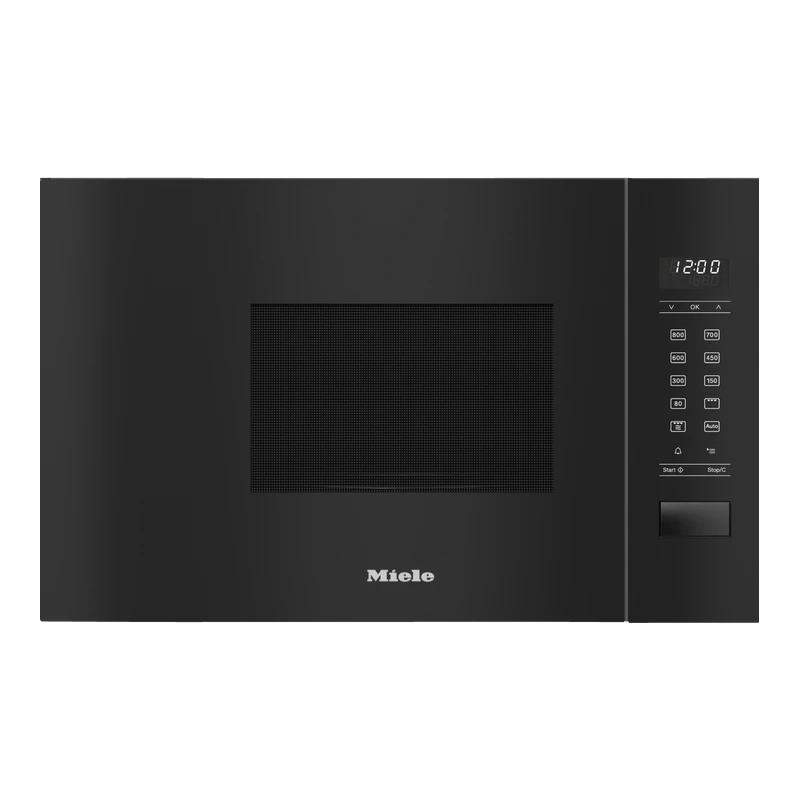

Miele M2234SC Microwave Inc Grill

SKU: M2234SC · EAN: 4002516103325

Built In Obsidian Black Shallow Depth

The Miele M 2234 SC is a built-in microwave oven in Obsidian black, designed with side-mounted EasySensor controls for convenient operation. It offers microwave, grill and combination cooking, supported by automatic programmes for defrosting and cooking. An integrated quartz grill delivers optimum and even browning, while a keeping warm function helps food remain at serving temperature. LED lighting provides perfect and energy-saving illumination of the stainless steel oven compartment.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	M 2234 SC
Appliance type	Built-in microwave oven
Appliance colour	Obsidian black
Control type	SideControl with EasySensor 7-segment display
Oven compartment volume	17 l
Turntable diameter	27.2 cm
Oven interior height	20.2 cm
Oven compartment material	Stainless steel oven compartment
Operating modes	Microwave; Grill; Microwave/grill combination mode; Automatic programmes
Maximum microwave power	800 W
Grill power rating	800 W (quartz grill)
Electronically controlled microwave power	Yes
Keeping warm function	Yes
Oven light	1 LED spot
Door hinge	Left
Appliance dimensions (W × H × D)	595 × 372 × 310 mm
Appliance width	595 mm
Appliance height	372 mm
Appliance depth	310 mm
Niche width (min – max)	562 mm (min) – 568 mm (max)
Niche height (min – max)	350 mm (min) – 362 mm (max)
Niche depth (min)	310 mm
Venting	Niche-independent venting
Total rated load	1.25 kW
Voltage	220–240 V
Frequency	50 Hz
Fuse rating	13 A
Number of phases	1
Neutral conductor	Yes
Mains cable with plug	Yes
Length of supply lead	1.60 m
Weight	14.4 kg
Power rating in off mode	0.3 W
Power rating in standby mode	0.8 W
Time until automatic switch to off mode	20 min
Night dimming	Yes
Display	EasySensor
Time of day display	Yes
Minute minder	Yes
Programmable cooking duration	Yes
Quick microwave	Yes
Individual settings	Yes
Appliance cooling system and touch-cool front	Yes
System lock	Yes
Safety switch-off	Yes
Safety lock 'Door' warning	Yes
Replacing lamps	Service
Accessories included	1 grilling rack; 1 gourmet plate; 1 turntable
EAN	4002516103325
Material number	11093880
Old material number	24223420GB
