| Product name |

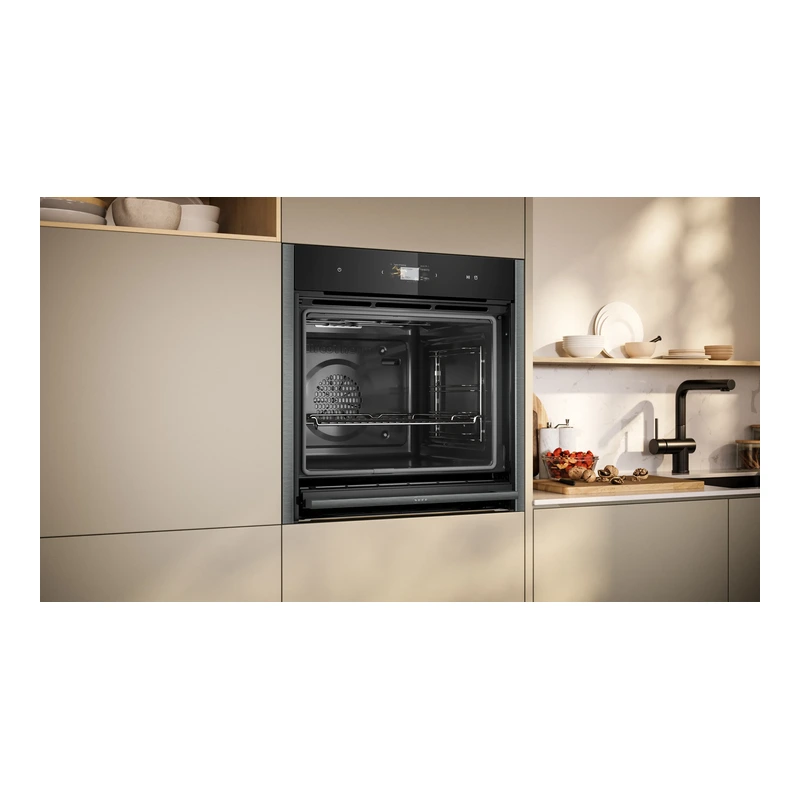

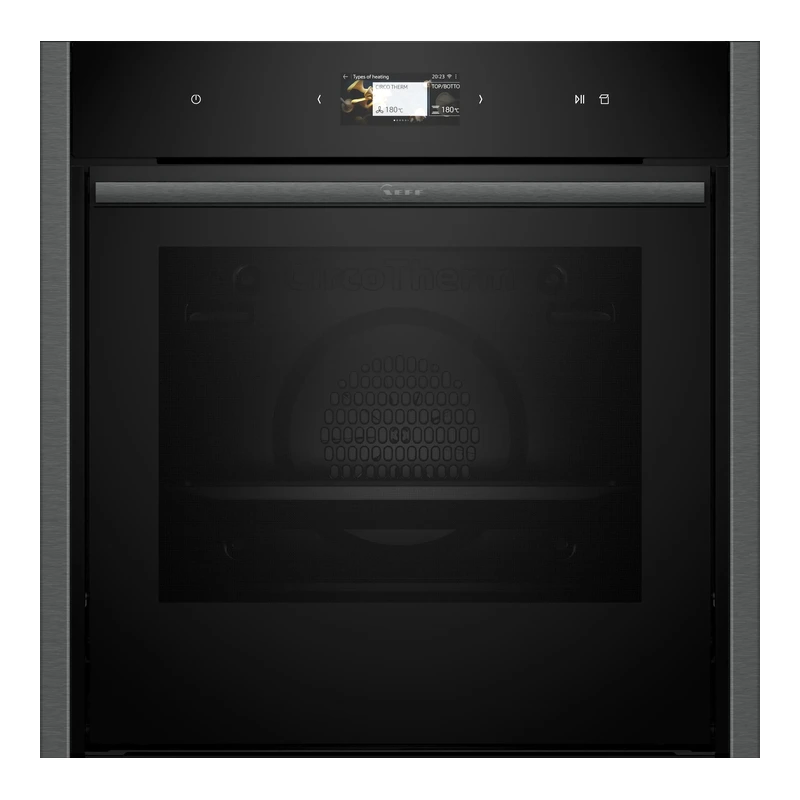

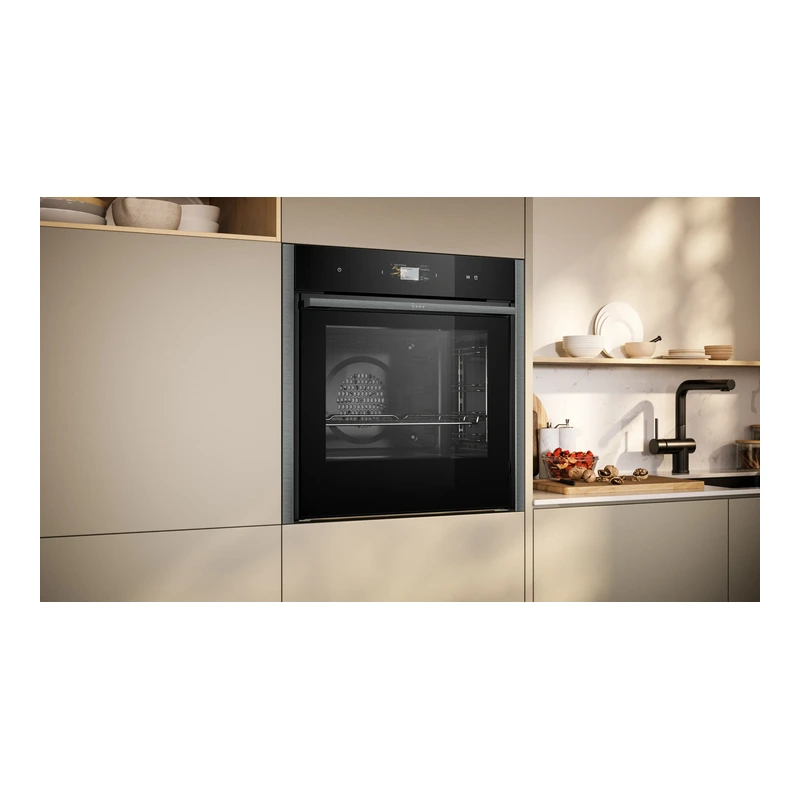

N 90, Built-in oven with added steam function, 60 x 60 cm, Graphite-Grey, B64VS71G0B |
| Installation type |
Built-in |
| Graphite-Grey Edition |
Graphite-Grey Edition with touch control with steel trim |

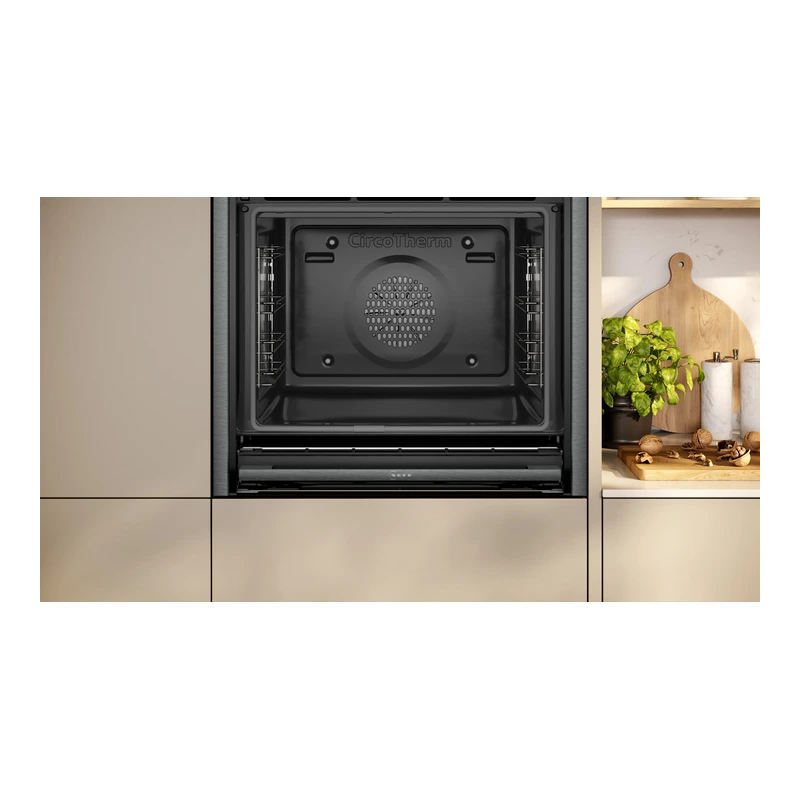

| Cavity surface |
Enamel anthracite |
| Integrated cleaning system |
Pyrolytic + Hydrolytic; Pyrolytic cleaning and EasyClean |
| Usable volume of cavity |
71 l / 71 litre |
| Number of cavities |
1 (Main cavity) |
| Heat source |
Electrical |
| Cooking methods (selection) |

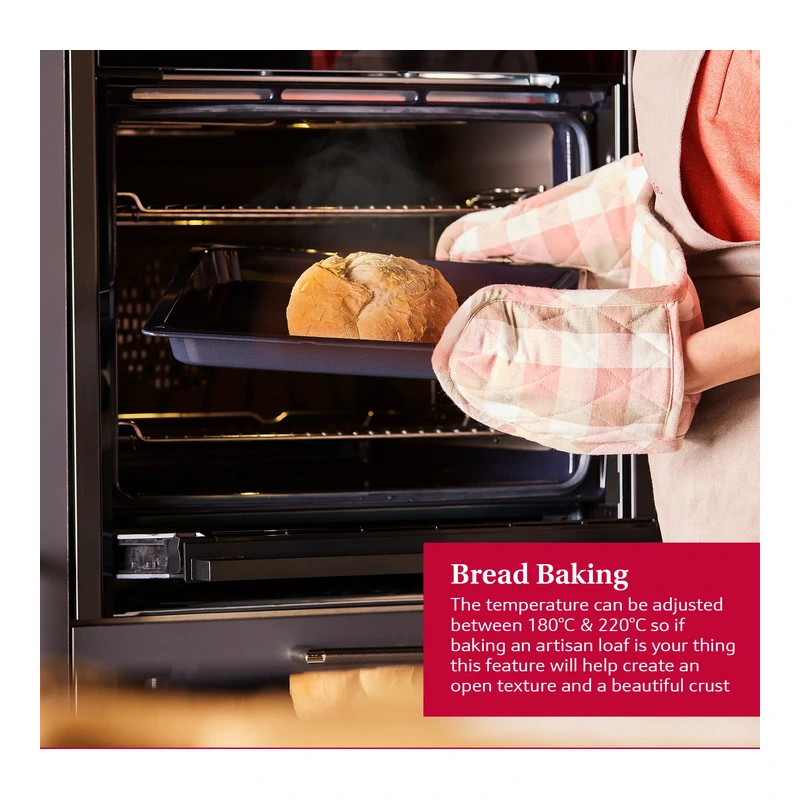

Regeneration; CircoTherm®; Air fry; Bread Baking Setting; Full width grill; Hotair gentle; Half width grill; Conventional heat; Conventional heat gentle; Pizza setting; Low temperature cooking; Bottom heat; Hot air grilling; Pre-heating; Warming; Top/bottom heat; Full surface grill; Centre surface grill; Plate warming; Keep warm; Reheat with steam; Dough proving; Circo-roasting; 4D Hot air.
|
| Temperature range |
30 °C – 230 °C |
| Door |

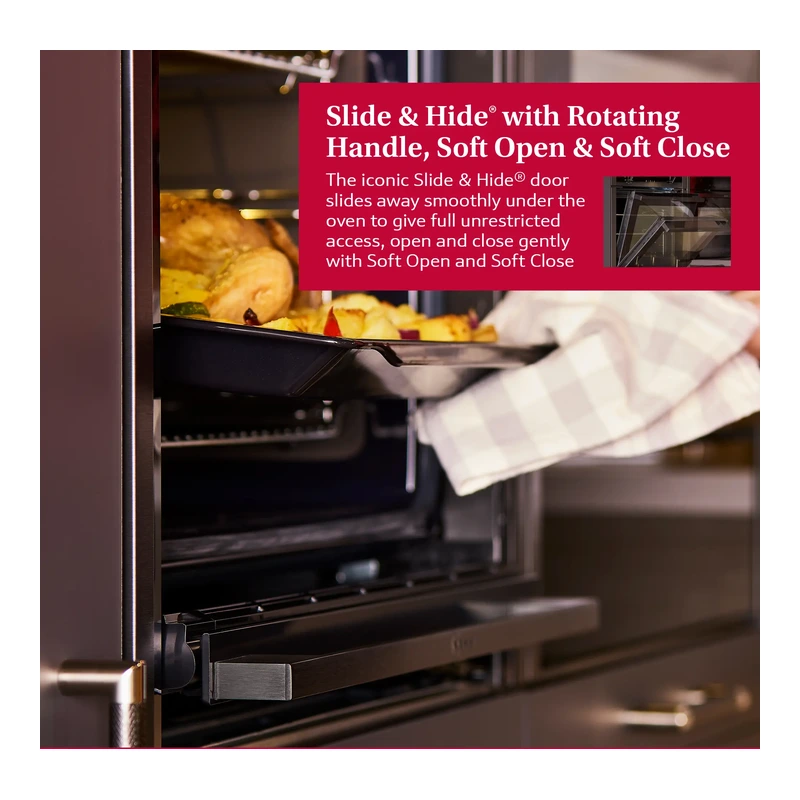

Slide & Hide® with rotating handle; quadruple glazed CoolTouch door; full glass inner door; SoftClose; SoftOpen; door lock during pyrolytic cleaning |
| Door temperature |
30 °C – very low door temperature |
| Display |

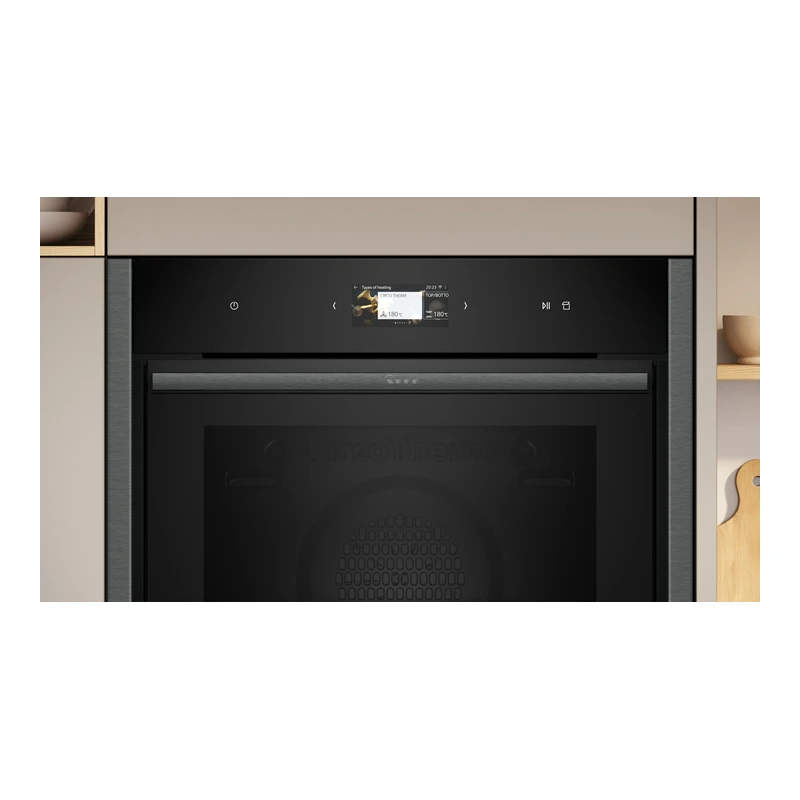

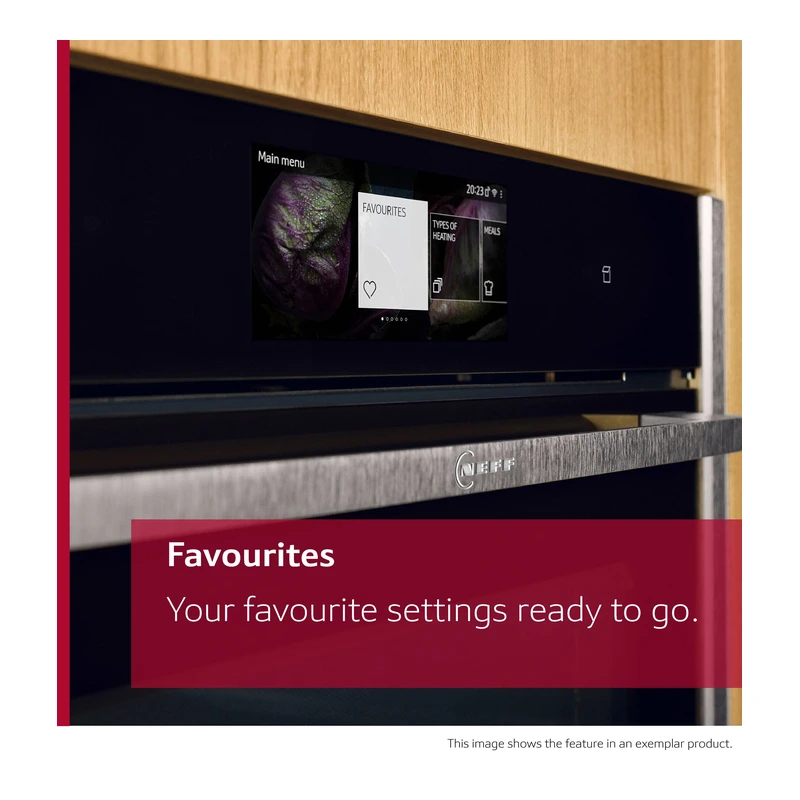

4.1-inch Full Touch TFT Display, electronic clock timer, LED light with on/off button |
| Smart features |
HomeConnect ready on WLAN; Oven Assistant with Voice Control; cookControl Plus |
| Control panel / materials |
Touch control with steel trim; control panel lock; stainless steel control panel material; stainless-steel fan |
| Safety |
Door lock during pyrolytic cleaning; control panel lock; automatic safety switch off; residual heat indicator; start button; door contact switch; cooling fan |
| Steam features |
Vario Steam; Steam Boost (add for 3 min intensive steam with a touch of a button); different steam intensities selectable: steam level high, steam level middle, steam level low; Reheat with steam |
| Water tank |

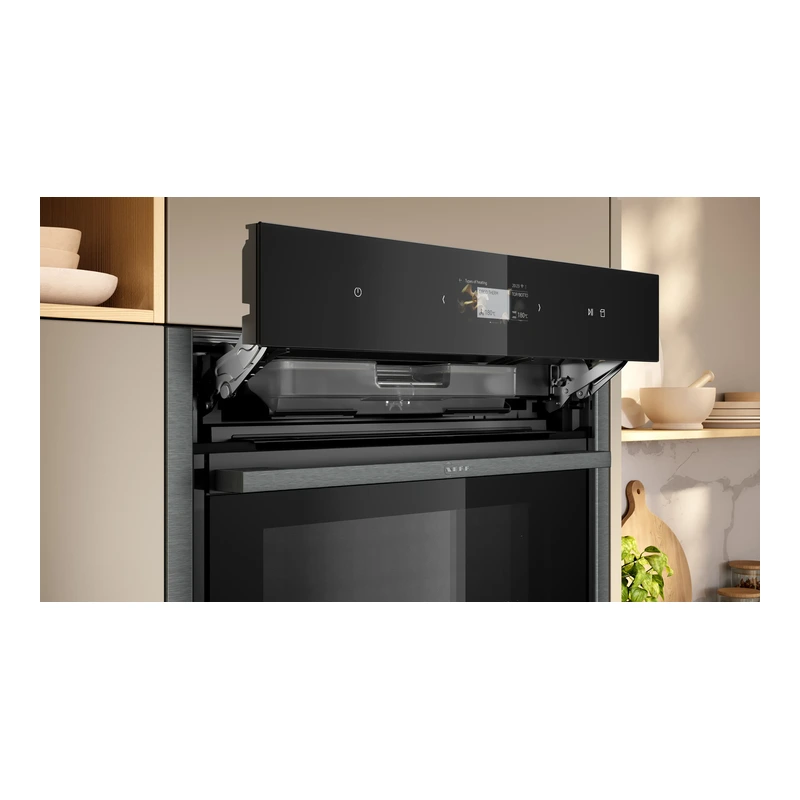

Water tank empty indicator; location of water tank: outside cavity |
| Shelves / rails |
4 shelf positions; level independent telescopic rails available as an accessory, pyrolytic proof |

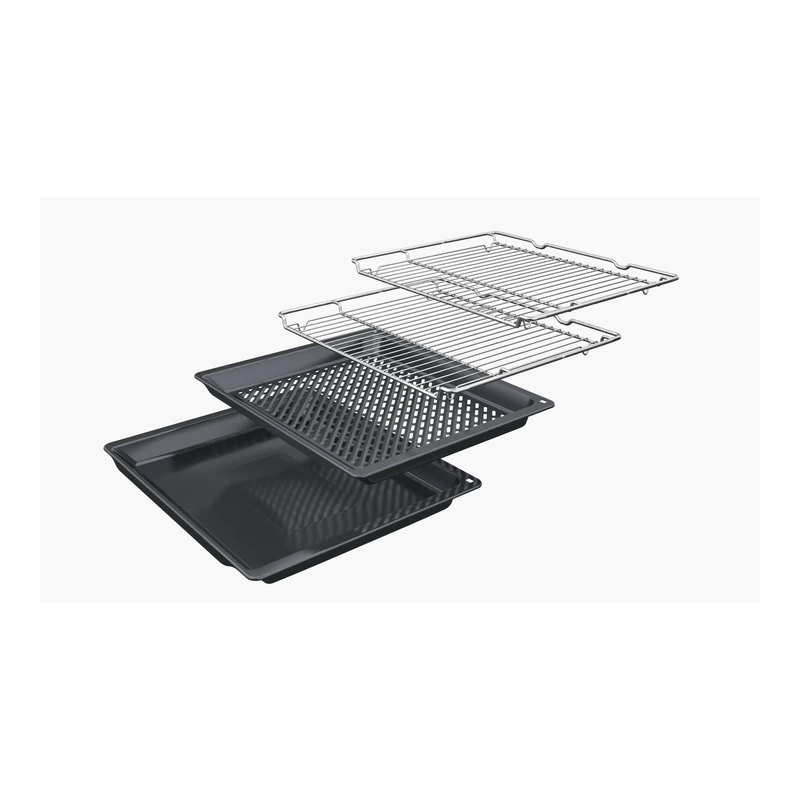

| Included accessories |
2 x combination grid, 1 x universal pan |
| Optional accessories |
Z11AB15A0 Baking tray, non-stick ceramic coated; Z11AU15A0 Universal pan, non-stick ceramic coated; Z11CG10X1 AirFry & Grill Set; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11SZ80G0 SeamlessCombination 60 + 29 cm; Z11SZ90G0 SeamlessCombination 60 + 45 cm; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled; Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z13CR10X0 Baking and roasting grid (steam); Z13CV06S0 Decor strip; Z1608CX0 Full ext rails, level independent, pyro; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z166CAX0 SC FlexDesign mounting kit; Z1913X0 Baking Stone.
|

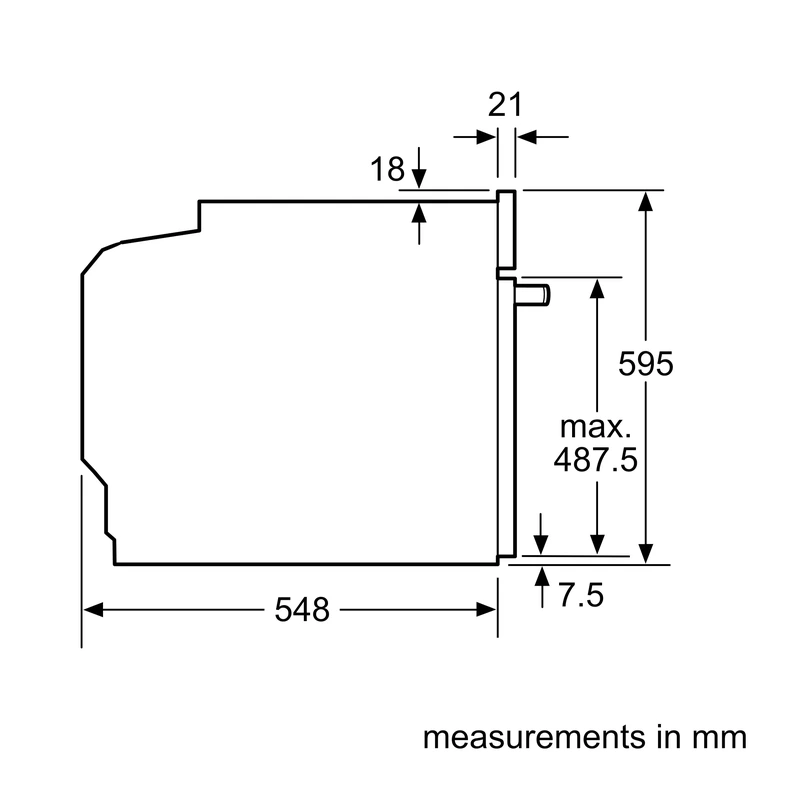

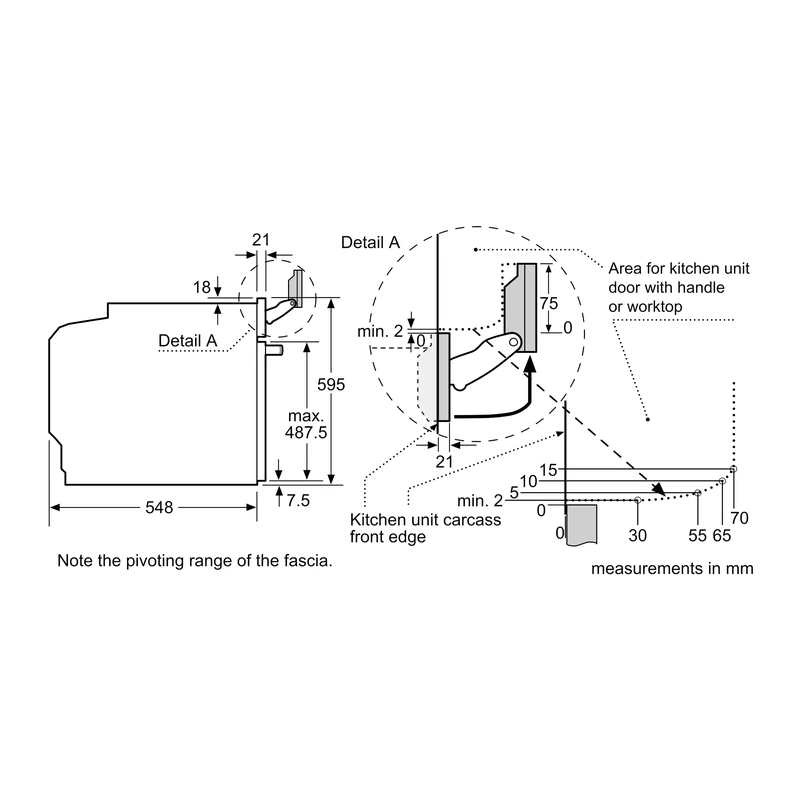

| Dimensions (H x W x D) |
595 x 596 x 548 mm (appliance dimension) |

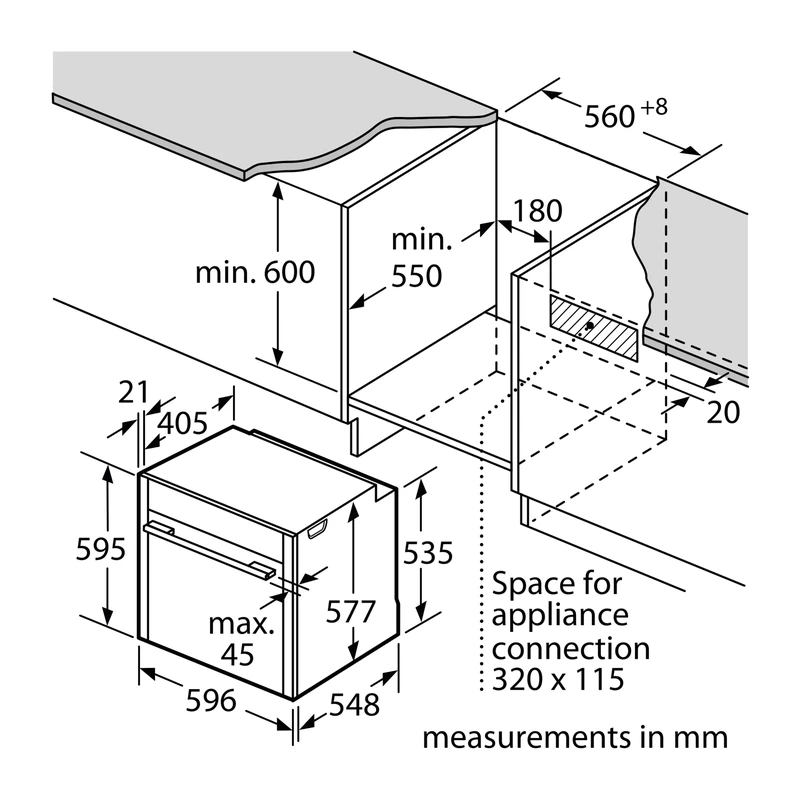

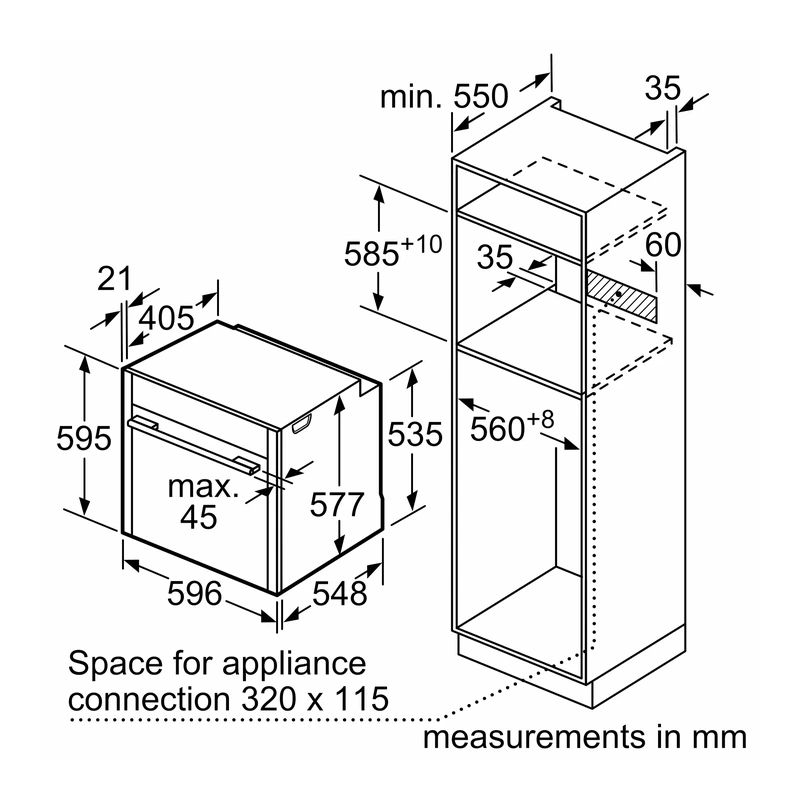

| Required niche size (H x W x D) |
585–595 x 560–568 x 550 mm |
| Packed dimensions (H x W x D) |
660 x 650 x 690 mm |
| Net weight |
42.1 kg |
| Cable length |
120 cm |
| Connection rating |
3600 W / 3.6 kW |
| Nominal voltage |
220–240 V |
| Frequency |
50; 60 Hz |
| Fuse protection |
16 A |
| Plug type |
No plug (electrical connection by electrician) |
| Energy efficiency rating |
A+ (acc. EU Nr. 65/2014) |
| Energy consumption conventional |
0.87 kWh/cycle (conventional mode) |
| Energy consumption fan-forced |
0.69 kWh/cycle (fan-forced convection mode / forced air convection) |
| Energy efficiency index |
81.2 % (2010/30/EC) |
| EAN code |
4242004266198 |
