What are the dimensions of the N 90 C29FY5CX0 compact oven?

The appliance measures 455 mm in height, 596 mm in width and 548 mm in depth. The required niche size for installation is 450–455 mm (H), 560–568 mm (W) and 550 mm (D).

How many cooking functions does this compact steam oven offer?

It provides 24 heating methods, including Top/bottom heat, Full surface grill, Centre surface grill, Bread baking, Steaming, Reheat with steam, Defrost, Sous-vide cooking, Circo-roasting, Bread Baking Setting, warming and 4D Hot air.

Is the oven compatible with Home Connect?

Yes, the oven is HomeConnect ready on WLAN, allowing control via the App and access to Oven Assistant with Voice Control.

What is the energy rating and consumption of this model?

The N 90 C29FY5CX0 has an A+ energy efficiency rating. Energy consumption per cycle is 0.73 kWh in conventional mode and 0.61 kWh in fan-forced convection mode.

What cleaning features are included?

Cleaning is assisted by EcoClean Direct coating on the ceiling, back panel and side liners, together with dedicated EcoClean and Base Clean programmes.

Which accessories come with the oven?

Included accessories are 1 grid, 1 universal pan, 1 sponge, 1 steam container unpunched size M, 1 steam container punched size M and 1 steam container punched size XL.

Product Information Sheet

Neff N90 Flex Design Steam Oven Combi (Fixed Water )

SKU: C29FY5CX0

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

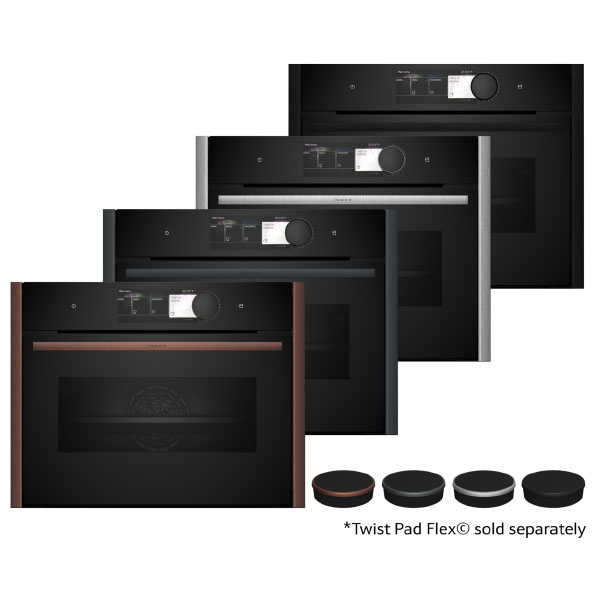

Neff C29FY5CX0 N90 Flex Design Steam Oven Combi (Fixed Water )

SKU: C29FY5CX0 · EAN: 4242004267119

Black - Add Handle, Trim & Twistpad

The N 90 C29FY5CX0 is a built-in compact steam oven with Flex Design, combining Intensive Steam with 24 versatile heating methods in a 60 × 45 cm format. It features a Premium 6.8” Full Touch TFT Display, Flex Control interface and Twist Pad Flex® dial for effortless control. With Home Connect readiness, EcoClean Direct cleaning and an A+ energy rating, it is designed for users who want flexible, intuitive cooking performance in a compact space.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	N 90 built-in compact oven with steam function C29FY5CX0
Installation type	Built-in
Door opening	Drop down, SoftClose, soft opening
Appliance dimensions (H × W × D)	455 mm × 596 mm × 548 mm
Required niche size (H × W × D)	450–455 mm × 560–568 mm × 550 mm
Packed product dimensions (H × W × D)	530 mm × 660 mm × 690 mm
Cavity volume	47 litre usable volume (of cavity) - NEW (2010/30/EC)
Number of cavities	Main cavity
Heat source	Electrical
Control panel material	Glass
Door material	Glass, full glass inner door, triple glazed CoolTouch door
Cavity inner surface	Enamel anthracite
Net weight	32.8 kg
Energy efficiency rating	A+ (acc. EU Nr. 65/2014)
Energy consumption conventional	0.73 kWh per cycle (2010/30/EC)
Energy consumption fan-forced convection	0.61 kWh per cycle (2010/30/EC)
Energy efficiency index	81.3 % (2010/30/EC)
Total connected load electric	3.3 kW
Nominal voltage	220–240 V
Frequency	50; 60 Hz
Fuse protection	16 A
Power cord length	150 cm
Usable length of water hose	700 mm outside the appliance
Plug type	Gardy plug w/ earthing
EAN code	4242004267119
Temperature range	30 °C – 250 °C
Water inlet system	Fixed connection, tap water connection
Location of water tank	Outside cavity
Shelf positions	3 shelf positions

For details on installation and ventilation requirements – Not stated in source.

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Neff dealer, with full manufacturer warranty. Established 1967.

Enquire About This Product

Our specialists are on hand to answer any questions about the Neff N90 Flex Design Steam Oven Combi (Fixed Water ). Get in touch and we'll respond within one working day.

+44 (0)208 455 3925 [email protected]

Full Name *

Email *

Phone *

Message *

I agree to Woodalls using my details to respond to my enquiry. I have read the Privacy Policy.

Your Enquiry List

Neff N90 Flex Design Steam Oven Combi (Fixed Water )

Neff C29FY5CX0 N90 Flex Design Steam Oven Combi (Fixed Water )

Delivery & Returns

Related Products

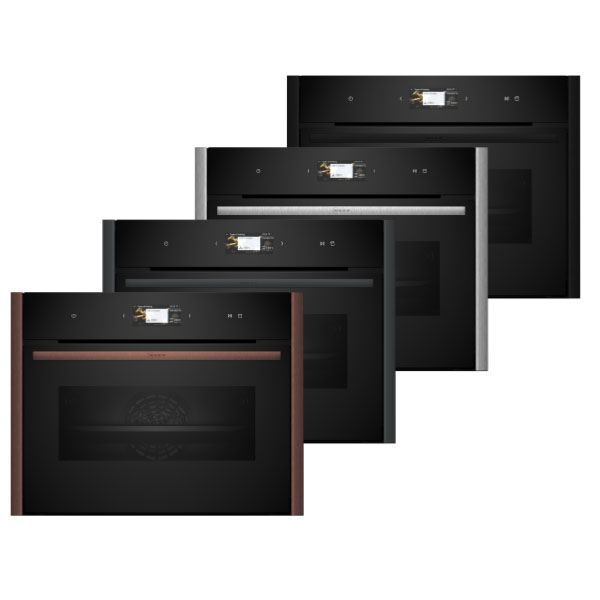

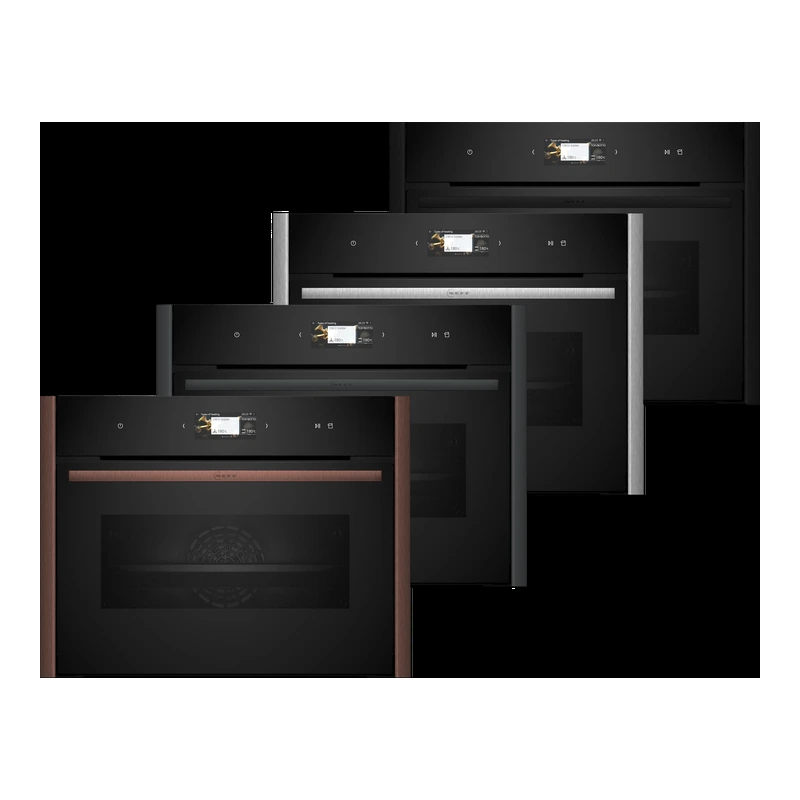

Neff C29FS3AY0 N90 Flex Design Steam Oven Combi

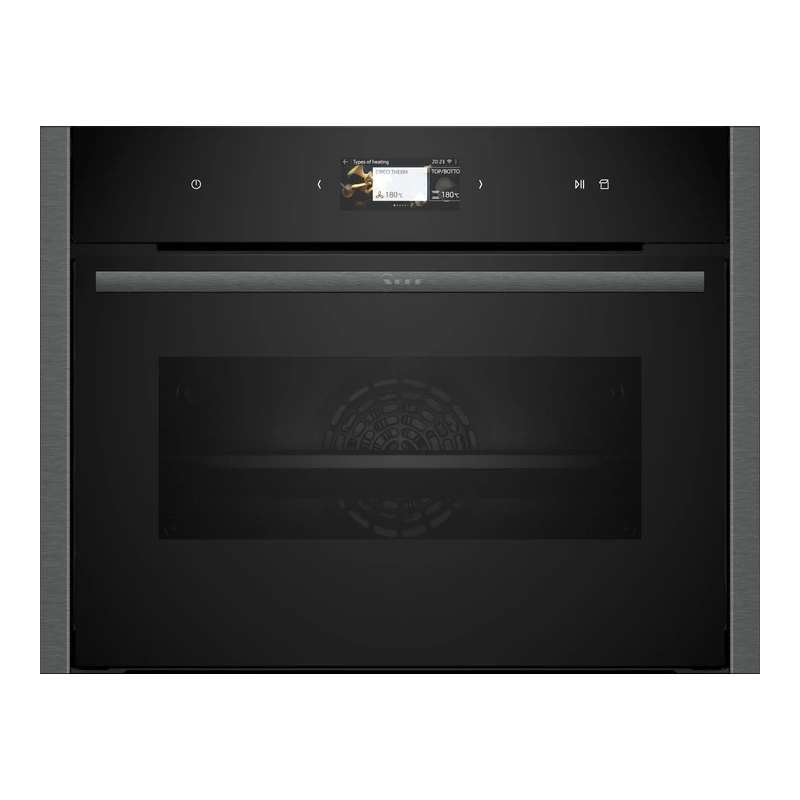

Neff C24FS31G0B N90 Steam Combi
