Is this cooker hood suitable for both ducted and recirculation use?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculating kit (accessory) is needed.

What is the maximum extraction rate of the N 50 D49ED22N1B?

The extraction rate according to EN 61591 with ø 15 cm ducting is up to 266 m³/h in maximum normal use and 412 m³/h on the intensive setting.

How noisy is the hood during operation?

The noise level at maximum normal use exhaust air is 63 dB(A) re 1 pW, and 70 dB(A) re 1 pW on the intensive exhaust air setting, according to EN 60704–3 and EN 60704–2–13.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 430 mm, and the minimum distance above a gas hob is 650 mm.

Are the grease filters washable?

Yes. The hood uses 3 metal grease filter cassettes made from washable aluminium, and the stainless steel filter cover is perforated and dishwasher safe.

What is the energy efficiency rating?

The cooker hood has an Energy Efficiency Class A (at a range of energy efficiency classes from A+++ to D), with an average energy consumption of 22.2 kWh/year in accordance with EU–Regulation No 65/2014.

Product Information Sheet

Neff N50 Telescopic Hood

SKU: D49ED22N1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Neff D49ED22N1B N50 Telescopic Hood

SKU: D49ED22N1B · EAN: 4242004251163

Stainless Steel

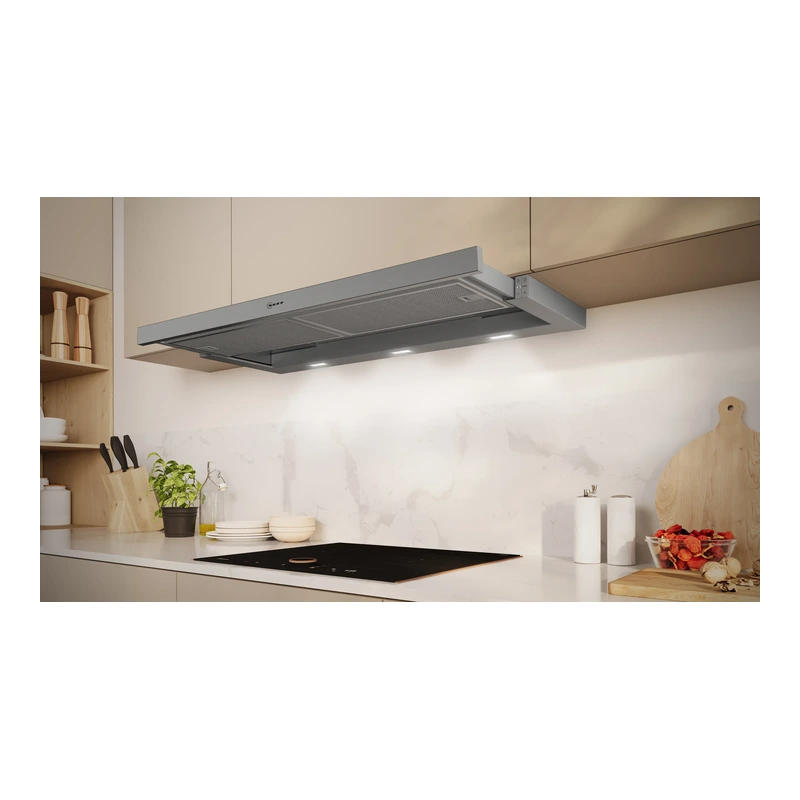

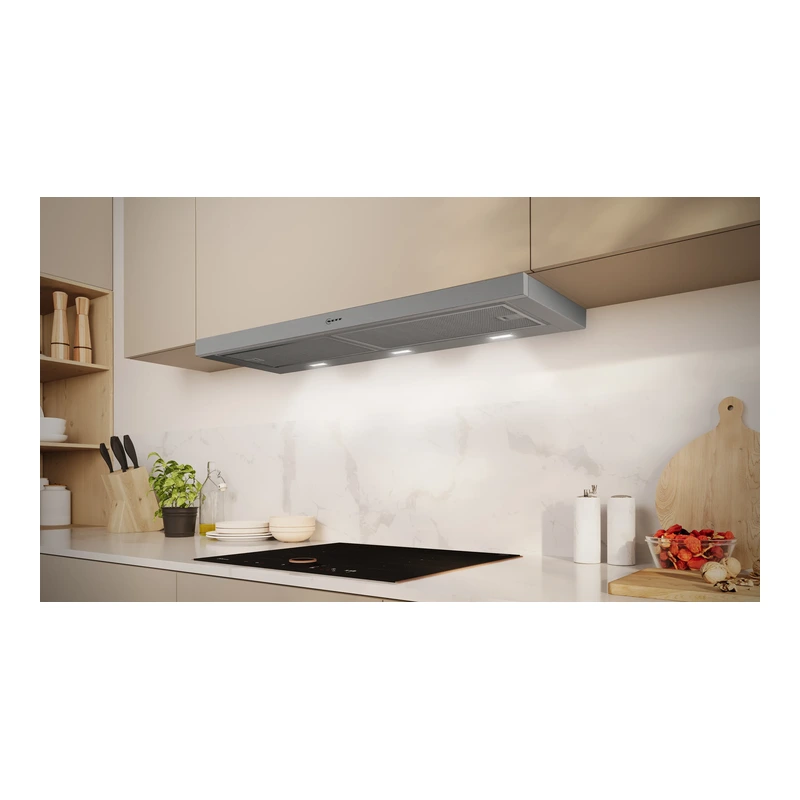

The N 50 D49ED22N1B is a 90 cm telescopic cooker hood in silver metallic grey, designed to pull out from underneath a cabinet for powerful extraction without disrupting your kitchen design. Suitable for ducted extraction and recirculation, it features an Efficient Drive Motor, LED lighting and electronic soft touch controls with 3 speeds plus intensive. Automatic after–running and intensive revert functions help keep kitchen air clear after cooking.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	D49ED22N1B
Product series	N 50 Telescopic cooker hood, 90 cm, silver metallic
Typology	Pull–out
Installation typology	Built–in
Width	90 cm wide (appliance width 898 mm)

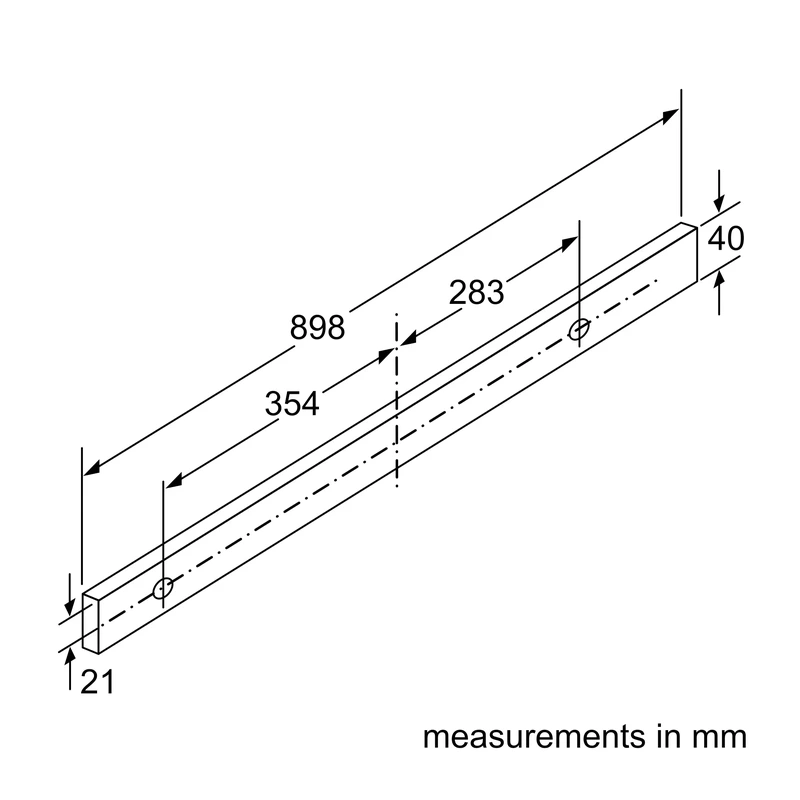

Colour / finish	Silver metallic grey; handle strip specification: stainless steel with logo; filter cover stainless steel, perforated and dishwasher safe

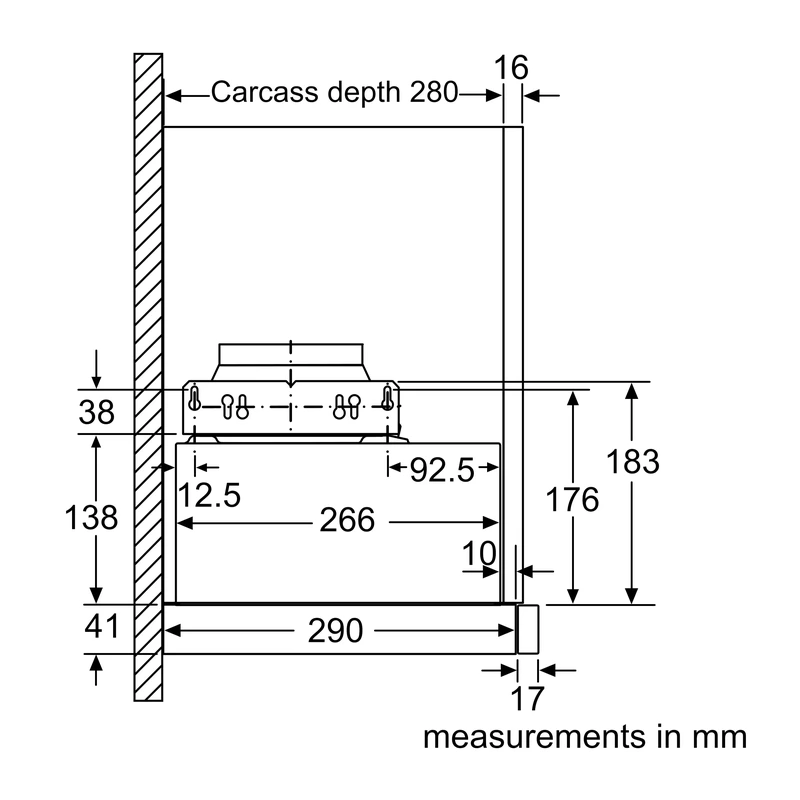

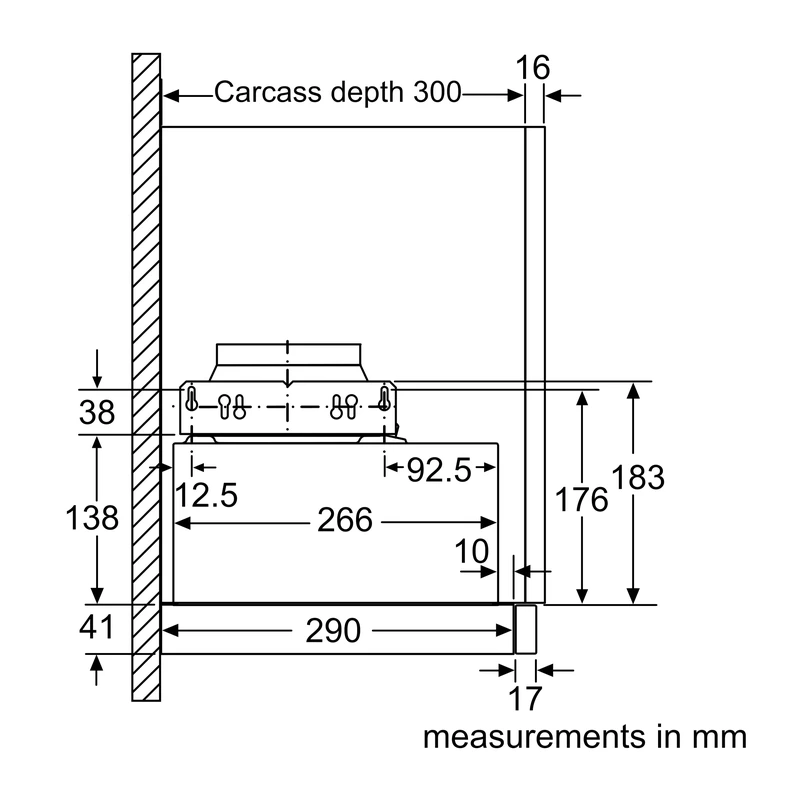

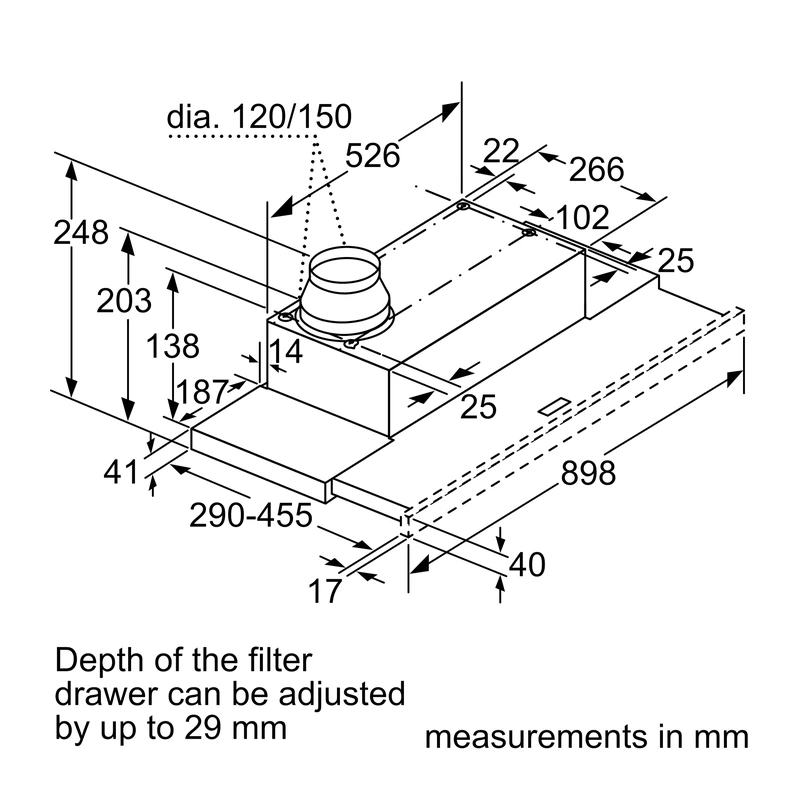

Dimensions (HxWxD)	203 × 898 × 290 mm
Built–in dimensions (HxWxD)	162 × 526 × 290 mm

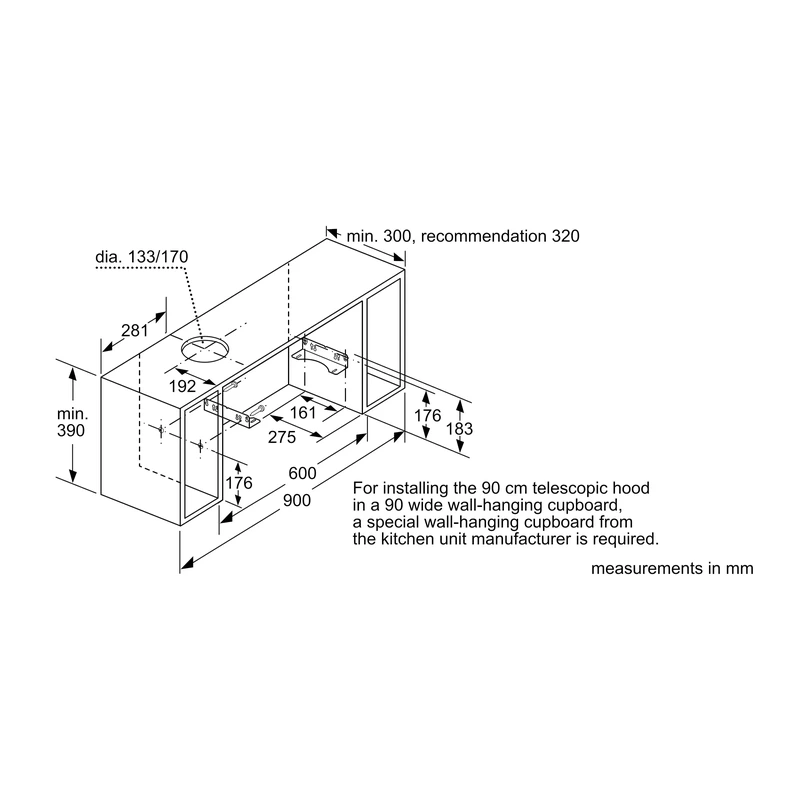

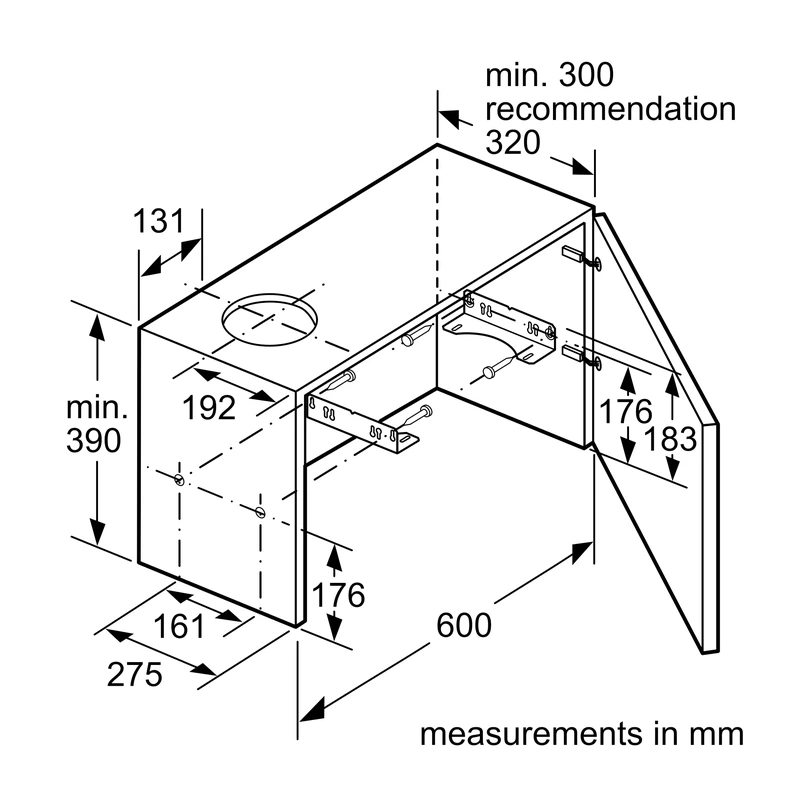

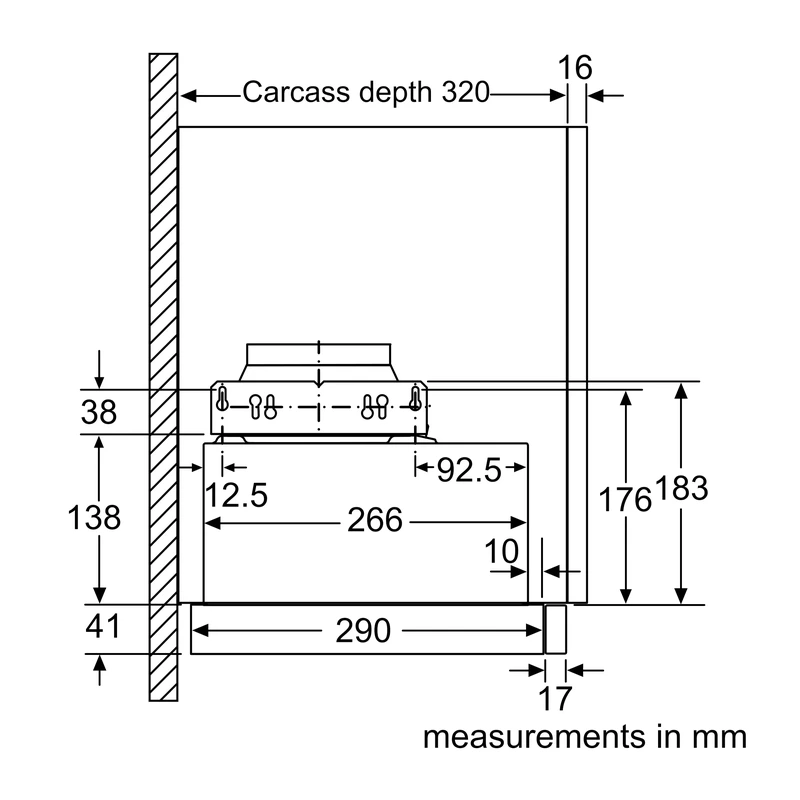

Required niche size (HxWxD)	162 mm × 526.0 mm × 290 mm
Height of the appliance	203 mm
Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Net weight	10.2 kg
Type of control	Electronic controls via soft touch control
Number of speed settings	3–stages + intensive setting (3 speeds plus intensive)
Maximum output air extraction	266 m³/h
Boost position air extraction (intensive)	412 m³/h (extraction rate according to EN 61591 ø 15 cm)
Maximum output recirculating air	263 m³/h
Boost position output recirculating	353 m³/h
Maximum air flow	266 m³/h
Number of lights	3 × 1.5 W LED
Colour temperature	3500 K
Light intensity	355 lux
Noise level – max normal use exhaust air	63 dB(A) re 1 pW (according to EN 60704–3 and EN 60704–2–13)
Noise level – intensive exhaust air	70 dB(A) re 1 pW (according to EN 60704–3 and EN 60704–2–13)
Noise level	63 dB(A) re 1 pW (maximum normal use exhaust air)

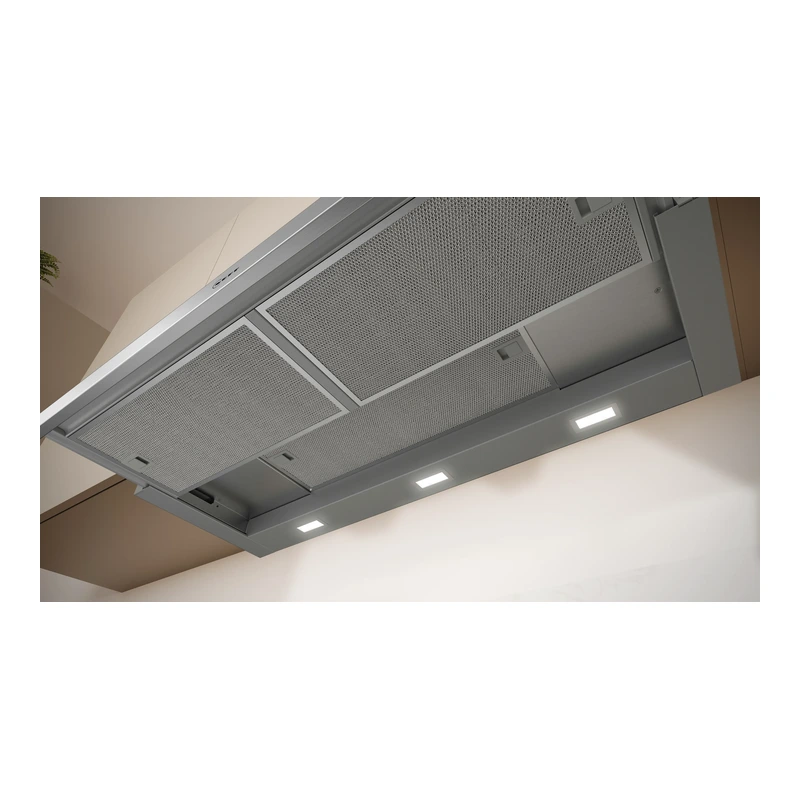

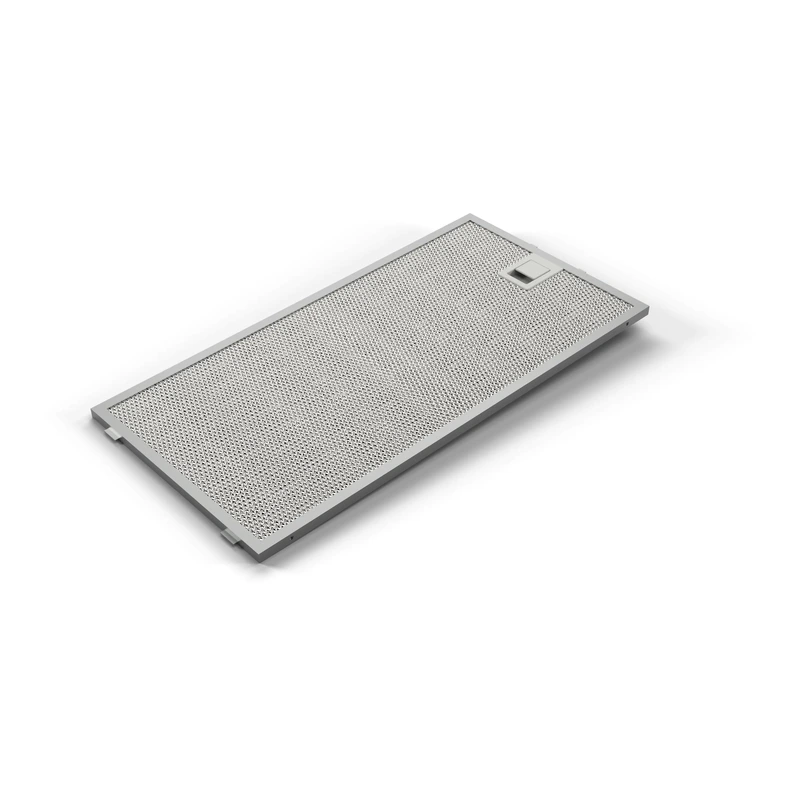

Grease filter material	Washable aluminium; 3 metal grease filter cassettes; filter cover stainless steel, perforated and dishwasher safe

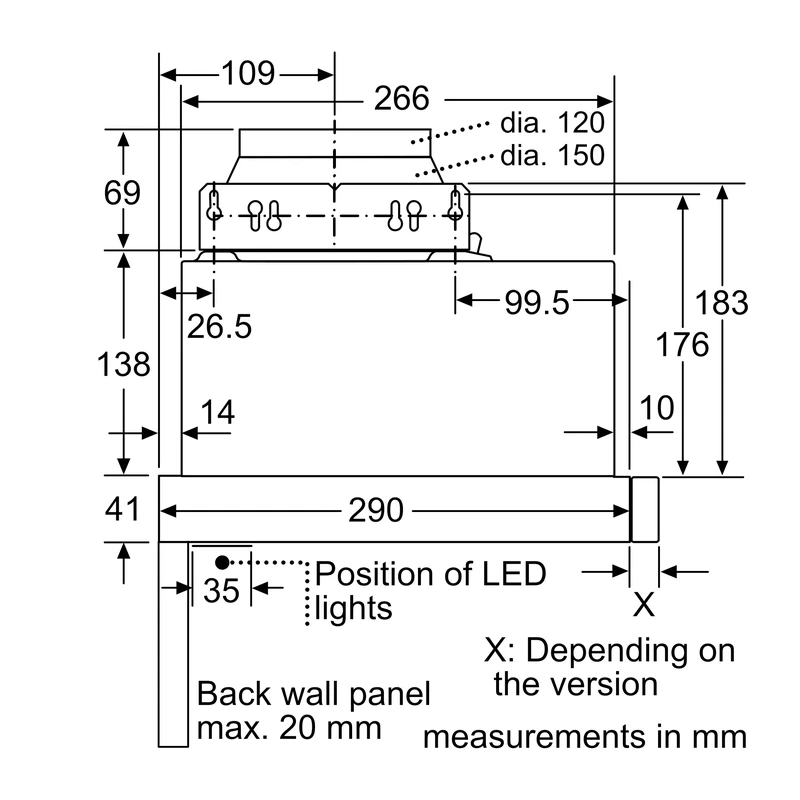

Diameter of air outlet / pipe	120 / 150 mm (diameter pipe Ø 150 mm (Ø 120 mm enclosed))
Energy Efficiency Class	A (at a range of energy efficiency classes from A+++ to D)
Average energy consumption	22.2 kWh/year* (* in accordance with the EU–Regulation No 65/2014)
Blower Efficiency Class	B*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	C*
Technology	Efficient BLDC technology
Connection rating / power rating	76 W
Fuse protection	10 A
Voltage	220–240 V
Frequency	50; 60 Hz
Plug type	GB plug
Length of electrical supply cord	175 cm (electrical cable length 1.75 m)
EAN code	4242004251163
Suitable for	Ducted extraction and recirculation (recirculating kit accessory needed for recirculated extraction)
