Is this cooker hood suitable for both extraction and recirculation?

Yes. The canopy hood is suitable for ducted extraction and recirculation. For recirculated extraction, various recirculation kits are available as optional accessories, including standard and Clean Air Plus options.

What is the maximum extraction rate and noise level?

In exhaust mode, the maximum extraction rate at speed 3 is 570 m³/h with a noise level of 66 dB(A) re 1pW. In intensive mode it can reach 645 m³/h with a noise level of 68 dB(A) re 1pW.

How is the lighting provided and what is the colour temperature?

The hood has 2 × 1 W LED lights, providing 400 lux illumination. The colour temperature is 4000 K, and the Lighting Efficiency Class is A*.

Are the grease filters easy to clean?

Yes. The hood includes one metal grease filter made from washable aluminium. The metal grease filter is dishwasher-safe, and the smooth surfaces and materials of the hood are designed to be easy to clean.

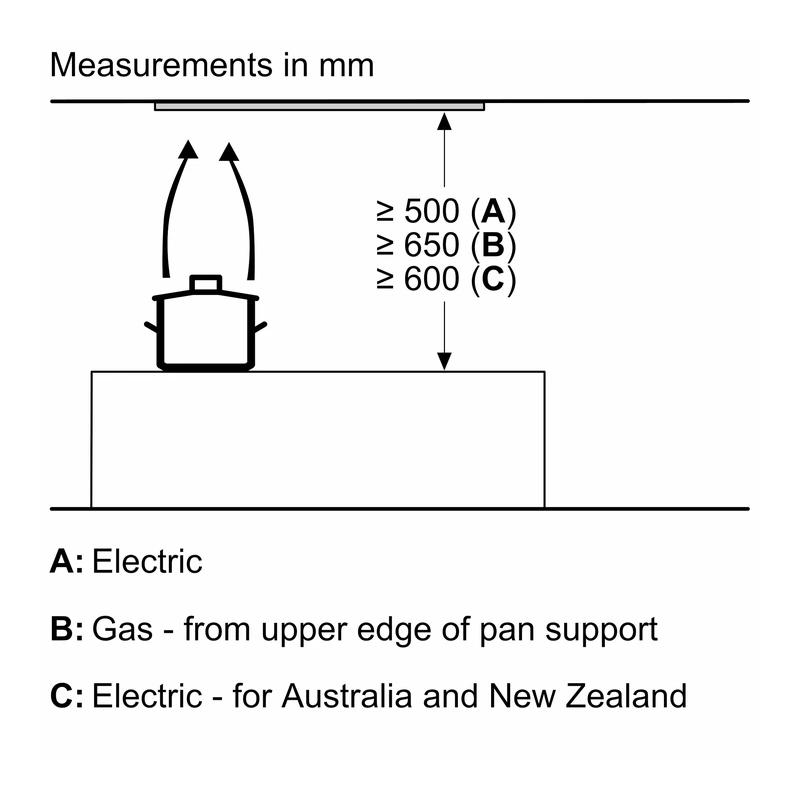

What are the required clearances above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

What is the energy efficiency rating and annual energy consumption?

The hood has an Energy Efficiency Class of B (on a scale from A+++ to D). The average energy consumption is 75.2 kWh/year*.

Product Information Sheet

Neff N70 Canopy Hood

SKU: D54NAC1S0B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

Neff D54NAC1S0B N70 Canopy Hood

SKU: D54NAC1S0B · EAN: 4242004282648

Black

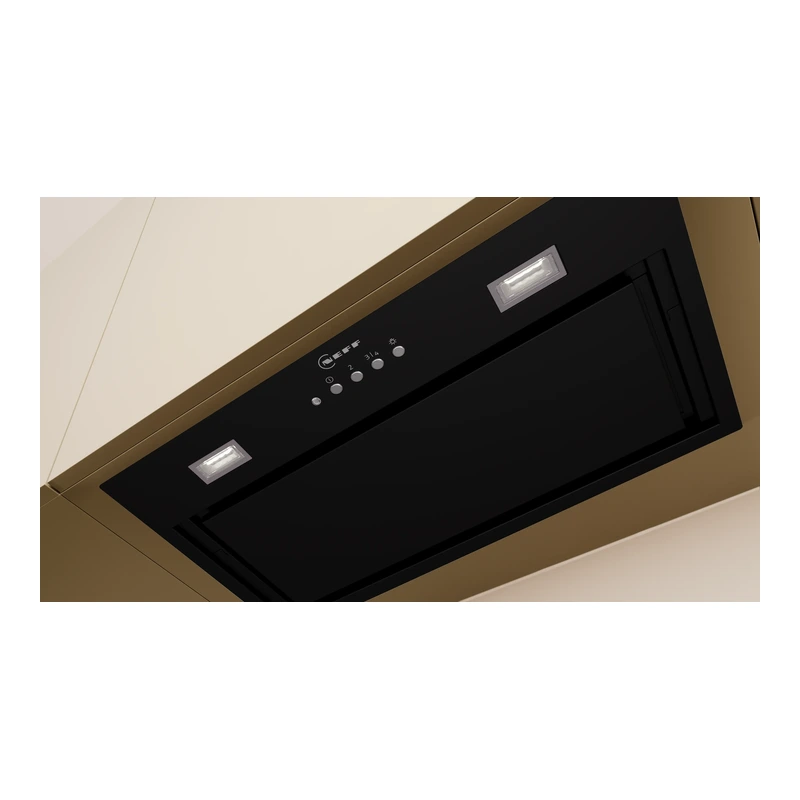

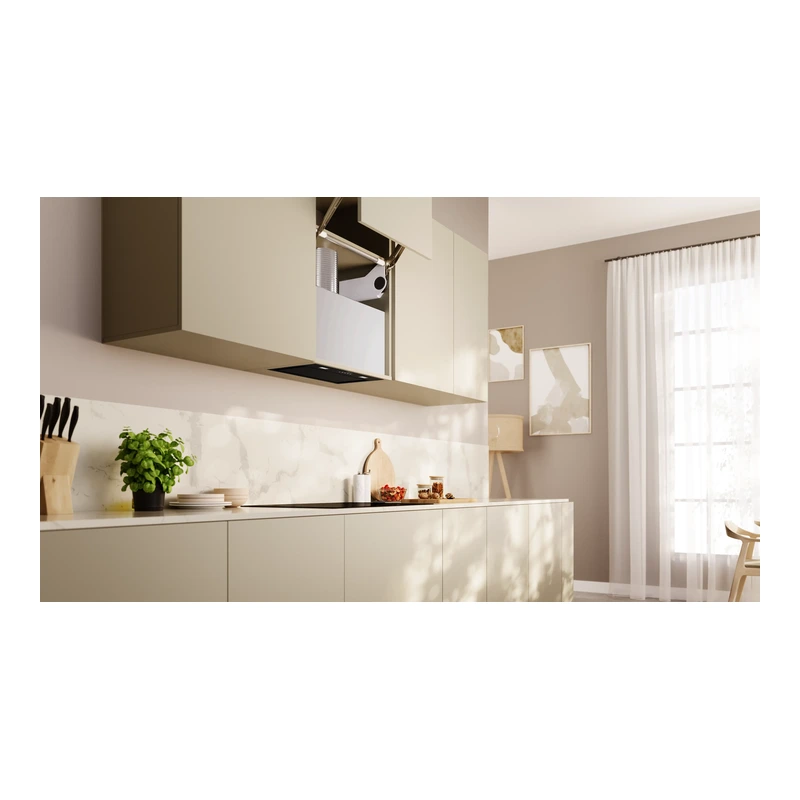

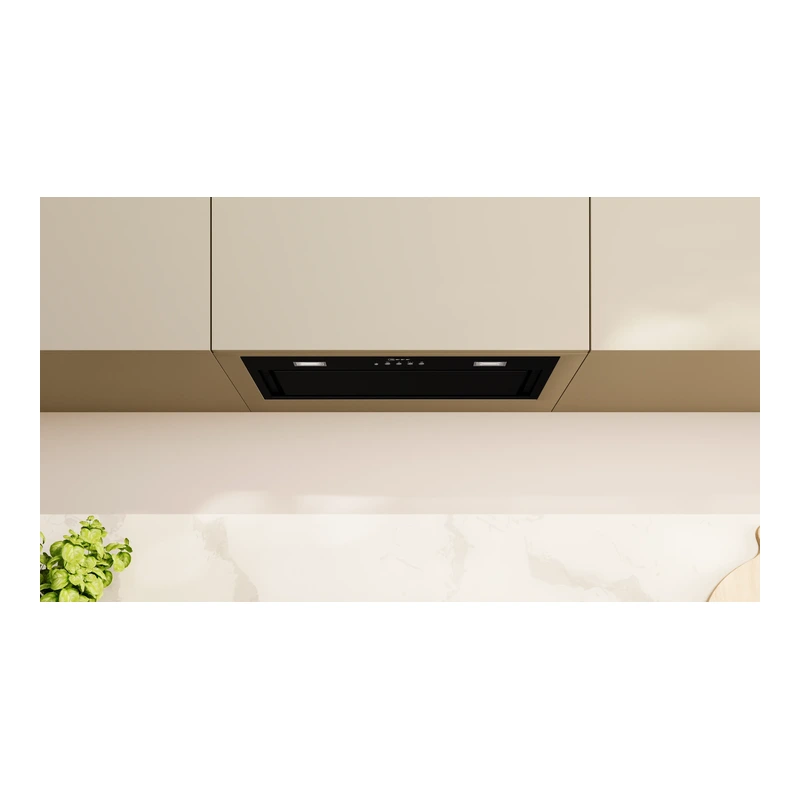

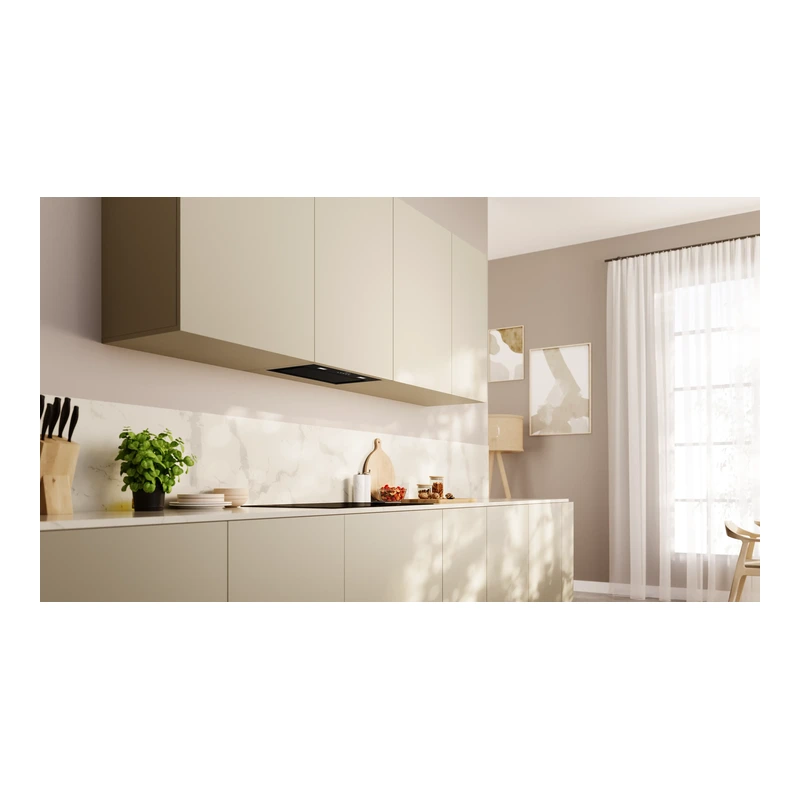

The N 70 D54NAC1S0B is a 52 cm black canopy cooker hood designed for flush-fitted installation in wall cupboards or cabinets. It offers a high extraction rate for continuously clean air, with 3 speeds plus an intensive setting and automatic reset. LED lighting provides clear illumination, while the hidden design integrates seamlessly into kitchen furniture. Suitable for both ducted extraction and recirculation, it includes dishwasher-safe metal grease filters and optional odour filter accessories.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	N 70 Canopy Cooker Hood, 52 cm, Black
Model code	D54NAC1S0B
Typology	Built-in / Built-under canopy hood
Installation	Cabinet, flush-fitted in wall cupboards

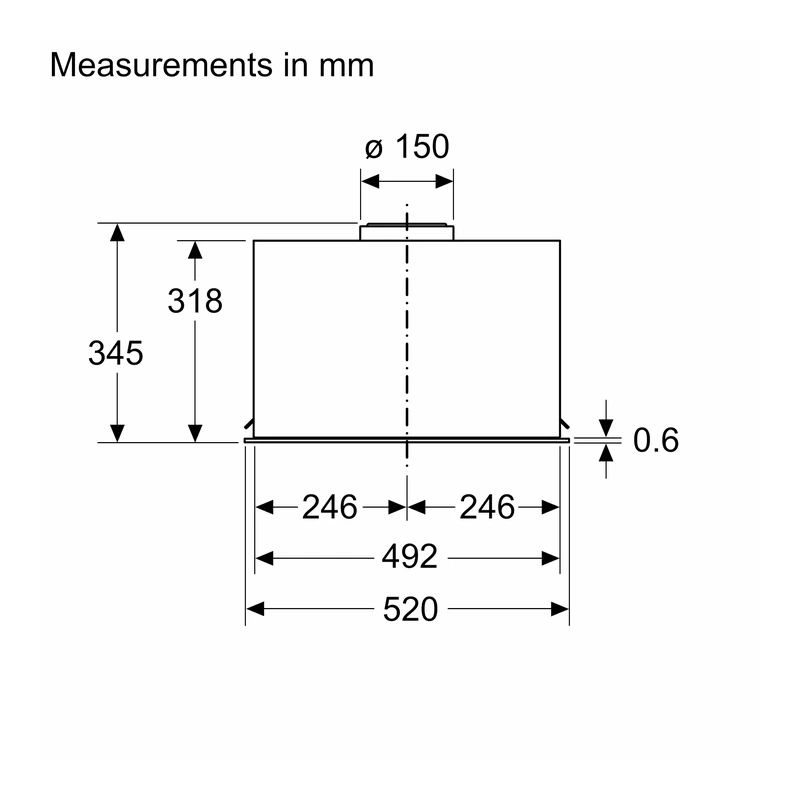

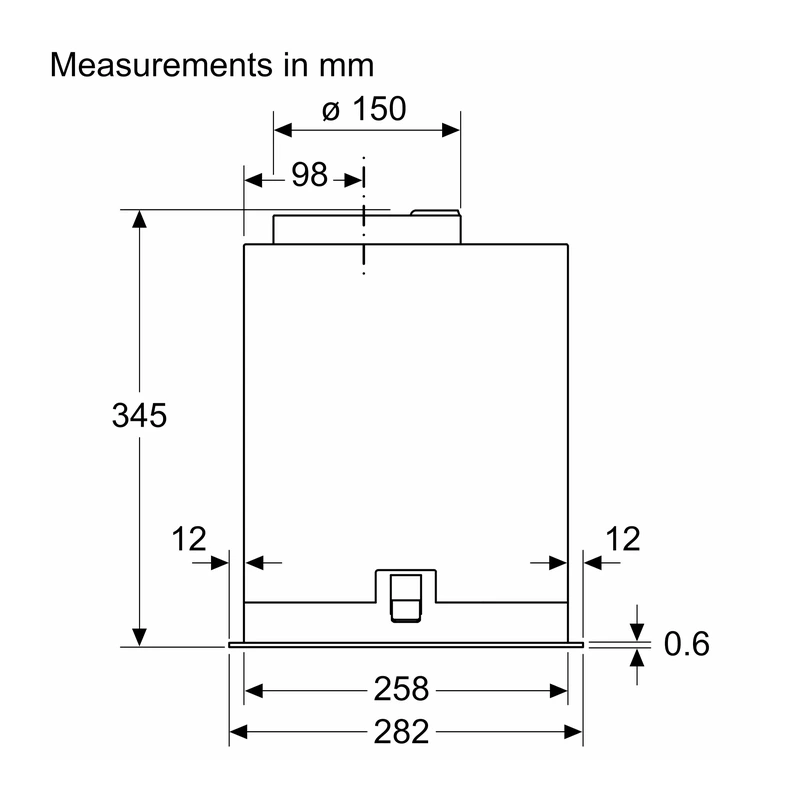

Dimensions (H×W×D)	345 × 520 × 282 mm
Dimensions recirculating (H×W×D)	345–345 × 520 × 282 mm

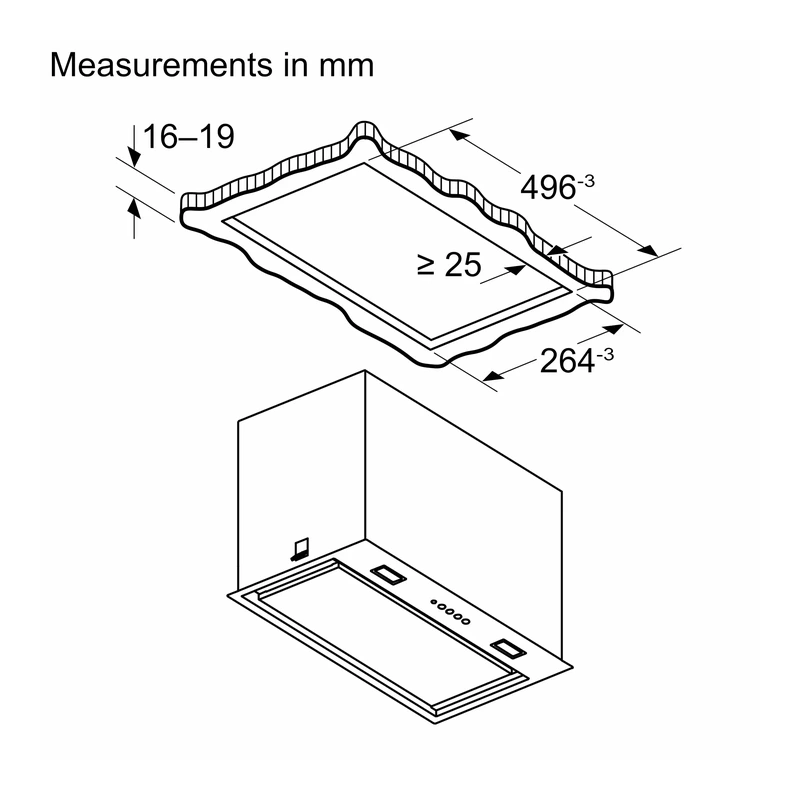

Built-in dimensions (H×W×D)	345 × 496 × 264 mm
Required niche size (H×W×D)	345 mm × 496.0 mm × 264 mm
Height of appliance	345 mm
Width	52 cm
Net weight	7.6 kg
Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm

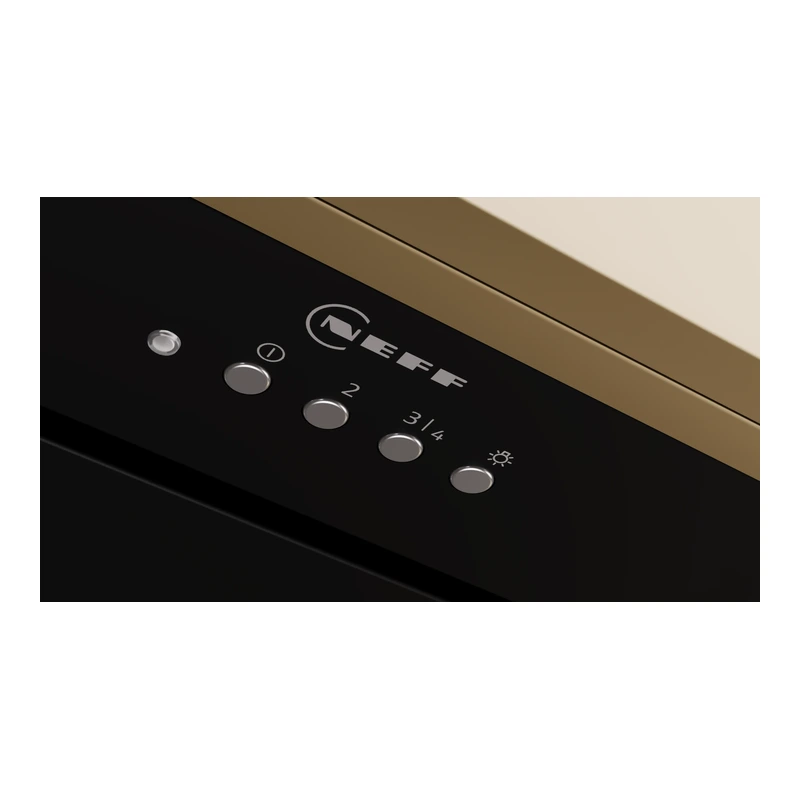

Type of control	Electronic soft touch with LED display
Speed settings	3 stages + intensive setting
Maximum output air extraction	570 m³/h
Boost position air extraction	645 m³/h
Maximum output recirculating air	560 m³/h
Boost position output recirculating	628 m³/h
Maximum airflow	570 m³/h
Noise level (max)	66 dB(A) re 1pW
Diameter of air outlet	120 / 150 mm (Ø 150 mm, Ø 120 mm enclosed)
Number of lights	2 × 1 W LED lights
Light colour temperature	4000 K
Light intensity	400 lux

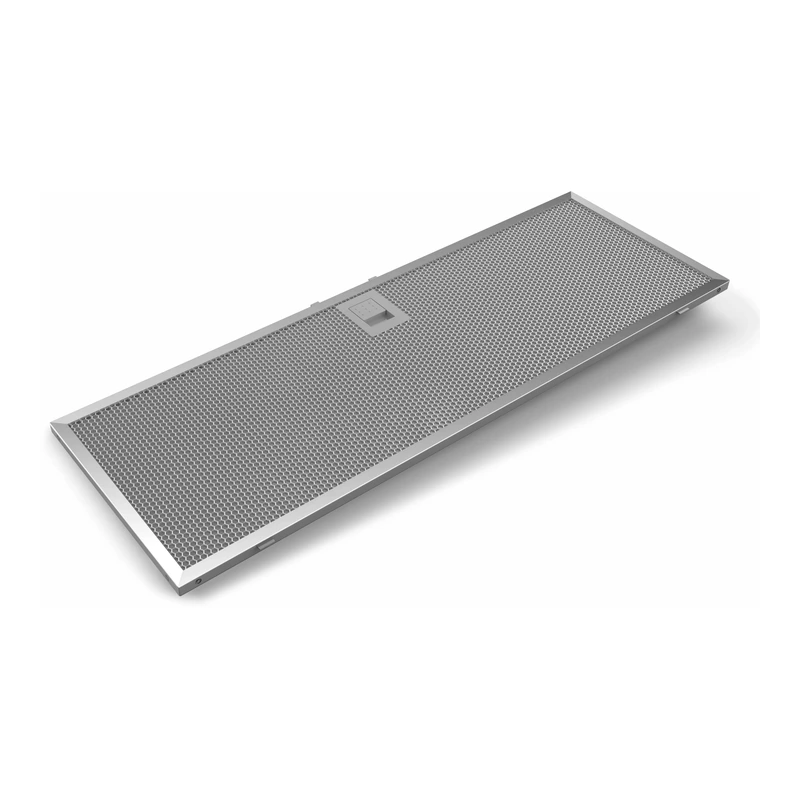

Grease filter material	Washable aluminium, metal grease filter dishwasher-safe
Number of metal grease filters	1 metal grease filter
Motor type	Capacitor motor
Energy Efficiency Class	B (range A+++ to D)
Average energy consumption	75.2 kWh/year*
Blower Efficiency Class	C*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	D*
Connection rating	252 W
Fuse protection	3 A
Voltage	220–240 V (nominal voltage: 220–240 V)
Frequency	60; 50 Hz
Plug type	GB plug
Electrical cable length	150 cm / 1.5 m
Installation typology	Built-in
EAN code	4242004282648
Colour	Black
Back-pressure flap	Yes
Packaging	Environmentally friendly packaging

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Neff →

Optional Accessories

— add individually to your enquiry

Optional

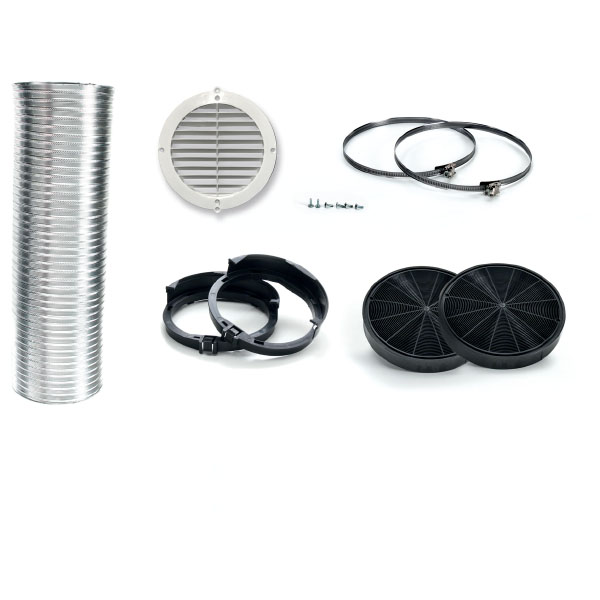

Z5135X3

Neff Standard Recirculation Kit

Optional

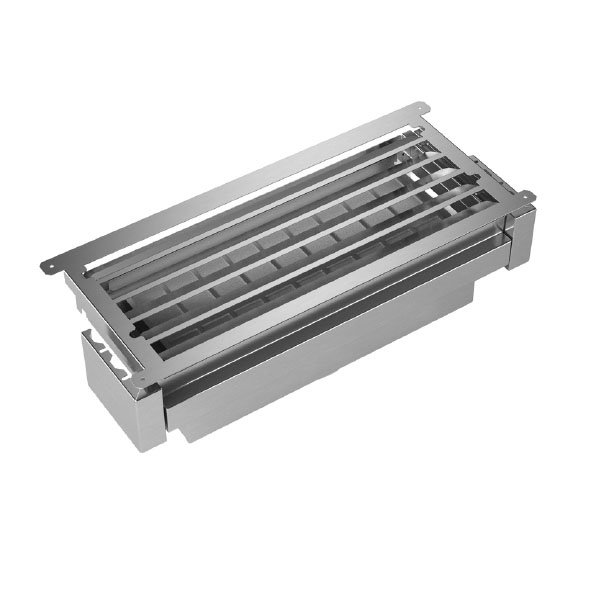

Z51ITD1X1

Neff Long Life Regenerative Recirculation Kit

Optional

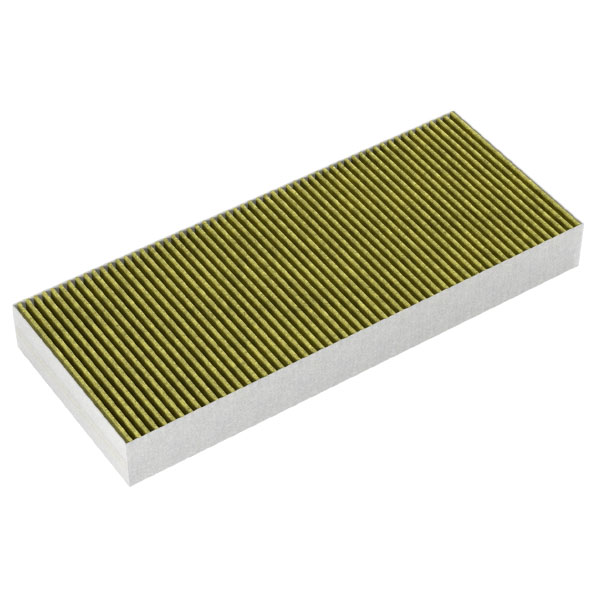

Z51IXB1X6

Neff Replacement CleanAir Plus Anti-Pollen Filter (12 month lifespan)

Optional

Z51IXC1X6

Neff CleanAir Plus Anti-Pollen External Recirculation Kit (12 month filter lifespan)
